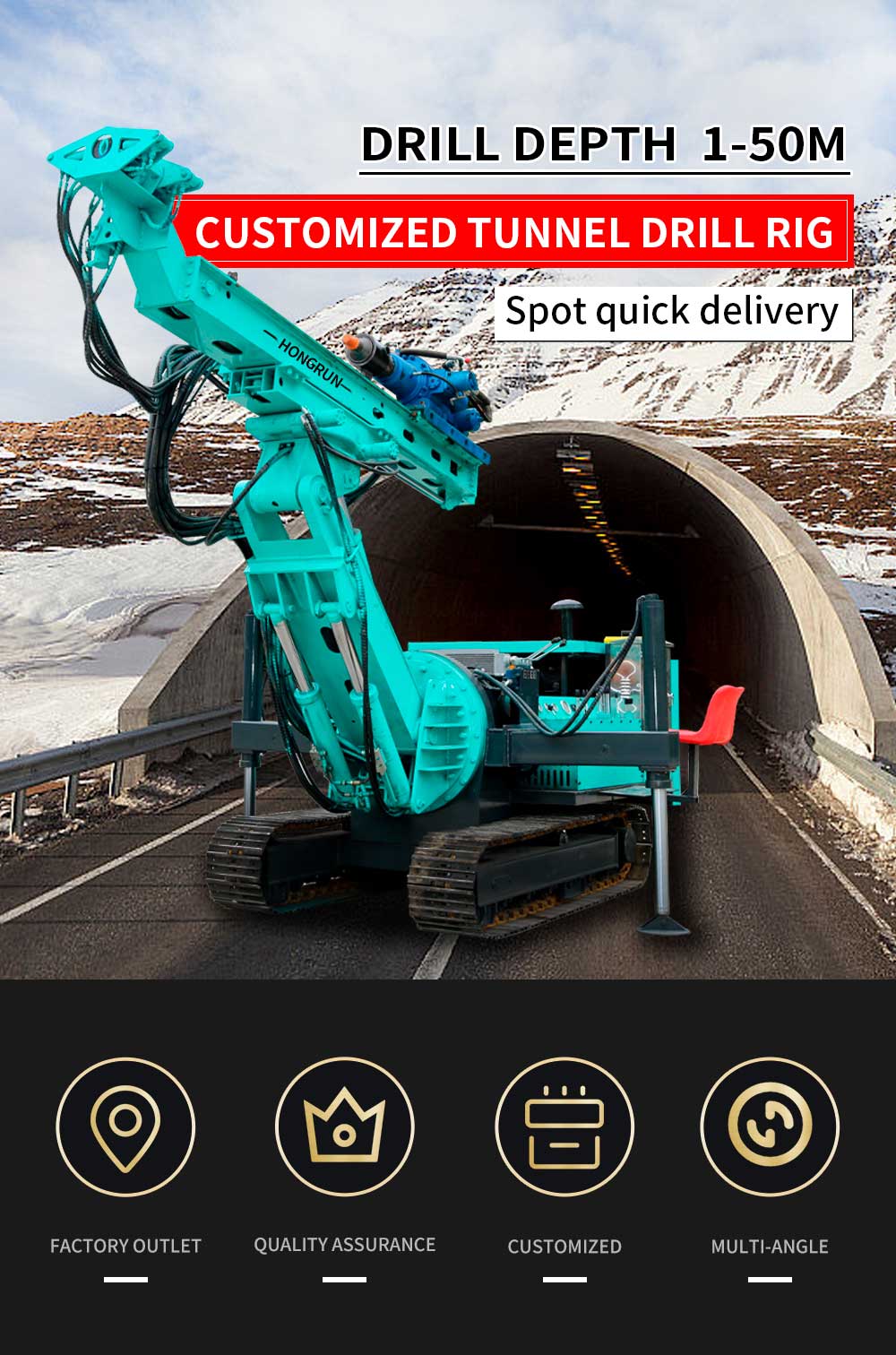

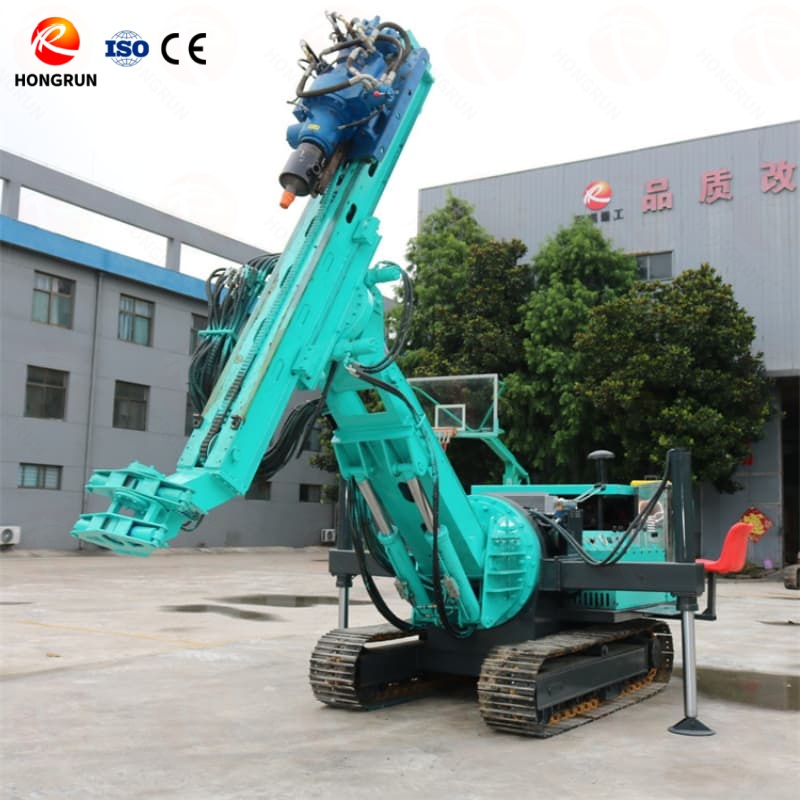

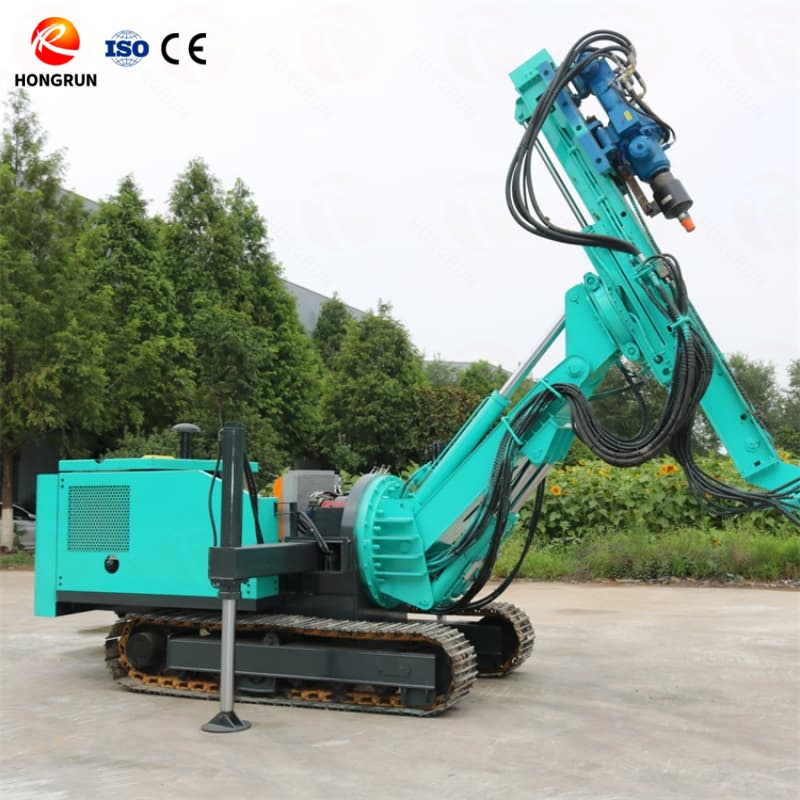

Customized Tunnel Drilling Rig
Characteristic
The customized tunnel drilling rig is equipped with a 360 ° rotating design, supporting horizontal tilting and vertical drilling. The drilling depth covers the full range of 1-50 meters, and the motor can be replaced as needed. The single propulsion length can reach 2 meters.
Advantage
Customized tunnel drilling rig with 360 ° rotation design has high flexibility, allowing for arbitrary adjustment of drilling angles to adapt to various construction environments. Dual hydraulic motors provide extraordinary power to ensure efficient construction. One click push technology, simple and convenient, reduces operational difficulty.
Interest
Customized tunnel drilling machines can flexibly adjust the drilling angle with powerful power support, making construction faster and more efficient. The replaceable motor design extends the service life of the equipment and reduces maintenance costs. The simple and convenient operation method reduces operational errors and improves construction safety.
Product Details
Support customized factory direct sales
Our customized tunnel drilling rig covers a full range of drilling depths from 1-50 meters and is equipped with a multi angle drilling system to adapt to complex geological environments. It supports operations at any angle from 0-360 ° to overcome terrain limitations. As a factory direct sales store, we maintain sufficient stock and promise to deliver quickly after placing an order.
Customized Tunnel Drill Rig Technical Parameters | |||
Applicable rock | F=6-20 | Models | YHD210 (YYG180) |
Drilling diameter | 90-300 mm | Percussion oil pressure | 175 bar |
Drill depth | 1-50 m | Percussion oil flow | 80-100 L/min |
Walking speed | 0-3 km/h | Rotation oil pressure | 150 bar |
Ground clearance | 280 mm | Rotation oil flow | 30-44 L/min |
Maximum swing angle of the slide frame | Left 180 ° Right 180 ° Total 360 ° | Rotation torque | Max 830 N.m |
Compensation length | 900 mm | Rotation speed | Max 250 rpm |
Once propulsion length | 2 m | Percussion frequency | 2900-3700 min-1 |
Working air pressure | 1-8 Mpa | Percussion energy | 300 J |
Air consumption | 14-35 m³/min | Output energy | 18 kw |
External dimensions | 6600*1800*2400 mm | Drilling diameter | 43-115 mm |
Overall weight | 6000 kg | Weight | 180 kg |
Note: The above is only a partial reference. Specific parameter configurations can be customized according to your needs. Please feel free to consult at any time!
360 ° rotation
This customized tunnel drilling rig adopts a 360 ° rotating design, supports horizontal tilting and vertical drilling, and can adjust the drilling angle freely, making construction more flexible and efficient. The drilling arm is equipped with a lifting cylinder to ensure depth and accuracy, and to improve operational safety and efficiency.

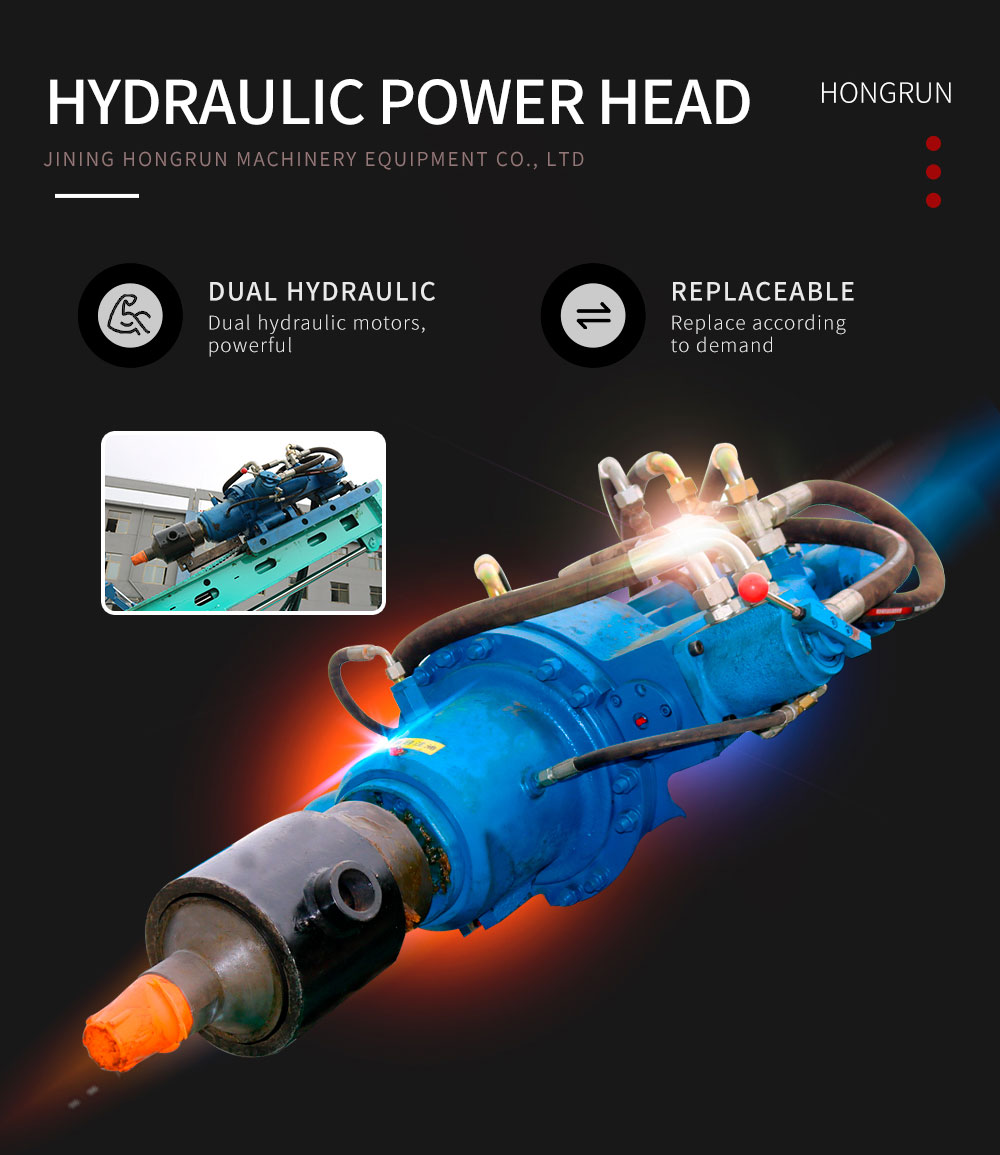

Dual hydraulic motors have strong power
Our customized tunnel drilling rig is equipped with dual hydraulic motors, providing extraordinary power. The motor can be replaced as needed, flexibly responding to various construction needs. Strong power, efficient construction, meeting your personalized needs.
Easy to operate and precise positioning
Our factory's customized tunnel drilling rig is equipped with an advanced control console, which is easy to operate and user-friendly. The hydraulic leg adjustment system enables flexible adjustment of the drilling arm angle, improving operational efficiency and safety. Simplify the operation process, reduce physical exertion, ensure precise positioning, and accelerate project progress.

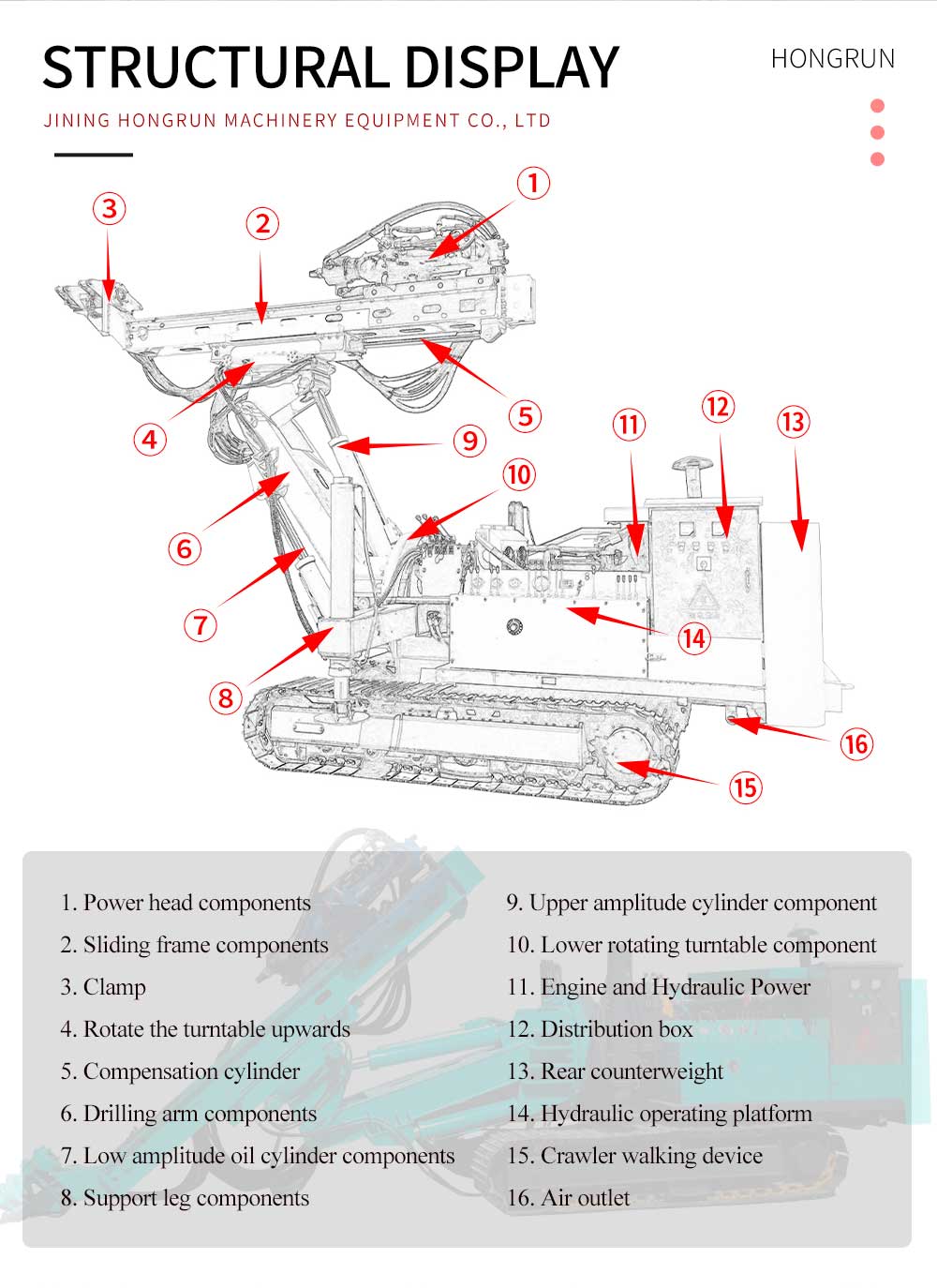

Structural Display
This efficient customized tunnel drilling rig consists of a powerful power head component, a stable sliding frame component, precise clamps, a flexible upward rotating turntable, a durable compensating cylinder, a sturdy drilling arm component, a stable low amplitude oil cylinder component, a reliable support leg component, a powerful upper amplitude cylinder component, a flexible lower rotating turntable component, a high-performance engine and intelligent hydraulic power, a compact distribution box, a balanced counterweight, a convenient hydraulic operation platform, a powerful track walking device, and an efficient air outlet.

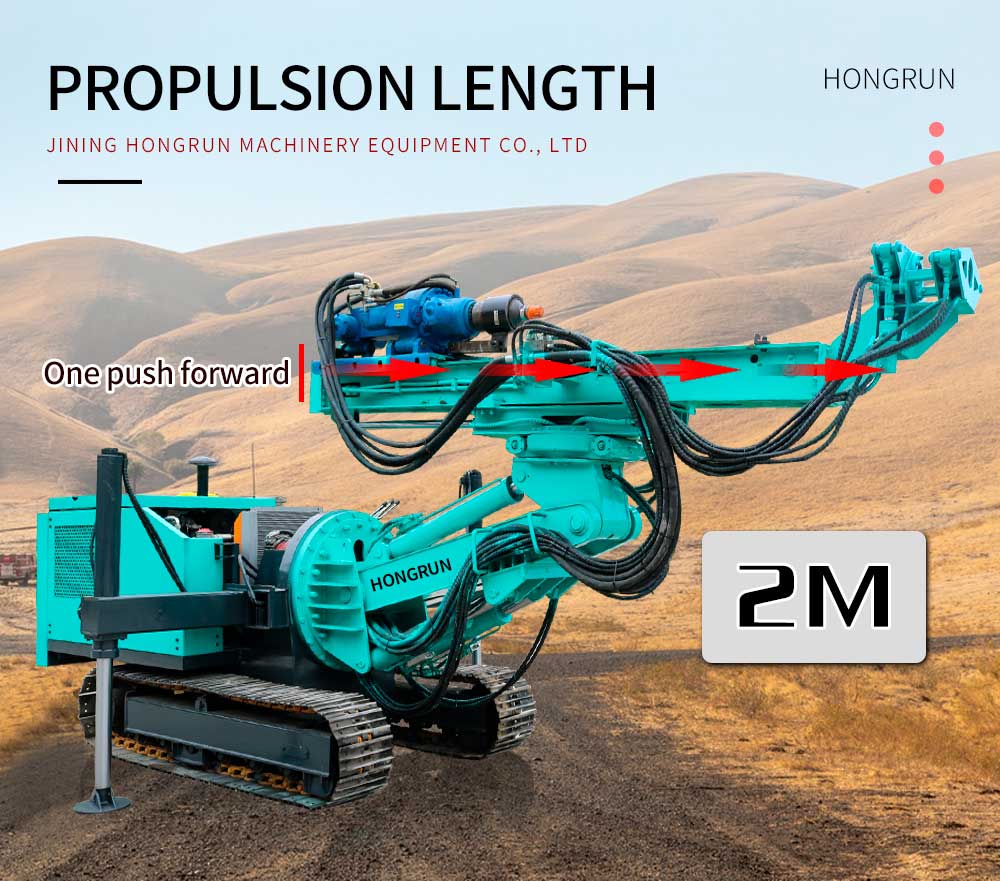

One click promotion
Our customized tunnel drilling rig adopts one click propulsion technology, which is simple and convenient. The single propulsion length can reach 2 meters, improving construction efficiency, reducing labor costs, and lowering construction difficulty. It has been widely used in various tunnel construction projects.

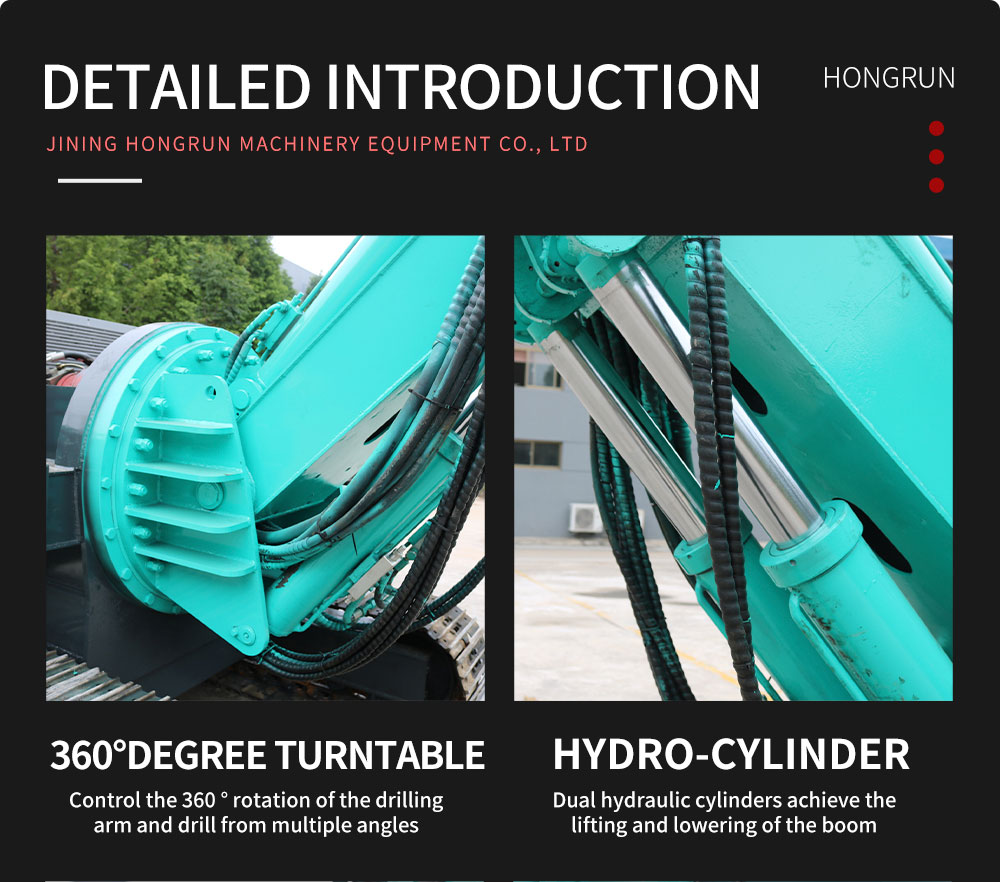

Details Introduction
This customized tunnel drilling rig adopts a 360 degree rotating table design, which easily controls the all-round rotation of the drilling arm and achieves multi angle drilling; Equipped with dual hydraulic cylinders to achieve efficient lifting and lowering of the boom. High flexibility and high operational efficiency, providing convenient and efficient solutions for your tunnel engineering.

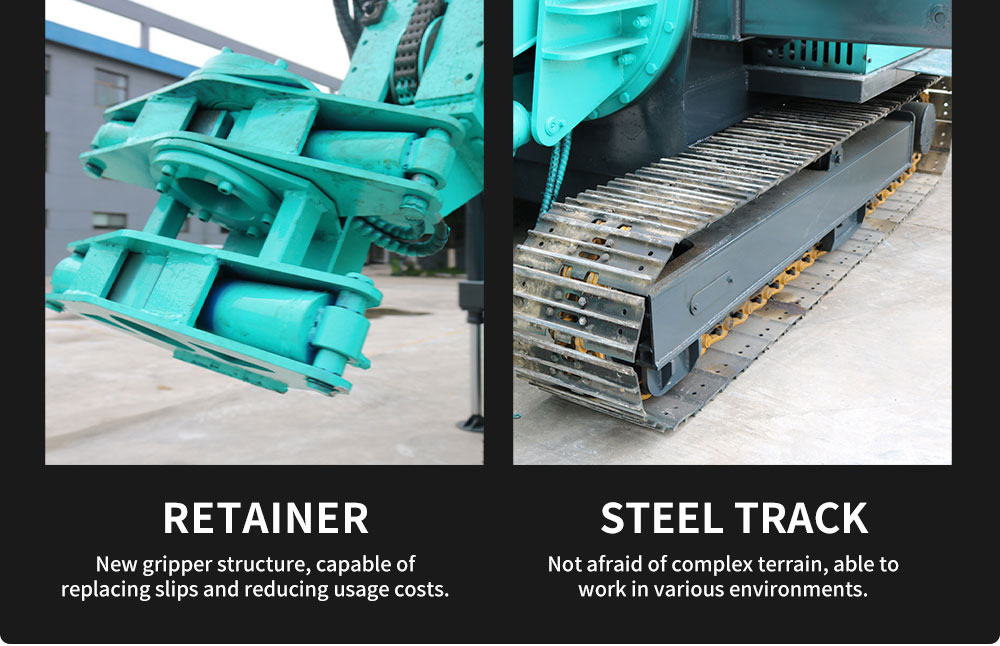

Detail Display
The new clamping device of the new tunnel drilling rig can quickly replace different specifications of slips, saving maintenance costs. At the same time, the structure is optimized to adapt to the steel rail system, resist impact and slippage, and adapt to extreme environments such as rough and wet conditions.
Factory Introduction and Various Honorary Certificates
Hongrun Machinery has participated in numerous machinery exhibitions over the past decade and its products have been exported to many countries. The wonderful moments of the exhibition freeze, witnessing our outstanding achievements and global influence. Honor witness, innovative progress.
FAQ:
What are the advantages of a dual hydraulic motor system compared to a traditional single motor?
Dual motor synchronous drive can improve drilling efficiency and work efficiency.
What is the maximum drilling depth of this tunnel drilling rig? What is the diameter of the borehole?
The device supports stepless depth adjustment of 1-50 meters, with a drilling diameter of 90-300 mm.
Can the drilling rig configuration be customized according to project requirements?
Certainly. We provide customized services that support comprehensive adaptation from basic parameters to functional systems.
