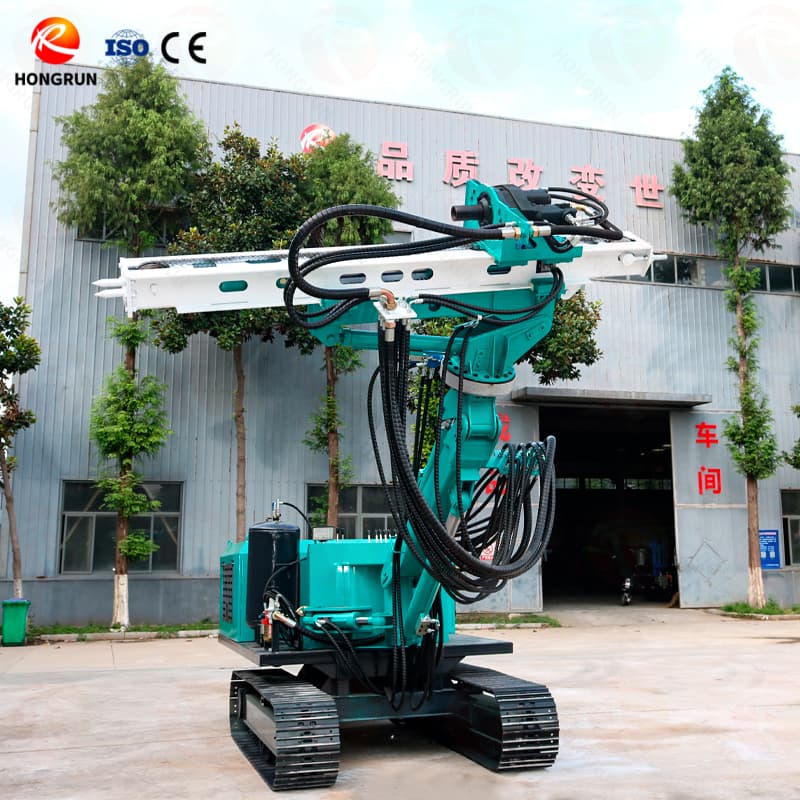

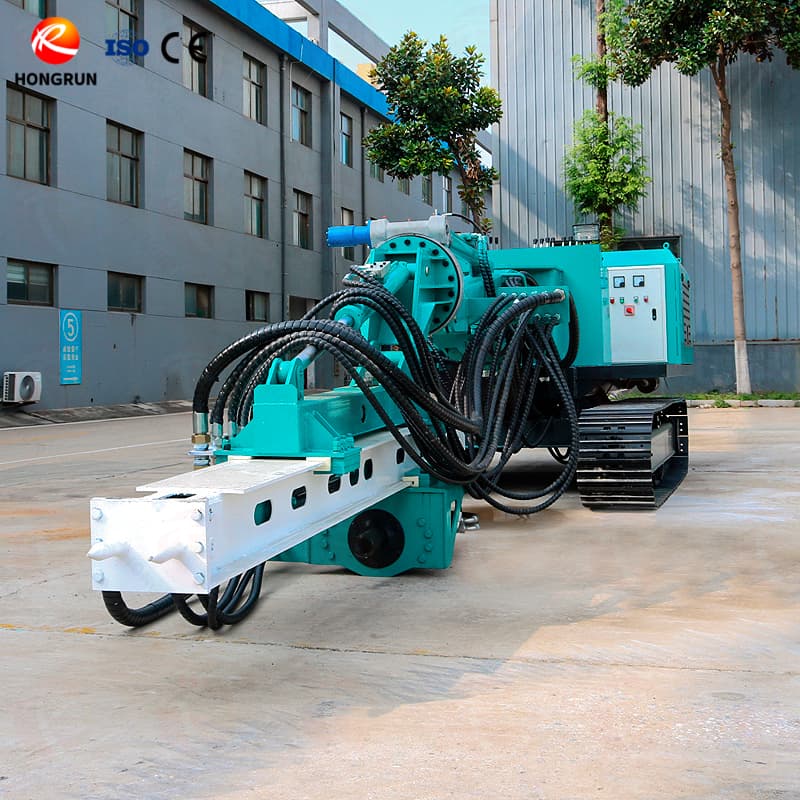

Mine Drilling Rig
Characteristic
The mine drilling rig is equipped with a 500 horsepower turbocharged engine, which increases power reserve by 40%, and is equipped with a fully copper core high-efficiency motor to extend its lifespan. The intelligent carriage system enables one click switching between horizontal, vertical/tilt (0-45 °), with a positioning accuracy of ± 0.5 °.
Advantage
The mine drilling rig has a high-efficiency combination: a full copper motor and a high-power engine, significantly improving the efficiency of hard rock drilling and reducing fuel consumption. Unique 360 ° drilling arm reduces the number of equipment movements.
Interest
The mine drilling rig can easily handle various scenarios such as tunnel arches, side walls, and arches, greatly improving construction efficiency. Its efficient work performance provides strong support for tunnel construction projects and becomes a powerful assistant for on-site construction.

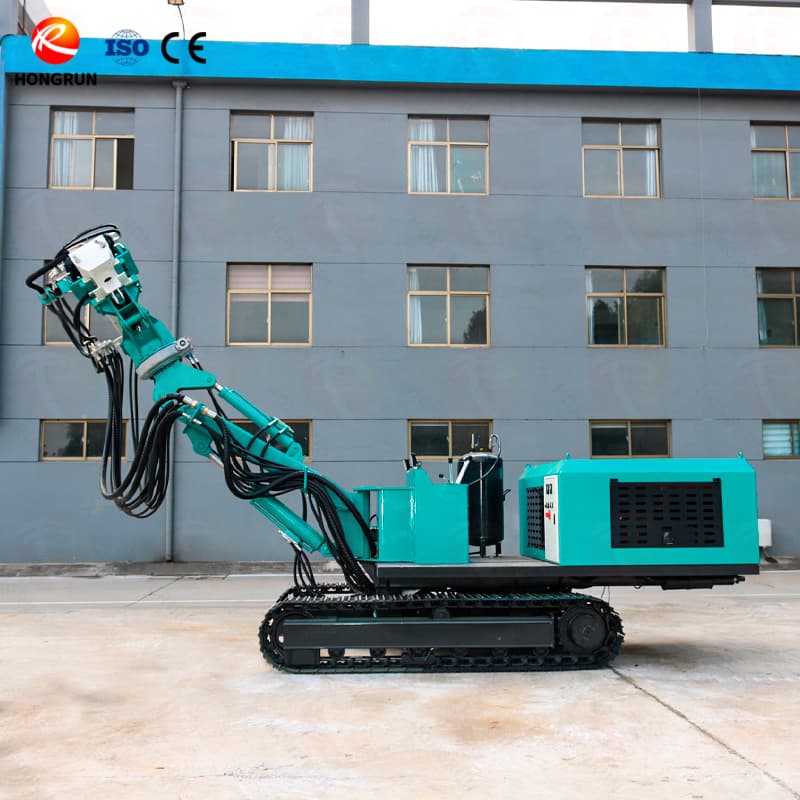

Product Details
Our mine drilling rig uses high-strength thickened oil cylinders, with a 30% increase in wall thickness and upgraded material to alloy steel. It is equipped with an intelligent up and down sliding drilling system and supports precise exploration from 0-360 ° multiple angles, with a single push stroke of up to 2 meters. The coarse oil cylinder design significantly enhances equipment stability, reduces drilling deviation, and avoids safety hazards caused by structural deformation. The sliding structure, combined with large stroke propulsion, increases single hole exploration efficiency by 60% and reduces downtime adjustment frequency
Specification parameters
Crawler Tunnel Drilling Rig（Fourth generation） | |||
Drilling diameter | 0-200mm | Drilling frame travel | 2m |
Drilling depth | 0-50m | Drill rig turntable | 360 ° rotation |
Power head | Single hydraulic motor | Swing angle | Left and right 50° |
Desiel engine | Yuchai 4105 pressurize | Working method | Dual use of oil and electricity |
Working motor | 45kw | Weight | 6000kg |
Pressurize way | Oil cylinder chain pressurization | Dimension | 7900*1900*2300mm |
Hydraulic oil pump | 40/40/32 | ||
Note: Specific technical parameters can be adjusted and supplemented according to actual needs,
Looking forward to your consultation, I will provide you with customized product services!
Our mine drilling rig is equipped with dual hydraulic motor power heads, with a drilling speed of 9OR/MIN; Adopting a 360 ° omnidirectional rotating drilling arm to adapt to complex geological environments; Provide a modular configuration system that supports personalized customization; Equipped with a fully hydraulic operating system, one click operation reduces operational difficulty and ensures construction safety.

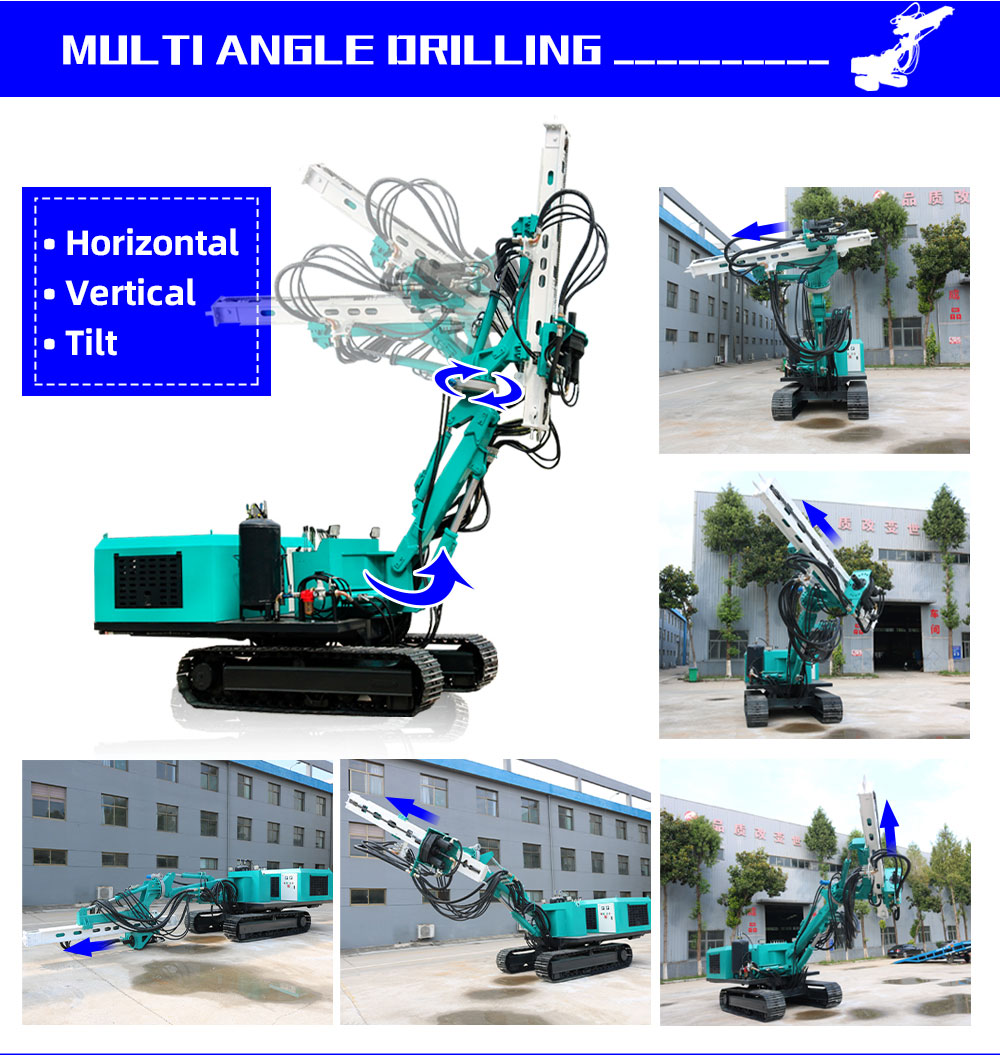

No blind spot drilling
The mine drilling rig has a 360 ° rotating drilling arm and is equipped with an intelligent slide system, which can achieve free angle adjustment of vertical 90 °, horizontal 180 °, and tilt 0-45 °. Our mine drilling rig has millimeter level accuracy and full scene coverage capability, greatly increasing construction efficiency.
Strong power, flexible adaptation
The mine drilling rig is equipped with a branded engine, which is powerful and replaceable, making it easy to cope with different geological conditions and meet engineering needs. Adopting all copper core high-efficiency motors, the failure rate is only one-third of that of ordinary motors. Equipped with a modular power system, it supports quick replacement of engine modules and is suitable for multiple scenarios such as tunnels and mines.

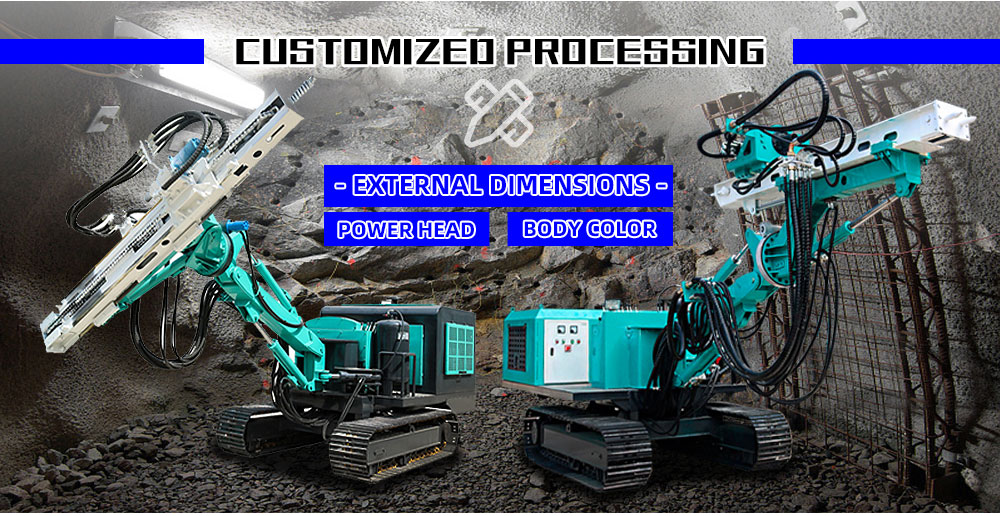

Customize as you please with worry free efficiency
Our mine drilling rig has flexible customization and can be tailored to your specific requirements. This drilling rig not only meets your special operational needs, but also has excellent work efficiency and stability, ensuring the smooth progress of the project. Its external dimensions can be adjusted as needed, the power head is powerful, and the body color is diverse to choose from.

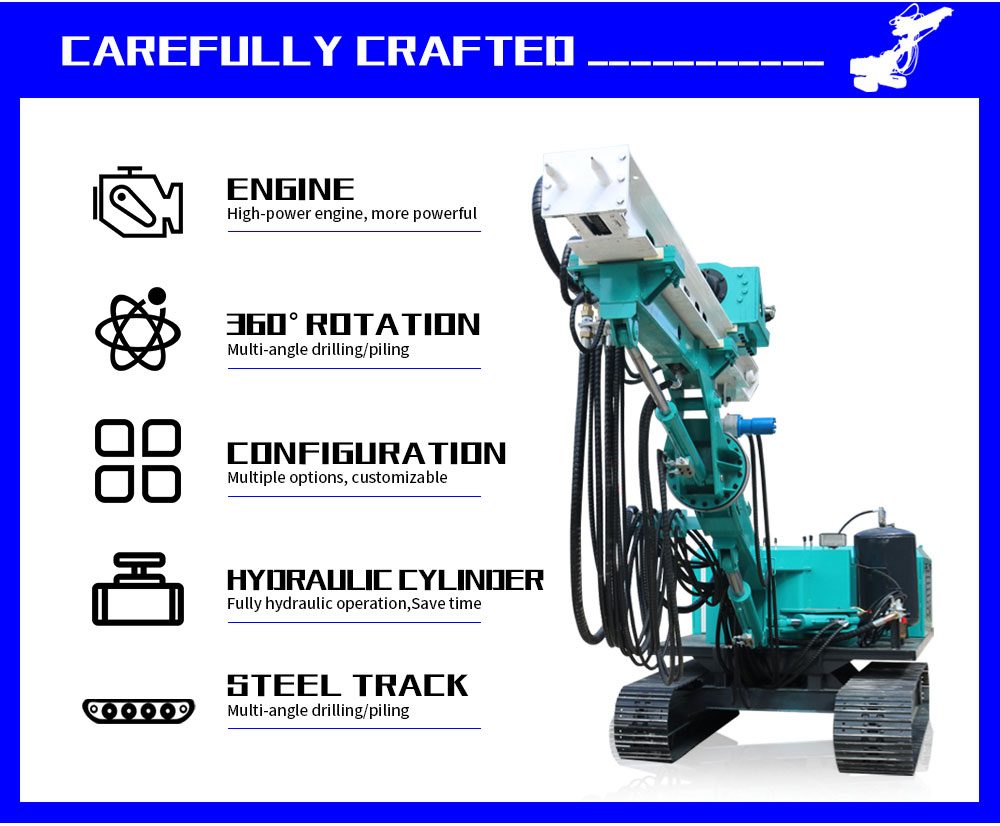

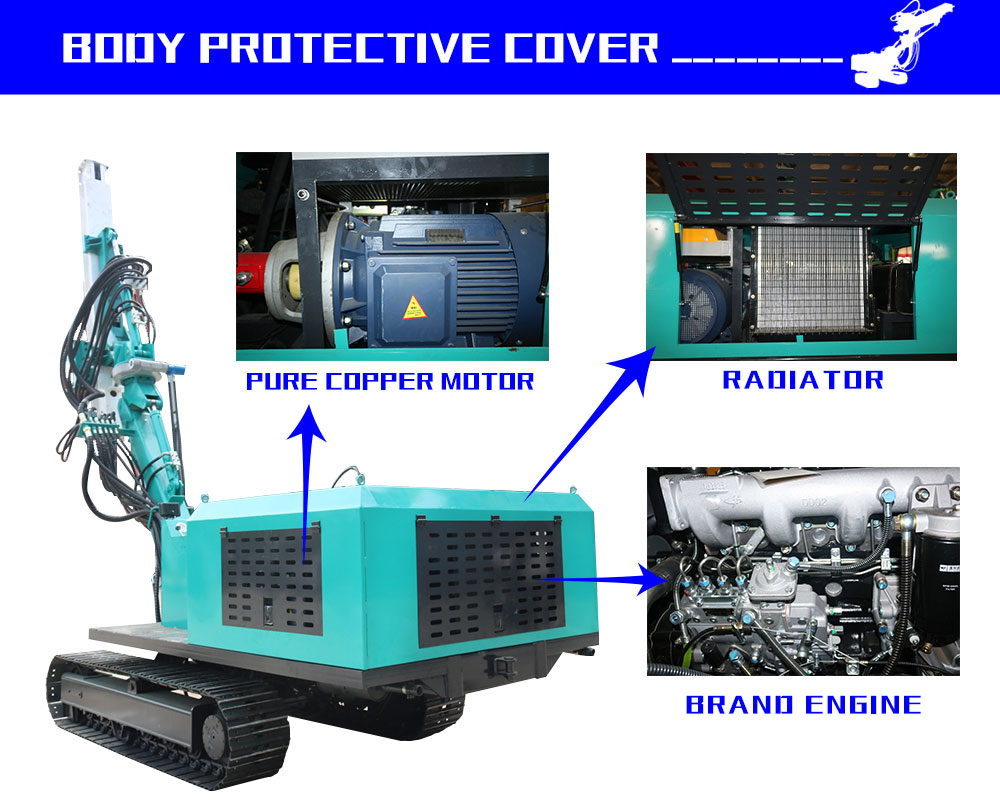

Component
Our mine drilling rig adopts a high torque power head, which increases the efficiency of hard rock drilling by 50%; Equipped with widened steel track chassis; Hydraulic cylinder sealing technology achieves zero oil leakage; The rotating turntable supports blind spot drilling, reducing the frequency of equipment movement; High pressure hydraulic pipes adapt to extreme environments; Simplify the operation process on the console; Equipped with a 500 horsepower turbocharged engine; Modular design of rail chassis reduces transportation costs.

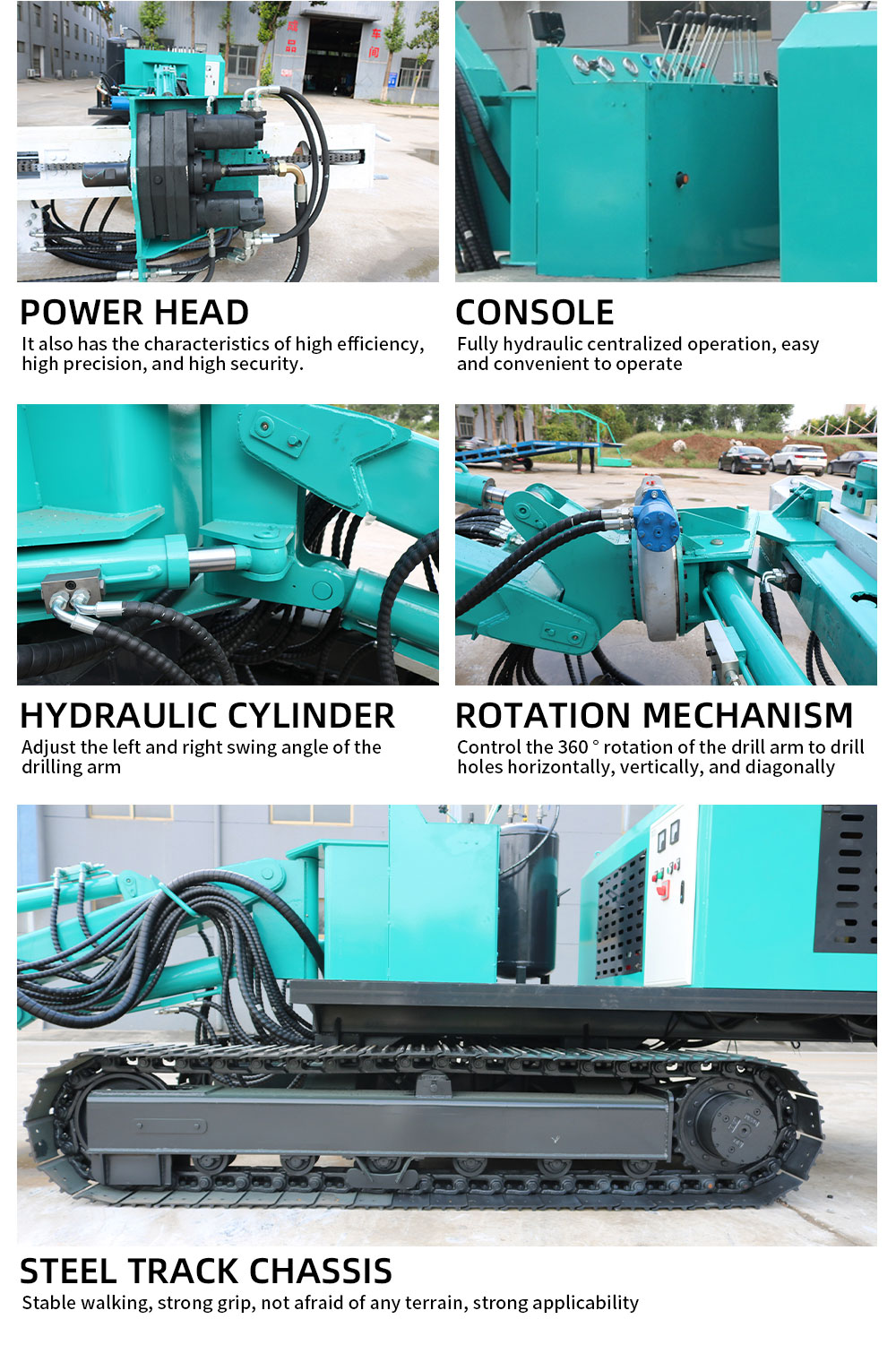

Detail Display
The mine drilling rig has an efficient, precise, and safe power head, fully hydraulic centralized operation, and is convenient and fast. The hydraulic cylinder precisely regulates the angle of the drilling arm, achieving 360 ° rotation and multi angle drilling. The steel rail chassis provides stable walking and strong grip to adapt to various terrains, making it widely applicable to various engineering projects with excellent performance.
Company Profile
Since 2012, Jining Hongrun Machinery Equipment Co., Ltd. has been deeply engaged in the research and manufacturing of special equipment for many years, continuously innovating and improving product design to meet the higher demands of customers. The company adheres to the user centered design philosophy, focusing on energy conservation, safety, and quality improvement to reduce long-term user costs and enhance product competitiveness.
Various certificates awarded to our factory
Our team's style
FAQ:
Has your company's equipment passed security certification?
Our equipment has passed the EU CE certification, China Mining Product Safety Mark certification, and SIL3 safety certification.
What after-sales services does your company provide?
We provide comprehensive after-sales services such as equipment installation, debugging, operation training, regular maintenance, and troubleshooting.
Does your company provide operational training?
Yes, we provide free operation training for our customers to ensure that your employees are proficient in operating the equipment.
