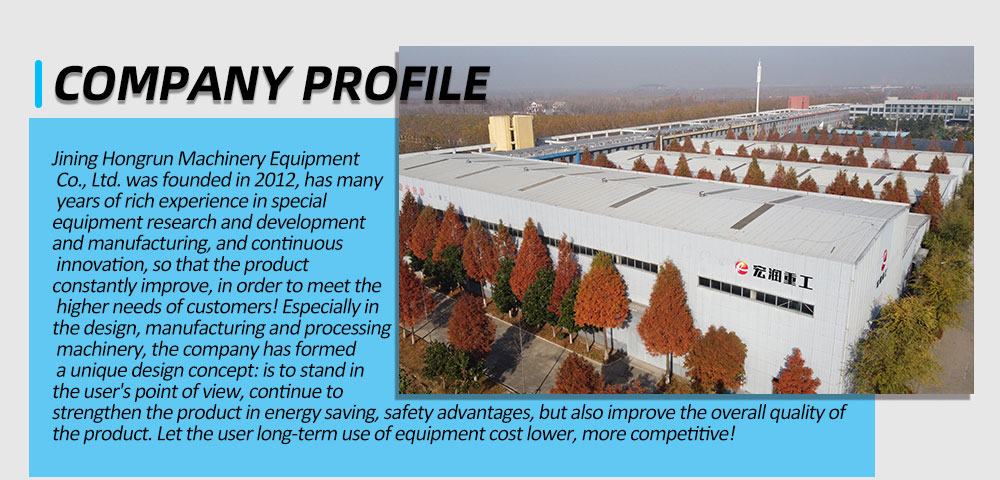

Shandong Hongrun Group (China) Co., Ltd. is located in Jining, Shandong, China, the hometown of Confucius. We are a comprehensive industry and trade integrated enterprise that values quality and reputation.
Well Drilling Rig
Characteristic

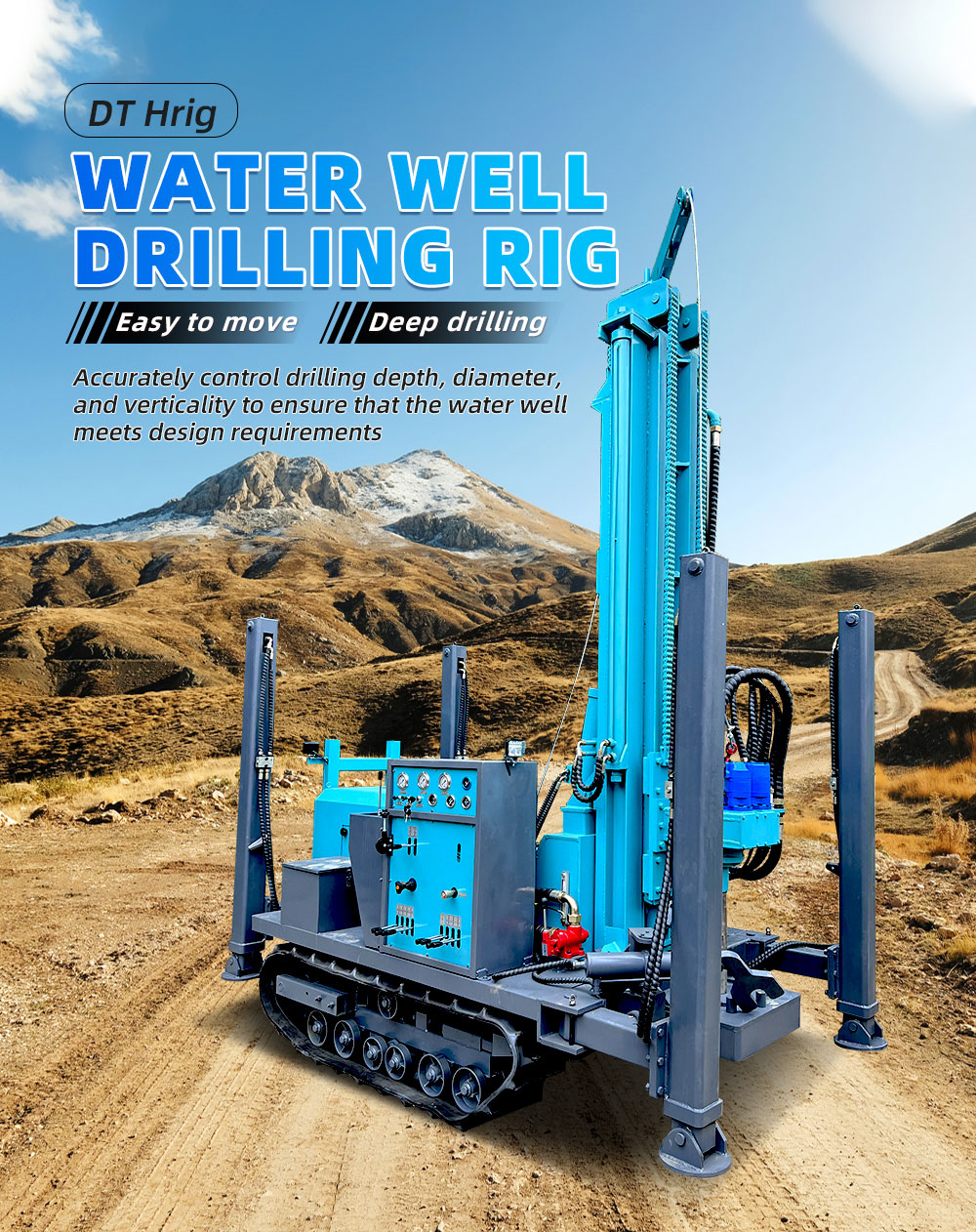

The core feature of this water well drilling rig is its high-performance power system. This system adopts the most advanced technology to provide continuous and powerful power support, making it easy to handle any drilling work. Equipped with a multi-stage drill pipe structure, the design is scientific and the craftsmanship is exquisite, greatly improving the drilling efficiency and capability of the equipment.
Advantage
This water well drilling rig is equipped with multi-stage drill pipe support, which can achieve deep drilling and easily reach depths of hundreds of meters. This is a perfect satisfaction for the development needs of deep water resources, ensuring precise control of drilling depth, diameter, and verticality regardless of geological conditions. In addition, its powerful power system ensures the smooth completion of drilling tasks in different geological environments.
Interest
The water well drilling rig not only meets the needs of efficient drilling, but also provides reliable support in various complex environments. It provides a powerful tool for the development of deep water resources, while also bringing great convenience and efficiency improvement to geological exploration work.
Product Details
Efficient deep drilling
This water well drilling rig is equipped with a high-performance power system and multi-stage drill rods, which can achieve deep drilling and precise control of drilling depth, diameter, and verticality. The powerful power system and multi-stage drill pipes support drilling wells hundreds of meters deep, meeting the needs of deep water resource development. Capable of handling different geological conditions and ensuring smooth completion of drilling tasks in various environments.
Specification parameters
Pneumatic Water Well Drilling Rig Main Technical Parameters | |||||||
Model | 180 TYPE | 200 TYPE | 260 TYPE | 300 TYPE | 400 TYPE | 600 TYPE | 800 TYPE |
Drilling depth | 180m | 200m | 300m | 300m | 400m | 600m | 800m |
Main engine power | 55 kw | 65-70 kw | 75.8 kw | 84 kw | 92 kw | 118 kw | 140 kw |
Working air pressure | 1.7-2.5 Mpa | 1.7-3.0 Mpa | 1.7-3.0 Mpa | 1.7-3.3 Mpa | 1.7-3.5 Mpa | 1.7-3.5 Mpa | 1.7-3.5 Mpa |
Lifting force（T） | 10 | 12 | 16 | 20 | 22 | 28 | 30 |
Total weight | 4.5 T | 5.8 T | 7 T | 9 T | 10 T | 12 T | 13 T |
Drill pipe length | 1.5/2.0/3.0 m | 1.5/2.0/3.0 m | 1.5/2.0/3.0 m | 1.5/2.0/3.0 /6.0 m | 1.5/2.0/3.0 /6.0 m | 1.5/2.0/3.0 /6.0 m | 1.5/2.0/3.0 /6.0 m |
Slewing speed | 45-65 rpm | 45-70 rpm | 45-70 rpm | 55-115 rpm | 45-115 rpm | 45-115 rpm | 55-120 rpm |
Gas consumption | 17-31 m³/min | 17-31 m³/min | 17-35 m³/min | 17-35 m³/min | 17-42 m³/17-42 m³/min | 17-42 m³/min | |
Slewing speed | 45-65 rpm | 45-70 rpm | 45-70 rpm | 55-115 rpm | 45-115 rpm | 45-115 rpm | 55-120 rpm |
Note: Parameter details can be optimized according to actual situations. Please feel free to contact us to tailor a solution for you.
Adapt to various complex terrains
Our water well drilling rig can adapt to various complex terrains. It can provide stable water sources for animal husbandry and agricultural irrigation, support grassland ecological protection and economic development, provide production water or drainage solutions for mining, and improve mining operation efficiency; Quickly complete drilling tasks in water conservancy facility construction to ensure project progress and quality.

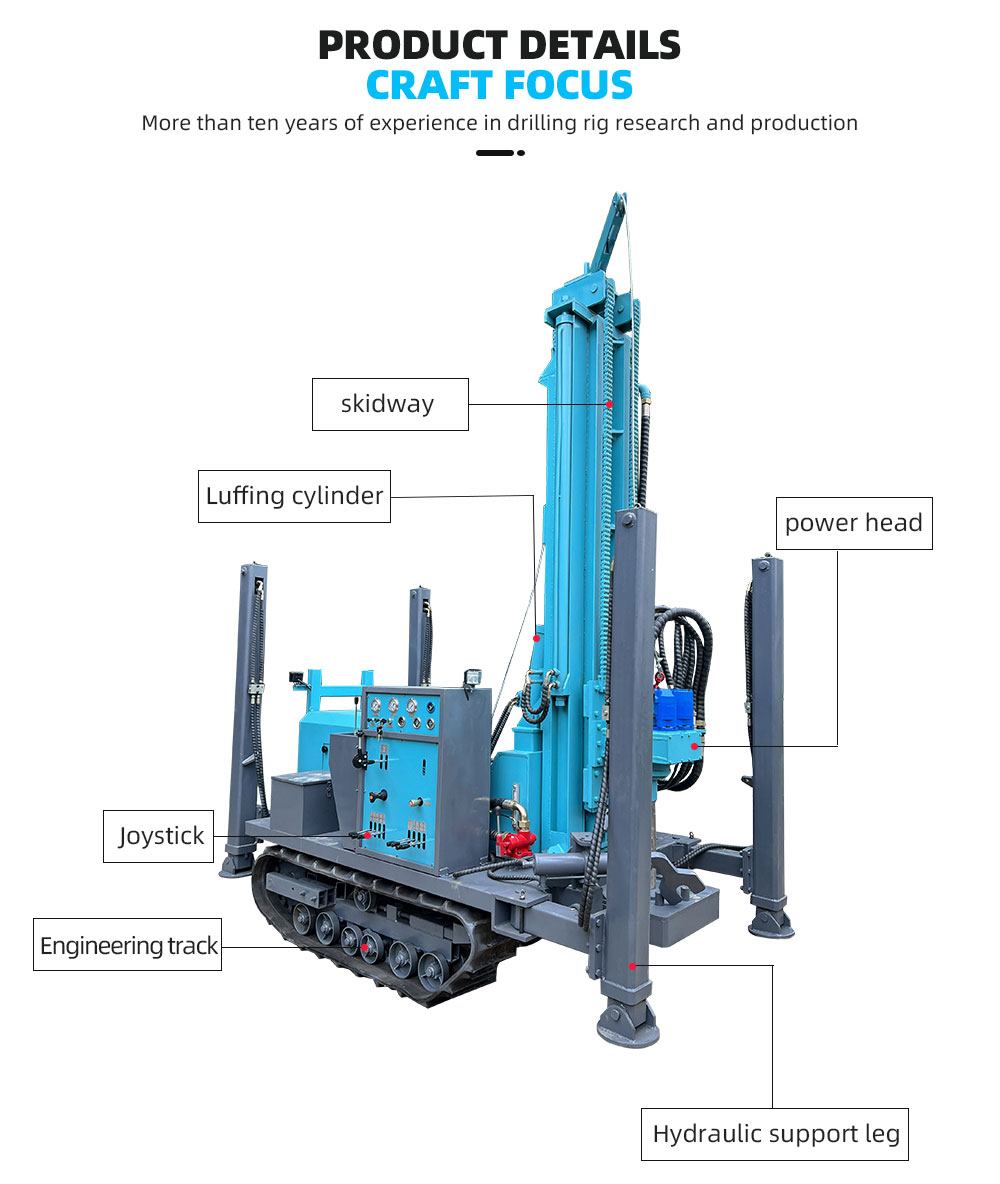

Exquisite design of water well drilling rig

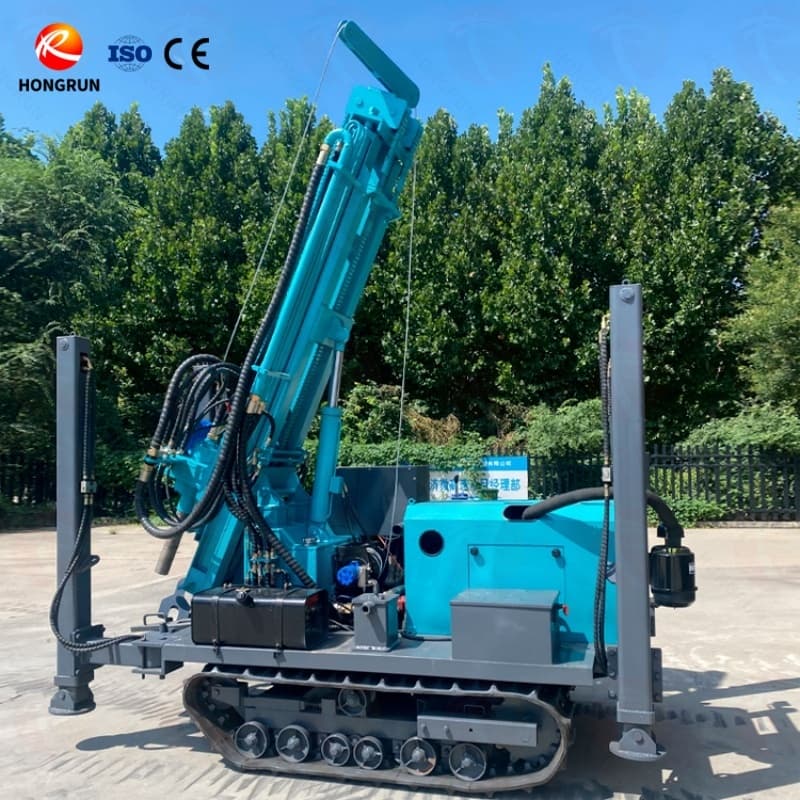

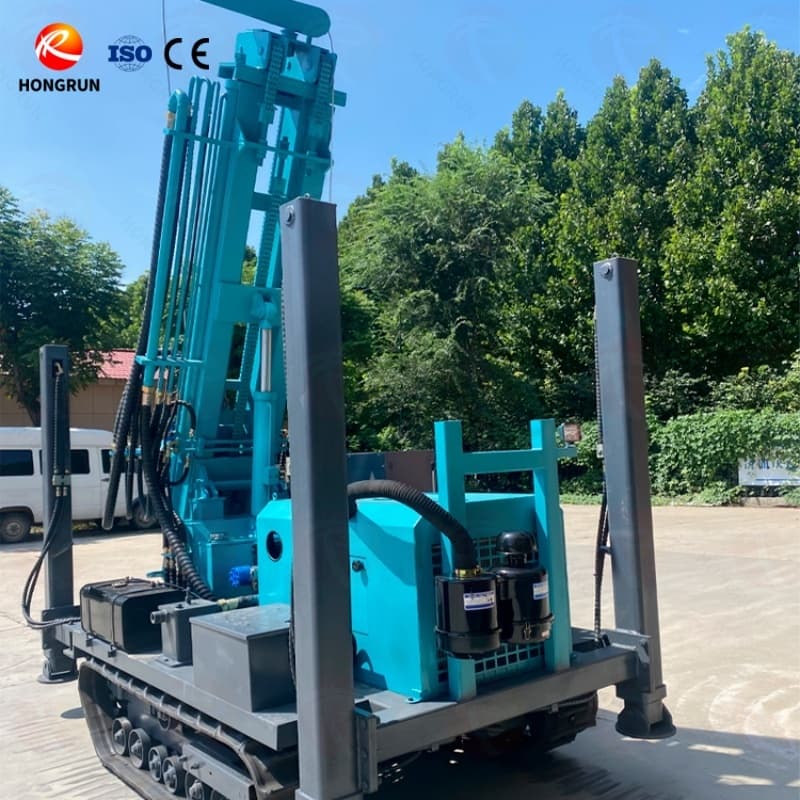

Our water well drilling rig is well-designed and has powerful functions. It has a retractable taxiway, making it easy to adjust the operating range. The hydraulic drive variable amplitude cylinder and fully hydraulic power head ensure efficient and stable drilling work. The joystick is easy to operate and handle, making the drilling rig easy to control. Wear resistant and corrosion-resistant engineering rubber tracks can operate stably in various complex terrains. Meanwhile, the equipped hydraulic support legs provide strong operational stability. This drilling rig combines advanced technology and practical performance, and will undoubtedly bring convenience and efficiency to your water well drilling work.
Dynamical system

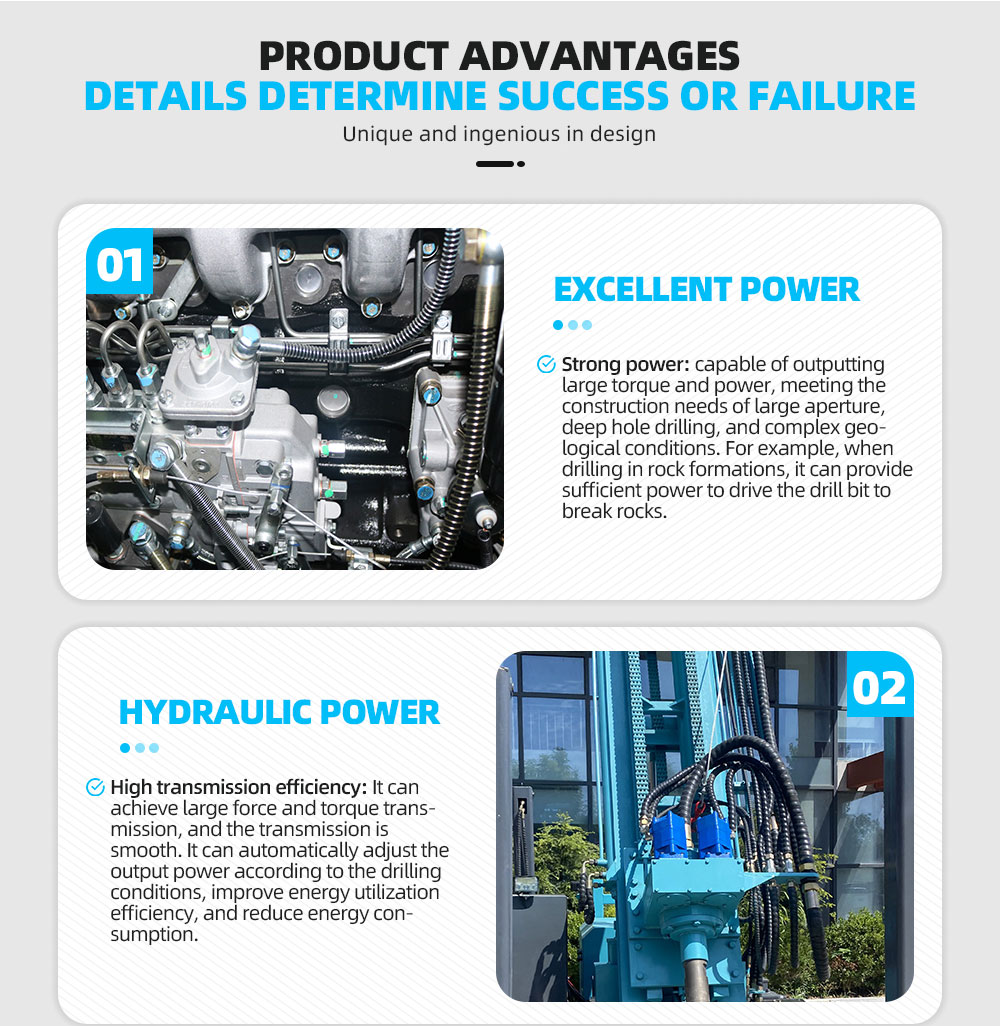

Our water well drilling rig is equipped with a powerful power system and a high transmission efficiency design, which can output high torque and power, and achieve smooth power transmission. Realize smooth transmission of high torque and high power, and automatically adjust output power according to drilling conditions to optimize energy utilization. High transmission efficiency ensures smooth operation of equipment, reduces failure rates, and extends equipment lifespan.

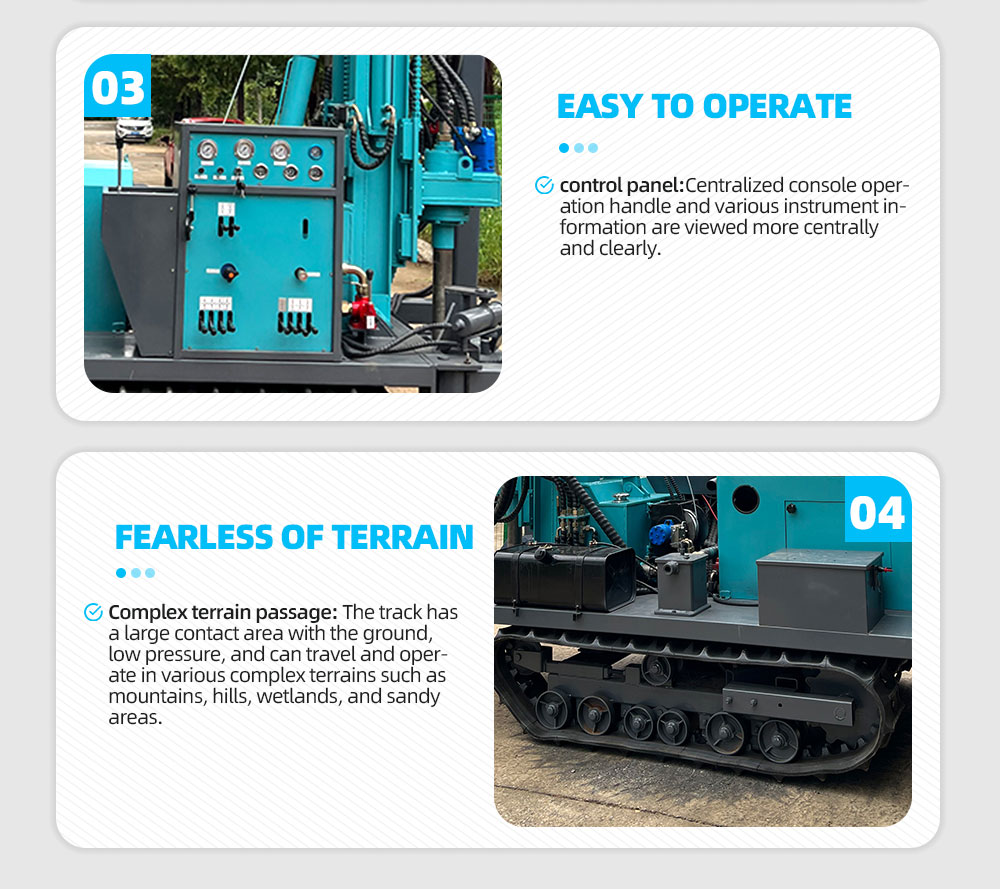

Centralized control console and rubber track chassis
Our water well drilling rig is equipped with a centralized control console, operating handles, and various instrument information layout. At the same time, it adopts a specially designed track system, which has a large contact area with the ground and low pressure. The centralized console simplifies the operation process, reduces operational errors, and improves work efficiency. Rubber track chassis can operate stably in complex terrains, reducing the risk of equipment getting stuck or slipping, and ensuring construction continuity.

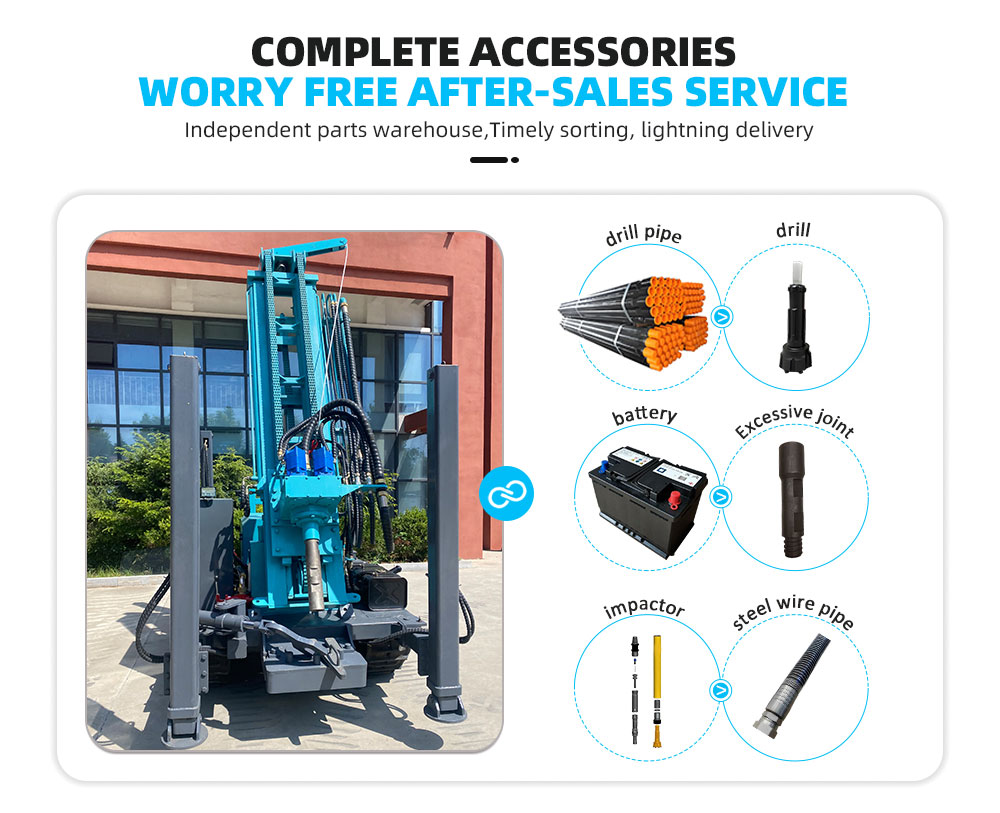

Worry free after-sales service with complete accessories
We will provide comprehensive after-sales service when purchasing our water well drilling rig. We have an independent parts warehouse equipped with complete accessories, including drill pipes, batteries, impactors, drill bits, and steel wire pipes, and support fast sorting and lightning delivery. Customers don't need to worry about parts shortages, equipment maintenance and repair are more convenient and efficient.
Adaptation scenarios

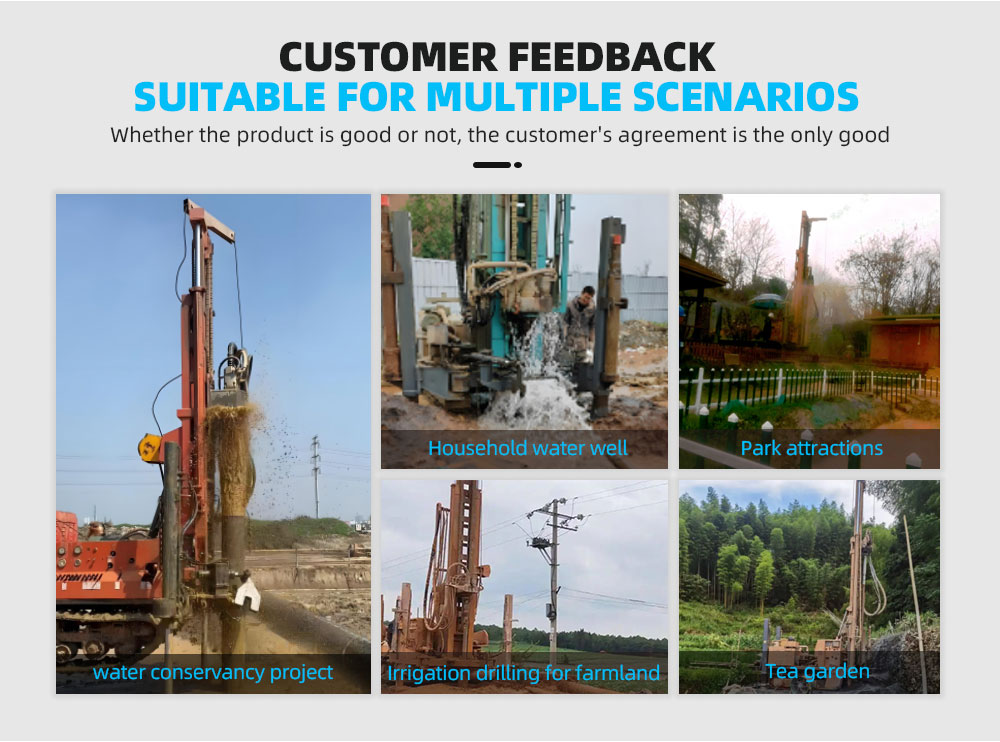

Our factory's water well drilling rig has been widely used in various scenarios according to customer feedback: ensuring stable water sources in water conservancy projects, providing pure water sources in household wells, adding beautiful scenery in parks and scenic spots, drilling holes for farmland irrigation to help harvest, and tea quality is crucial in tea gardens. Every place has customer satisfaction feedback, witnessing our professionalism and dedication.

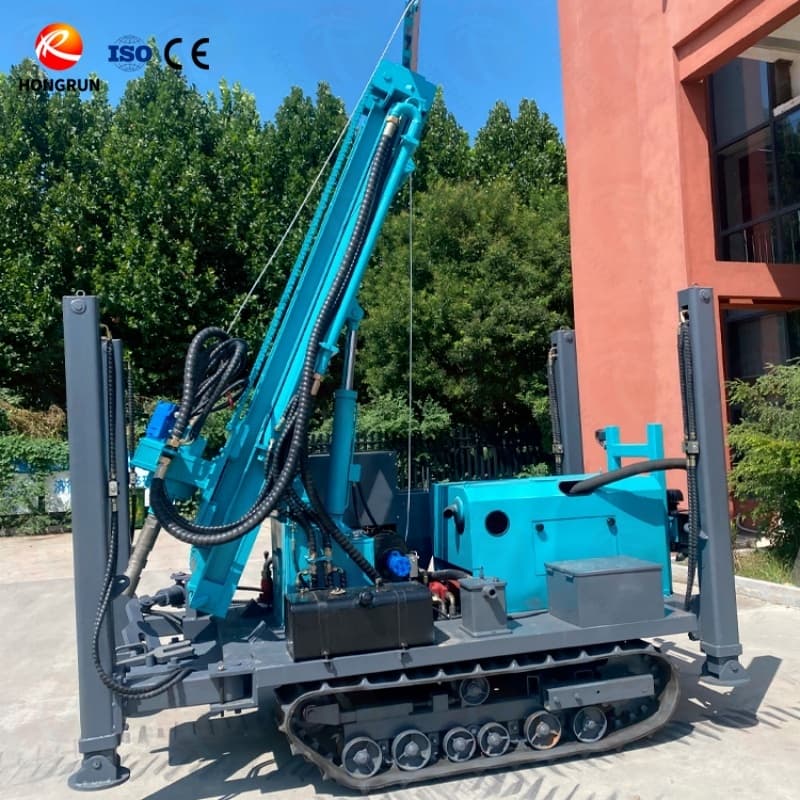

Product display of water well drilling rig

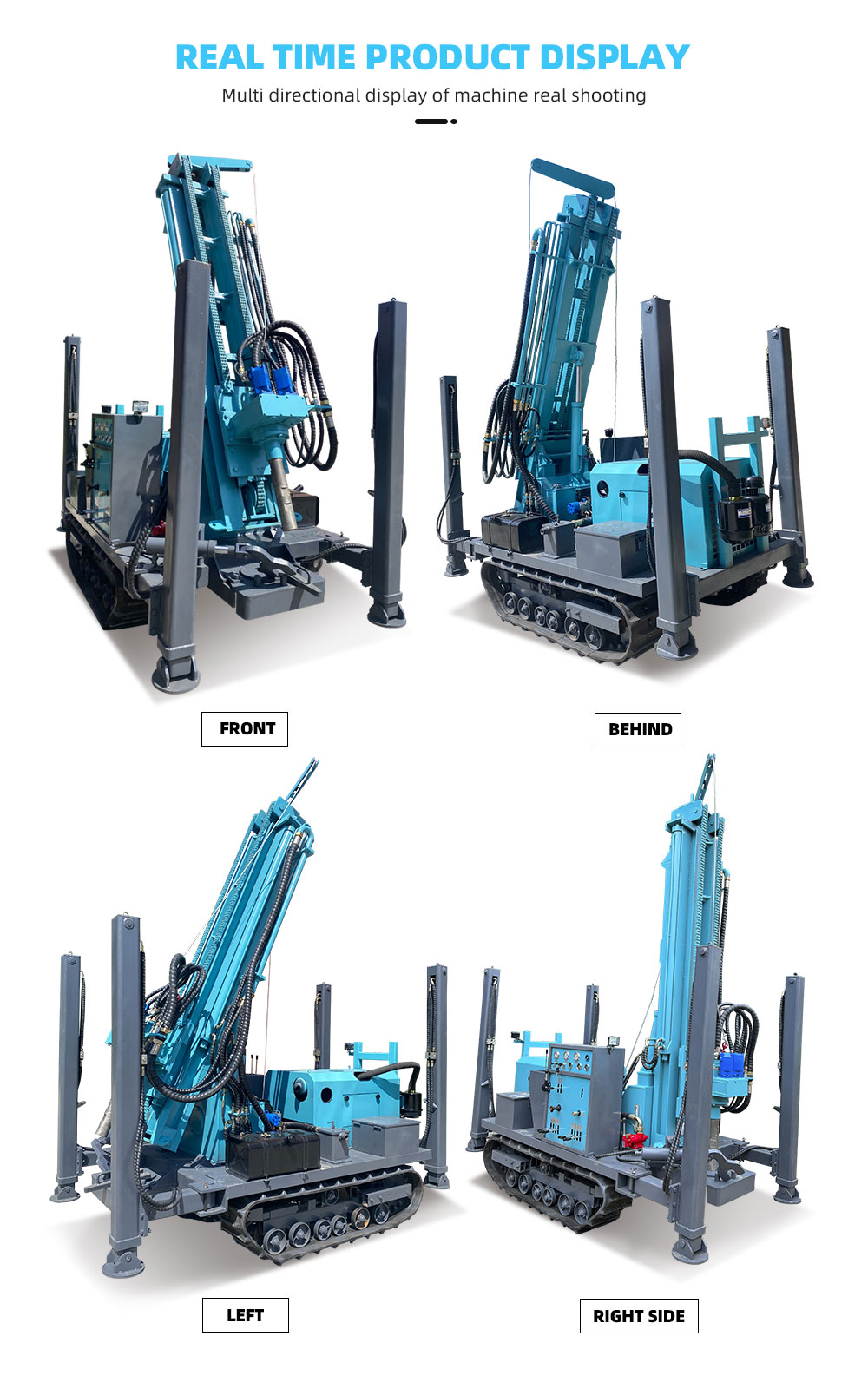

Our factory provides real-time product display of water well drilling rigs, showcasing every detail of the equipment clearly through high-definition shooting from multiple angles and all directions. Meanwhile, customers are welcome to come to the factory for on-site inspection and testing of the machines. Customers can also remotely monitor the real-time operation status of the device, providing a visual understanding of its performance.
Our factory's production workshop

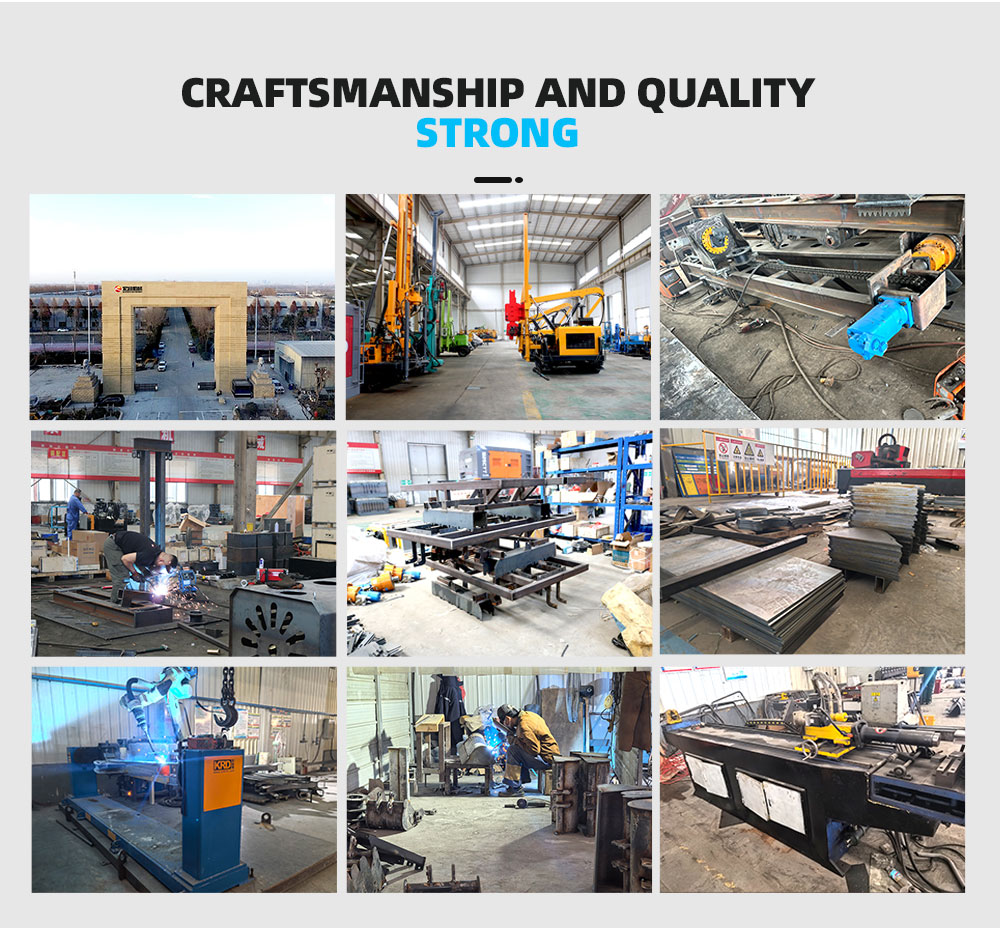

Our factory's production workshop is spacious and bright, with advanced equipment. The production process starts from the entry of raw materials into the factory, and after multiple processes of fine processing, the final product is successfully produced. Every step is strictly operated according to standardized procedures to ensure product quality. The factory layout is reasonable, greatly improving production efficiency and safety.
Our factory's prestigious patent certificate adds glory to technological innovation and injects momentum into product upgrades.
Delivery photos, wonderful group photos with customers
FAQ:
Can we provide customized mechanical design services?
Support customized design! Our engineering team will communicate with you in depth about your requirements and provide a one-stop solution from prototype design to mass production.
Can on-site inspections or equipment demonstrations be arranged?
Welcome to make an appointment for on-site inspection! Our factory is located in Jining City, Shandong Province, and can demonstrate equipment operation and production processes on site.
How to obtain product quotation or technical parameters?
You can submit the requirement form through the official website or contact our sales consultant. We will provide detailed plans and quotations based on your specific needs.
