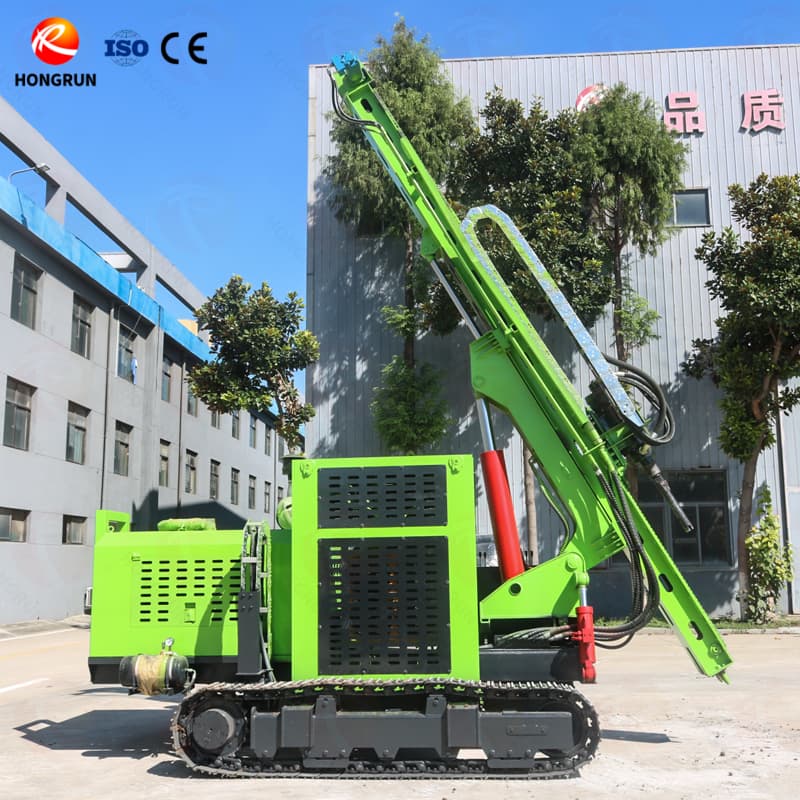

High Leg Photovoltaic Pile Driver
Characteristic
The high leg photovoltaic pile driver adopts an adjustable high leg design, with a single-sided track extension height of 1200mm, achieving super strong terrain adaptability. The multifunctional drill bit system has an adjustable drilling diameter of 90-400mm, meeting various pile foundation needs.
Advantage
The high leg photovoltaic pile driver can operate stably on complex slopes within 45 °, with an 80% improvement in terrain passability. The rapid replacement technology of the power head allows the equipment to adapt to different geological conditions.
Interest
This high leg photovoltaic pile driver has improved construction efficiency, with a single push stroke of 2.6 meters and strong adaptability. It can still be used in high-altitude and steep slope environments, shortening the construction period.
Product Details

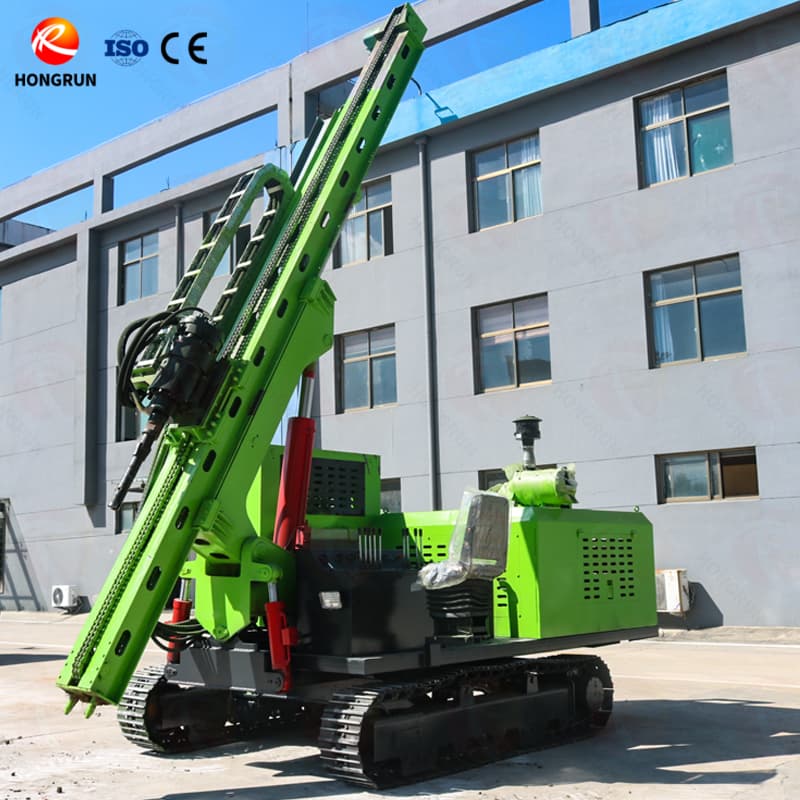

This high leg photovoltaic pile driver is designed specifically for complex terrains, equipped with adjustable hydraulic legs that support personalized customization to meet the needs of different pile types. Mountain operations are stress free, and even on rugged slopes, precise positioning can be achieved to ensure the long-term stability of photovoltaic power plants.
Specification parameters
High leg photovoltaic pile driver | |||
Model | HR-600Q | Torque | 13500 N.m |
Drilling diameter | 90-400 mm | Air consumption | 12-26 m³/min |
Drilling depth | 1-70 m | Walking speed | 0-5 km/h |
Drill pipe diameter | 76/89 mm | Swing speed | 0-110 r/min |
Drill pipe diameter(spiral) | 130-400 mm | Slider pitch angle | 120° |
Adapt to rock hardness | 6-20 F | Big arm | Front and left oil cylinder amplitude adjustment |
Propulsion stroke | 2.6 m | Unilateral crawler telescopic height | 1200 mm |
Engine | Yuchai 4105ZY | Weight | 5000 kg |
Rated power | 85kw | Dimension | 3.5*2.3*2.9 m |
Note: We can flexibly adjust technical parameters according to your needs. If you have any questions, please feel free to contact us and we will provide you with suitable solutions!

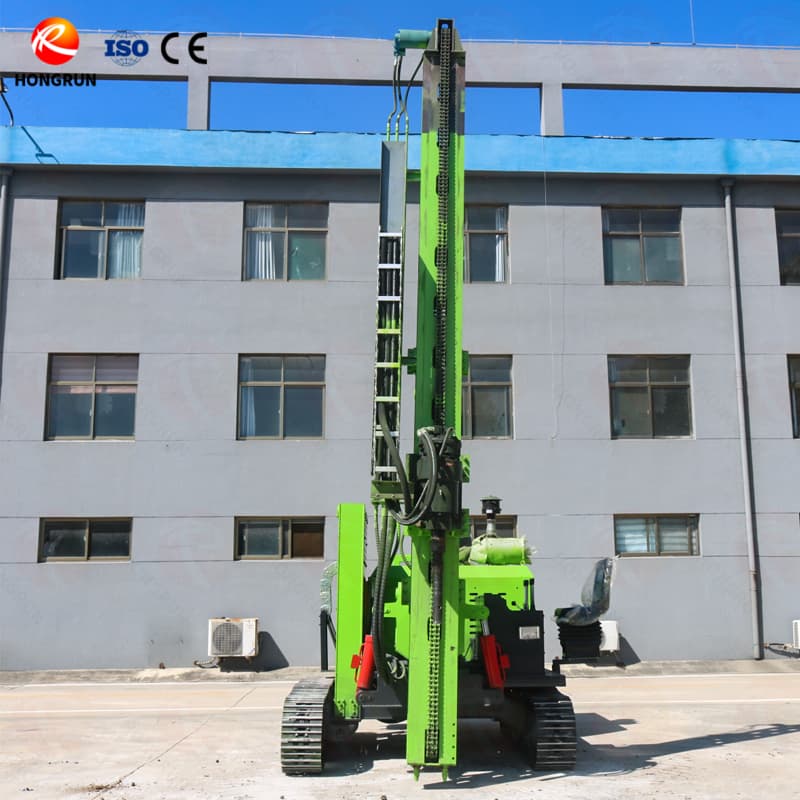

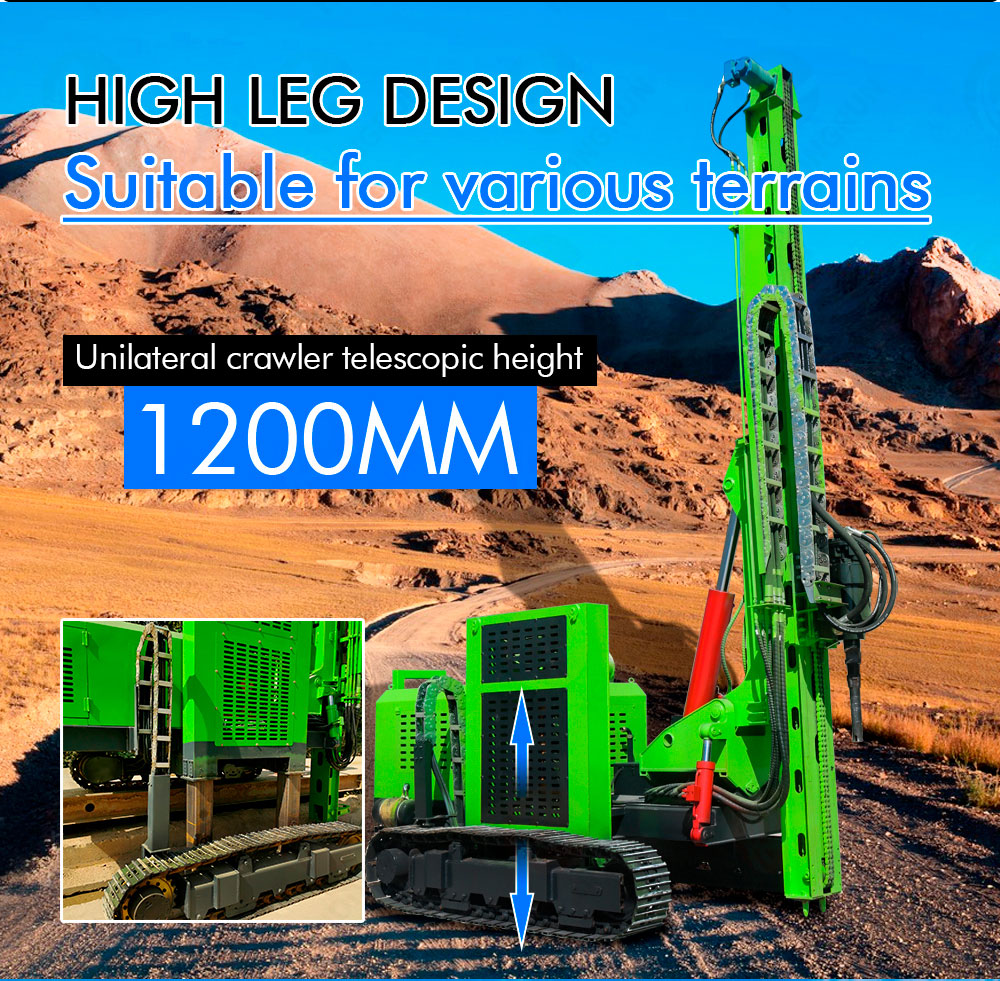

High leg design
Our factory's high leg photovoltaic pile driver adopts a unique adjustable high leg design, with a single-sided track extension height of up to 1200 millimeters, making it easy to cope with complex terrains such as mountains and slopes. The high leg structure greatly improves the stability of the entire machine, allowing for precise construction even on rough and uneven terrain, avoiding the inefficiency problem caused by terrain limitations in traditional equipment.

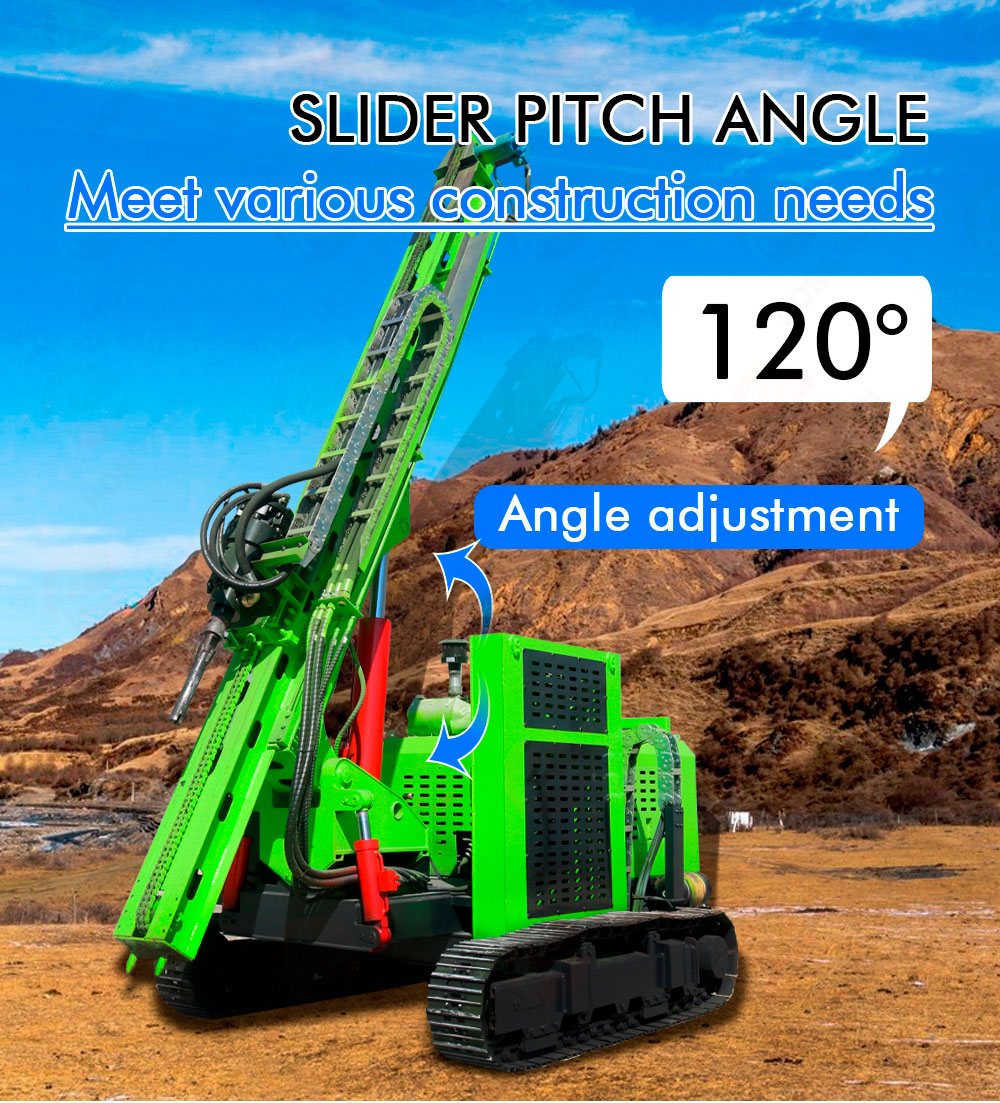

Sliding block working angle
The high leg photovoltaic pile driver adopts innovative design, with a sliding frame tilt angle of 120 °, greatly improving the equipment's adaptability to complex terrains such as steep slopes and slopes. The ultra large slope adjustment range enables the equipment to perform stable construction in various extreme terrains, avoiding the inefficiency or safety hazards caused by traditional pile drivers due to limited angles.

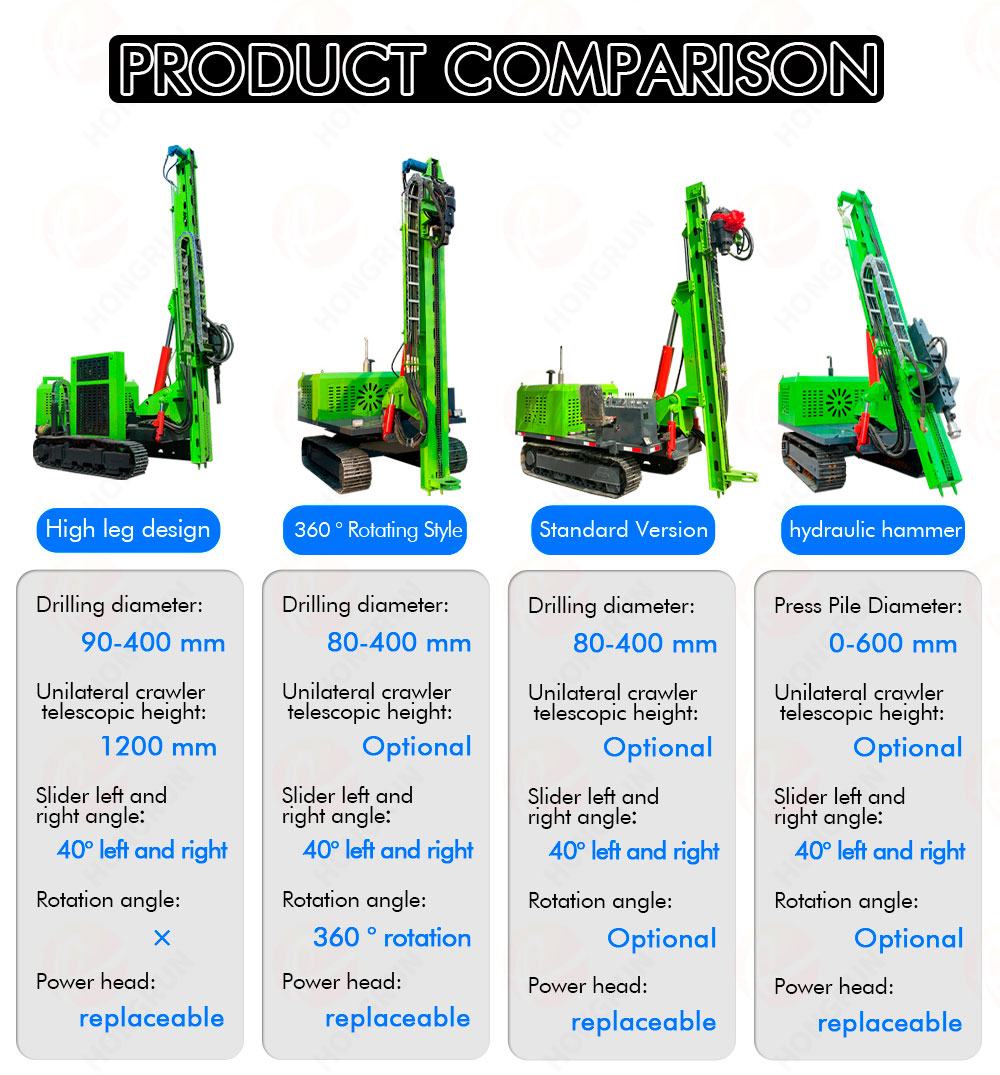

Multiple styles support customization
Our photovoltaic pile driver has multiple configurations for you to choose from. This photovoltaic pile driver adopts a high leg design with a drilling diameter of 90-400 millimeters. The single-sided track has a telescopic height of up to 1200 millimeters, allowing for flexible adaptation to various terrains. The left and right sliders have a 40 ° angle to improve work efficiency; The replaceable power head meets diverse needs.

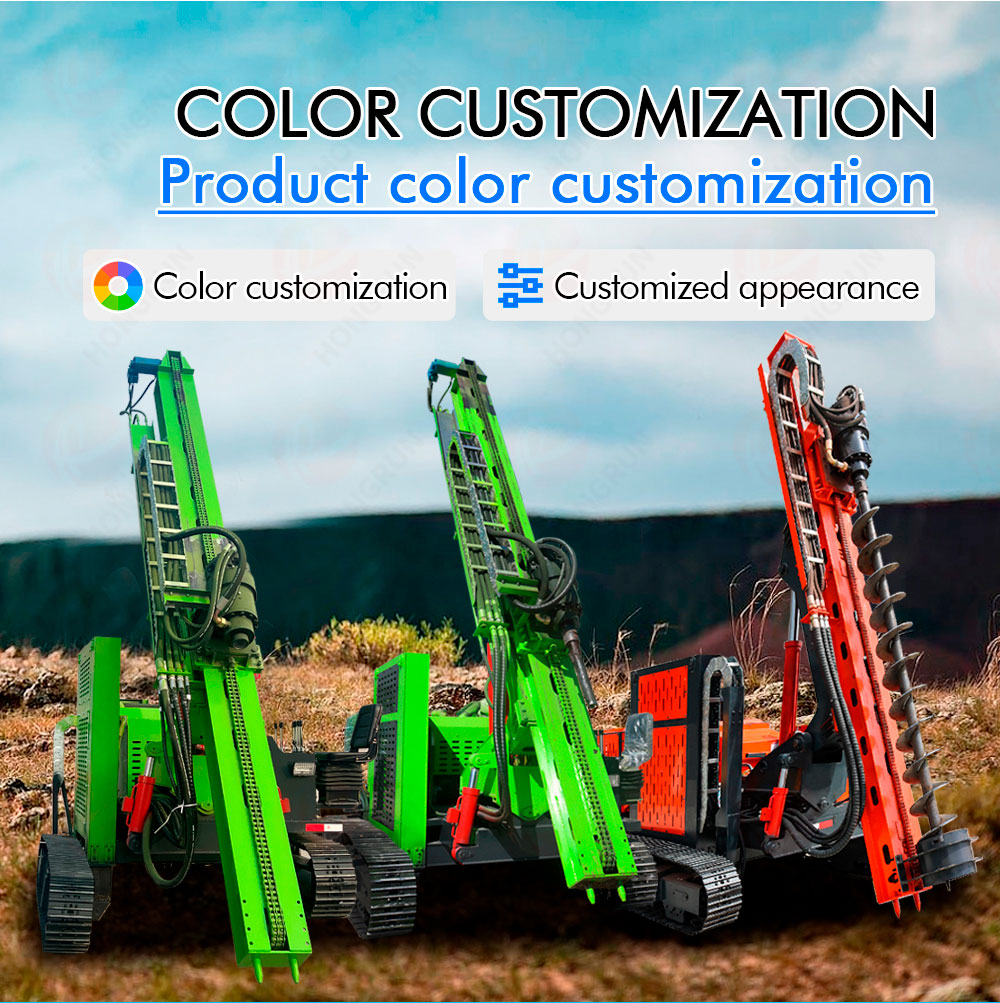

Color support customization
Our high leg photovoltaic pile driver supports customized appearance colors and can provide personalized color schemes according to customer needs.
This high legged photovoltaic pile driver adopts an all terrain adaptive chassis design, equipped with a high torque drive system and an intelligent balance control system. Ultimate climbing ability easily conquers mountainous terrain, hydraulic support legs automatically level to ensure safe slope operations, and a user-friendly control interface enables efficient single person operation.
Structural Decomposition
Our high legged photovoltaic pile driver is equipped with an independent control console, comfortable operating seats, and a high-power dedicated engine. The independent console is easy to operate and ensures safe operation; Ergonomic seats significantly reduce operational fatigue; High power engines ensure continuous power output under complex operating conditions.

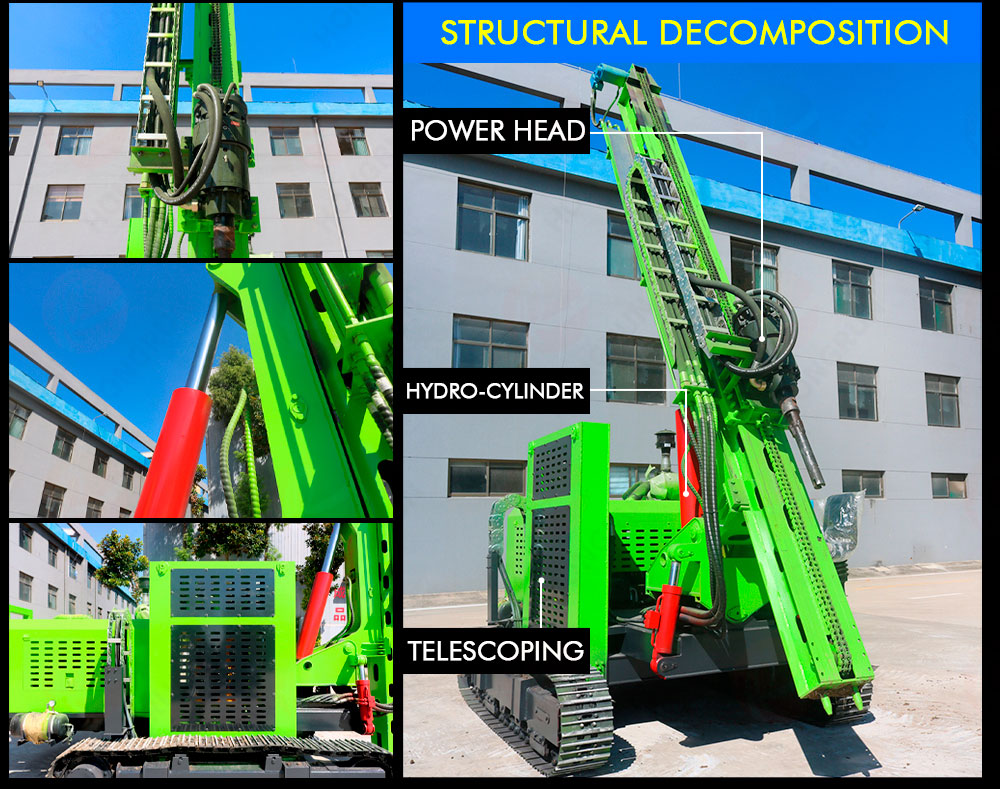

Structural Decomposition
This high leg photovoltaic pile driver consists of a power head, hydraulic cylinder, and extendable legs, with a leg extension height of up to 1200mm. It is suitable for various terrains, improves construction efficiency, and is widely used in the field of photovoltaic construction, receiving high praise from users.
Company Profile
Hongrun Machinery is dedicated to providing you with excellent service and striving to meet the needs of every customer. We sincerely invite you to visit our factory and experience the performance and quality of our equipment firsthand. Watching and testing the machine, looking forward to face-to-face communication with you.
Support customization
Welcome to contact our online customer service. Our professional customer service team will provide you with one-on-one customized services, answer your questions at any time, and ensure that your needs are accurately met. Looking forward to working with you to create satisfactory customized solutions together.
FAQ:
What is the hardness of the rock that this machine is suitable for?
This machine is suitable for rock hardness of 6-20 F.
What are the drilling diameter and depth of the machine?
The drilling diameter of this machine is 90-400 mm, and the drilling depth is 1-70 m.
Is the maintenance of this device complicated?
Key components (such as hydraulic systems) are sourced from top international brands with low failure rates, and remote diagnostic services are provided for easy maintenance.
