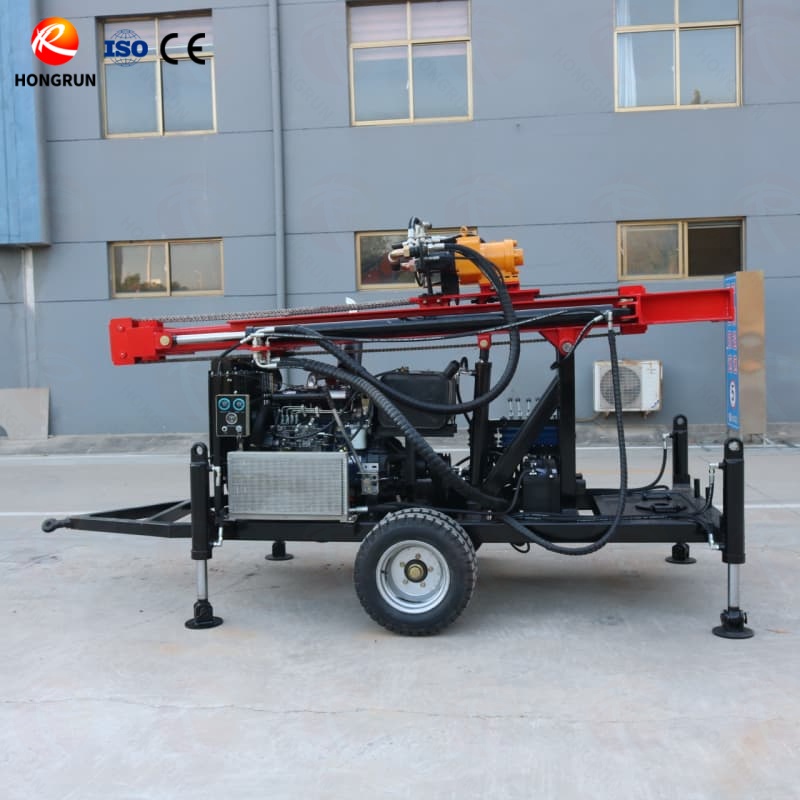

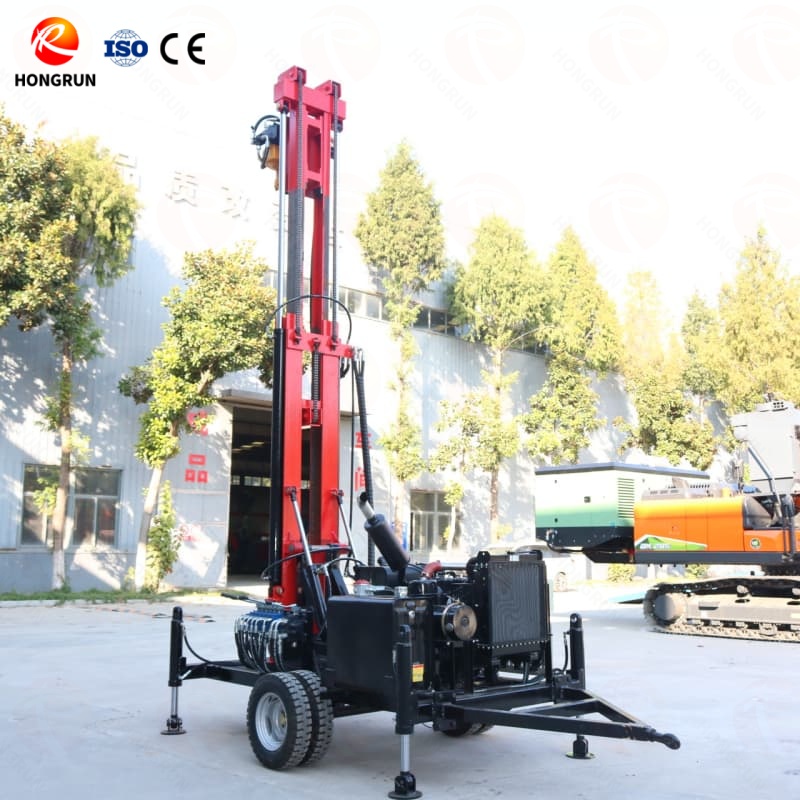

78 Horsepower Wheeled Water Well Drilling Rig
characteristic
This 78 horsepower wheeled water well drilling rig adopts a fully hydraulic drive system, with a branded diesel engine providing strong power to ensure continuous and efficient operation. The four-way hydraulic oil pump ensures coordinated operation of various executing components, and the professional cooling system ensures continuous operation of the equipment in high temperature environments.
advantage
This 78 horsepower wheeled water well drilling rig has strong adaptability and can handle various formations such as hard rock, quicksand, clay, etc. The hydraulic system response speed is improved, making the operation more precise and capable of switching between drilling/exploration modes.
interest
This 78 horsepower wheeled water well drilling rig is easy to operate and can be operated by one person, saving manpower. It is versatile and easy to maintain, allowing for quick transitions and improving order taking capabilities.
Product Details

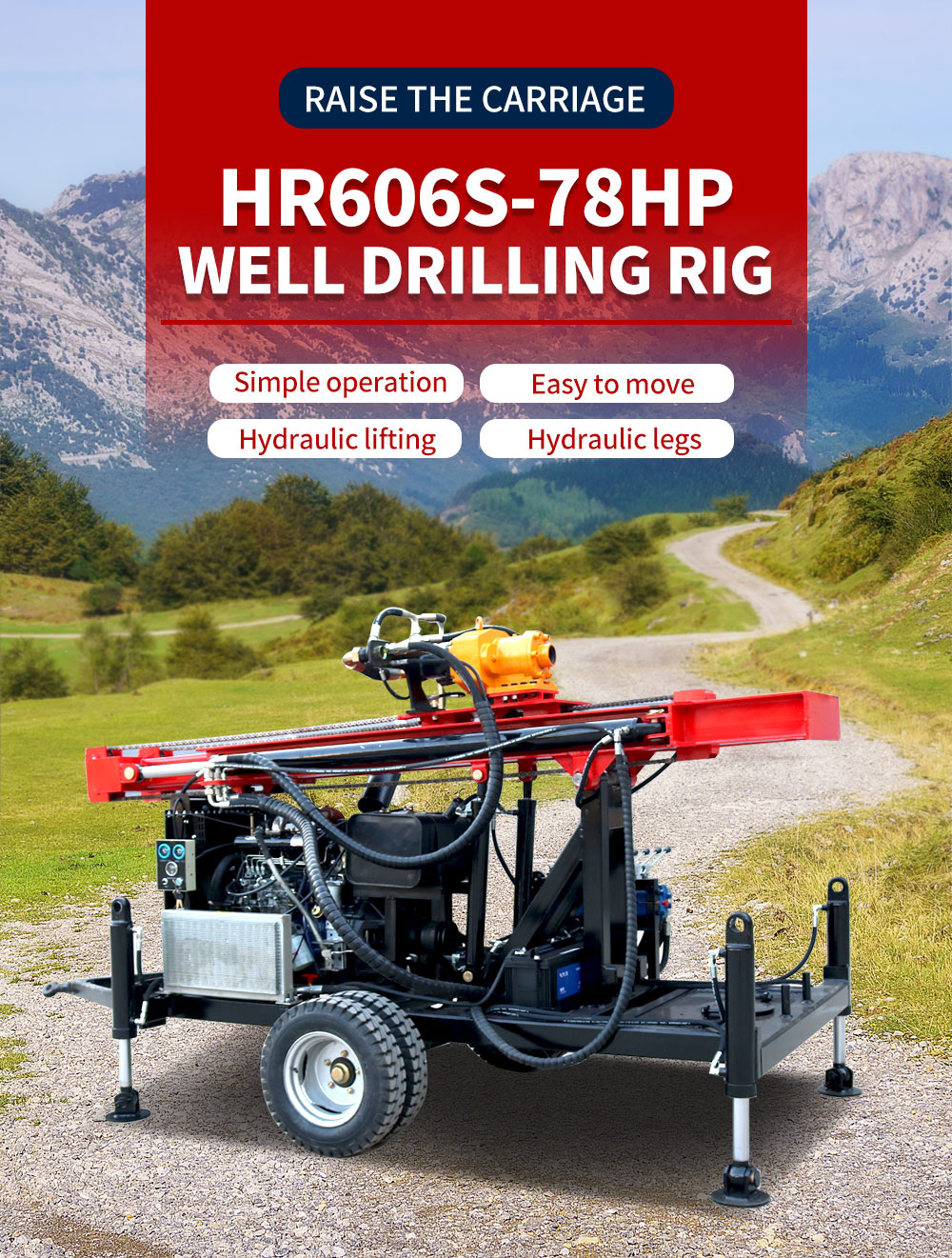

This 78 horsepower wheeled water well drilling rig adopts a hydraulic lifting system, which is easy to operate and equipped with hydraulic support legs for convenient movement. Compared to traditional drilling rigs, it has higher efficiency, stronger stability, and can adapt to complex terrains. During construction, it can significantly save labor costs and improve drilling speed.
Specification parameters
Drilling depth | Max.150m | One time advance length | 2.3m |
Drilling diameter | 100-219mm | Rapid rise speed | 15m/min |
Drill pipe length | 1.5/2.0m | Fast feeding speed | 23m/min |
Drill pipe diameter | 76/89 mm | The penetration efficiency | 10-35 m/h |
Working pressure | 1.45-2.5Mpa | Walking speed | 3 km/h |
Air consumption | 15-29m³/min | Uphill angle | Max.30° |
Slewing speed | 40-65 rpm | Equipped with hammer | Medium and high wind pressure series |
Rotation torque | 2200-3000 N.m | High leg stroke | 0.6 m |
Rig lifting force | 6 T | Weight | 3 T |
Engine | Changchai 23kw | Size | 4200*1560*2050 mm |
Note: All parameters can be customized as needed, with quality assurance. Please feel free to inquire.
Strong power
Our 78 horsepower wheeled water well drilling rig has strong power, stable operation, fast drilling speed, and supports personalized customization. It has strong adaptability and can easily cope with various geological conditions such as hard rocks and sand layers. It is versatile and saves equipment costs.
Wide applicability

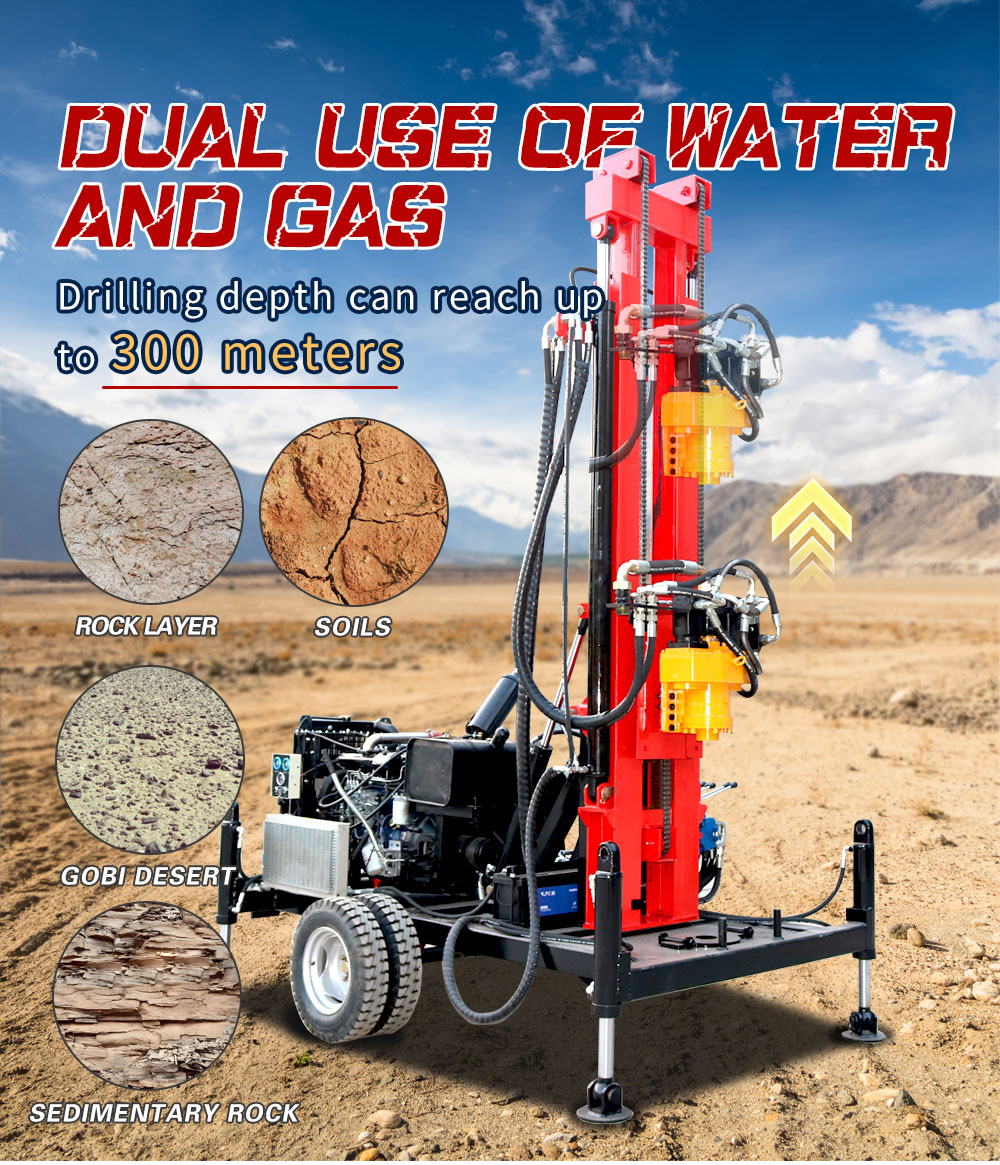

This 78 horsepower wheeled water well drilling rig adopts dual-purpose water and gas drilling technology, with a drilling depth of up to 300 meters. It can easily handle various complex geological conditions such as rock layers, soils, deserts, and siltstones, and is particularly suitable for special environmental operations in arid areas, mining areas, and other areas.

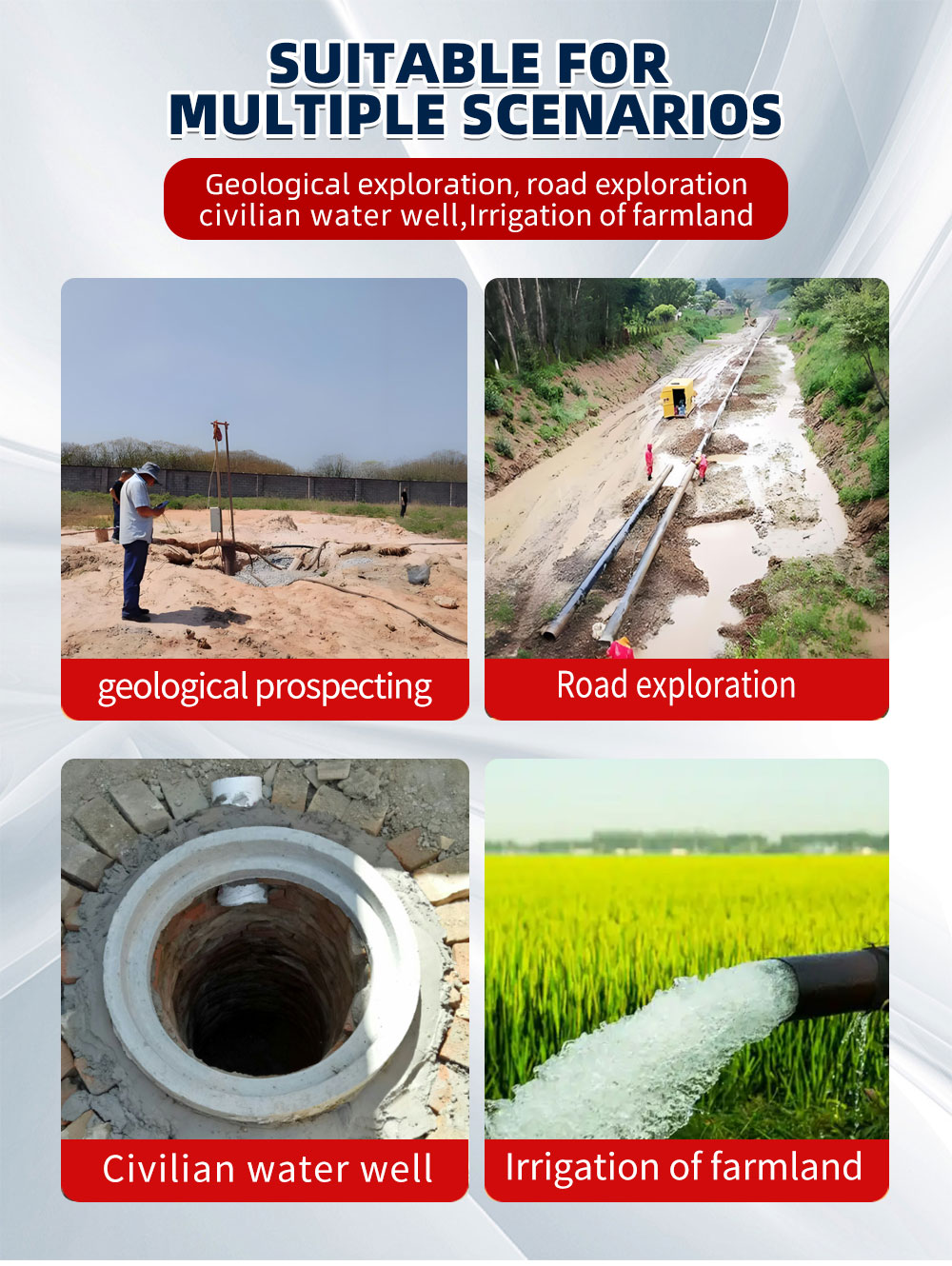

Suitable for various scenarios
This 78 horsepower wheeled water well drilling rig can quickly switch exploration modes and is suitable for various work scenarios such as geological exploration, road survey, civil water wells, and agricultural irrigation. It can be used for multiple purposes, significantly reducing equipment procurement costs and improving investment return. Users can flexibly adjust according to different engineering needs, greatly improving equipment utilization.
Efficient homework

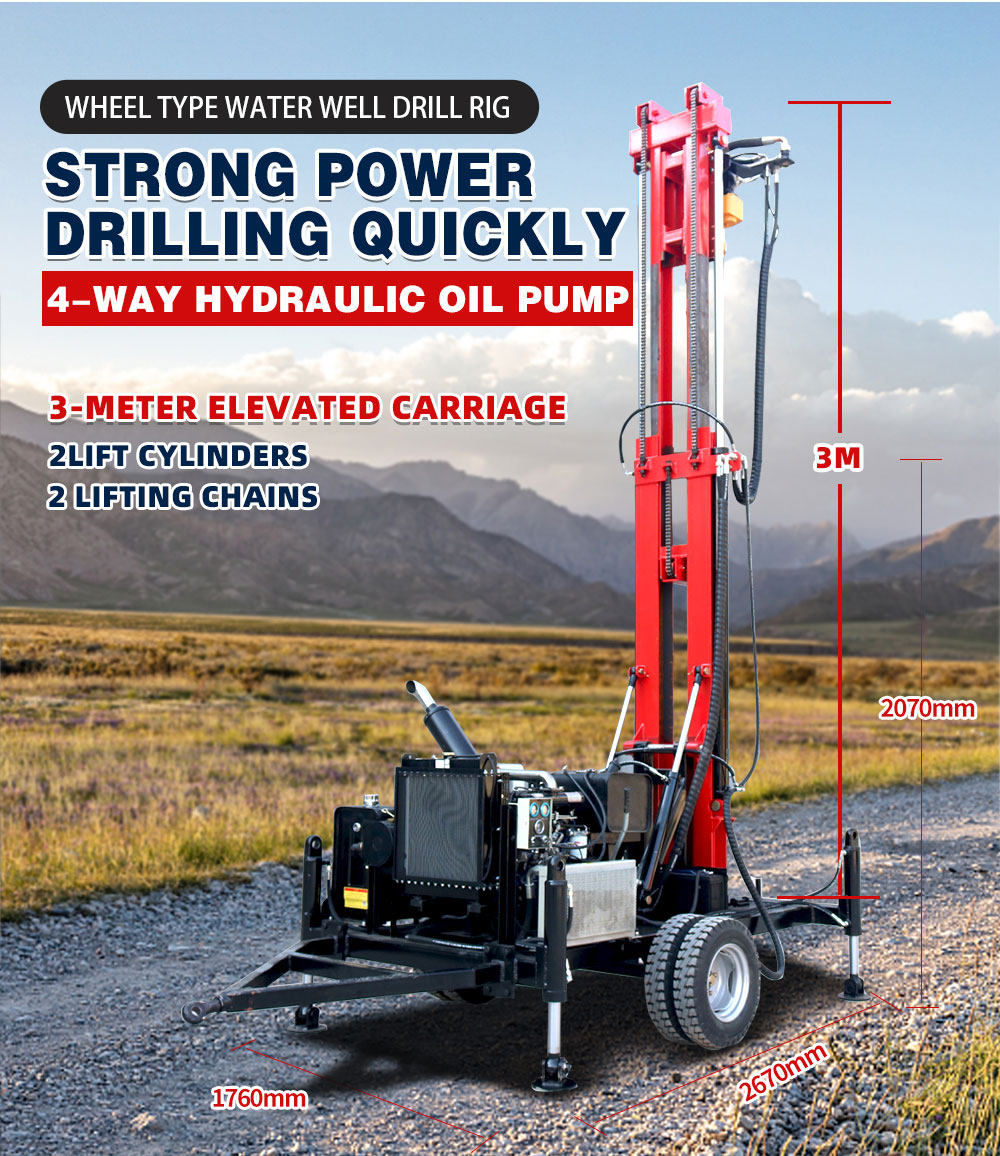

Our 78 horsepower wheeled water well drilling rig is equipped with a four-way hydraulic oil pump system, a 3-meter-high carriage, 2 lifting cylinders, and 2 lifting chains to ensure strong and fast drilling operations. Its hydraulic system responds faster, effectively improves lifting capacity, and can easily handle deep hard rock drilling.

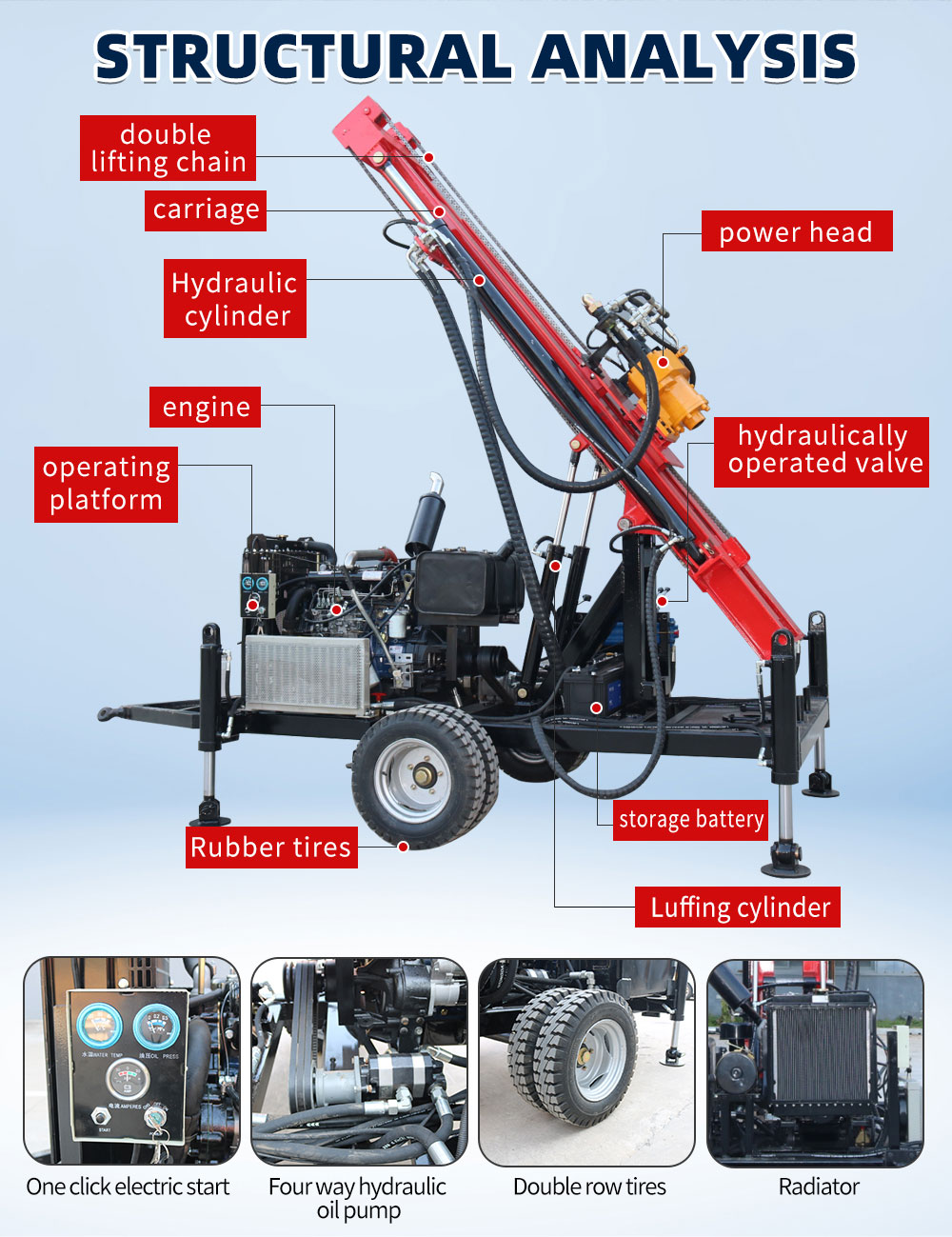

Structural analysis
This 78 horsepower wheeled water well drilling rig adopts a fully hydraulic drive system, equipped with dual lifting chains, four-way hydraulic oil pumps, double row tires, and intelligent radiators. Key components include power head, hydraulic cylinder, lifting cylinder, etc., supporting one key electric start. Its dual power system increases work efficiency by 40%, and the dual row tire design enhances the passability of complex terrains.
Details Introduction

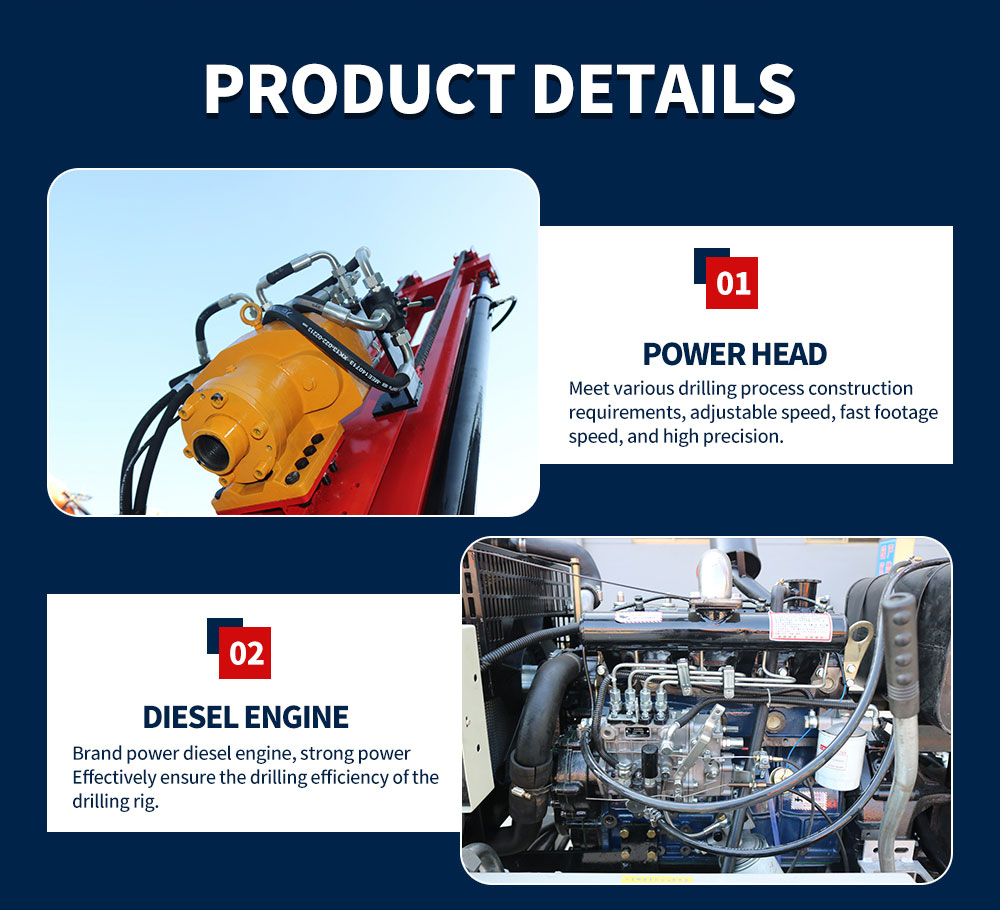

This 78 horsepower wheeled water well drilling rig is equipped with advanced power heads, flexible speed regulation, fast footage and high precision, ensuring efficient construction. Equipped with a well-known brand diesel engine, it has abundant power and significantly improves drilling efficiency, meeting the drilling needs of various complex formations and ensuring the smooth progress of the project.
Details Introduction

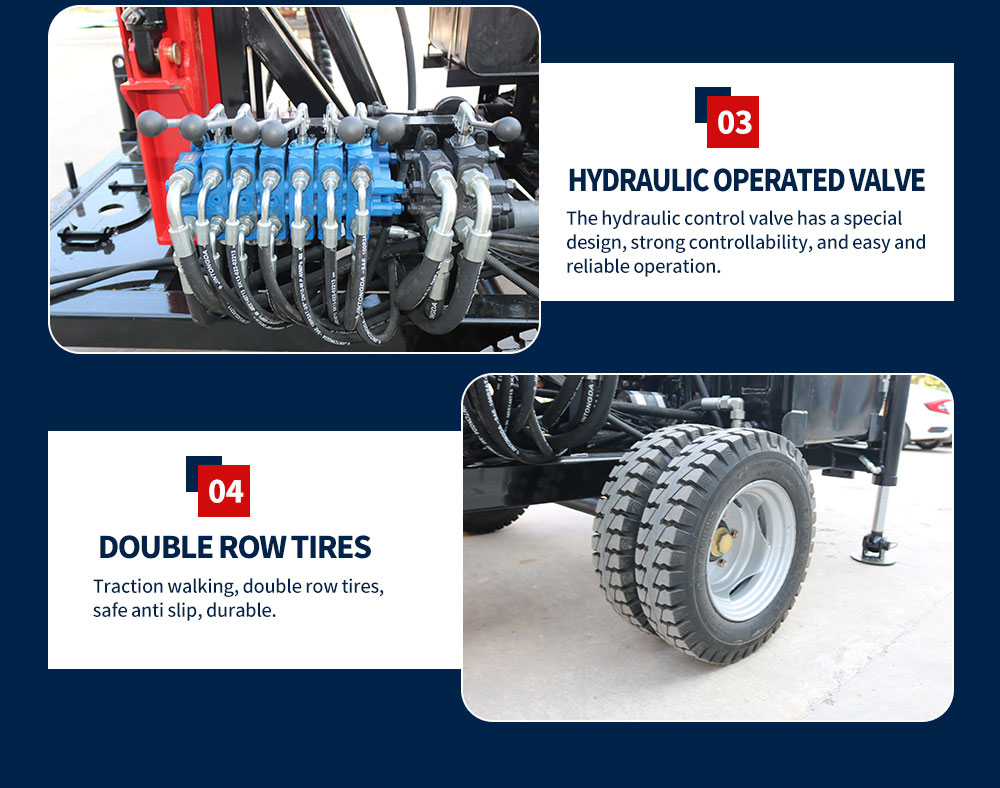

This 78 horsepower wheeled water well drilling rig adopts a specially designed hydraulic control valve, which has strong maneuverability, easy and reliable operation. Equipped with double row tires, it is safe and slip resistant, and can walk stably even in complex terrains. At the same time, it is durable and provides stable support for your drilling operations.

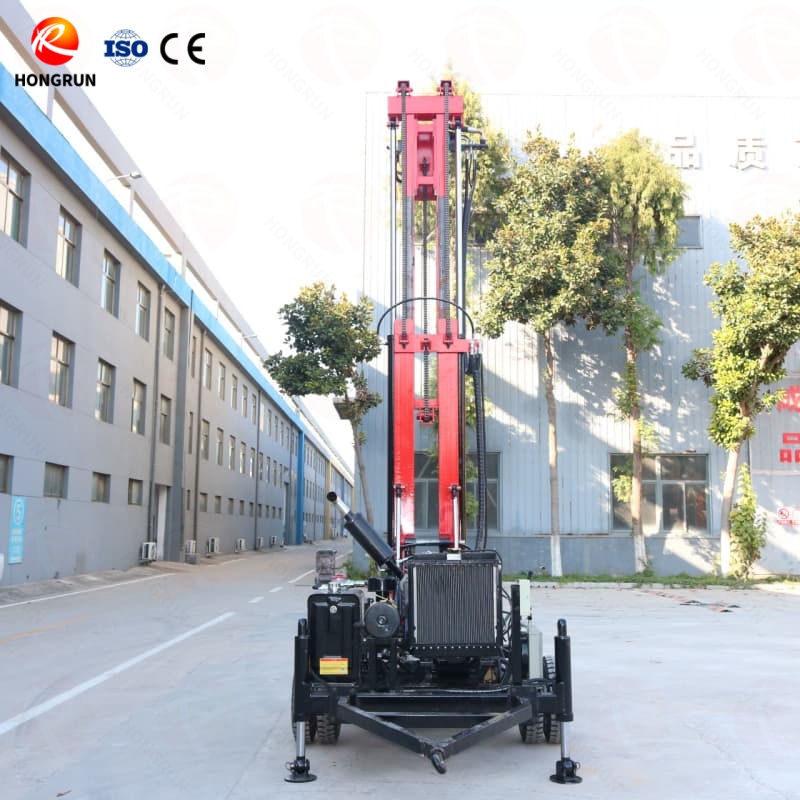

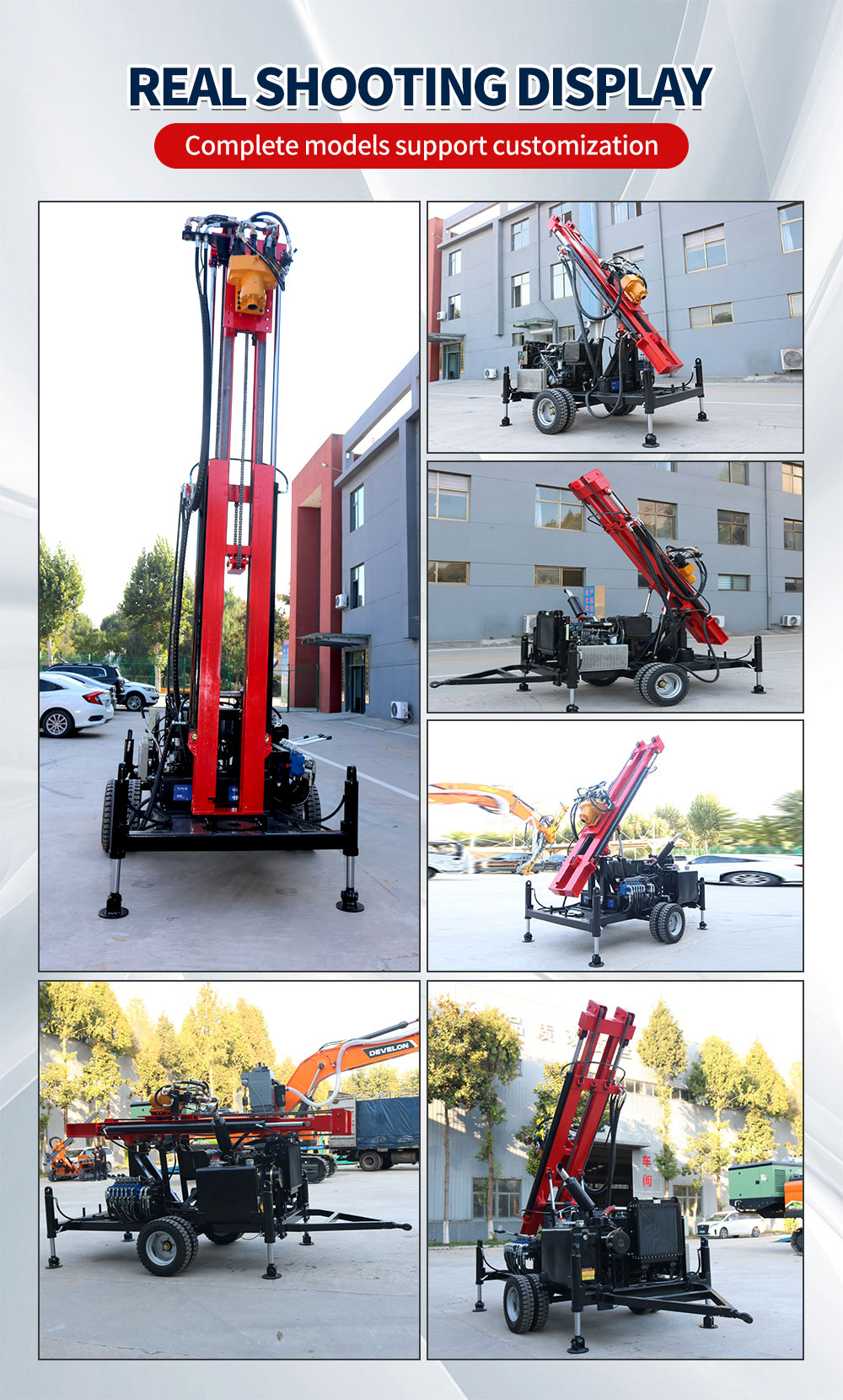

Full range real shot
The 78 horsepower wheeled water well drilling rig has strong performance and easy operation! Support online video watching and customization according to needs. Efficient drilling to meet your various needs! Do you want to know more? Contact us immediately and embark on your exclusive drilling journey!
Company Profile
Our Team
FAQ:
1.Is it convenient to transfer and transport this machine?
The machine is designed to be compact and equipped with a dedicated trailer hook, which can be transported by a regular truck.
2.Can special configurations be customized?
Support personalized customization, including more than 10 optional configurations such as drill pipe length and power configuration.
3.What is the drilling diameter of this drilling rig?
The standard drilling diameter can reach 100-219mm, and special formations can be adjusted according to demand.
