XY-200 Water Well Drilling Rig
Features
The XY-200 water well drilling rig adopts an advanced hydraulic automatic feeding system, combined with an innovative ball loading clamping mechanism, completely replacing the traditional chuck design. At the same time, it is equipped with four high-strength hydraulic support legs, achieving breakthrough operation of continuous reverse rotation of the drill rod without stopping, greatly optimizing the drilling flow.
Advantages
The 360 degree rotating power head of XY-200 water well drilling rig allows the rig to flexibly adjust its operation direction to cope with complex terrain and construction requirements; The ball clamping mechanism avoids the trouble of frequent downtime and rod replacement, making the construction process smoother and more efficient, significantly reducing operational difficulty and labor intensity; The advanced power system and optimized mechanical structure result in lower energy consumption during operation.
Benefits
The XY-200 water well drilling rig effectively reduces labor and time costs with its excellent flexibility and efficient operation capabilities; Whether it is the complex working conditions of deepwater well development, the scale requirements of agricultural irrigation engineering, or the professional challenges of geological exploration operations, they can all be easily overcome.
Product Details
Product Introduction
Our XY-200 water well drilling rig has the characteristics of high power, large lifting load, and high torque transmission, and is suitable for geological structure measurement, geological core drilling, grouting, blasting, and small hole drilling in buildings such as railways, water conservancy, bridges, and dam foundations.
Parameter Table
Model | XY-200 | Engine rated speed | 1460-2200r/min |
Total weight（T） | 3.5 | Water pump maximum working pressure | 2Mpa |
Drilling diameter（mm） | 325mm | Water pump maximum displacement (motor) | 160L/min |
Drilling depth(m) | 200 | Oil pump nominal pressure | 20Mpa |
Drilling angle | 90°-75° | Oil pump nominal speed | 800-2500r/min |
Main engine weight | 870kg | Winch maximum lifting capacity (single rope) | 25N.M |
Overall dimensions | 2400*950*1300mm | Winch drum circumference speed (second layer) | 0.17、0.35、0.75、1.465m/s |
Main engine power | 55KW | / | / |
Note: If you have special technical requirements, please feel free to contact me at any time, and I can tailor product solutions for you.
Our XY-200 water well drilling rig is designed specifically for civil water well engineering and can efficiently complete drilling operations for rural and urban domestic water wells; Simultaneously applicable to the field of agricultural irrigation, it can provide reliable water source well construction solutions for small-scale irrigation systems such as farmland and orchards.

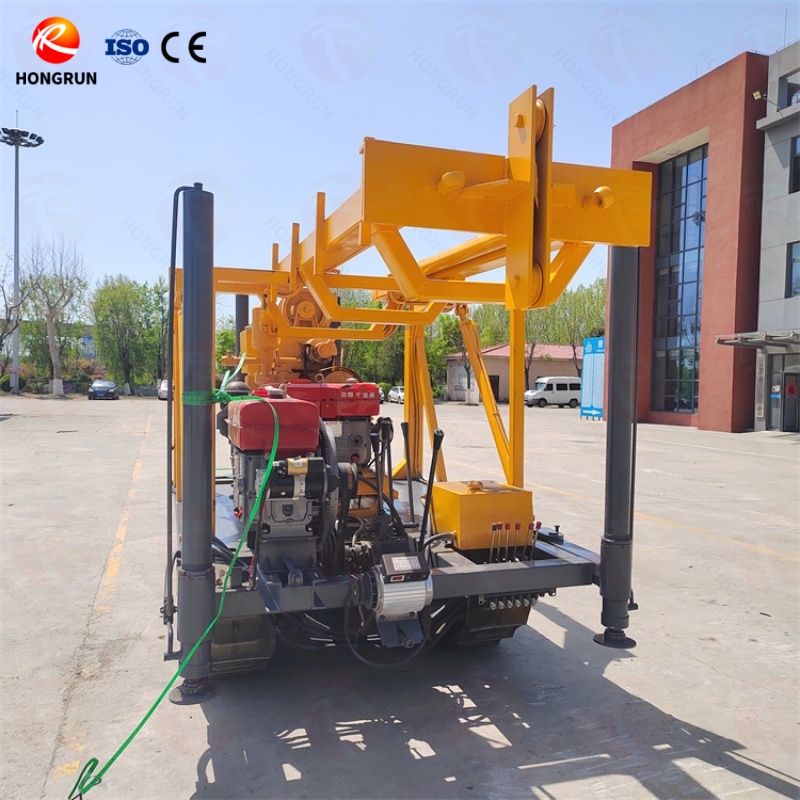

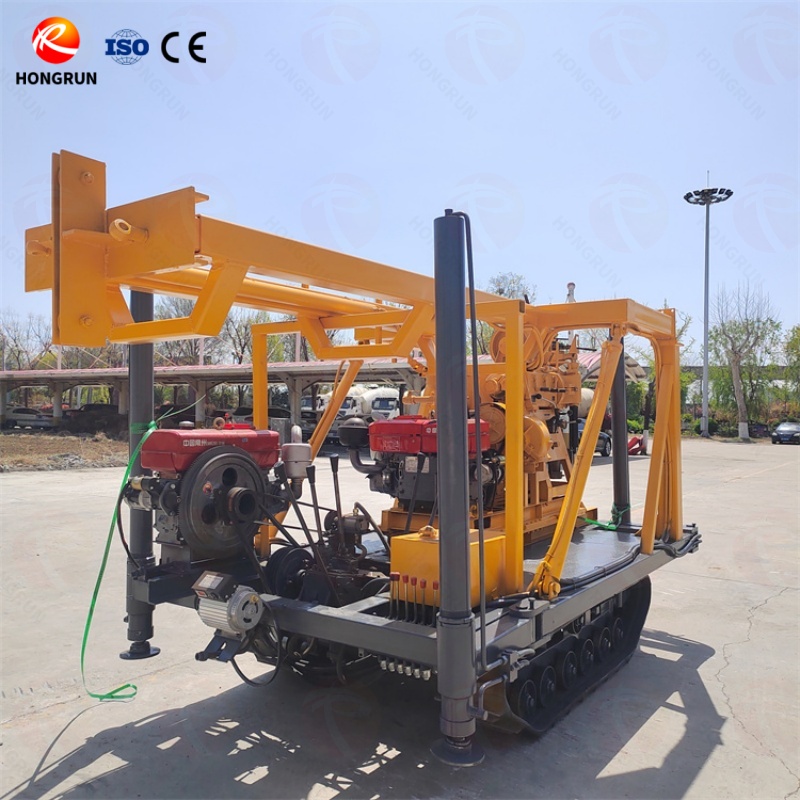

This XY-200 water well drilling rig adopts an advanced hydraulic automatic feeding system, which can improve the efficiency of drilling operations; Using a ball clamping mechanism instead of traditional chuck design to achieve continuous reverse operation of drill rods without stopping the machine; At the same time, it is equipped with four high-strength hydraulic support legs, providing excellent stability guarantee for the drilling rig under various working conditions.
Product Details

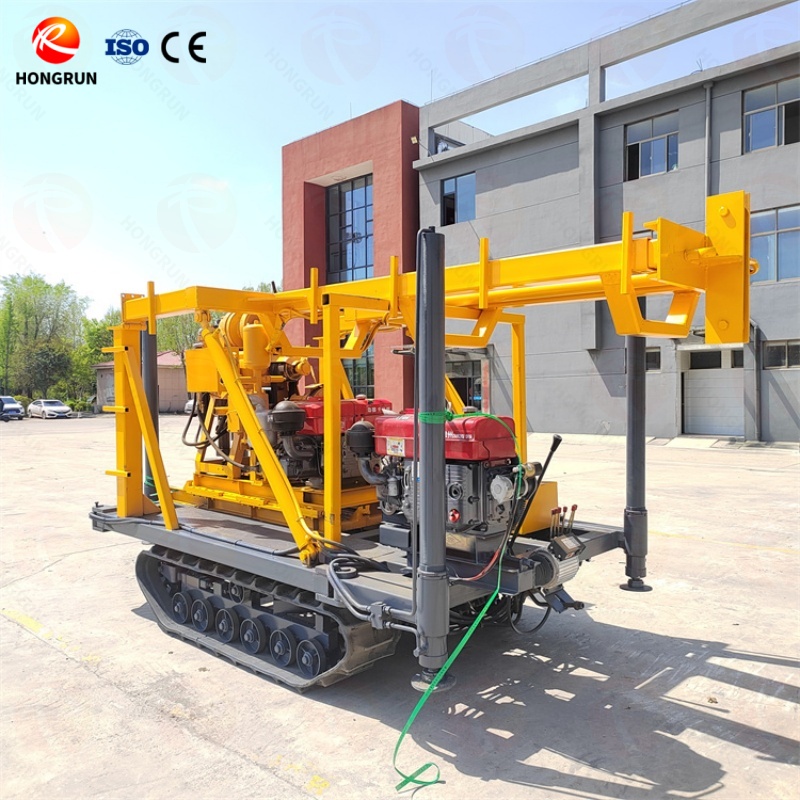

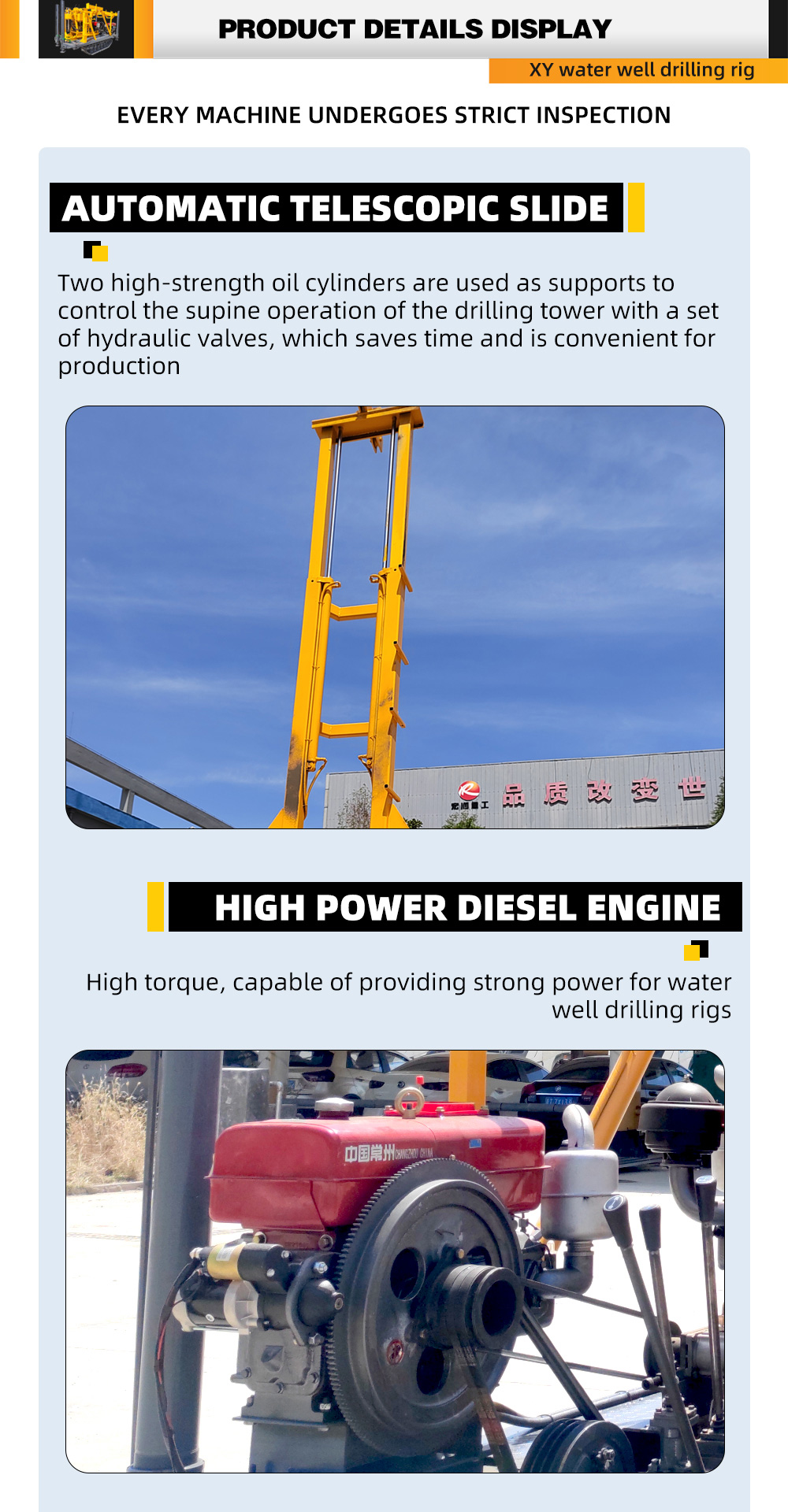

This XY-200 water well drilling rig is equipped with an efficient diesel engine with high torque, which provides power support for the drilling rig during operation; And the design of automatic telescopic slide rail not only makes the entire operation process smoother, but also enhances the practicality of the equipment.

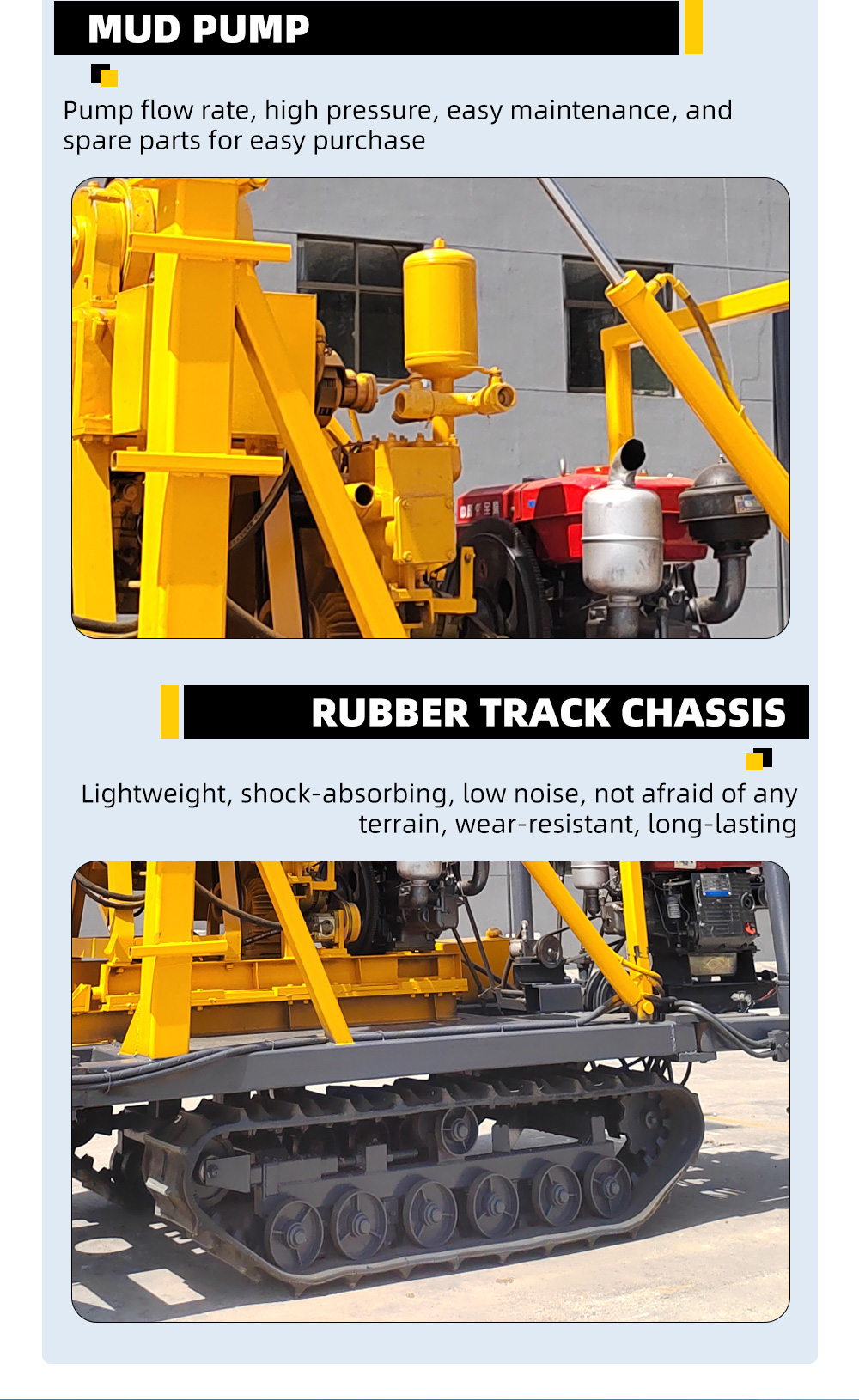

Our XY-200 water well drilling rig is equipped with a super large flow mud pump to ensure smooth drilling operations. Moreover, it adopts a rubber track chassis, which is not only anti slip but also particularly wear-resistant. No matter what kind of complex terrain it is on, it can easily cope with it without any effort.

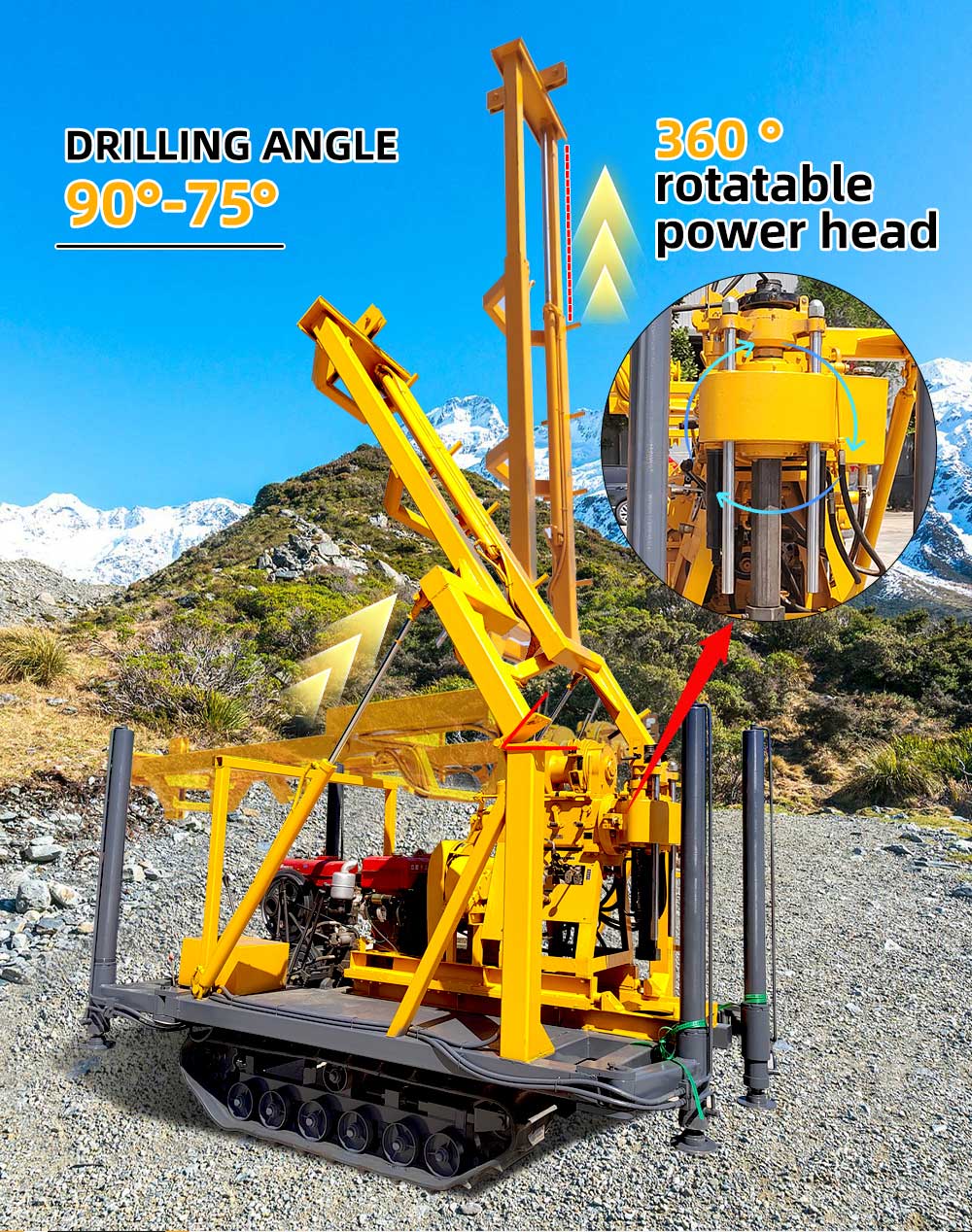

This XY-200 water well drilling rig is equipped with a 360 ° omnidirectional dynamic rotating power head, and the drilling angle can be freely adjusted between 75 ° and 90 °. Whether it is conventional vertical drilling operations or drilling tasks with specific tilt angles, it can be easily controlled.

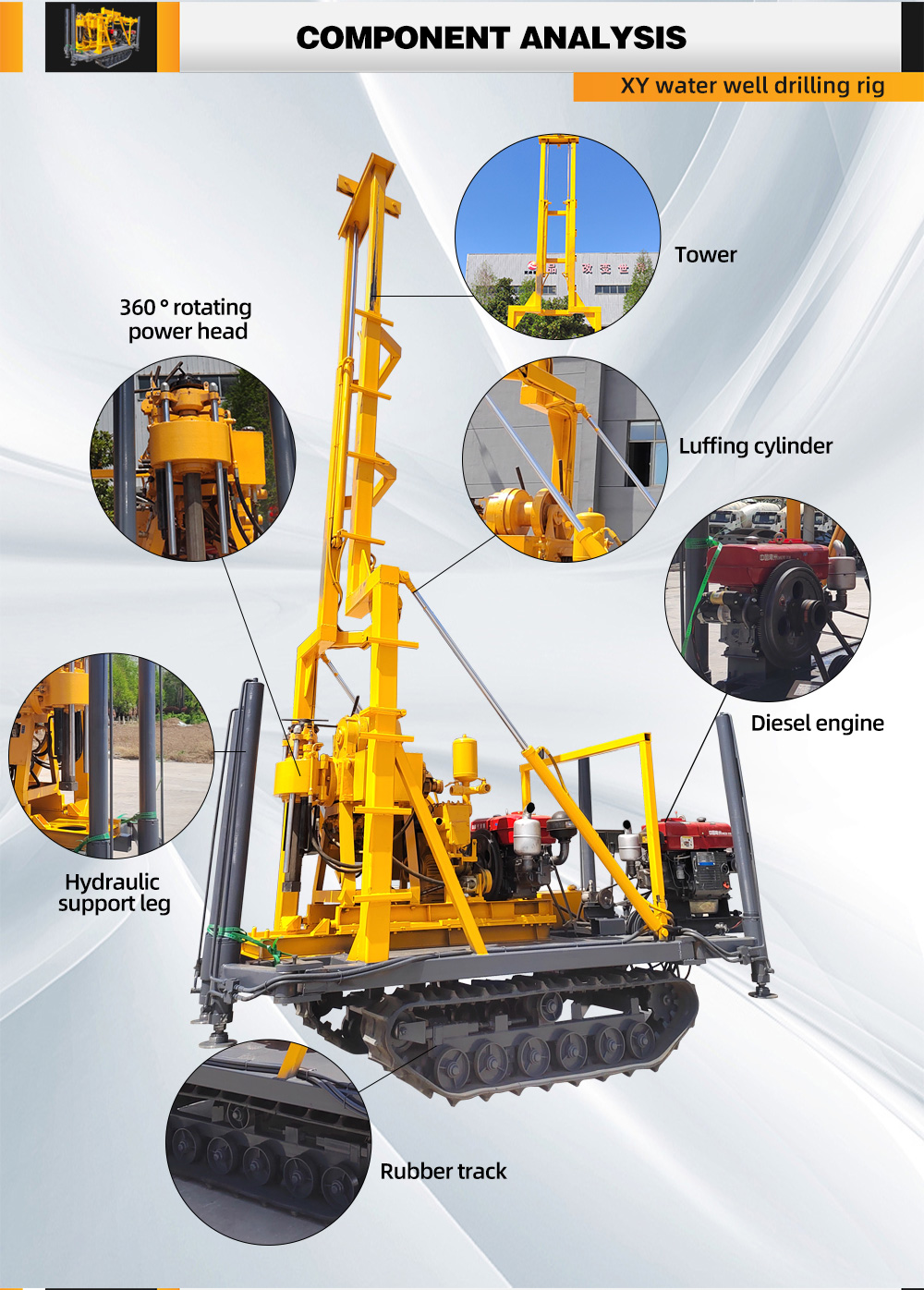

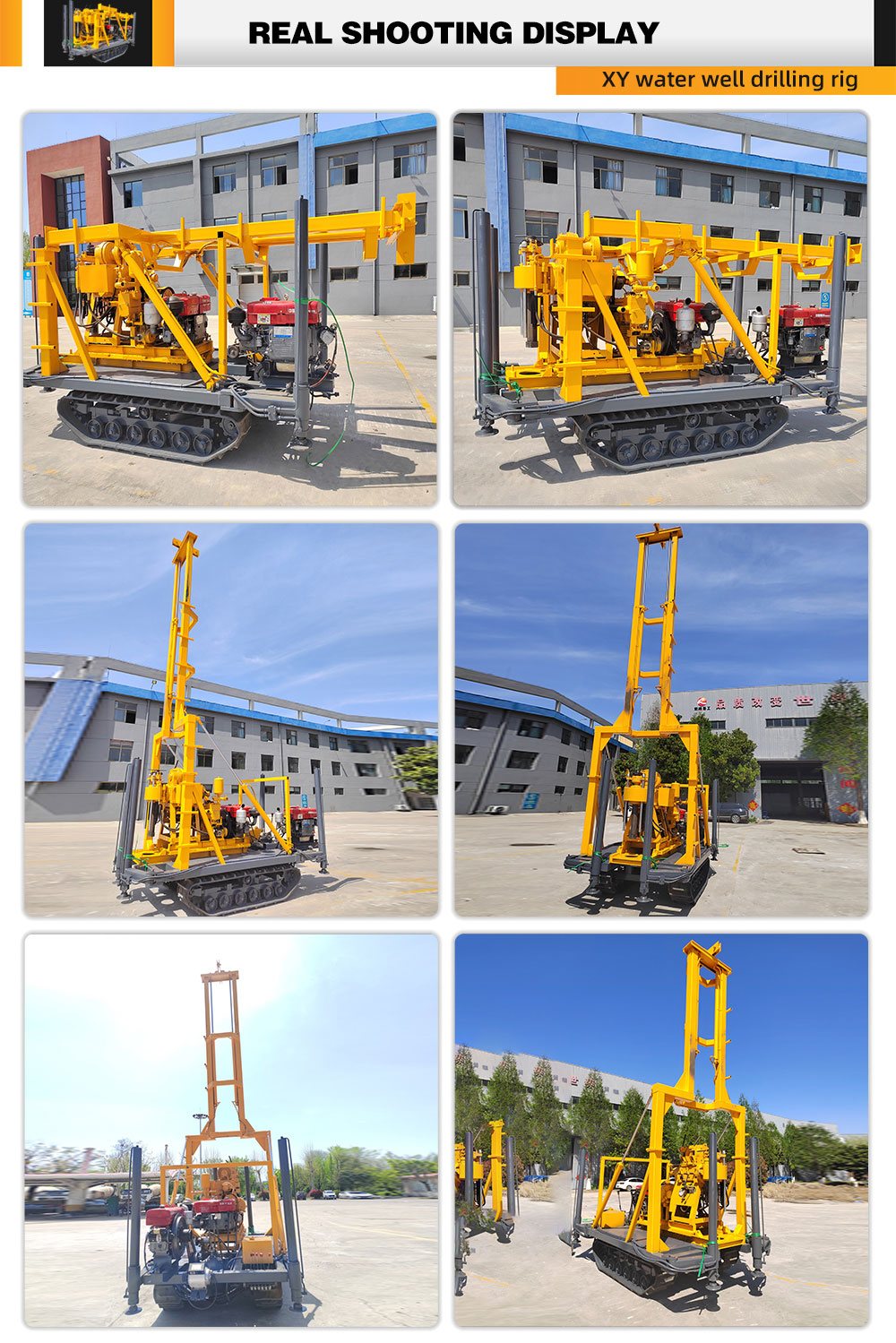

We are happy to provide you with a detailed display of the XY-200 water well drilling rig. These pictures will show in detail the various parts of the water well drilling rig, including its design, construction, and working principle. Through these pictures, you will be able to have a clearer understanding of the operation and performance of the water well drilling rig.
After years of market cultivation and technological accumulation, we have successfully built a comprehensive service network covering multiple countries and regions around the world. No matter where you are, our professional team can rely on our rich industry experience to provide you with personalized drilling solutions and help you smoothly carry out your drilling projects.
FAQ：
1.How is your after-sales service?
We hope to establish a long-term business partnership with you, so we know that after-sales service is very important. We are confident that any of your after-sales questions will receive useful answers and assistance.
2.How can you establish a long-term and good relationship with our business?
We maintain good quality and competitive prices to ensure the interests of our customers; We respect every customer and treat them as friends. No matter where they come from, we sincerely do business and make friends with them.
3.How long is the warranty period for the drilling rig? What situations are not covered by warranty?
The whole machine comes with a one-year warranty. Damage caused by human error, failure to operate according to the manual, and use of non original parts are not covered by warranty.
