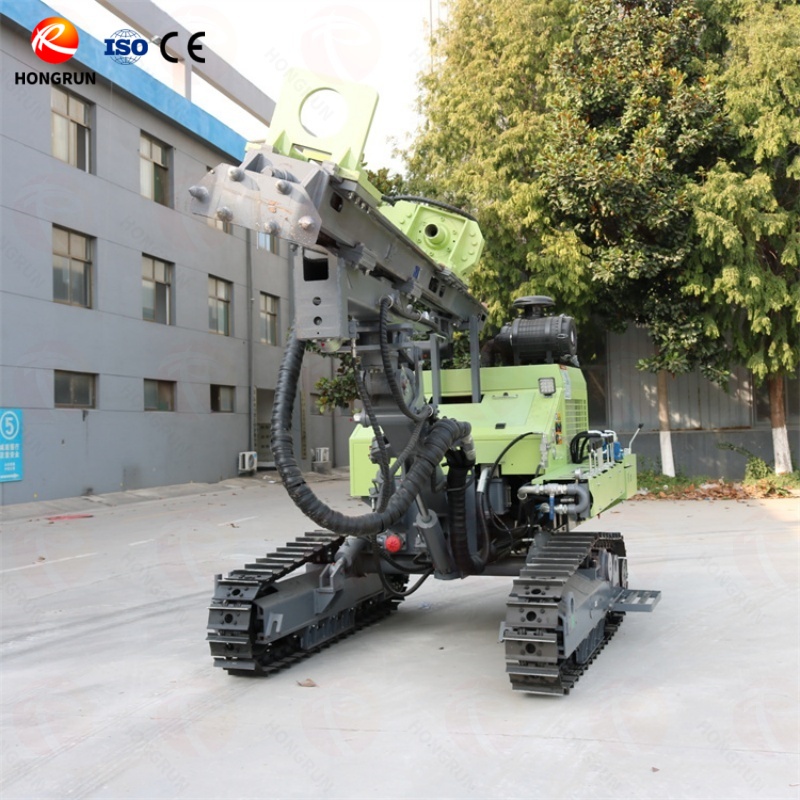

Mining Down The Hole Drilling Rig
Features
The Mining Down The Hole Drilling Rig is equipped with a 70 kW high-performance engine, an advanced guidance system, and automatic control technology. The drill mast can swing flexibly at multiple angles, and the rig is composed of precision components such as hydraulic cylinders, a power head, and a drill arm.
Advantages
The power system and drilling assembly of the Mining Down The Hole Drilling Rig enable fast and stable drilling operations. The high-thrust feed system provides consistent power and speed, further improving construction efficiency. The guidance and automatic control technology allow the drill bit to operate at various angles and directions, ensuring precise control over hole positioning and inclination. With strong adaptability, it can work efficiently in diverse geological conditions.
Benefits
The Mining Down The Hole Drilling Rig delivers high-efficiency and stable drilling performance, reducing labor and time costs. Additionally, its precision drilling capability ensures construction quality by minimizing deviation, facilitating smooth project progress.
Product Details
Product Introduction
Our mining down the hole drilling rig has advanced guidance system and automatic control technology, which can accurately control the position and angle of the borehole, effectively avoid errors and deviations, and ensure the accuracy and quality of construction. Whether it is hard rock layers, weak soil layers, or complex groundwater environments, it can easily cope with them.
Parameter Table
Engine | Yuchai 70kw |
Drill diameter | 90-120 mm |
drill depth | 35 m |
Drill pipe specifications | 6+1 |
Working pressure | 0.7-1.8Mpa |
Air consumption | 10-18 m³/min |
Slewing torque | 2500 N.m |
Slewing speed | 0-140 r/min |
Propulsion mode | Oil cylinder+roller chain |
Walking speed | 0-3 km/h |
Ground clearance | 450 mm |
Overall size | 5550*2290*2600 mm |
Note: Specific technical parameters can be supplemented and improved according to actual needs,
Welcome to consult anytime, I will customize exclusive products for you according to your needs!

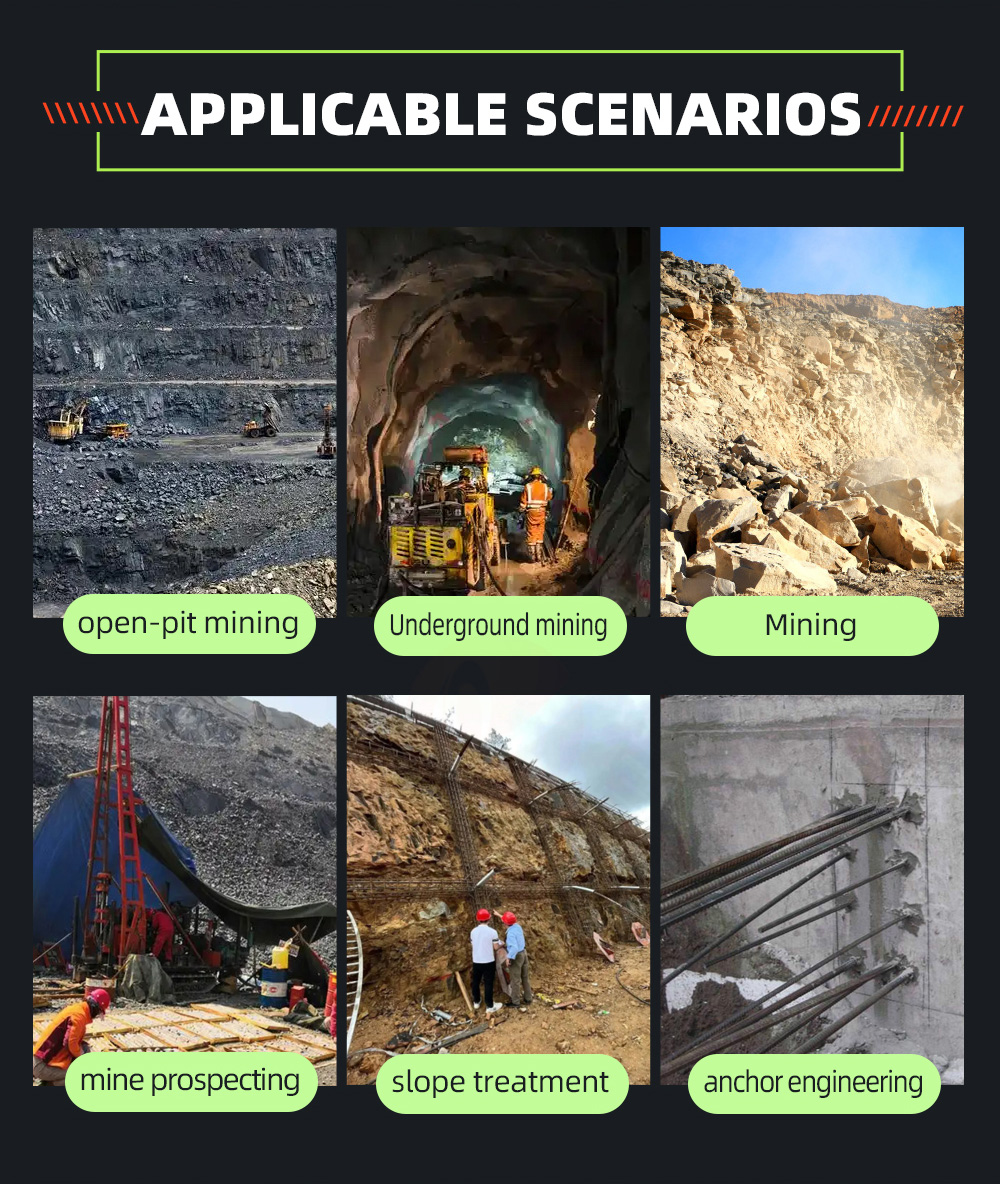

Usage Scenario
This mining down the hole drilling rig has strong adaptability and is widely used in construction engineering, mining, water conservancy engineering, and geological exploration, achieving multi-purpose use and meeting the diverse drilling needs of different industries.
Product Structure Analysis

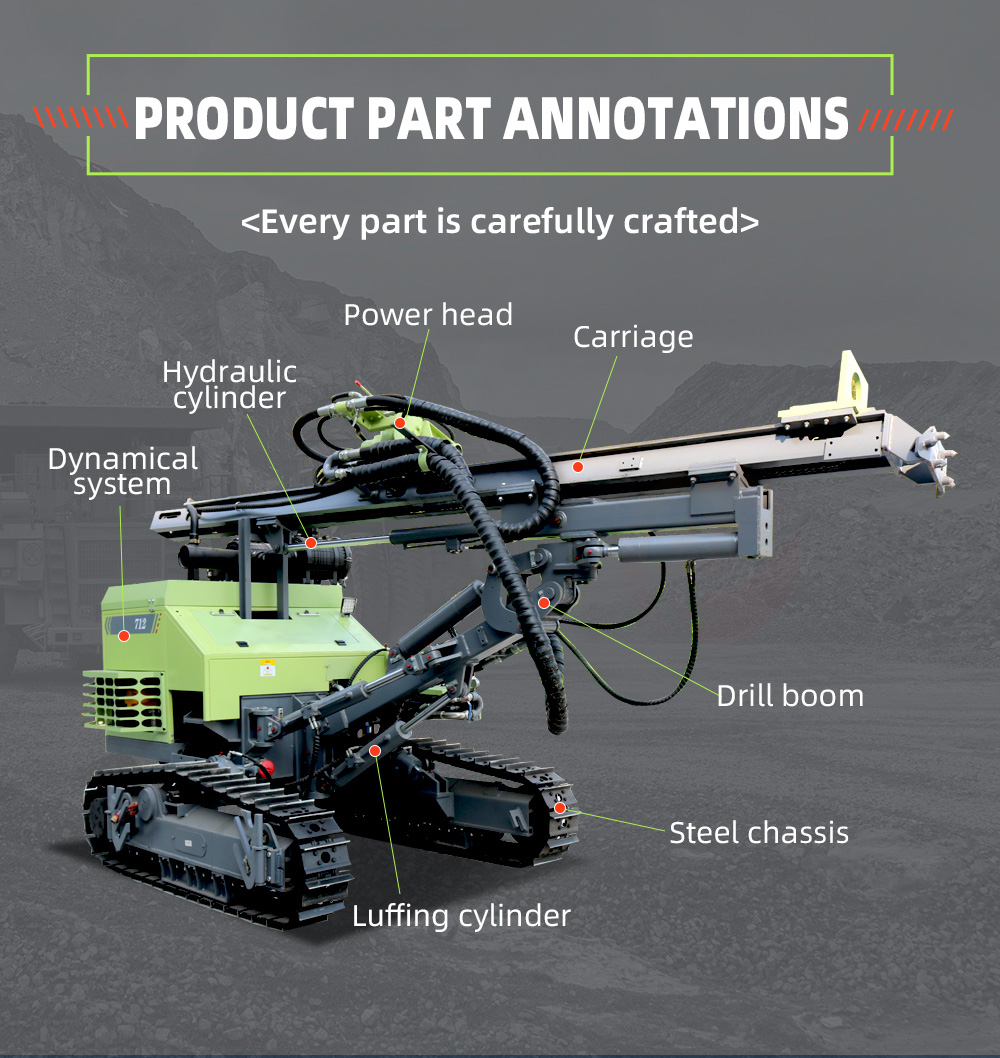

This mining down the hole drilling rig is mainly composed of hydraulic cylinders, engines, power heads, slides, drilling arms, amplitude changing cylinders, and steel chassis. The various components work together to provide a solid guarantee for the stable and efficient operation of the drilling rig.

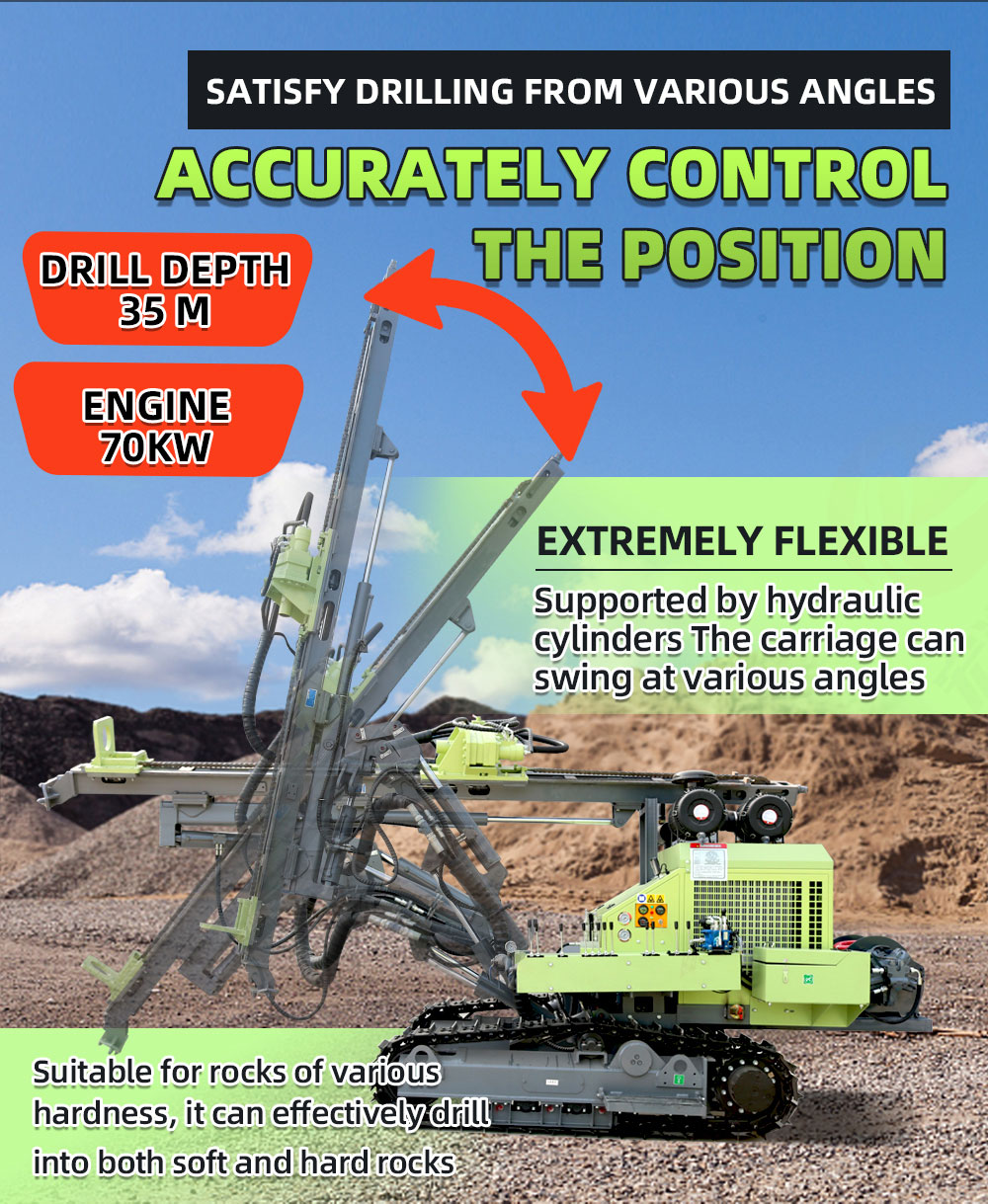

Our mining down the hole drilling rig is equipped with a 70 kW high-performance engine, which has strong power and can drill up to 35 meters deep. The rig's slide design is exquisite and can flexibly swing between different angles, meeting the drilling needs of multiple angles.

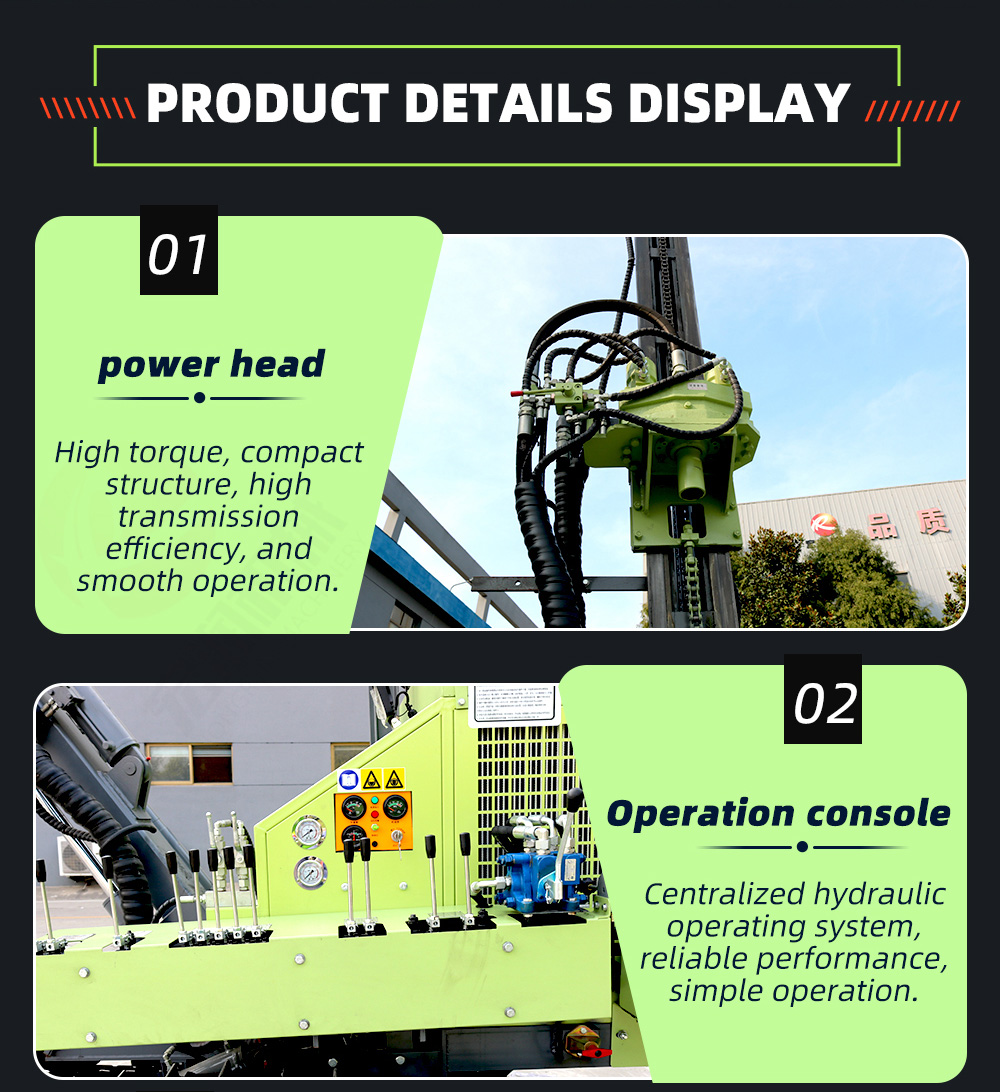

Product Details
The power head of this mining down the hole drilling rig has a large rotational torque, high torque transmission efficiency, and smoother operation of the drilling rig; At the same time, adopting a centralized console mode and a fully hydraulic operating system, it has good performance and simple operation.

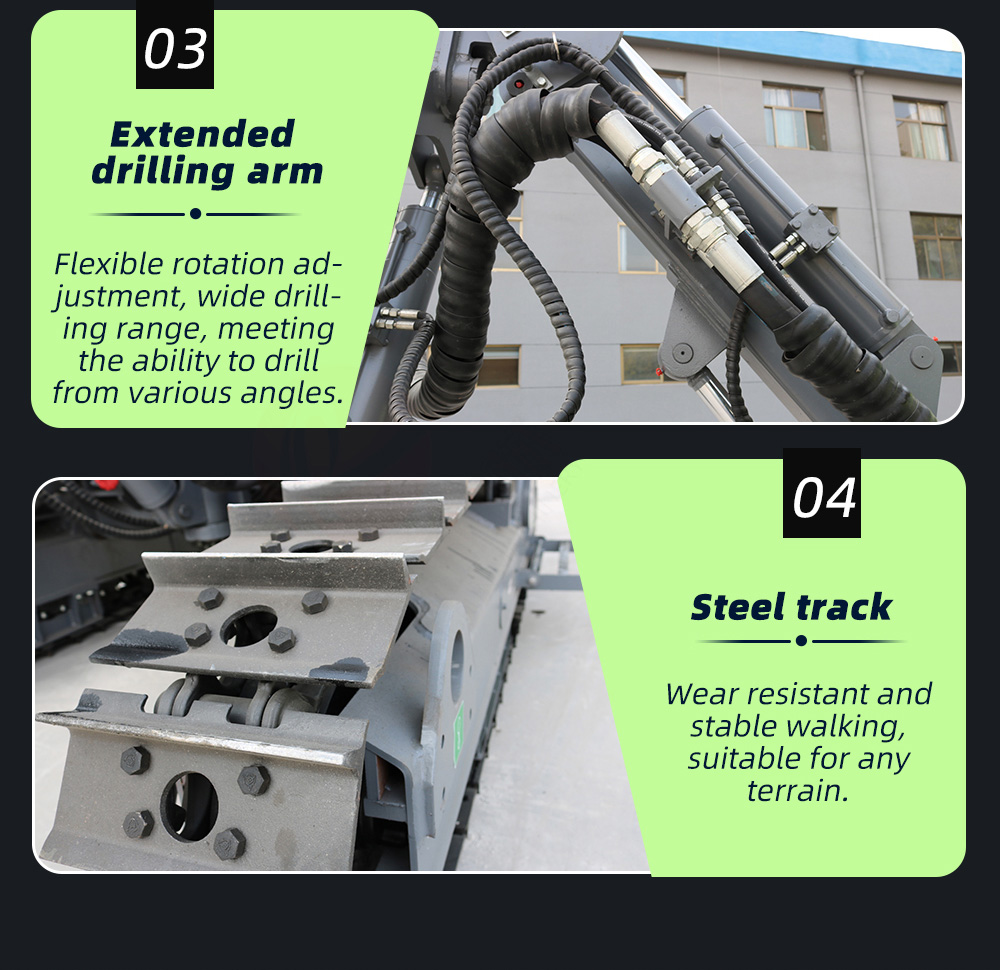

We use an extended telescopic drilling arm for this mining down the hole drilling rig, which can flexibly rotate and adjust the drilling position, achieving the ability to drill from multiple angles; At the same time, the drilling rig chassis uses a widened steel track chassis with strong climbing ability, which can ensure the smooth walking of the drilling rig.

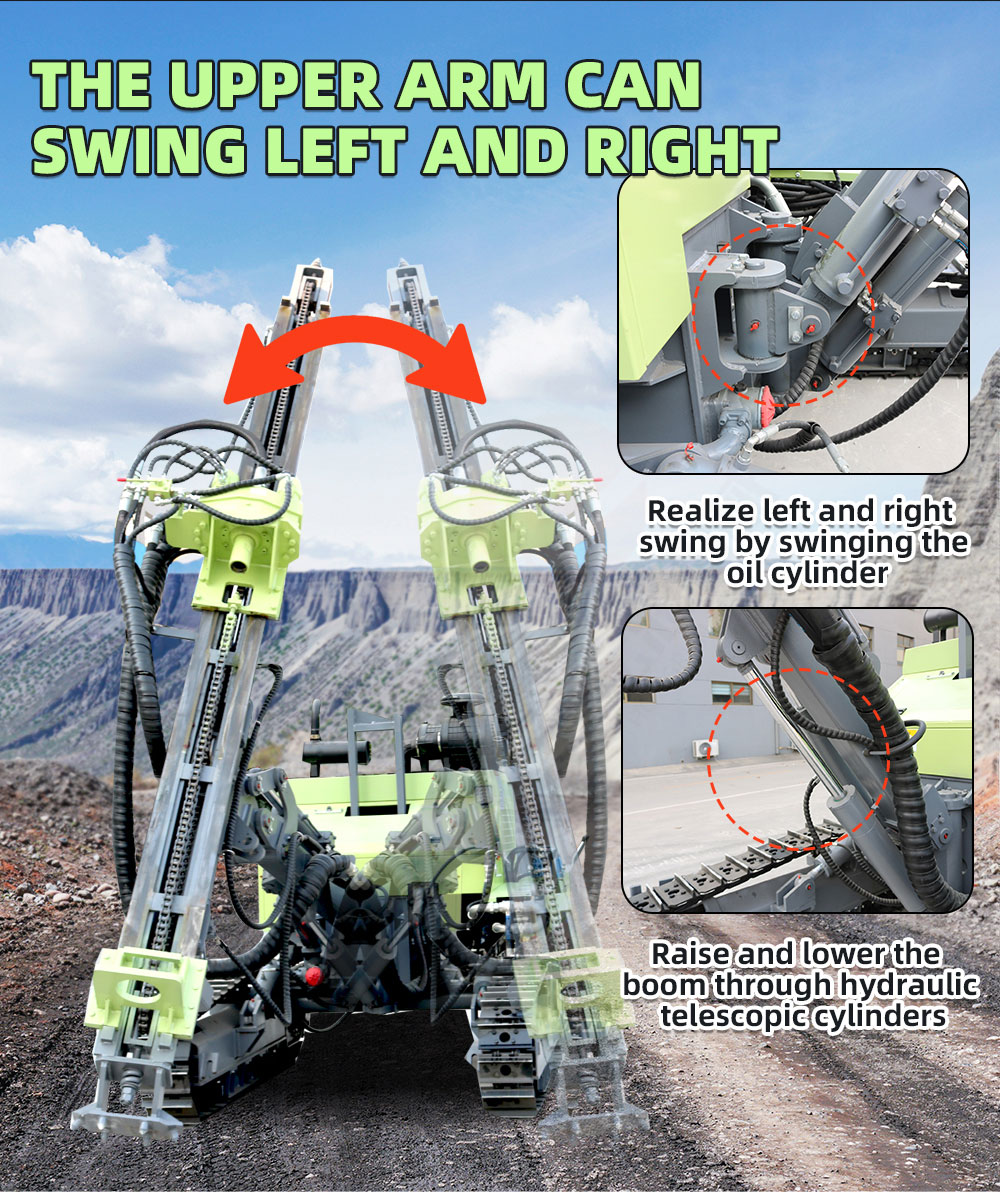

The upper arm of this mining down the hole drilling rig is equipped with a variable amplitude oil cylinder that can swing left and right, accurately adjusting the drilling direction; The hydraulic telescopic cylinder configured simultaneously can complete the lifting and lowering actions of the drill rod, providing reliable technical support for different drilling operations.

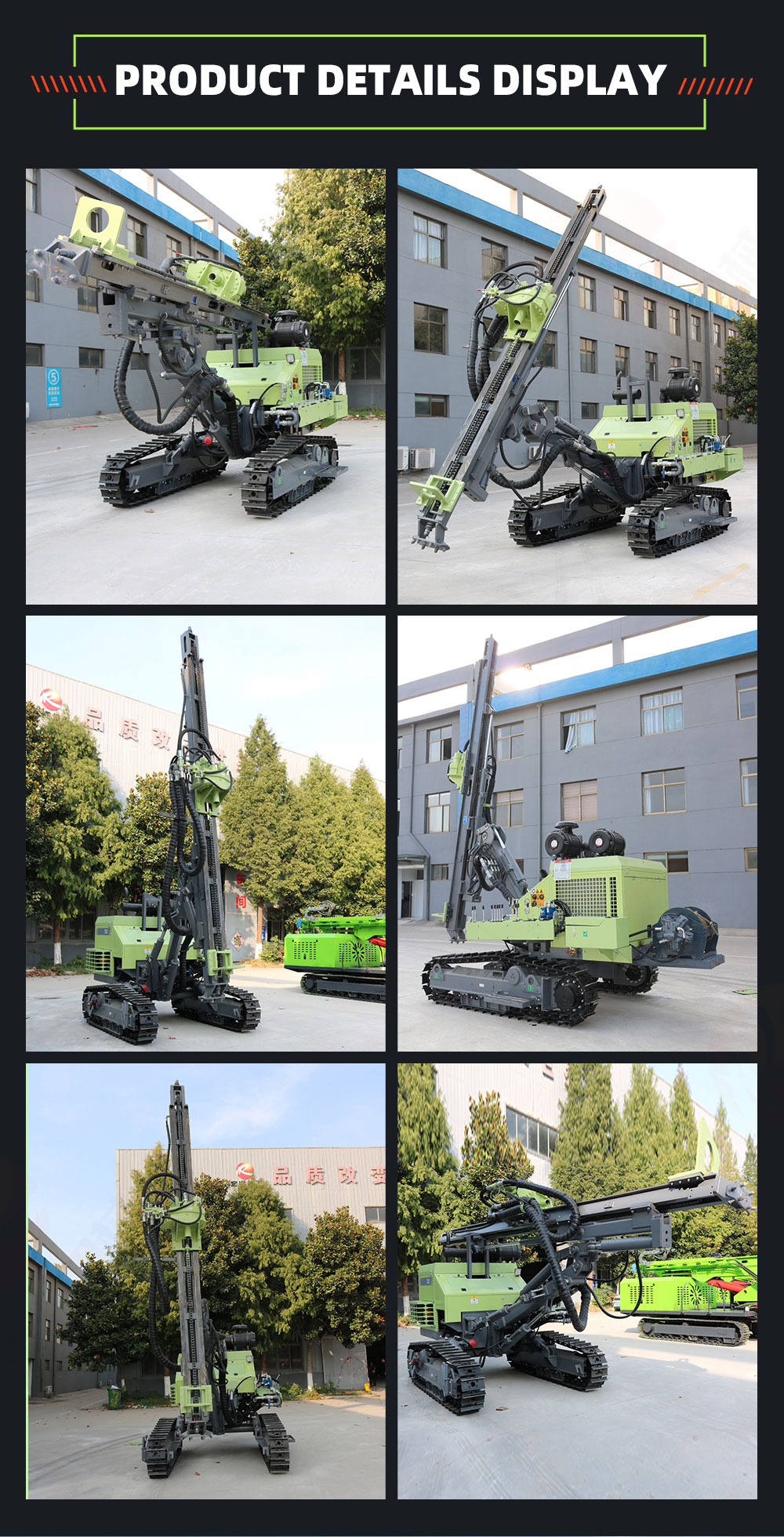

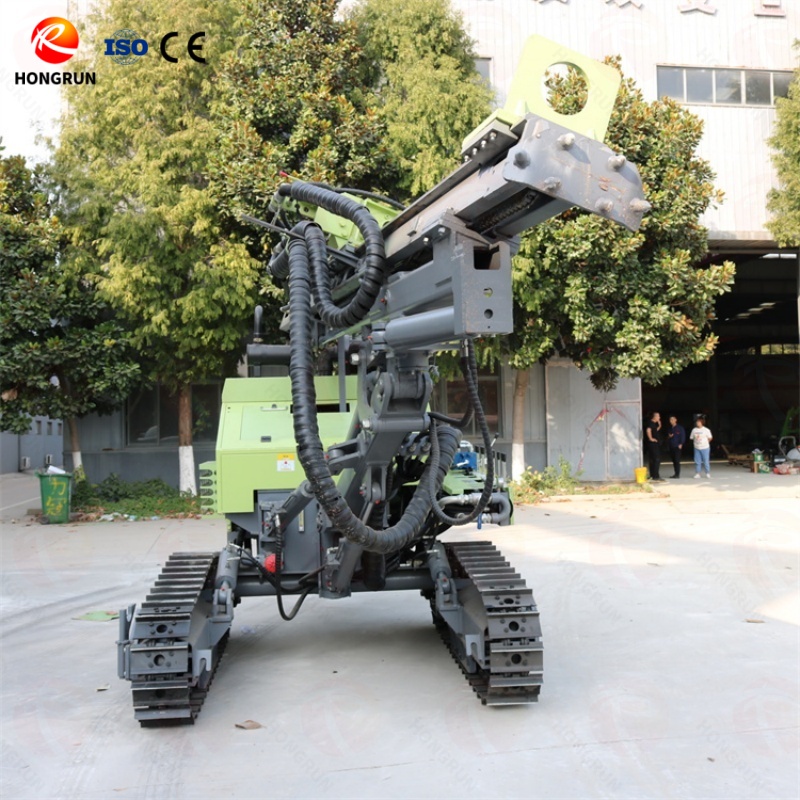

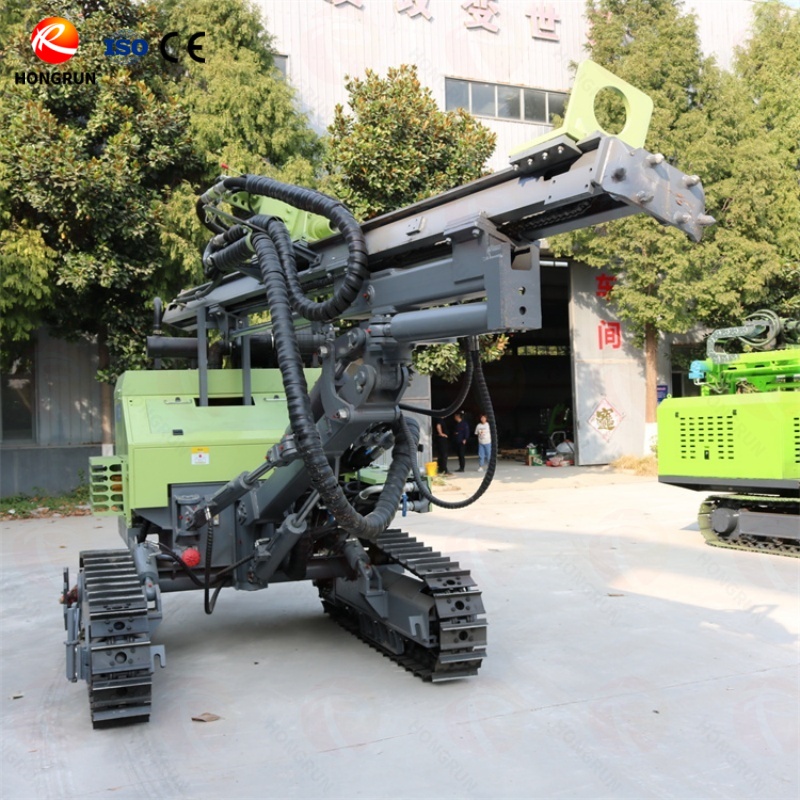

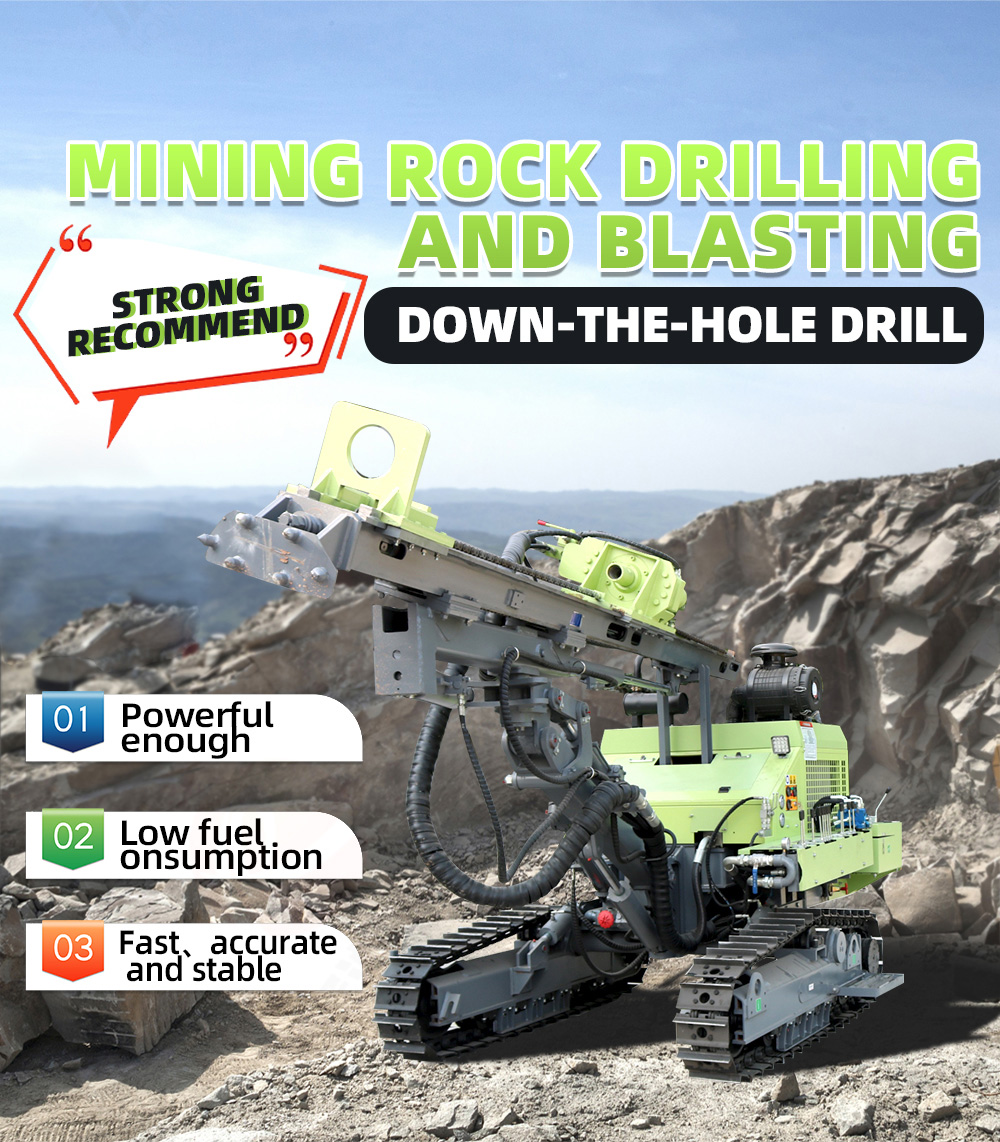

Product Photograph

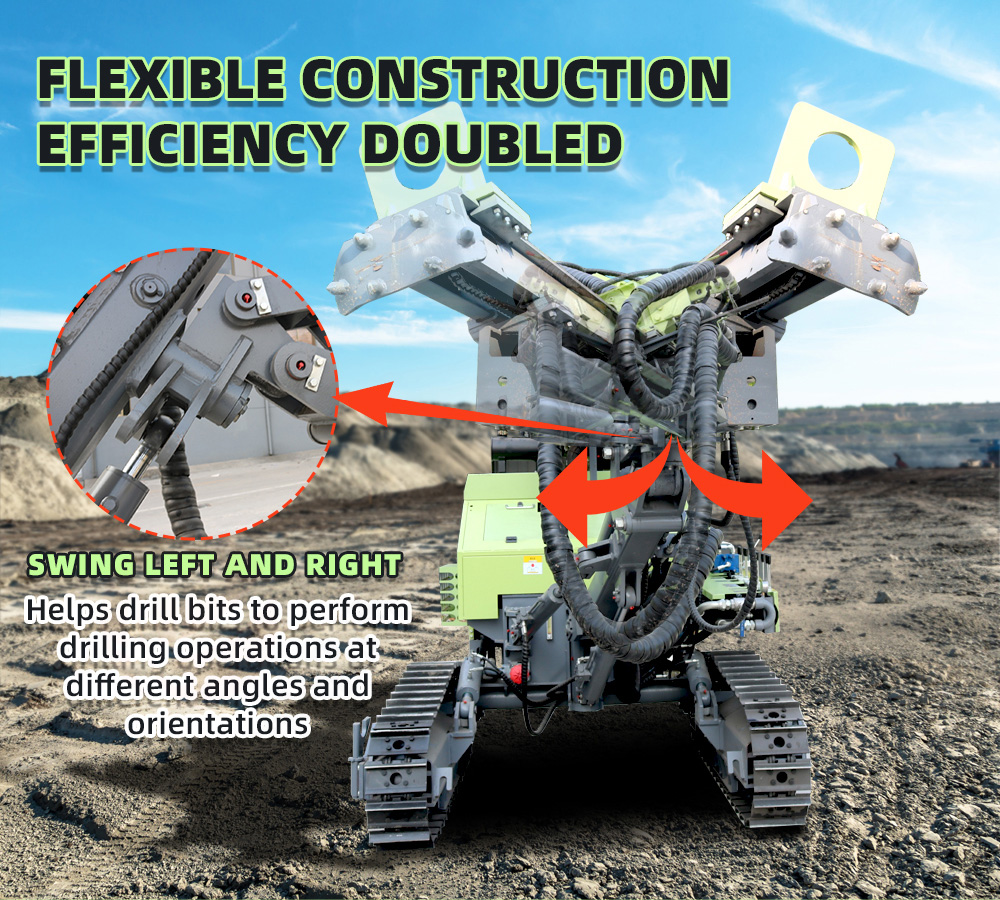

Our mining down the hole drilling rig is equipped with a guiding system and automatic control technology, which can help the drill bit perform drilling construction at different angles and directions. It can accurately control the drilling position and angle, strictly control errors, and improve the quality and efficiency of the operation.
Company Profile
FAQ：
1.What is the power performance of this mining down the hole drilling rig?
Our drilling rig is equipped with a 70 kW high-performance engine, which is powerful and capable of easily handling various complex mining conditions, providing continuous strong power for drilling operations and ensuring stable operation.
2. Is there after-sales service guarantee after purchase?
of course! We have a professional after-sales team that provides response within 24 hours, solutions within 48 hours, and sufficient inventory of vulnerable parts to ensure the continuous operation of the equipment.
3.What is the approximate price of the equipment?
Due to different configuration and customization requirements, prices may vary. You can contact us and our professional sales team will communicate with you as soon as possible to provide a detailed quotation based on your actual needs.
