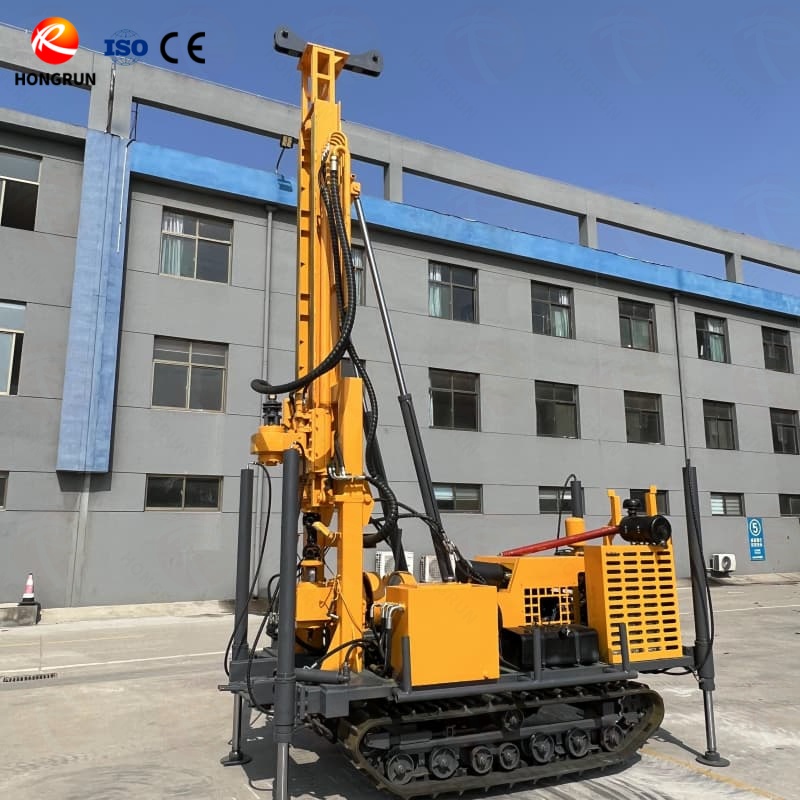

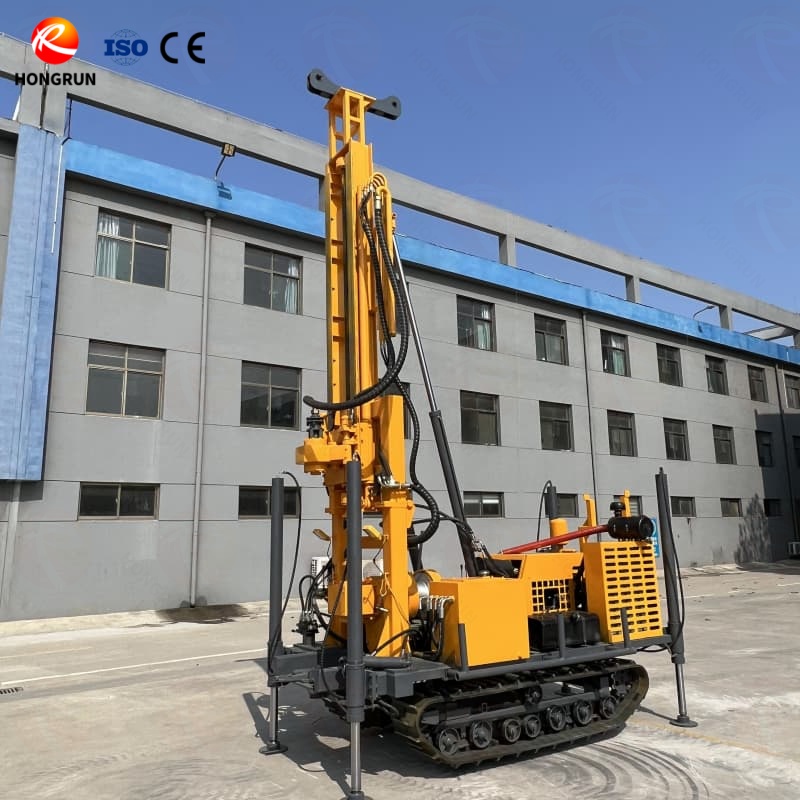

280 Top Drive Drilling Rig
Features:
The water well drilling rig is powered by a 55 kW engine equipped with a new hydraulic top drive and dual water air system. The drilling depth can reach 280 meters and the width ranges from 50 to 410 millimeters. Compact track design with simple centralized control.
Advantages:
The drilling machine has high torque, fast drilling speed, and is stable on any terrain. Dual mode can easily handle sand, gravel, and rock. Durable and easy to maintain.
Benefits:
A well drilling equipment can accomplish many tasks - well drilling, exploration, drainage, and grouting. Faster work speed, cost savings, and longer lifespan.
Product Details

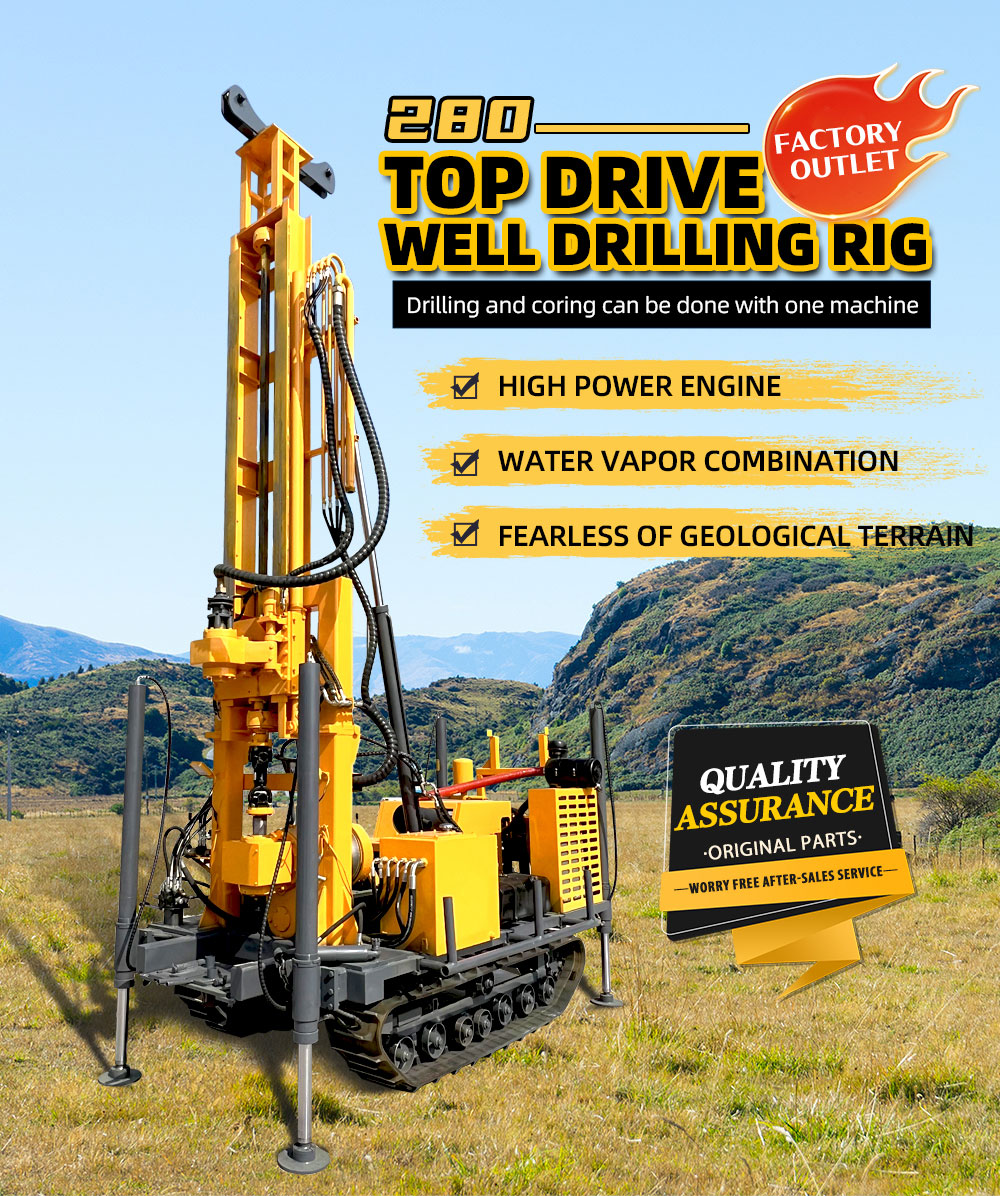

Advantages of 280 Top Drive Drilling Rig
1. Equipped with a high-power engine - the 280 type top drive water well drilling rig has strong power and can easily handle deep well and hard rock construction.
2. Support dual use mode of water and gas - flexible switching during operation to meet the drilling needs of different geological conditions.
3. This water well drilling rig is not afraid of complex geological environments - it operates stably and efficiently, calmly dealing with various geological challenges such as sand layers, gravel layers, and rock layers.
Specification Parameters
Top Drive Drilling Rig | |||
Engine | 55 KW | Climbing ability | 0-30° |
Drilling depth | Max 280 m | Working size | 3.8*2.2*5.7 m |
Drilling diameter | 75-410 m | Wire coring | 350 m |
Lifting force | 100 KN | Drilling angle | 90° |
Rotary drilling speed (forward rotation) | 33/63/113/163/192/237/330/ | Propulsion force | 50 KN |
Rotary drilling speed (reverse rotation) | 37/180 r/min | Lifting force of winch | 4.5 T |
Maximum torque | 9800 N.m | Gas consumption | 16-35 m³/min |
Drilling pipe diameter | 50/60/76/89mm | Walking speed | 0-2 km/h |
Drill pipe length | 2000 mm | Transport dimensions | 4.6*1.9*2.5 m |
Mud pump | BW160 | Weight | 3.5 T |
Working wind pressure | 10.5-24.6 bar | / | / |
Note: The product supports customization, and the parameters can be adjusted according to actual application scenarios. Welcome to inquire by phone.
280 type top drive water well drilling rig, with hardcore strength, one step at a time:
1. Solid and durable: sturdy structure, durable and reliable
2. Efficient drilling: Strong drill bit, rapid footage
3. Accurate operation: dedicated track, stable operation
4. worry free guarantee: factory direct sales, worry free after-sales service

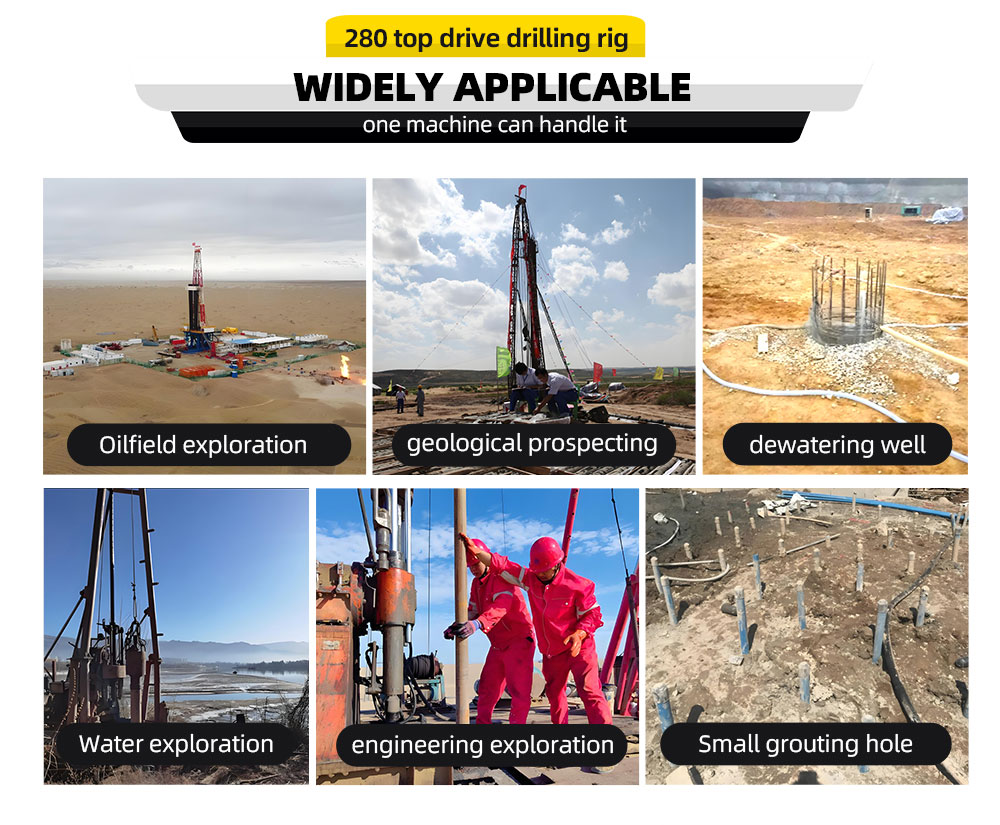

Scope of use of water well drilling rig
1. Oilfield exploration: used for drilling and sampling, assisting in the analysis of underground oil and gas distribution structure.
2. Geological exploration: used to take rock and soil samples, understand the geological structure, and facilitate the understanding of underground conditions.
3. Construction of drainage wells: can be used for underground drainage or dewatering operations.
4. Engineering exploration: serving as a foundation survey for buildings, bridges, tunnels, and other engineering projects.
5. Small grouting hole drilling: It can be used for small-scale reinforcement projects such as foundation reinforcement and crack grouting.
Detailed Introduction

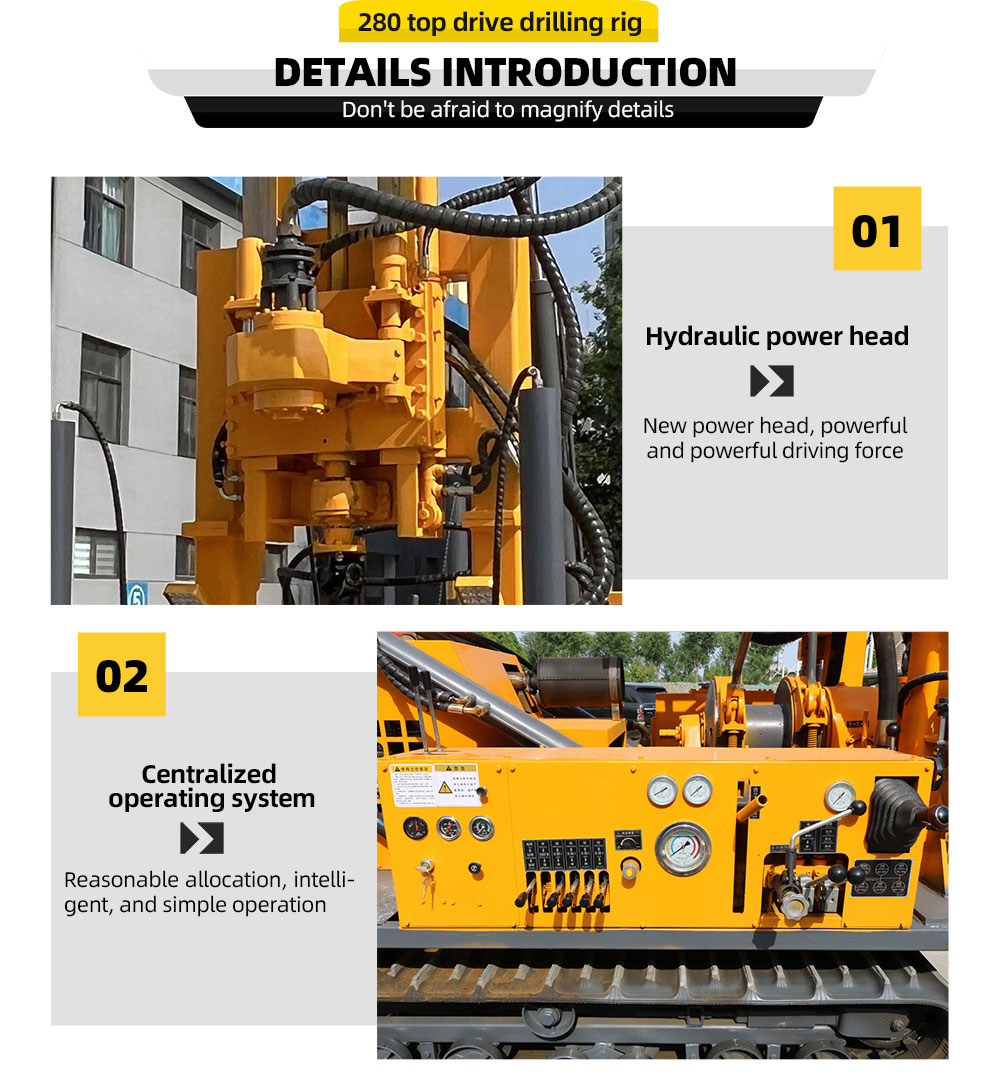

This water well drill uses a new type of hydraulic power head. The power exceeds the awesome. It can drill quickly and stably, and is not afraid of any stratum. The centralized operating system is designed reasonably, with clear function allocation, easy to use, and efficient in work. It is a good helper for drilling wells and various exploration projects!
Detail Display

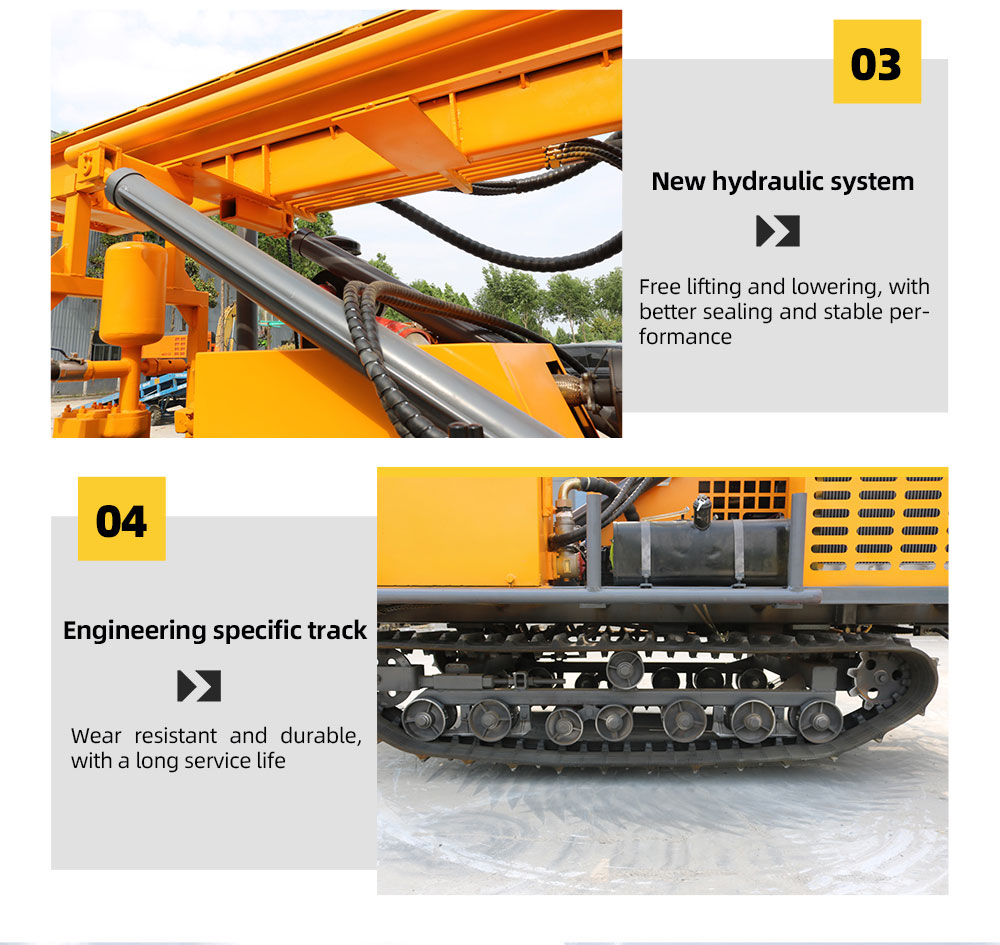

This tracked water well drilling rig is equipped with a new hydraulic system, which allows for free lifting, better sealing, and more stable performance. Engineering specific tracks are wear-resistant and durable, and are not easily damaged even after prolonged use, making construction more secure and efficient.

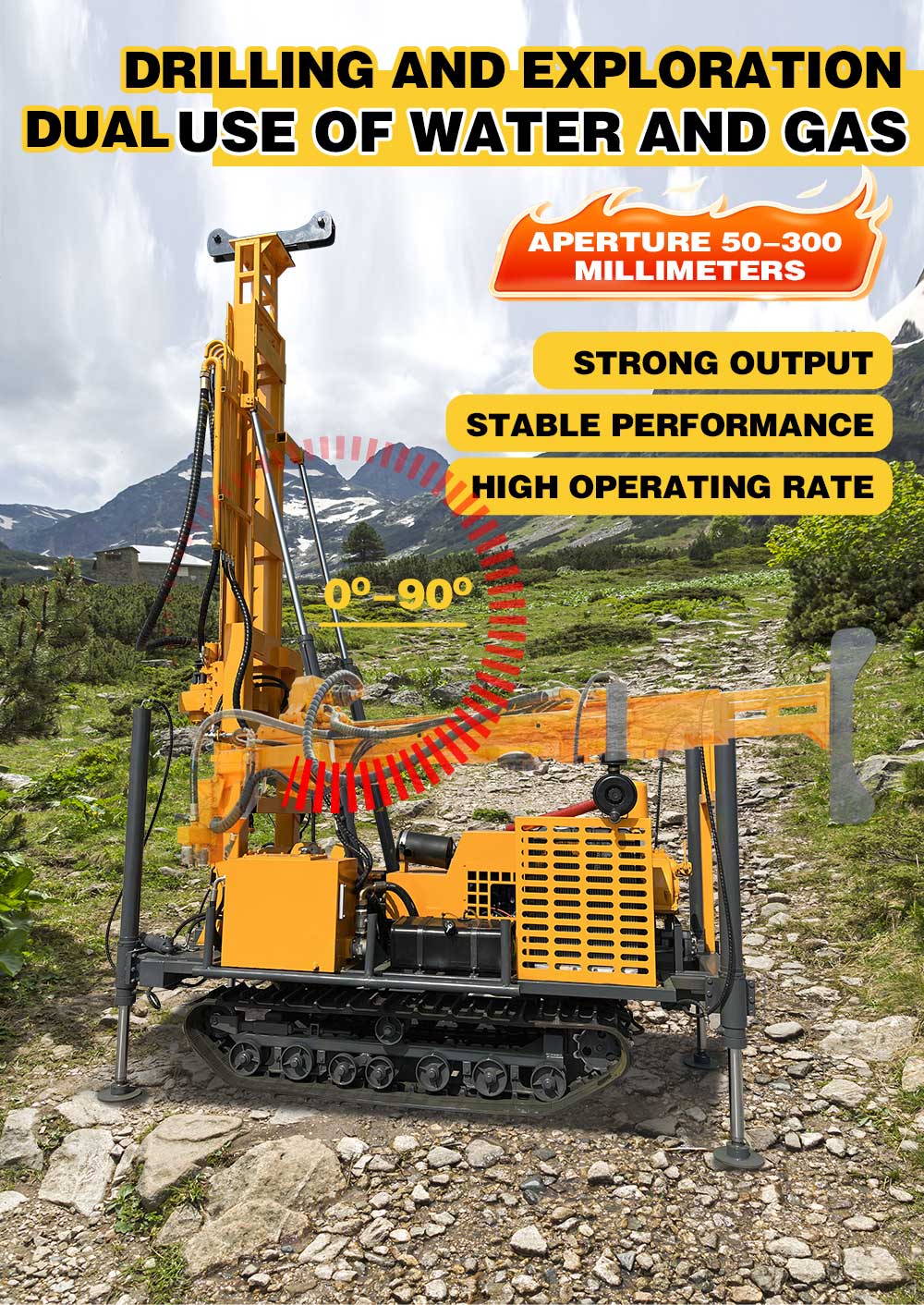

Water gas dual-use drilling rig
The 280 type drilling equipment combines drilling and exploration functions, adopts a dual-purpose design for water and gas, and can drill holes of 50-300mm. The dual-mode power is strong and stable, adapting to various geological conditions. The high speed makes the operation faster and more efficient, and the drilling diameter range is also wide, making the work more flexible.

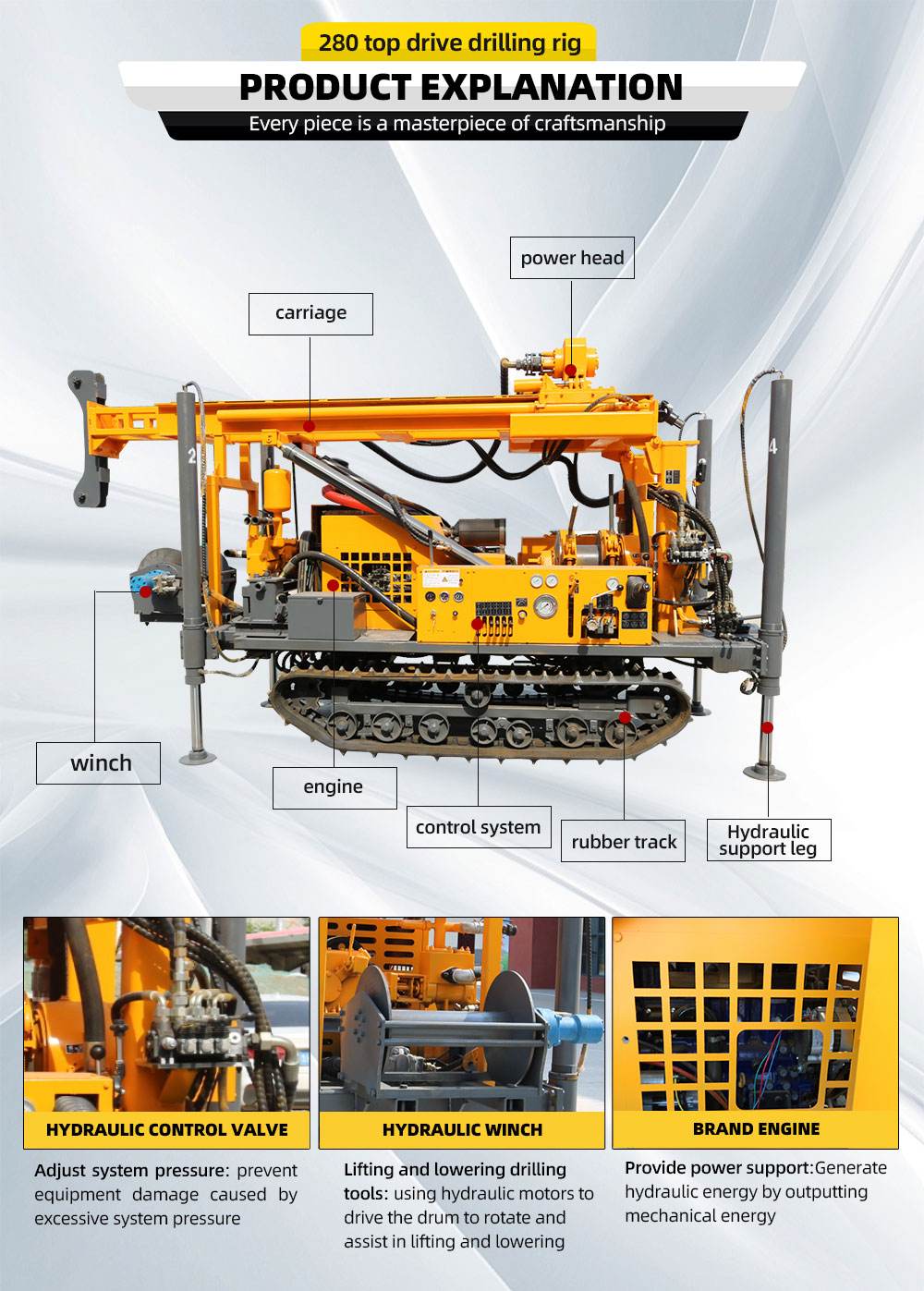

Composition structure of water well drilling rig
This drilling rig has a power head, drill pipe, winch, engine, control system, rubber tracks, and hydraulic support legs, all of which work together to achieve high drilling efficiency. The hydraulic control valve can stabilize the system pressure, the hydraulic winch can lift and lower drilling tools, and can also handle accidents such as drill jamming. The brand engine has strong and reliable power, and from the overall structure to the core components, it can be seen that this drilling rig is professional and durable.

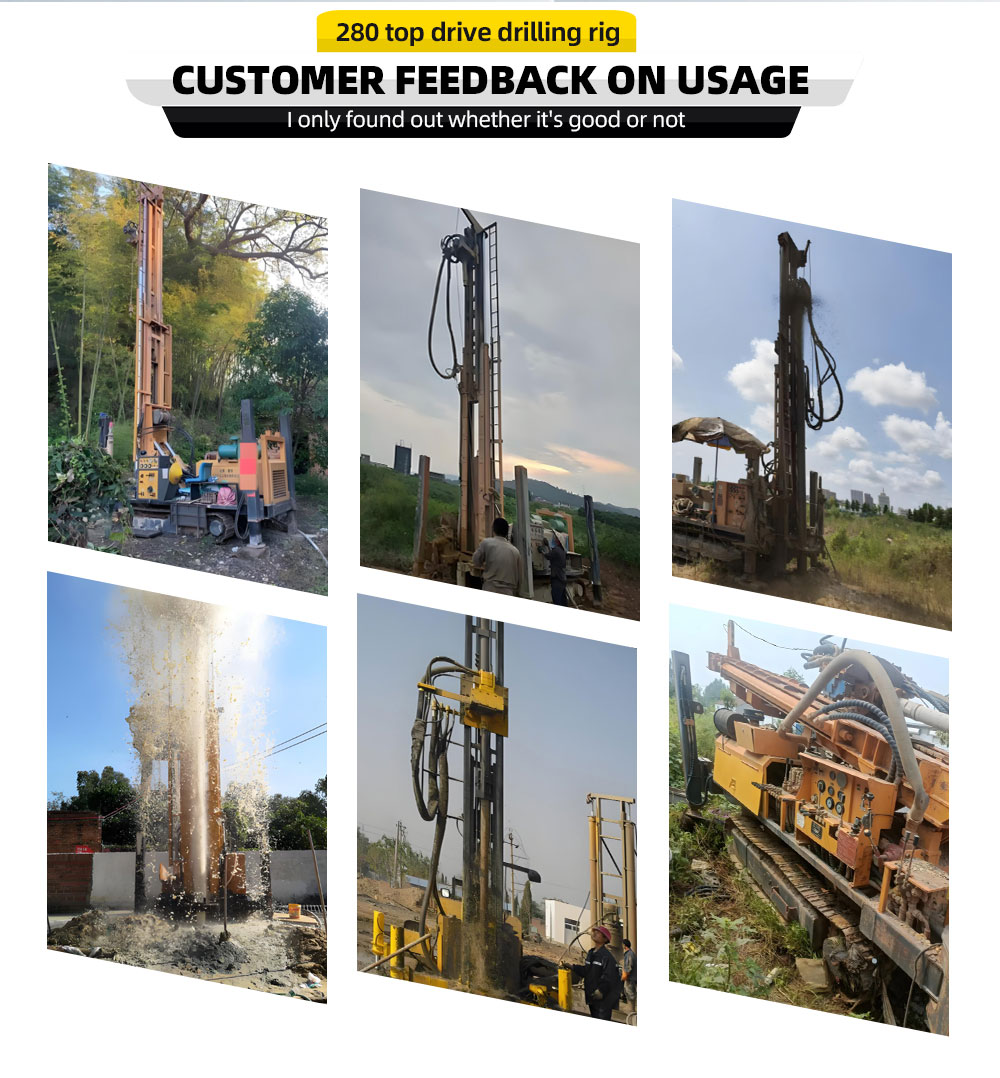

Customer Feedback On Usage
The customer feedback for our 280 type top drive water well drilling rig has arrived! The customers who have used it all praise it greatly, their satisfaction is so high! Welcome to take a look online, and you can also come and try it out offline to personally experience its good performance. Let's do a better job of drilling together!

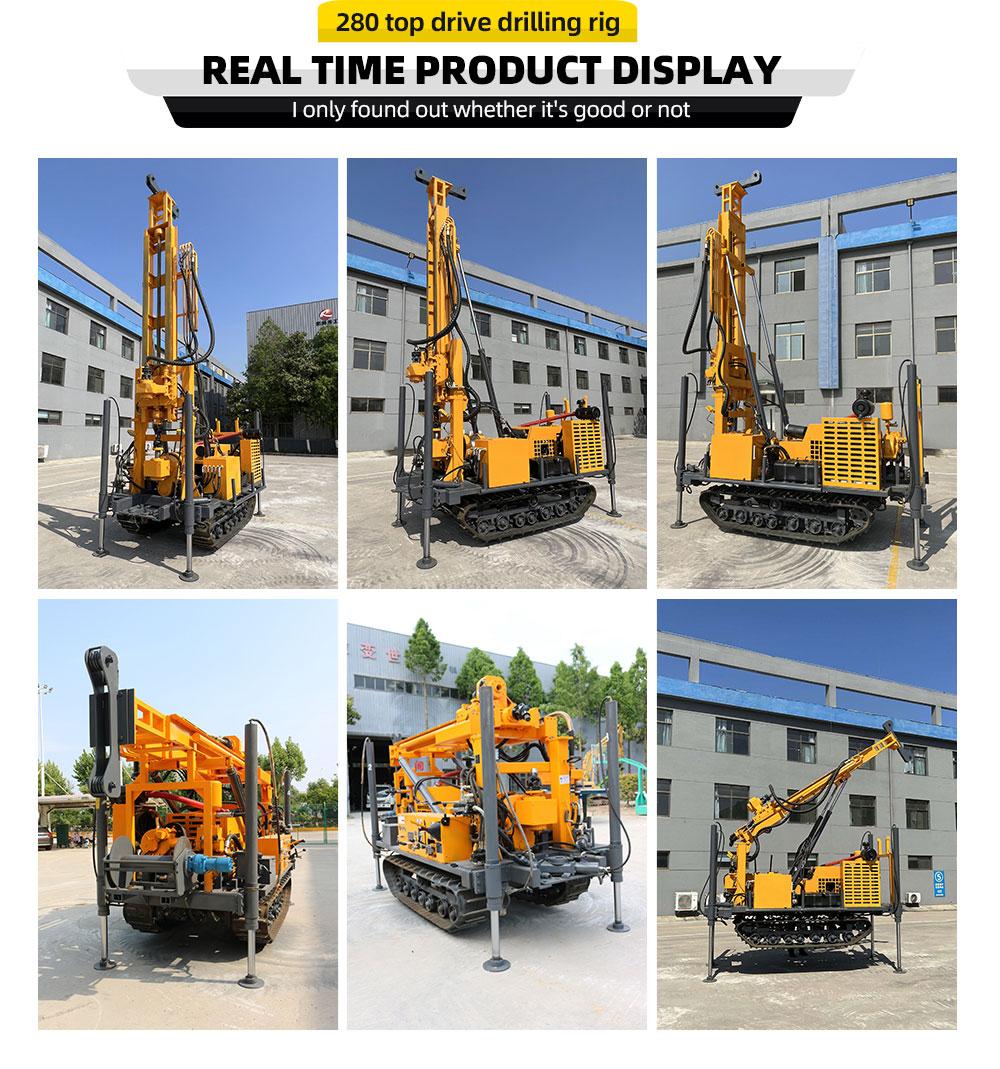

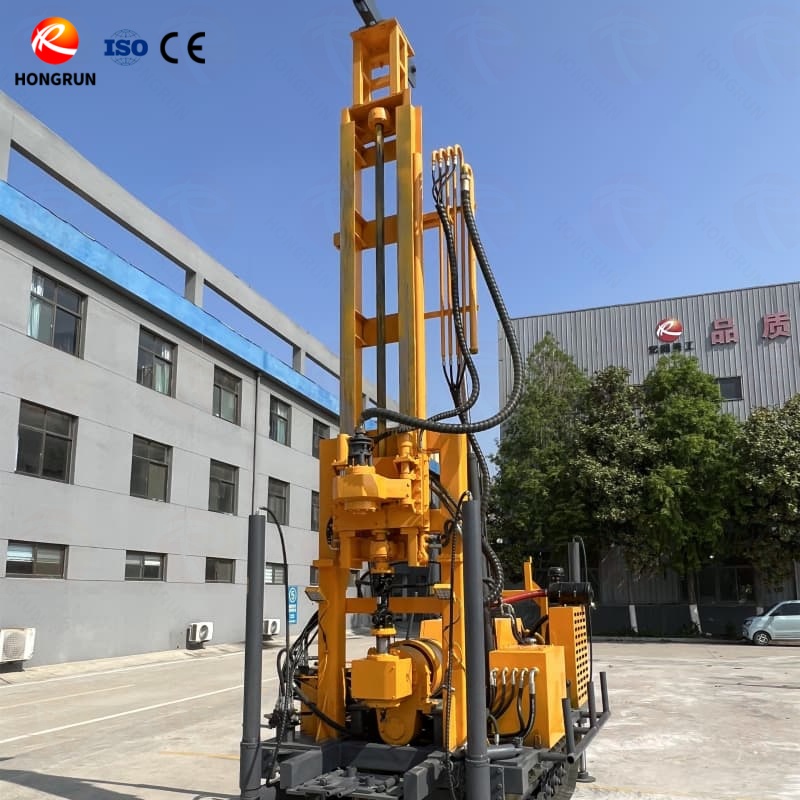

Factory Photo Of 280 Type Top Drive Water Well Drilling Rig
Company Profile
We, Hongrun Machinery, have over ten years of research and development and production experience, with a strong team and a focus on innovation. Our products are exported to dozens of countries overseas, with a wide variety and good quality, and have always had a good reputation. We always insist on making better machinery and promoting continuous progress in the industry.
Our Team's Wonderful Photos
FAQ:
What are the transportation dimensions and weight of this device?
The transportation size of this machine is 4.6 * 1.9 * 2.5 meters, with a weight of 3.5 tons.
What is the maximum drilling depth for this model?
The maximum drilling depth of this machine is 280 meters.
How to switch between water and gas dual-use modes?
By one click switching through the control panel, the system automatically completes pipeline and pressure adjustment, with a switching time of no more than 3 minutes.
