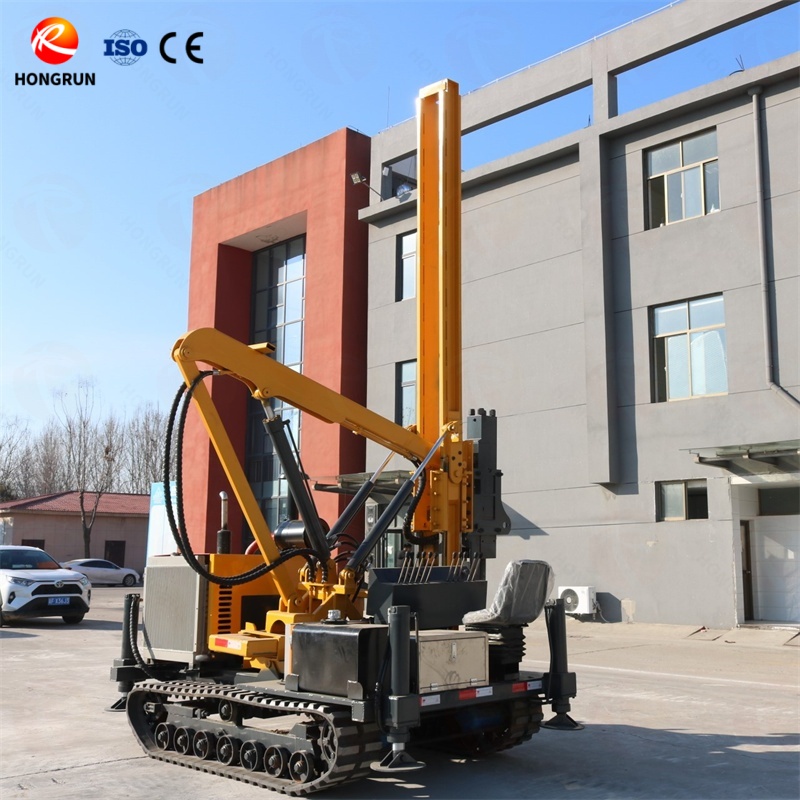

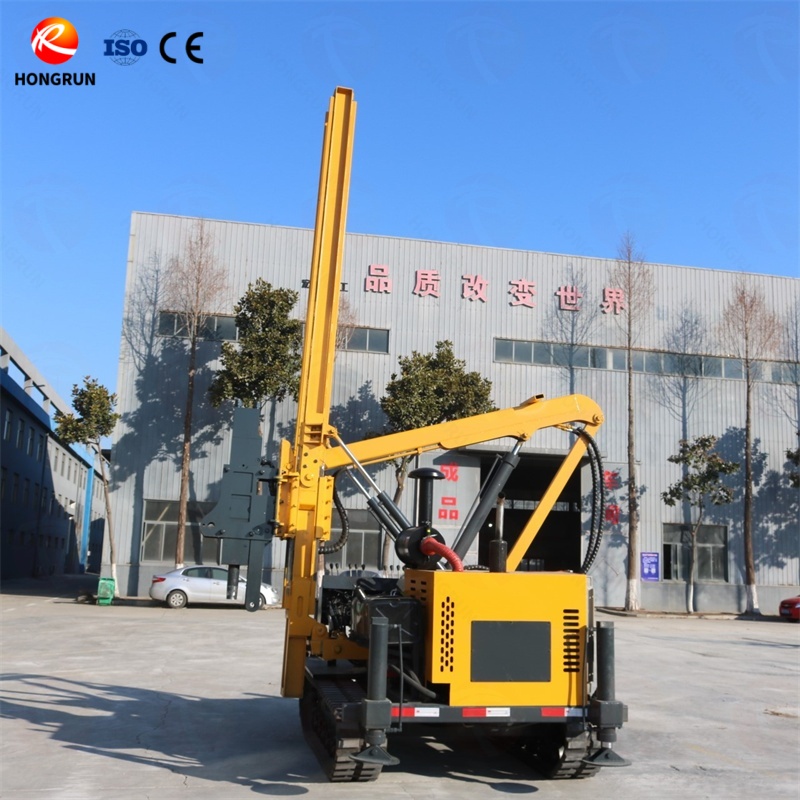

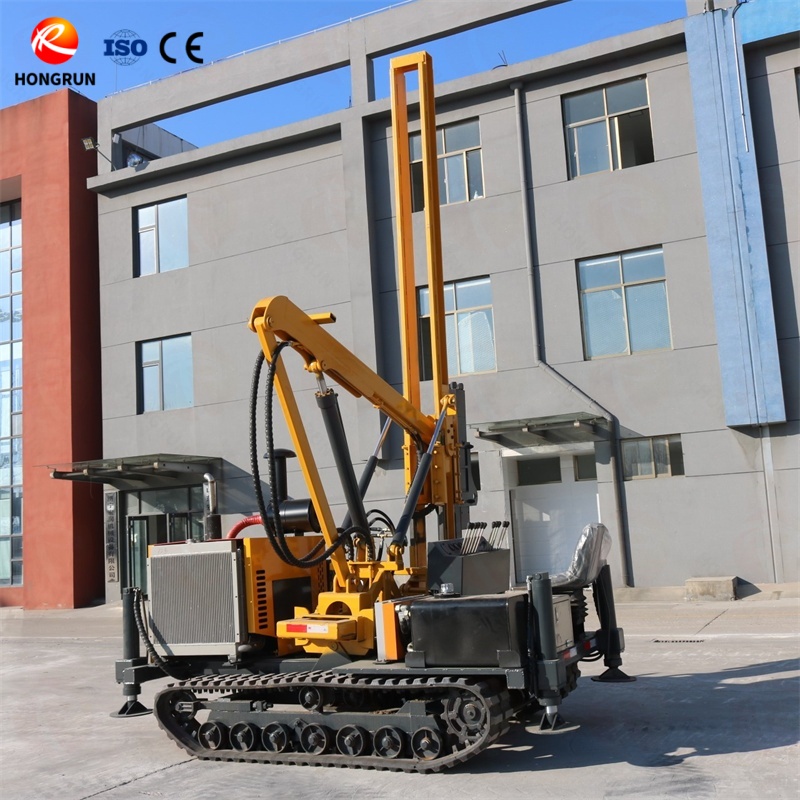

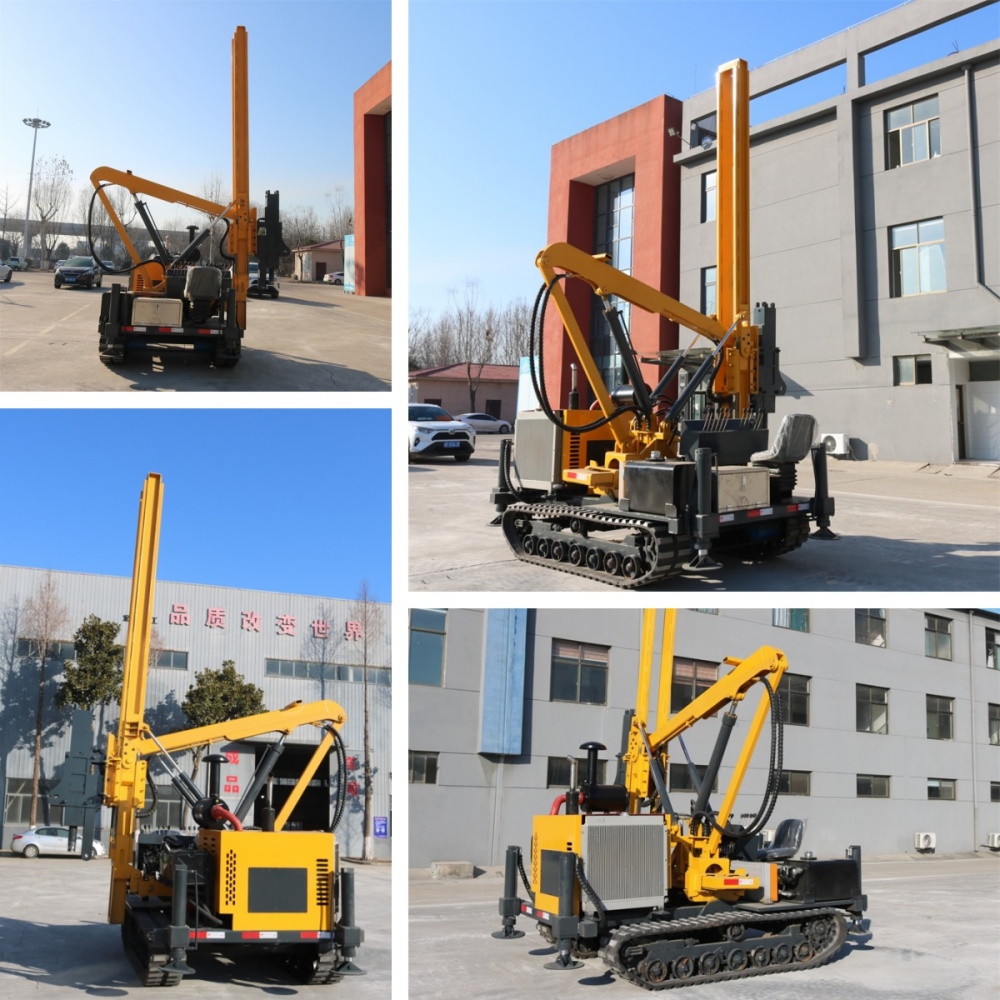

Guardrail Pile Driving Rig
Multi purpose: The guardrail pile driver integrates pile driving, pile pulling, and drilling, equipped with rubber tracks, suitable for various terrains, and operates flexibly and efficiently.
Efficient construction: Pile driving speed up to 2500 mm/min, precise positioning, saving manpower and operation time.
Cost savings: Multi functional integrated design improves equipment utilization, reduces procurement and maintenance costs, and minimizes road damage.
Product Details
This guardrail pile driving rig is designed specifically for bridge, highway, and railway construction, adapting to various complex terrains. Equipped with engineering rubber tracks, it can stably cross muddy, mountainous and other road conditions. The efficient pile driving system improves construction efficiency, reduces labor and maintenance costs, and is an ideal equipment for foundation engineering.
Engineering rubber crawler guardrail pile driving and pile pulling integrated machine+rotary drilling | |||
Product name | Guardrail pile driver | Oil cooler | 650*550*215 mm |
Engine | Yuchai ZY4105 turbocharged engine | Gear pump flow rate | 80-110 ml/min |
Engine power | 85 kw | Gear pump speed | 2500 r/min |
Maximum torque of walking motor | 1800 Nm | Pile driving efficiency | 2500 mm/min |
Walking speed | 5000-20000 m/h | Maximum pile height | 3.4-4 m |
Maximum traction speed | ≤30000 m/h | Slide travel | 700-3400 mm |
Left and right sliding stroke | 0-400 mm | Sliding navigation frame tilt angle | Left30° right 5° |
Gradeability | 30° | Frame front and rear adjustment angle | 0-20° |
Diesel tank | 60 L | Hydraulic leg | 100 model |
Hydraulic oil tank | 600*400*360 mm | Working dimension | 3.4*2.2*4.5 m |
Hydraulic hammer | |||
Model | DG100 | Number of blows per minute | 490-990 n/min. |
Working Flow | 45-85 Lpm | Impact frequency | 400-800 bpm |
Working Pressure | 147-167 Bar 150-170 kg/cm³ | Hydraulic hammer impact energy | 1550 J |
Gross weight | 479 kg | Sound power level | 88/116 LPA/LWA |
Driving flow-rate | 80-110 Litre/min | Hose diameter | 3/4 inch |
Striking frequency | 360-700 b.m.p | Diameter of tool | 100 mm |
Hydraulic hammer working flow rate | 90-120 i/min | Weight of tool | 31 kg |
Hydraulic hammer working pressure | 15-17 Mpa | / | / |
Any technical parameter questions can be consulted, and we will customize highly adaptable products for you.
1. Reinforcement Structure Design:
The guardrail pile driving rig adopts a high-strength alloy steel frame, which is wear-resistant and earthquake resistant, and does not deform during long-term operation, resulting in a longer construction life.

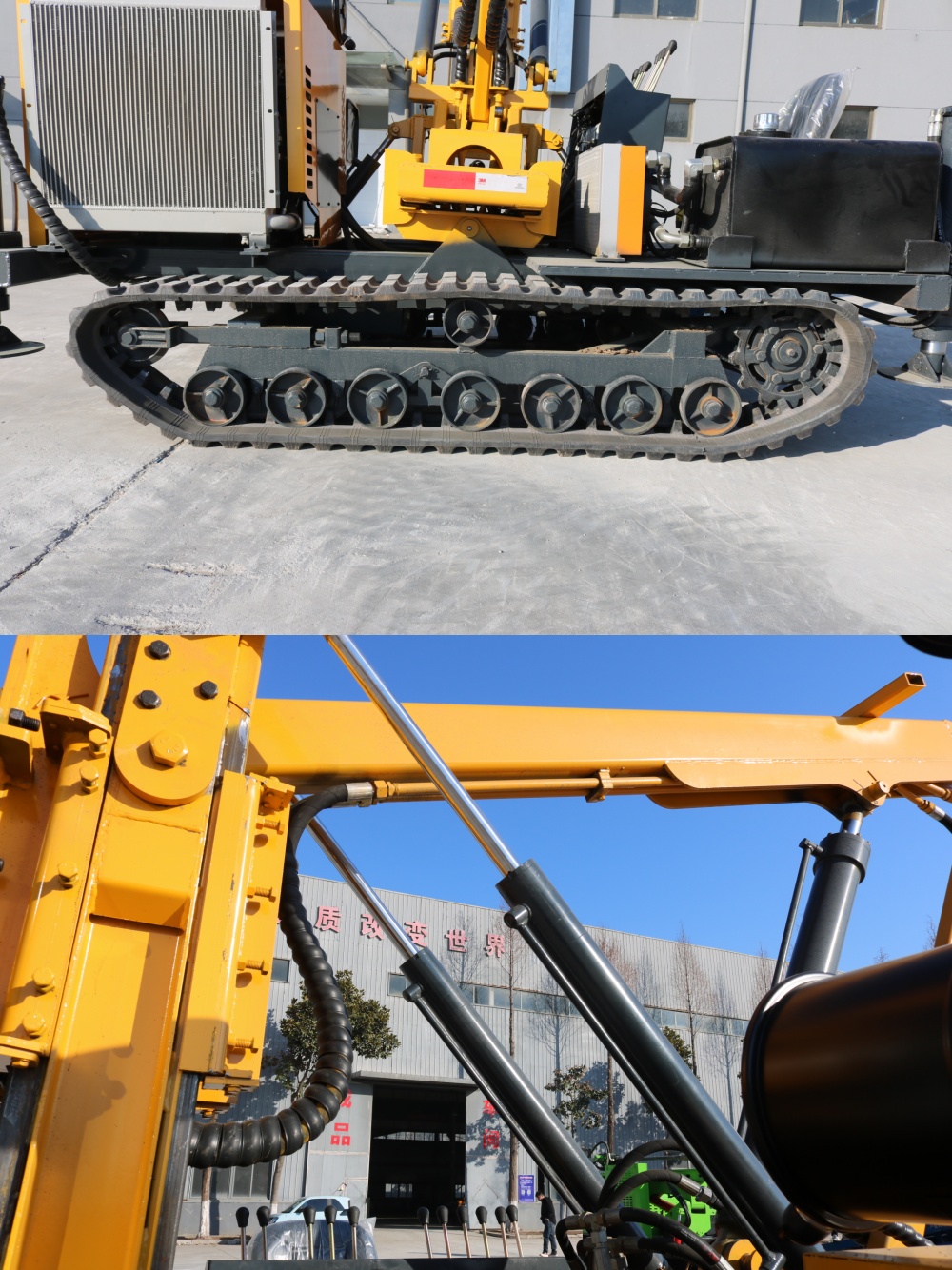

2. Worry Free Crossing Of Complex Terrain:
The guardrail pile driving rig adopts an all terrain tracked chassis, which is suitable for road conditions such as mountain roads, cement roads, and sandy soil. It runs smoothly without slipping, ensuring smooth operation.

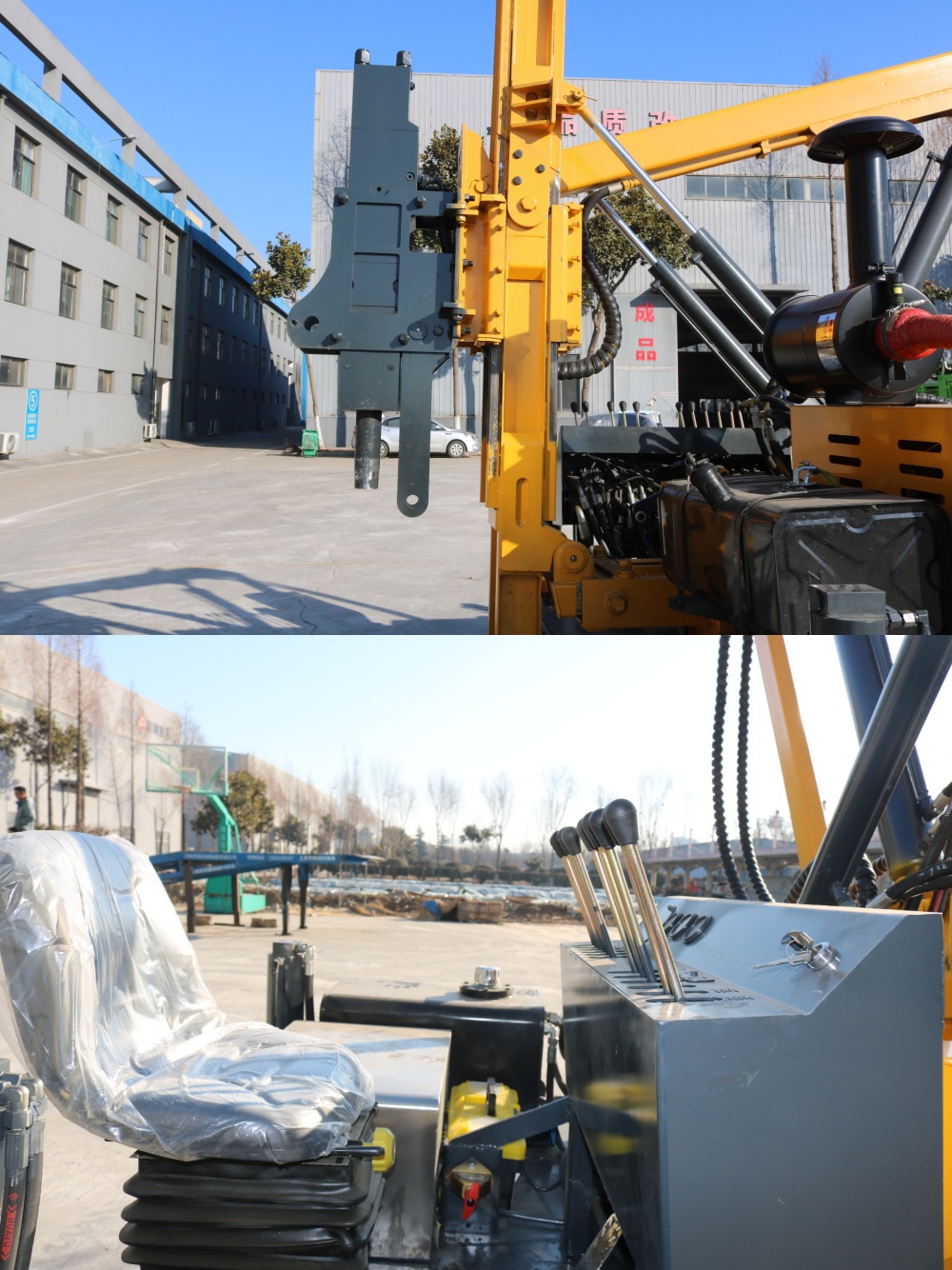

3. Efficient Hydraulic System:
This guardrail pile driver is equipped with a high-performance hydraulic hammer, with a pile driving speed of up to 2500mm/min. It integrates pile driving, pile pulling, and drilling functions, making it a versatile device.
4. Intelligent Operating System:
The guardrail installation machine adopts a sliding navigation structure driven by a hydraulic cylinder, which can achieve 30 ° left tilt and 5 ° right tilt adjustment, and can complete inclined ground construction without frequent equipment movement.

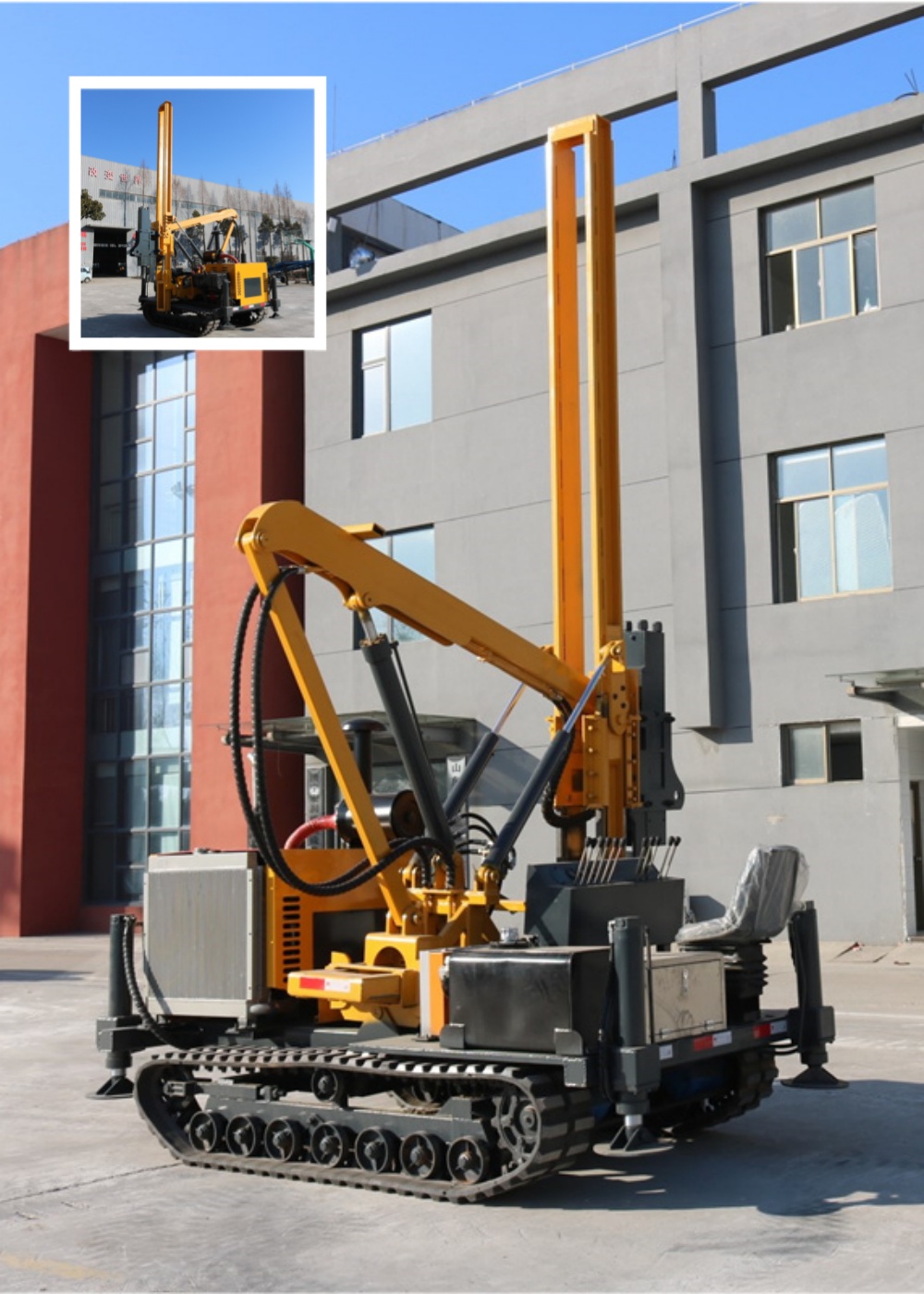

Integrated Multifunctional Design
This guardrail pile driving rig has three functions: pile driving, pile pulling, and drilling. It is equipped with a retractable oil cylinder and a hydraulic system with a maximum operating height of 4 meters to quickly complete various pile foundation tasks, reduce equipment replacement time, and improve operational continuity.
Application Scenarios Of Guardrail Pile Driving Rig
1.Installation of highway guardrails
2.Bridge foundation construction
3.Railway infrastructure projects
4.Mountain and rural road safety barriers
5.Urban roadside protection system

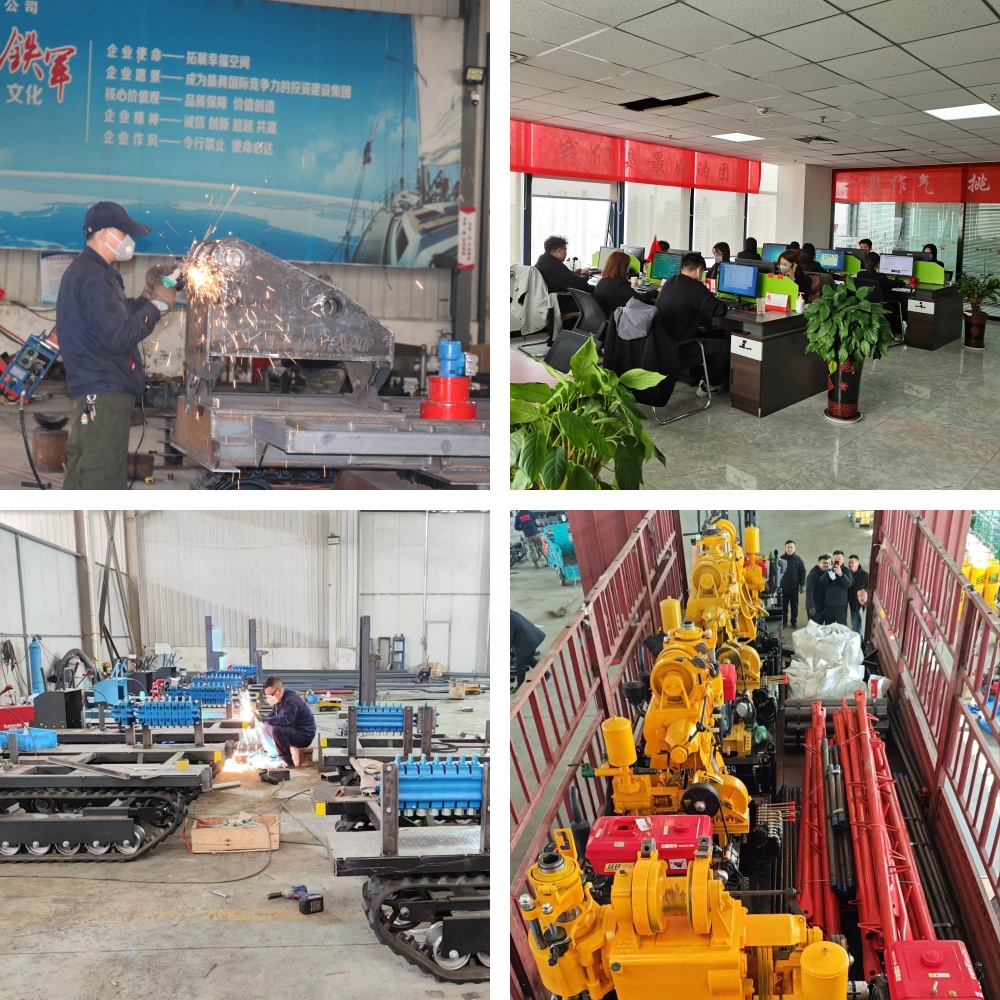

Research And Manufacturing Support
From research and development design, component selection to complete machine assembly and factory inspection, we strictly control every process to ensure that every tracked guardrail pile driver meets high standards and performance, helping users efficiently complete every engineering task.

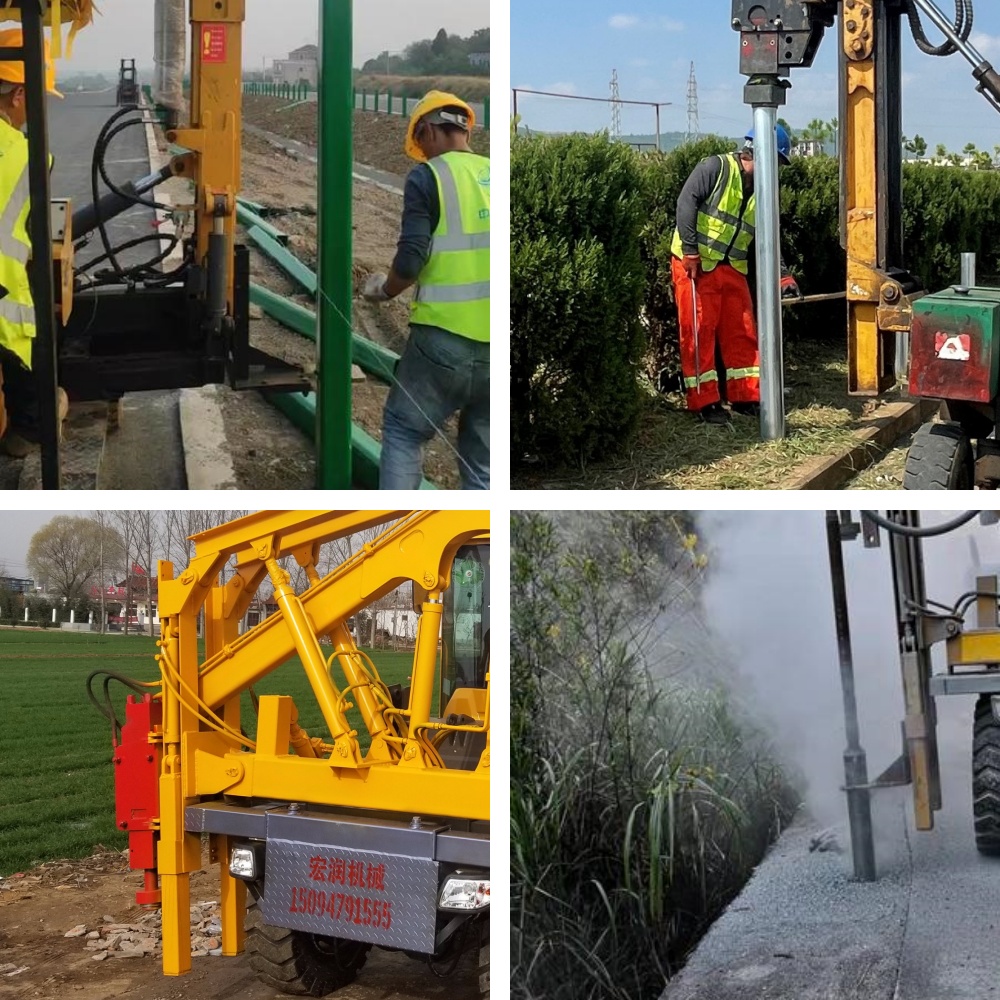

Construction Photography And Customer Feedback
Customer construction feedback indicates that this equipment has performed excellently on the construction site, with precise pile driving, convenient operation, and efficient loading and unloading. The shipping packaging is neat and standard, and the equipment quality has received widespread praise, demonstrating our factory's manufacturing strength.
Frequently Asked Questions
Q: Is it suitable for hard soil or rock conditions?
A: Yes, this machine is designed for hard formations and is equipped with a powerful hydraulic hammer.
Q: Can we customize colors or logos?
A: Of course. OEM/ODM services can be used for bulk orders.
Q: How is after-sales service handled?
A: Provide online video support, spare parts supply, and technical personnel guidance
