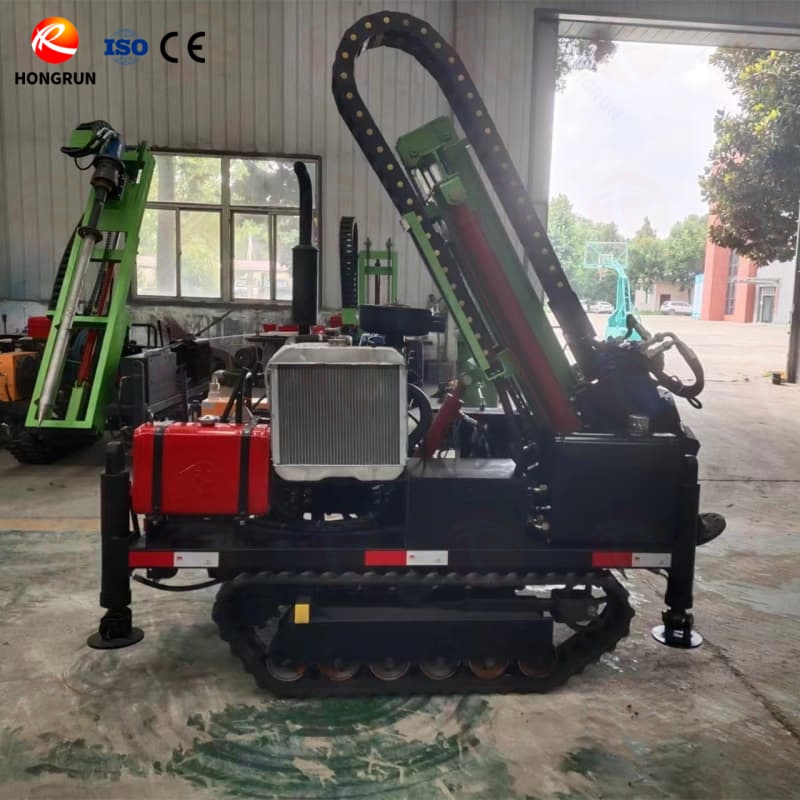

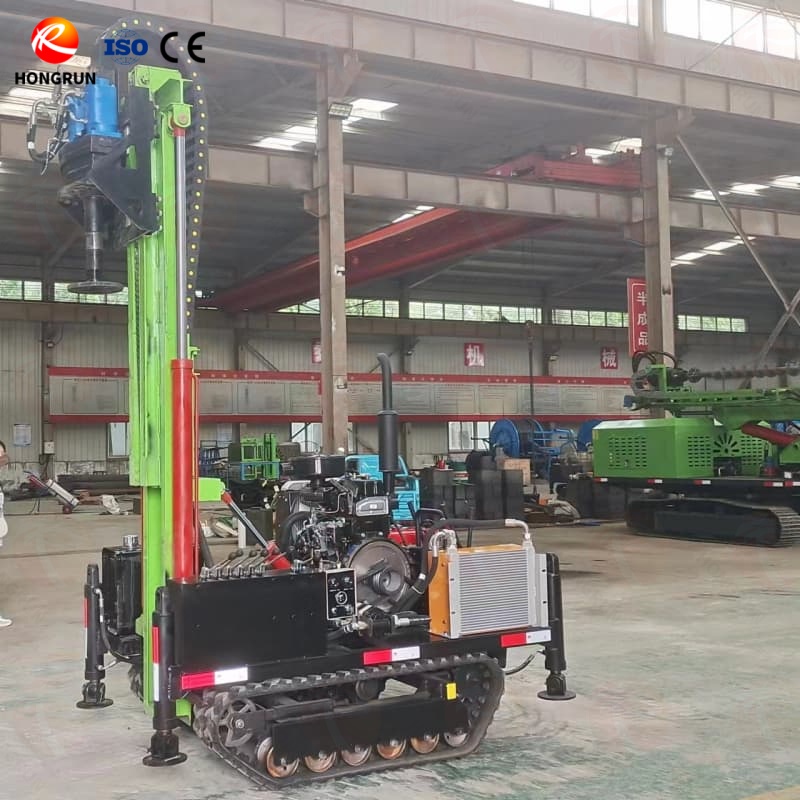

Micro Piling Machine
Highlights of Micro Piling Machine：
1.Powerful Engine: 35HP diesel engine for deep-hole drilling and tough geology.
2.All-Terrain Mobility: Rubber tracks and hydraulic legs for stable movement across any landscape.
3.Versatile Drilling: Adjustable 45°-90° drilling angles and quick bit change for various geologies.
4.Compact and Efficient: Integrated design with easy control and maintenance for faster project completion.
Product Details
Product Overview
Our micro piling machine is powered by a 35HP twin-cylinder turbocharged engine. The dual-head design boosts efficiency and flexibility, making it ideal for diverse terrains like rock, soil, and desert. Its strong power system and stable tracked chassis ensure reliable, high-performance drilling in tough conditions.
Parameter Table
Engine | Diesel engine | Power | 35HP Double cylinder supercharged engine |
Drill pipe diameter | 42/50/76/89 mm | ||
Drill depth | 0-180m | Rotation torque | 4500-6500 N.m |
Drilling diameter | 50-300mm | Slewing speed | 100-120 rpm |
Effective travel | 2m | Oil pump | 40/40 dual pump |
Diesel oil tank | 20 L | Gradeability | 35° |
Hydraulic tank | 40 L | Oil pump pressure | 20 Mpa |
Hydraulic support leg | Four | Lifting cylinder | 2 set |
Walking style | Crawler driving | Operation form | Hydraulic control lever |
Weight | Including water pump：1400 kg | Dimension | Including water pump： |
Without water pump： | Without water pump： |
Don't hesitate if you have a need! Consult us, complete technical parameters as needed, and customize your future products.
Key Features and Structure of Micro Piling Machine
This advanced micro piling machine is built with several high-strength components designed for durability and ease of operation:
High-strength sliding frame
Large power lifting cylinder
Efficient hydraulic motor
Wear-resistant hydraulic hoses
Adjustable hydraulic support legs
Rubber track chassis
These components come together to create a compact, yet highly mobile structure, perfect for quick adjustments and flexible worksite adaptation. The design ensures smooth transportation and efficient operation, even in tight or complex environments.
Versatile Applications
Designed for flexibility, this micro piling machine is ideal for a variety of construction and engineering projects:
Urban construction
Railway and highway projects
Hydropower and dam projects
Mining and geotechnical exploration
Thanks to its adaptable drill bits and rods, the micropile installation equipment can be customized for a wide range of specialized tasks and can handle diverse environmental conditions with ease.
Product Performance and Efficiency
Powerful power:The micro piling machine is powered by a 35HP twin-cylinder turbocharged engine, providing stable, reliable performance for the toughest conditions.
Efficient and Precise Drilling:With a dual hydraulic powerhead design, it boosts drilling efficiency and precision. The synchronized powerheads balance speed and stability, while the advanced hydraulic system ensures reliable, energy-efficient operation for high-performance drilling.
Hydraulic System: The centralized control panel makes operation straightforward, even for inexperienced users. The rig’s design allows for easy and efficient control over all functions.
Superior Track System: Equipped with engineering rubber tracks, the micro piling machine provides excellent traction and wear resistance, allowing it to move smoothly across various terrain types, including slippery or uneven ground.
Factory Display
Packaging and Transportation
FAQ
1. What is the typical delivery time?
We usually deliver within 7-10 working days after receiving the deposit. The exact timeframe may vary based on the quantity and specifications of the order.
2. Do you perform any pre-shipment testing?
Yes, we conduct 100% testing before shipment to ensure the product meets all quality standards. Each unit is shipped with a detailed inspection report.
3. Can you customize drill tools or add additional features?
Absolutely! We can customize drill tools (e.g., diamond drill bits, alloy drill rods) and offer various upgrades, such as enhanced control systems or the addition of dust removal equipment, tailored to your specific job requirements.
