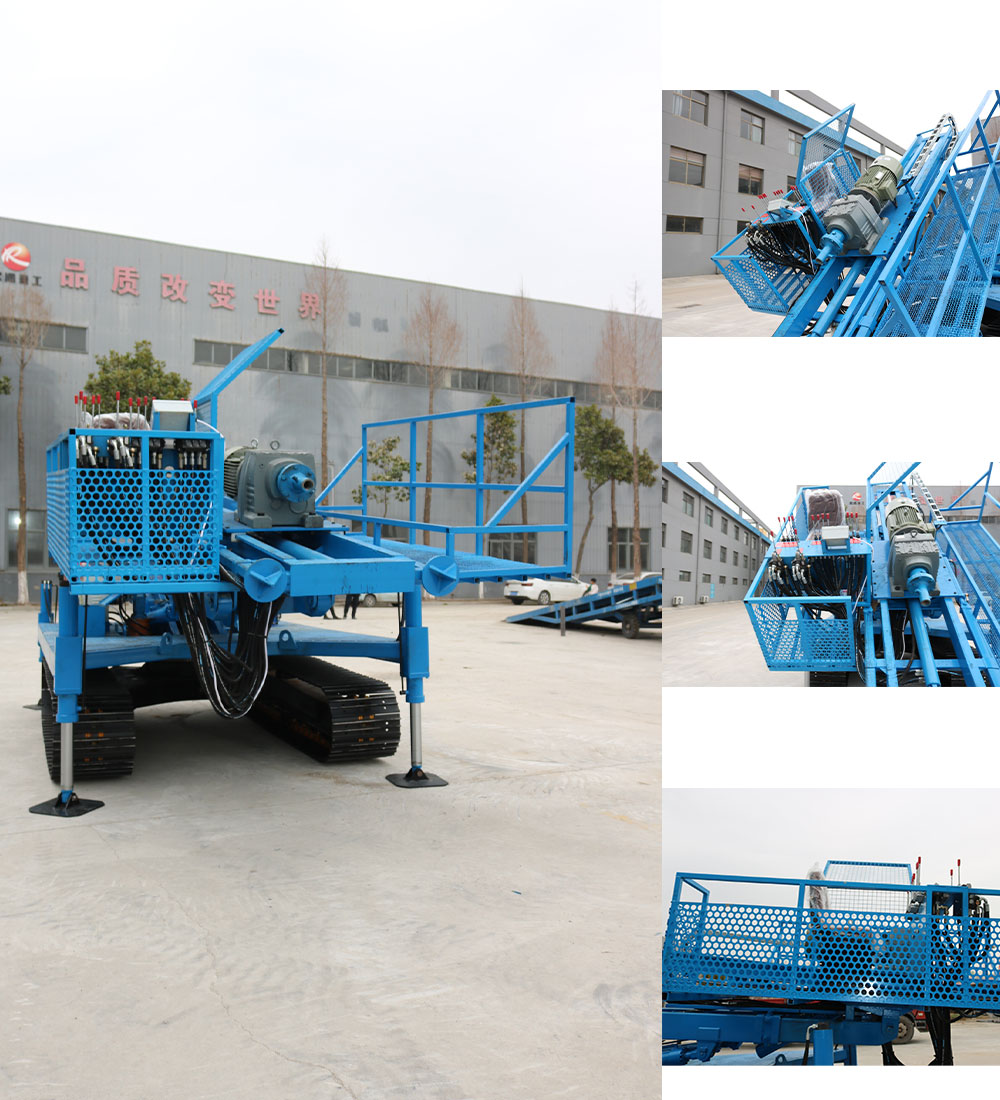

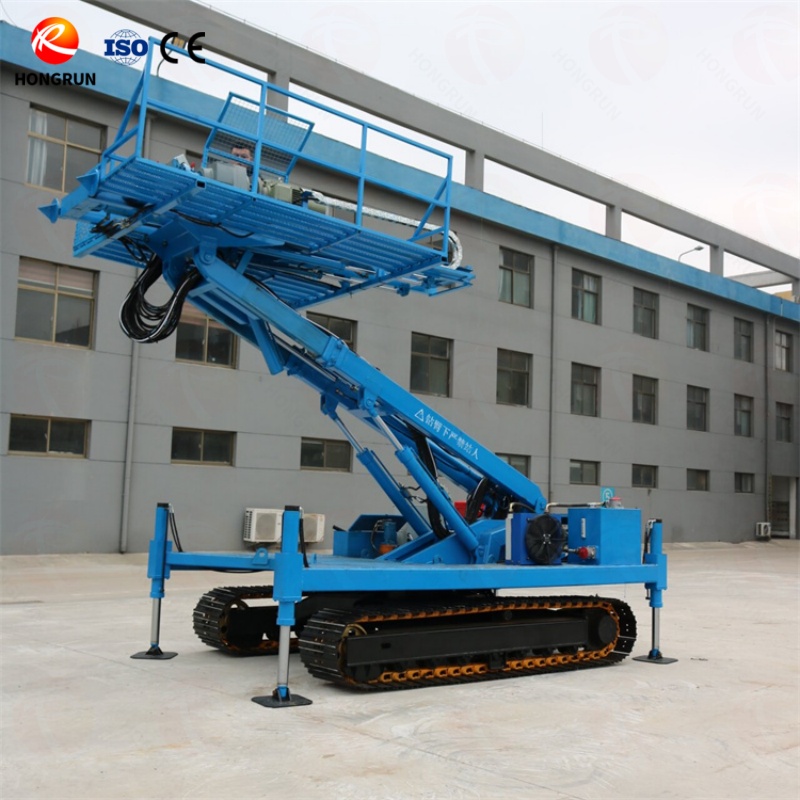

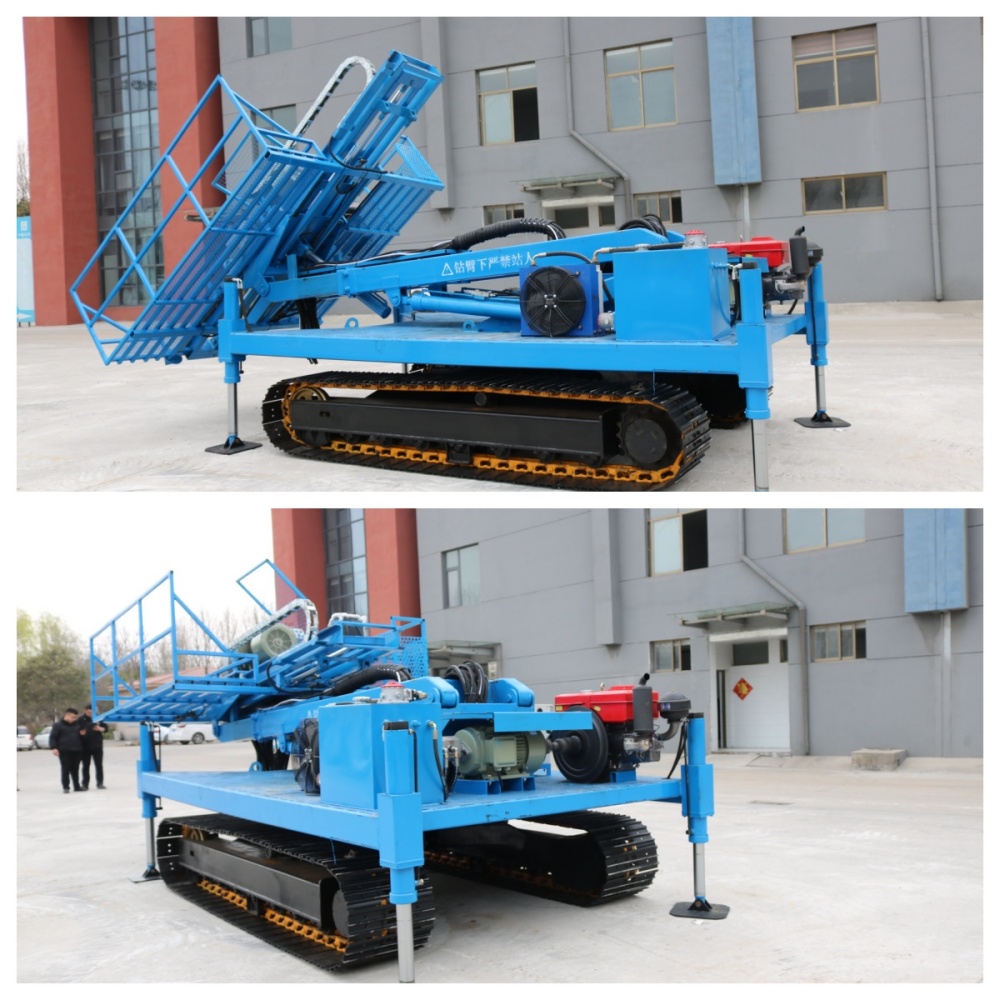

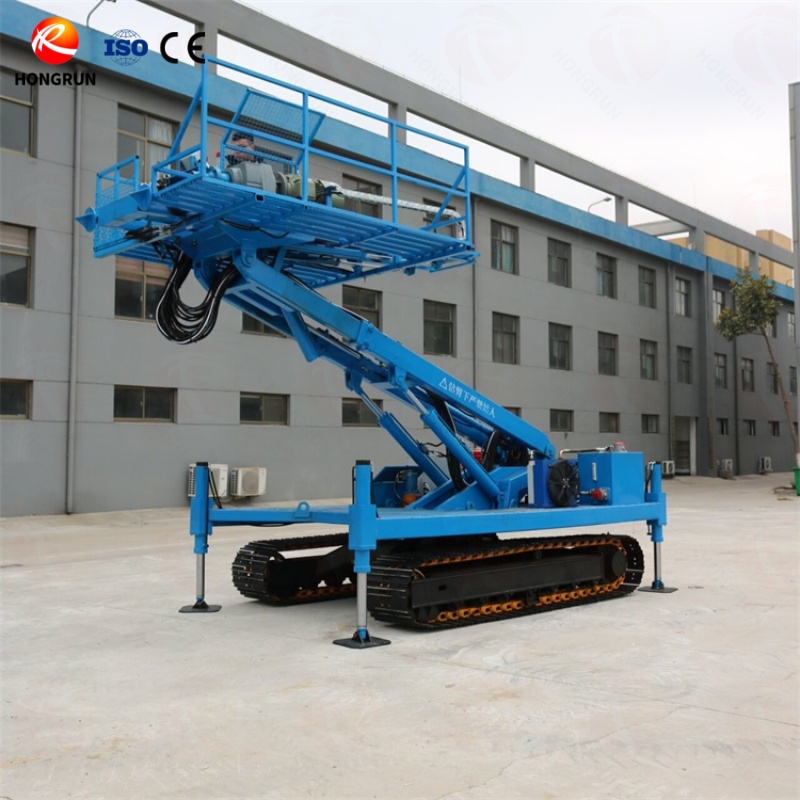

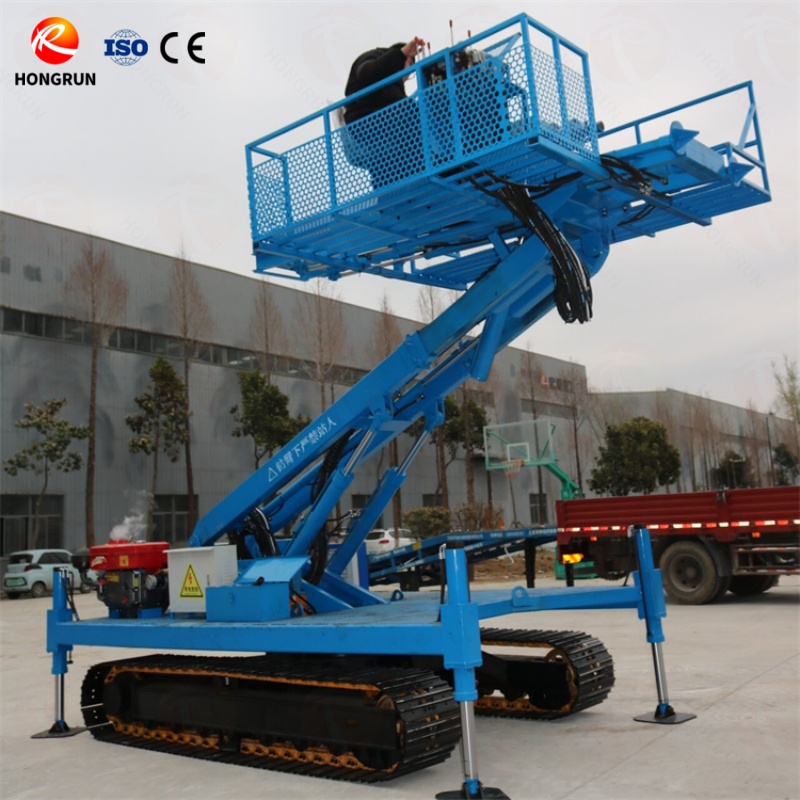

Anchor Drilling Machine

The Product Advantages Of The Anchor Drill Rig

Compact structure;  anchor drilling machine small body, easy to disassemble and transport, suitable for limited space construction environments such as tunnels, mountains, narrow slopes, etc.

anchor drilling rigMulti-angle drilling;  supports 0-90° drilling angle adjustment to meet various operation requirements such as horizontal anchors, oblique support, vertical reinforcement, etc.

The Product Advantages Of The Anchor Drill Rig

Efficient drilling system;  ground anchor drilling rig equipped with a large torque hydraulic power head, adjustable speed, suitable for weathered rock, sand layer, clay layer, soft rock and other types of geology.

Convenient operation;  humanized control system, easy for workers to use, core components are durable and reliable, reducing later maintenance costs.

Anchor Drilling Rig Product Advantages

Flexible customization to meet different engineering needs;  anchor drilling machine diesel, motor or hydraulic power can be selected according to customer project requirements, support OEM/ODM customization, and provide a complete set of solutions.

Anchor drilling machine support a variety of drilling tool accessories;  can be matched with alloy drill bits, three-wing drill bits, spiral drill bits, water drilling systems, etc. to achieve dry or wet drilling.

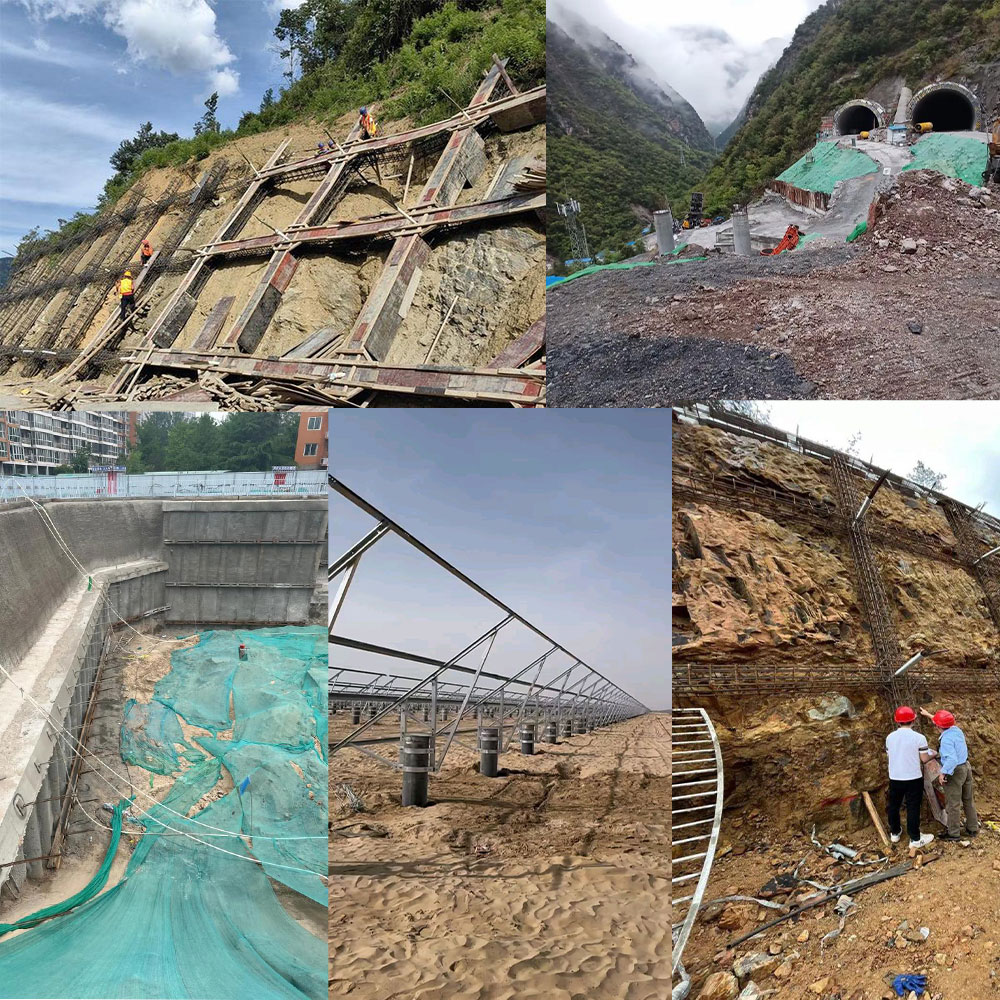

The Application Fields Of Drilling Rig Anchors

1.Slope support engineering; Anchor bolt installation on mountain roads and railway slopes to prevent landslides and soil collapse.

2.Foundation pit support and foundation reinforcement; Building foundation anchor drilling operations to improve foundation stability and ensure construction safety.

3.Tunnel construction; Anchor bolt support in subways, roads, and water conservancy tunnels, with grouting systems to improve lining stability.

4.Photovoltaic power station; Photovoltaic bracket installation provides screw pile and anchor pre-drilling services to improve construction efficiency and bracket stability.

5.Landslide control and slope reinforcement; Deep anchor bolt drilling and grouting in landslide areas to reinforce the ground structure.

6.Water conservancy projects and dam reinforcement; Seepage control and soil reinforcement for reservoirs, dams and other projects.

Every consultation you make will drive the evolution of technical parameters towards being exclusive to you.

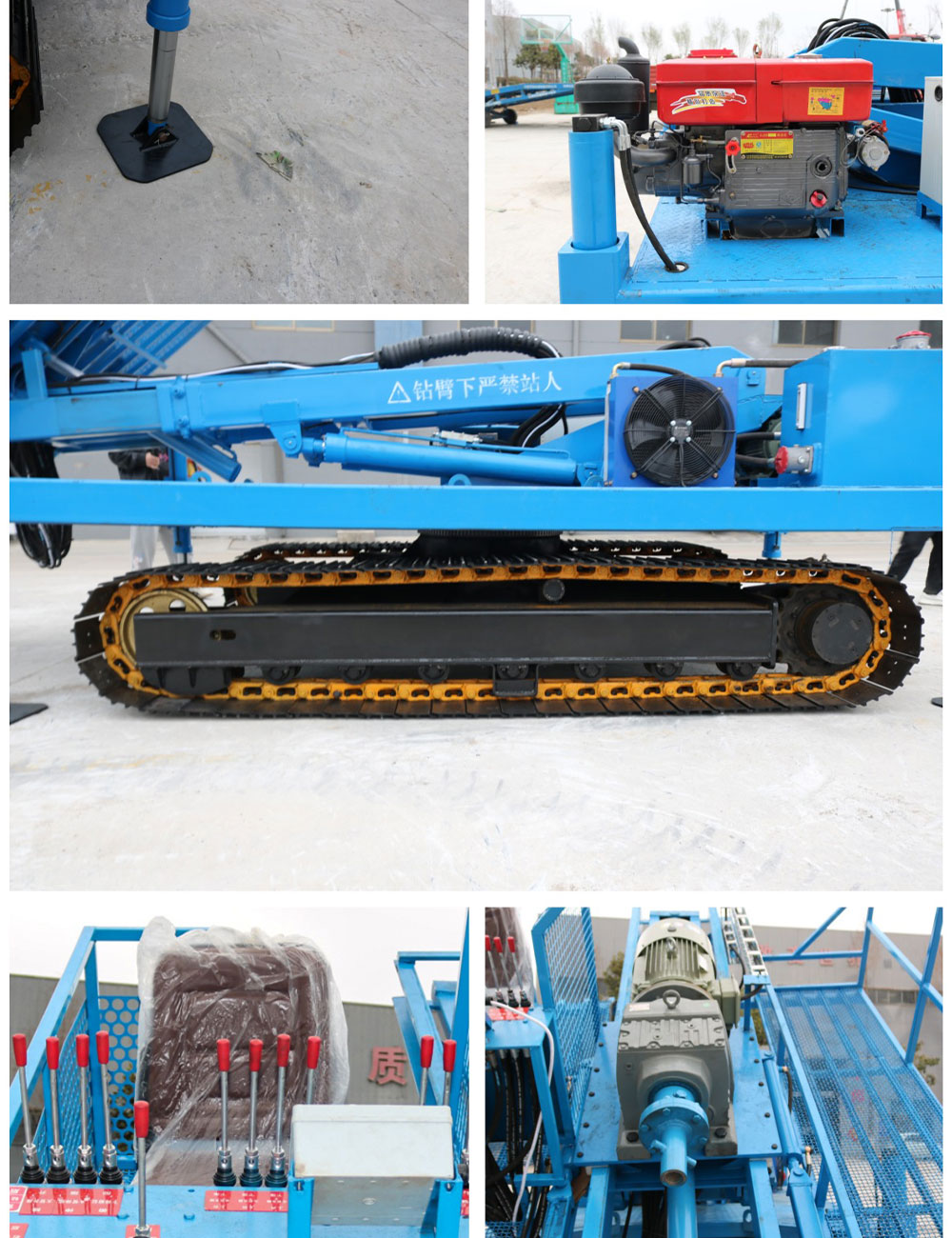

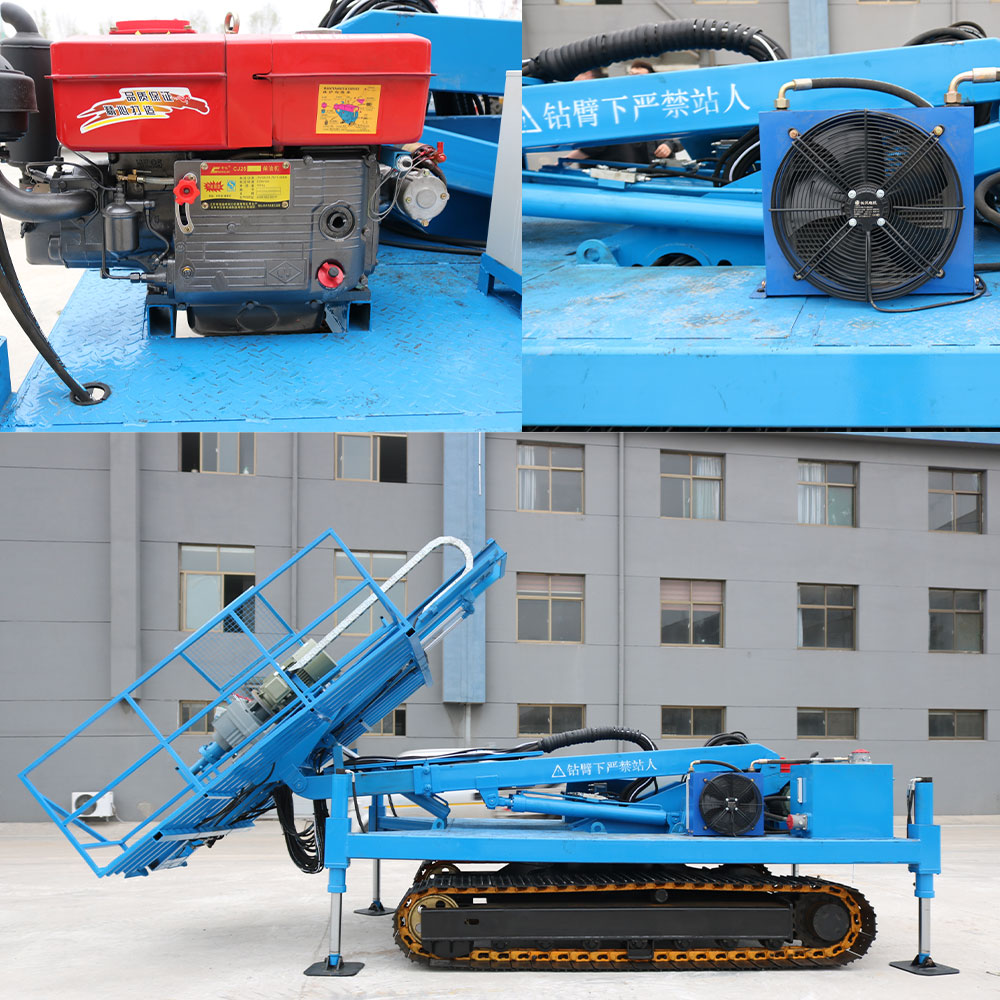

Rock Anchor Drilling Machine Structure:

1.Anchor drilling machine main frame: adjustable chassis, adapt to different terrain angles.

2.Power system: anchor drilling rig high-efficiency diesel engine or electric motor, powerful.

3.Propulsion device: hydraulic or mechanical propulsion, improve drilling speed.

4.Slewing device: high-torque slewing motor, adapt to hard rock formations.

5.Control panel:  anchor drilling rig adopt centralized control, simple operation, easy to use.

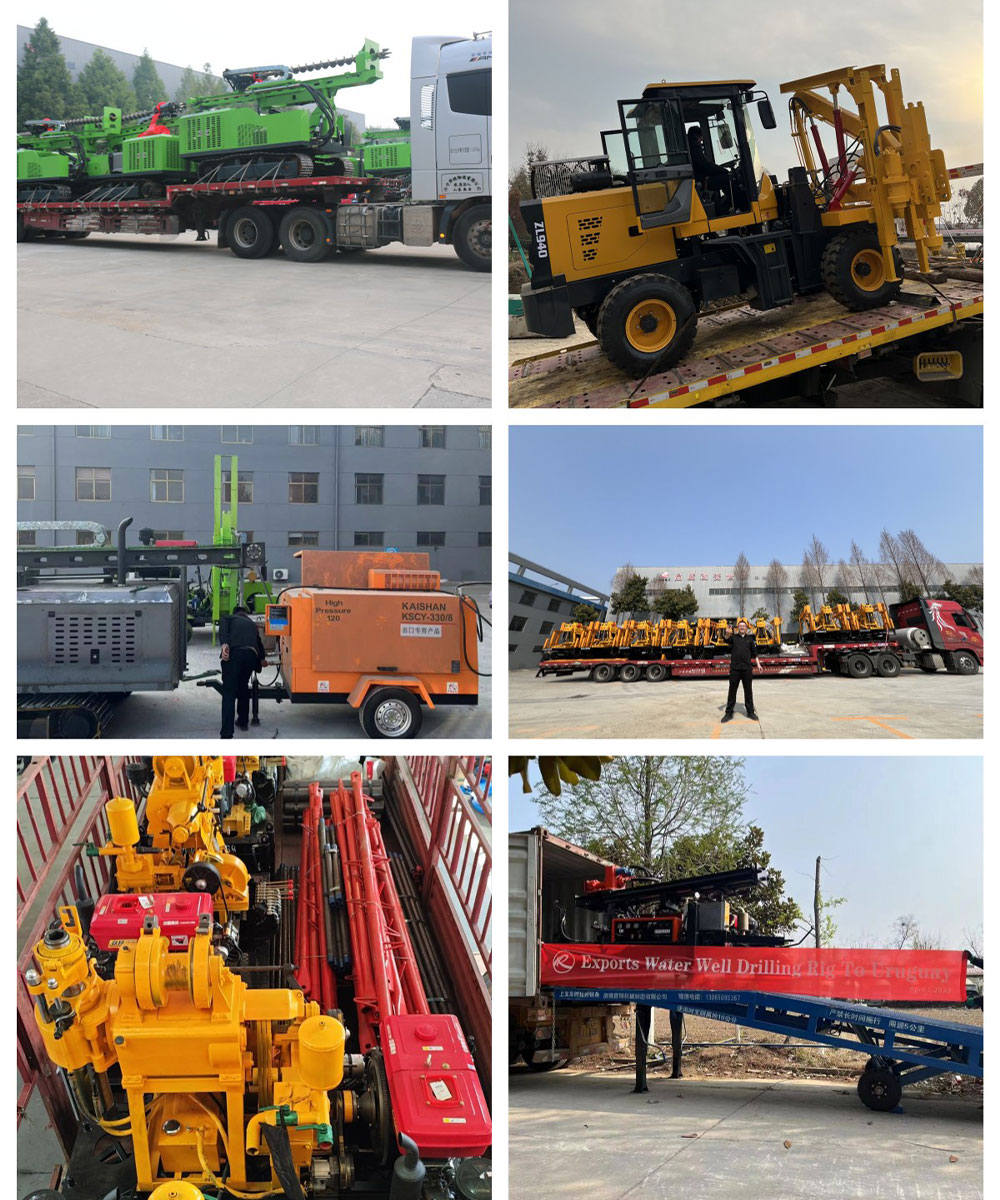

Packaging and logistics

The mainframe of the drilling rig is fixed with a high-strength steel frame, and the key components are protected by thickened pearl cotton to avoid vibration and bumps during transportation.

Small spare parts, drill rods, drill bits, etc. are packaged separately, wrapped with moisture-proof film, and packaged in fumigation-free wooden boxes or iron boxes.

The packaging complies with international sea/land transportation standards, and CIQ, CO, FORM-E and other customs clearance materials can be provided.

Labels and logos:

The packaging box is equipped with eye-catching labels indicating the product model, weight, size, up and down direction, and loading and unloading precautions, which is convenient for customs clearance and warehousing management.

Mode of transportation:

Air transport (suitable for prototypes or urgent items)

Sea transport (full container/LCL) (bulk purchase)

Land transport (special line available in Southeast Asia/Central Asia)

After-sales service guarantee

1.The machine is warranted for 12 months (calculated from the date of leaving the factory)

2.Parts that are not damaged by human factors will be replaced free of charge or repair guidance will be provided

3.The warranty period can be extended or an annual maintenance agreement can be signed according to project needs (additional negotiation required)

4.Provide Chinese and English operation manuals, maintenance manuals, and video tutorial packages

5.Key spare parts are in stock and support global express delivery

6.Long-term customers can enjoy exclusive accessories packages/annual spare parts preferential procurement plans

FAQ

Q: Can it drill hard rock?

A: Yes. With alloy drill bits and high torque system, it can handle weathered rock, sandstone, mudstone and other geology.

Q: Is training provided?

A: We can provide operation videos and instructions, and support remote or on-site technical support when necessary.

Q: Can the size or power mode be customized?

A: It supports multiple configurations such as diesel, motor, hydraulic, etc. The whole machine structure and parameters can be customized.

Q: Is it easy to transport?

A: The equipment is modularly designed and can be disassembled and packed, suitable for export shipping and mountain transportation.
