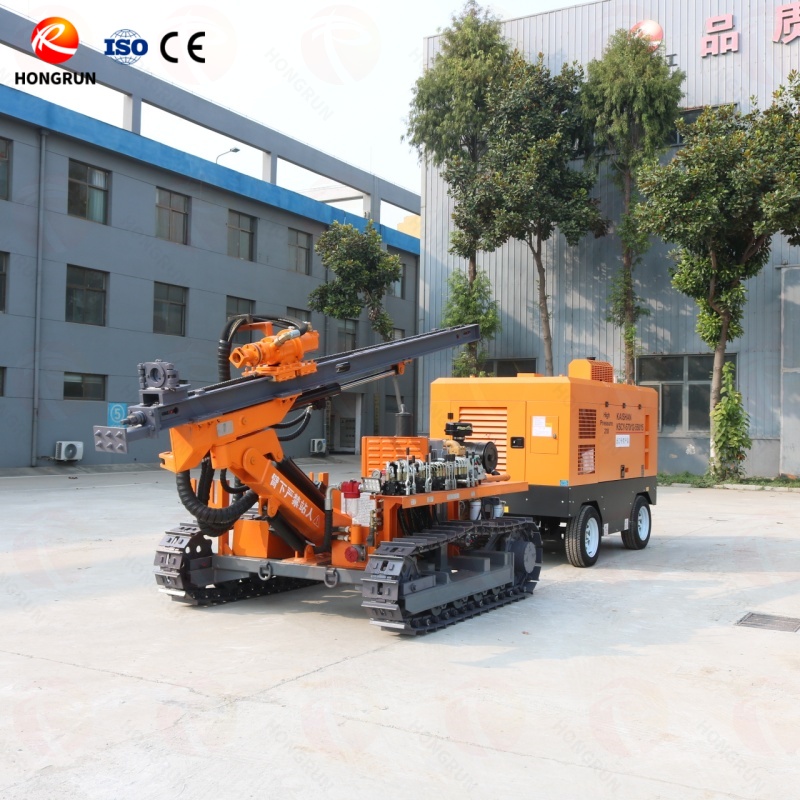

Down The Hole Drilling Rig
Features
The down the hole drilling rig is equipped with a single hydraulic motor power head, offering two speed modes, and is paired with a four-cylinder diesel engine for powerful performance. Additionally, it comes with a high-pressure air compressor.
Advantages
The rock drilling machine features strong power, low fuel consumption, and flexible speed control for different working conditions. Its integrated air compressor provides high-pressure air for efficient rock breaking and cuttings removal. The hydraulic mast ensures precise control and stable drilling performance.
Benefits
This DTH rock drill delivers efficient drilling performance with precise hole positioning and stable operation. It helps improve construction efficiency, reduce dust and debris during drilling, and create a safer working environment.
Product Details
Product Introduction of Rock Drill

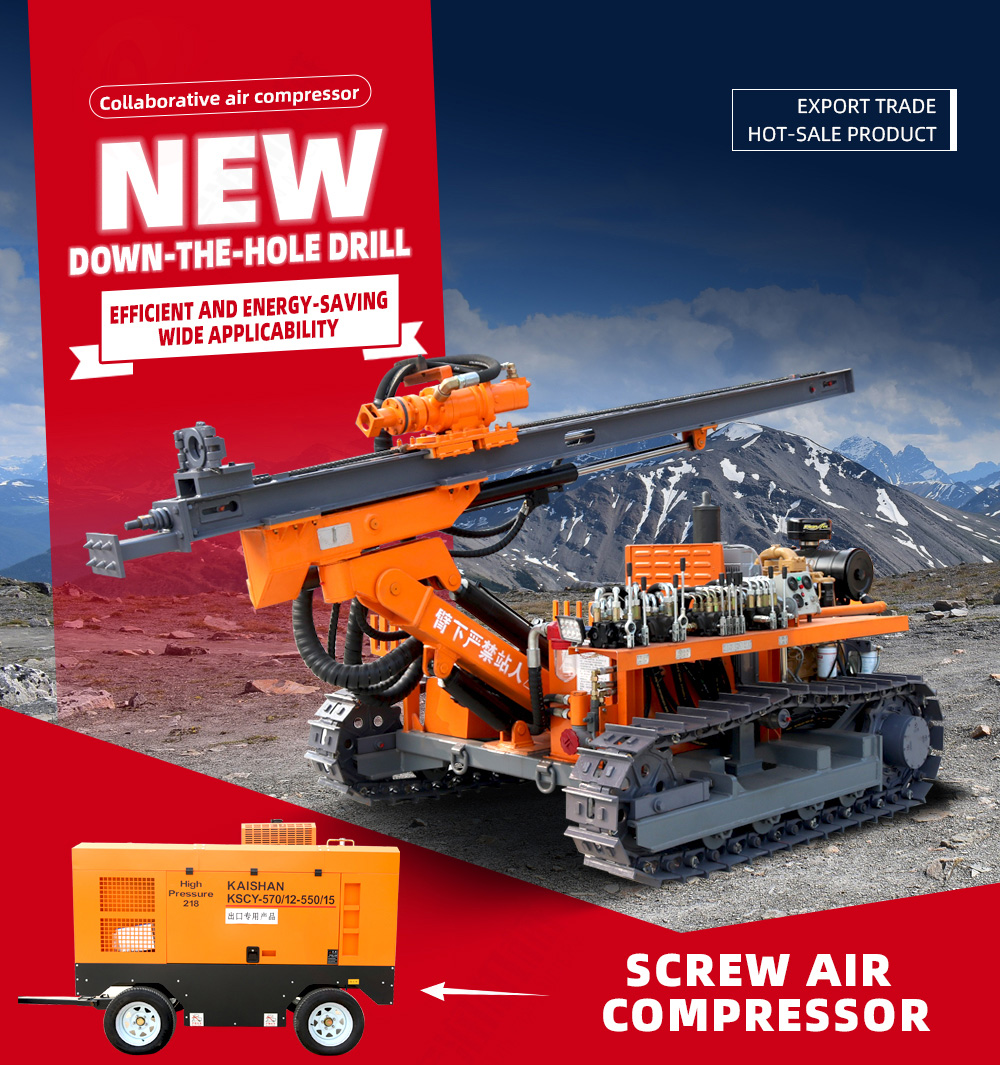

Our Crawler DTH Drilling Rig works with a diesel screw air compressor to provide powerful airflow for efficient rock drilling. The high-pressure air quickly removes dust and rock debris from the hole, improving drilling speed while reducing drill bit wear. This hydraulic down the hole drilling rig is widely used for mining, quarry, rock blasting, slope anchoring, and foundation drilling.
Parameter Table
Rock drilling hardness | f=6-20 | Machine weight | 3500 kg |
Drilling hole diameter | Ф80～105 mm | External dimensions | 4400*2150*2200 mm |
Drill depth | 25 m | Pitch angle of the carriage | Up：118.5°～Down：23.5° |
Rotation speed | 0-125 r/min | Swing angle of the carriage | Left：36.5°～Right：11.5° |
Rotating torque | 2249 N·m | Drill arm pitch angle | 35°-60° |
Lift force | 15000 N | Drill arm compensation length | 900 mm |
Propulsion storke | 2000 mm | Power | 12T-70（50/KW2200r/min） |
Walking speed | 0-2.0 km/h | Ф60*2 m | |
Gradeability | 30° | Working pressure | 0.7-1.0 Mpa |
Ground clearance | 254 mm | Air consumption | 9-13 m³/min |
Note: This product supports parameter customization. Please feel free to provide your requirements for exclusive solutions.
We are the source manufacturer and can customize processing according to your construction needs; At the same time, we provide 24-hour service, pre-sales solutions, and after-sales maintenance. If you want to learn more about our products, please feel free to contact us at any time.
Structural analysis of down the hole drilling rig products

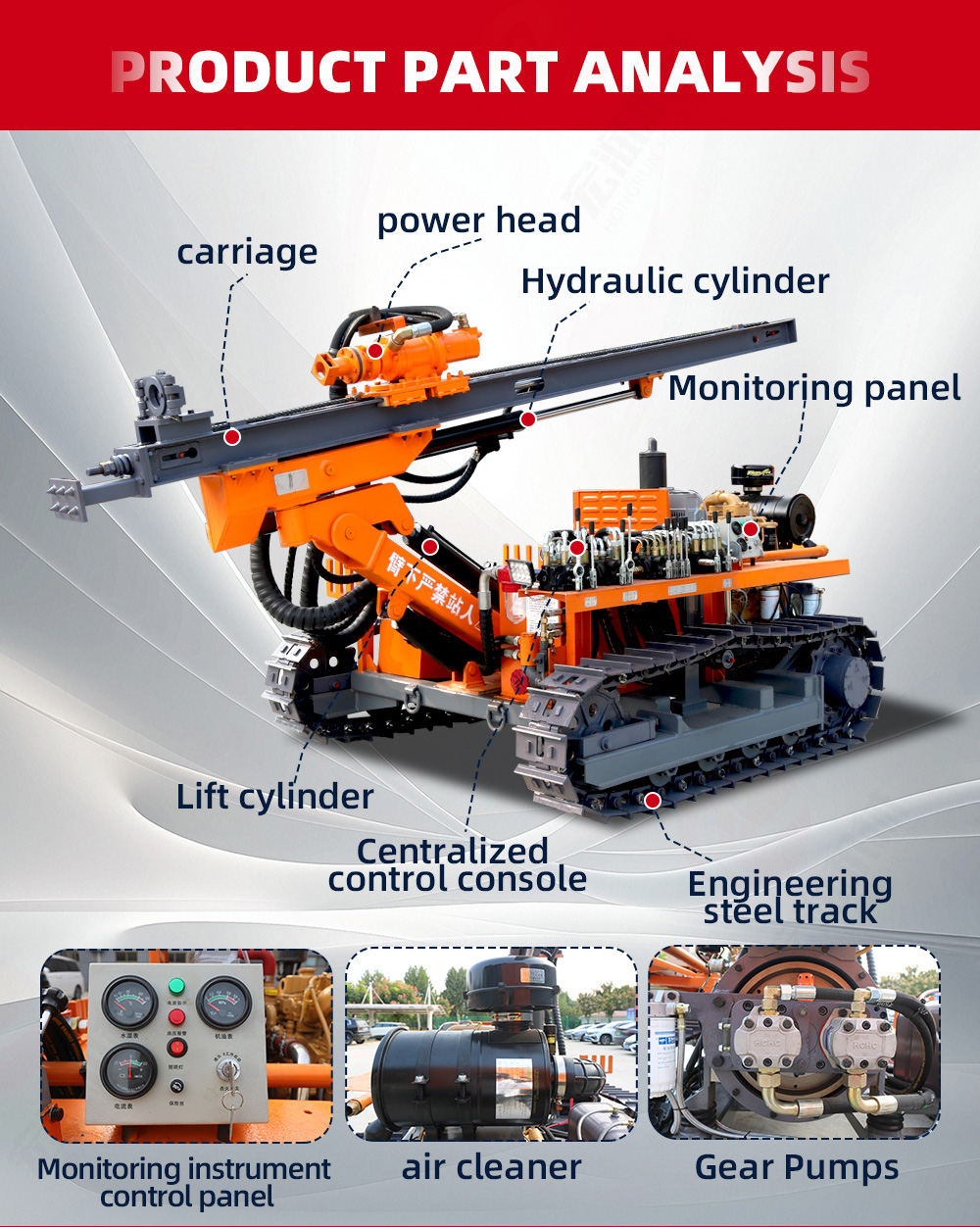

The Crawler DTH Drilling Rig is mainly composed of a hydraulic power head, carriage, hydraulic cylinder, lifting cylinder, centralized control console, steel crawler chassis, gear pump, air filter, and monitoring system. Its optimized structural design ensures stable operation, higher drilling efficiency, and reliable performance, making this hydraulic down the hole drilling machine ideal for rock drilling, quarry drilling, mining, blasting hole drilling, and foundation engineering.
We support live video inspections to demonstrate the features, structure, and operating performance of our Crawler DTH Drilling Rig in detail. You are also welcome to visit our factory to test the hydraulic down the hole drilling rig in person and experience its excellent performance in rock drilling and mining applications.
Hydraulic Swing Control

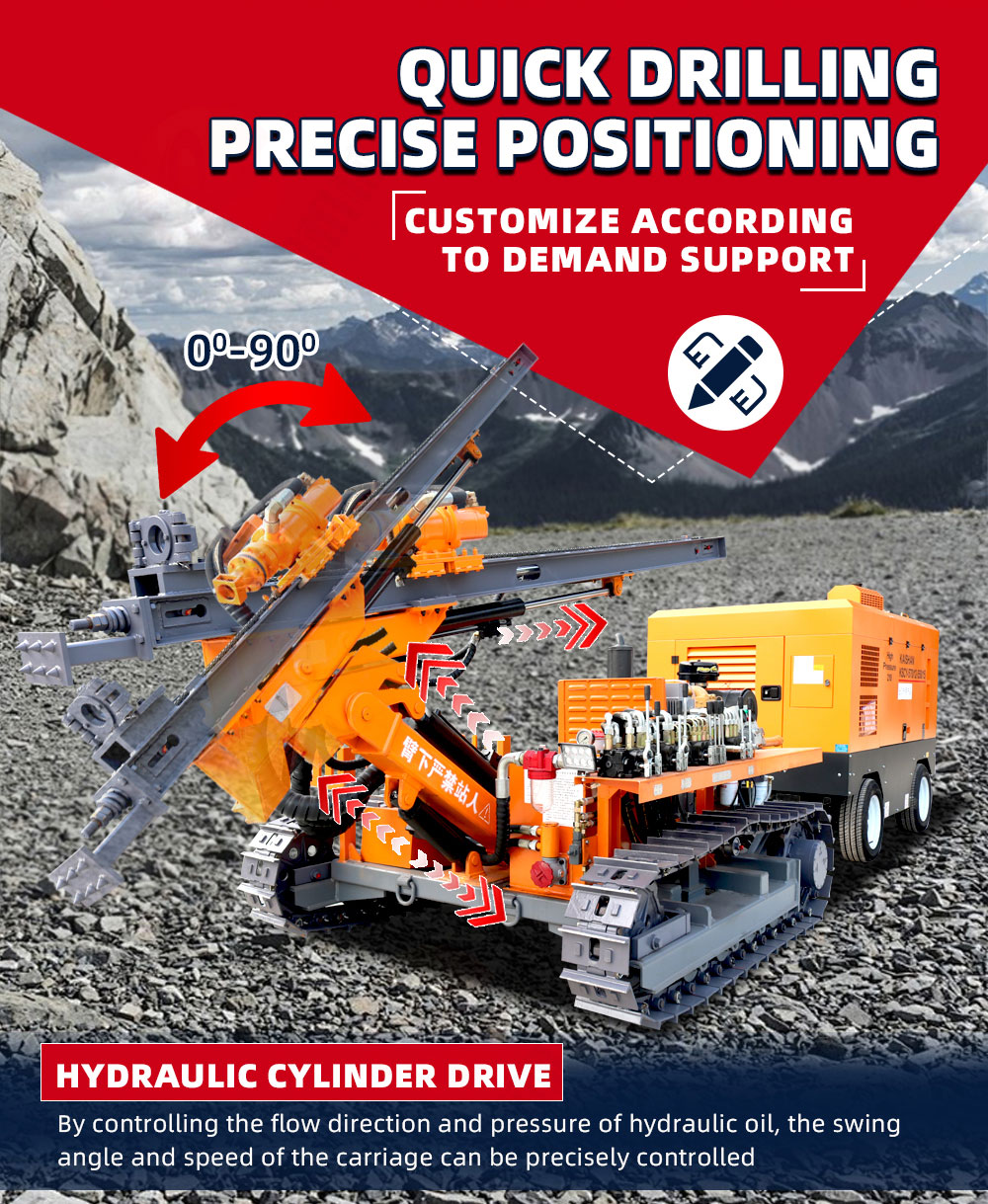

Our Crawler DTH Drilling Rig is equipped with a hydraulic cylinder swing system that precisely controls the slide's angle and movement speed for accurate positioning. This hydraulic down the hole drilling machine delivers stable drilling performance, improved hole accuracy, and reliable results, making it ideal for rock drilling, quarry drilling, mining, and foundation engineering.
Wide Application Range
This Crawler DTH Drilling Rig features strong adaptability and reliable performance, making it suitable for various complex working environments. As a versatile crawler rock drilling machine and hydraulic drilling rig, it is widely used in tunnel construction, slope reinforcement, bridge foundation projects, mining operations, underground excavation, and quarry drilling. Its powerful drilling capability allows it to handle different rock conditions and demanding job sites with ease.
Product Details

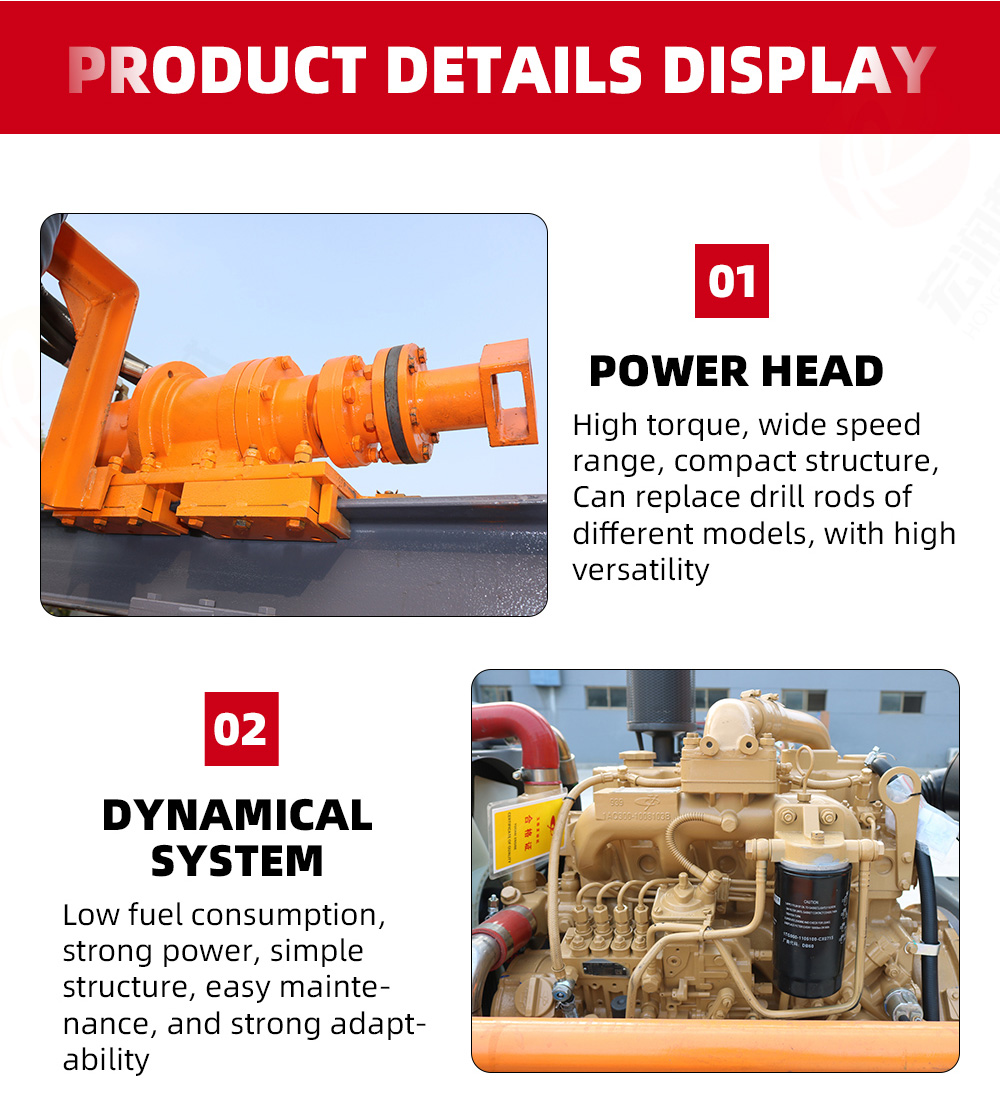

Our down the hole drilling rig uses a single hydraulic motor power head, with two speeds: low and fast, which can be flexibly switched according to actual working conditions; Equipped with a four cylinder diesel engine, it has strong power and low fuel consumption, improving the efficiency of drilling operations and ensuring efficient completion of various drilling tasks.
Centralized Hydraulic Control System

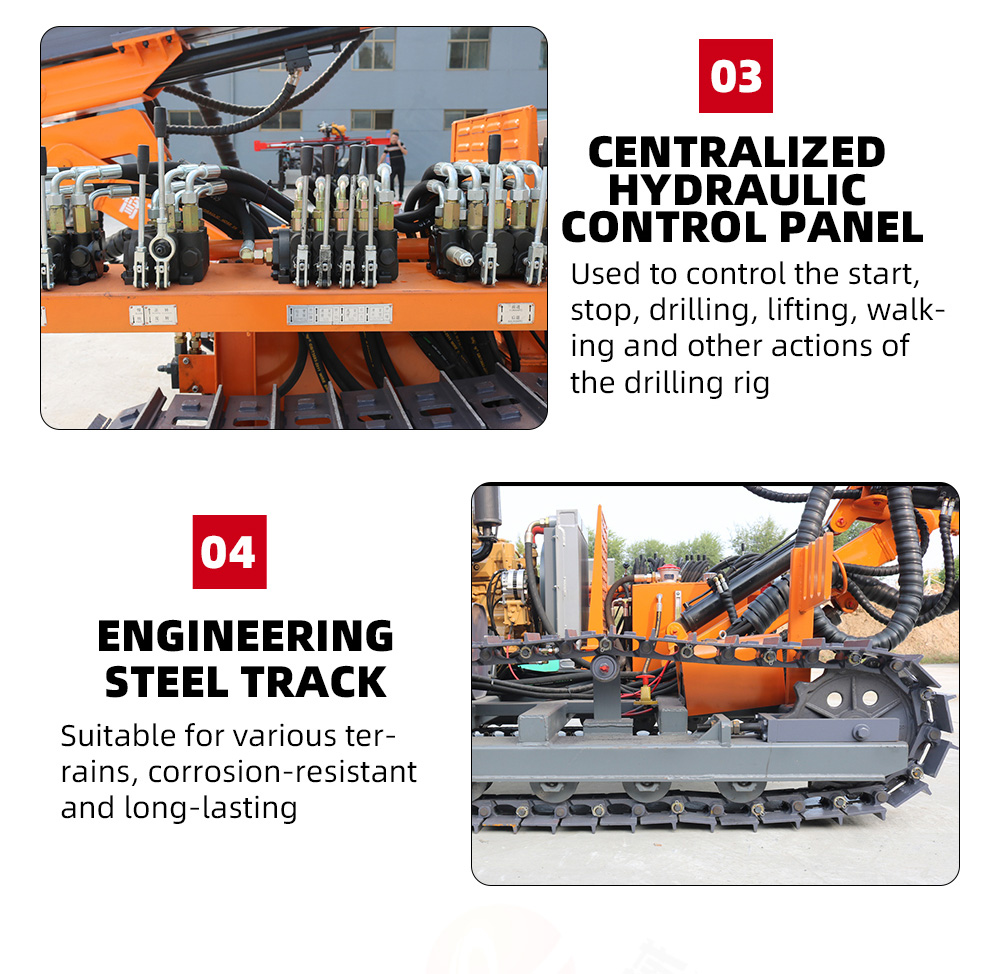

This Crawler DTH Drilling Rig is equipped with an integrated centralized hydraulic control system, providing flexible operation and precise control while reducing complex pipeline connections and potential leakage points. The optimized hydraulic system improves working efficiency and reliability. The engineering steel crawler chassis features strong load-bearing capacity and excellent stability, allowing the hydraulic rock drilling machine to withstand heavy static, dynamic, and impact loads, ensuring safe and stable operation in harsh working conditions.
Powerful Air Flushing System

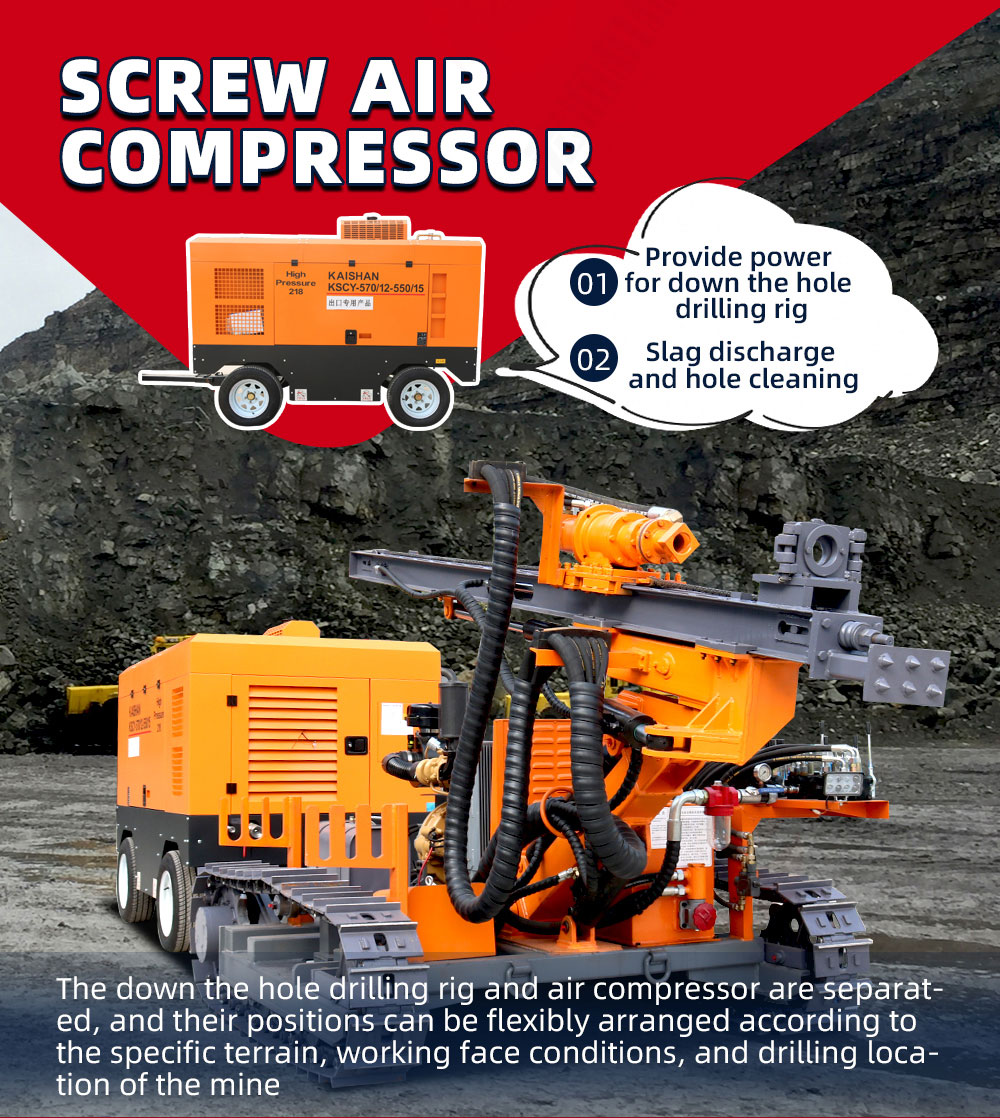

Our Crawler DTH Drilling Rig is equipped with a high-performance air compressor system, which supplies high-pressure air to the DTH hammer to generate powerful impact energy and drive the drill bit for efficient rock breaking. Meanwhile, the compressed air effectively removes rock dust and debris from the borehole, preventing blockage and improving drilling speed and hole quality. This hydraulic down the hole drilling machine helps reduce dust pollution while ensuring stable performance in mining, quarry, tunnel, and rock drilling applications.
Product Display

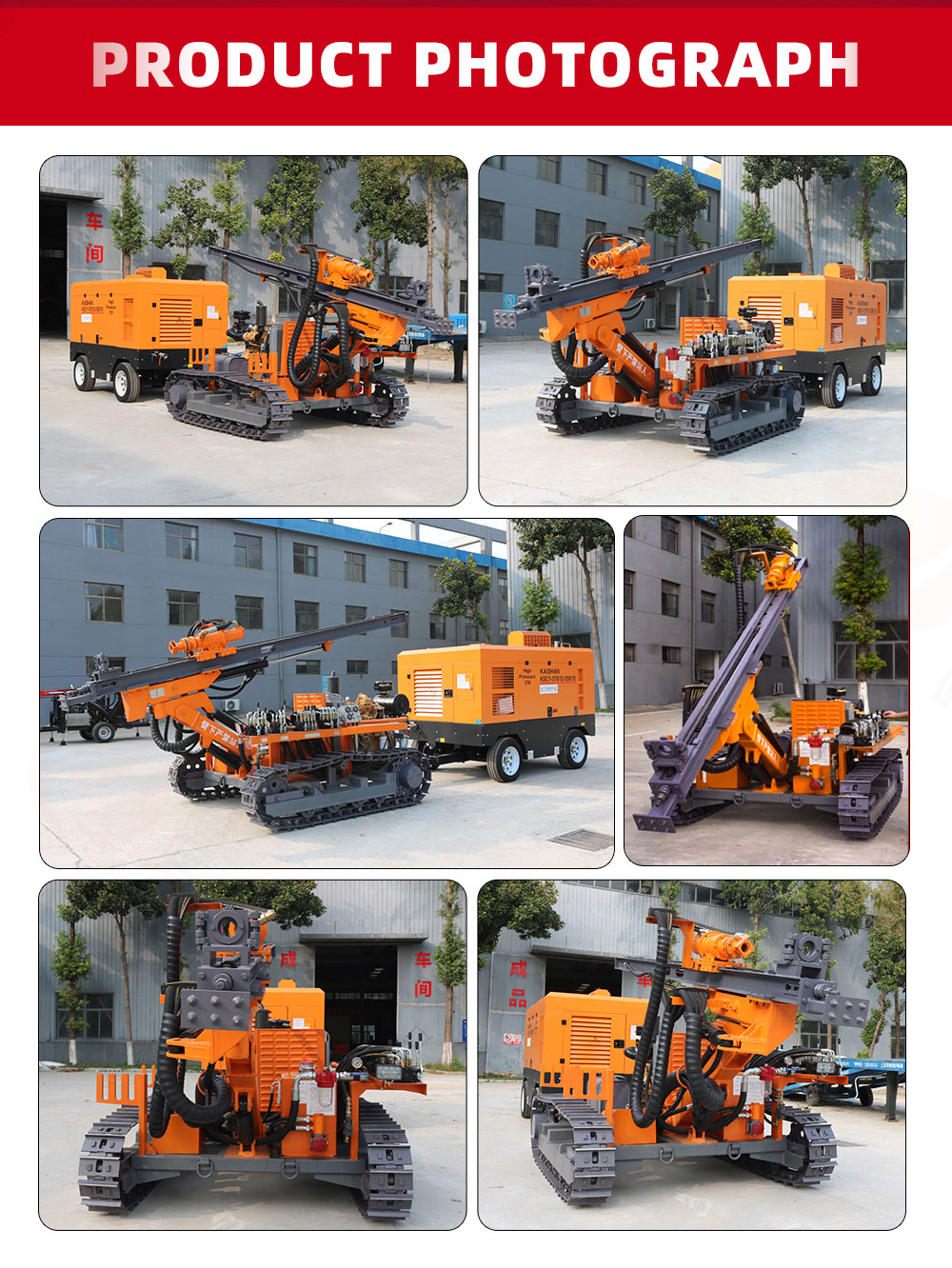

Explore our Open Pit DTH Drilling Rig through online machine viewing or visit our factory for a hands-on trial. We welcome customers worldwide to inspect the machine performance, test drilling operations, and experience the quality and reliability of our equipment in person. Our professional team is ready to provide technical support and customized solutions to meet different project requirements.
Our Team And Customer
Our professional team is committed to providing reliable machinery solutions and excellent service for customers worldwide. With rich industry experience and strong technical support, we work closely with clients to understand their needs and deliver suitable products. We value every customer relationship and strive to build long-term partnerships through quality products, timely communication, and trusted after-sales support.
FAQ：
1.What should I do if the air compressor malfunctions and cannot provide enough high-pressure air?
First check if the power supply and pipeline connections of the air compressor are normal, then check if the air filter is clogged and if the pressure regulating valve of the air compressor is set correctly. If there is a malfunction in the internal components of the air compressor, it is recommended to have professional maintenance personnel carry out repairs and replace damaged parts in a timely manner to ensure the normal operation of the air compressor and provide stable high-pressure air for the impactor.
2.What is the drilling speed of a down the hole drilling rig?
The drilling speed is influenced by various factors, such as rock hardness, drilling diameter, drilling rig power, etc. In rocks of general hardness, the drilling speed may be around 0.5-2 meters per minute. But in harder rocks, the speed will correspondingly decrease.
3.How to choose a drilling rig?
We suggest that you choose the configuration based on actual engineering requirements, such as rock hardness, aperture depth, construction environment, etc. We can provide you with a solution.
