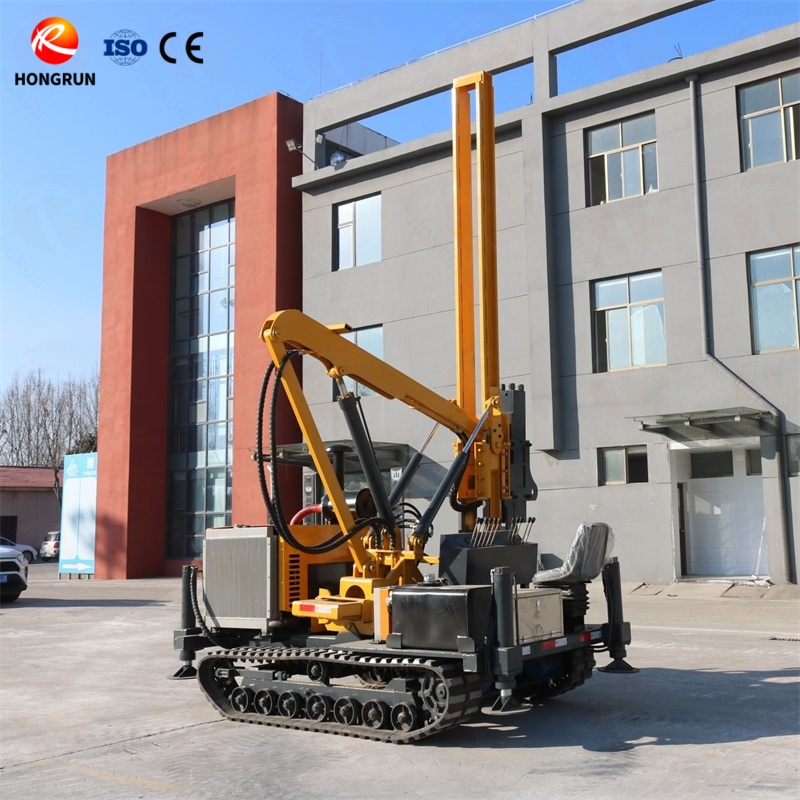

Crawler Guardrail Pile Driver
characteristic
This guardrail pile driver adopts an innovative hydraulic control system, hydraulic cylinder sliding navigation frame, outward extending double acting oil cylinder, integrated hydraulic hammer system, integrated drilling and pulling, equipped with rubber tracks, one machine for multiple purposes.
advantage
This guardrail pile driver can complete pile driving, pile pulling, and drilling in one go, greatly increasing equipment utilization, precise positioning, and can handle all terrains. Time and effort saving, efficient and convenient, making construction simpler!
interest
This tracked guardrail pile driver effectively improves construction efficiency, with a pile driving efficiency of 2500 mm/min; Save equipment procurement costs through multifunctional integrated design; Specially equipped with environmentally friendly rubber tracks, effectively reducing road damage.
Product Details

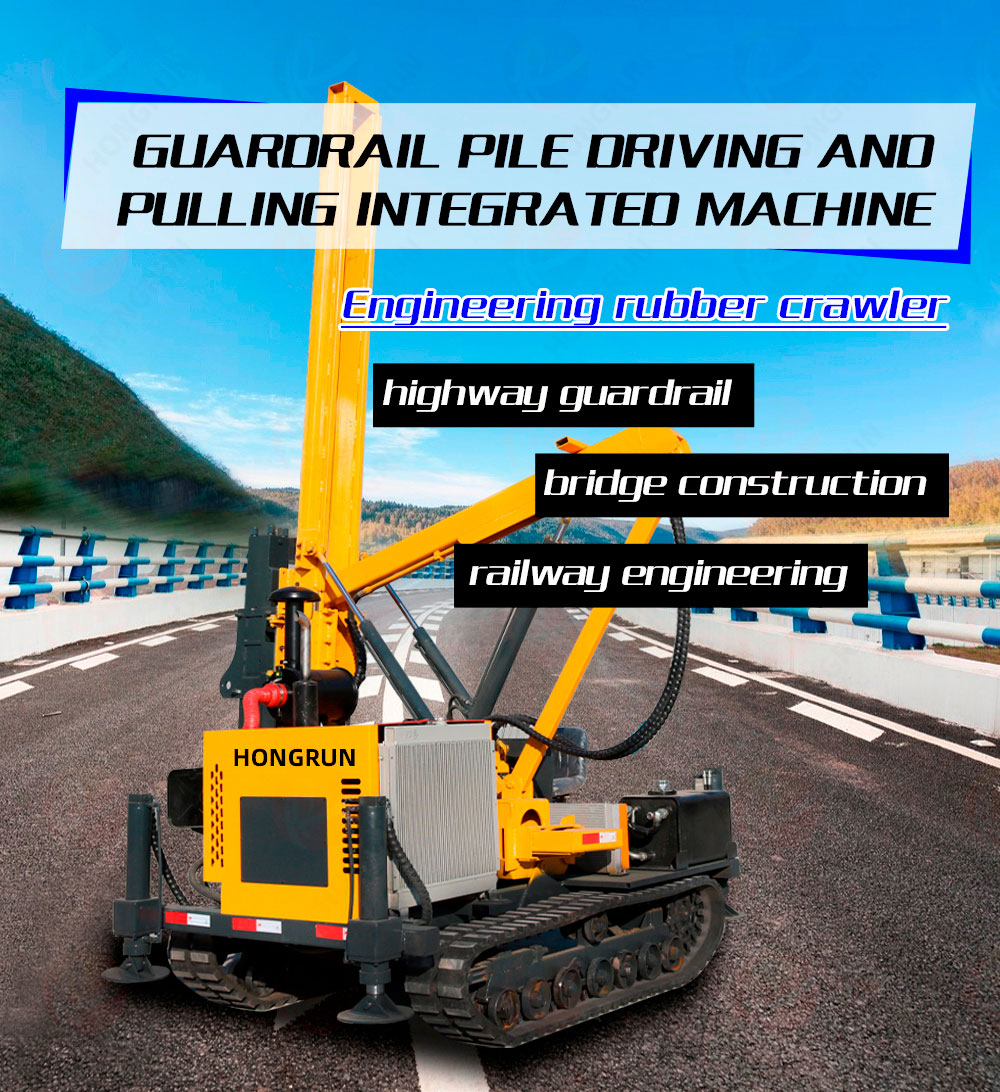

Crawler guardrail pile driver, specially designed for bridge construction, railway engineering, and highway guardrails. Engineering rubber tracks ensure stable crossing of complex terrain. Efficient pile driving improves construction efficiency and reduces maintenance costs. He is a capable assistant in engineering construction.
Parameter
Engineering rubber crawler guardrail pile driving and pile pulling integrated machine+rotary drilling | |||
Product name | Guardrail pile driver | Oil cooler | 650*550*215 mm |
Engine | Yuchai ZY4105 turbocharged engine | Gear pump flow rate | 80-110 ml/min |
Engine power | 85 kw | Gear pump speed | 2500 r/min |
Maximum torque of walking motor | 1800 Nm | Pile driving efficiency | 2500 mm/min |
Walking speed | 5000-20000 m/h | Maximum pile height | 3.4-4 m |
Maximum traction speed | ≤30000 m/h | Slide travel | 700-3400 mm |
Left and right sliding stroke | 0-400 mm | Sliding navigation frame tilt angle | Left30° right 5° |
Gradeability | 30° | Frame front and rear adjustment angle | 0-20° |
Diesel tank | 60 L | Hydraulic leg | 100 model |
Hydraulic oil tank | 600*400*360 mm | Working dimension | 3.4*2.2*4.5 m |
Hydraulic hammer | |||
Model | DG100 | Number of blows per minute | 490-990 n/min. |
Working Flow | 45-85 Lpm | Impact frequency | 400-800 bpm |
Working Pressure | 147-167 Bar 150-170 kg/cm³ | Hydraulic hammer impact energy | 1550 J |
Gross weight | 479 kg | Sound power level | 88/116 LPA/LWA |
Driving flow-rate | 80-110 Litre/min | Hose diameter | 3/4 inch |
Striking frequency | 360-700 b.m.p | Diameter of tool | 100 mm |
Hydraulic hammer working flow rate | 90-120 i/min | Weight of tool | 31 kg |
Hydraulic hammer working pressure | 15-17 Mpa | / | / |
Note: We will provide parameter adjustment and product customization services according to your specific needs. Please feel free to inquire.

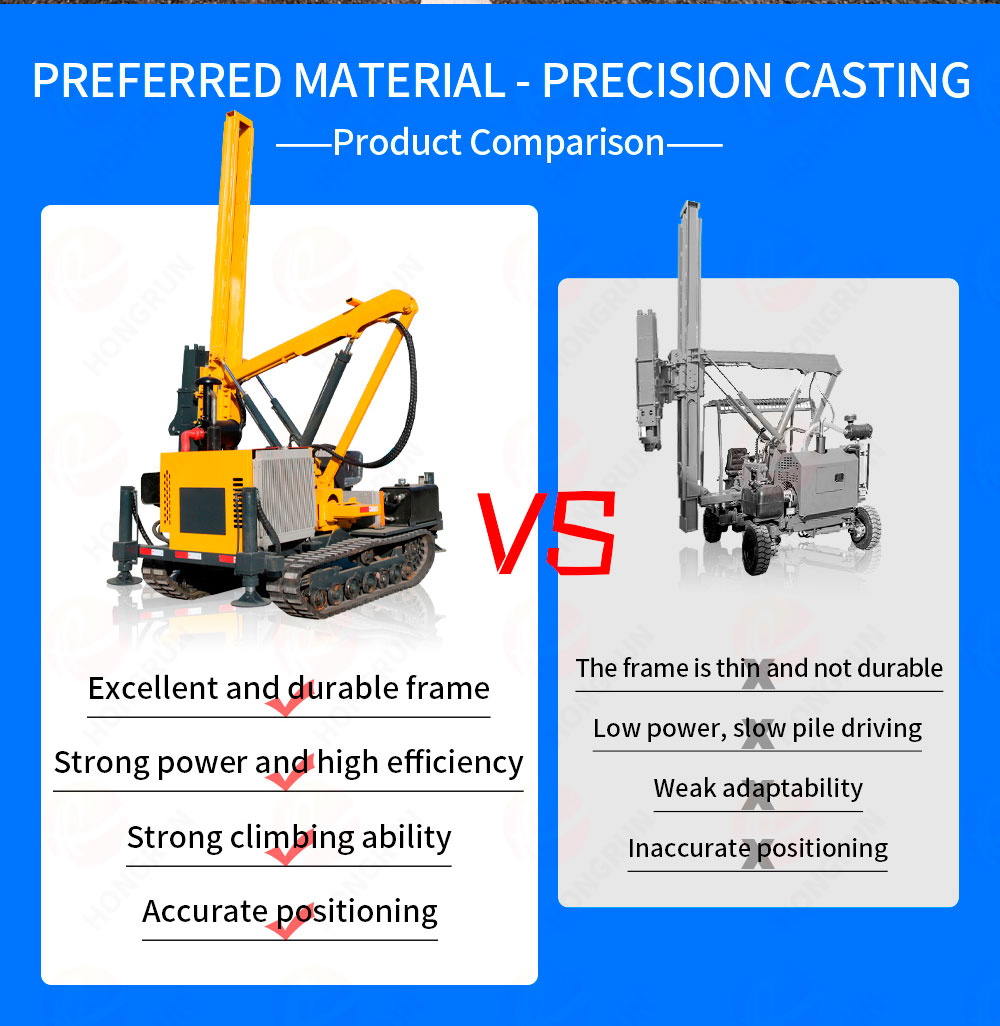

Product advantages
Our factory's track guardrail pile driver adopts a high-strength alloy frame, which is durable and has strong impact resistance. Compared with ordinary pile drivers, it has higher operating efficiency and can easily handle hard formations. Construction is more time-saving and labor-saving, greatly reducing labor costs.

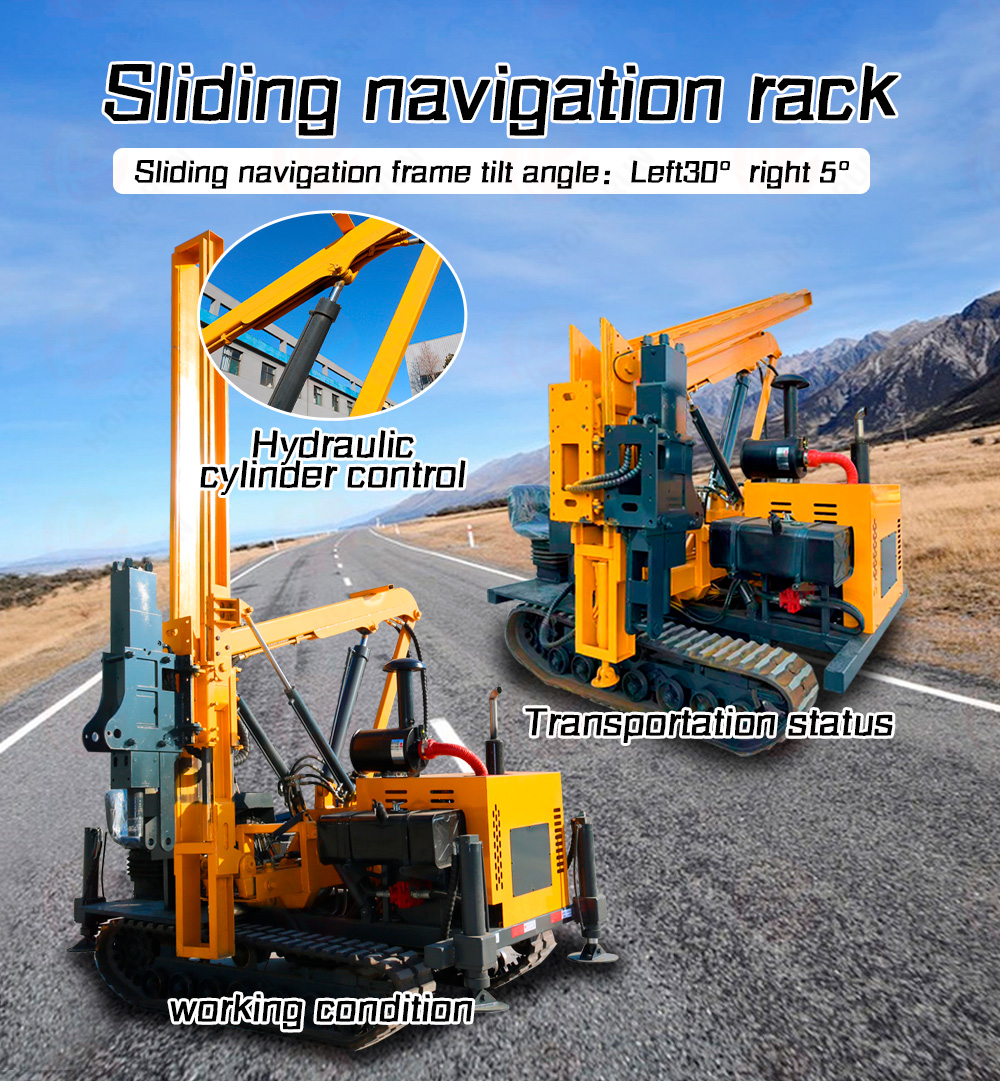

Sliding navigation framework
Our factory's track guardrail pile driver adopts a hydraulic cylinder controlled sliding navigation frame, which supports large angle tilt adjustment of 30 ° left and 5 ° right, flexibly adapting to complex terrain. It can be accurately constructed on slopes and potholes without the need to repeatedly adjust the machine position.

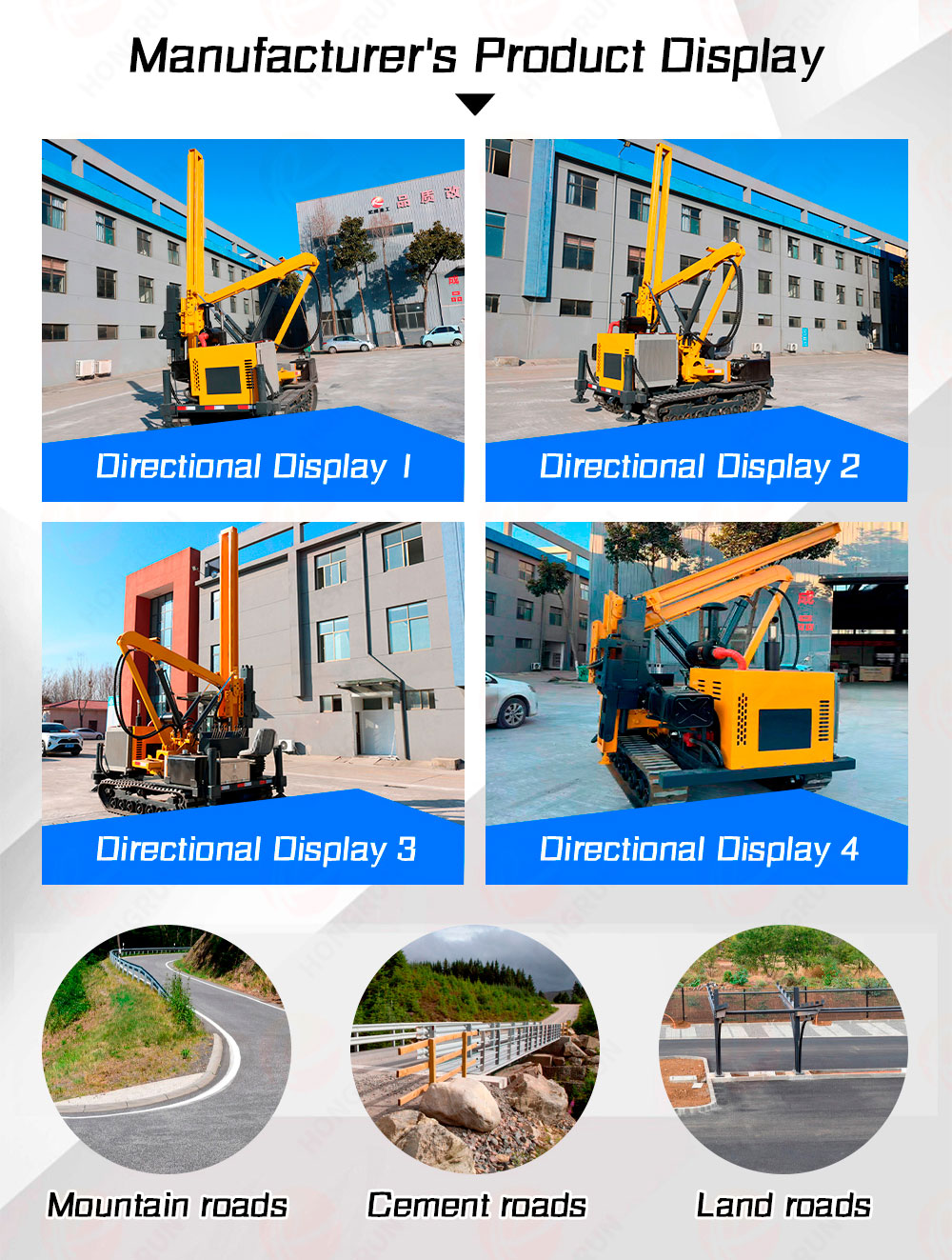

Product Display
This tracked guardrail pile driver adopts an all terrain tracked chassis, designed for various complex road surfaces such as mountain roads, cement roads, and dirt roads, without slipping or sinking. It can operate stably on slopes and muddy roads, and can handle all types of road surfaces with one machine without the need for frequent equipment transportation.

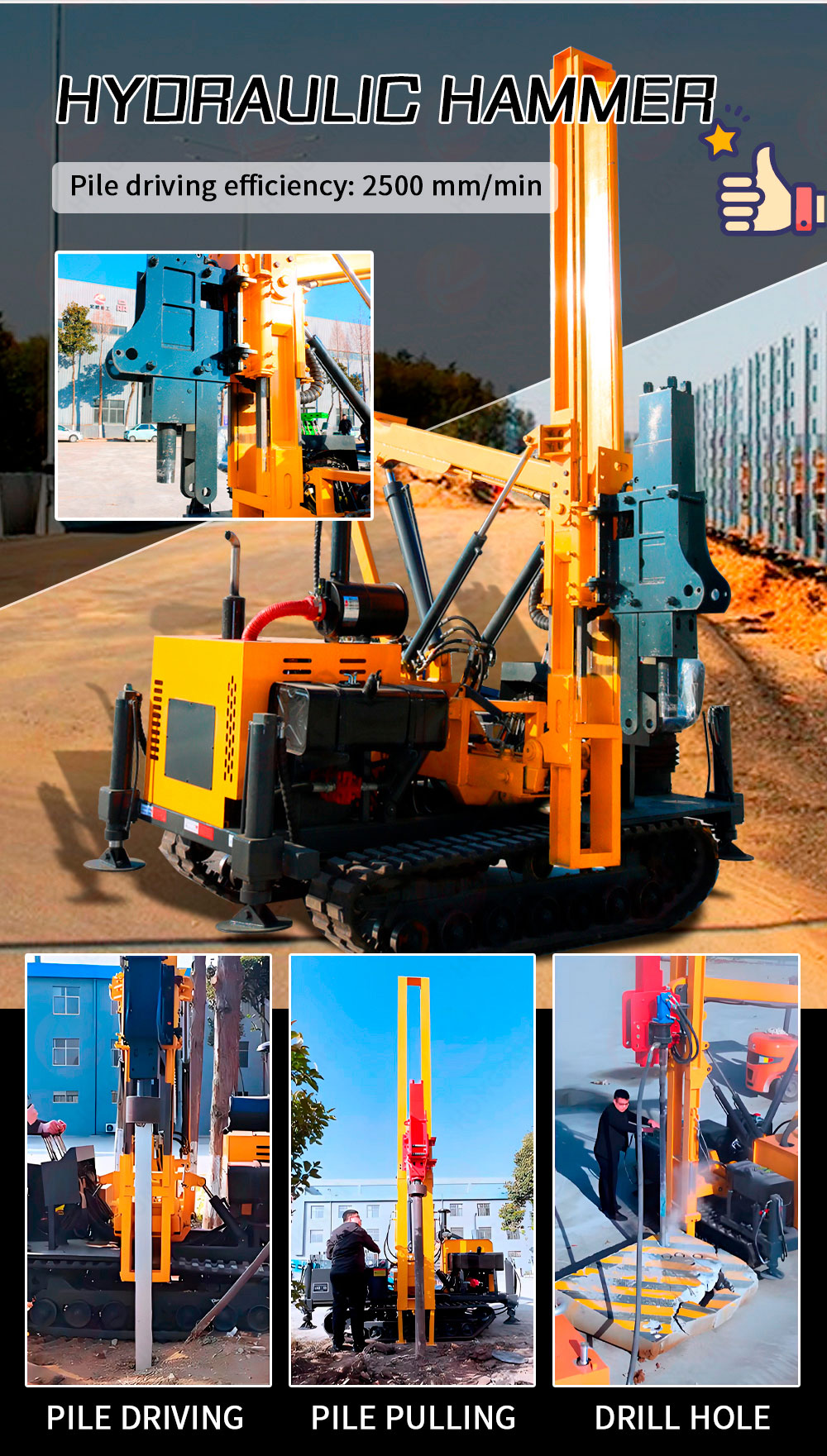

Hydraulic hammer
This tracked guardrail pile driver is equipped with a high-performance hydraulic hammer, with a pile driving efficiency of 2500mm/min. It integrates the three functions of pile driving, pile pulling, and drilling, and can complete all pile foundation operations with a single machine.

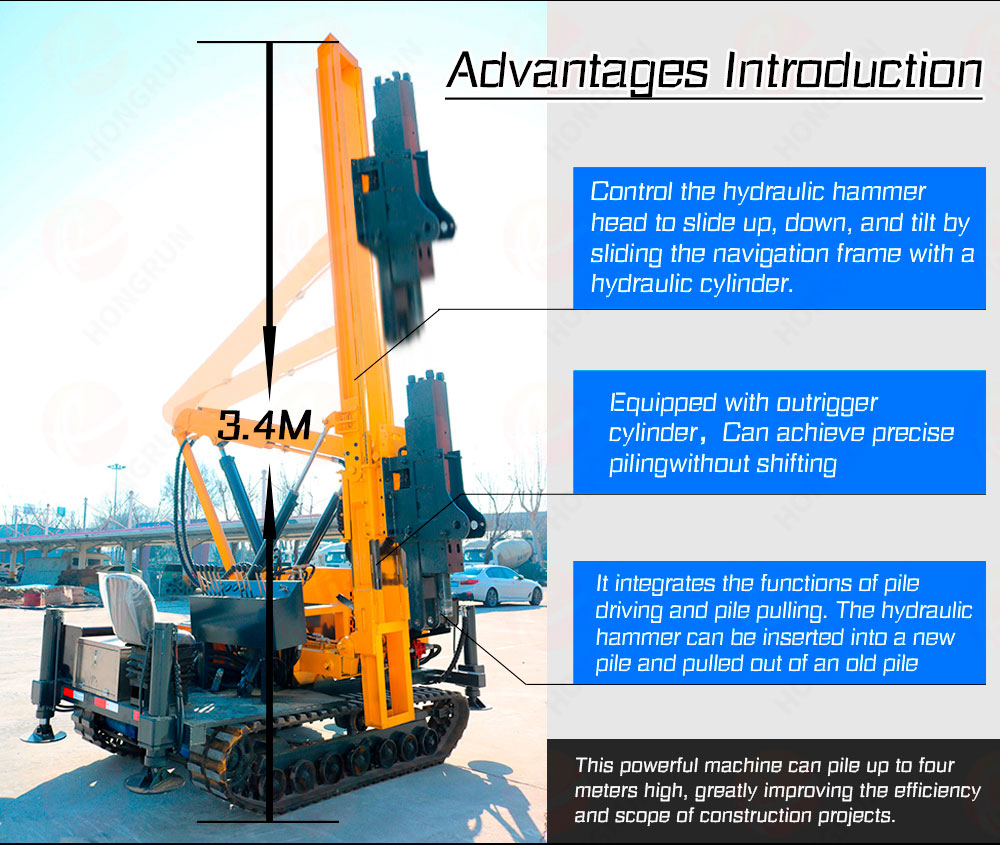

Advantages Introduction
Our factory's track guardrail pile driver adopts a hydraulic cylinder sliding navigation frame to control the movement of the hammer head, equipped with an outward extending oil cylinder, integrated pile driving/pulling function, with a maximum operating height of 4 meters. The hydraulic precise positioning does not require displacement, and a single machine can complete the entire process of pile foundation operation, greatly improving the efficiency and scope of construction projects.

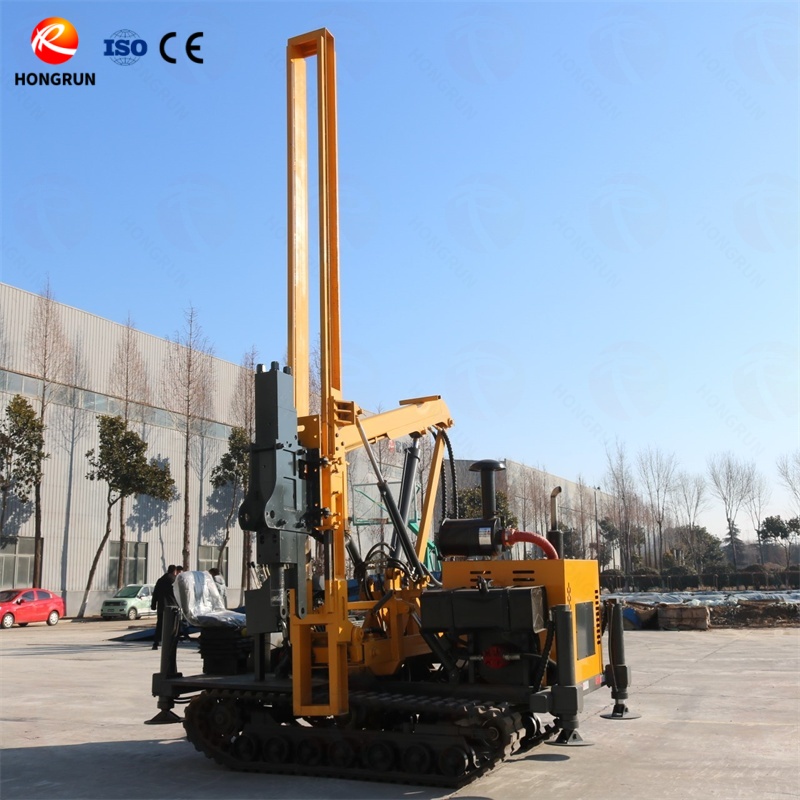

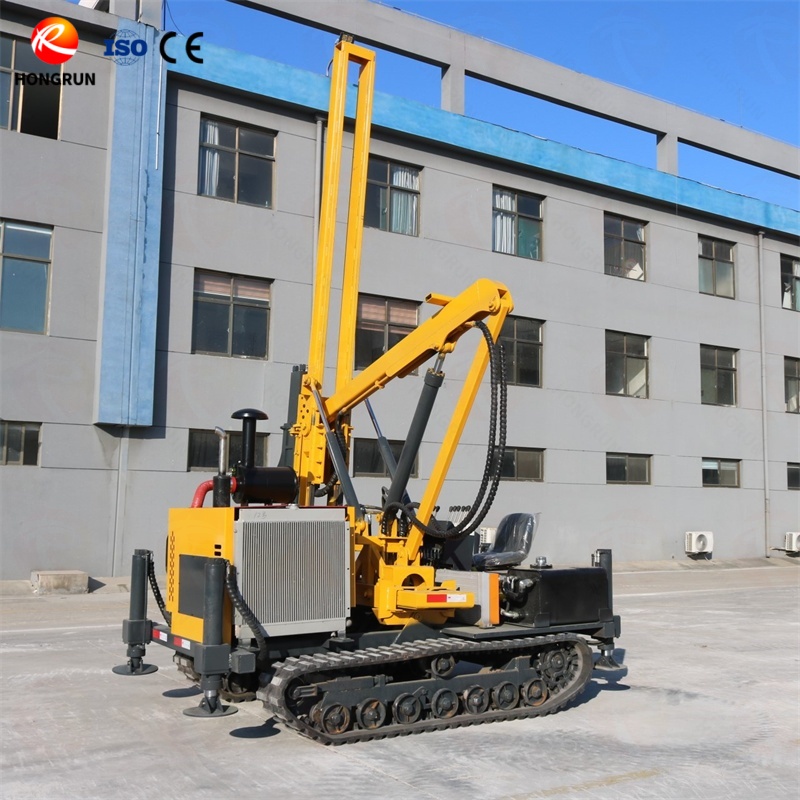

Detail Display
This tracked guardrail pile driver is equipped with a branded engine and a dual radiator system, including a hydraulic hammer, lifting cylinder, hydraulic support legs, and rubber tracks, ensuring stable operation on all terrain. The dual radiator design ensures that the equipment can work continuously for 8 hours without high temperatures. The hydraulic support legs and rubber tracks provide shock absorption and noise reduction, making it more durable and environmentally friendly than traditional models.

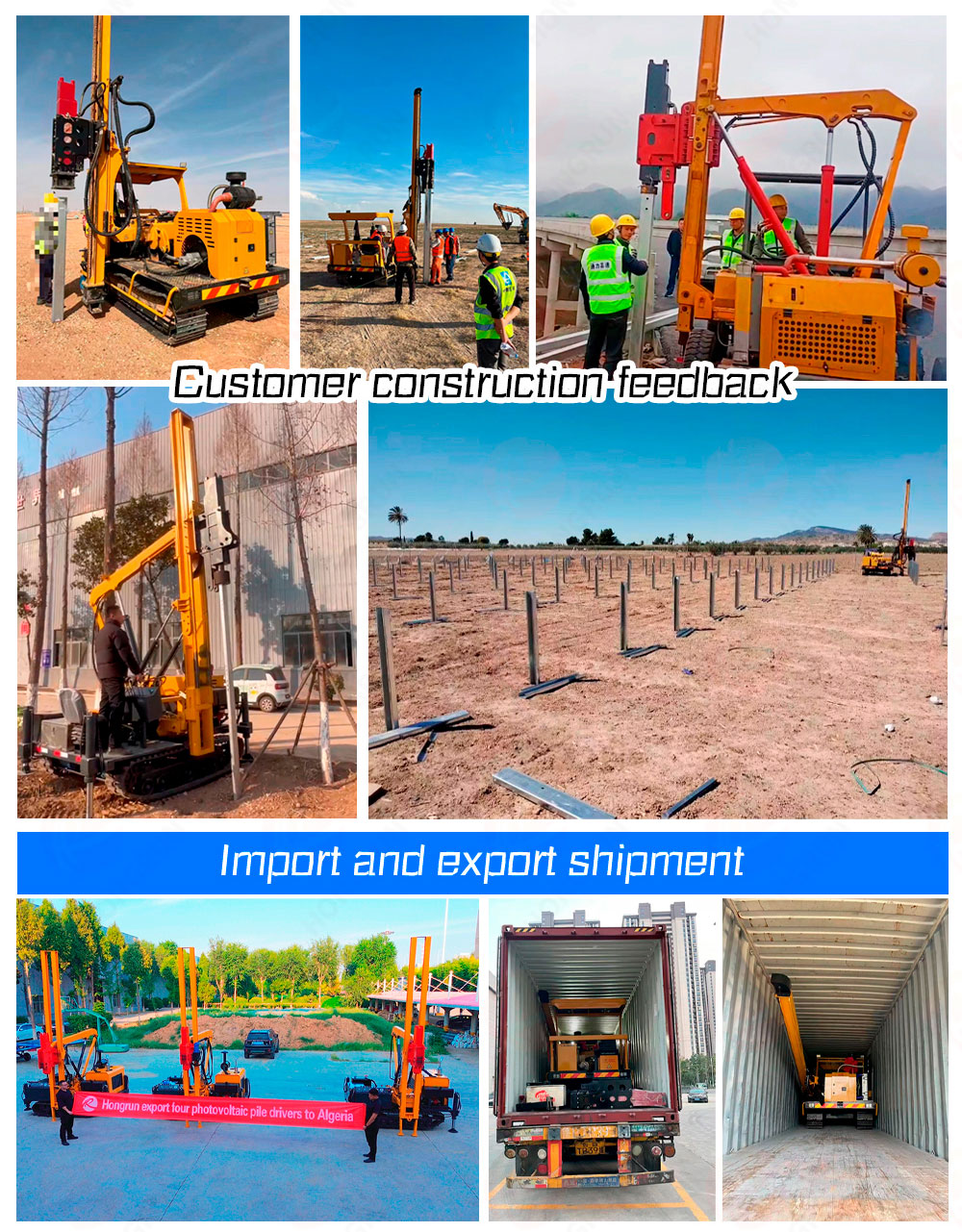

Customer construction feedback
This is feedback from a customer who purchased our factory's tracked guardrail pile driver during construction! Shipping and packing photos, everything is well-organized and of excellent quality. Witnessing the strength of tracked guardrail pile drivers, looking forward to more cooperation and creating brilliance together!
Research and development production process
FAQ:
Does the machine support night construction?
Optional LED lighting system to meet 24-hour operation requirements.
How to ensure stability during construction on slopes?
Hydraulic support legs+rubber track design, can adapt to slopes within 30 °, automatically compensate for tilting and prevent slipping.
What is the lifespan of key components (such as hydraulic hammers)?
The core components use imported seals, and the hydraulic hammer has a lifespan of ≥ 20000 impacts under normal use.
