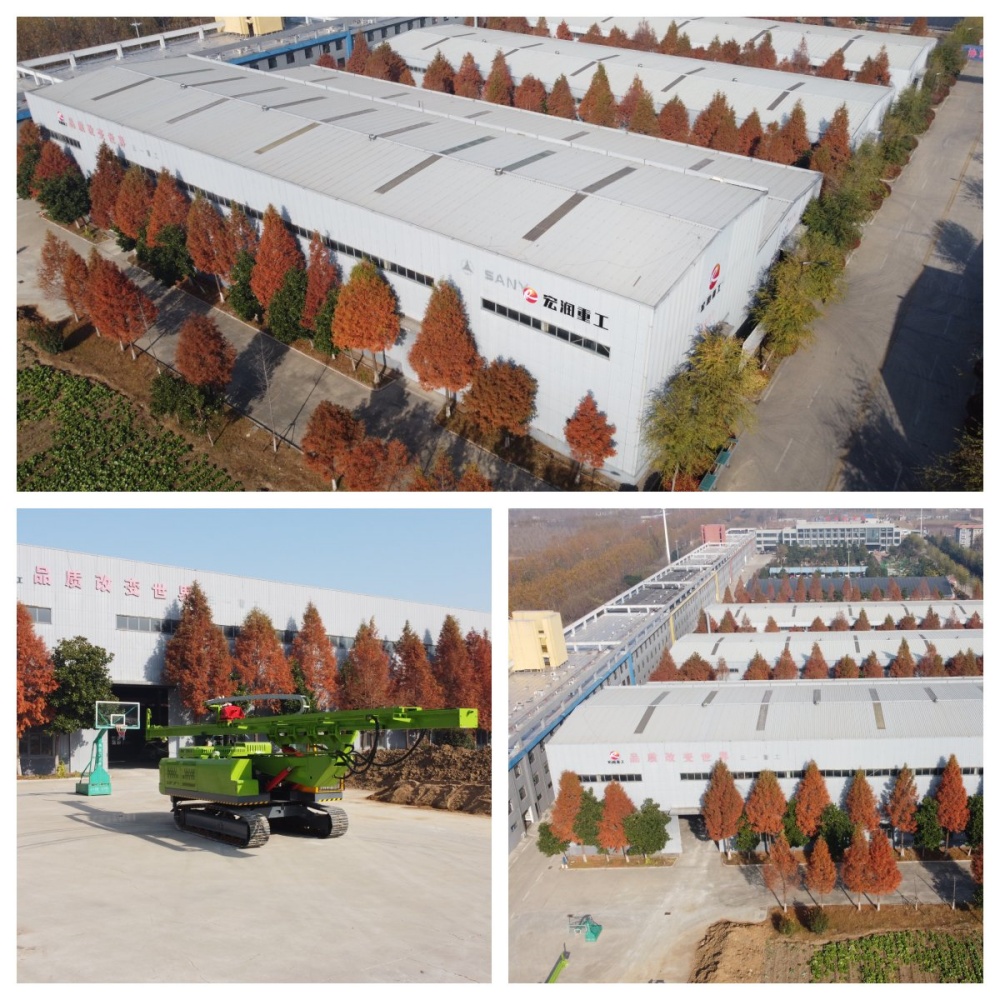

Shandong Hongrun Group (China) Co., Ltd. is located in Jining, Shandong, China, the hometown of Confucius. We are a comprehensive industry and trade integrated enterprise that values quality and reputation.

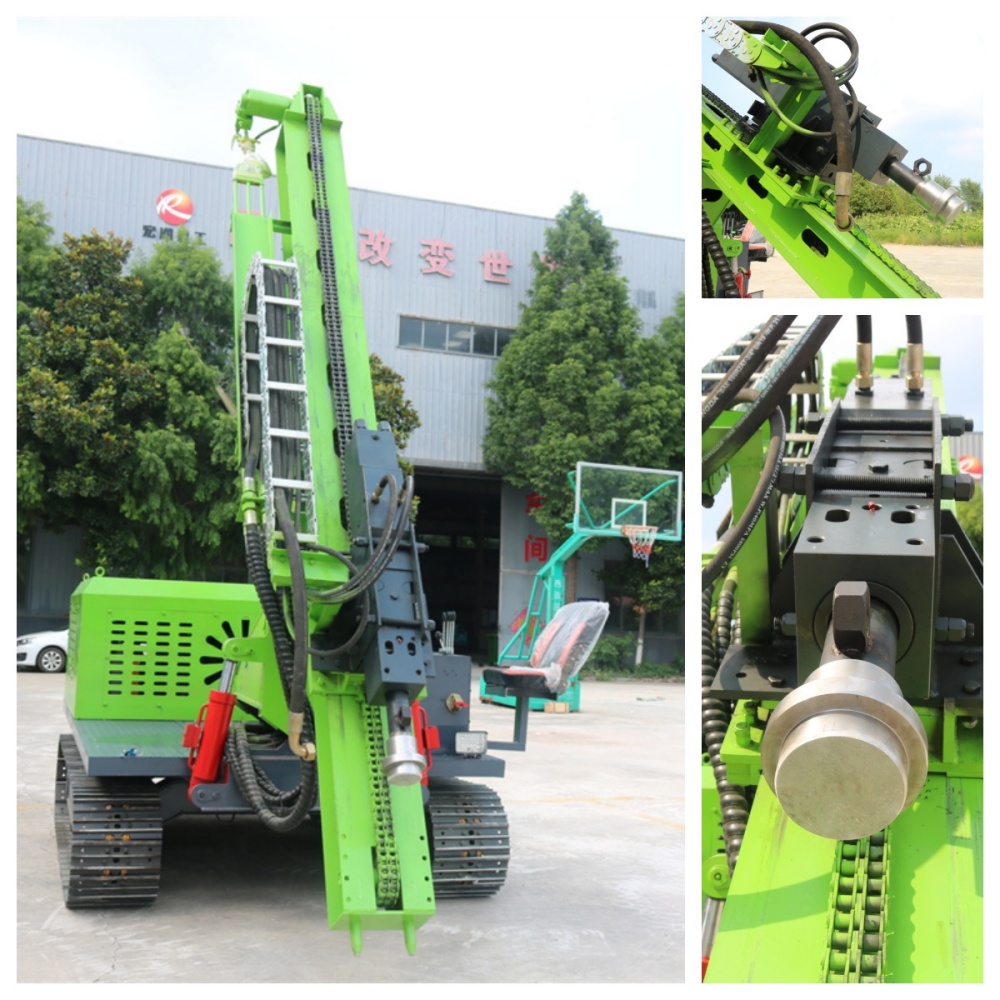

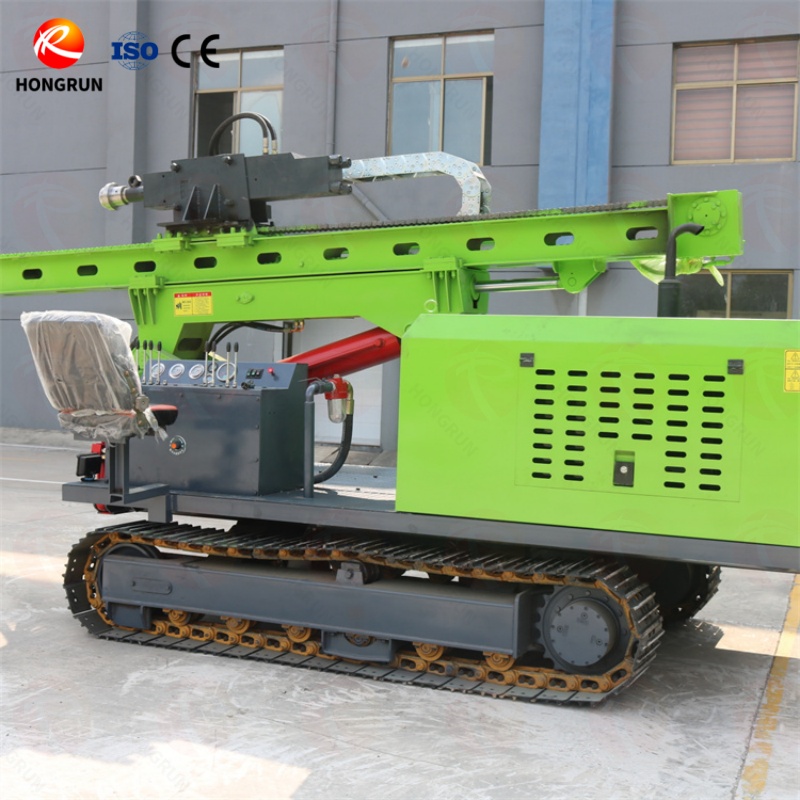

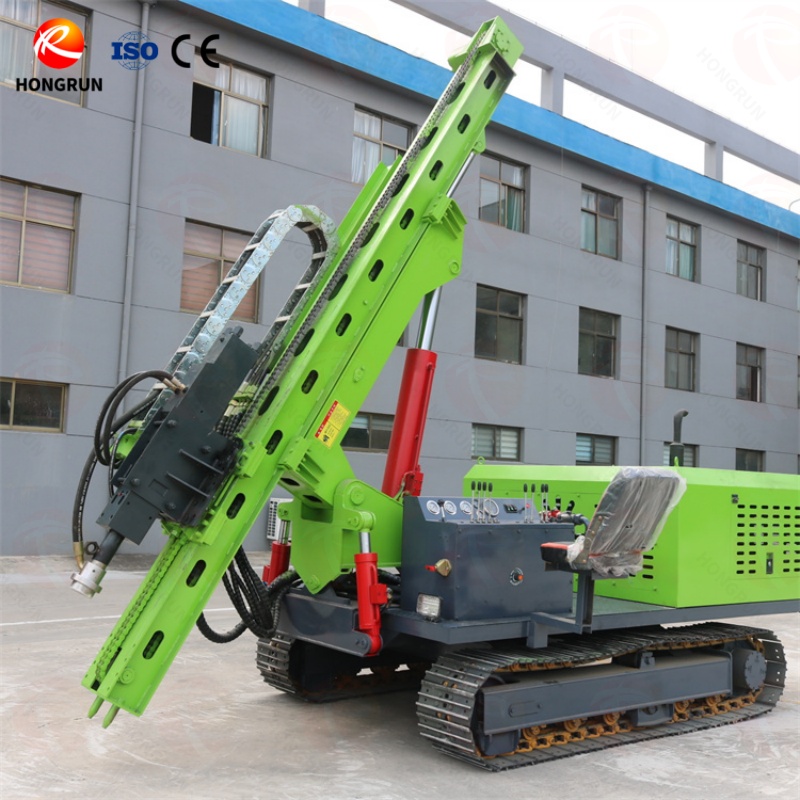

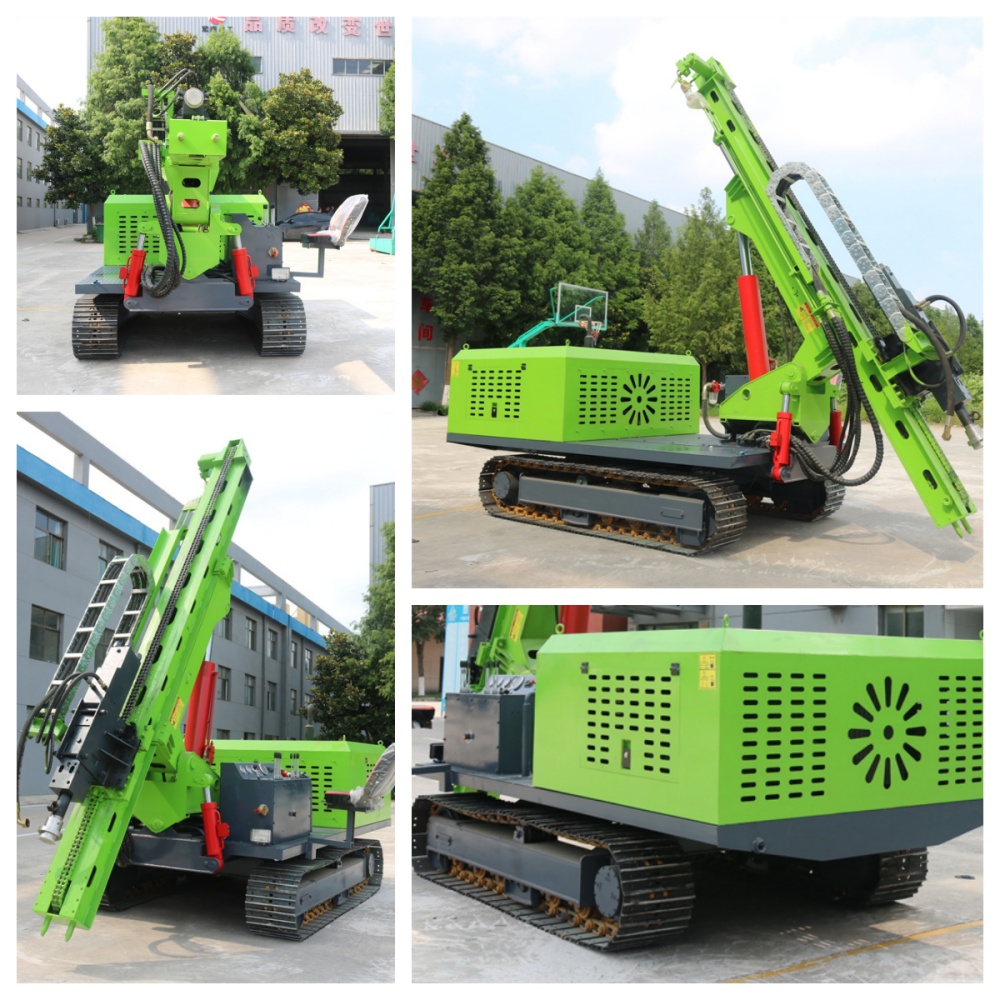

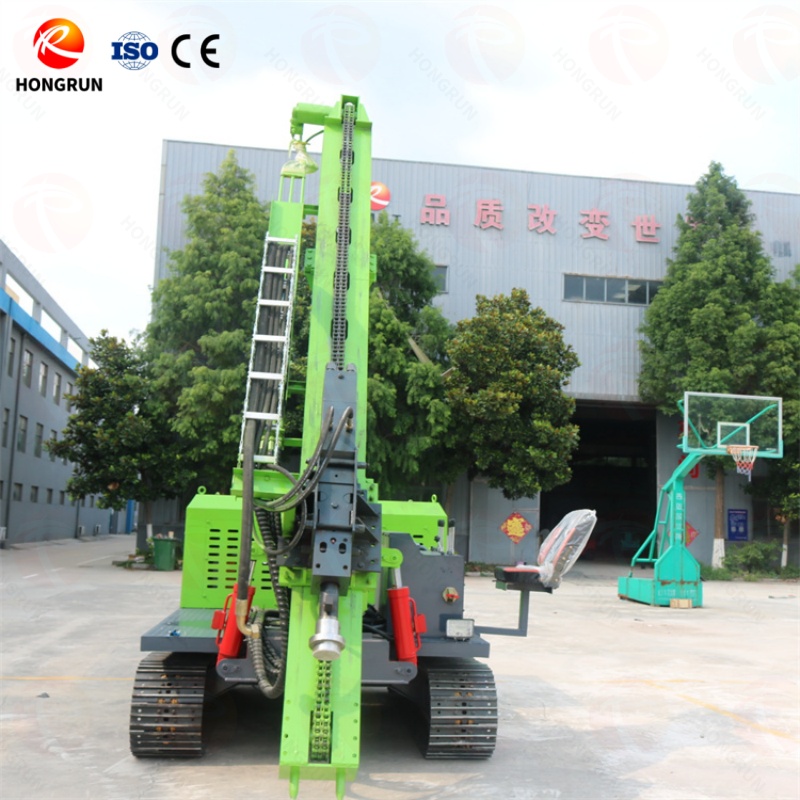

Solar Drilling Machine
High Efficiency: The solar drilling machine adopts hydraulic hammering to quickly and powerfully drive steel piles into the ground.
Versatile Application: Mobile pile driver suitable for H-shaped, U-shaped, and round steel piles in photovoltaic and wind power station construction.
Widely Used: Solar drilling machine ideal for foundation work in solar farms and other renewable energy infrastructure projects.
Product Details
Product Features Of Solar-Powered Pile Drivers
Solar drilling machine hydraulic hammer structure; high frequency, high impact force, effectively penetrate hard soil and gravel formations, and improve pile driving efficiency.
Pile positioning system; can be equipped with a laser level or GPS system to ensure the accuracy of the pile position and avoid skewed piles.
| Photovoltaic Hydraulic Hammer Pile Driver | |||
Model | HR-1008 | Hydraulic system pressure | 22 Mpa |
Press Pile Diameter | 0-600 mm | Duplex gear pump displacement | 40 ml/r |
Drilling Depth | 6 m | Main valve flow | 120 L/min |
Effective press pile stroke | 0-4000 mm | Walking speed | 5 km/h |
Hydraulic hammer model | 75/85/100 optional | Engine | Yuchai 4105ZY 85 kw |
Number of blows per minute | 550-1050 n/minute | Rated Speed | 2400 r/min |
Hydraulic hammer Impact energy | 1350 J | Starting Voltage | 24 V |
Impact frequency | 350-800 bmp | Weight | 6000 kg |
Walking motor rated pressure | 18 Mpa | Dimension | 3.6*2.1*2.8 m |
Rotation angle | 360 ° | ||
I will fulfill your needs! Consultation customization, technical parameters vary as needed.
Product Features Of Solar-Powered Pile Drivers
Modular design; Hydraulic pile driver easy to transport, suitable for field construction conditions.
Compatible with a variety of pile types; Crawler pile driver suitable for photovoltaic bracket column types such as C-shaped steel, H-shaped steel, U-shaped steel, and round tube steel.
Adapt to a variety of terrains; solar powered drilling machine crawler chassis is suitable for complex terrains such as hills, sand, and mud.
Easy to operate; the hydraulic control sys

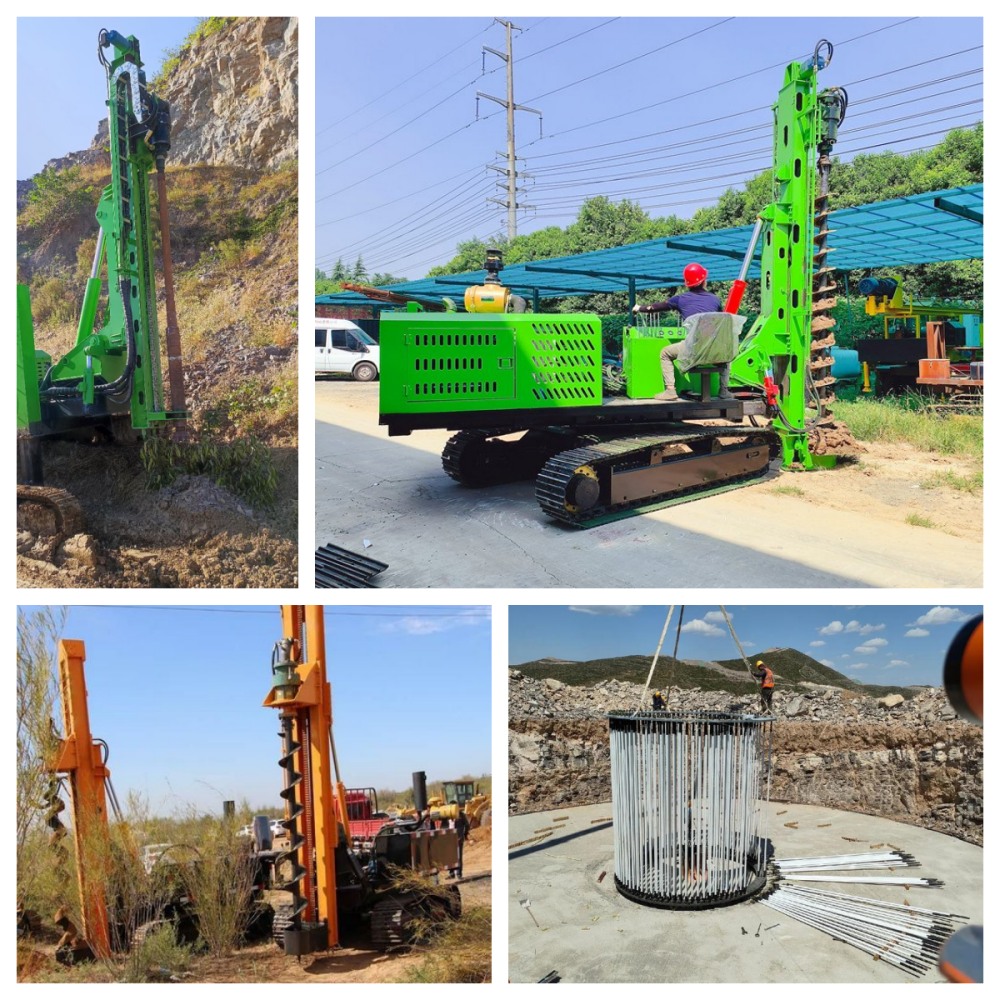

The Application Fields Of Solar Drilling Machine
1. Photovoltaic power station projects
Quick construction of steel piles for ground photovoltaic brackets
Rural distributed photovoltaic and large centralized photovoltaic field installation
Photovoltaic bracket foundation piling in complex terrains such as mountains, deserts, and tidal flats
2. Wind power foundation construction
Preliminary positioning and piling of small wind power foundation piles
Piling of wind power equipment auxiliary facilities support
3. Traffic facilities
Traffic sign poles, crash barriers, monitoring pole foundation pile driving
Temporary road boundary guardrail pile installation

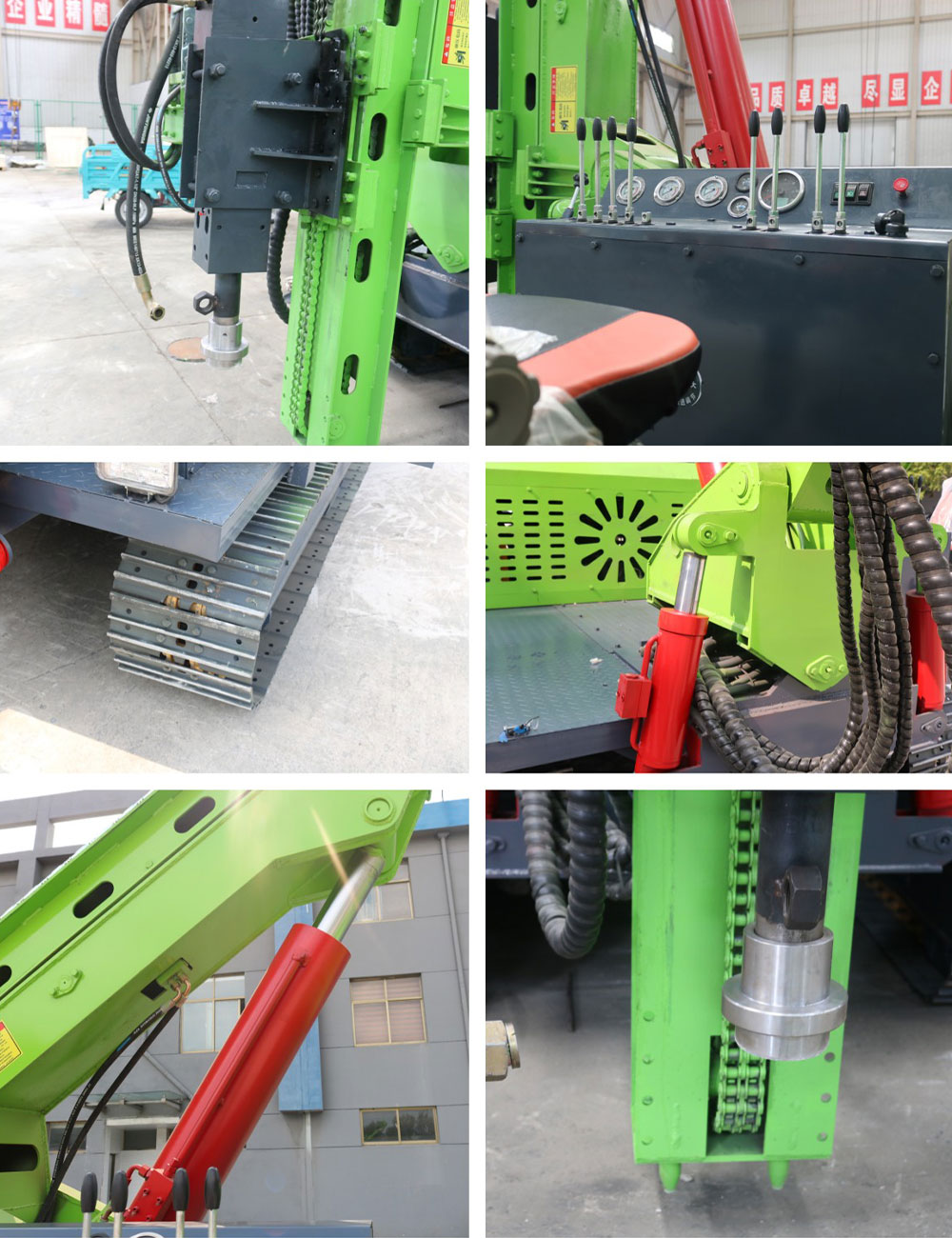

The Structural composition Of Solar Drilling Machine
1.Hydraulic hammer device
2.Guide slide (control verticality)
3.Hydraulic control system
4.Drive power system (diesel engine/motor)
5.Crawler or wheeled chassis (optional)
6.Auxiliary control system (laser/GPS optional)

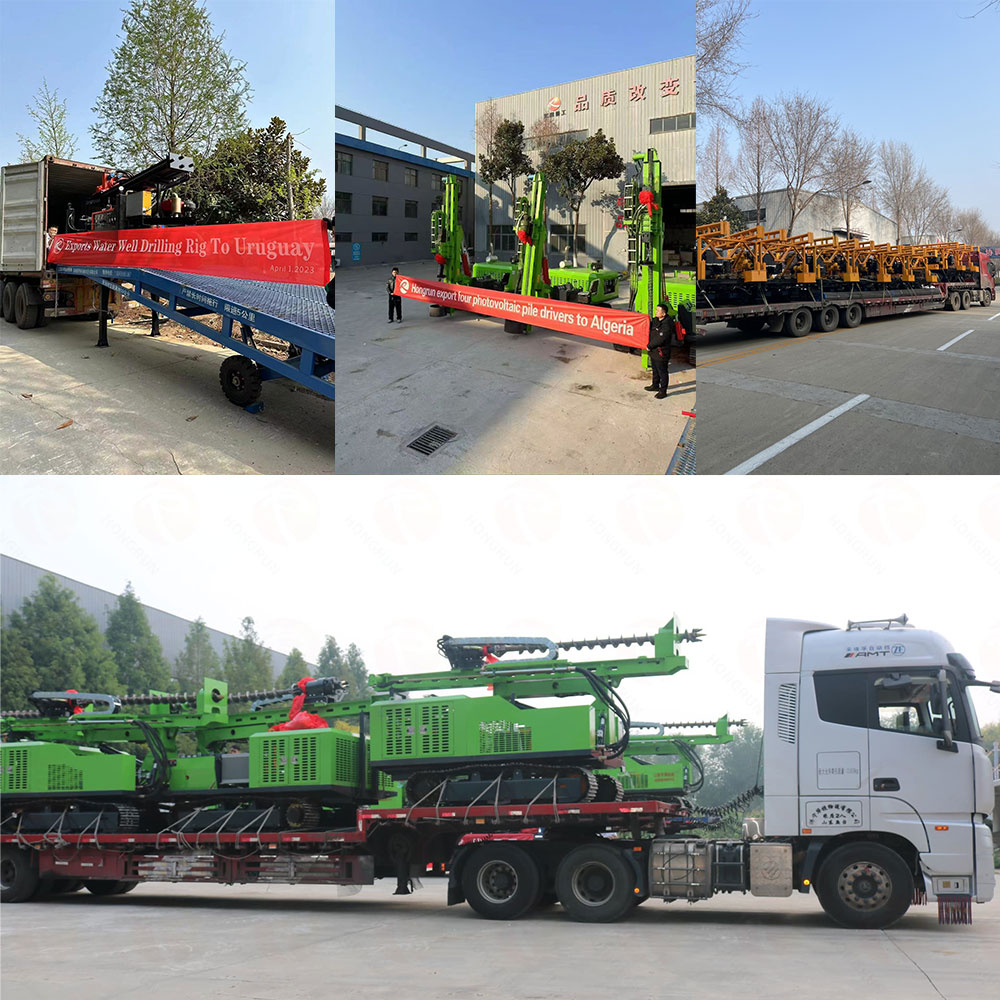

Packaging And Transportation
Use shockproof fixing + wrapping film protection
Large pieces are made of wooden frames, suitable for export container transportation
Provide transportation drawings and packing lists to facilitate sea/land transportation loading and unloading
Logistics can be tracked throughout the process to ensure on-time delivery
After-Sales Service
12-month warranty for the whole machine, lifelong technical support
Free installation, commissioning and operation training
Remote video guidance + local maintenance recommendations (at home and abroad)
Quick response spare parts supply system
Our Advantages
Source factory, more than 15 years of experience in water well drilling rig manufacturing
Global delivery, exported to more than 60 countries in Asia, Africa, Middle East, South America, etc.
Support OEM customization, parameters can be modified according to customer needs
Lifetime technical support, providing remote video guidance and spare parts services
Passed CE / ISO certification, reliable quality, in line with international standards
FAQ
Q1: Does it support customized piling depth and pile type?
A: Yes, we support customized piling depth, pile type size and power configuration according to customer needs.
Q2: What geological conditions are suitable for pile drivers?
A: It is suitable for soft soil, sand, gravel layer, fill layer, etc. It can be used for harder strata after being equipped with a weighted hammer.
Q3: Is the piling speed fast?
A: Under normal conditions, 300-600 piles can be driven per day, which is much more efficient than manual and other equipment.
Q4: Is the operation complicated?
A: It is not complicated. The whole machine is hydraulically controlled and can be operated independently after half a day of training.
Q5: Does it provide on-site installation and debugging?
A: On-site service is available in China, and video or on-site dispatch service is provided internationally, which is arranged according to the project.
