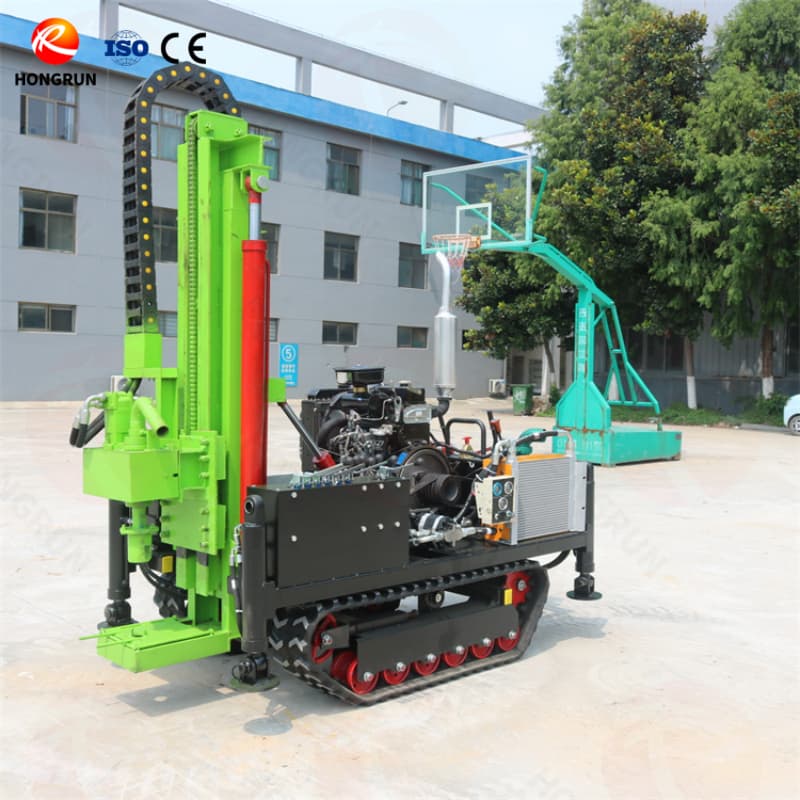

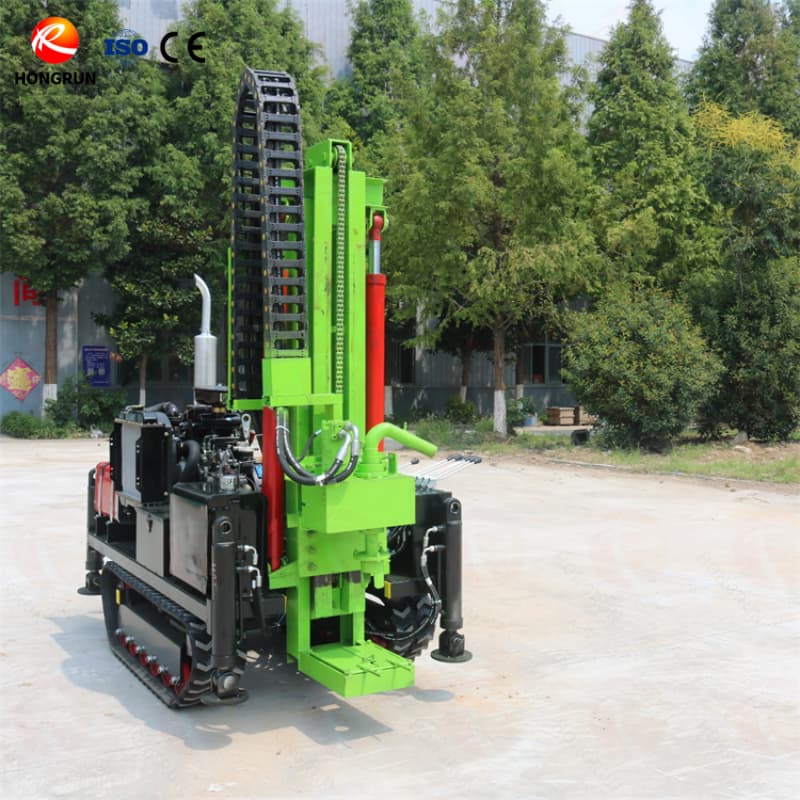

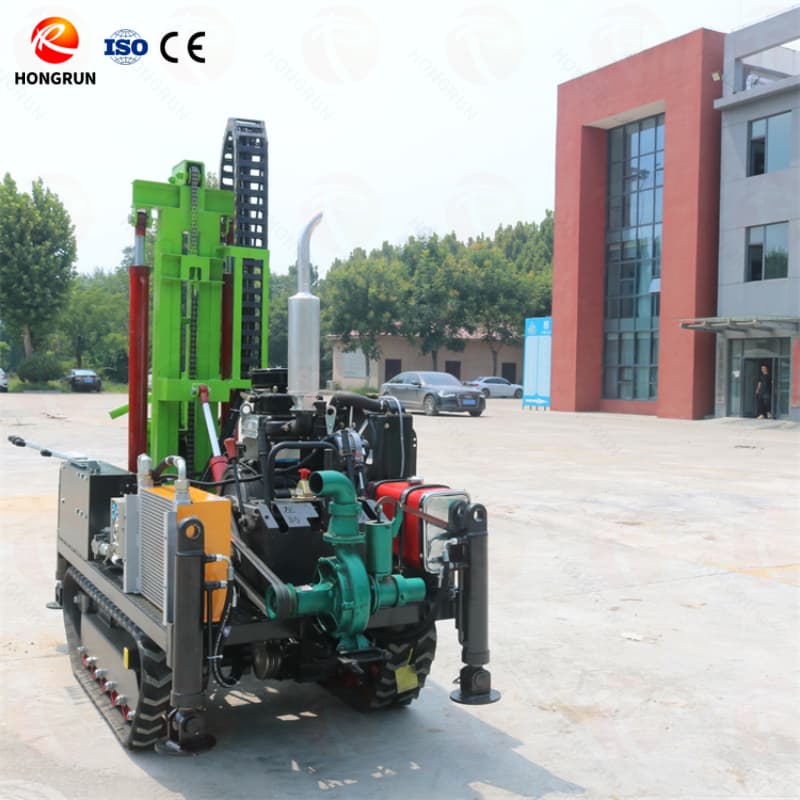

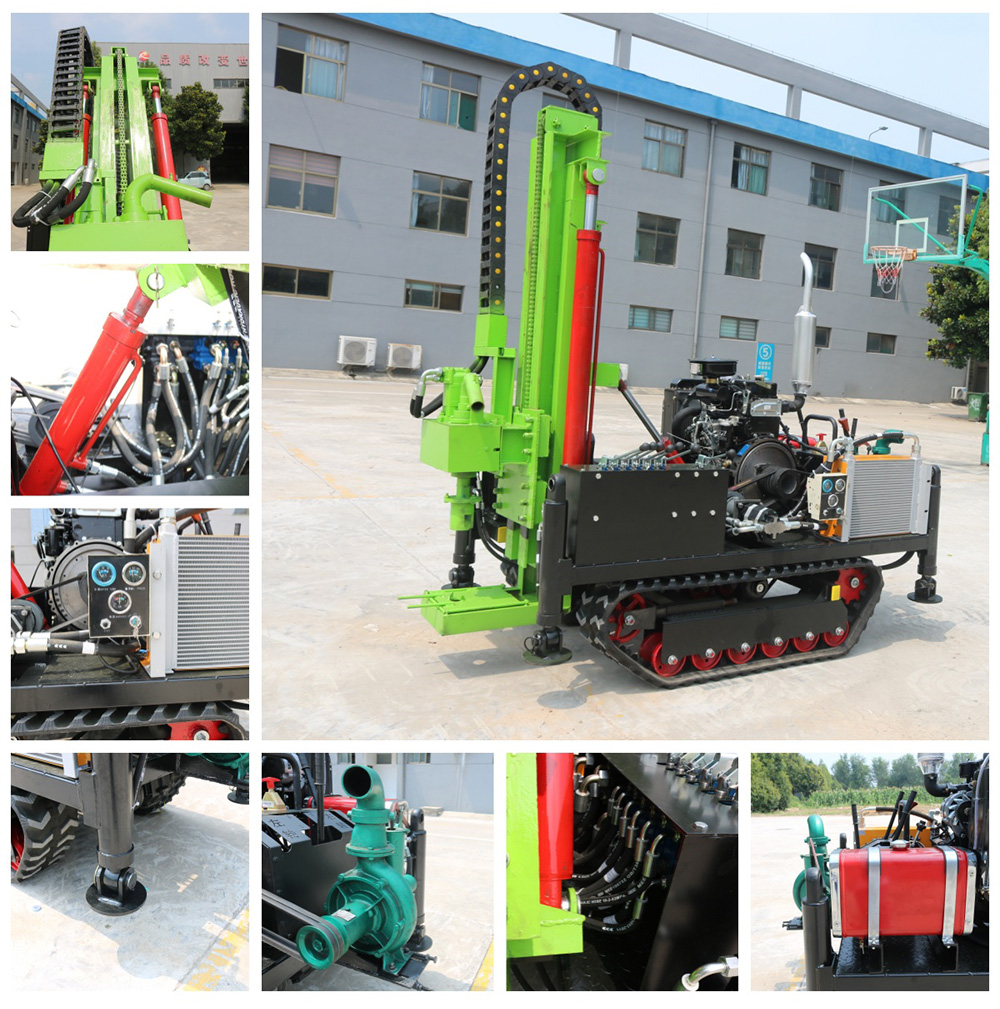

Mini Well Drilling Rig

Product Introduction

Advantages Of Crawler Mini Well Drilling Rig

1.Dual-cylinder diesel engine; stable power output, low fuel consumption, easy maintenance, and adaptable to harsh environments.

2.Crawler chassis design; high passability, suitable for mountainous, muddy, and slippery roads, and strong adaptability to construction sites.

3.Hydraulic operating system; precise control, supports drilling tower lifting, rotation, lifting and other actions, easy and labor-saving operation.

4.Modular structure; convenient for disassembly and transportation and on-site assembly, saving transportation costs.

5.Multi-function drilling mode;The crawler water well drilling rig  supports multiple drilling methods such as rotation, impact, mud, etc., and adapts to multi-layer geology.

6.Safe and reliable; The crawler water well drilling rig is equipped with overload protection and emergency stop devices to ensure construction safety.

Parameter Table of Mini Well Drilling Rig

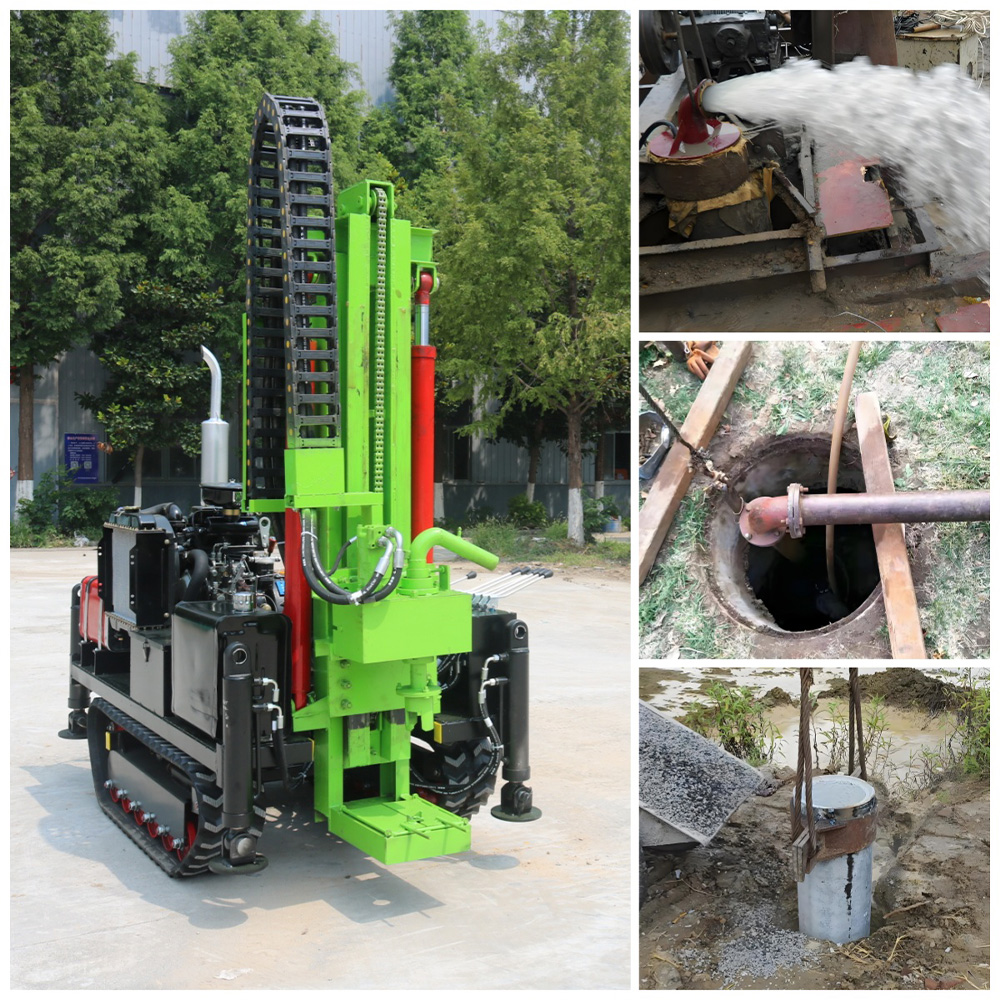

Application Fields of Mini Well Drilling Rig

1.Agricultural irrigation wells; water wells to ensure stable irrigation of crops

2.Domestic water wells; drinking water well drilling in rural and remote areas

3.Engineering construction; foundation water wells for construction sites

4.Geological exploration; hydrogeological surveys and test drilling, auxiliary drilling operations for geological and mineral exploration

5.Construction in complex terrain; Crawler water well drilling rigs are ideal for drilling in mountainous, hilly, and muddy areas with challenging terrain and difficult access.

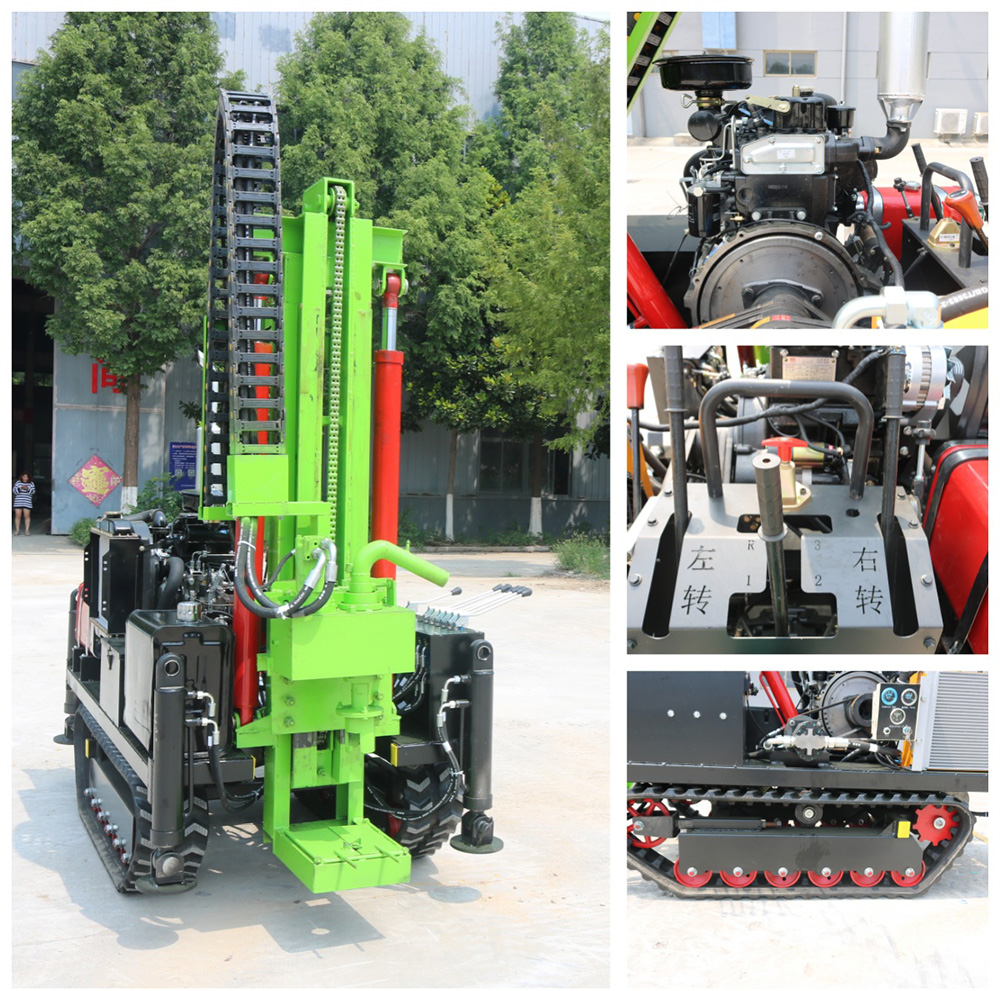

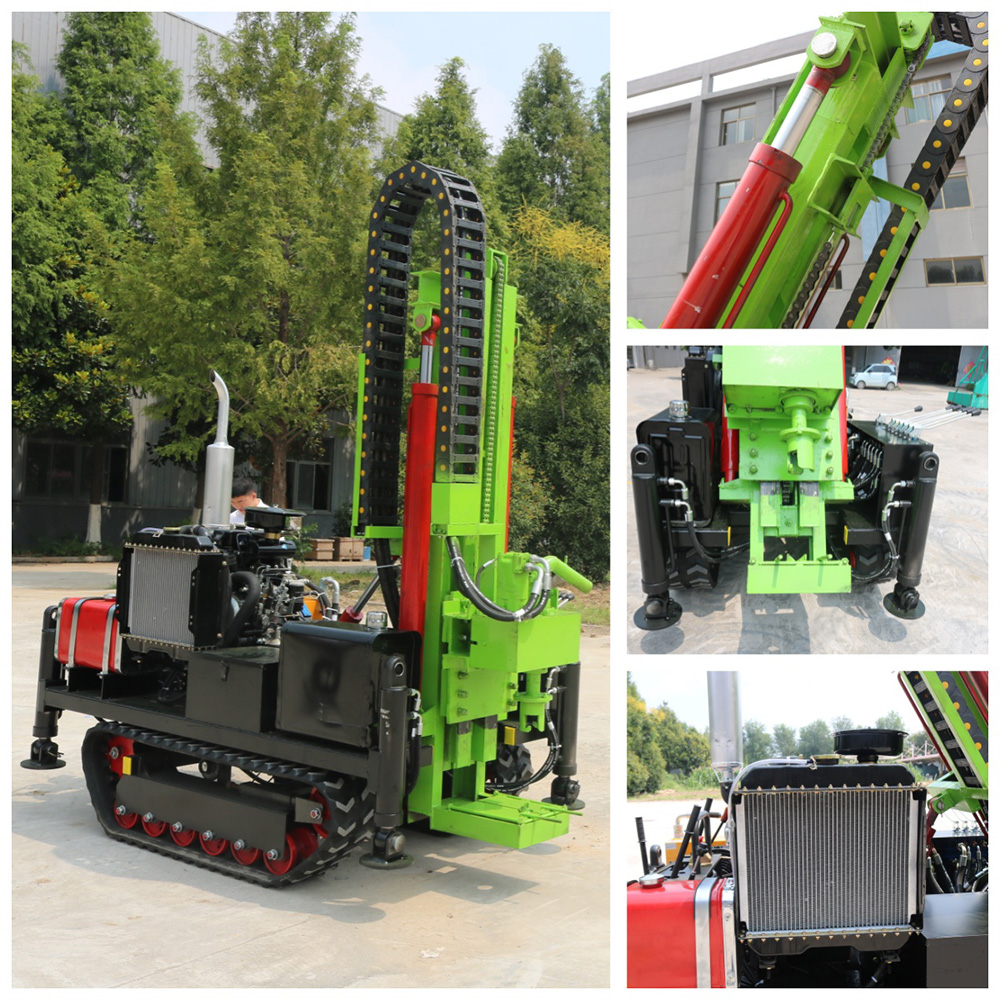

Structural Composition Of Crawler Water Well Drilling Rig

1.Dual-cylinder diesel engine: provides a strong power source

2.Hydraulic pump and control system: realizes the movement and travel control of the drilling tower

3.Track chassis: high-performance crawler tracks to ensure off-road walking ability

4.Drilling tower and slewing system: supports drilling rod lifting and rotation

5.Winch lifting device: used to lift drilling rods and tools

6.Operation console: centralized operation interface, convenient control of various functions

Packaging And Transportation

1.The whole machine is packaged in modules, and key parts are treated with rust and shockproof treatment

2.Wooden box and waterproof film packaging to ensure the safety of equipment transportation

3.Support road, rail and sea transportation, suitable for domestic and foreign markets

4.Complete inspection before transportation to ensure intact delivery

After-Sales Service

1.12-month warranty, free repair for non-human damage

2.Provide on-site installation and commissioning guidance

3.Remote technical support, quick response to customer needs

4.Sufficient spare parts supply to ensure long-term operation of equipment

5.Provide operation training and maintenance solutions

Our Advantages

 1.Source factory, more than 15 years of experience in water well drilling rig manufacturing

2.Global delivery, exported to more than 60 countries in Asia, Africa, Middle East, South America, etc.

3.Support OEM customization, parameters can be modified according to customer needs

4.Lifetime technical support, providing remote video guidance and spare parts services

5.Passed CE / ISO certification, reliable quality, in line with international standards

FAQ

Q1:What geological conditions are suitable for a Crawler Water Well Drilling Rig?

A: This rig is suitable for a variety of geological conditions such as soft soil, sand, clay, pebble layer and some weathered rock, especially for complex terrains such as mountainous areas and hills.

Q2: What is the maximum drilling depth of this rig?

A: The maximum drilling depth can reach 150 meters, and the specific depth can be adjusted according to the site geology and drilling rig model.

Q3: What are the advantages of crawler chassis for construction?

A: The crawler chassis provides excellent off-road capability and stability, adapts to muddy, slippery, rugged and other complex terrains, and ensures smooth construction.

Q4: Is the equipment difficult to maintain? Do you need professionals?

A: The equipment structure is modular, and daily maintenance is simple. The manufacturer provides detailed maintenance manuals and training, and non-professionals can master basic maintenance after training.

Q5: What is the fuel consumption of this rig?

A: The diesel engine adopts an energy-saving design, with low fuel consumption, economical and environmentally friendly.

Q6: Do you provide installation and training services after purchase?

A: Yes, we provide on-site installation guidance and operation training to ensure that customers can quickly master the use of the equipment.

Q7: How to ensure the safety of the equipment during transportation?

A: The equipment is packaged in modules, key parts are rust-proofed, and professional fixing measures are taken to ensure safe and damage-free transportation.
