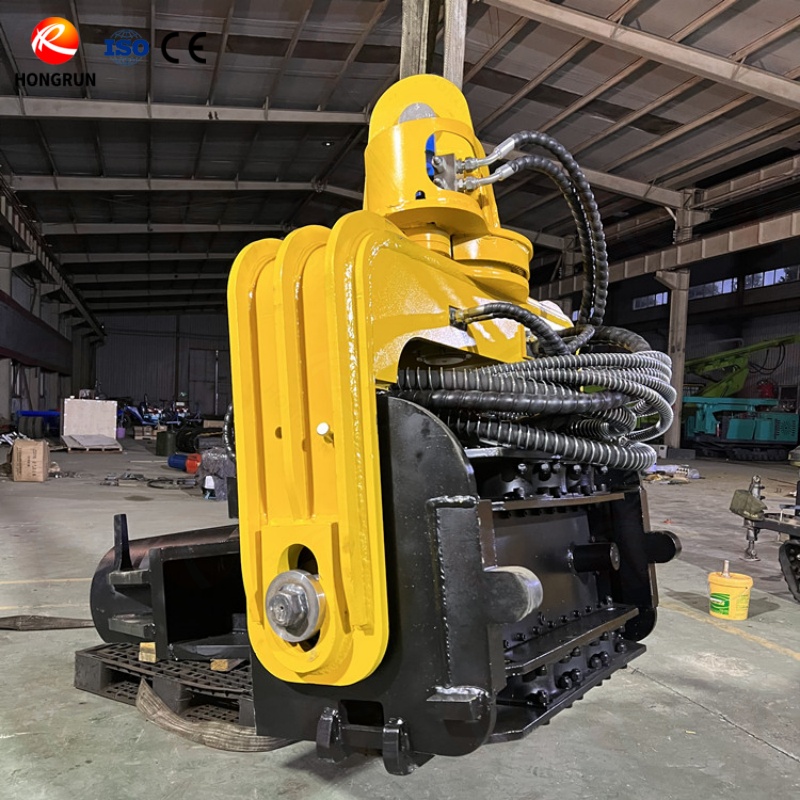

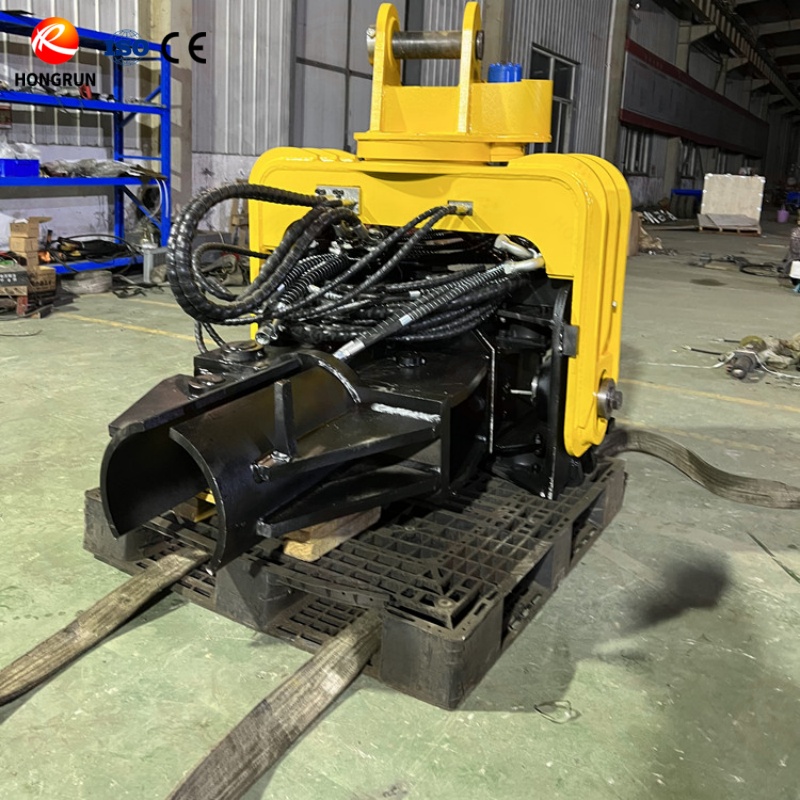

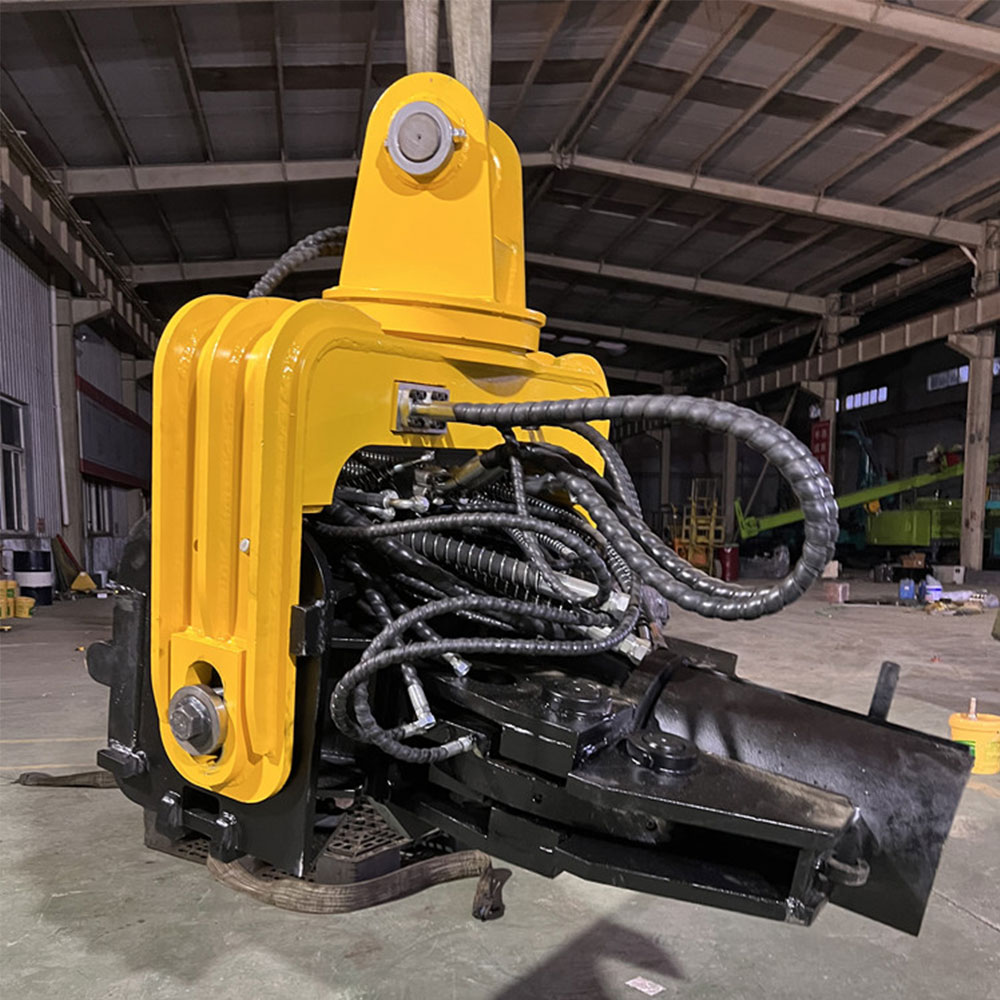

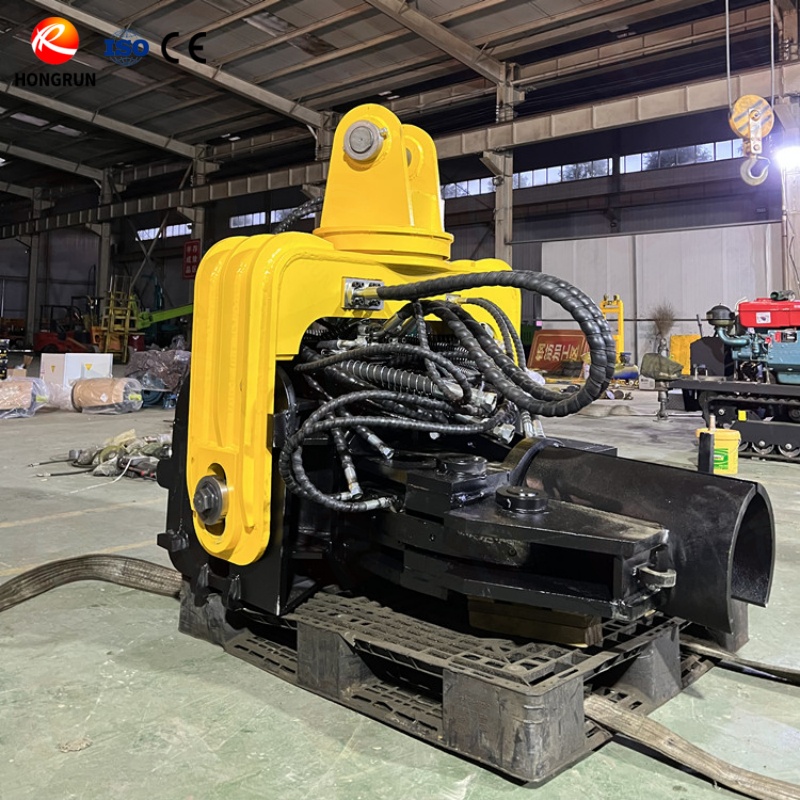

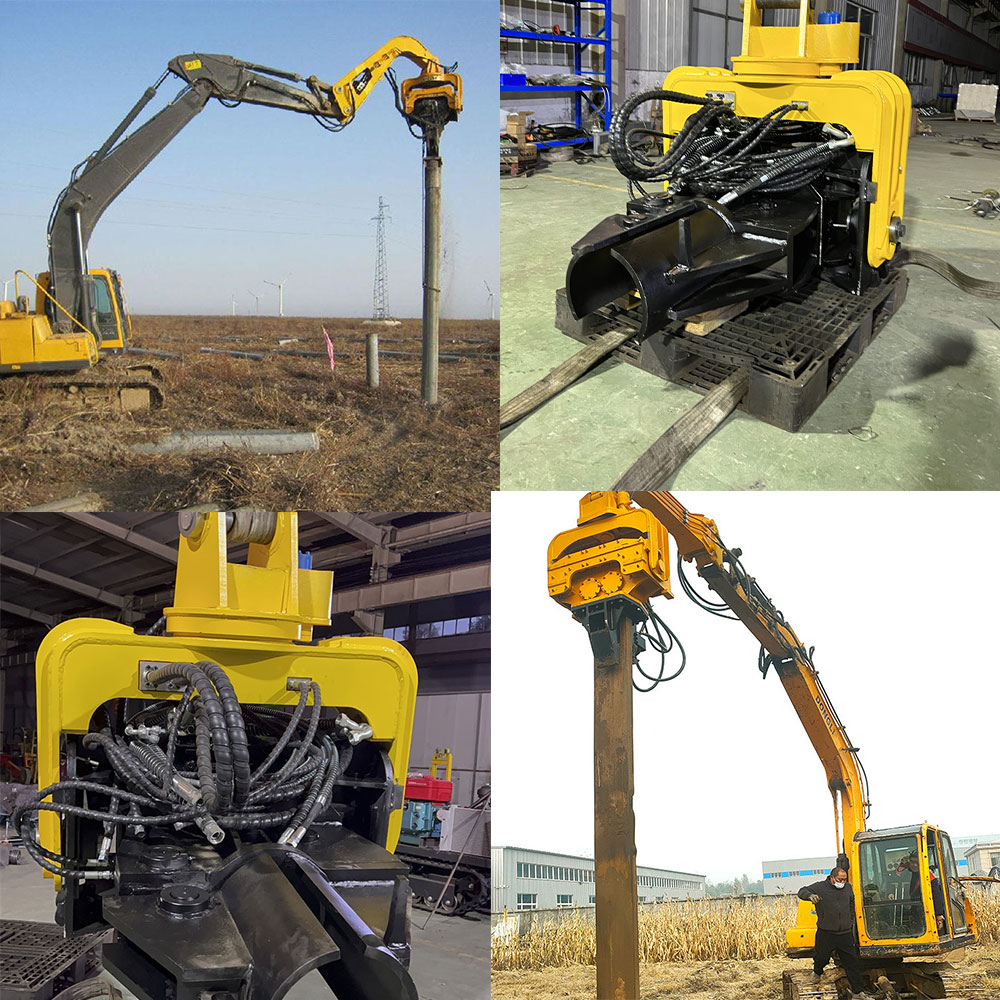

Hydraulic Vibro Hammer
Characteristic:
This hydraulic pile hammer adopts high-frequency hydraulic impact technology, is compatible with excavators weighing 20-50 tons, and is equipped with quick-change connectors and customizable guide frames. It is suitable for the construction of steel sheet piles, steel pipe piles, and concrete piles.
Advantages:
Compared to traditional piling methods, it boasts advantages such as high-frequency impact (30% efficiency improvement), low energy consumption (20% energy saving), and low noise (≤75 decibels). The impact force is adjustable, ensuring the pile head is protected from damage.
Benefit:
It is suitable for various geological conditions such as soft soil and sandstone (with an optional high-frequency vibration module for hard rock), featuring rapid changeover in 5 minutes and an extended maintenance interval of 500 hours, significantly reducing maintenance costs.
Product Details
Efficient Construction, One Machine For Multiple Purposes

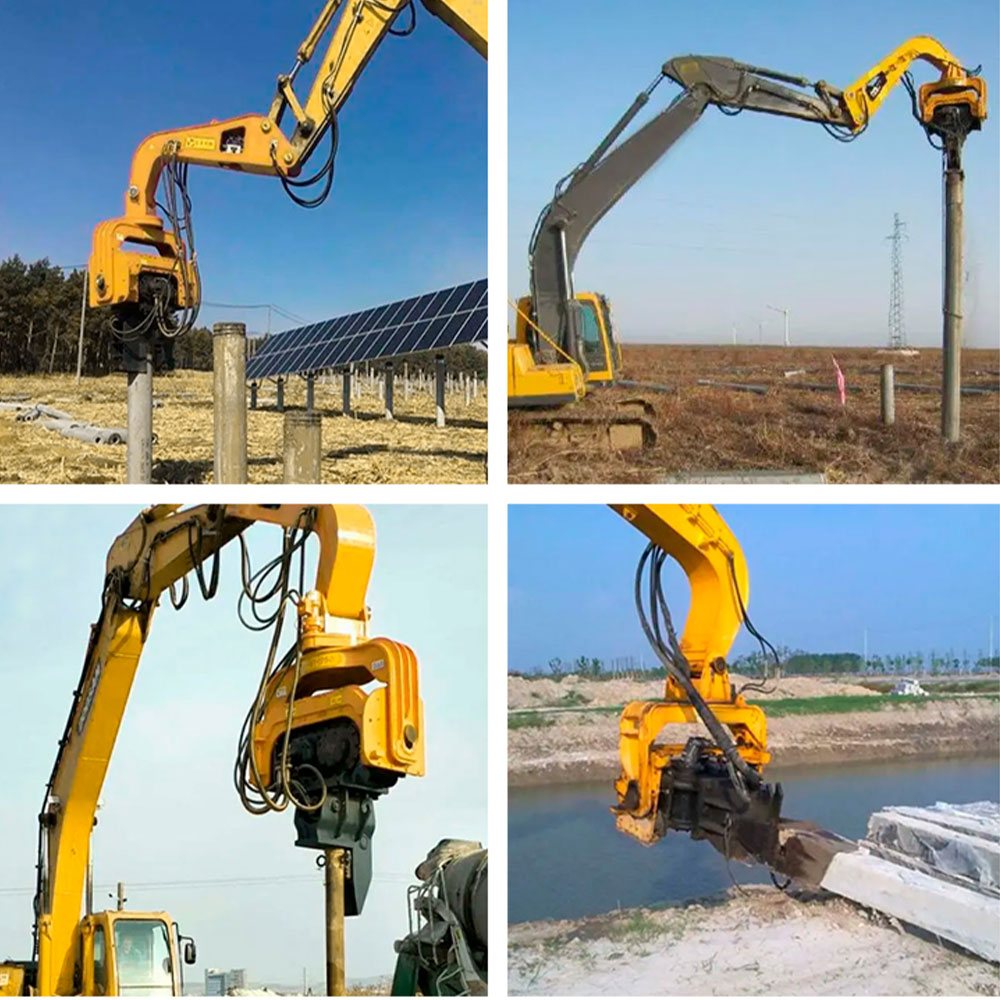

This high-frequency hydraulic pile hammer utilizes advanced hydraulic drive technology, delivering powerful and precise piling. Equipped with multi-size quick-change clamps, it perfectly adapts to various pile types such as steel sheet piles, steel pipe piles, square piles, photovoltaic piles, and cement pipe piles. Pile type switching can be completed in just 5 minutes, significantly reducing equipment investment costs and enhancing construction efficiency.
HR-808 Static Pressure Pile Head Technical Parameter | |||
Adapt to excavator tonnage：15-18T | |||
Frequency of vibration | 2600rpm | Auxiliary arm weight | 400kg |
Eccentric moment | 28N.m | Hydraulic system operating pressure | 220bar |
Excitation force | 24T | Hydraulic system flow demand | 150Lpm |
Machine weight | 1300kg | The longest pile driving length | 6m |
Adapt to excavator tonnage：20-30T | |||
Frequency of vibration | 2800rpm | Auxiliary arm weight | 500kg |
Eccentric moment | 40/46N.m | Hydraulic system operating pressure | 280bar |
Excitation force | 38/44T | Hydraulic system flow demand | 160Lpm |
Machine weight | 2200/2400kg | The longest pile driving length | 9/12m |
Adapt to excavator tonnage：30-35T | |||
Frequency of vibration | 2800rpm | Auxiliary arm weight | 600kg |
Eccentric moment | 53N.m | Hydraulic system operating pressure | 280bar |
Excitation force | 50T | Hydraulic system flow demand | 180Lpm |
Machine weight | 2500kg | The longest pile driving length | 15m |
Adapt to excavator tonnage：36-50T | |||
Frequency of vibration | 2800rpm | Auxiliary arm weight | 650kg |
Eccentric moment | 70N.m | Hydraulic system operating pressure | 300bar |
Excitation force | 65T | Hydraulic system flow demand | 210Lpm |
Machine weight | 2800kg | The longest pile driving length | 18m |
Note: Specifications can be customized to meet your project needs — feel free to reach out.
Durable, Stable, And Reliable
The hydraulic pile hammer utilizes high-quality alloy steel column guide rails, which have undergone special heat treatment processes, making them impact-resistant, wear-resistant, and boasting a longer service life
Precision-machined core components, coupled with high-precision polishing processes, ensure smoother operation and reduced vibration
High-pressure hydraulic oil pipe, featuring multi-layer sealing and leak-proof design, reduces maintenance frequency and downtime losses
With Superb Piling Capability, It Can Reach A Depth Of Up To 18 Meters

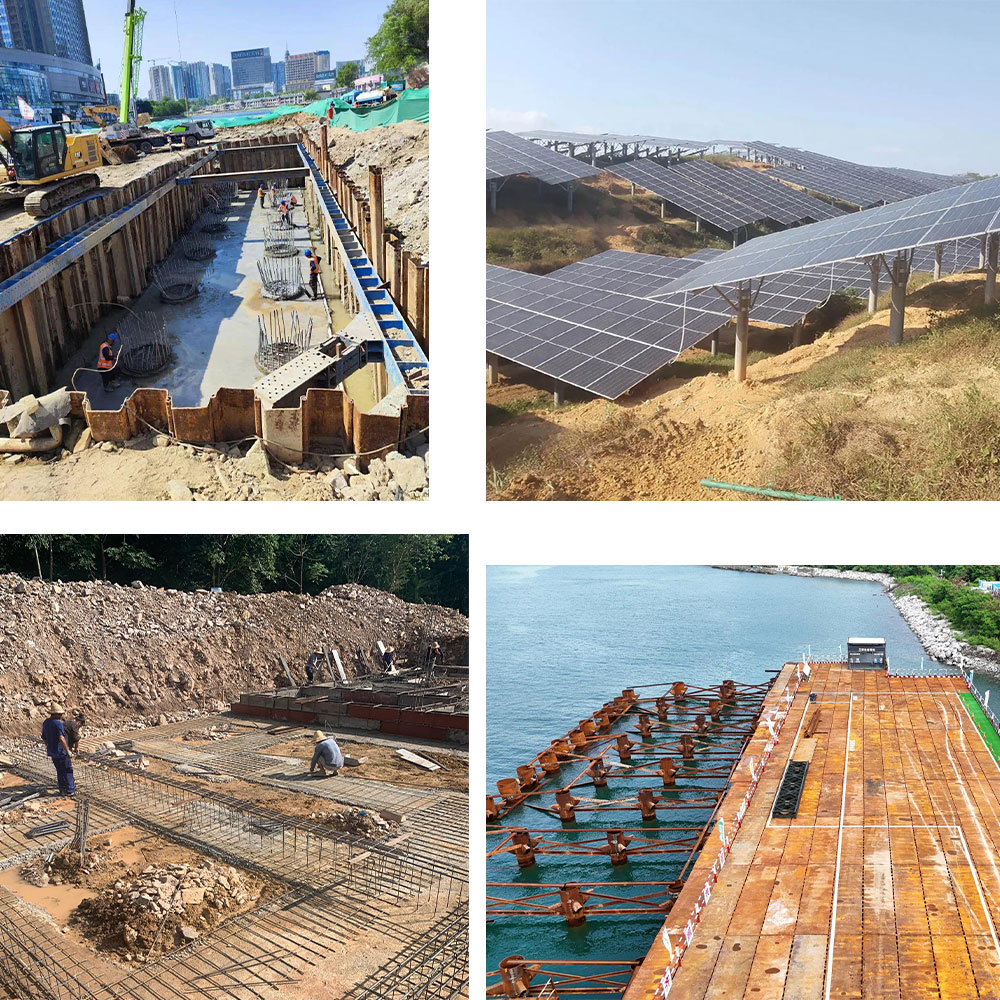

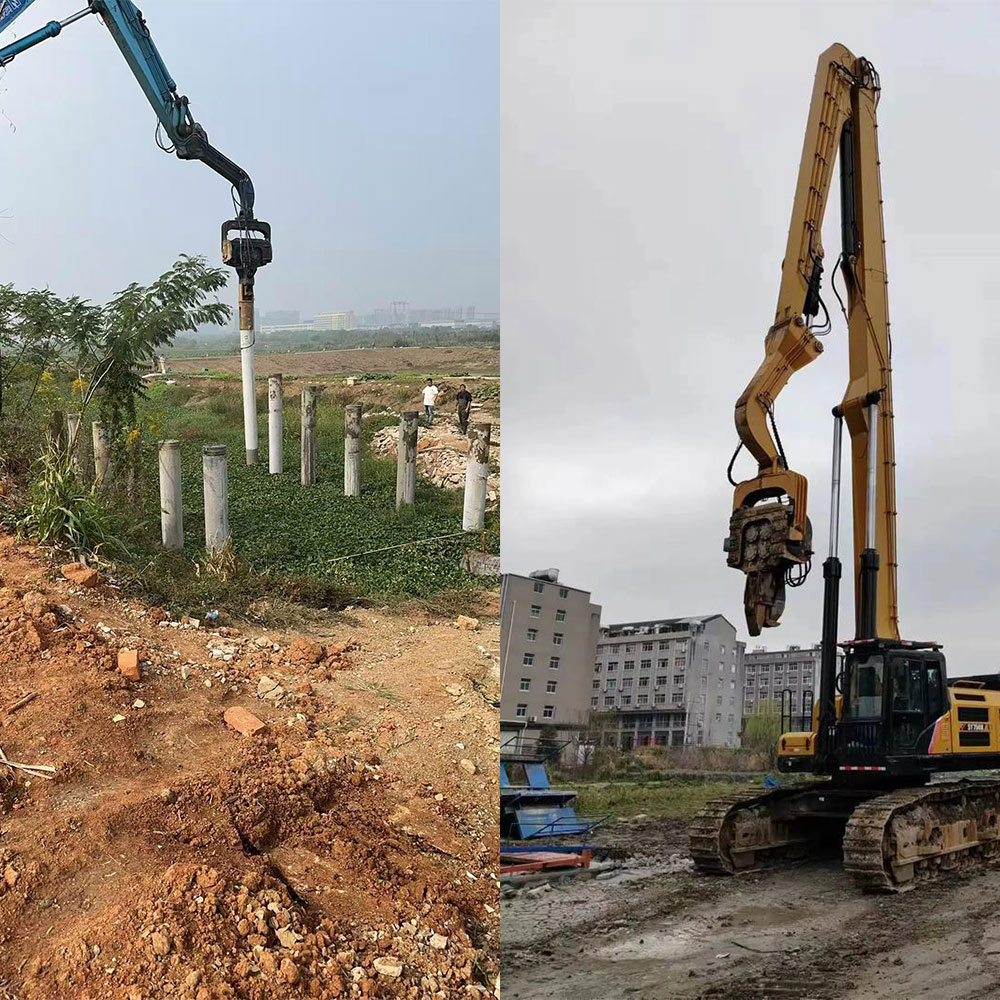

With over 10 years of experience in pile driving machinery technology, this hydraulic vibratory hammer can achieve a maximum piling depth of 18 meters, making it suitable for various engineering scenarios such as building foundations, bridge pile foundations, photovoltaic power stations, and dock revetments. It provides an efficient, stable, and low-cost piling solution.
It Is Widely Compatible With Excavators Ranging From 15 To 50 Tons, And Can Be Installed And Used Immediately
Universal interface design, allowing quick installation on excavators of various brands ranging from 15 to 50 tons
No need to purchase additional equipment; piling operations can be carried out directly using existing excavators
The hydraulic system seamlessly integrates, with simple operation and more flexible construction
Hydraulic Pile Hammer, Easy To Install
With the auxiliary arm and control system, precise pile driving can be easily achieved
Adjustable impact frequency and amplitude, adaptable to different geological conditions
The overload protection design ensures operation within the safe load range, preventing equipment damage
Why Choose Our Hydraulic Pile Hammer?
✅ High-strength alloy steel material - impact-resistant, wear-resistant, suitable for harsh working conditions
✅ Modular design - quick change of clamping jaws, multi-purpose functionality, cost savings
✅ Efficient hydraulic drive - pile driving speed increased by 50%, shortening the construction period
✅ Direct modification of excavators - no additional investment required, maximizing equipment utilization
✅ Low-maintenance design - sealed and leak-proof, reducing malfunctions and lowering operating costs

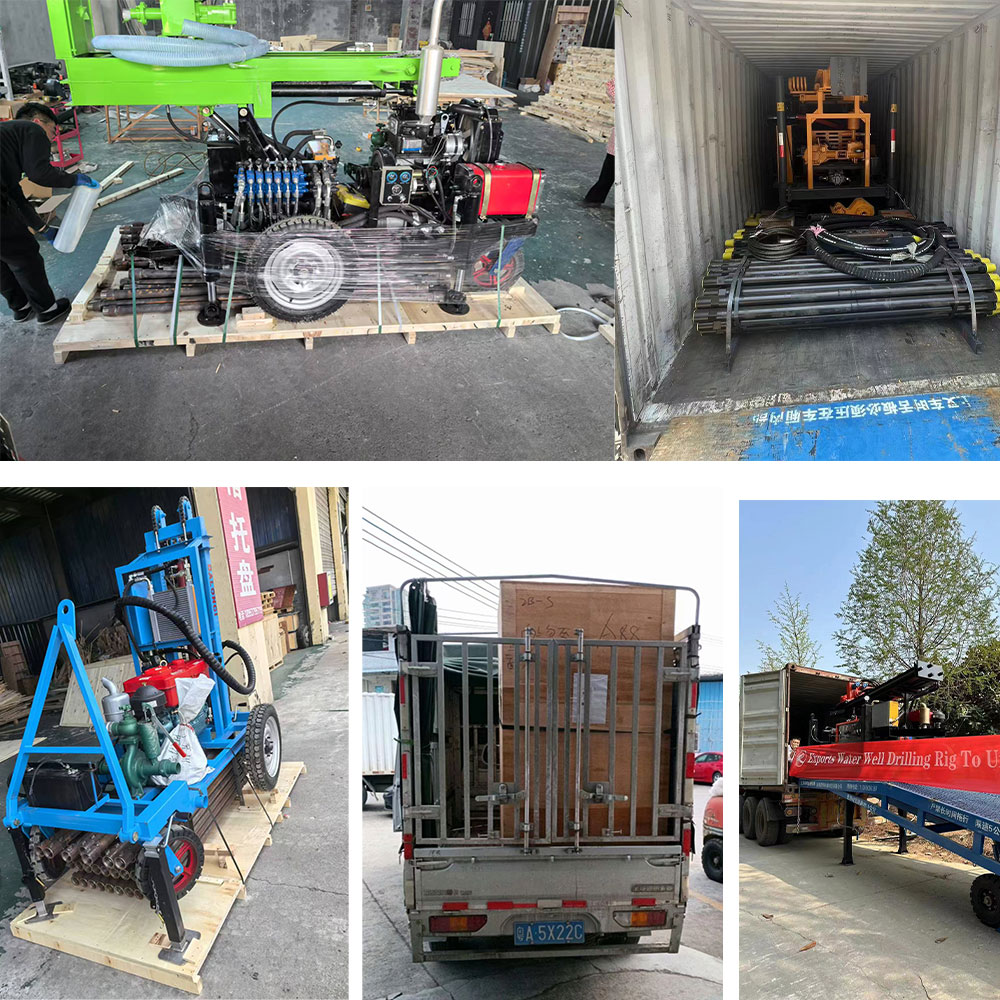

Shipping Picture
