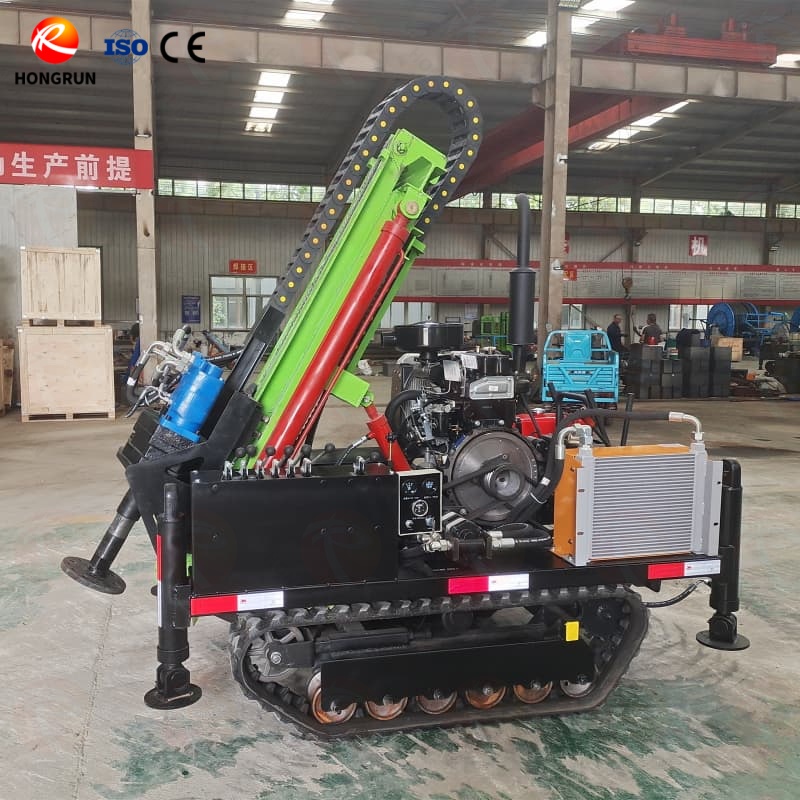

Crawler Down The Hole Drilling Rig
Features
The crawler down the hole drilling rig is equipped with dual hydraulic motors, an all terrain rubber track chassis, and modular drill rod components, with a compact and exquisite overall structure; Supports full angle drilling adjustment from 45 °to 90 °, equipped with a centralized control console and hydraulic oil pipe drag chain system, with high integration and easy operation and maintenance.
Advantages
The crawler down the hole drilling rig is equipped with a 35 horsepower high-performance diesel engine, which has sufficient power and is suitable for complex geological and deep hole operations; All terrain rubber tracks with hydraulic support legs, stable through complex terrains such as rocks and soil; Capable of drilling from multiple angles, the quick drilling device is adaptable to different geological conditions, and meets diverse construction needs.
Benefits
Crawler type down the hole drilling rig provides integrated drilling solutions for mining, tunnel excavation and other scenarios, significantly improving construction efficiency and shortening project cycles; Its all terrain traffic capacity significantly reduces equipment transfer losses, and its multi angle drilling function accurately meets diverse construction needs, promoting engineering construction.
Product Details
Product Introduction
Our tracked down the hole drilling rig is equipped with a 35HP twin cylinder turbocharged engine, which has powerful power output. At the same time, the structural design of the twin power heads significantly improves work efficiency and flexibility.
Parameter Table
Engine | Diesel engine | Power | 35HP Double cylinder supercharged engine |
Drill pipe diameter | 42/50/76/89 mm | ||
Drill depth | 0-180m | Rotation torque | 4500-6500 N.m |
Drilling diameter | 50-300mm | Slewing speed | 100-120 rpm |
Effective travel | 2m | Oil pump | 40/40 dual pump |
Diesel oil tank | 20 L | Gradeability | 35° |
Hydraulic tank | 40 L | Oil pump pressure | 20 Mpa |
Hydraulic support leg | Four | Lifting cylinder | 2 set |
Walking style | Crawler driving | Operation form | Hydraulic control lever |
Weight | Including water pump：1400 kg | Dimension | Including water pump： |
Without water pump： | Without water pump： |
Note: Personalized adjustments can be made to product parameters based on your usage environment and project requirements. Welcome to communicate.
This tracked down the hole drilling rig can easily cope with diverse geological conditions such as rocks, soils, Gobi deserts, etc. Its powerful power system and stable track chassis are perfectly combined to ensure efficient and stable drilling operations under various harsh working conditions.

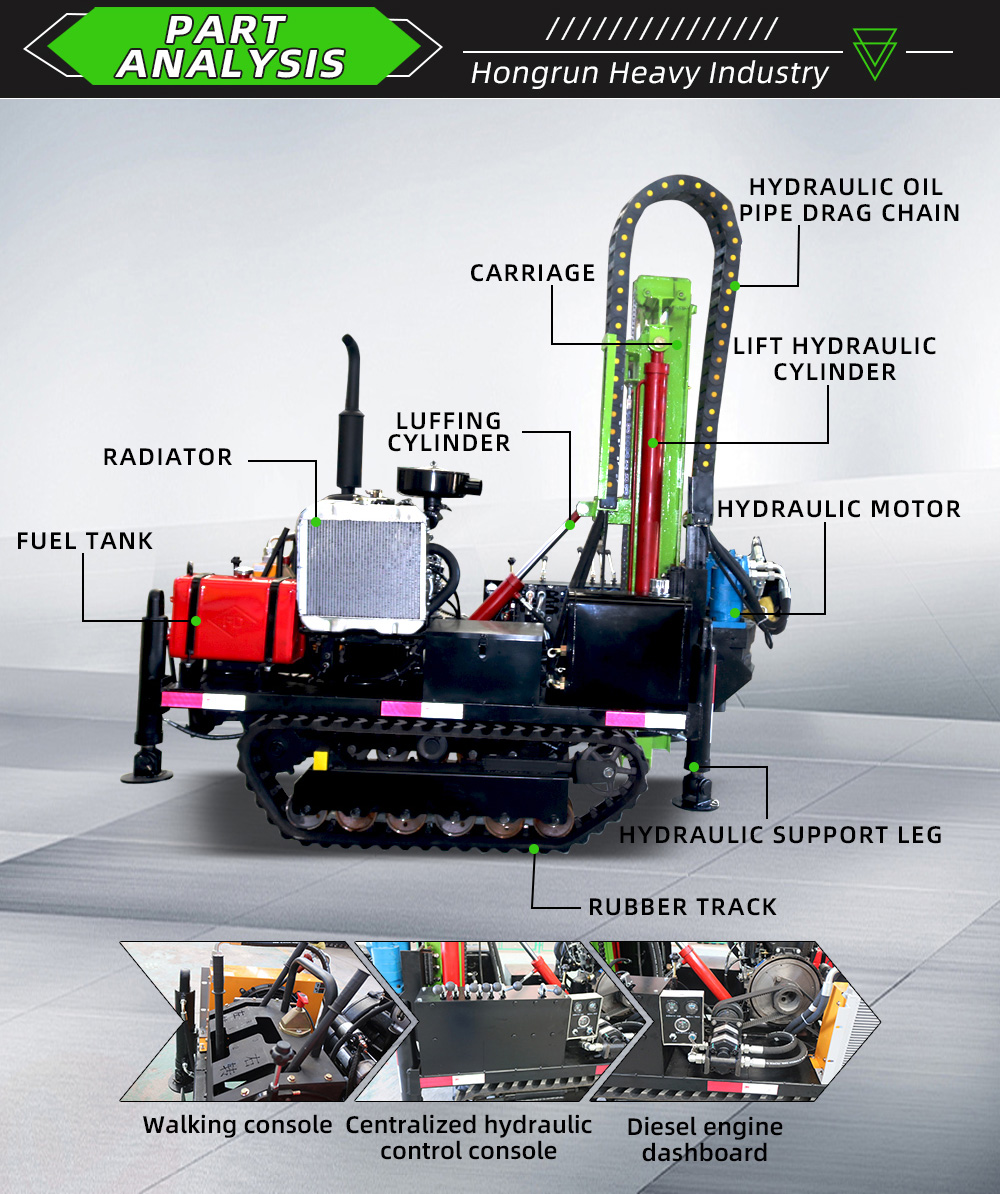

Product Structure Analysis
Our tracked down the hole drilling rig consists of high-strength slide, high-power lifting cylinder, efficient hydraulic motor, wear-resistant hydraulic oil pipe drag chain, four adjustable hydraulic support legs, and rubber track chassis and other core components. The overall structure is compact and exquisite, with flexible and convenient movement, and can quickly adapt to different work scenarios.
Application Scenarios
This tracked down the hole drilling rig has a compact and reasonable structure, ensuring excellent stability while also possessing outstanding mobility. It is widely used for drilling construction in urban construction, railways, highways, hydropower, foundation dams and other engineering projects.

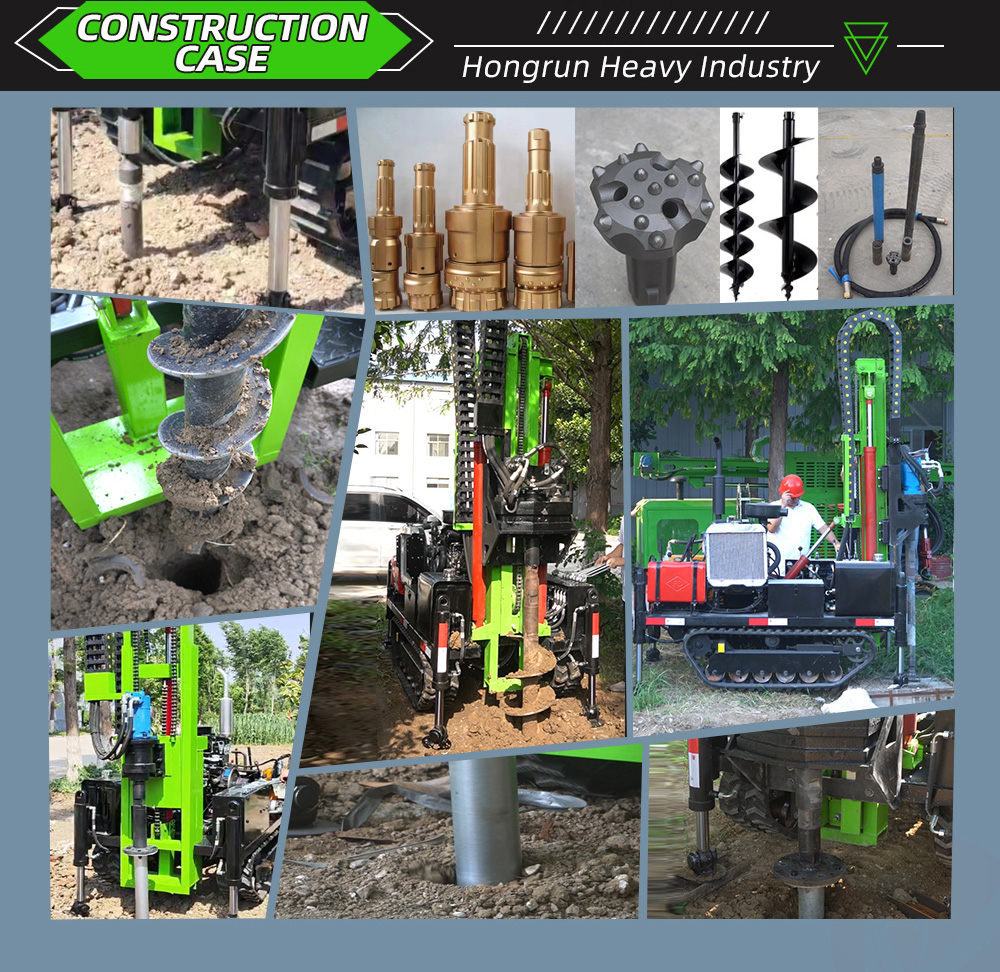

Construction Scene
Our tracked down the hole drilling rig can flexibly replace drill bits and rods according to construction needs, to adapt to the operational requirements of diverse construction scenarios such as mining, geological exploration, and infrastructure engineering.

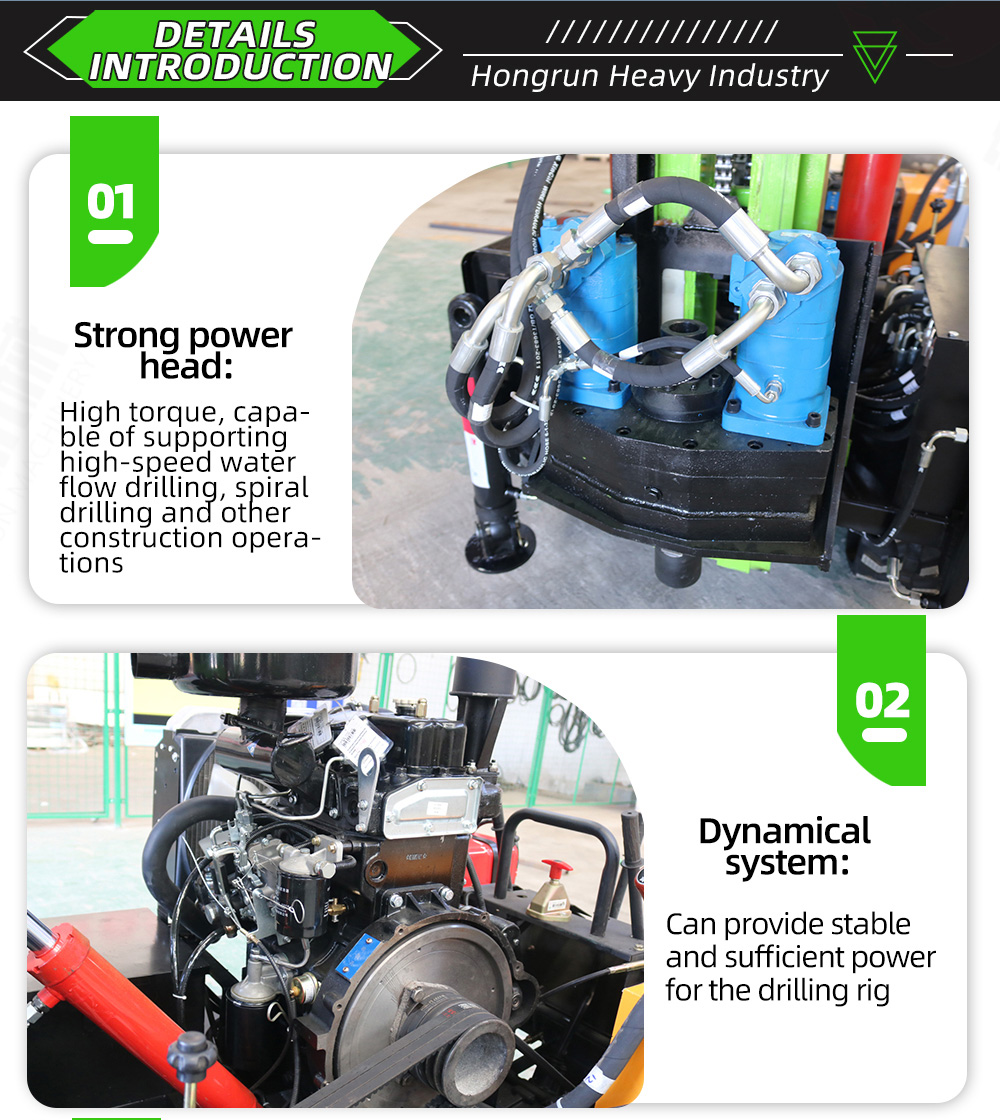

Product Detail Analysis
Our tracked down the hole drilling rig is equipped with dual hydraulic power heads, which have high torque and strong power. Equipped with a high-performance power system, it can reduce drilling time and cost, ensure drilling quality, and greatly improve work progress.

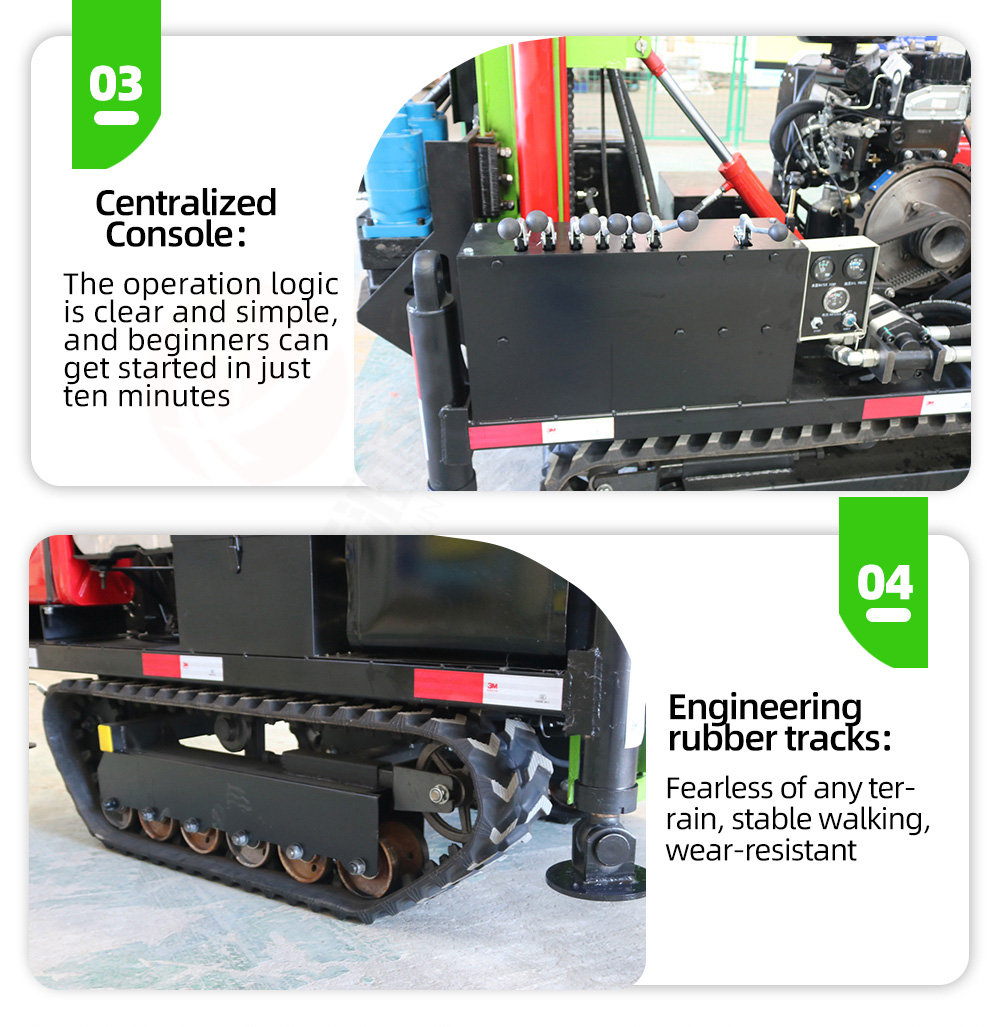

Our tracked down the hole drilling rig adopts a centralized control console design, which is clear and simple to operate. The drilling rig chassis is equipped with engineering rubber tracks, which have both anti slip and wear-resistant characteristics, and can handle various complex terrains with ease, ensuring stable passage.

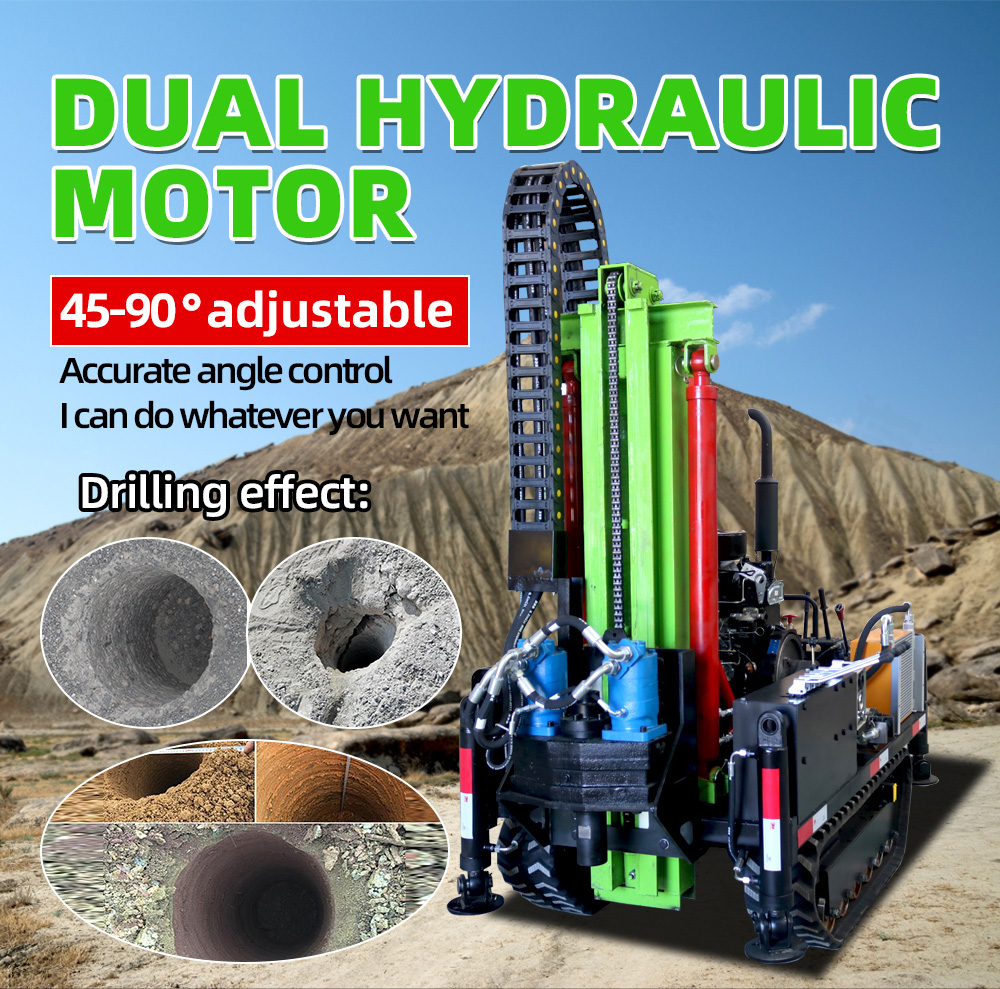

This tracked down the hole drilling rig adopts a dual hydraulic motor design, which achieves fast propulsion function through a hydraulic system. It can easily complete drilling operations within a range of 45 ° -90 ° angles, meeting diverse multi angle drilling needs.

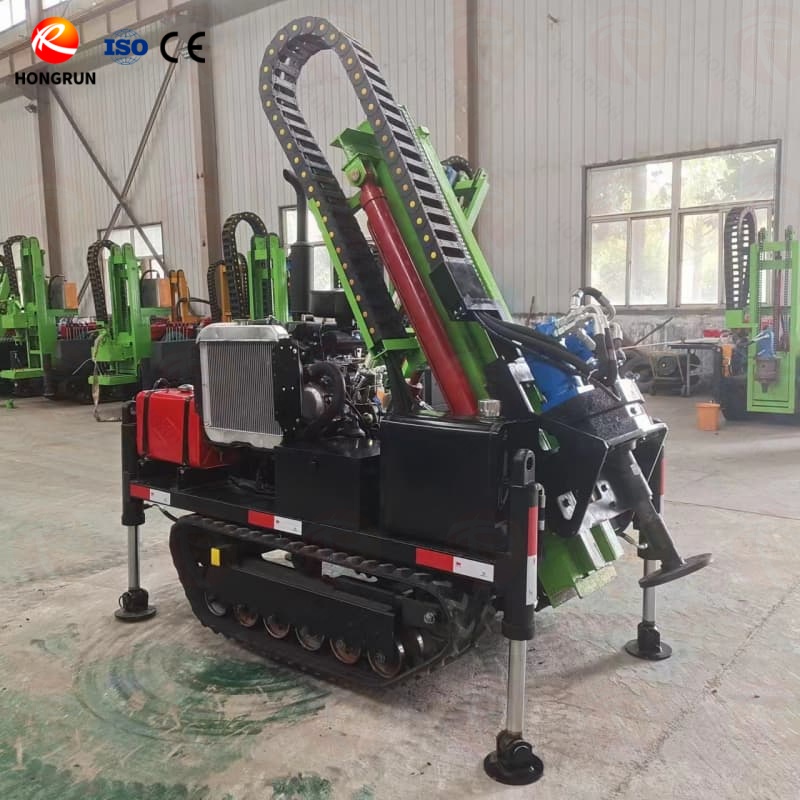

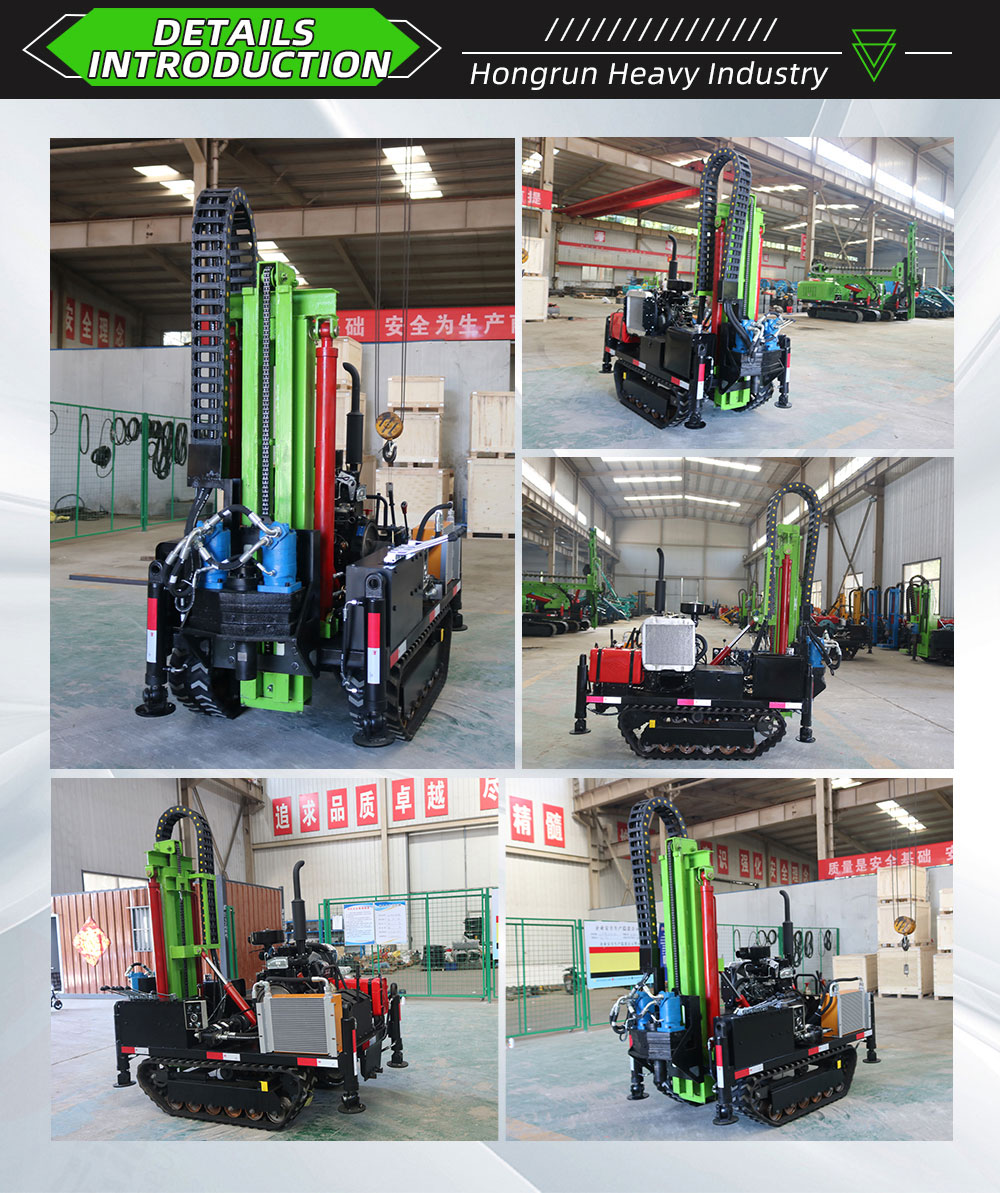

Product Photograph
Company Profile
FAQ：
1.What is your delivery time?
Answer: Usually, it takes 7-10 working days after receiving the advance payment. The specific delivery time depends on the quantity of items and orders.
2. Have you tested the goods before delivery?
Answer: Yes, we conduct 100% testing before shipment. We will attach our inspection report for each machine.
3. Can customized drilling tools or functional extensions be provided?
We support customizing different specifications of drilling tools (such as diamond drill bits, alloy drill rods) according to customer needs, and can upgrade control systems, install dust removal devices, etc., to meet the requirements of special working conditions.
