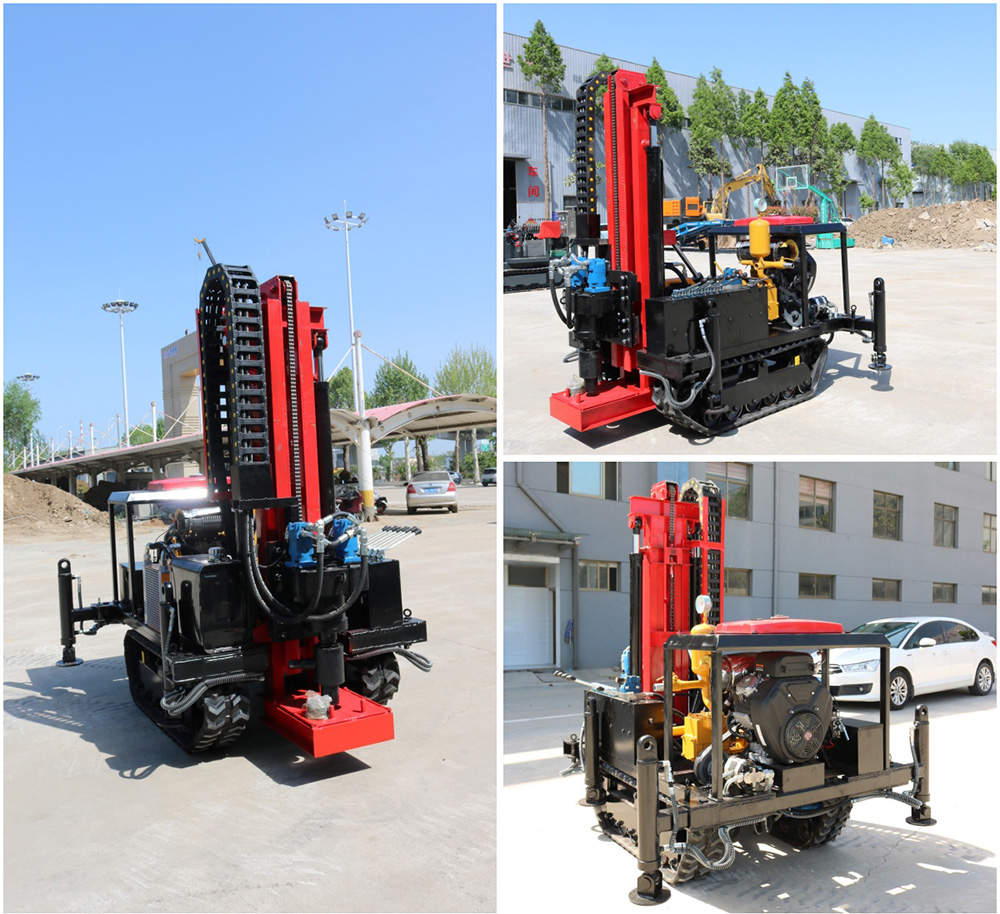

Mini Piling Rig
Highlights of Mini Piling Rig ：
1.Fast Start and Stable Power: Twin-cylinder gasoline engine ensures quick starts and reliable output.
2.High Torque Dual Hydraulic Motors: Features dual hydraulic motor-driven power head, delivering strong torque to handle hard rock, concrete, and complex geological conditions with ease.
3.Durable Track System: Steel wire laminated rubber tracks and strong chassis offer great stability and load capacity.
4.Versatile Functions: Supports various drilling methods and optional features like remote control and steel tracks.
Product Details

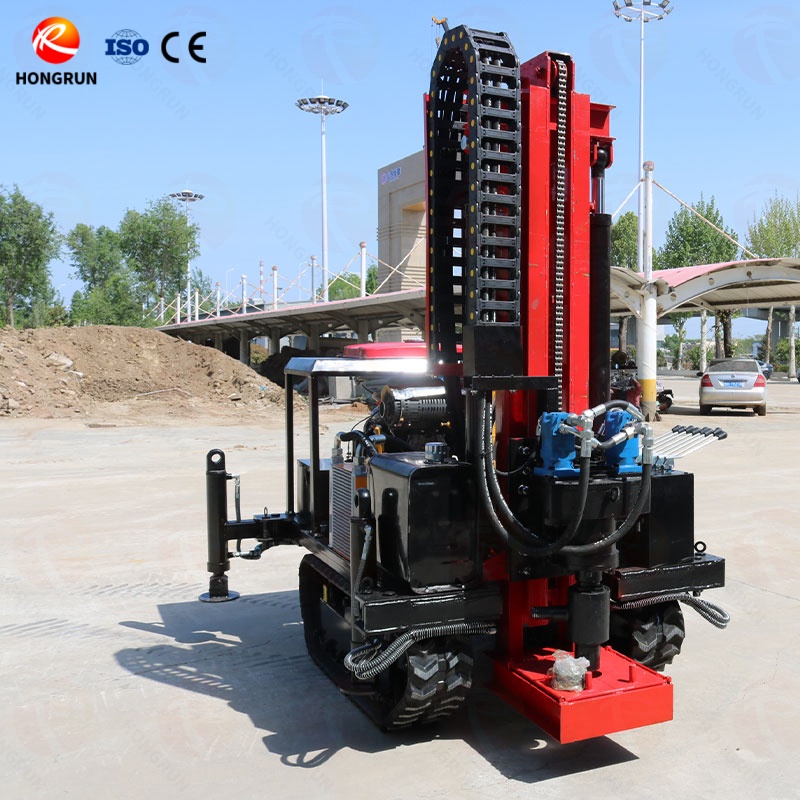

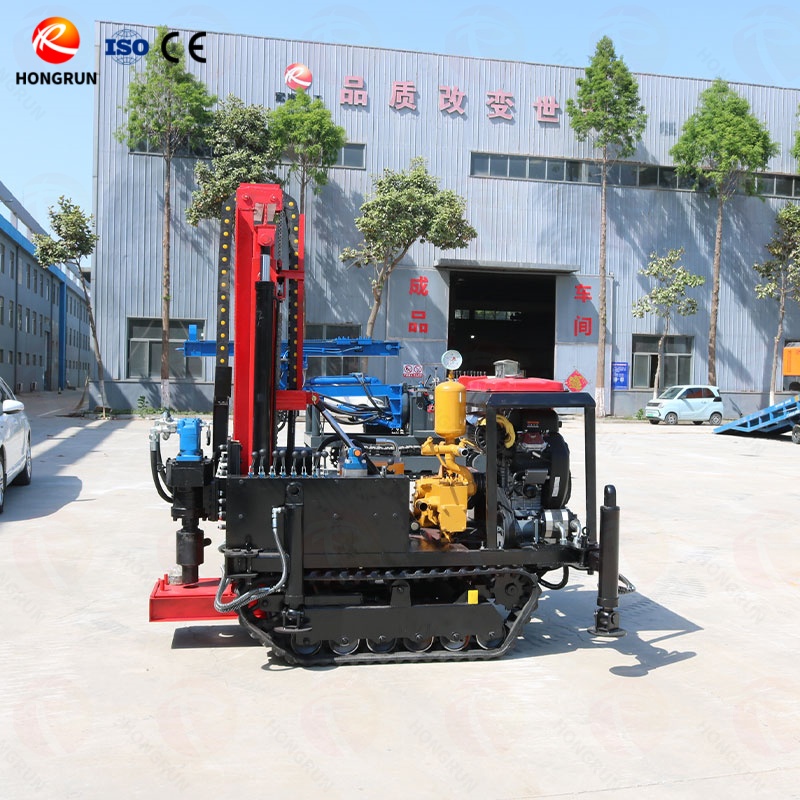

Mini Piling Rig – Powerful, Versatile, and Efficient
Our mini piling rig is equipped with a robust twin-cylinder gasoline engine, delivering strong and stable power for high-efficiency drilling operations. Engineered for versatility, the rig offers optional features such as remote control and steel tracks to meet diverse job site requirements.
Parameter Table
Engine | Gasoline engine | Power | 35HP Double cylinder supercharged engine |
Drill pipe diameter | 42/50/76/89 mm | ||
Drill depth | 0-180m | Rotation torque | 4500-6500 N.m |
Drilling diameter | 50-300mm | Slewing speed | 100-120 rpm |
Effective travel | 2m | Oil pump | 40/40 dual pump |
Gasoline tank | 20 L | Gradeability | 35° |
Hydraulic tank | 40 L | Oil pump pressure | 20 Mpa |
Hydraulic support leg | Four | Lifting cylinder | 2 set |
Walking style | Crawler driving | Operation form | Hydraulic control lever |
Weight | Including water pump：1400 kg | Dimension | Including water pump： |
Without water pump： | Without water pump： |
To customers: If you have product customization needs, please feel free to contact us - technical parameters can be supplemented according to application scenarios, and we will customize the entire process for you.
Key Features of Mini Piling Rig
Power and Performance

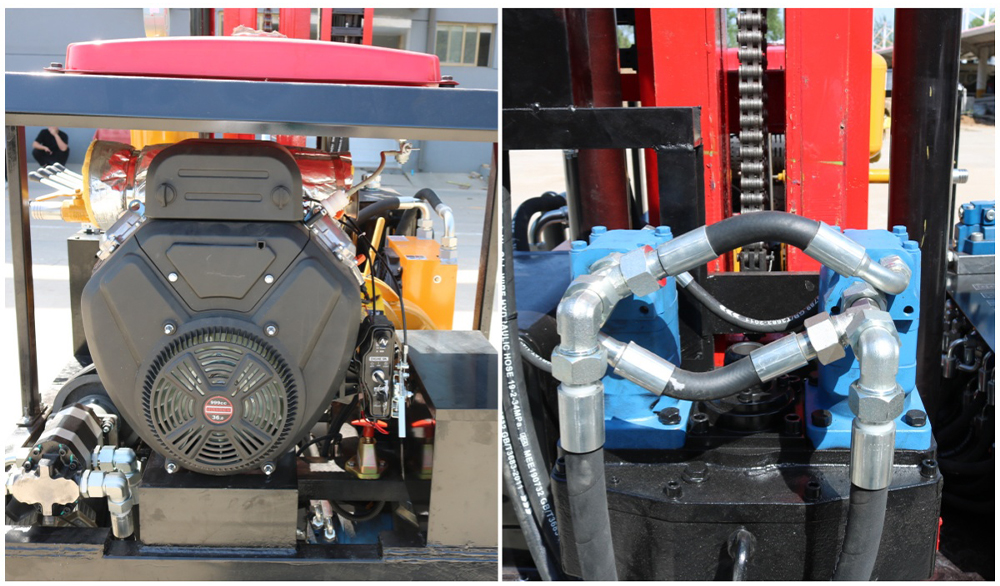

Powered by a twin-cylinder gasoline engine for quick startup and steady power output, minimizing downtime and maximizing productivity.
Dual hydraulic motor-driven power head delivers high torque, supporting multiple drilling methods such as water flush rotary drilling, auger drilling, and impact pile hole drilling.

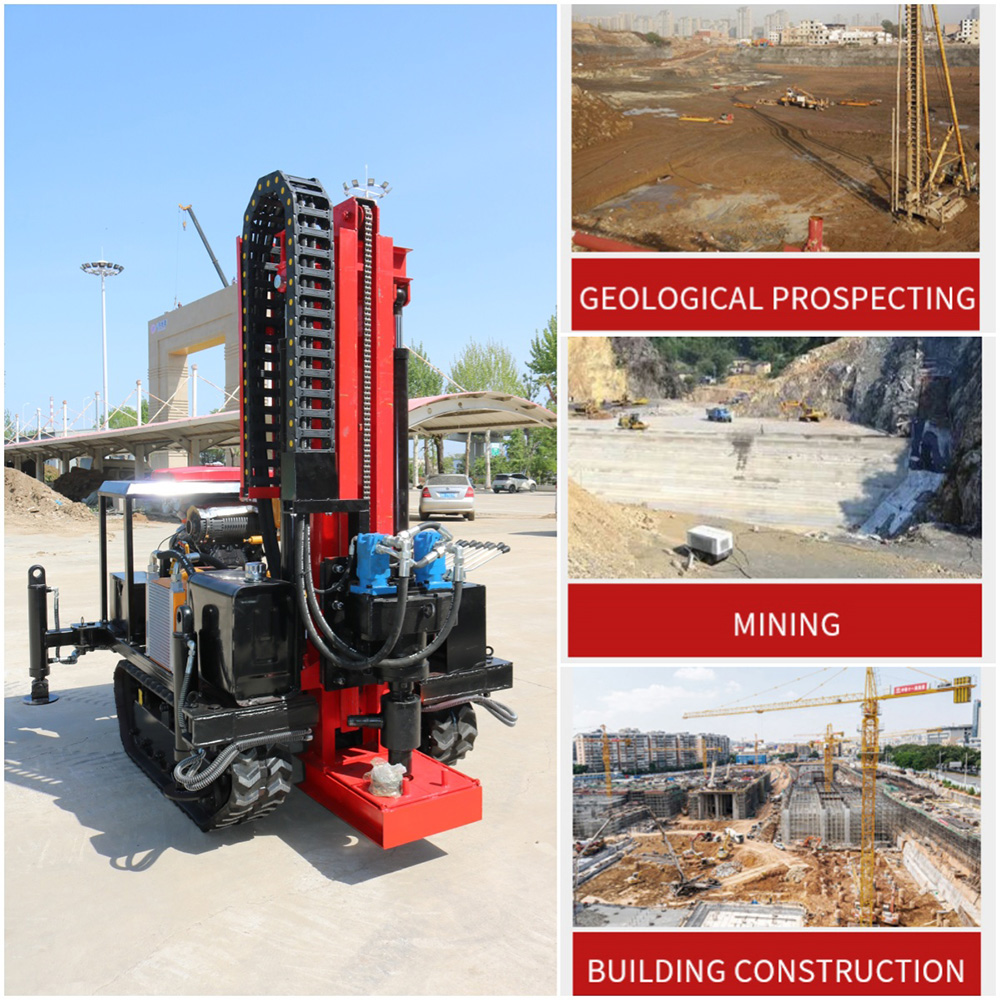

Applications of Mini Piling Rig
Widely used in:
Foundation and ground reinforcement
Groundwater control
Construction and civil engineering
Mining and quarrying
Drilling Capabilities
Drilling Diameter: 50–300mm
Drilling Depth: Up to 180 meters

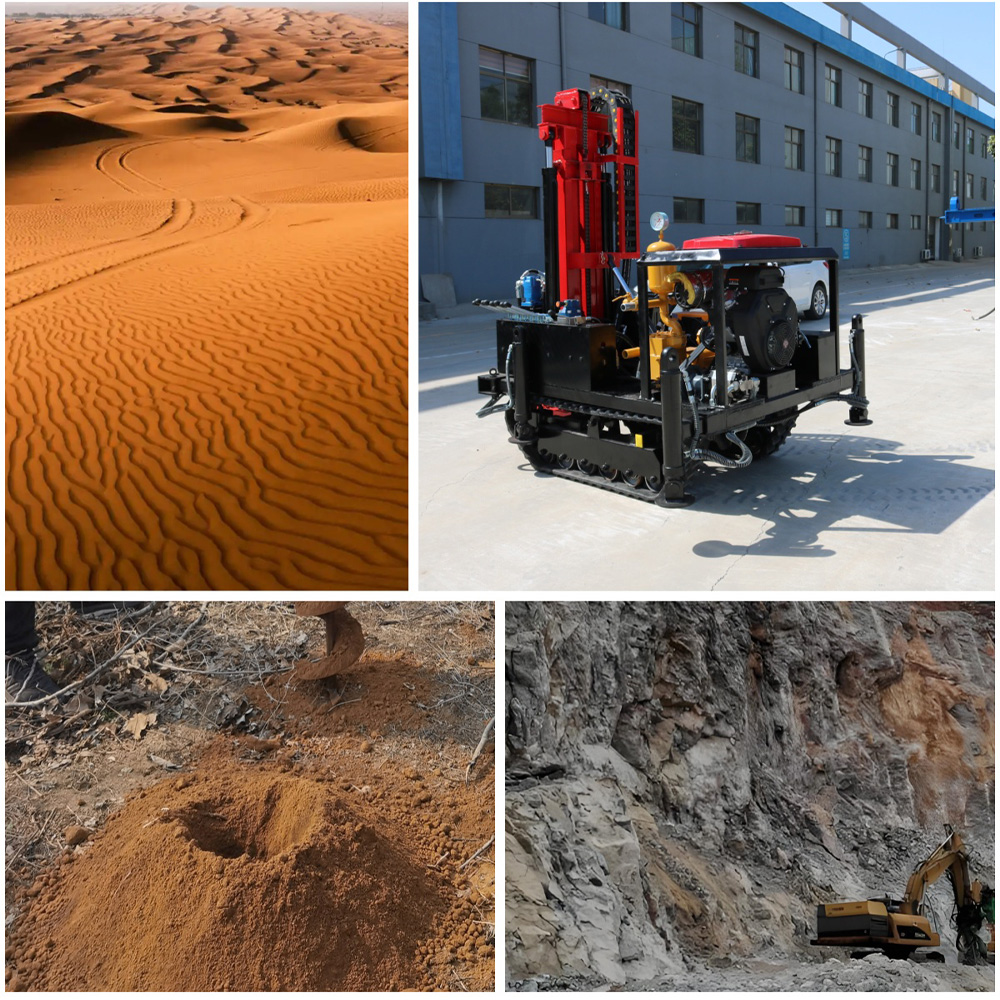

Capable of adapting to a wide range of geological conditions including soil, rock, desert, and rugged terrain.
Robust Structure and Components

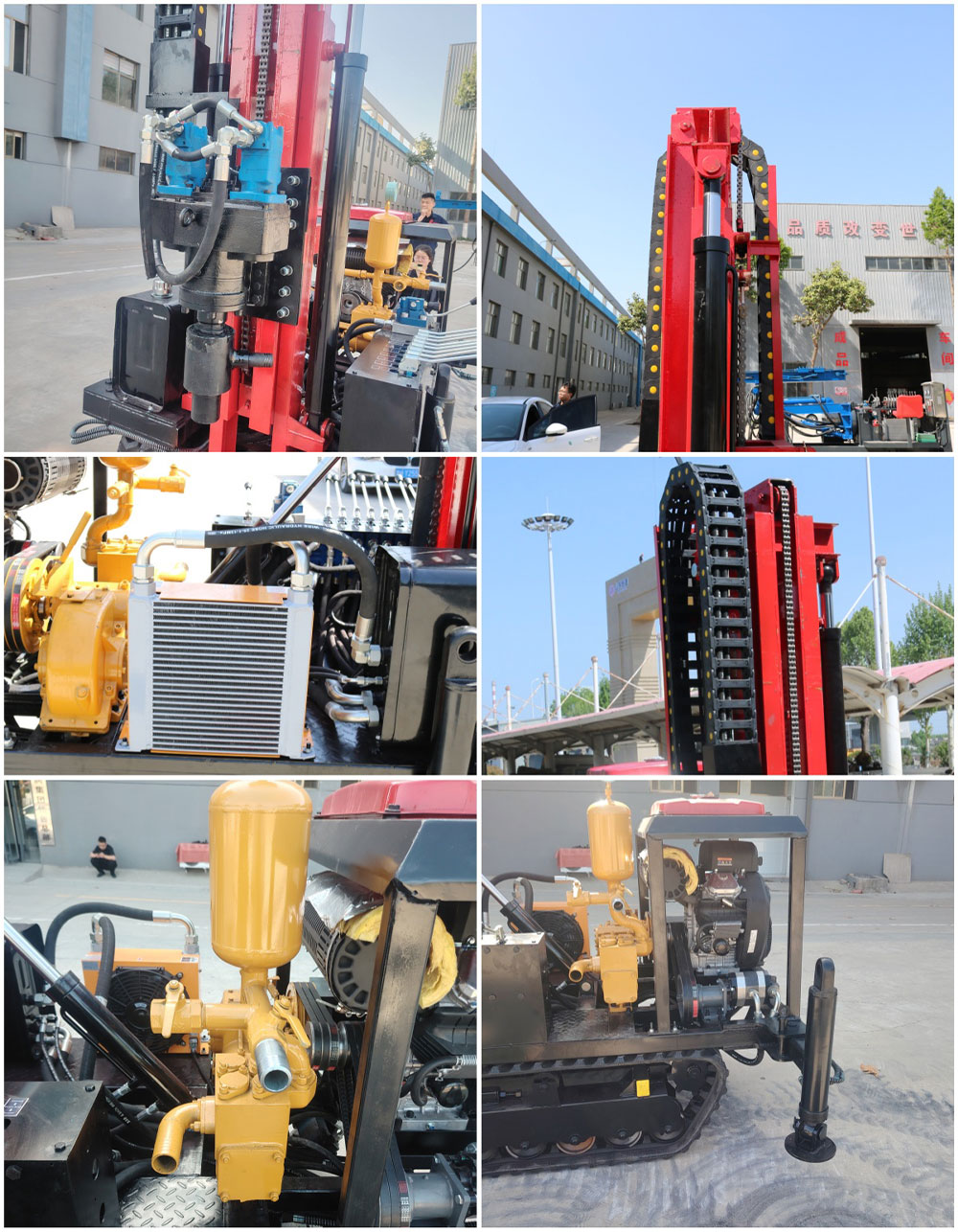

The mini piling rig features a compact and well-integrated structure composed of key components such as the engine, power head, slide frame, hydraulic cylinders, oil tank, radiator, and centralized control console. A high-strength chassis ensures structural stability and excellent load-bearing capacity.
Mobility and Terrain Adaptability

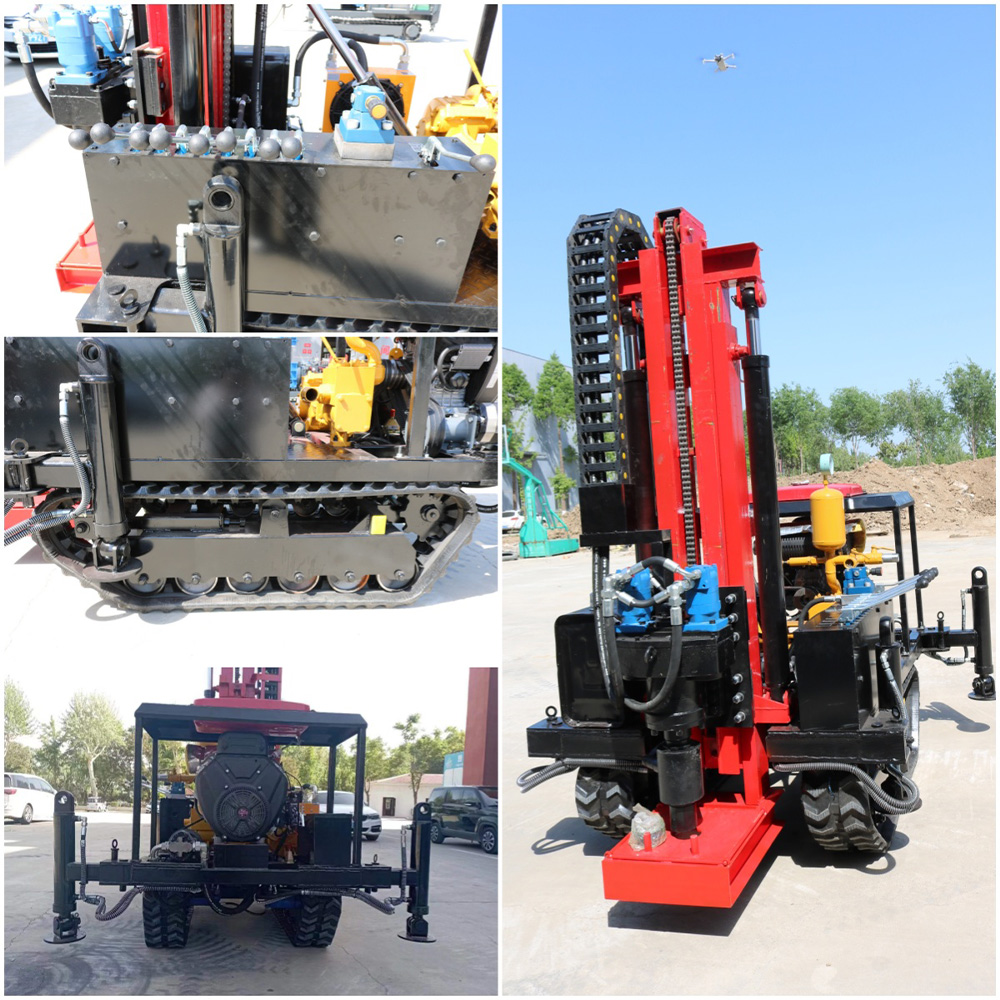

The mini piling rig is equipped with steel wire-reinforced rubber tracks and a hydraulically driven chassis, allowing it to easily navigate muddy, uneven, and steep terrain. This ensures stable operation under all conditions.
Intelligent Control System of mini piling rig
A centralized control panel offers high integration and easy operation with multiple adjustable settings and a clear logical layout, enhancing the operator experience.
Optional Configurations:Remote control system，Steel tracks，Extended drill rods.
Customization is available upon request. Contact our sales team to specify your needs and receive a tailored solution from our engineering team.

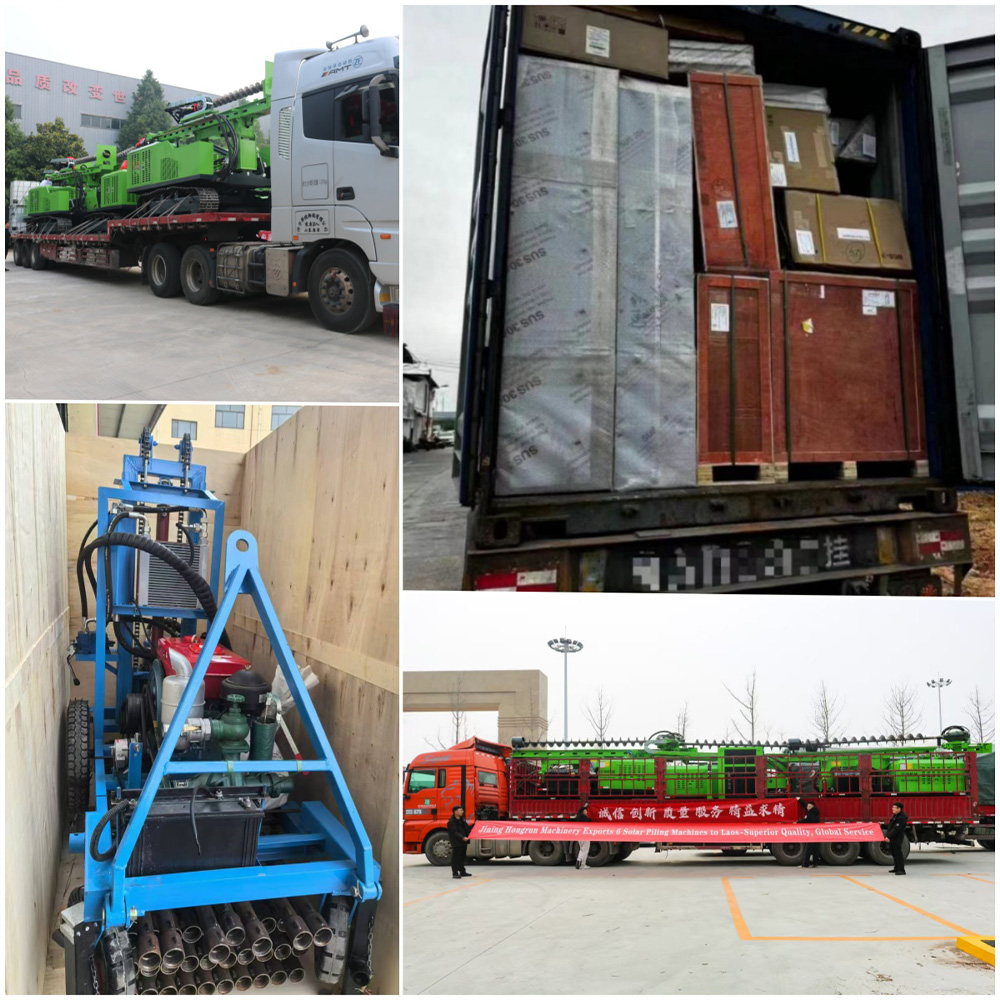

Product Transportation
Company Display
FAQ
1. Do you support optional features like remote control or steel tracks?
Yes. We offer full customization based on your operational needs. Please communicate your requirements with our sales team at the time of purchase.
2. Is the small drilling rig easy to maintain?
Absolutely. Routine maintenance involves regular replacement of engine oil, hydraulic fluid, filters, and periodic checks on track tension and bolt integrity.
3. What are the advantages of the high-strength chassis?
The reinforced chassis enhances stability and load-bearing capacity, reducing failure rates during heavy-duty operations and extending the rig’s overall service life.
