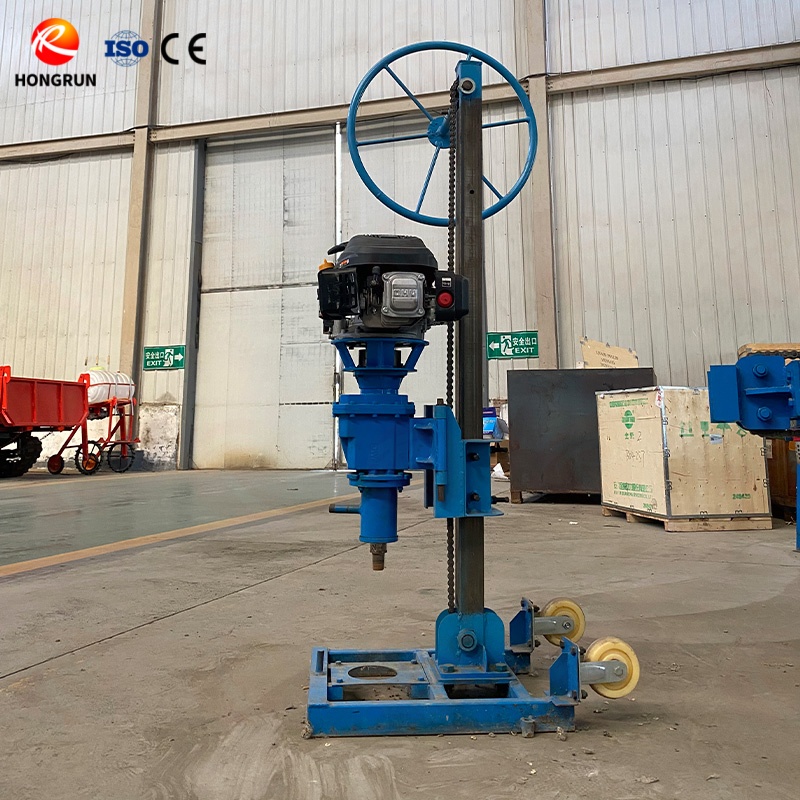

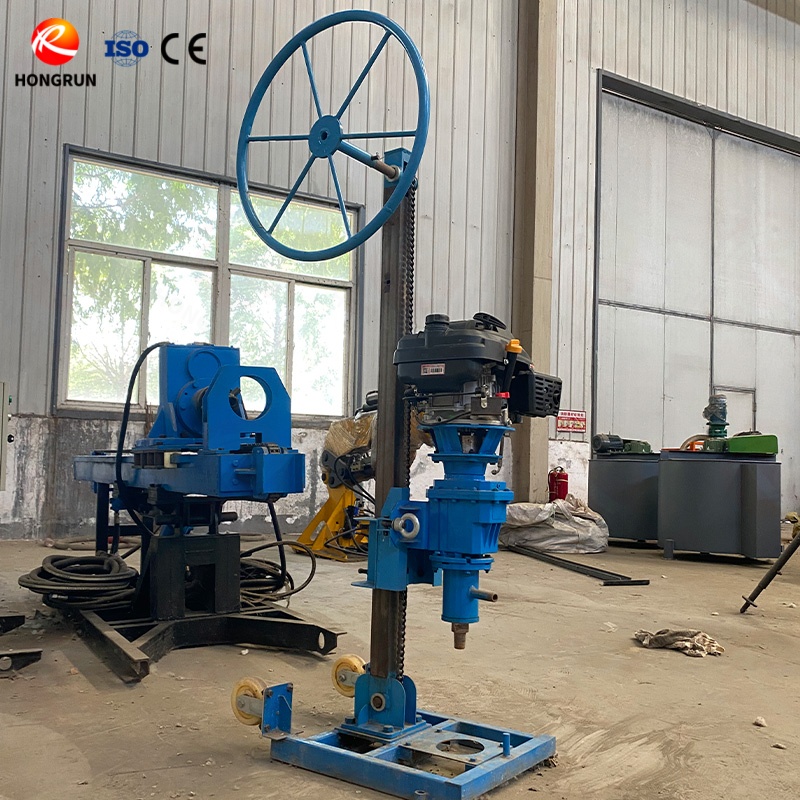

Mini Core Drilling Machine
Feature
This compact and lightweight core drilling rig is equipped with a high-performance gasoline engine and supports multiple drill rods and bits, making it adaptable to various geological formations.
Advantage
Easy to transport and operable by a single person; delivers stable power output with efficient drilling; supports quick tool replacement to handle different rock and soil conditions.
Benefit
The portable exploration drill helps users quickly complete core sampling and geological surveys, saving time and labor while improving efficiency and reducing operational costs.
Evidence
The product is CE and EPA certified, suitable for a wide range of exploration and testing projects, ensuring both reliability and practicality.
Product Details

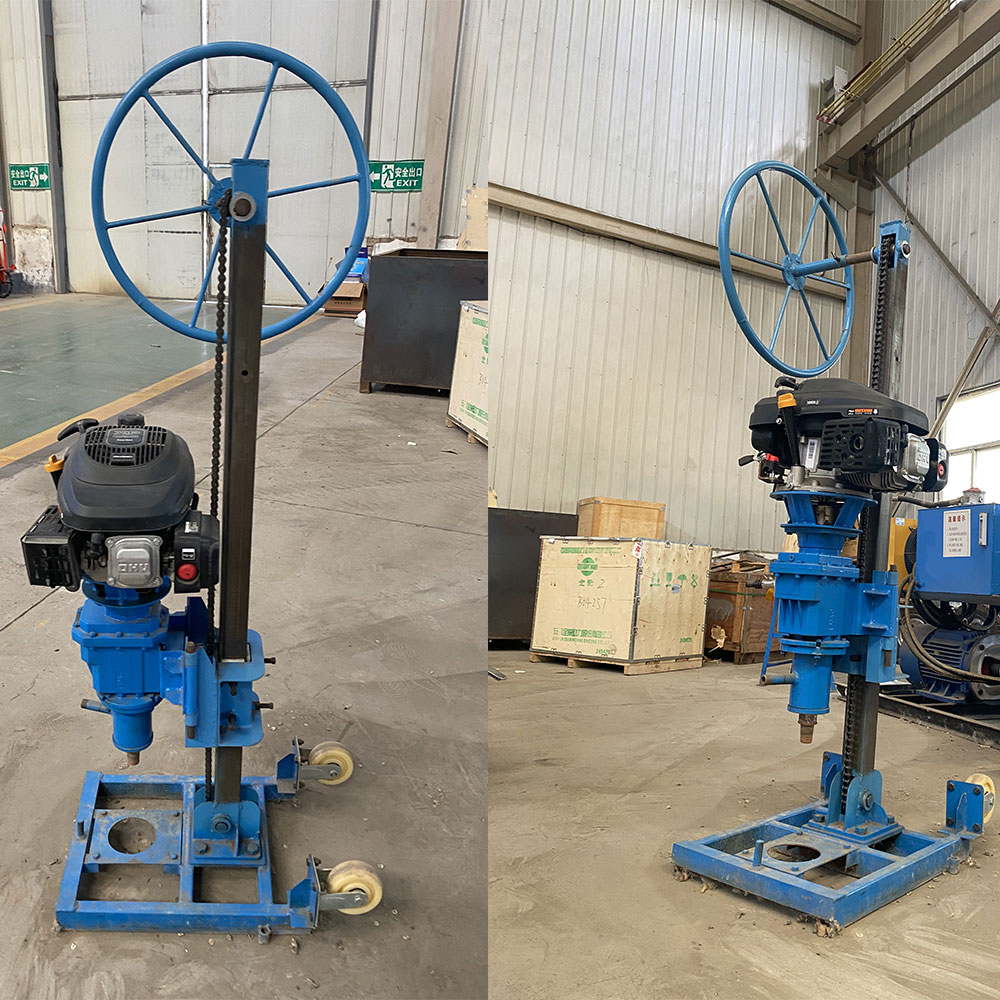

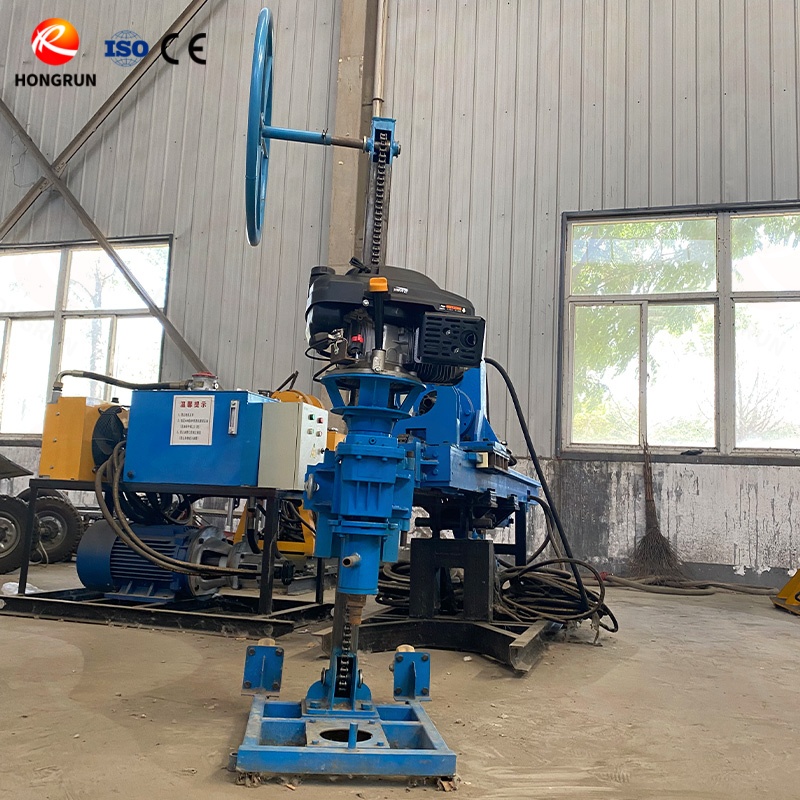

One-Button Start, Easy Operation
The compact core drilling rig is equipped with a user-friendly push-button start system, enabling quick startup with a single press and eliminating complicated procedures. Combined with a chain-type lifting system, it ensures fast and stable core retrieval, significantly reducing sampling time and improving geological drilling efficiency, allowing operators to easily handle intensive workloads.
Parameter Table
Model | HR-5006 | Gas consumption | 13-21 m³/min |
Drilling depth | Max 30 m | Max torque | 127 N.m |
Drilling diameter | 32-108 mm | Working air pressure | 0.8-2.1 Mpa |
Drill pipe diameter | 30 mm | Spindle speed | 695 rpm |
Disposable propulsion length | 1.8 m | Drilling Speed | 3600 r/min |
Engine | Gasoline Zongshen | Drilling angle | 45-90 ° |
Engine power | 4 kw | Weight | 65 kg |
Displacement | 196 cc | Dimension（L*W*H） | 820*670*1700 mm |

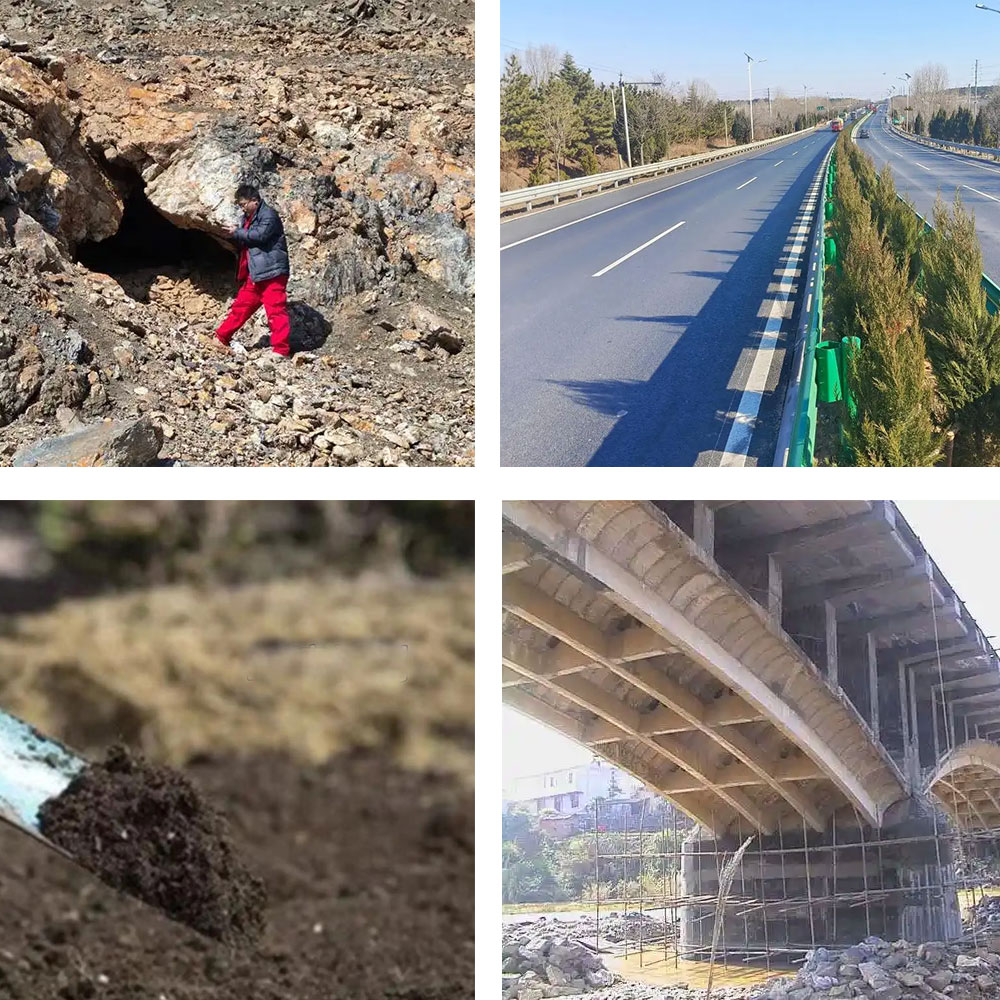

This portable core drilling rig is equipped with an upgraded power system, delivering strong torque and stable output to significantly enhance drilling efficiency. Whether for road exploration, mineral prospecting, soil testing, bridge engineering, or small water well construction, it ensures complete sampling and reliable data, making it an ideal choice for engineering surveys and scientific research.

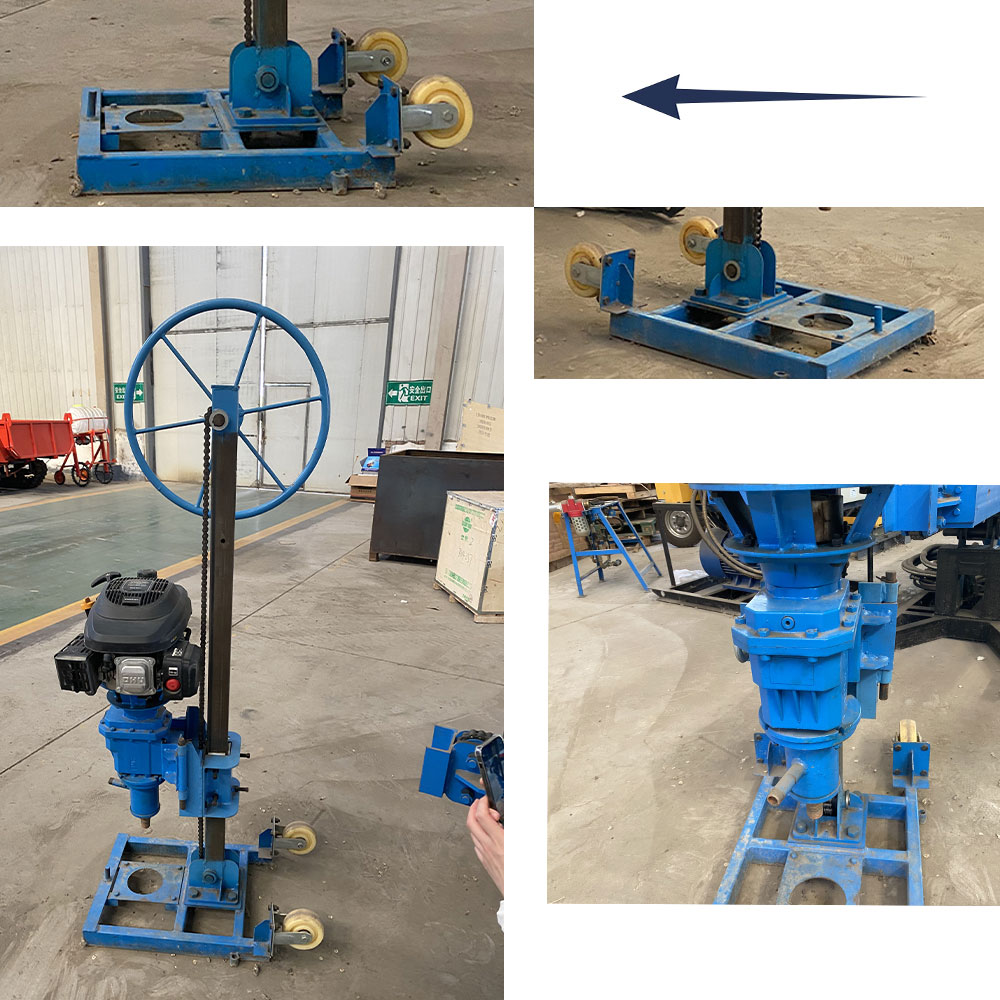

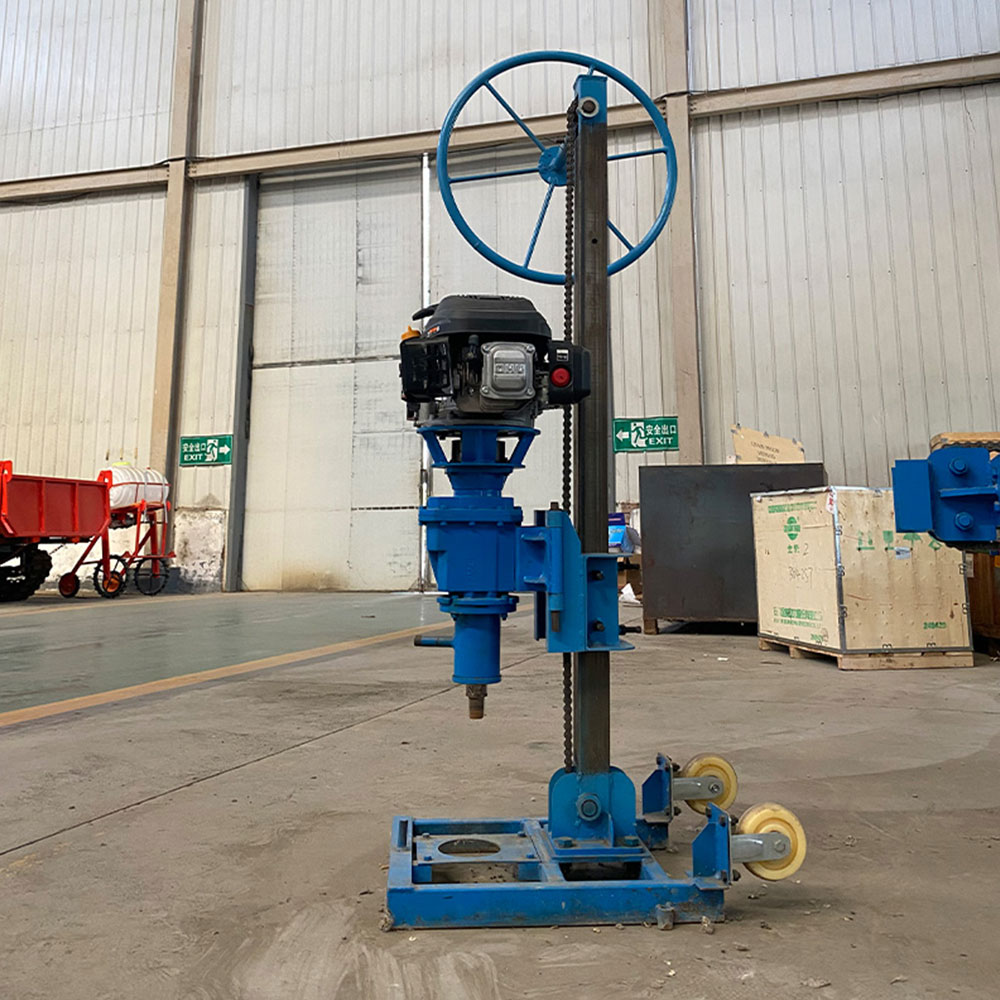

Pulley Design, Portable and Labor-Saving
To enhance mobility, the portable core sampling drill is equipped with dual pulleys at the base. During short-distance transfers or field movements, it can be smoothly pushed forward with minimal effort, eliminating the need for extra manpower. Its compact body allows single-person operation, making it especially suitable for field exploration, mountain sampling, and small-scale drilling projects.
Lightweight Structure, Multiple Drilling Needs
The portable exploration drilling rig features a compact overall design with flexible operation, allowing single-person drilling. With a drilling depth range of 30–50 meters, it meets the requirements of shallow soil testing as well as medium-depth core drilling and sampling. It is widely used in geological exploration, mineral sampling, and hydrological monitoring.

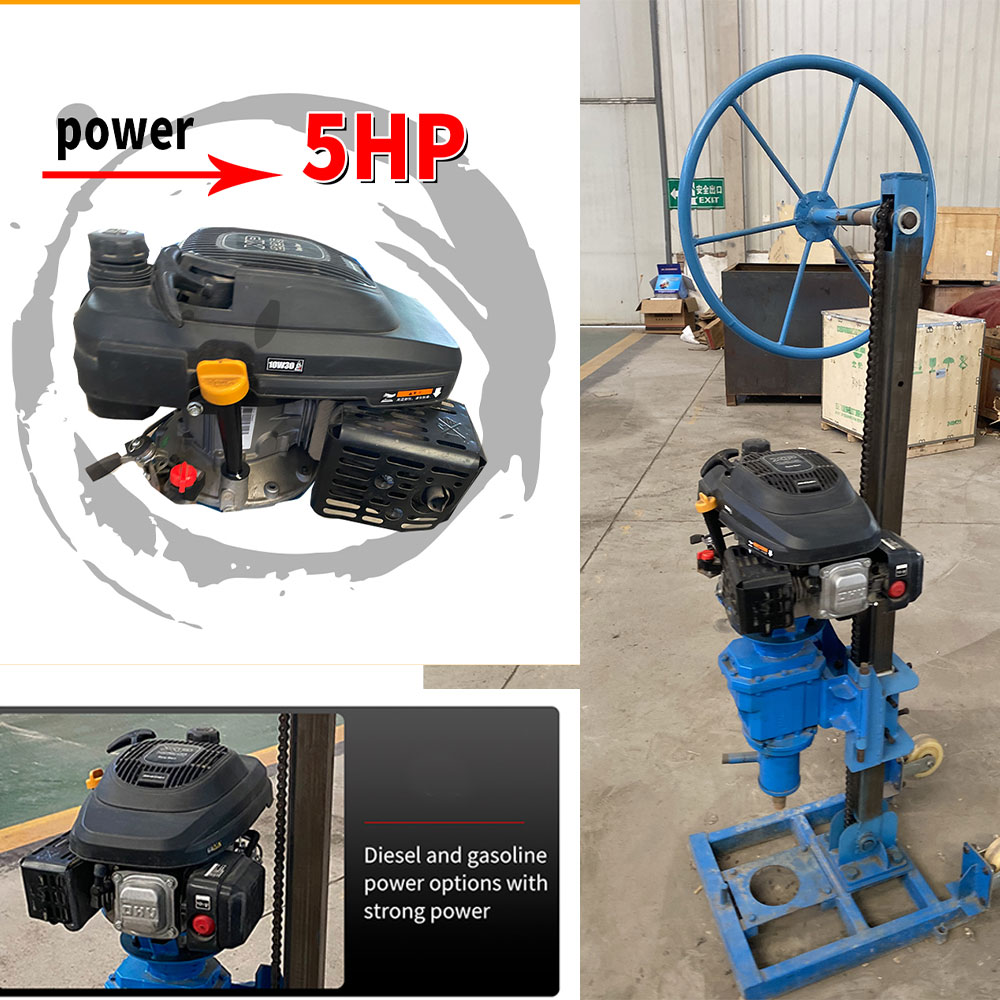

Gasoline Power, Precision Control

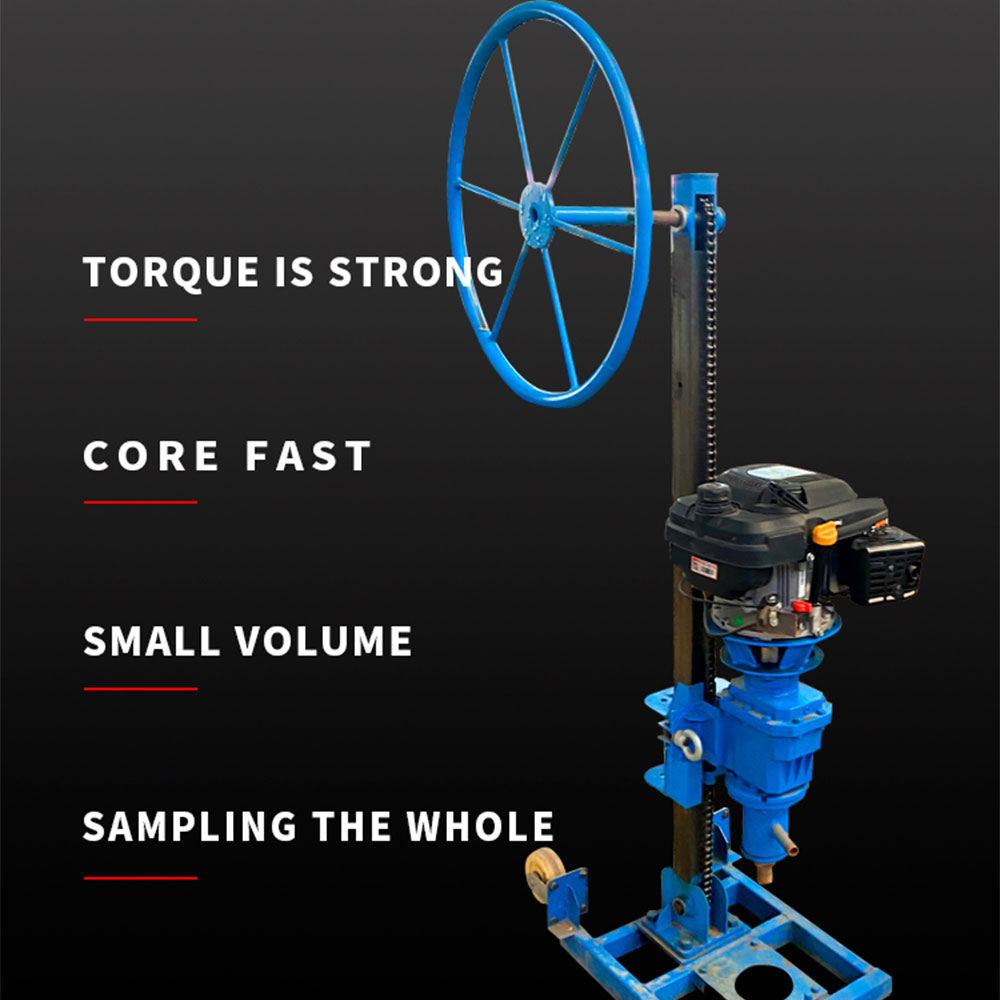

Equipped with a high-performance gasoline engine, the rig delivers strong power and quick startup, making it suitable for operations in environments without electricity. Featuring a disc-style control design, operators can flexibly adjust speed and torque according to drilling conditions, achieving precise control of the core sampling drill and ensuring efficient completion of drilling tasks.
Stable Performance, Continuous Operation
The compact core drilling rig is equipped with a high-performance power head that delivers stable output and supports long-term continuous operation. Its chassis is widened and reinforced to increase ground contact area, significantly enhancing stability during construction. This makes it an ideal choice for users of small water well drilling rigs and exploration drills.

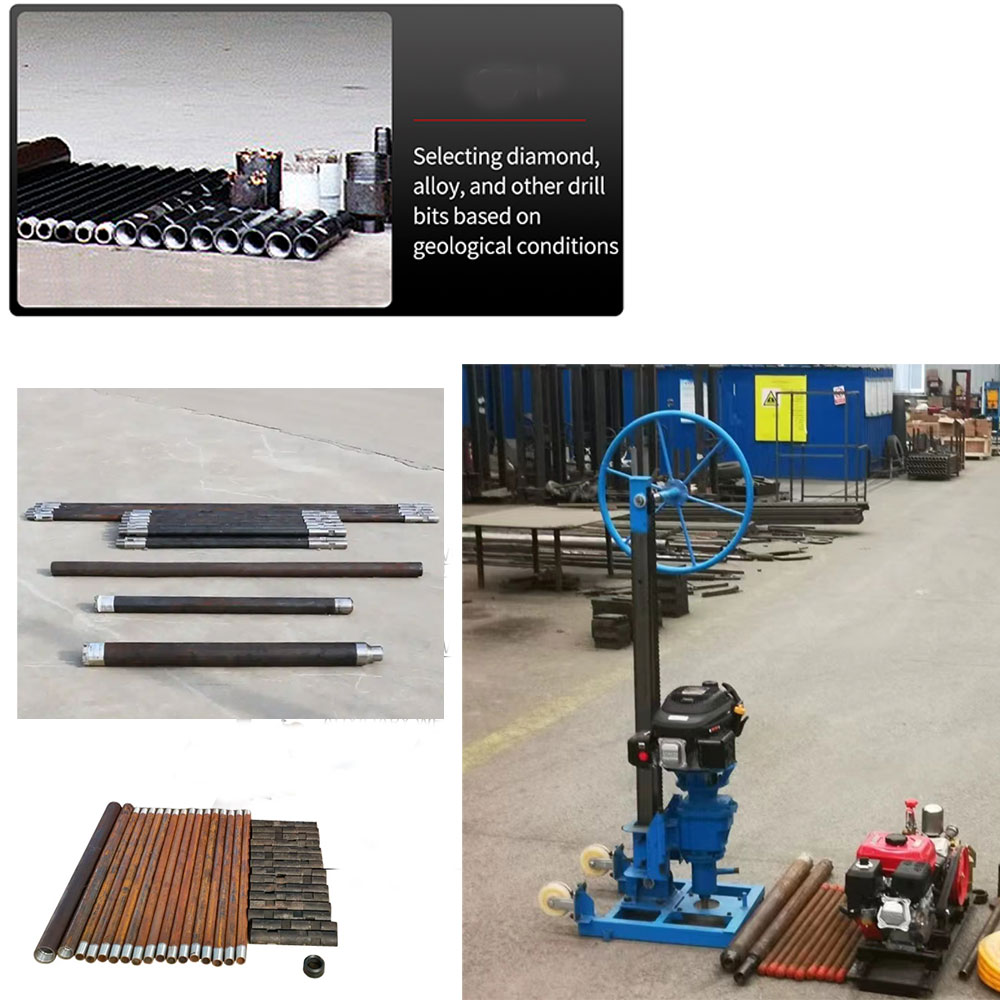

Versatile Compatibility, Wide Applications
The single-person core drilling rig supports flexible replacement of drill rods and bits, adapting to various geological conditions such as hard rock, gravel layers, sand, and soft soil. Whether used as a mineral exploration rig or a soil sampling drill, it handles tasks with ease. In addition, we offer customized services, allowing optimization in functions, appearance, and processes to meet the specialized application needs of different clients.
International Certification, Reliable Assurance
The product has passed CE and EPA certifications, meeting international quality standards and making it suitable for both domestic and overseas markets. Whether you need a portable core drilling rig, gasoline-powered drill, geological exploration rig, or compact portable drilling equipment, we can provide you with professional solutions. Feel free to contact our technical team at any time for product information, parameter comparisons, and application cases.
