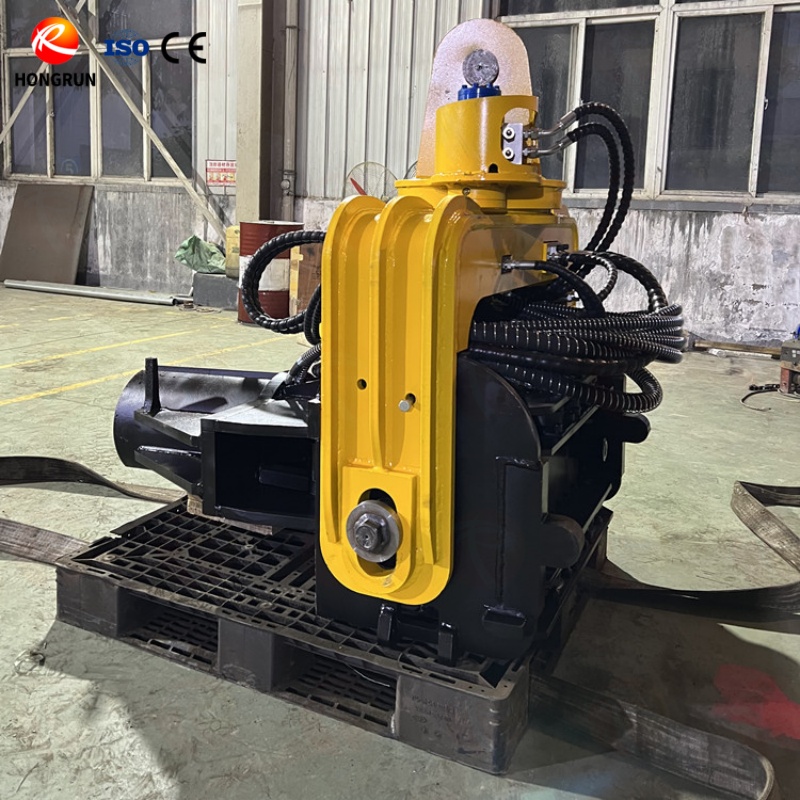

Hydraulic Pile Driving Hammer
Feature
The hydraulic pile hammer adopts high-frequency hydraulic impact technology, suitable for 20-50 ton excavators, and can be installed quickly and conveniently.
Advantage
The equipment has low energy consumption, low noise, adjustable impact force, and can be stably constructed under different geological conditions.
Benefit
Effectively avoid damage to pile materials, extend service life, shorten construction period, and reduce costs.
Evidence
It has been widely applied in construction, bridge, port, and photovoltaic power station projects, and provides lifelong technical support.
Product Details

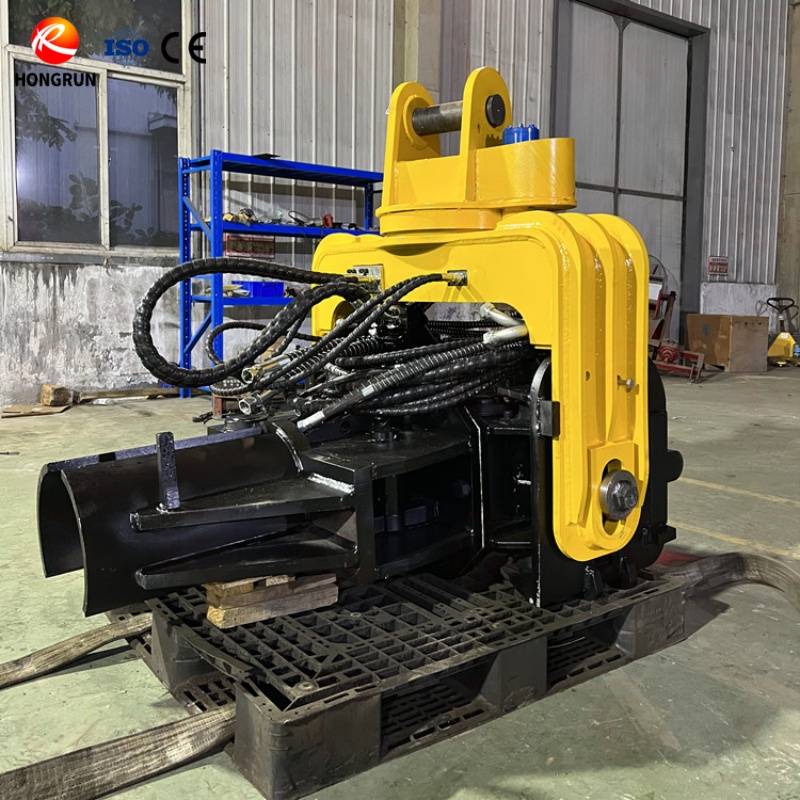

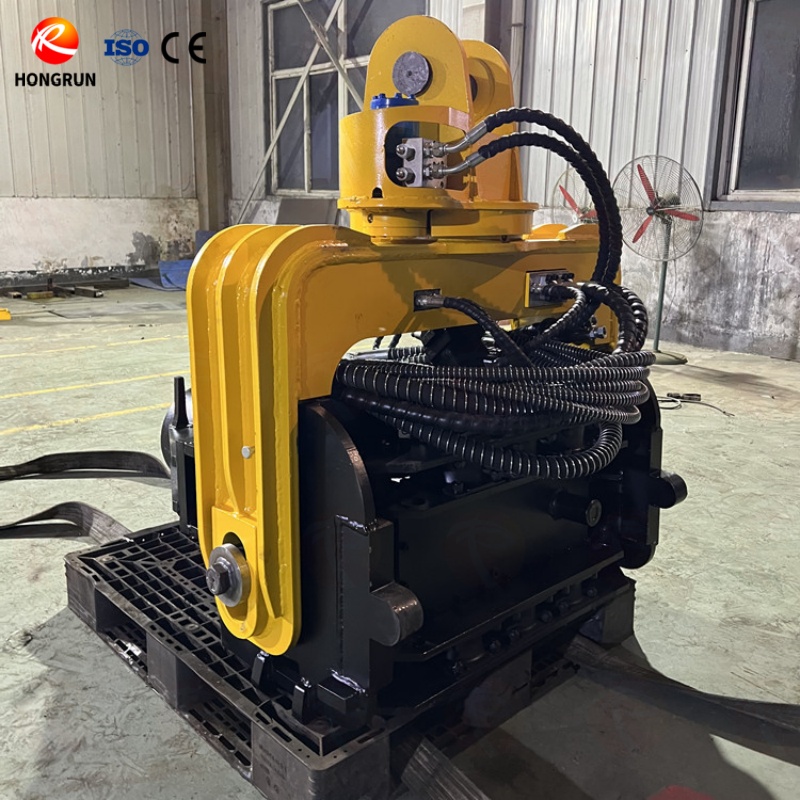

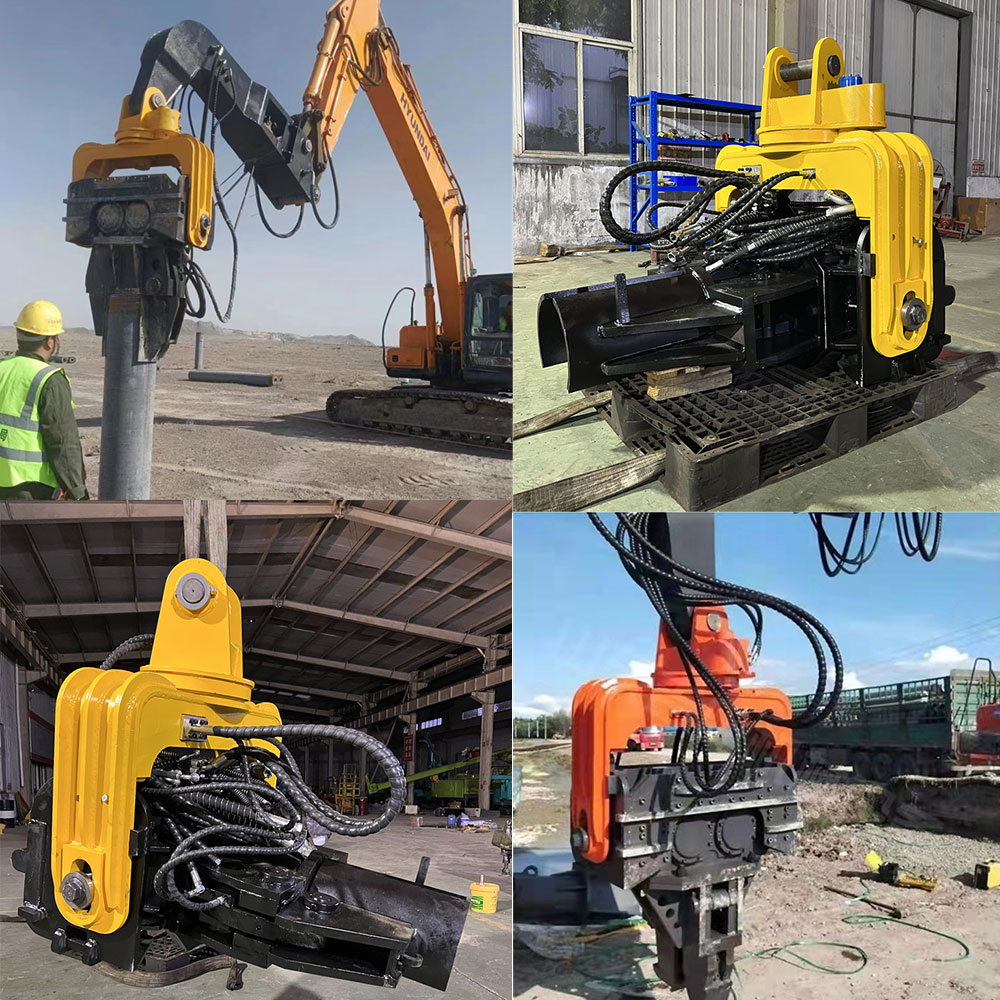

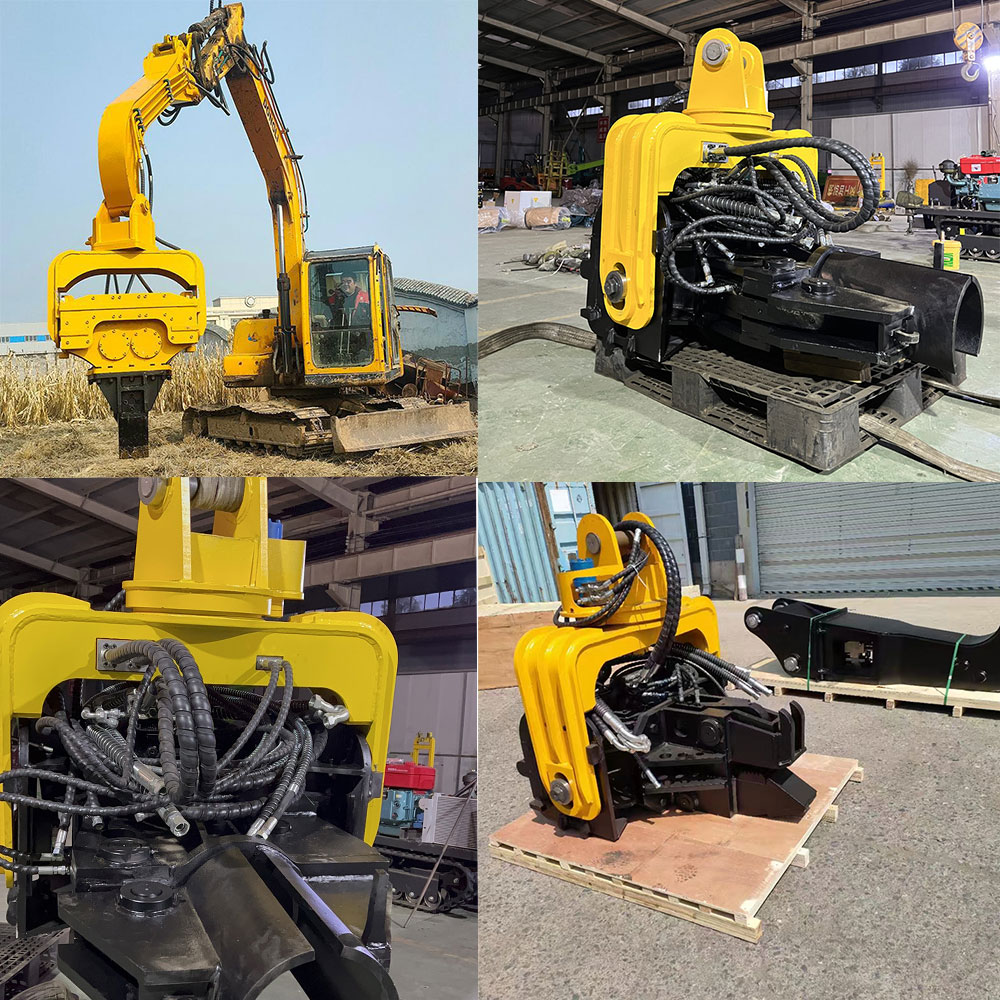

Excavator Hydraulic Pile Hammer — A High-Frequency Vibration Tool for Pile Foundation Construction
In modern foundation engineering, construction companies increasingly prefer excavator-modified hydraulic pile hammers because they simultaneously meet multiple demands: efficiency, flexibility, and cost control. This high-frequency hydraulic vibration hammer fully utilizes the excavator’s hydraulic system, transforming it directly into a high-efficiency piling attachment, providing an integrated solution for various pile types such as steel sheet piles, steel pipe piles, photovoltaic piles, and concrete square piles.
HR-808 Static Pressure Pile Head Technical Parameter | |||
Adapt to excavator tonnage：15-18T | |||
Frequency of vibration | 2600rpm | Auxiliary arm weight | 400kg |
Eccentric moment | 28N.m | Hydraulic system operating pressure | 220bar |
Excitation force | 24T | Hydraulic system flow demand | 150Lpm |
Machine weight | 1300kg | The longest pile driving length | 6m |
Adapt to excavator tonnage：20-30T | |||
Frequency of vibration | 2800rpm | Auxiliary arm weight | 500kg |
Eccentric moment | 40/46N.m | Hydraulic system operating pressure | 280bar |
Excitation force | 38/44T | Hydraulic system flow demand | 160Lpm |
Machine weight | 2200/2400kg | The longest pile driving length | 9/12m |
Adapt to excavator tonnage：30-35T | |||
Frequency of vibration | 2800rpm | Auxiliary arm weight | 600kg |
Eccentric moment | 53N.m | Hydraulic system operating pressure | 280bar |
Excitation force | 50T | Hydraulic system flow demand | 180Lpm |
Machine weight | 2500kg | The longest pile driving length | 15m |
Adapt to excavator tonnage：36-50T | |||
Frequency of vibration | 2800rpm | Auxiliary arm weight | 650kg |
Eccentric moment | 70N.m | Hydraulic system operating pressure | 300bar |
Excitation force | 65T | Hydraulic system flow demand | 210Lpm |
Machine weight | 2800kg | The longest pile driving length | 18m |

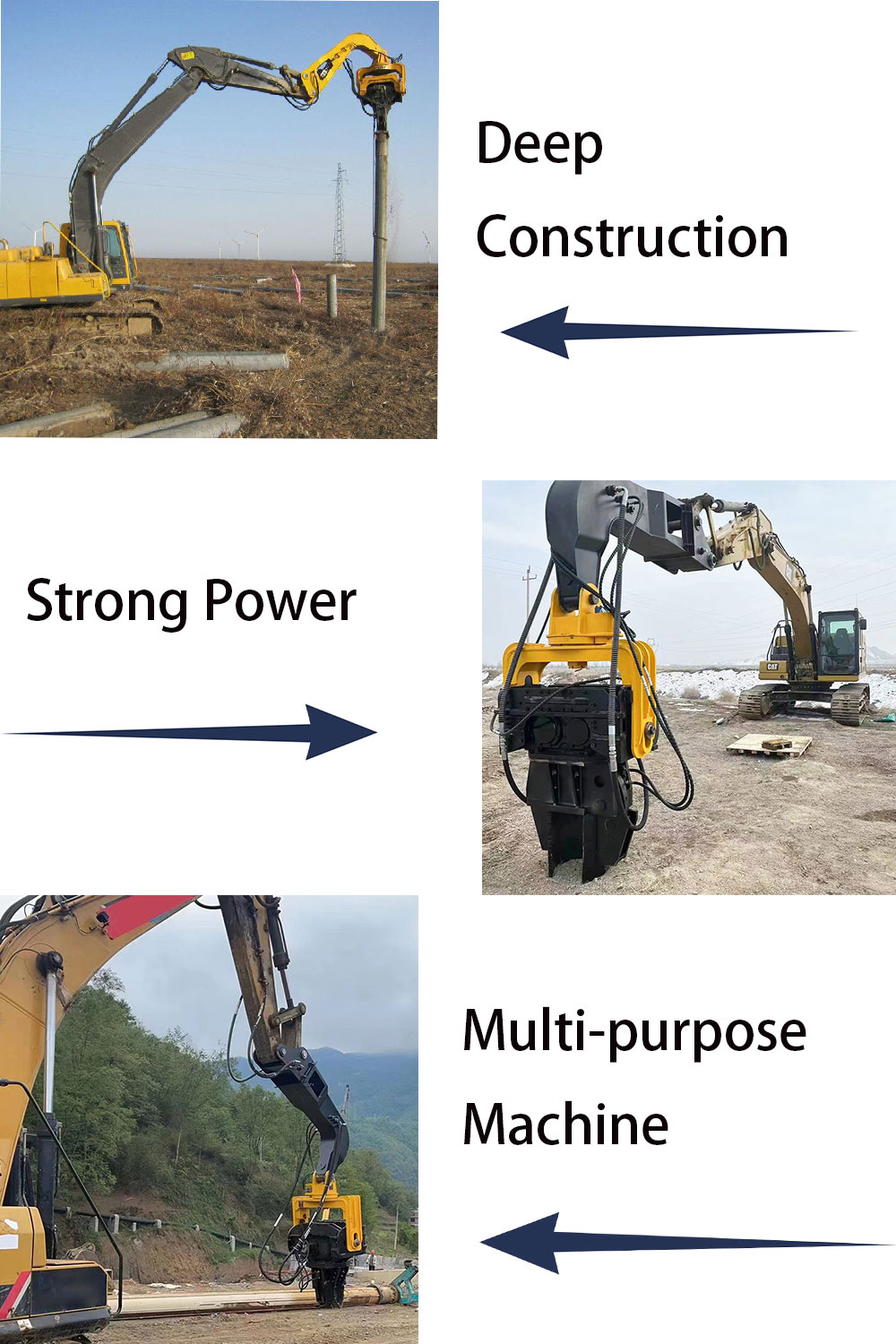

Why Choose This Hydraulic Pile Hammer?
Compatible with Multiple Pile Types — Easily switch between piles by changing the clamps, without the need to purchase additional equipment.
Powerful Output — High-frequency vibration combined with hydraulic impact significantly shortens the piling schedule.
Deep Construction Capability — Maximum working depth of up to 18 meters, suitable for multi-layered soil and complex ground conditions.
Wide Excavator Compatibility — Fits 15–50 ton excavators, including brands like Caterpillar, Kobelco, Sany, Hitachi, and Doosan.
Energy Saving & Cost-Effective — Multi-functional operation reduces fuel consumption and construction costs, offering a high return on investment.
Technical and Process Highlights
High-Strength Steel Construction — Impact-resistant and torsion-resistant, ensuring long-term stable operation.
Precision Hydraulic System — Multi-layer sealed oil line design prevents leaks and explosions, reducing maintenance frequency.
360° Rotation Capability — Flexible working angles allow efficient operation even in confined spaces.
U-Shaped Suspension Frame — Provides more stable installation and safer operation.
Eccentric Vibration Core — Hydraulic motor drives the eccentric block, delivering continuous and powerful vibration force.

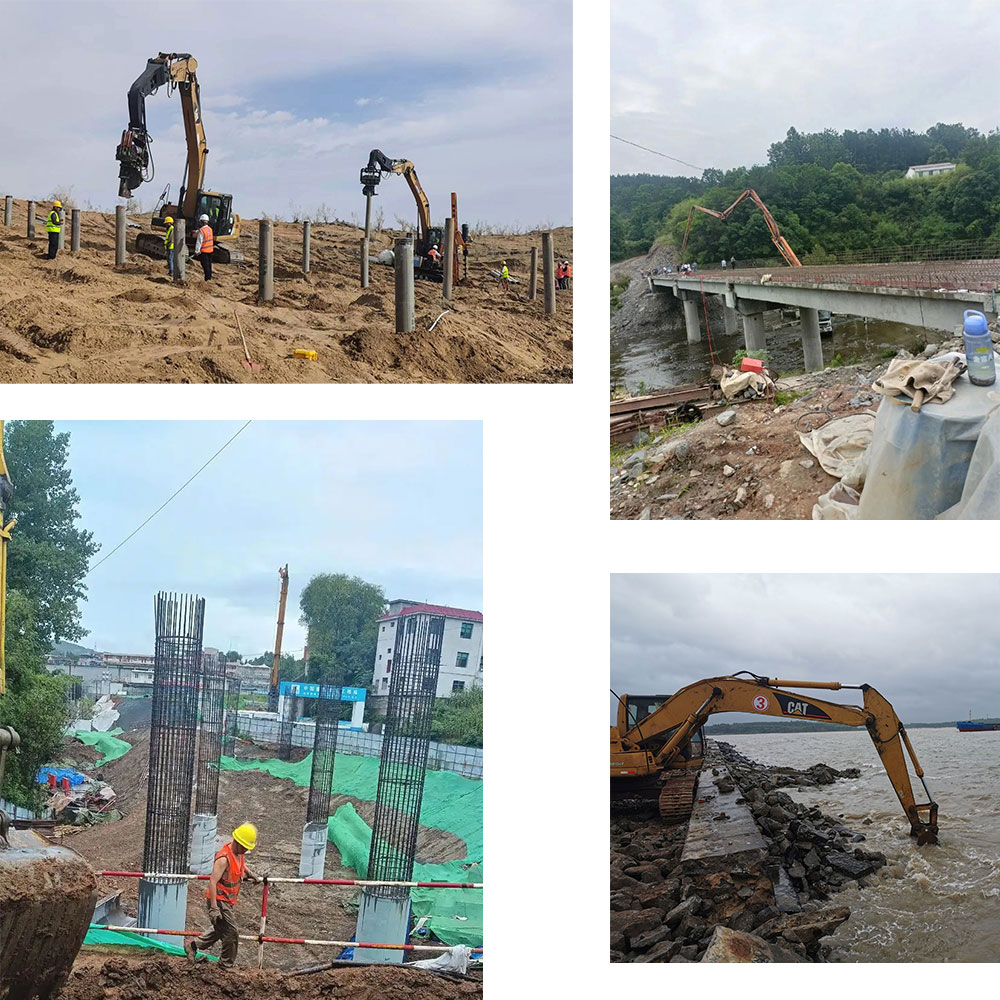

Applicable Industries and Construction Scenarios
Photovoltaic Power Station Pile Installation — Steel pile construction for solar power projects.
Bridge and Road Engineering — Pile foundations for bridge piers, columns, and road guardrails.
Port and Dock Projects — Piling of steel sheet piles and steel pipe piles along waterfronts or in port areas.
Municipal and Urban Construction — Foundations for buildings, utility corridors, and slope protection support.
Highway Construction — Rapid installation of guardrail piles and sound barrier piles.
Our Advantages
As a professional manufacturer of hydraulic piling equipment, we have accumulated over ten years of experience in the piling machinery field, with products exported to multiple countries and regions. We not only provide reliable excavator piling attachments but also offer comprehensive technical support and after-sales service, ensuring a more efficient and safer construction process.
Shipping and Transportation
