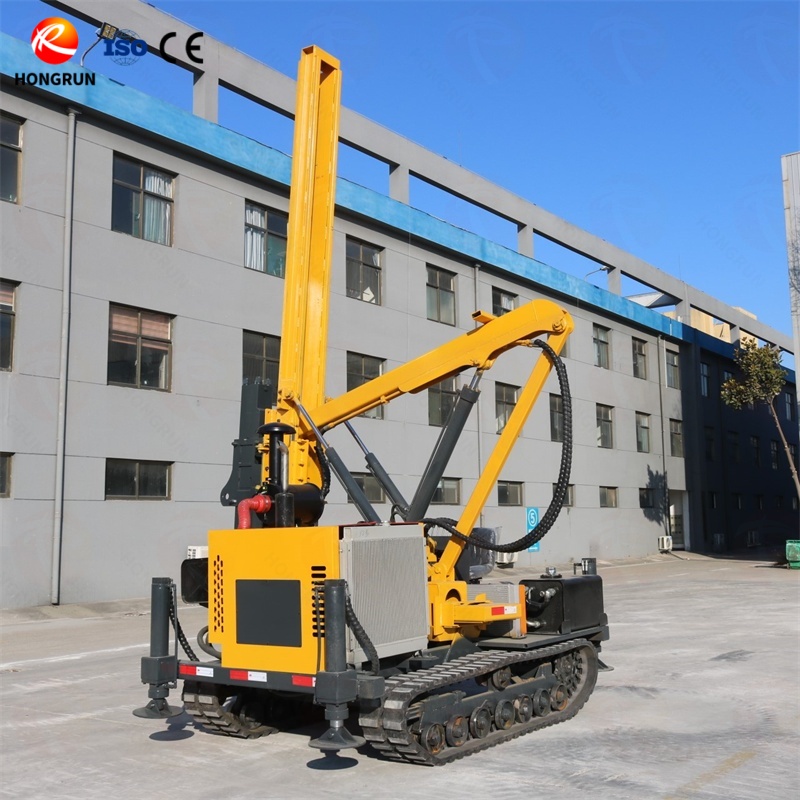

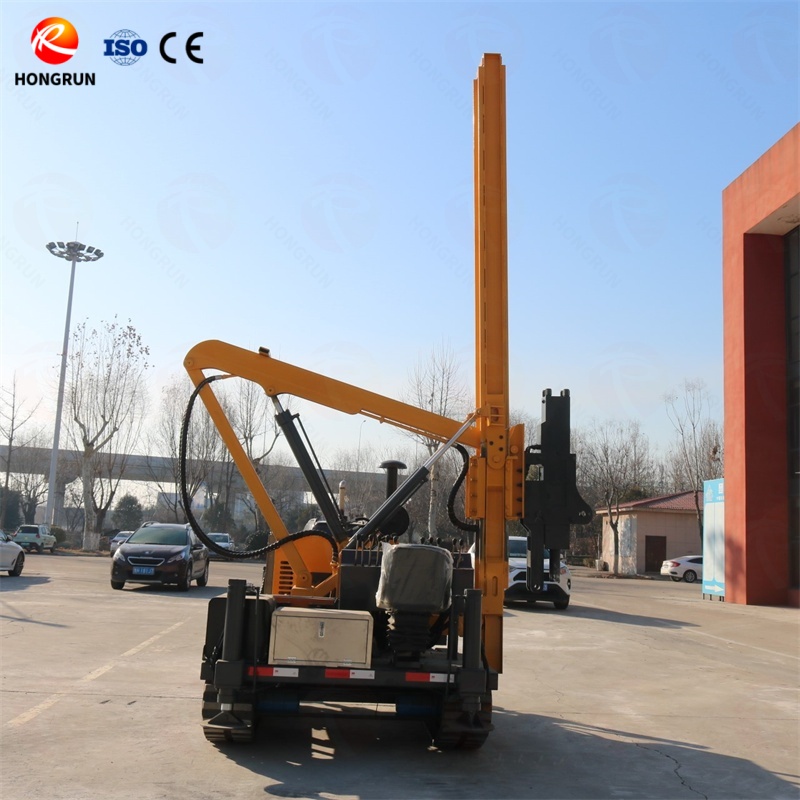

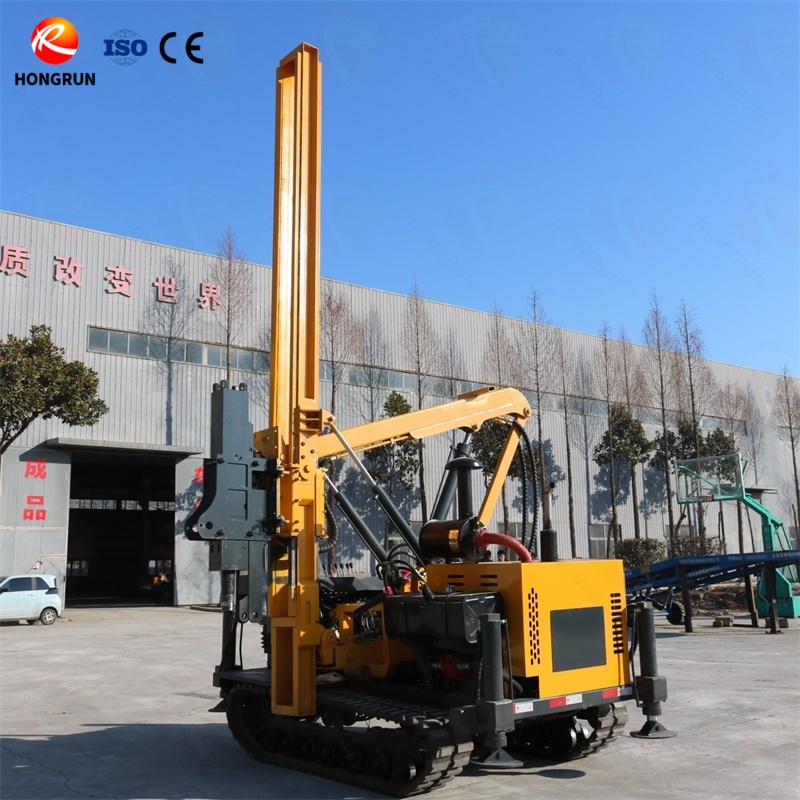

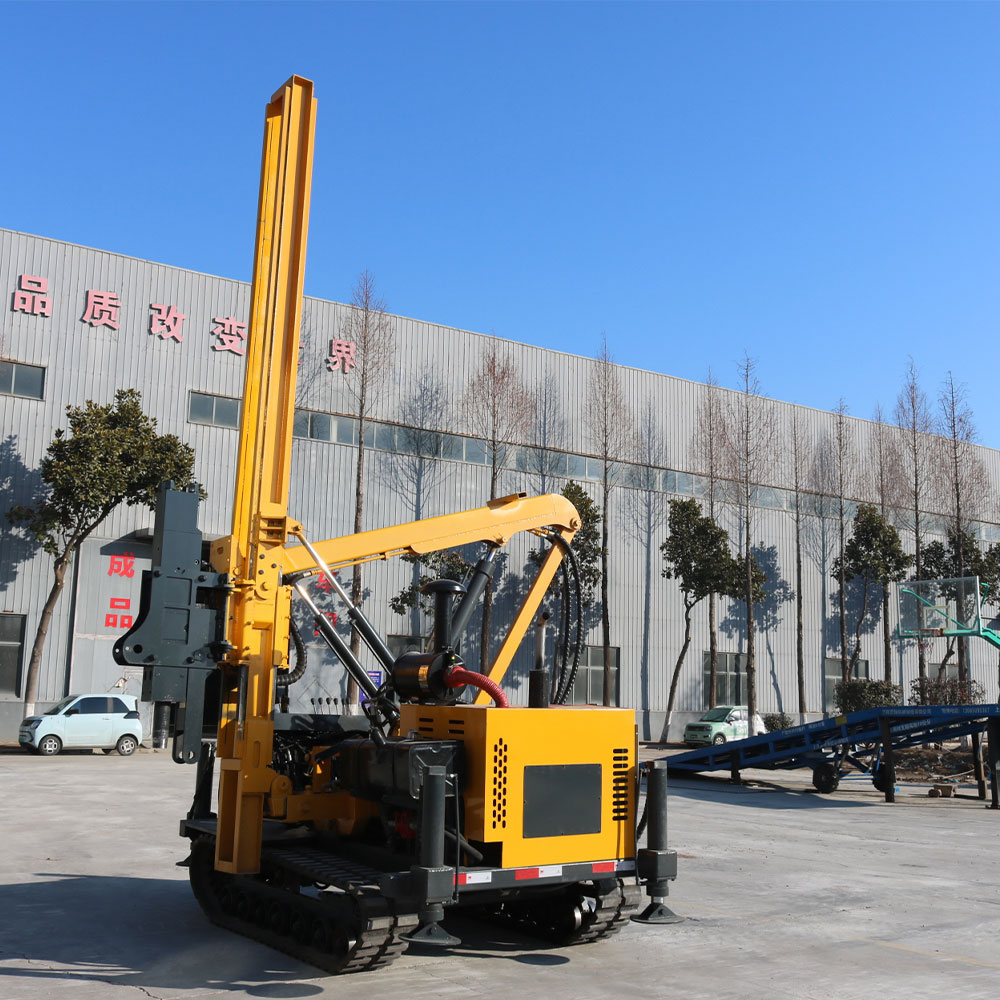

Guardrail Piling Machine
Features
Designed with a hydraulic sliding guide frame and dual-acting cylinders, the tracked guardrail pile driver incorporates a hydraulic hammer to perform piling, pulling, and drilling operations efficiently with a single machine.
Advantage
Multi functional, precise positioning, all terrain adaptability, no need for frequent machine changes, easily handling slopes, muddy and uneven roads.
Benefit
The pile driving efficiency reaches 2500mm/min, shortening the construction period, reducing labor and equipment investment, and the rubber track effectively protects the road surface.
Product Details

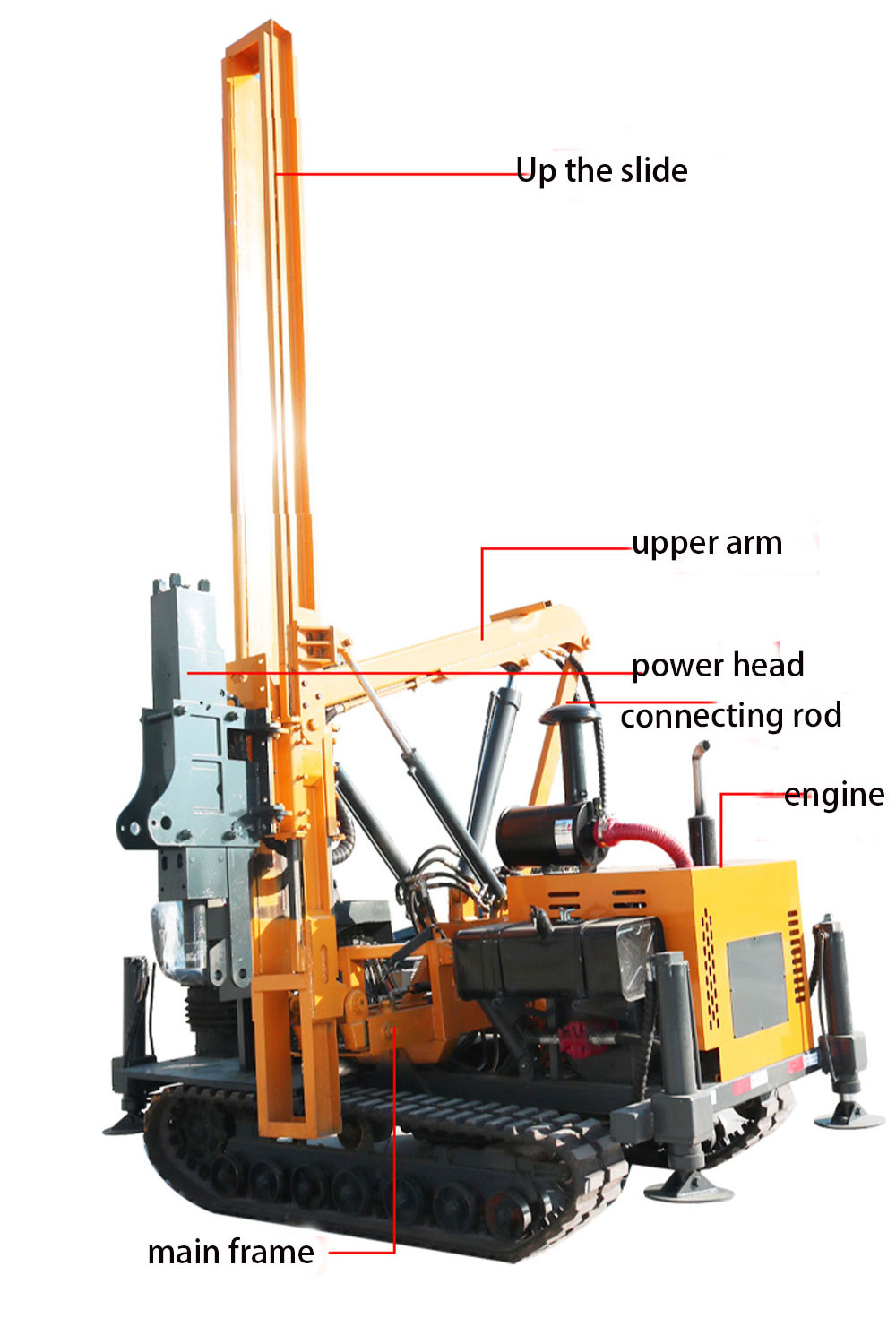

Product Overview
Our track type guardrail piloting machine is designed specifically for highway guardrail installation, bridge construction, and railway engineering projects. The machine adopts a heavy-duty alloy steel frame, ensuring durability, strong impact resistance, and long service life. Compared with traditional pile drivers, it has higher penetration efficiency, especially in hard soil layers and complex geological conditions, reducing labor intensity and overall construction costs.
Engineering rubber crawler guardrail pile driving and pile pulling integrated machine+rotary drilling | |||
Product name | Guardrail pile driver | Oil cooler | 650*550*215 mm |
Engine | Yuchai ZY4105 turbocharged engine | Gear pump flow rate | 80-110 ml/min |
Engine power | 85 kw | Gear pump speed | 2500 r/min |
Maximum torque of walking motor | 1800 Nm | Pile driving efficiency | 2500 mm/min |
Walking speed | 5000-20000 m/h | Maximum pile height | 3.4-4 m |
Maximum traction speed | ≤30000 m/h | Slide travel | 700-3400 mm |
Left and right sliding stroke | 0-400 mm | Sliding navigation frame tilt angle | Left30° right 5° |
Gradeability | 30° | Frame front and rear adjustment angle | 0-20° |
Diesel tank | 60 L | Hydraulic leg | 100 model |
Hydraulic oil tank | 600*400*360 mm | Working dimension | 3.4*2.2*4.5 m |
Hydraulic hammer | |||
Model | DG100 | Number of blows per minute | 490-990 n/min. |
Working Flow | 45-85 Lpm | Impact frequency | 400-800 bpm |
Working Pressure | 147-167 Bar 150-170 kg/cm³ | Hydraulic hammer impact energy | 1550 J |
Gross weight | 479 kg | Sound power level | 88/116 LPA/LWA |
Driving flow-rate | 80-110 Litre/min | Hose diameter | 3/4 inch |
Striking frequency | 360-700 b.m.p | Diameter of tool | 100 mm |
Hydraulic hammer working flow rate | 90-120 i/min | Weight of tool | 31 kg |
Hydraulic hammer working pressure | 15-17 Mpa | / | / |

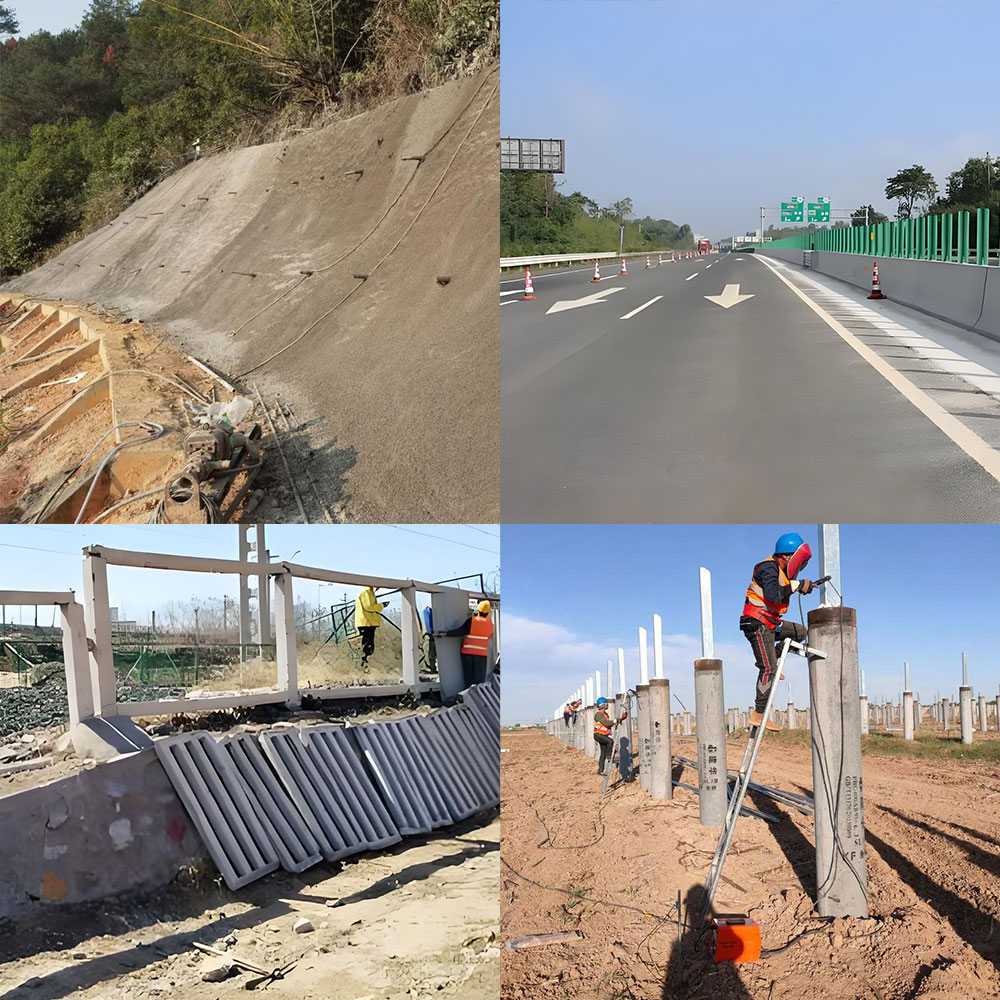

Scope Of Application For Pile Driver For Guardrails
Construction of guardrails for highways and rural roads
Construction of railway guardrails and bridge pile foundations
Pile driving for photovoltaic power station foundation piles
Slope support and anchoring engineering
Construction of municipal roads and safety protection facilities

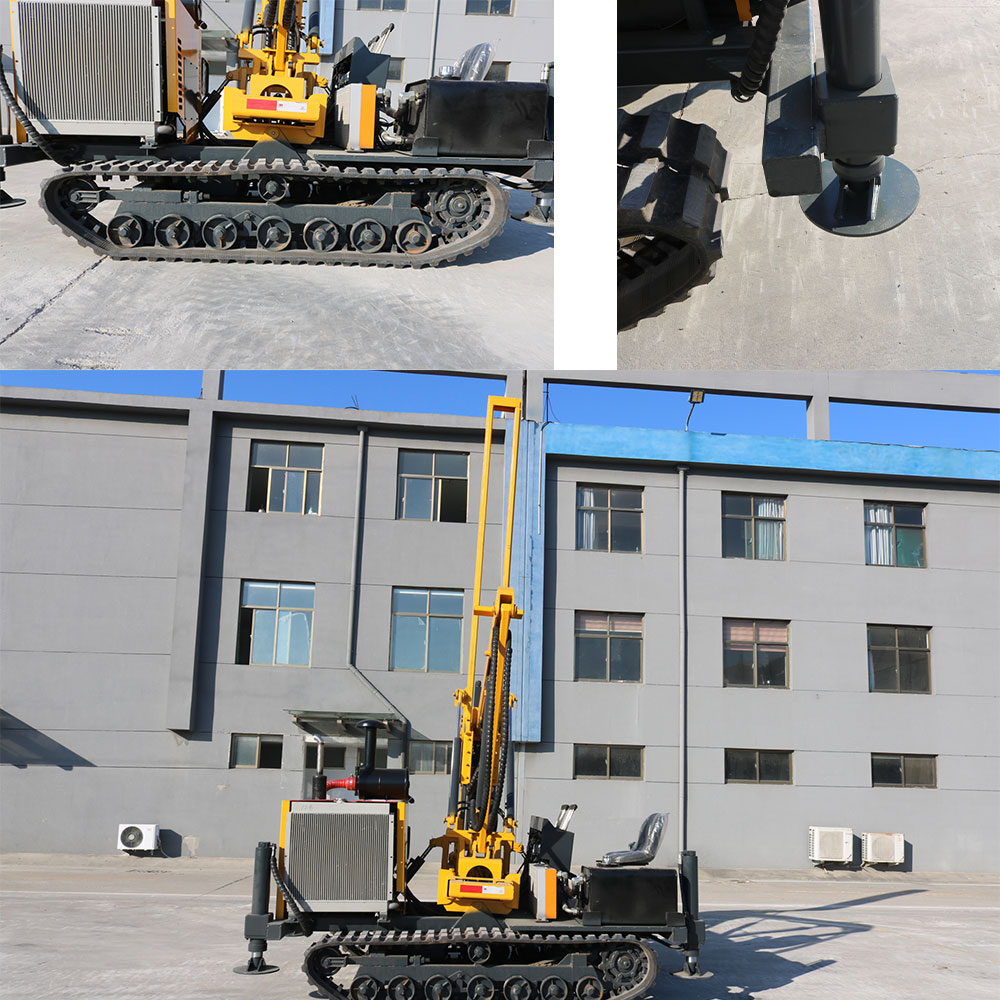

All Terrain Tracked Chassis
The guardrail pile driver is equipped with engineering grade rubber tracks, which can smoothly pass through mountains, muddy roads, cement roads, and uneven terrain without slipping or sinking. Whether on slopes, soft soil, or rugged construction sites, tracked pile drivers can ensure stable performance without the need for frequent equipment replacement.

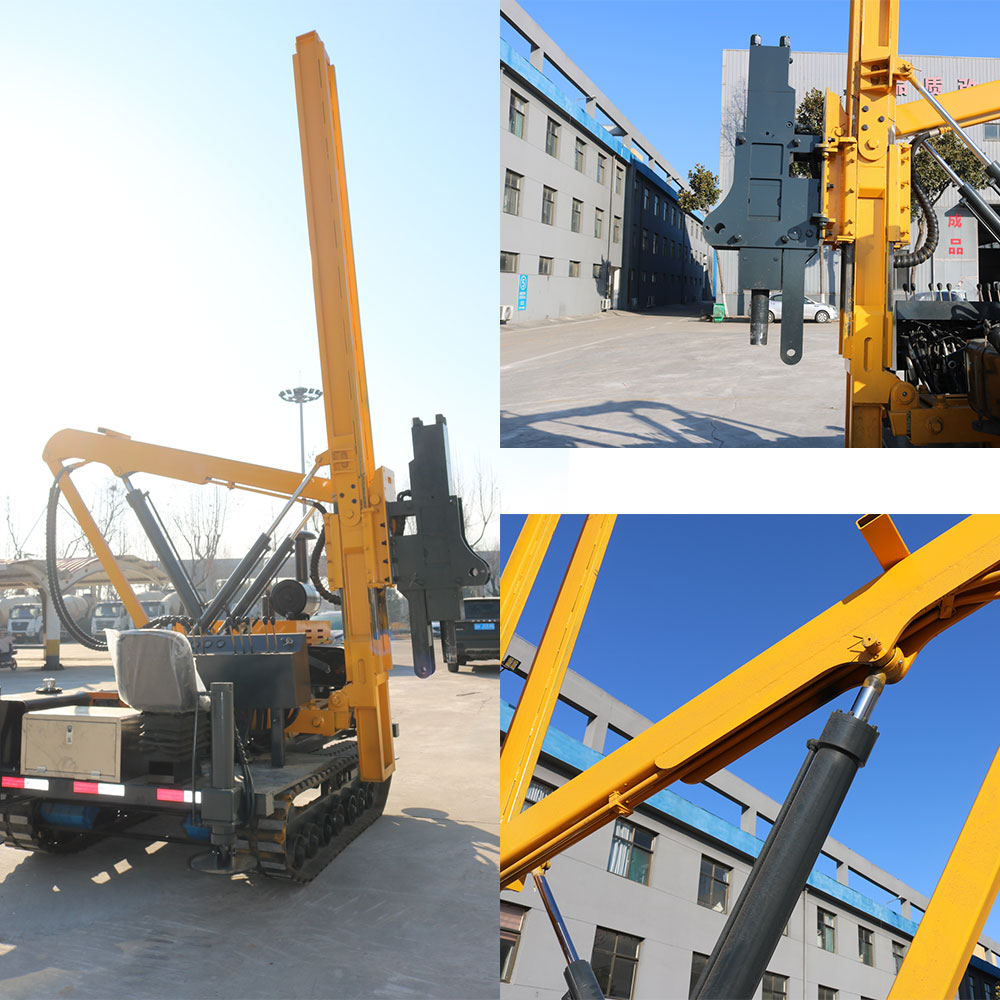

High Performance Hydraulic Hammer
1.Featuring a powerful hydraulic hammer, the tracked guardrail pile driver delivers stable and efficient impact force.
2.It achieves fast piling speeds of up to 2500 mm/min.
3.Driving, pulling, and drilling functions are integrated into one compact machine, improving overall jobsite efficiency.
4.Guardrail Pile Driver With a working height of 4 m, it easily adapts to different guardrail construction requirements.

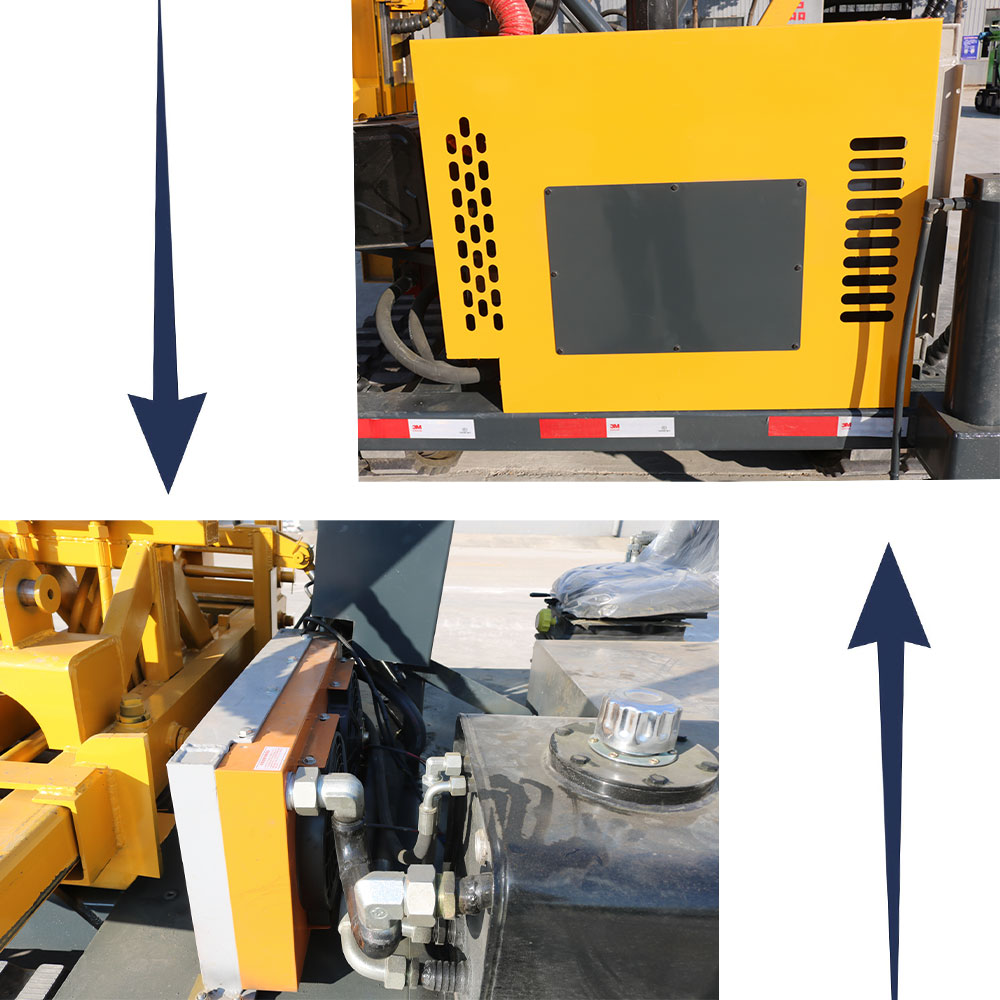

Engine And Cooling System
For dependable long-term operation, the guardrail pile driver is powered by a high-quality branded diesel engine and features a dual-radiator cooling system. This configuration supports continuous heavy-duty drilling for over 8 hours while maintaining stable operating temperatures. Hydraulic stabilizing legs combined with reinforced rubber crawler tracks help absorb vibration, reduce operating noise, and improve machine balance. As a result, the equipment offers greater durability, smoother performance, and lower environmental impact compared with conventional piling machines.
Key Advantages
Heavy duty alloy steel frame - impact resistant, durable, long-lasting
Hydraulic navigation bracket with flexible angle adjustment
Tracked chassis with strong adaptability to all terrains
Integrated pile driving/pulling/drilling functions
High efficiency and low labor costs
Dual cooling system ensures long-term stable operation
Transportation
The tracked guardrail pile driver is easy to transport and can be conveniently moved between job sites using standard trucks or trailers, reducing logistics time and cost.
