Support Type Down The Hole Drilling Rig
Features
The support-type DTH drill rig adopts an electro-pneumatic linkage control system, featuring a streamlined and modular design for easy assembly and disassembly. It is particularly suitable for operation on rugged, uneven terrain or undeveloped landscapes.
Advantages
The support-type DTH drill rig enhances drilling efficiency while reducing energy consumption. Its quick and simple assembly and disassembly significantly shorten relocation time. The support-type design ensures stable operation even in complex terrains.
Benefits
The high reliability and stability of the support-type DTH drill rig minimize maintenance frequency and downtime, improving overall work efficiency. Its adjustable thrust force adapts to various geological conditions, meeting diverse drilling requirements and enabling users to accomplish engineering tasks in challenging environments.
Product Details
Product Introduction
Our bracket type down the hole drilling rig adopts an electrical linkage design, with a simple structure, easy operation, high safety and reliability. Especially, the overall disassembly is very good, and transportation is very convenient. It is suitable for large-diameter blast hole drilling operations in small and medium-sized mines.
Parameter Table
4kw Small bracket DTH drill rig | |||||||
HR-20B | Power | 4kw | Suitable rocks | F≥20 | Drill diameter | 50-150mm | |
Drill pipe length | 1025mm | Drill depth | ≥30m | Air consumption | ≥6 M³/Min | ||
Working pressure | 0.5-0.7Mpa | Speed of rotator | 70r/min | Voltage | 380V | ||
Drilling angle | 0-90° | Dimensions | 2.3*0.4*0.47m | Weight | 250kg | ||
Can provide customized services！ | |||||||
5kw Small bracket DTH drill rig | |||||||
HR-30B | Power | 5kw | Suitable rocks | F≥20 | Drill diameter | 50-150mm | |
Drill pipe length | 1025mm | Drill depth | ≥30-40m | Air consumption | ≥10 M³/Min | ||
Working pressure | 0.5-0.7Mpa | Speed of rotator | 70r/min | Voltage | 380V | ||
Drilling angle | 0-90° | Dimensions | 2.3*0.4*0.47m | Weight | 300kg | ||
Can provide customized services！ | |||||||
Air-driven Small bracket DTH drill rig | |||||||
HR-50B | Power | Air-driven | Suitable rocks | F≥20 | Drill diameter | 50-150mm | |
Drill pipe length | 1025mm | Drill depth | ≥30-40m | Air consumption | ≥10 M³/Min | ||
Working pressure | 0.5-0.7Mpa | Speed of rotator | 70r/min | Voltage | 380V | ||
Drilling angle | 0-90° | Dimensions | 2.3*0.4*0.47m | Weight | 300kg | ||
Can provide customized services！ | |||||||
This bracket type down the hole drilling rig is an important tool for open-pit mining. With its excellent stability and strong terrain adaptability, it is widely used in mining development, transportation construction, national defense engineering, water conservancy hubs, and geotechnical anchoring fields.
Our bracket type down the hole drilling rig has a drilling diameter of 50-150mm and a drilling angle of 0-90 °. It has the advantages of high drilling efficiency, good drilling quality, easy operation, and low maintenance costs, effectively improving project progress and reducing construction costs.
Product Structure Analysis

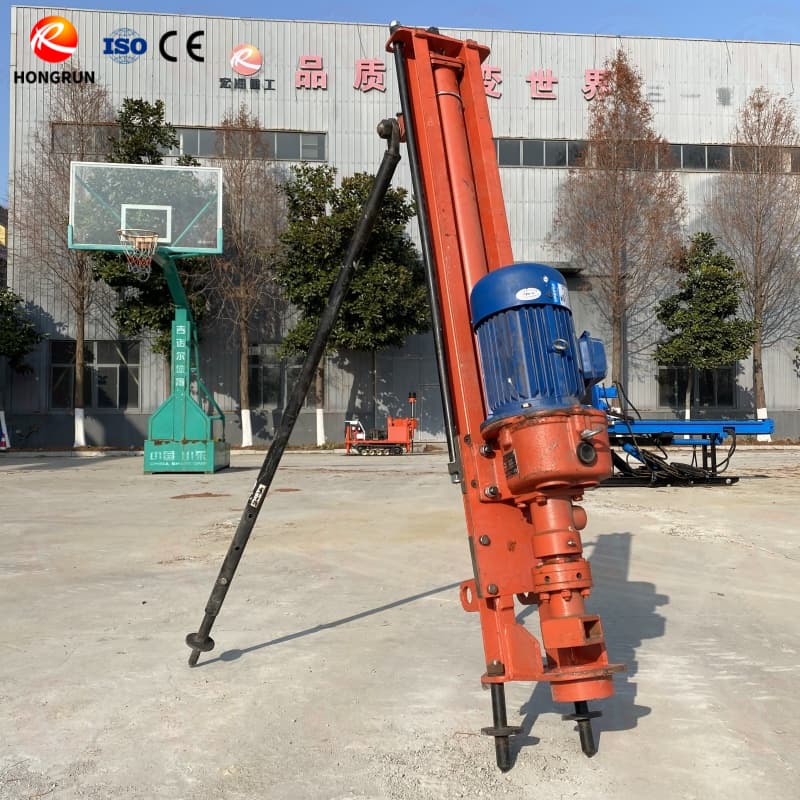

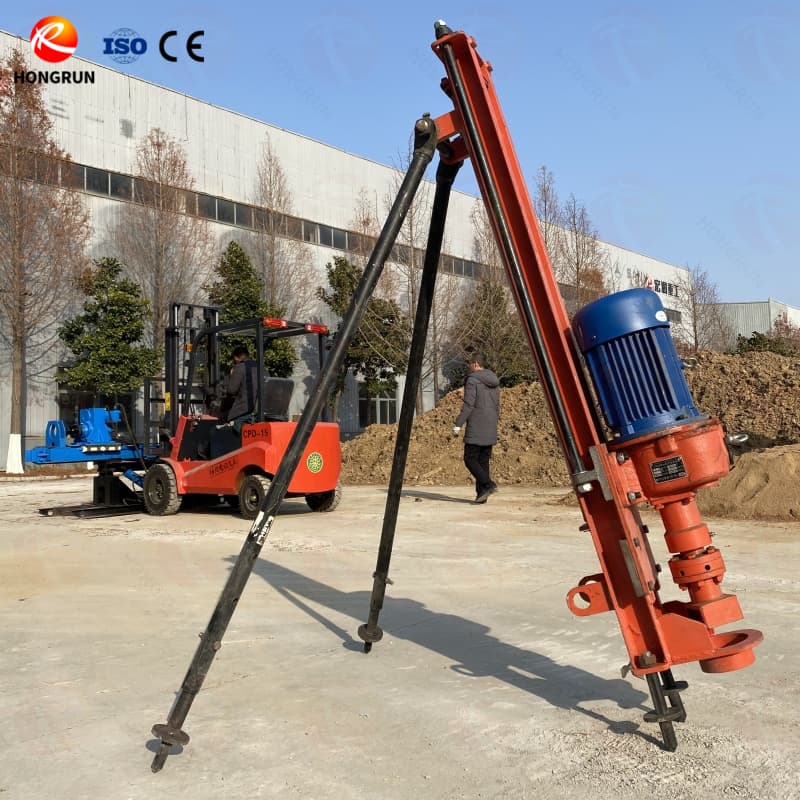

This bracket type down the hole drilling rig adopts a modular design, mainly including a support frame, power control, lifting cylinder, starter motor, power head, and support legs. The structure is compact, the overall footprint is small, and it is easy to move and operate in different sites, especially suitable for working environments with limited space.
Our bracket type down the hole drilling rig can accurately control the drilling direction, equipped with a 4kW/5KW pneumatic core drive. By directly impacting the rock layer, the drilling efficiency is significantly improved, achieving fast and efficient rock drilling operations.
Product Details
Our bracket type down the hole drilling rig adopts a copper core high-power motor, which has good conductivity and heat dissipation performance, and has long-lasting and stable power; Paired with high-performance pneumatic motors, it has the characteristics of agile response and strong torque, achieving efficient rock breaking and rapid drilling.
Our bracket type down the hole drilling rig is equipped with a lifting cylinder, which can achieve rapid lifting and lowering of the drilling tool and improve drilling efficiency; Equipped with high-strength seismic brackets, it can maintain stable operation in rough and uneven terrain.
This bracket type down the hole drilling rig can adapt to various geological conditions such as rocks, soils, deserts, etc. With professional configuration and innovative design, it can still operate stably and efficiently under complex working conditions, providing reliable support for drilling operations.
Our bracket type down the hole drilling rig has strong power and high speed, and is not afraid of complex terrains such as mountains and steep slopes. It efficiently breaks rocks and easily completes all terrain drilling operations.
We can provide you with high-definition display images to facilitate your understanding of the technology and performance of the drilling rig, and can customize it according to your drilling needs to ensure that the drilling rig matches your construction requirements.
Company Profile
FAQ：
1. Does it support customized configuration? How long is the delivery cycle?
We can customize parameters such as power and drill pipe length. Standard models can be shipped within 7 days, and customized models can take up to 15 days.
2.What is the price of this drilling rig?
The price of drilling rigs may fluctuate depending on different models, configurations, and market demand. Please contact our sales team for specific prices, and they will provide you with a detailed quotation based on your specific needs.
3.What are the transportation methods for drilling rigs?
Due to the modular design of the drilling rig, it has good disassembly and can usually be transported by road. Each module is transported separately to the construction site and then assembled.
