Customized Down The Hole Drilling Rig
Features
The customized DTH drill rig adopts a dual hydraulic motor power system paired with a high-performance turbocharged diesel engine. Its multi-degree-of-freedom drilling arm enables omnidirectional drilling in vertical, inclined, and horizontal orientations. The drill bit can be flexibly replaced to adapt to different geological conditions.
Advantages
The customized DTH drill rig delivers powerful torque, significantly improving operational efficiency. Its hydraulic control system enhances stability and operational performance. With versatile adjustment modes and optional attachments, the rig demonstrates superior adaptability to diverse working conditions and construction requirements.
Benefits
The robust power output of the customized DTH drill rig increases drilling speed, effectively shortening project timelines. The stable hydraulic system minimizes malfunctions, reducing maintenance costs.
Product Details
Product Introduction
Our customized down the hole drilling rig is compact in size, lightweight in weight, and easy to move, making it capable of easily handling various complex construction sites; Equipped with a 30KW working motor and matched with a three cylinder hydraulic oil pump, the power is powerful and surging, greatly improving drilling efficiency.
Parameter Table
Working motor | 30kw | Luffing cylinder | 2 pcs |
Hydraulic oil pump | Triple pump | Lifting cylinder | 2 pcs |
Sliding angle | 0-90° | Working height | ≤2700mm |
Walking system | Single cylinder diesel engine with hydraulic walking | Height | 1400mm |
Mud pump | 140 Model | Length | 2200mm |
Power head | Water drill bit | configuration | speed control valve |
Hydraulic leg | 4 pcs | / | / |
Note: If you have customized needs, we will be happy to provide you with suitable product parameters. Please feel free to inquire.
We are equipped with modern production workshops, introduce advanced CNC machining and testing equipment, and rely on profound technical accumulation and years of manufacturing experience to carefully create each product; Our company's products not only sell well in the domestic market, but are also exported to overseas regions such as Southeast Asia, Africa, and South America. We have successfully obtained multiple international qualifications such as CE certification, and our quality has been highly praised; At the same time, we provide a one-year warranty service, and our professional after-sales team is always on standby to help you solve problems at any time.

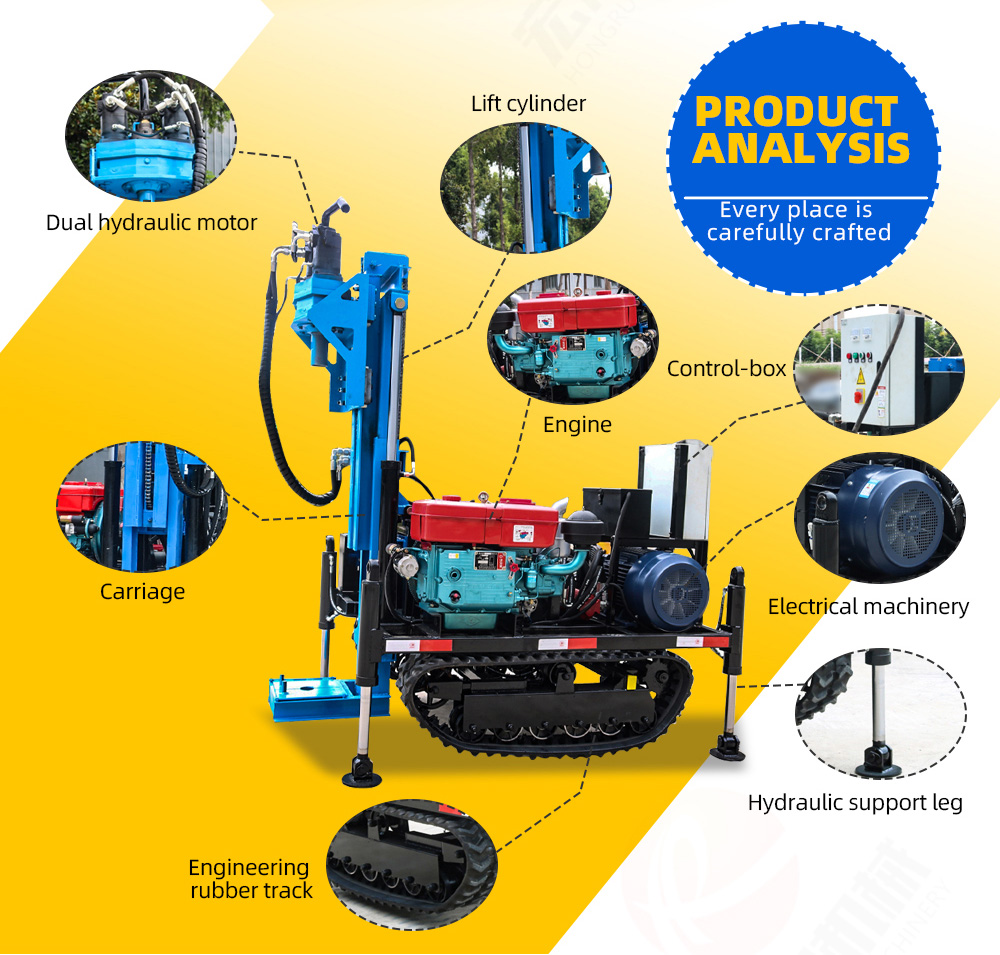

Product Structure Analysis
Our customized down the hole drilling rig is mainly composed of dual hydraulic motors, lifting cylinders, engines, motors, control boxes, hydraulic support legs, slides, and rubber tracks. The overall structure design is compact, lightweight, and compact, allowing for flexible walking in narrow spaces.

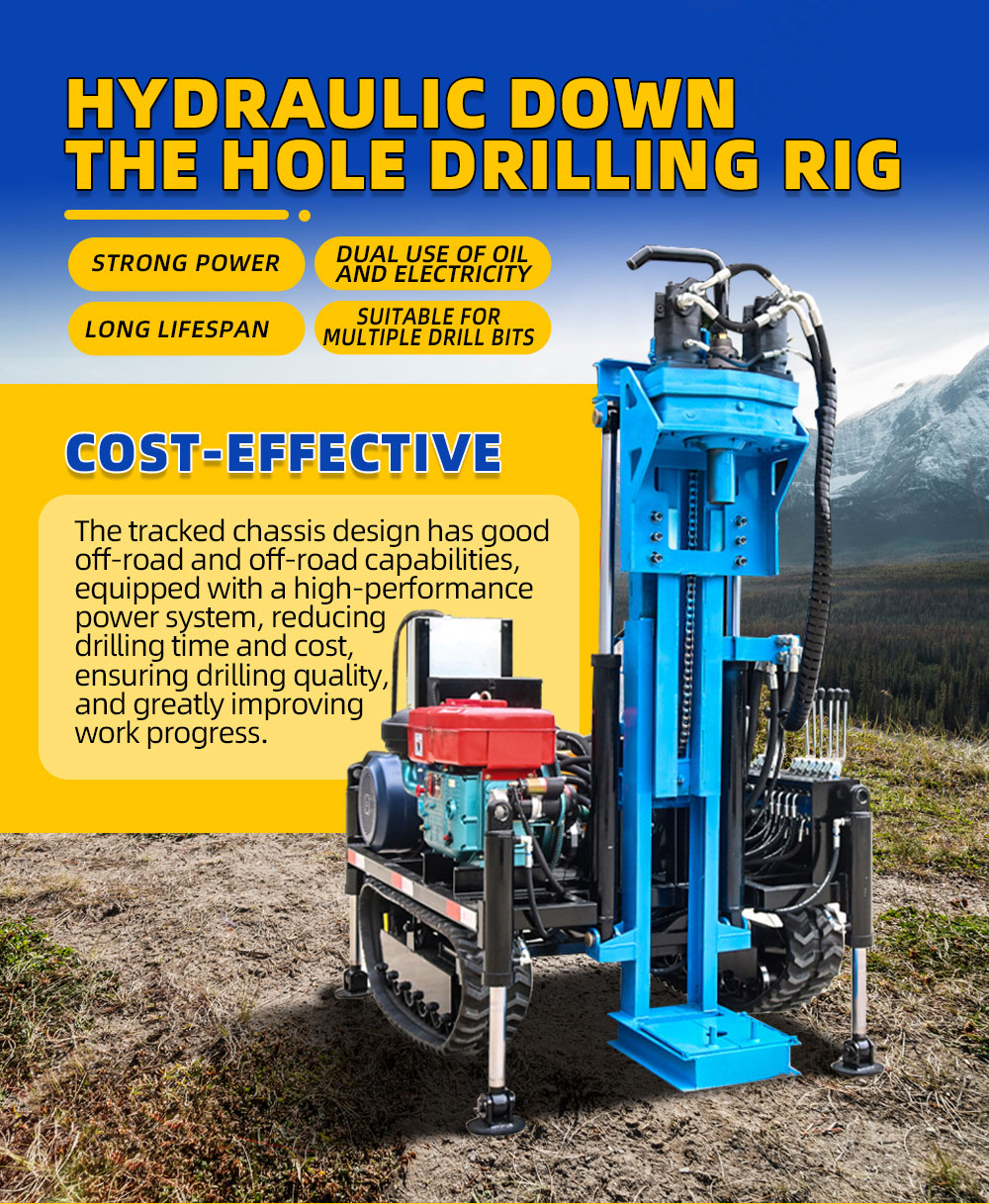

The customized down the hole drilling rig can be used for both oil and electricity. At the same time, the drilling rig chassis adopts a track design, which has strong passability. Compared with traditional wheeled chassis, the track chassis can maintain better stability and balance in various terrains, especially in muddy swamps and hard rock terrain, showing excellent performance.
Our customized down the hole drilling rig has a wide range of applications. Can be used for blasting and drilling in open-pit mining and quarries to assist in the extraction of ores and stones; Serving road, water conservancy, and construction drilling; Undertaking water well drilling and underground drilling construction tasks, able to meet the drilling needs of various projects.
Product Details

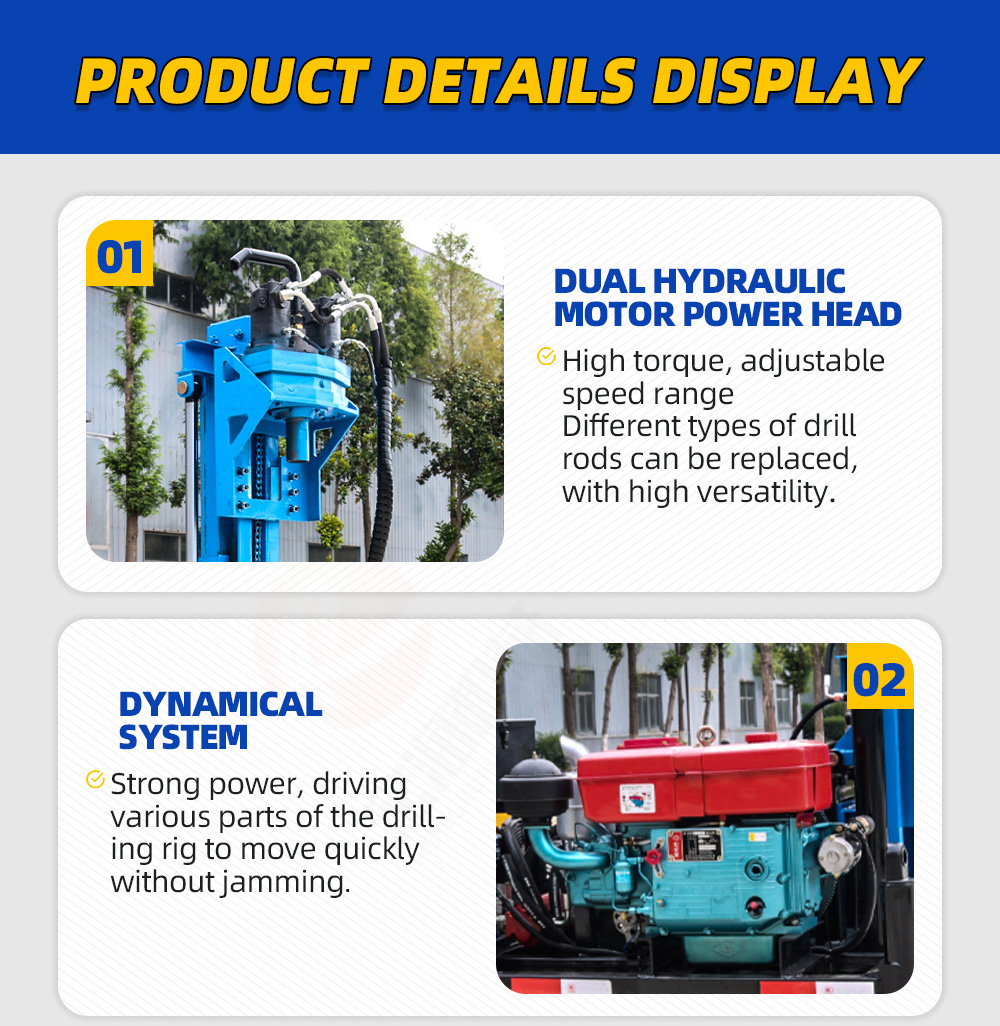

The customized down the hole drilling rig is equipped with a dual hydraulic motor power head and a high-performance diesel engine. The power is powerful and the output torque is extremely high, providing a solid guarantee for the smooth and efficient operation of the drilling rig, making it easy to cope with various complex drilling conditions.

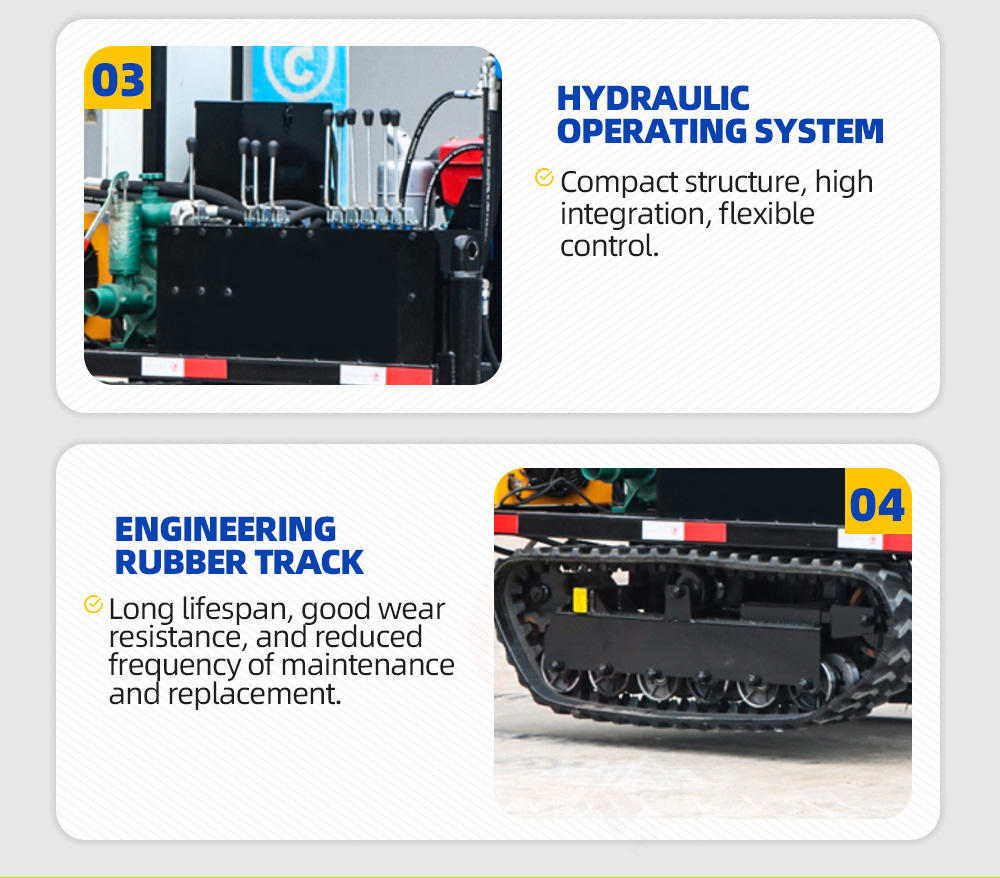

This customized down the hole drilling rig adopts a hydraulic operating system, which simplifies the connection of multiple pipelines, effectively reduces the risk of leakage, and ensures the efficient operation of the hydraulic system; The engineering rubber tracks used in the drilling rig not only significantly reduce operational vibration and overall equipment weight, but also have excellent wear resistance, reducing maintenance frequency.

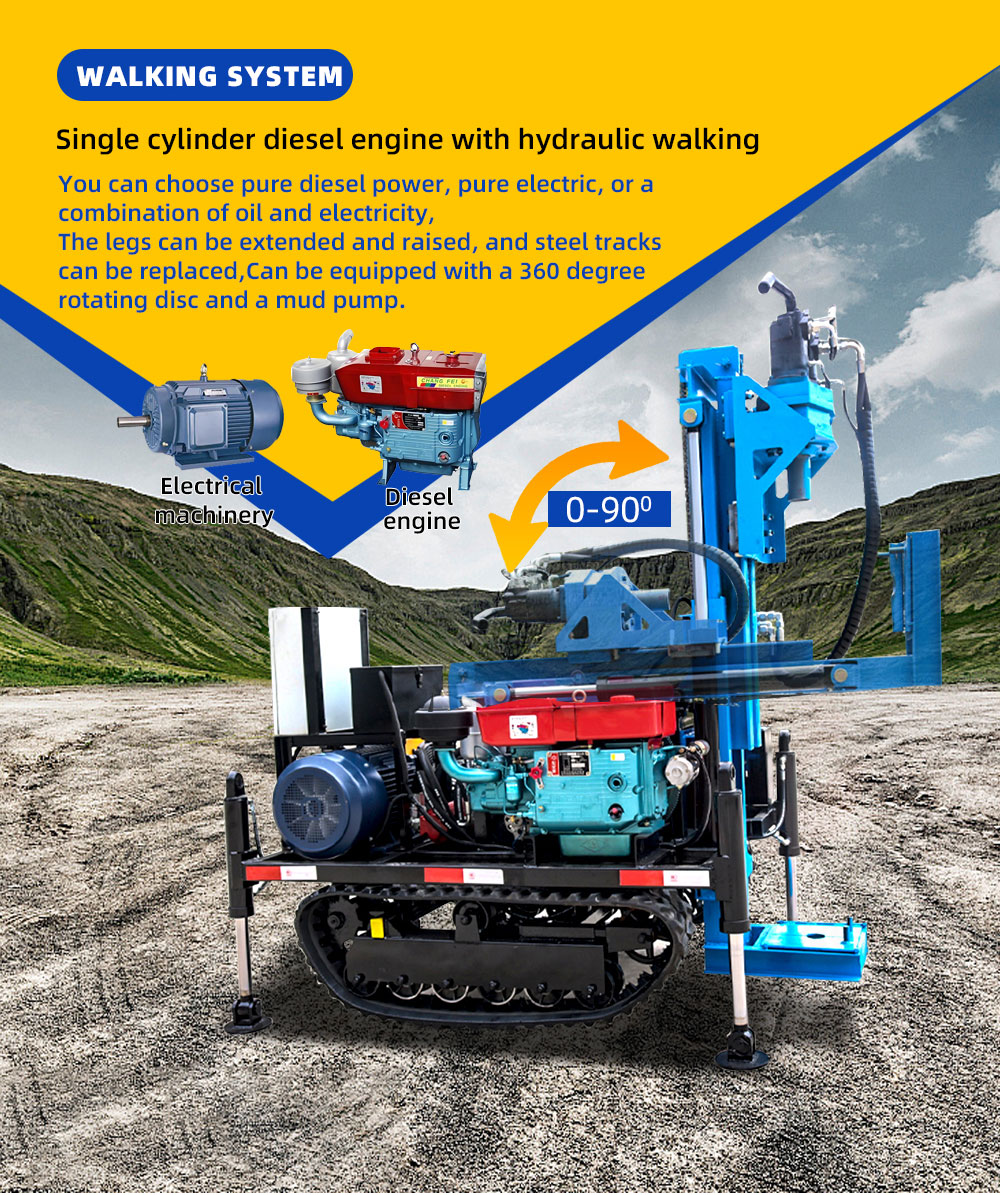

Our customized down the hole drilling rig adopts a single cylinder diesel engine with hydraulic walking. The drilling rig has various power modes, including pure diesel, pure electric, and oil electric dual-purpose modes. The hydraulic support legs can be extended and raised, and can also be replaced with steel tracks. At the same time, a 360 degree rotating turntable and mud pump can be installed according to your construction needs.
Our customized down the hole drilling rig has high adaptability and can flexibly replace drill bits according to different geological conditions. Whether it's soft soil layers, granular sand layers, weathered rock layers with loose texture, or various types of hard rock layers, they can all be easily handled.

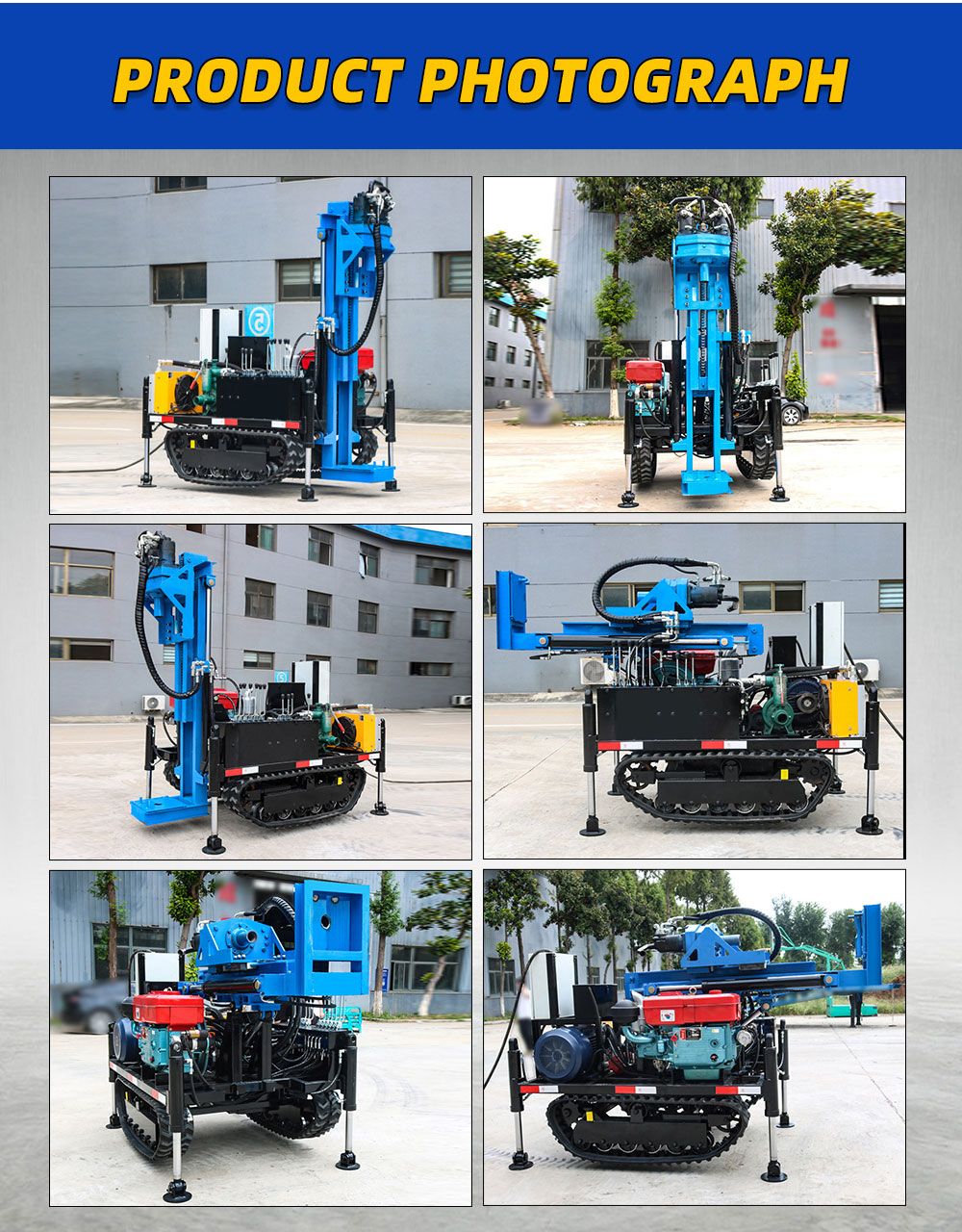

The following is a real-life demonstration of a customized down the hole drilling rig. This drilling rig has flexible drilling angle adjustment, which can easily handle vertical, inclined, or horizontal drilling, and can adapt to various drilling needs in all directions.
Our Factory
FAQ:
1.How many power modes are available for this down the hole drilling rig?
There are three power modes: pure diesel, pure electric, and dual-purpose oil electric, which can meet different working environments and needs.
2.Can the drill bit be replaced according to geological conditions?
Of course, this drilling rig can flexibly replace suitable drill bits according to different geological conditions, such as soil layers, sand layers, weathered rocks, various rock layers, etc.
3.How long is the equipment delivery cycle?
Standard models take 7-15 days, customized models take about 20-30 days (complex configurations need to be confirmed separately).
