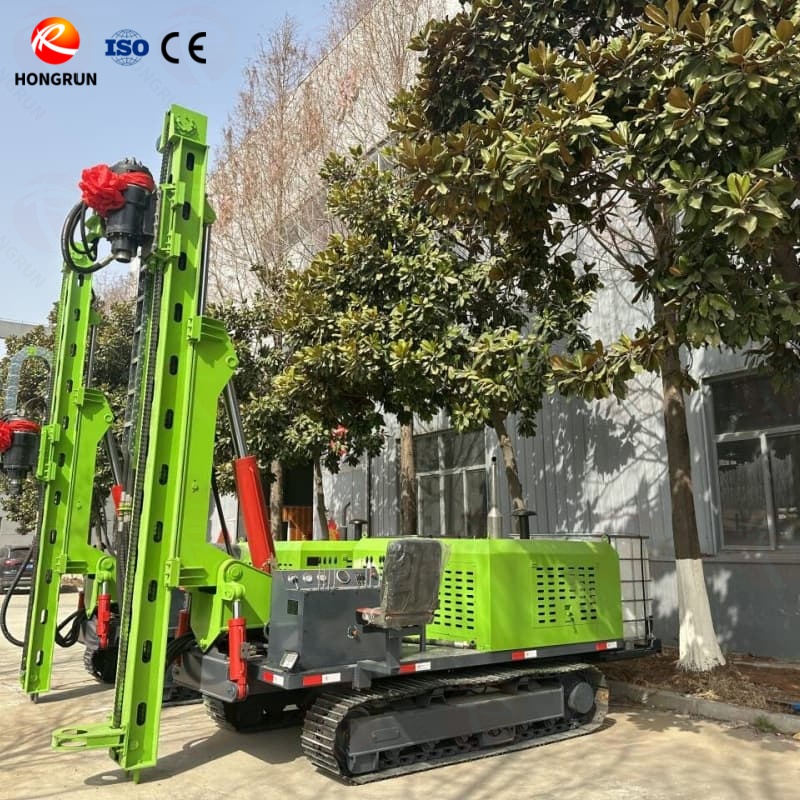

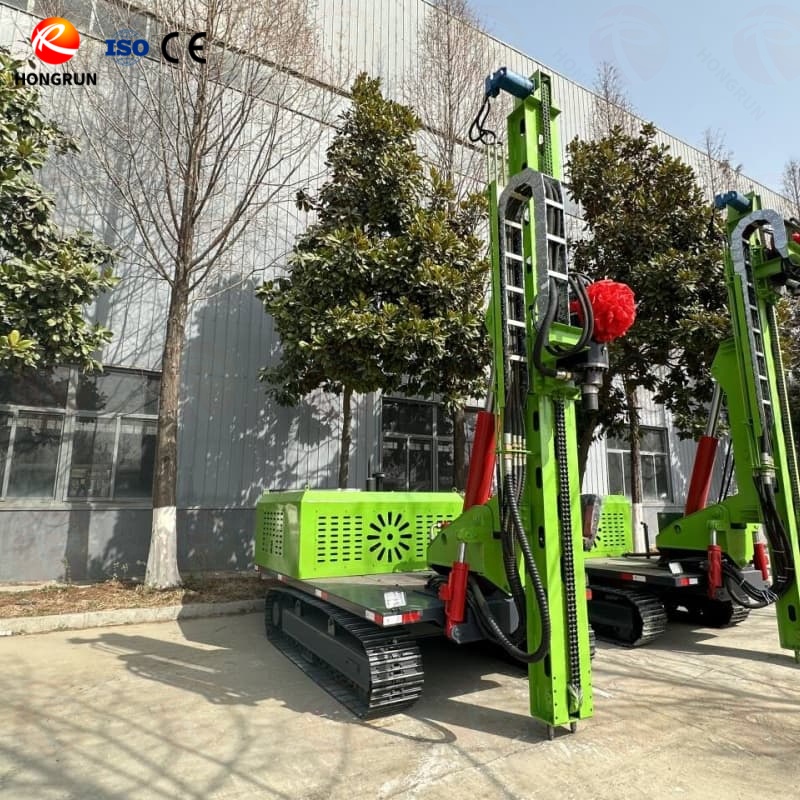

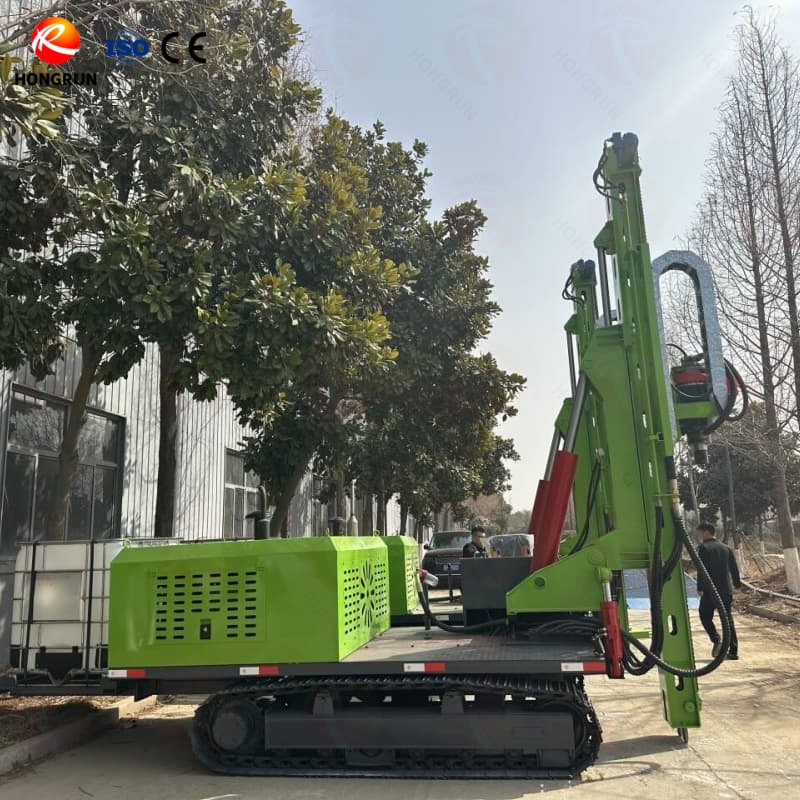

Solar Pile Driver
Characteristic
The solar pile driver is equipped with an adjustable drilling diameter of 90-400mm to meet the construction needs of various photovoltaic pile foundations. The equipment is equipped with a 120 ° large angle pitch carriage, coupled with a hydraulic swing cylinder control system, to achieve precise positioning. The design of steel track chassis combined with four-wheel drive system ensures the passability in complex terrains.
Advantage
The solar pile driver's multi angle adjustment system enables the equipment to adapt to various complex terrains, including 35 ° slope operations. The hydraulic swing cylinder provides super strong support and high vertical accuracy for pile driving.
Interest
The solar pile driver has strong terrain adaptability, reduces site leveling costs, high-precision operation reduces material waste, and effectively improves construction efficiency.
Product Details

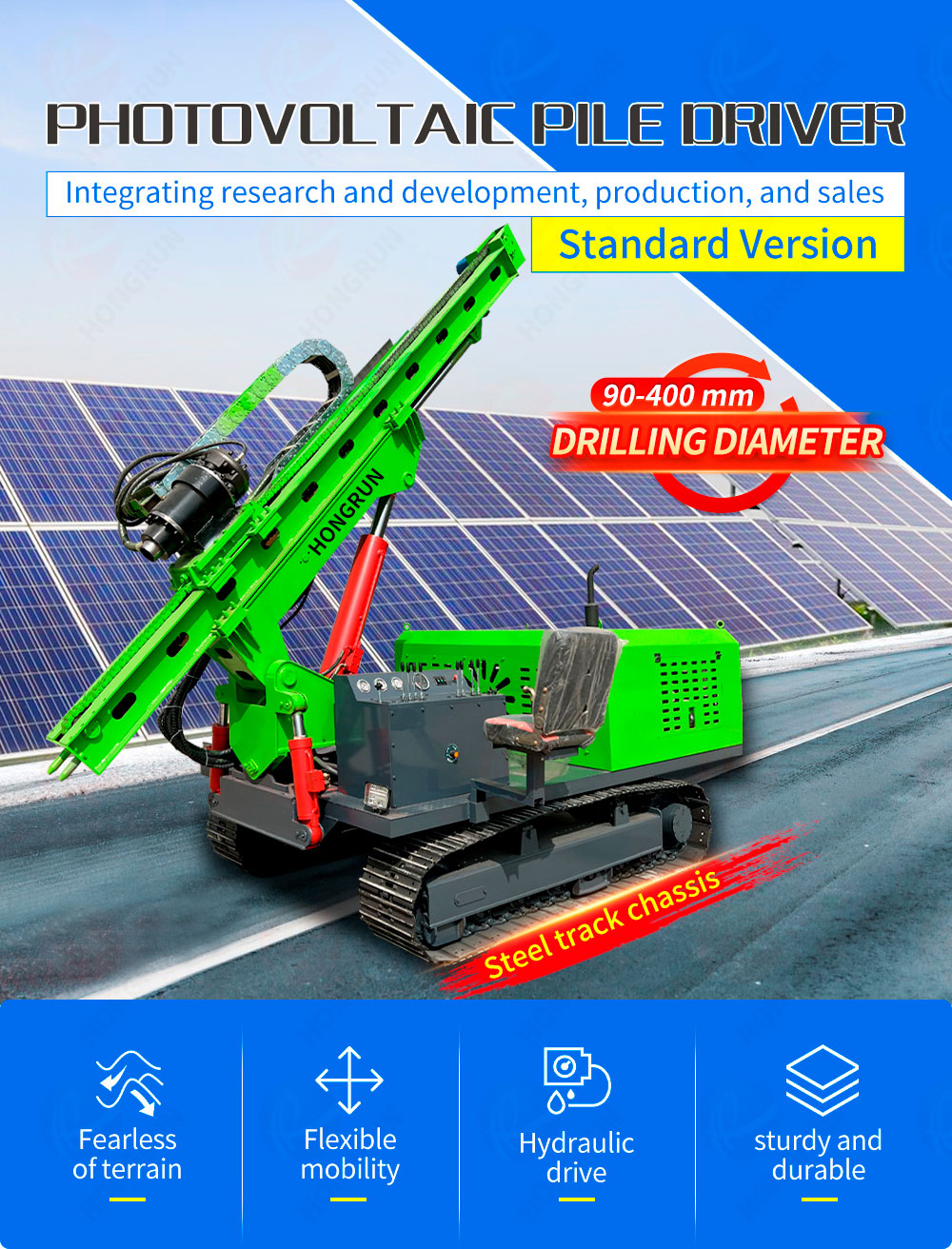

Our solar pile driver is designed for complex terrains and supports drilling diameters of 90-400 millimeters. It is equipped with a steel track chassis and a fully hydraulic drive system. The steel rail chassis enhances stability and has strong terrain adaptability; Hydraulic drive achieves efficient power output and flexible transition operation. It can easily cope with scenarios such as sand and slopes, and its durable structure reduces maintenance costs.
solar pile driver | |||
Drilling diameter | 90-400 mm | Adapt to rock hardness | 6-20 F |
Drilling depth | 1-70 m | Sliding frame pitch angle | 120° |
Drill pipe diameter | 76/89 mm | Sliding frame left and right adjustment angle | Left and right 40° |
Screw drill pipe diameter | 130-400 mm | Air consumption | 10-26 m³/min |
Screw drill pipe drilling depth | 20 m | Working wind pressure | 0.7-16（Medium voltage） |
One propulsion trip | 2.6 m | Walking speed | 5 km/h |
Engine | Yuchai 4105ZY | Track | Steel track |
Power head torque | 13000 N.m | Weight | 5000 kg |
Rated power | 85 kw | Working Size | 3.5*2.2*3.4 m |
Rotation speed | 110 r/min | Transport dimensions | 3.5*2.2*2.7 m |
Note: If you have special requirements, our engineers will tailor the best solution for you!
Our solar pile driver adopts an advanced hydraulic drive system, truly achieving high efficiency and effectiveness; Equipped with a large capacity battery pack to ensure sufficient power, even in remote areas, it can continue to operate stably; The steel rail chassis design allows the machine to move conveniently and transition flexibly in complex terrains. So, choosing the right drilling rig is very important.

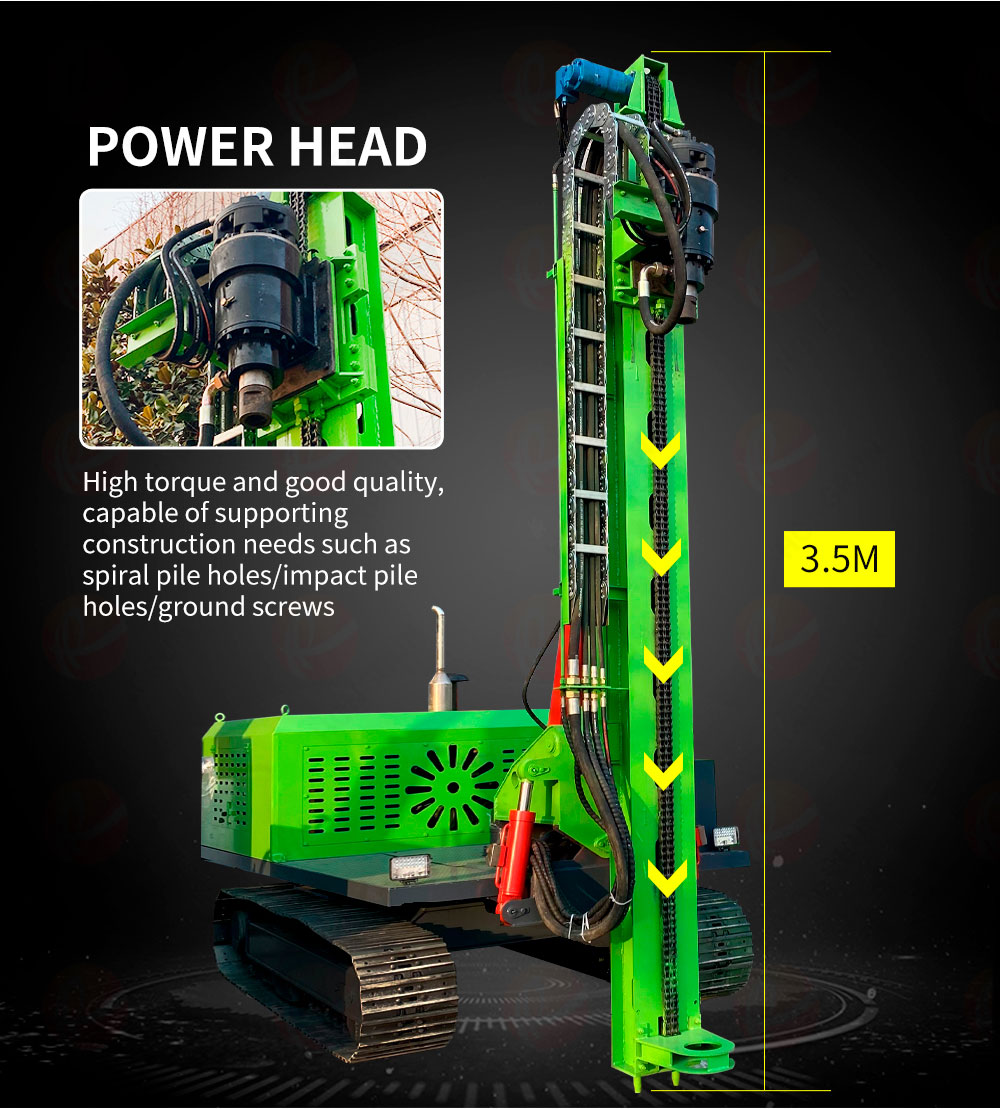

Strong power
The solar pile driver has a power head torque of up to 13000 N.m, which can meet the construction needs of spiral pile holes, impact pile holes, and ground screws, with high efficiency and stability. At the same time, it can ensure construction accuracy and efficiency, reduce downtime, and improve overall project progress. The height of the aircraft is 3.5 meters.

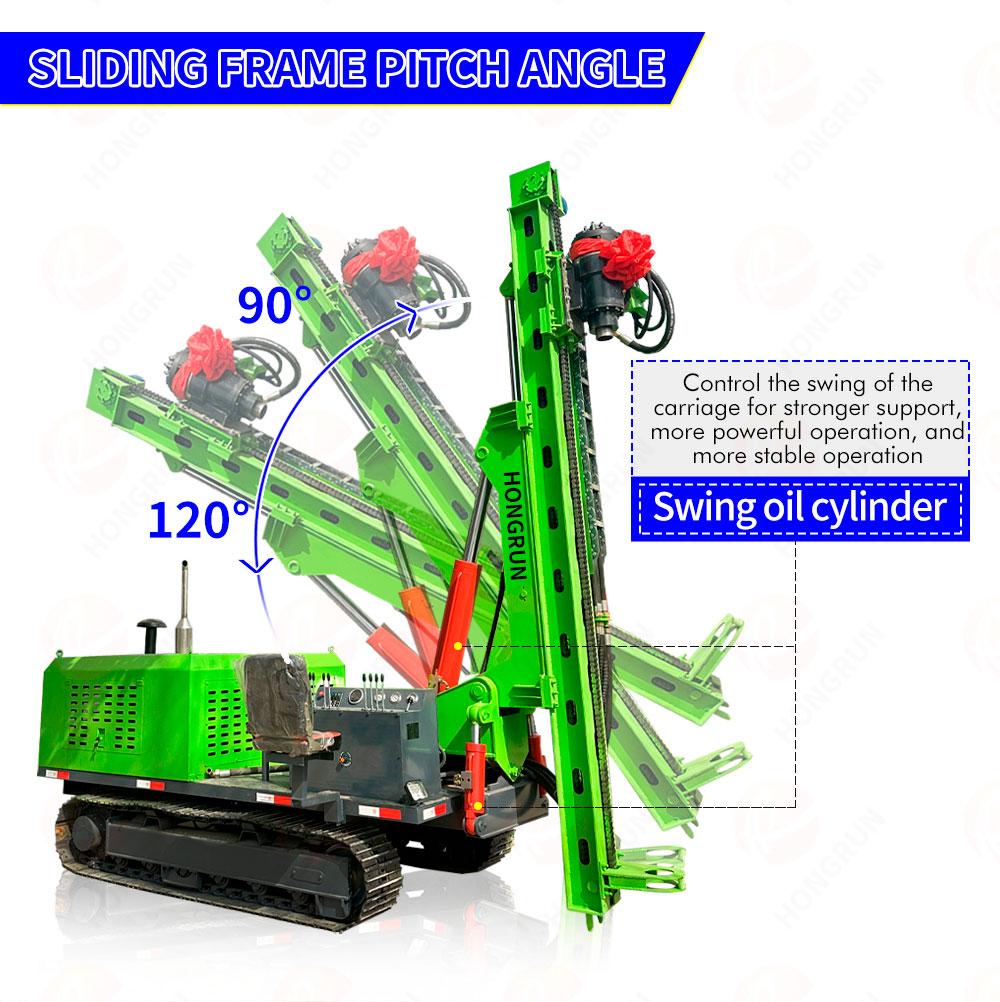

Working angle of the carriage
This solar pile driver adopts a 120 ° sliding frame pitch angle design, with flexible adjustment of 40 ° on each side, and precise control of the bracket movement with a swing oil cylinder. The large angle adjustment range enables precise pile driving in multiple directions, and the swinging oil cylinder provides strong support, significantly improving the equipment's adaptability on slopes and uneven ground. Construction operations are more stable and efficient, reducing pile position deviations.

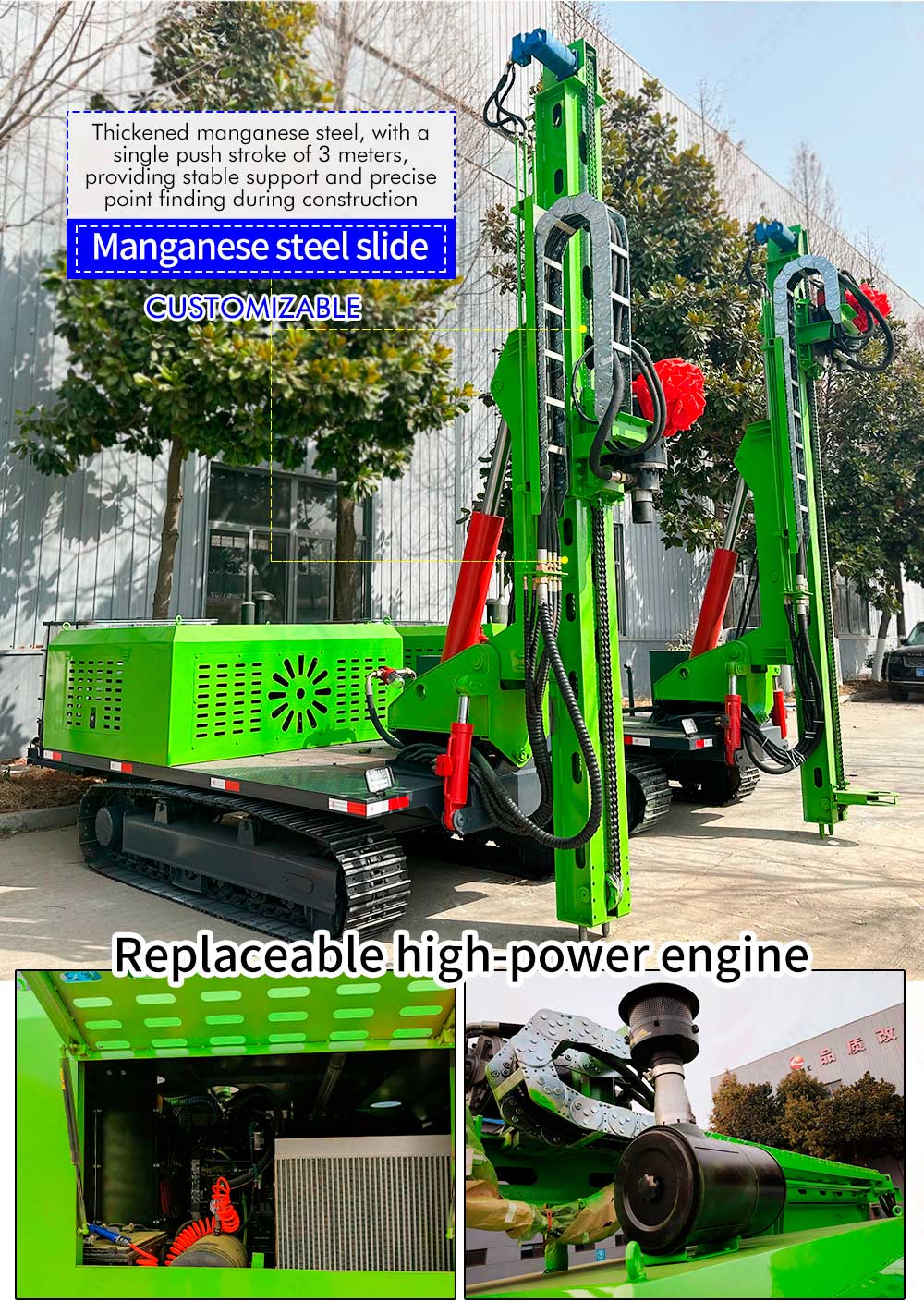

Support customized services
This solar pile driver adopts high-strength manganese steel slider, supports customized thickening design, with a single push of over 3 meters, and is equipped with a replaceable high-power engine to adapt to different working conditions. Thickened manganese steel slider significantly improves compression and wear resistance, extending equipment life; Ultra long push reduces duplicate positioning, improves efficiency, and can handle complex geological formations.
Application scenarios
Our factory's standard photovoltaic panel pile driver is designed specifically for photovoltaic engineering and various complex terrains, suitable for highway bridges, railways, mountainous areas, and water conservancy urban construction projects, ensuring efficient and stable construction.
Details Introduction

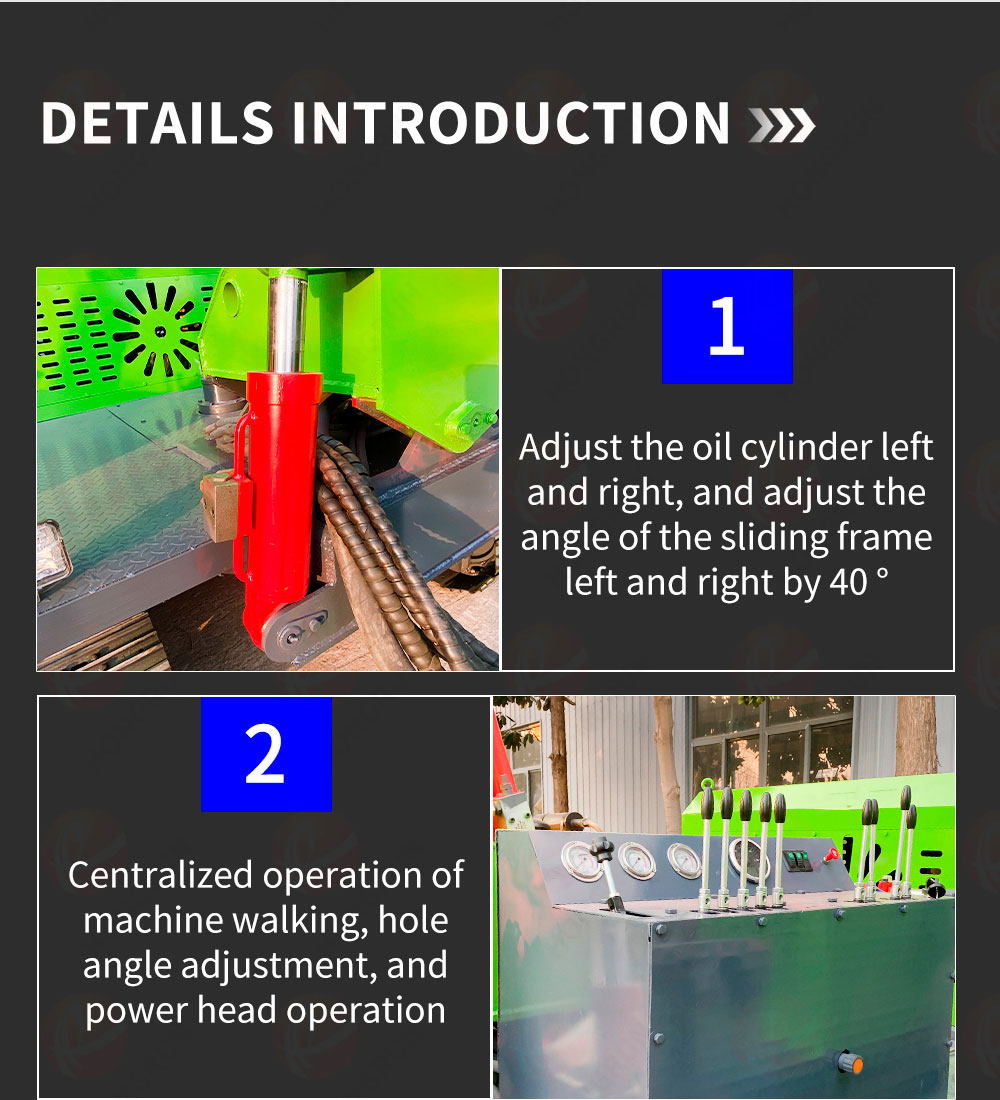

This solar pile driver is equipped with an intelligent hydraulic adjustment system, which can accurately control the left and right displacement of the oil cylinder and support 40 ° angle adjustment of the slide. At the same time, it integrates walking, hole angle adjustment, and power head operation in a centralized console, achieving one-stop control. Single person can complete multi action collaboration, saving labor costs.
Details Introduction

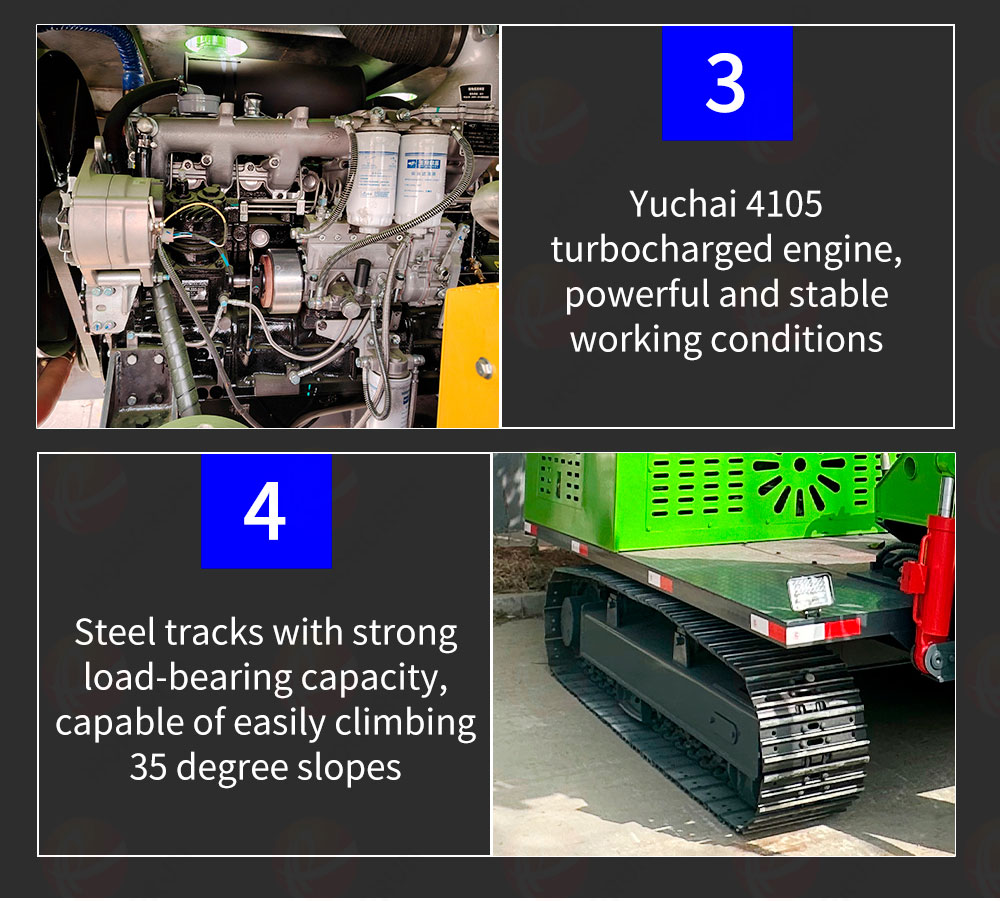

Our solar pile driver is equipped with a Yuchai 4105 turbocharged engine, which runs stably; High strength steel rail design, with super strong bearing capacity, can easily climb 35 ° steep slopes. Turbocharged engines provide sustained and powerful power, adapting to harsh environments such as high altitudes and high temperatures; Super strong steel rails ensure stable and non slip operation of equipment on slopes, making construction safer and more efficient.
Certificate display
Client access
Since its establishment in 2012, Hongrun Machinery has accumulated years of rich mechanical experience. We sincerely invite global customers to visit and experience our machines firsthand. Your satisfaction is our unremitting pursuit, looking forward to bringing you excellent experience and 100% satisfaction.
FAQ:
How stable is the equipment on slopes or uneven ground?
This machine adopts a 120 ° sliding frame pitch angle and a 40 ° left and right adjustment design, combined with a hydraulic swing cylinder, which can operate stably on slopes within 35 °
What is the maximum drilling diameter of this solar pile driver?
The solar pile driver supports drilling diameters of 90-400mm, meeting the construction needs of various photovoltaic pile foundations.
Do you provide after-sales service and technical support?
We provide 24-hour response after-sales service and are equipped with a professional team of engineers who can diagnose remotely or provide on-site support to ensure worry free construction.
