300M Wheeled Water Well Drilling Rig
Features
The 300m wheeled water well drilling rig adopts a wheeled mobile design and a traction structure, equipped with a high-power power system and a large capacity radiator. The maximum drilling depth can reach 300 meters, and it supports both water and gas drilling methods.
Advantages
The traction design of the 300m wheeled water well drilling rig makes the transition more convenient, significantly reducing transportation time and costs; A large capacity radiator can quickly dissipate heat, ensuring stable operation of equipment under long-term and high-intensity operations; The dual-purpose water and gas system enhances the adaptability of the drilling rig to different geological conditions.
Benefits
The efficient transition design of the 300m wheeled water well drilling rig reduces time costs, and the reliable performance reduces equipment maintenance costs; With strong drilling capabilities and wide applicability, one drilling rig can meet various project needs.
Product Details
Product Introduction

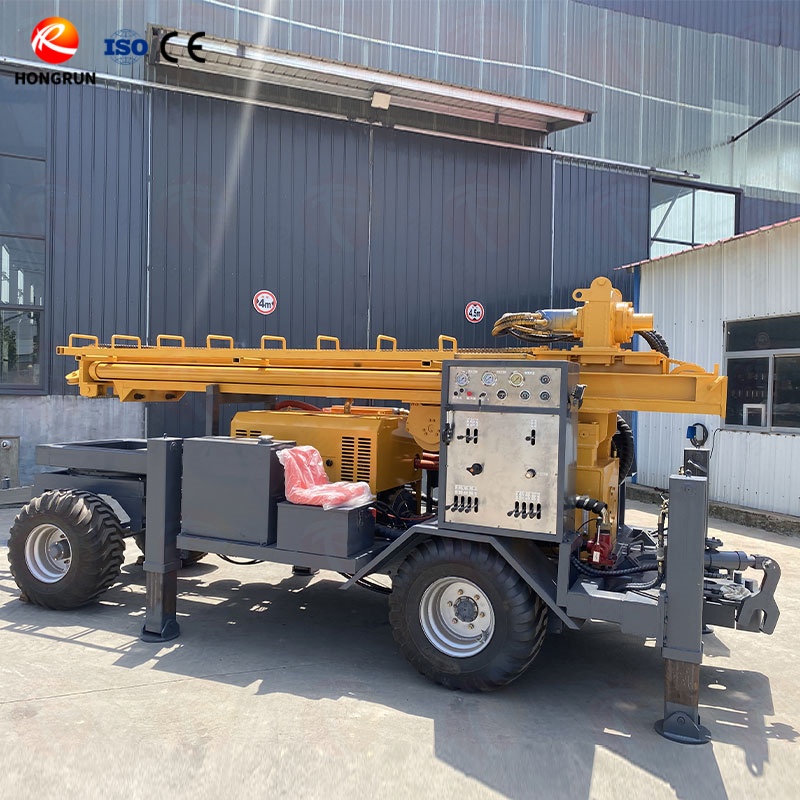

Our wheeled water well drilling rig can drill up to a maximum depth of 300 meters and has dual functions of water and gas, easily overcoming various difficulties in drilling medium and deep water wells and meeting diverse operational needs.
Parameter Table
Drilling depth | 300m | One time advance length | 3.6m |
Drilling diameter | 104-325 mm | Rapid rise speed | 24m/min |
Drill pipe length | 1.5/2/3m | Fast feeding speed | 28m/min |
Drill pipe diameter | 76/89/102mm | The penetrationefficiency | 10-35m/h |
Working pressure | 1.7-3.0Mpa | Walking speed | 2.5 km/h |
Air consumption | 17-35m³/min | Uphill angle | Max.30 |
Drill frame stroke | 6.6 m | Hoisting force of winch | 1.5 T |
Slewing speed | 45-70 rpm | Equipped with hammer | Medium and high wind pressure series |
Rotation torque | 5500-8100 N.m | High leg stroke | 0.6m |
Rig lifting force | 17 T | Weight | 7.5T |
Engine | Yuchai 85 kw | Size | 5500*1850*2300mm |
Note: Tell us your requirements and we will optimize the technical parameters! Feel free to consult at any time and create an ideal product solution for you!
Our factory, with years of experience in drilling rig research and manufacturing, and relying on a professional technical team, is committed to providing you with high-performance, stable and reliable drilling equipment. At the same time, we provide efficient and thoughtful after-sales service to ensure worry free purchasing and worry free use.

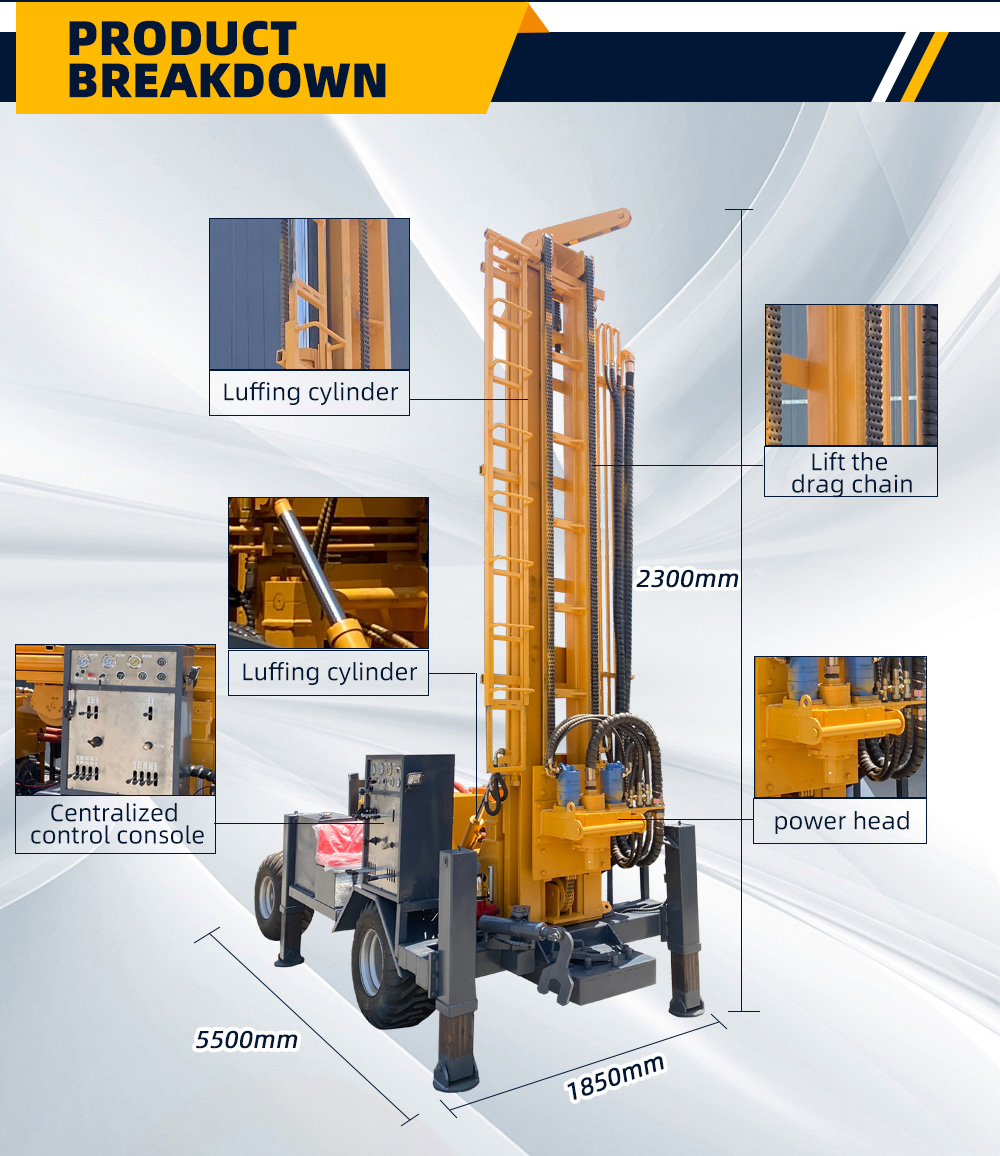

This 300m wheeled water well drilling rig has a total size of 5500mm * 1850mm * 2300mm. It is mainly composed of a lifting cylinder, a lifting drag chain, a power head, a centralized control console, etc. It has a compact structure, stable performance, and is suitable for efficient drilling operations.
Structural Analysis
Our 300m wheeled water well drilling rig adopts a dual motor drive system, which has strong power and high torque, effectively improving operational efficiency; Equipped with high-performance winch, precise control of drill bit feed ensures stable and efficient drilling.

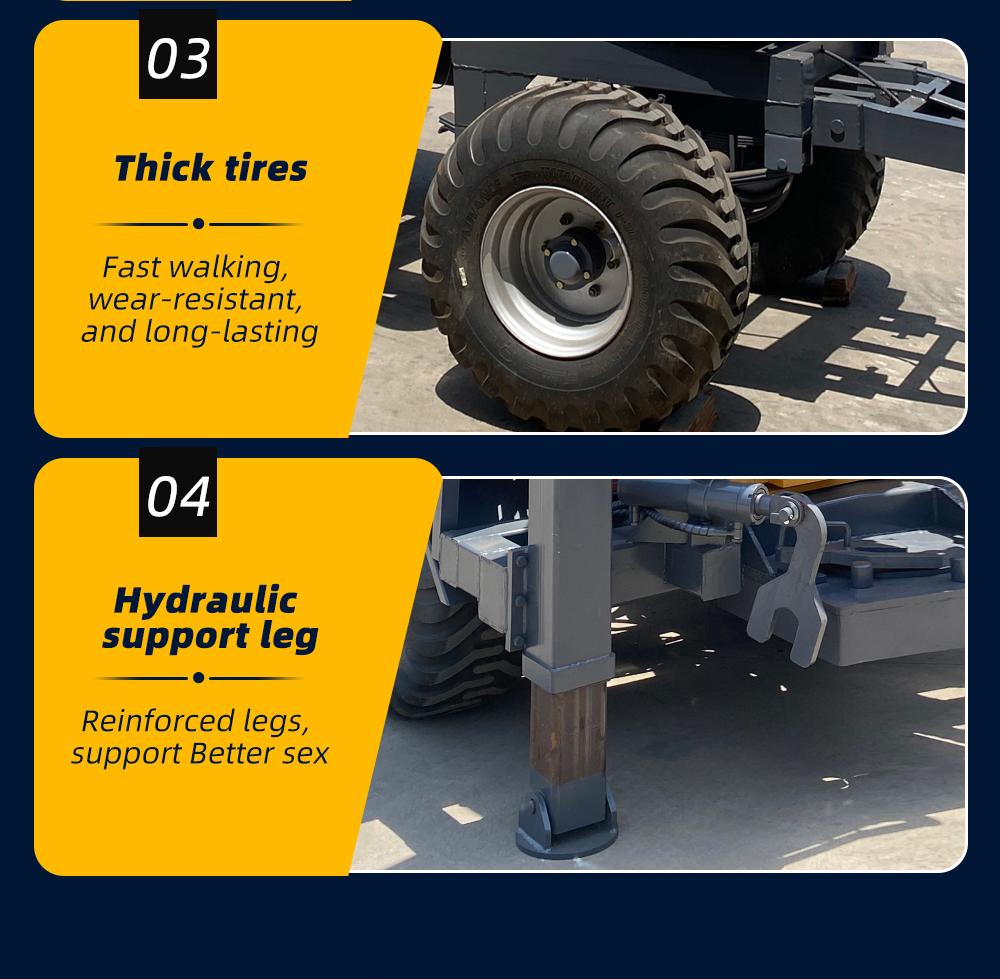

This 300m wheeled water well drilling rig is designed with thick and wear-resistant tires, greatly improving its ability to pass through complex terrains; Equipped with four hydraulic leg systems simultaneously, it can quickly level and enhance operational stability, ensuring safe and efficient drilling operations even in harsh conditions such as softness and unevenness.

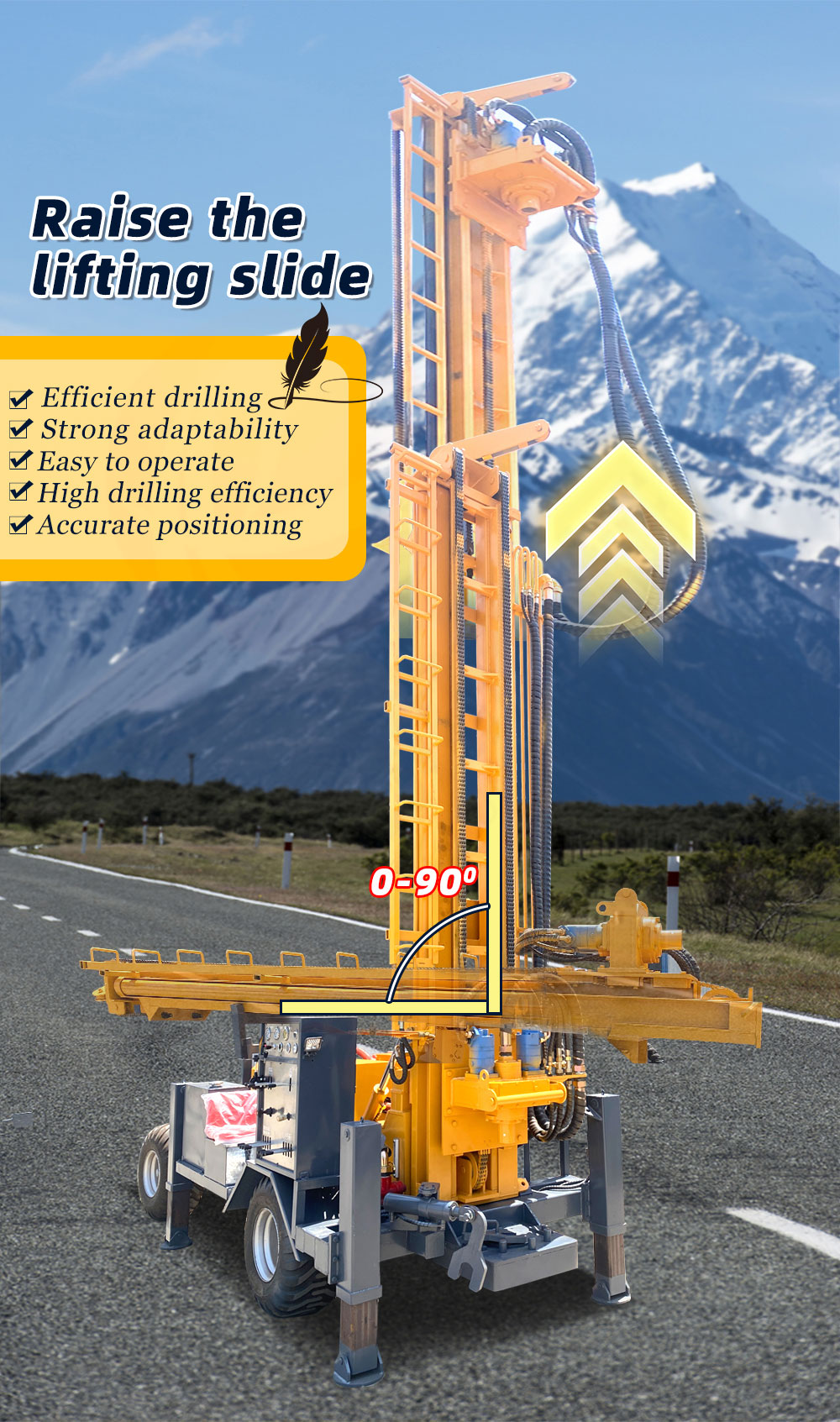

This 300m wheeled water well drilling rig adopts a raised lifting carriage, which effectively expands the drilling depth range. The carriage is equipped with a 0-90 ° rotation system, which can achieve precise positioning in multiple directions, effectively improving the accuracy and operational efficiency of drilling in complex formations, and meeting various high-precision drilling needs.

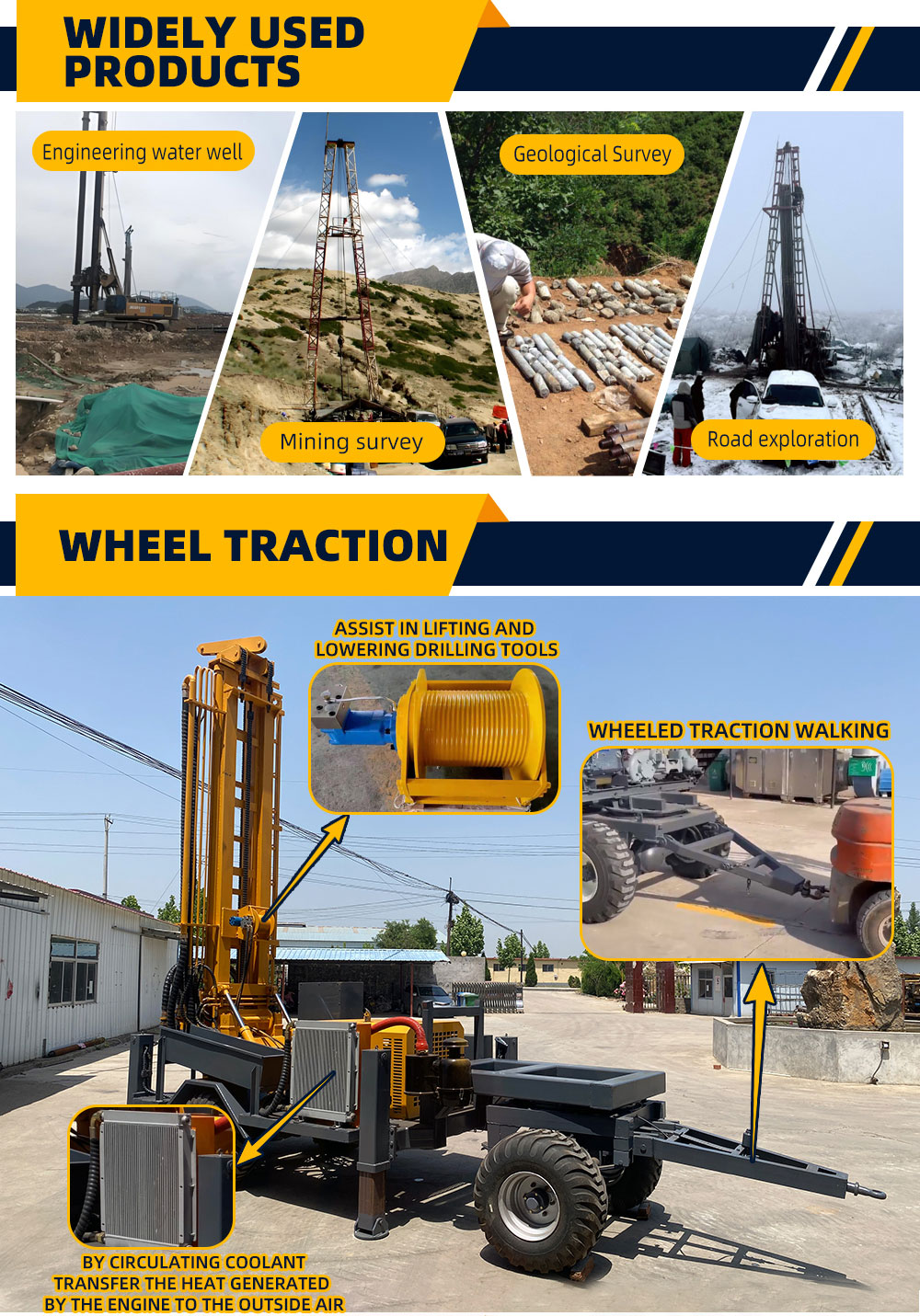

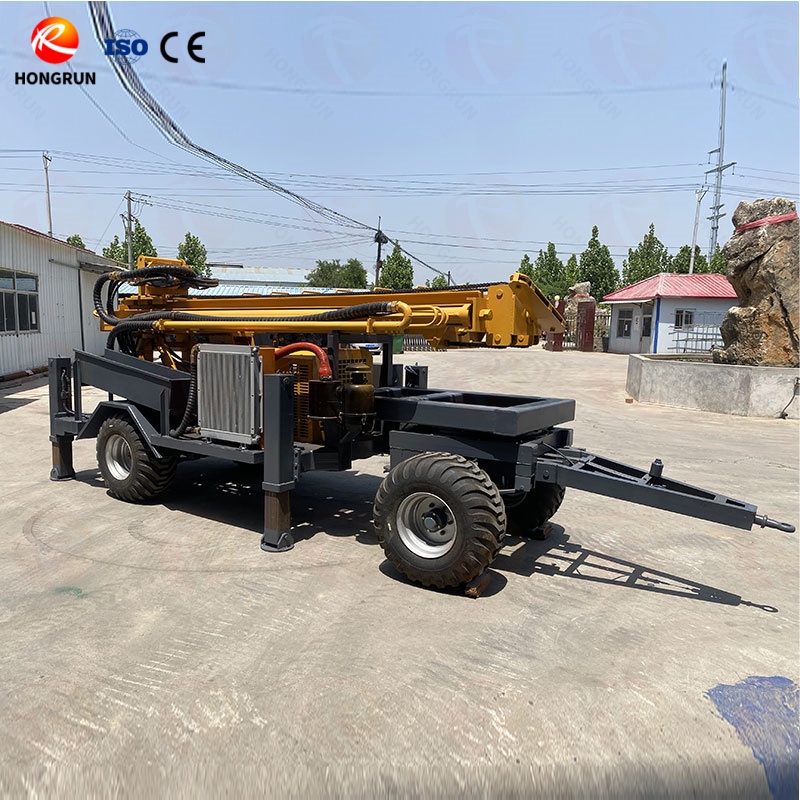

Our 300m wheeled water well drilling rig adopts a traction design, which is compatible with various types of tractors and easy and convenient to transfer; Equipped with a large capacity and efficient heat dissipation system, the drilling rig maintains stable performance under long-term high-intensity operation, effectively reduces the failure rate under high temperature conditions, and improves continuous operation capability. It is widely used in geological survey, road exploration, engineering water well construction and other fields.
User Feedback

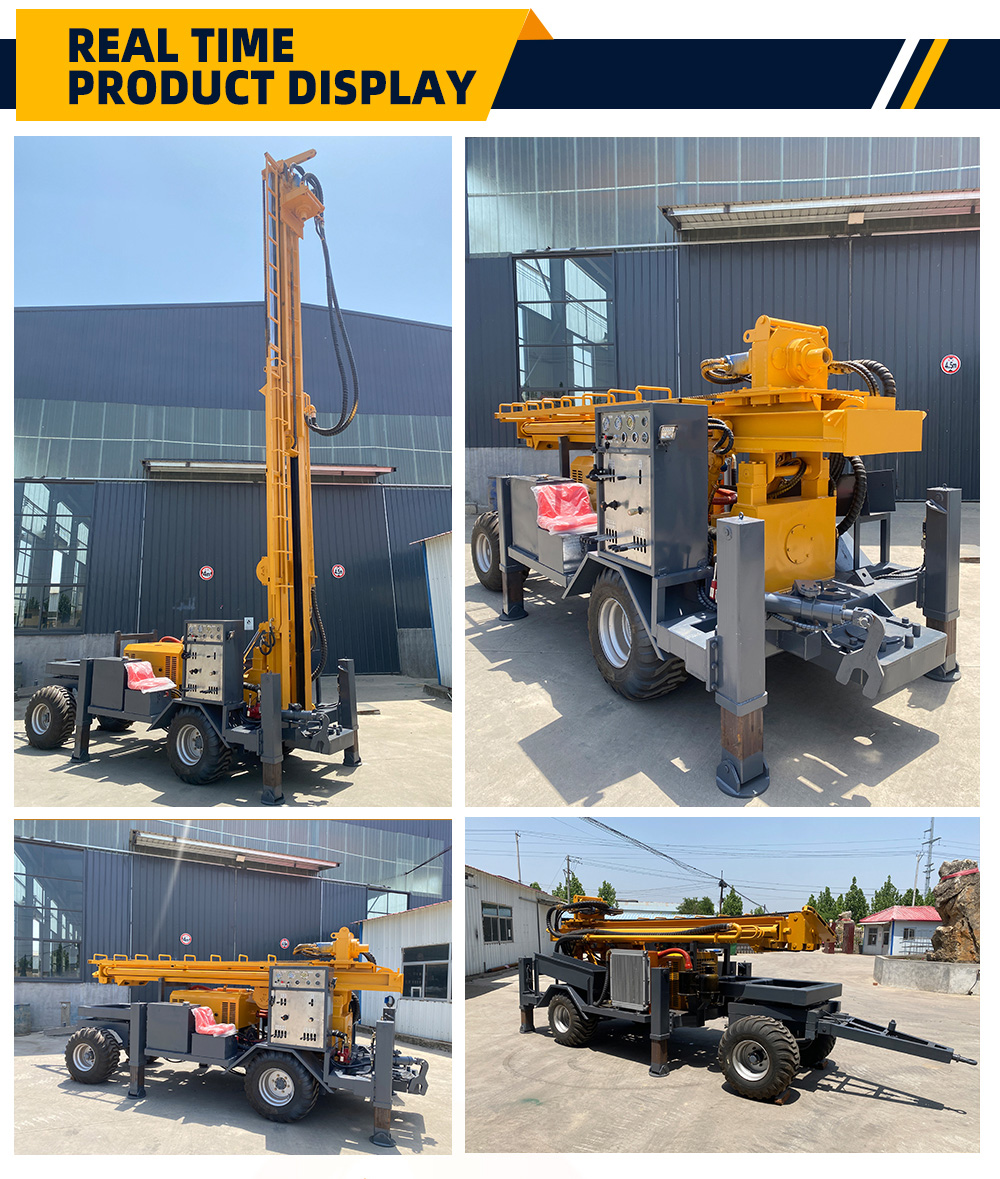

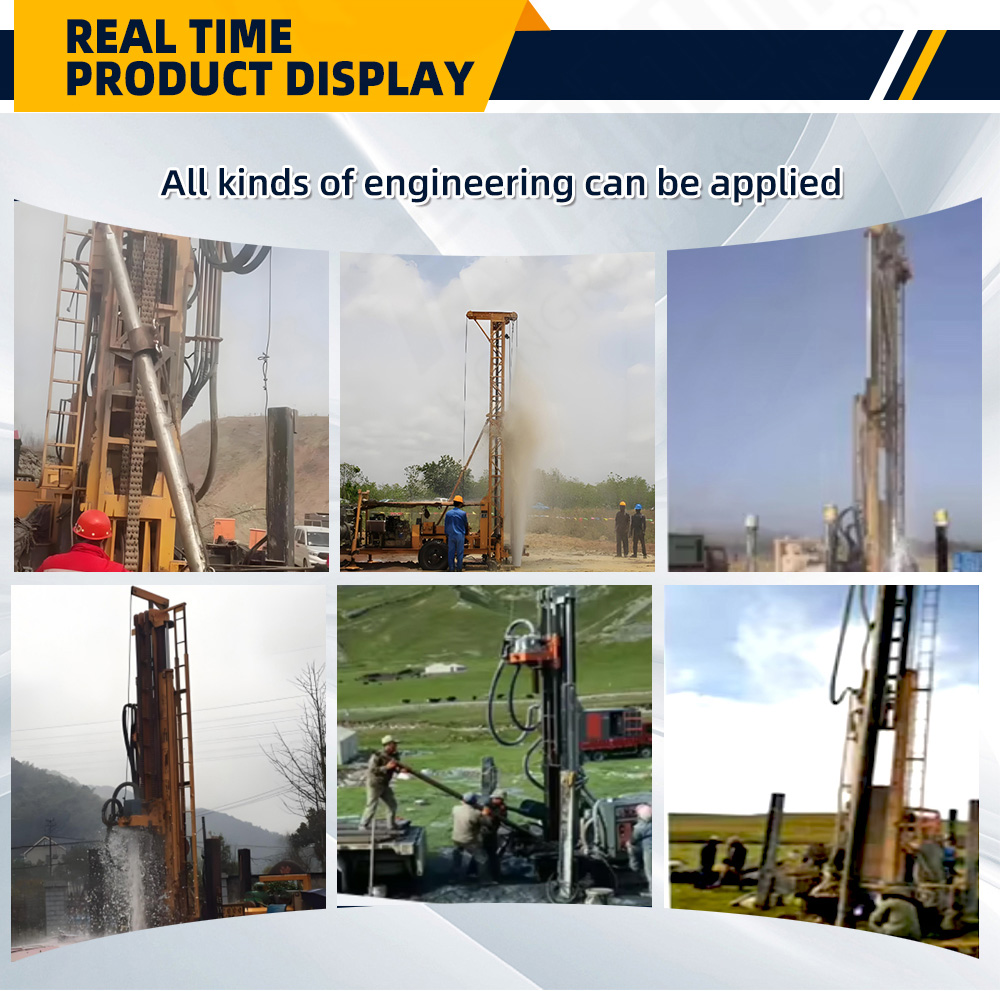

We can provide you with high-definition display images of the 300m wheeled water well drilling rig, presenting the detailed structure and design highlights of the rig in all aspects. At the same time, if you have further needs to understand the product, we can arrange online video communication at any time, with professional personnel providing real-time explanations and customized product introduction services.
Company Profile
FAQ：
1.Do you conduct quality inspections before delivery?
Our products are also tested for performance, safety, and other conditions by the final quality control team before delivery.
2.What after-sales services can the manufacturer provide after purchasing the equipment?
We provide comprehensive after-sales service, including equipment installation and commissioning, operation training, free maintenance and replacement of parts during the warranty period, as well as long-term technical support and parts supply. If the equipment malfunctions, our after-sales service team will respond promptly, solve the problem as soon as possible, and ensure the normal operation of the customer's equipment.
3. Is it possible to customize a drilling rig?
Of course, our engineers can provide customized services according to your special needs, such as customizing the functional configuration and appearance design of the drilling rig to meet different personalized needs.
