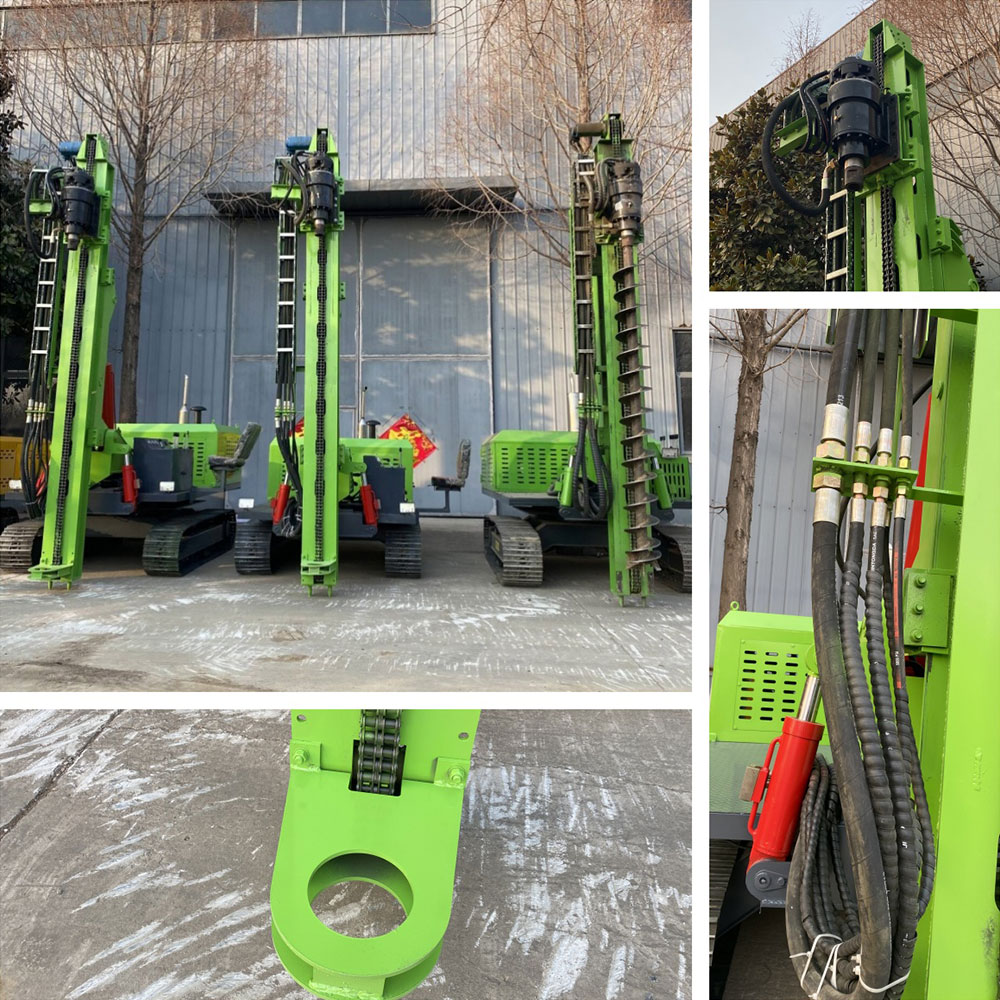

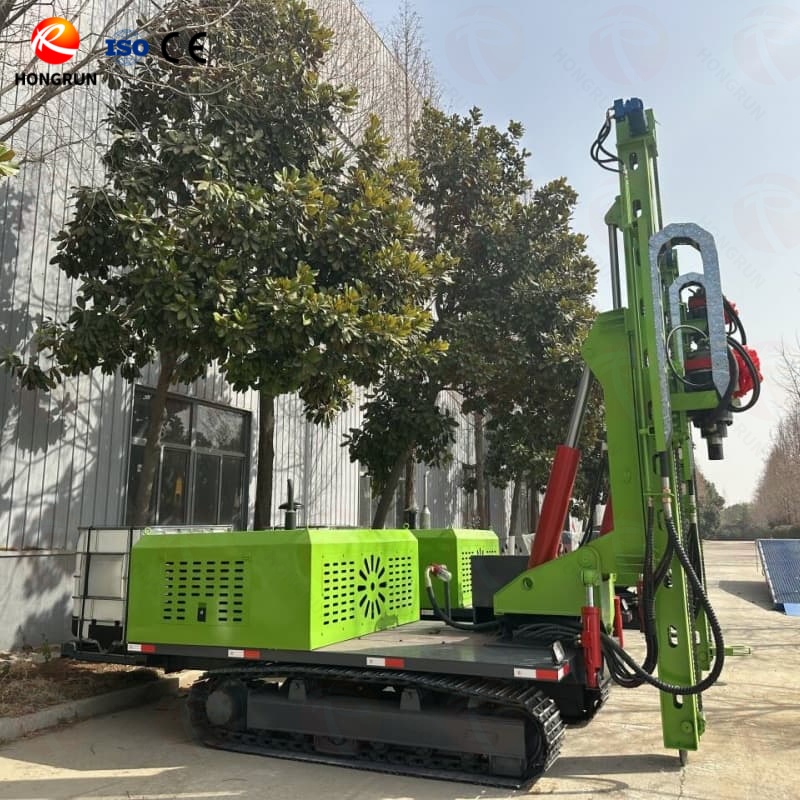

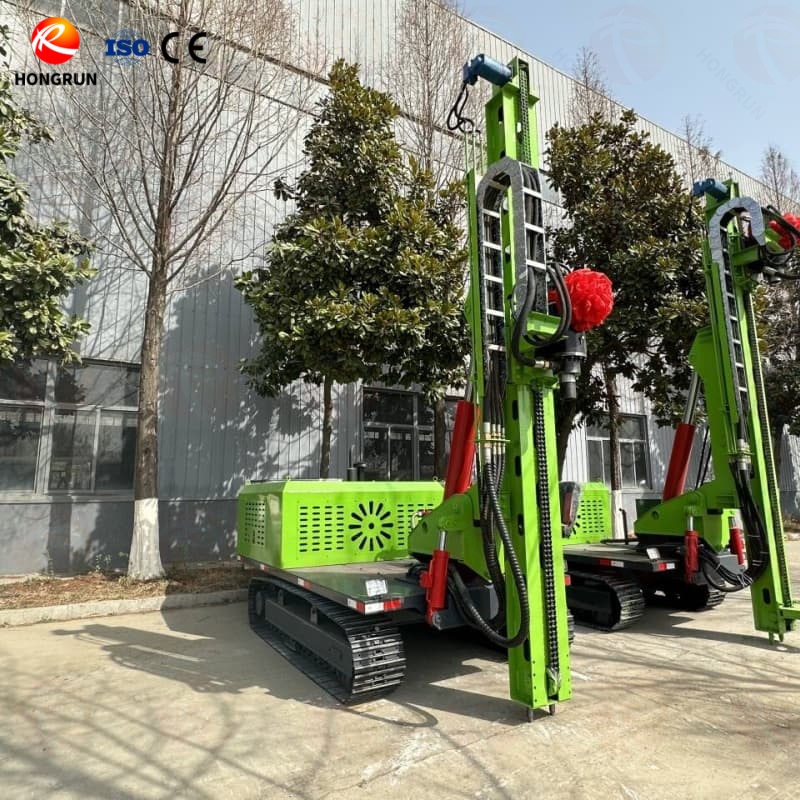

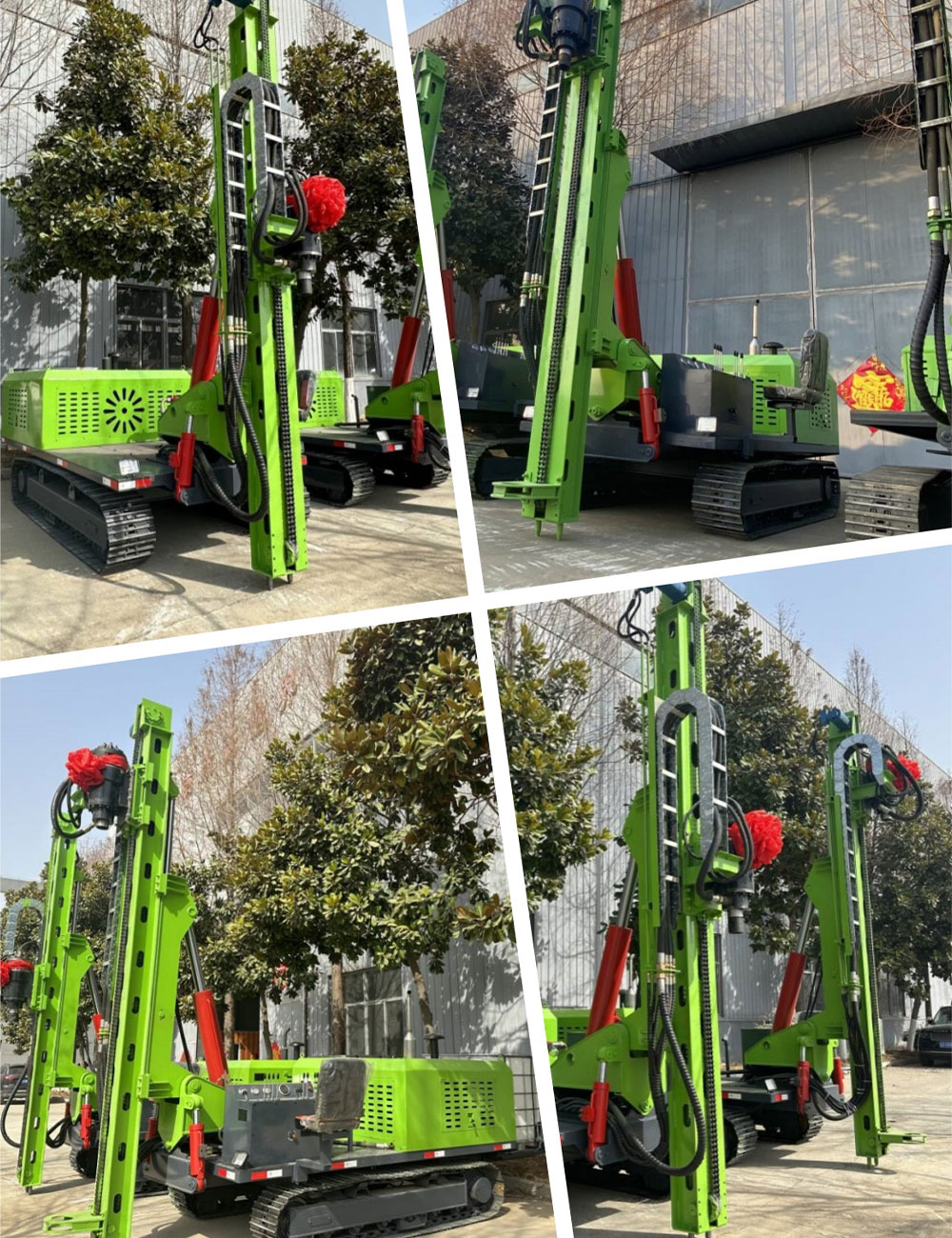

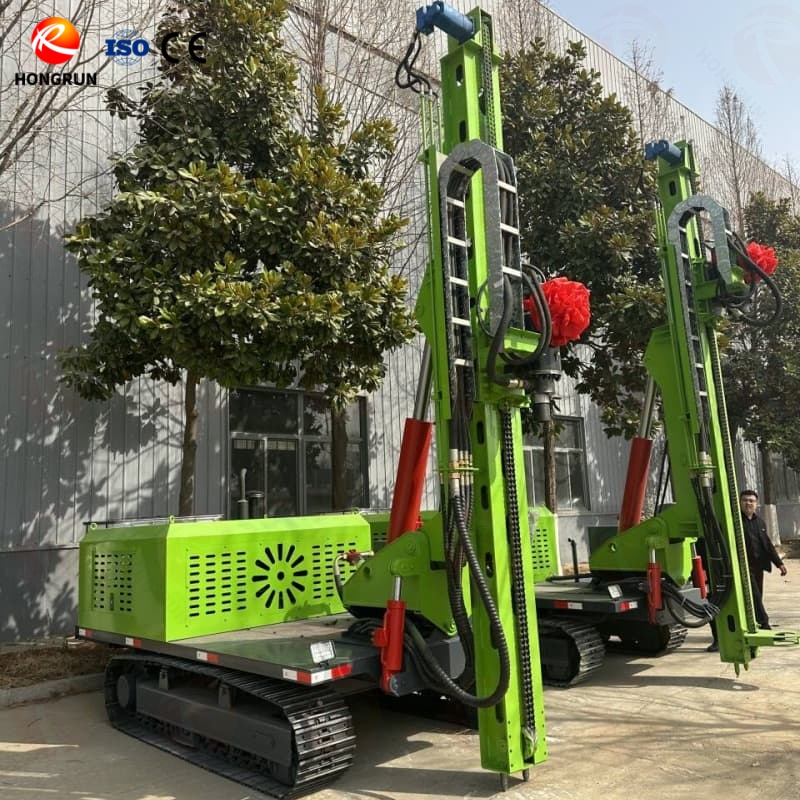

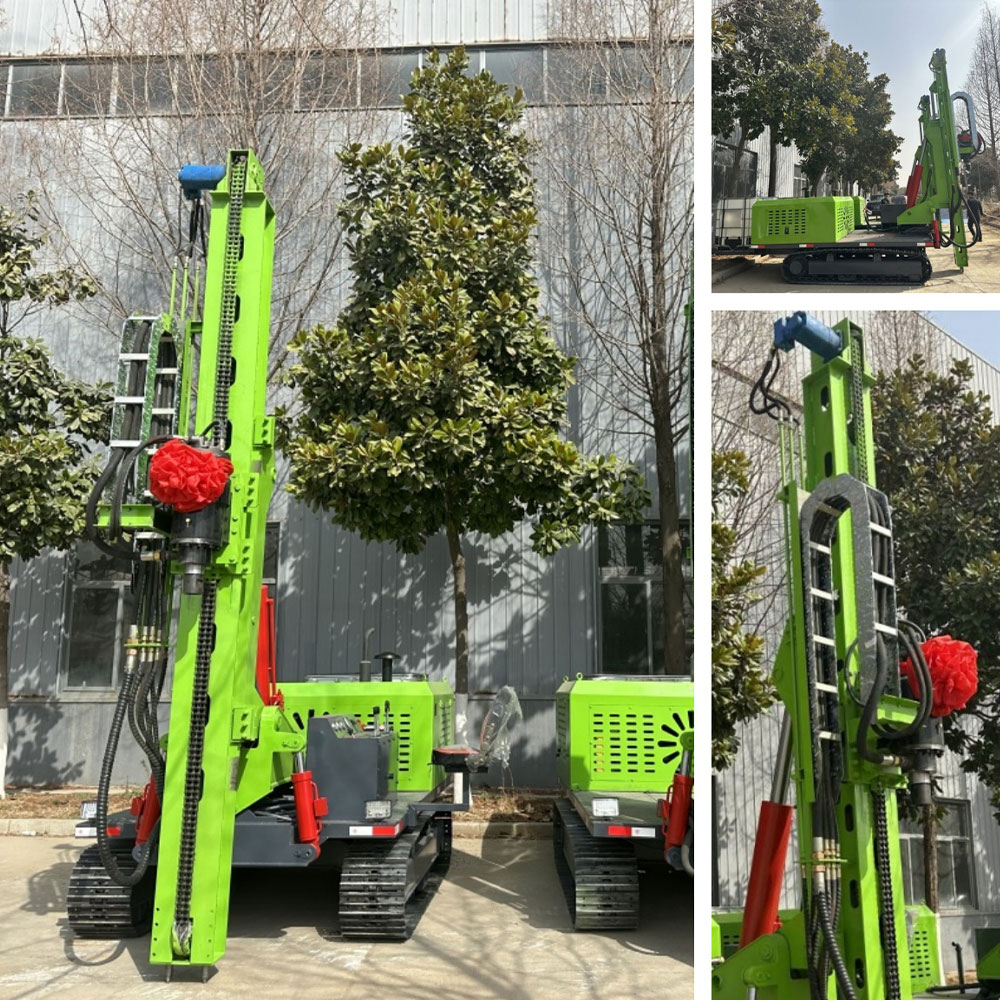

Solar Powered Drilling Machine
1.Structural features: The photovoltaic pile driver has a compact structure and is easy to operate.
2.Scope of application: The solar powered drilling machine is suitable for the construction of photovoltaic power station projects in various geological environments.
3.Hydraulic system: The drilling machine is equipped with a powerful hydraulic system, providing stable power.
4.Construction advantages: The pile driving process is efficient, precise and safe.
Product Details
Product Features Of Solar Powered Drilling Machine
Efficient pile driving The pile driver adopts a professional hydraulic hammer or rotary hammer system, featuring high striking efficiency and a single pile formation time as short as within 30 seconds.
Precise positioning The solar-powered drilling machine is equipped with a hydraulic guide rail and adjustment system, which makes it easy to achieve ±2cm error control of the pile position and adapt to installation at different inclination angles.
Strong adaptability Solar-powered drilling machines are suitable for various geological conditions, such as clay, sand layers, gravel, and hard soil.
Standard version photovoltaic pile driver+Hydraulic drop hammer vibrating pile driver | |||
Drilling diameter | 90-400 mm | Engine | Yuchai YCD4J22T- 115 |
Air consumption | 12-26 m³/min | Rated power | 85 kw |
Drill pipe diameter | 76/89 mm | Torque | 13500 N.M |
Auger pipe diameter | 100-600 mm | Big arm | Front and left oil cylinder amplitude adjustment |
Slider pitch angle | 120° | Main valve flow | 120L/min |
Working wind pressure | 0.7- 1.6 (medium pressure) | Hydraulic system pressure | 22 Mpa |
Walking speed | 0-5 km/h | Number of blows per minute | 550- 1050 n/min |
Drilling depth | 1-70 m | Crawler width | 400 mm |
Swing speed | 2400 r/min | Effective press pile stroke | 0-6000 mm |
Rock hardness | 6-20 F | Total Weight | 5 T |
One push stroke | 3000-6000 mm | Working size | 3.5*2.2*3.4 m |
Slider left and right angle | 40° left and right | Shipping size | 3.5*2.2*2.7 m |
Your needs are our goal! Consultation leads to in-depth optimization of technical parameters and customization of exclusive product solutions.
Product Features Of Solar Powered Drilling Machine
Stable structure The high-strength main frame and thickened steel plate structure ensure long-term stable and durable construction without easy deformation.
Easy to operate; The photovoltaic pile driver adopts a sensitive hydraulic control lever and supports single-person operation.
Adjustable pile driving Angle The pile Angle of the solar powered drilling machine can be adjusted from 0 to 45° to meet the requirements of different terrain slopes and photovoltaic array layouts.

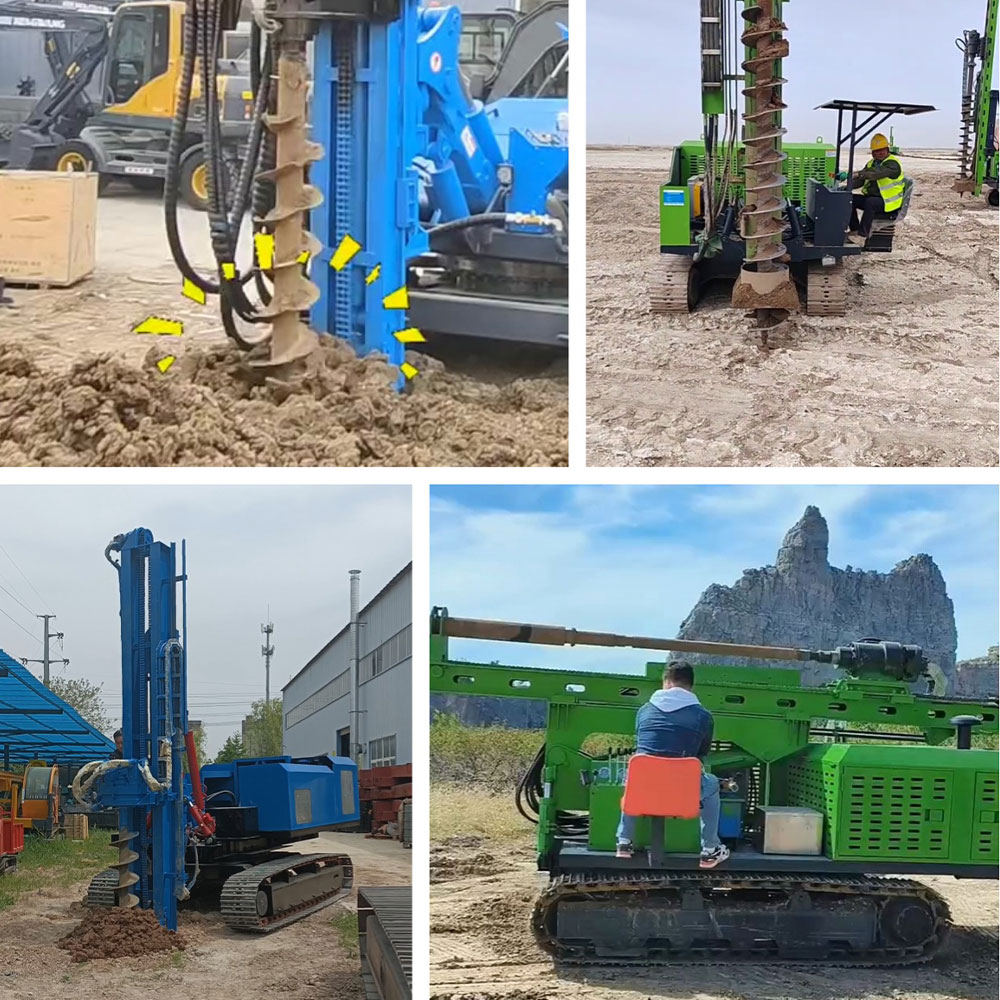

The Application Fields Of Solar Powered Drilling Machine
1.Photovoltaic power station construction
Large-scale centralized ground photovoltaic power station
Distributed ground photovoltaic system (such as industrial park, rural household)
2.Agricultural photovoltaic project
Photovoltaic bracket installation in farmland, pasture and forestland
Achieve dual benefits of agricultural planting and photovoltaic power generation
3.Mountain and hilly projects
Piling construction in high-slope and high-altitude areas
Precise operation with angle adjustment system
4..Road and railway photovoltaic projects
Pile foundation construction of photovoltaic green belts along highways and railways
Provide stable and reliable support system
5.Commercial photovoltaic piling
Ground photovoltaic bracket foundation construction outside factory walls, warehouse slopes, etc.

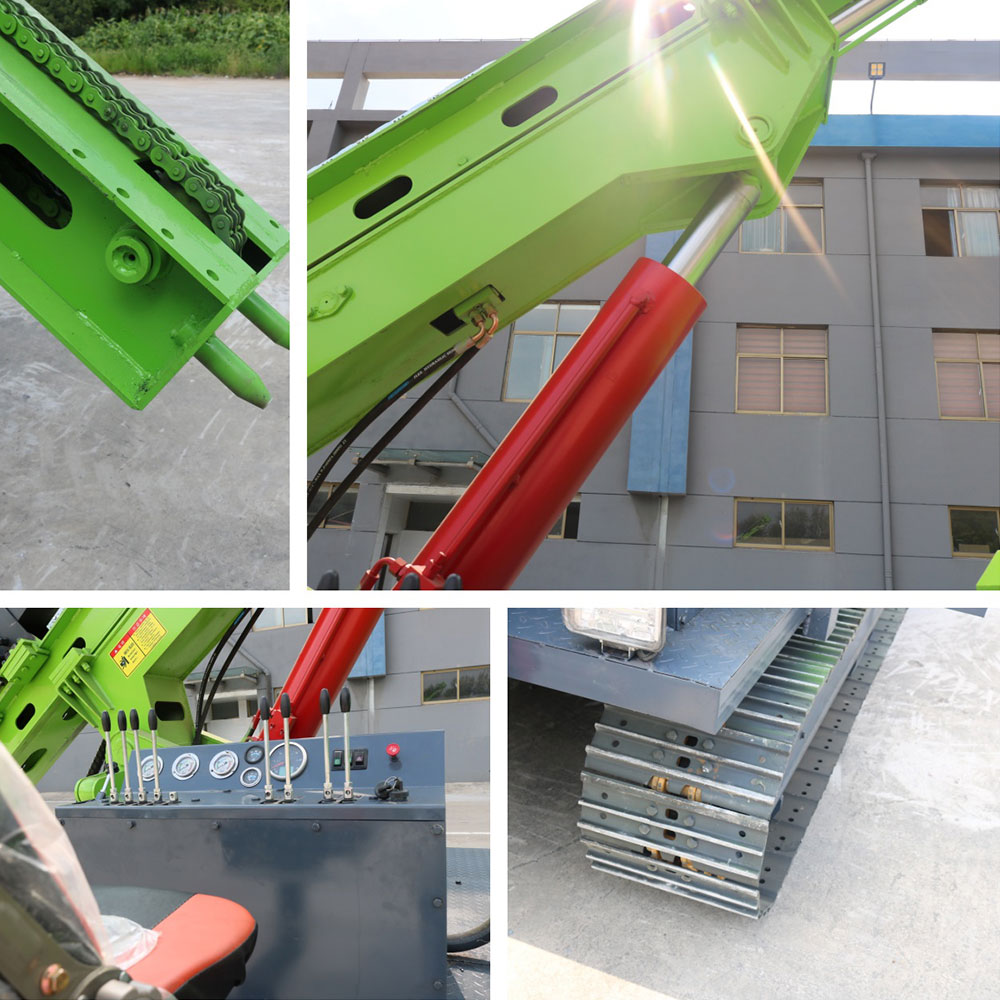

The Structural Composition Of The Crawler Pile Driver
1.The chassis system of the pile driver: crawler type, with excellent off-road performance
2. Hydraulic hammer system of solar-powered pile driver: Core driving device, providing vertical impact force
3. The power system of the solar powered drilling machine: The diesel engine provides power for the hydraulic system
The Structural Composition Of The Crawler Pile Driver
4. Guidance and positioning system: Controls the verticality and Angle of pile driving
5. Hydraulic control system of pile driver: Controls hydraulic actions to achieve functions such as lifting and turning
6. Adjustment device: Supports horizontal adjustment and tilting adjustment

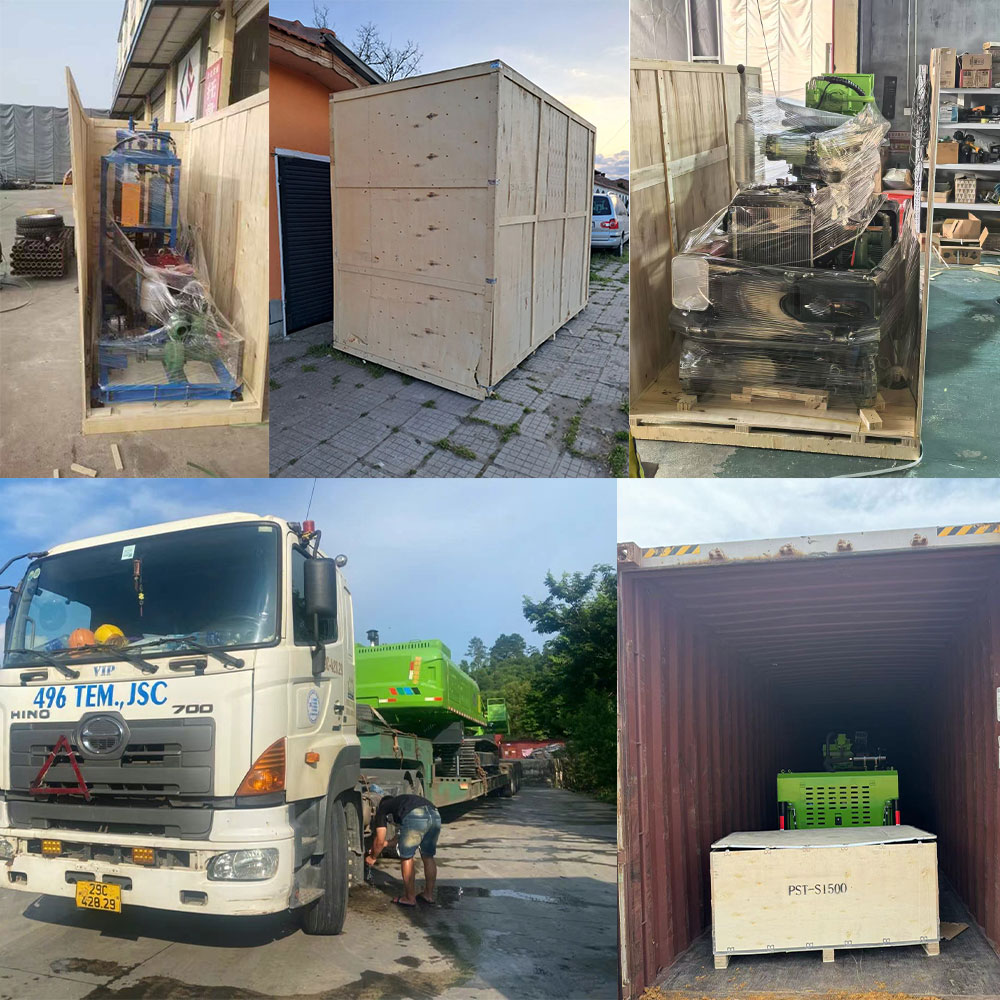

Packaging And Transportation
Standard iron frame + film packaging, suitable for container transportation
Export wooden box seals key parts, shockproof and rustproof
Provide whole machine or split delivery methods to meet international transportation requirements
Comes with English operating instructions, maintenance manual and tool kit
After-Sales Service
12-month warranty, remote guidance support
Video teaching supports installation, debugging, and maintenance
Common spare parts can be shipped in batches
Provide lifelong technical support
FAQ
Q1: What kind of geology can it adapt to?
A: The standard model is suitable for most strata such as clay, sand, gravel, and hard soil. If the geology is above the strongly weathered rock layer, a higher impact model can be customized.
Q2: Is it difficult to operate? Can a novice use it?
A: The operation is simple, and one person can complete all the processes. We provide video tutorials and remote teaching support.
Q3: Is customization supported?
A: It supports customized requirements such as pile diameter, pile driving depth, pile driving angle, and body color.
Q4: Can it be piled on a hillside or uneven ground?
A: It has the ability to adjust the angle and has a strong grip track to adapt to uneven terrain and a certain slope.
