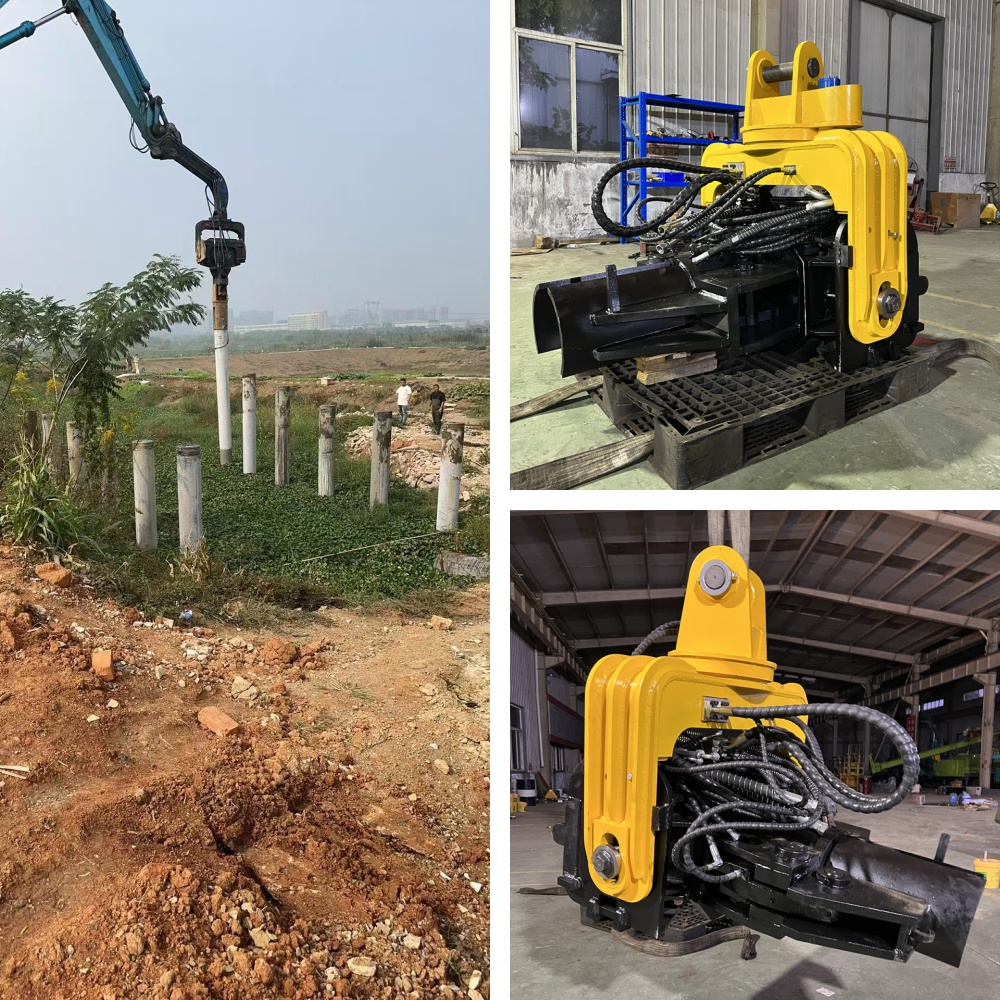

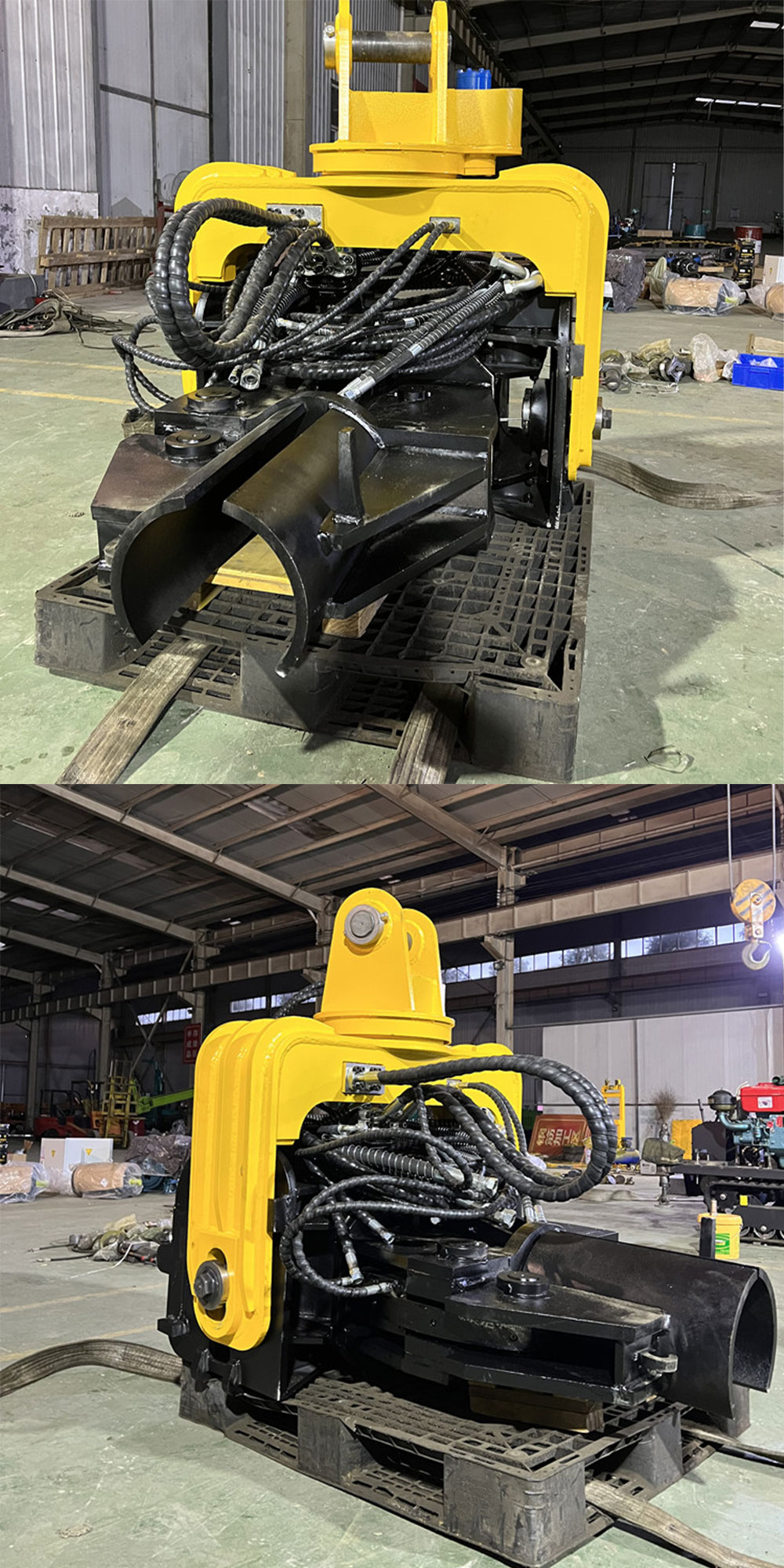

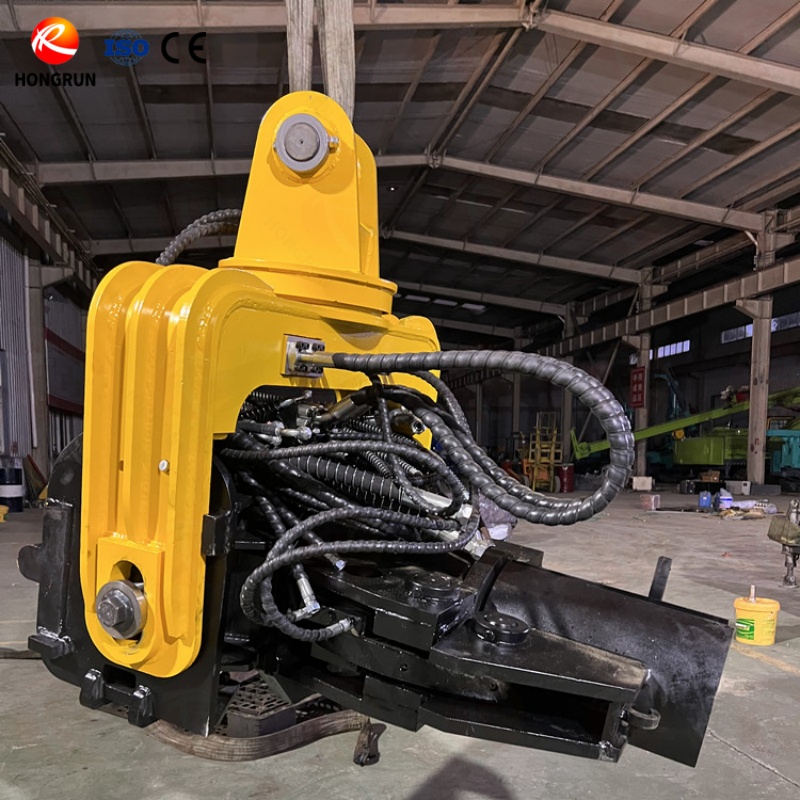

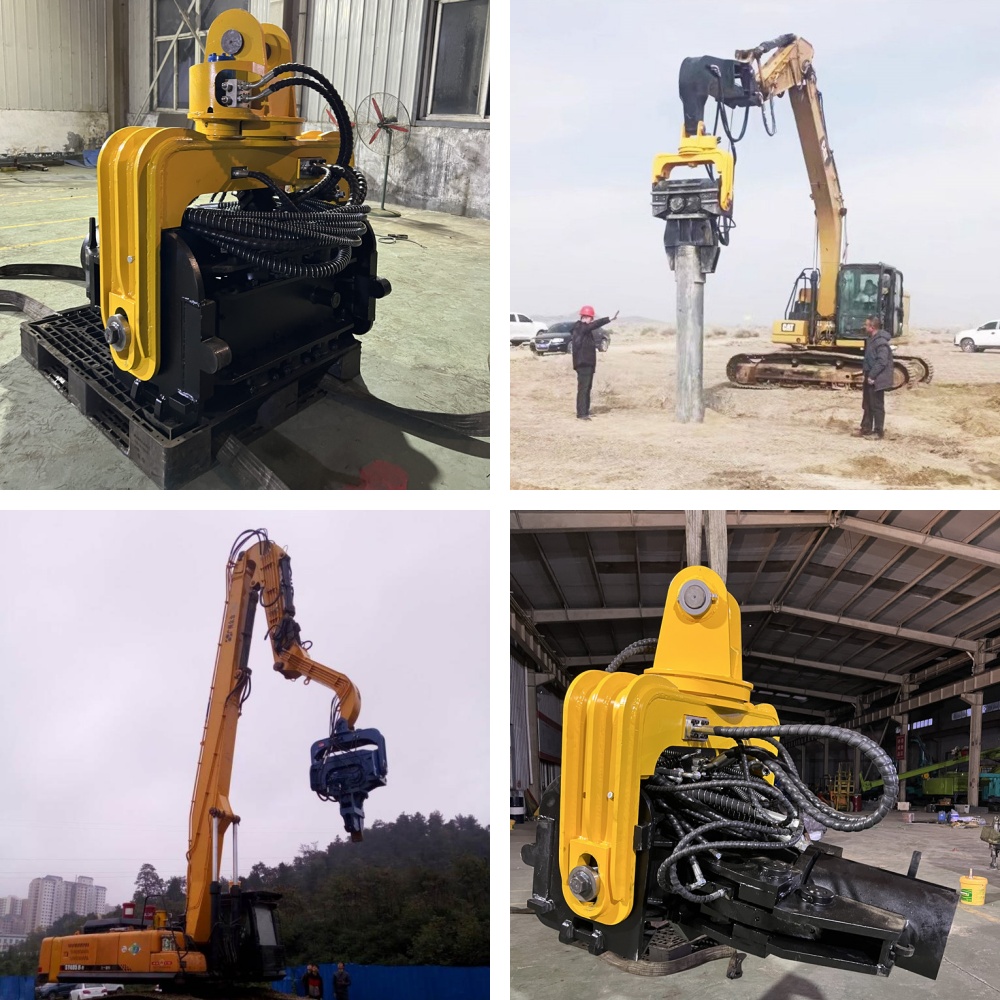

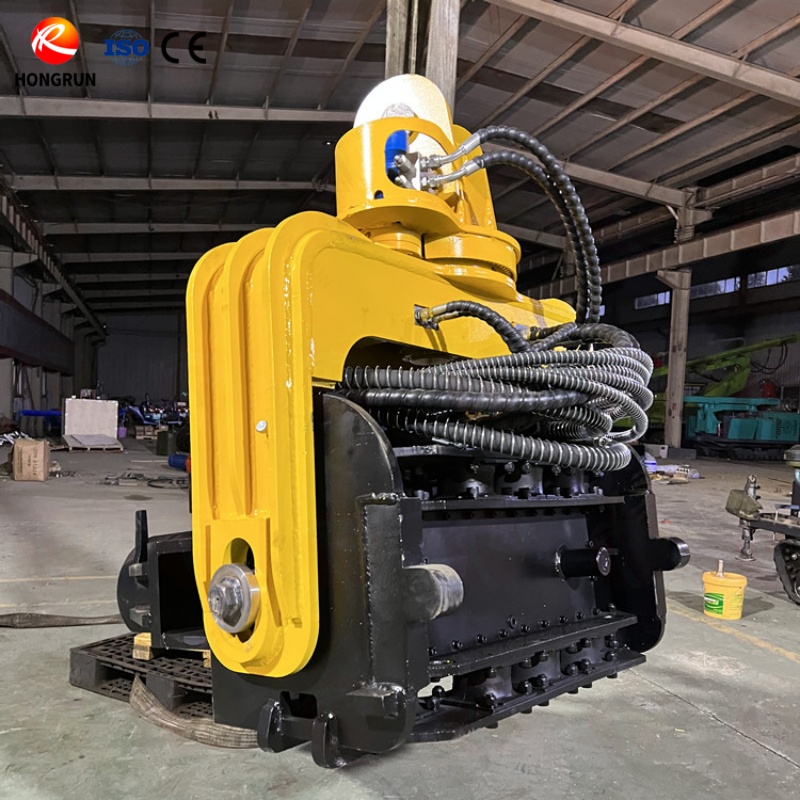

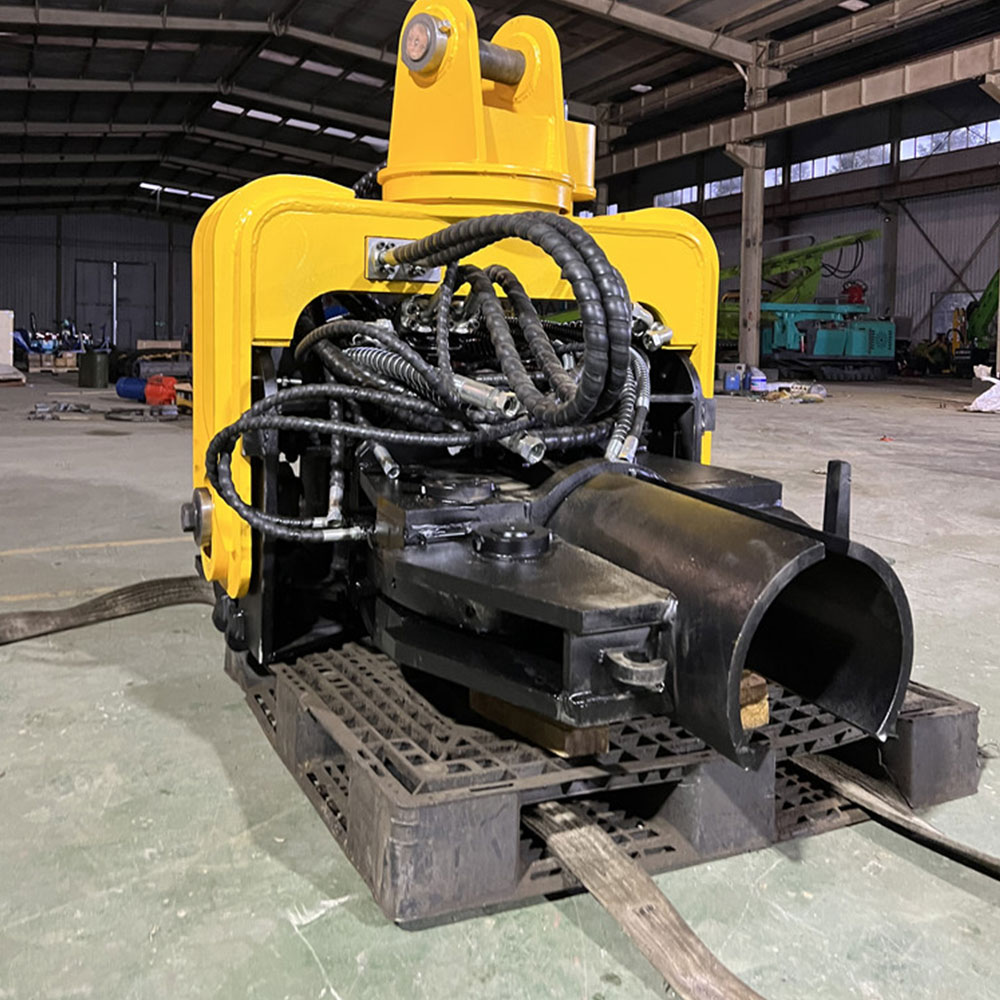

Vibratory Hammer For Excavator

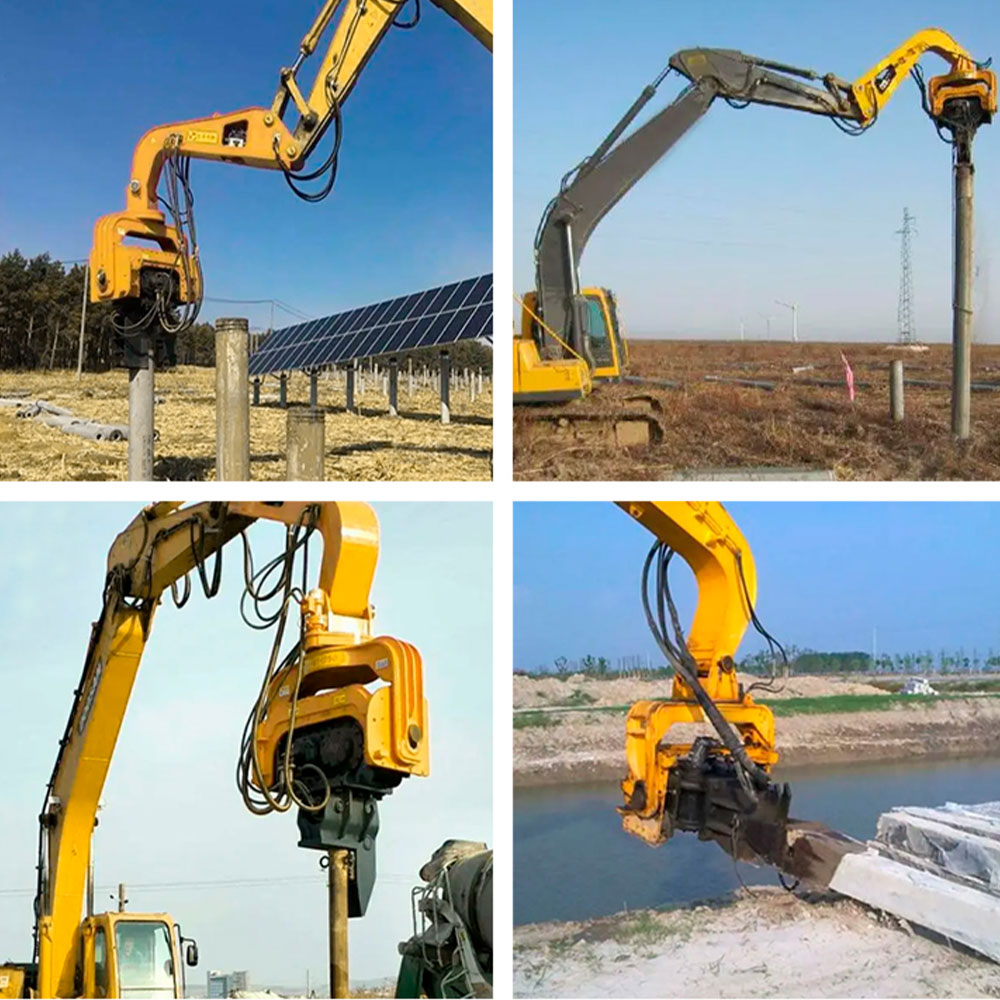

Vibratory Hammer For Excavator is an efficient pile driving equipment used in various foundation pile construction projects. Its main application areas are bridges, ports, railways, highways, wind power, etc. The equipment achieves high-frequency impact through hydraulic drive, with stable energy output, and is adaptable to various geological conditions.

Specific technical parameters can be adjusted as needed. Please feel free to consult at any time, and I will customize your own product for you！！！

Features Of Hydraulic Pile Hammer

1.High impact energy output; the vibratory hammer for excavator has stable and powerful impact energy (such as 30-200kJ), which can efficiently drive concrete piles, steel pipe piles, steel sheet piles, etc., and is suitable for all kinds of hard soil and complex geological conditions.

2.Adjustable impact frequency and impact intensity; the piston stroke and impact rhythm can be flexibly adjusted through the hydraulic system to adapt to different soil layers, pile types and construction progress requirements.

3.Compact structure and convenient installation; the hammer body is compact in size and balanced in weight, which is convenient and quick to install on the pile frame, crawler crane or lifting equipment.

4.High reliability hydraulic system; core hydraulic parts, high pressure wear resistance and temperature resistance, ensure long-term continuous working stability.

5.Strong versatility and adaptability; suitable for different types of pile materials and pile diameters, customized pile caps or interface devices according to needs to meet diverse construction scenarios.

Vibratory Hammer For Excavator Structure

1.Hammer body; made of high-strength impact-resistant alloy steel, with extremely high structural rigidity and fatigue resistance. There are guide mechanisms and sliding channels inside to ensure that the piston always keeps the axis vertical during impact.

2.Piston assembly; driven by the hydraulic system, releases impact energy during movement to hit the pile cap. Weight and stroke determine the size of the pile driving energy, and the impact stroke can usually be adjusted to meet different geological and pile type requirements.

3.Hydraulic power unit; hydraulic pump, valve group, cylinder, etc., responsible for transmitting hydraulic energy to the piston to achieve continuous impact.

Vibratory Hammer For Excavator Structure

4.Energy regulation system; adjust the impact frequency and the size of the impact energy to meet the requirements of different projects for pile penetration speed and impact intensity to improve construction accuracy.

5.Guide frame and slide rail system; installed at the upper and lower ends of the hammer body or the external frame to guide the piston movement, maintain the stability of the equipment, and prevent damage to the pile body caused by tilted impact.

6.Pile cap and pile shoe; connect the hammer body and the pile head, buffering and energy transmission. The pile cap is usually made of wear-resistant and highly elastic material, which can be replaced and customized according to the pile type (steel pipe pile, concrete pile, H-shaped steel, etc.).

7.Control system; manual control console, electric control box, remote control electronic components, to achieve the adjustment and monitoring of parameters such as pile driving frequency, impact force, stroke, etc.

8.Connection interface and installation structure; suitable for various engineering machinery hosts (such as crawler cranes, rotary drills, pile driving frames, etc.), lock pins, quick-change devices to achieve rapid installation and replacement.

Product Advantages

1.Efficient and powerful piling capability; hydraulic drive system provides stable and powerful impact energy, effectively improves piling efficiency, and adapts to various complex geological conditions.

2.Environmentally friendly and low-noise design; hydraulic power runs quietly, meets urban environmental protection construction standards, and is suitable for noise-sensitive areas.

3.Intelligent control, convenient operation supports parameter preset, impact energy adjustment, automatic shutdown protection, and improves operational safety and accuracy.

4.Easy maintenance, lower cost; modular structural design, easy disassembly and maintenance, main components are wear-resistant and pressure-resistant, daily maintenance cycle is long, and overall operating costs are more competitive.

5.Adapt to a variety of construction equipment; main machines such as crawler cranes, pile frame machines, rotary drilling rigs, etc. are used in conjunction, and the interface can be customized to meet the needs of different projects.

6.Professional customization service; supports customized pile caps, appearance colors, brand logos, operating languages, etc., to meet export needs and brand exclusivity construction.

Customization

1.Product customization: Pile caps of different materials, structural forms, and sizes can be customized according to the pile types used by customers (such as precast concrete piles, steel pipe piles, H-shaped steel piles, etc.).

2.Customization of equipment interface and installation structure; crawler crane, pile driver, excavator platform, etc., can customize the connection interface, adapter or bracket structure link.

3.Customized appearance color and logo; provide whole machine spray color, logo printing and product nameplate customization.

After-Sales Service

Equipment factory delivery

1.Factory inspection report: The equipment has passed the impact energy test, sealing test, and functional load test before leaving the factory to ensure that the performance meets the standards.

2.Complete supporting materials: The equipment comes with operation manuals, maintenance guides, technical parameters, certificates of conformity and other documents, supporting Chinese and English versions.

Quick response after-sales system

3.Respond to customer after-sales requests within 24 hours;

4.Provide technical support services such as telephone, video, and remote diagnosis;

International after-sales network support

5.For export customers, we provide local agent after-sales service or manufacturer remote assistance solutions;

6.Support services such as export customs clearance information, certificates of origin, translation of instructions for use, remote testing documents, etc., to facilitate cross-border maintenance compliance.

Hydraulic Pile Hammer FAQ

Q1; What is a hydraulic pile hammer?

A1;: A hydraulic pile hammer is a heavy-duty engineering machinery that uses hydraulic energy as a power source and drives piles into the ground through up and down reciprocating motion. It is widely used in foundation pile construction of buildings, bridges, docks, highways, photovoltaic power stations and other projects.

Q2; What is the working principle of a hydraulic pile hammer?

A2: A hydraulic pile hammer mainly drives the hammer body to rise and quickly releases energy through a hydraulic system, causing the hammer body to fall freely or accelerate to impact the pile head, thereby gradually driving the pile into the ground. Its striking frequency is adjustable, with great impact force and high efficiency.

Q3; Will a hydraulic pile hammer have an impact on the surrounding environment?

A3: Compared with traditional diesel hammers, hydraulic pile hammers have less noise and vibration, and are suitable for urban construction or noise-sensitive areas. At the same time, its hydraulic system runs smoothly, has less impact force on the ground, and is more environmentally friendly.

Q4. How to choose a suitable hydraulic pile hammer model?

A4: Comprehensive judgment is required based on the following factors:

Pile diameter and length (determine impact force and adaptability range);

Soil type (hard soil requires greater impact force);

Construction site size (determines equipment installation method);

Budget and operation frequency;

Matching host (excavator/pile driver) parameters.
