Down The Hole Drilling Machine
Features

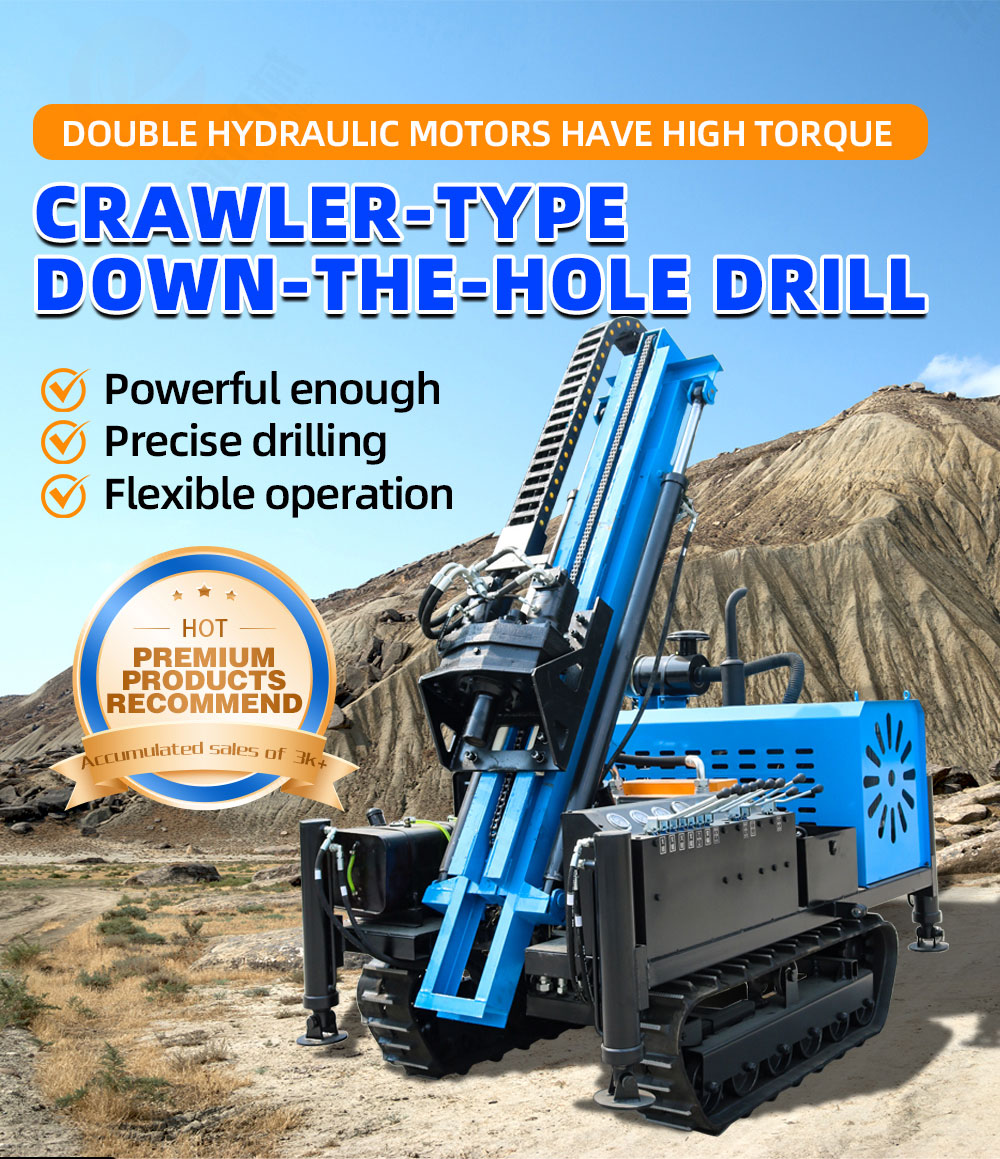

The down the hole drilling machine is equipped with a branded engine and a high-performance hydraulic system. It incorporates a high-torque power head and is fitted with an engineering rubber crawler chassis as well as hydraulic auto-leveling support legs. The machine features a compact and modular design.
Advantages
The down the hole drilling machine delivers powerful and energy-efficient performance, reducing operational costs. Its optimized structural design enables efficient drilling in various geological conditions, including soil, rock layers, and concrete. The integrated control system ensures precise operation, significantly improving construction efficiency. With strong adaptability, it meets diverse drilling needs.
Benefits
The down the hole drilling machine enhances drilling efficiency, effectively shortening project timelines. Its stable performance design extends the equipment's service life.
Product Details
Product Introduction
Our down the hole drilling machine adopts advanced hydraulic system and dual power mechanism to perform drilling operations at higher speeds, improve work efficiency, and adapt to various geological environments and complex working conditions.
Parameter Table
Engine | 42kw | Working wind pressure | 0.7-1.6（medium voltage） |
Drilling depth | 200m | Drill pipe diameter (spiral) | 76/89mm |
Spiral drilling diameter | 80-300mm | Drilling angle | 35-90°（customizable） |
Air consumption | 10-31m³/min | Adapt to rock hardness | 6-20F |
Oil pump | 40/40 dual pump | Operation form | Hydraulic operating lever |
Hydraulic support leg | Four | Weight | 2.0 T |
Start mode | One click electric start | Walking mode | Hydraulic walking |
Rock drilling diameter | 50-300 mm | Rotate speed | 0-80r/min |
Spiral drill depth | 20m | Working | 2.7*1.4*3.0m |
Power head torque | 8000N.m | Transport dimensions | 2.7*1.4*2.5m |
Walking speed | 0-10km/h | / | / |
Note: If you have specific technical requirements, please feel free to contact me at any time. I will tailor a product solution according to your needs.
This down the hole drilling rig is equipped with a branded engine and a durable and reliable hydraulic cylinder, which improves the efficiency of the drilling rig. The drilling rig chassis adopts engineering rubber tracks, which have both anti slip and durable characteristics, and can easily cope with various complex terrains; At the same time, our factory provides you with a one-year warranty service, allowing you to use it with confidence.

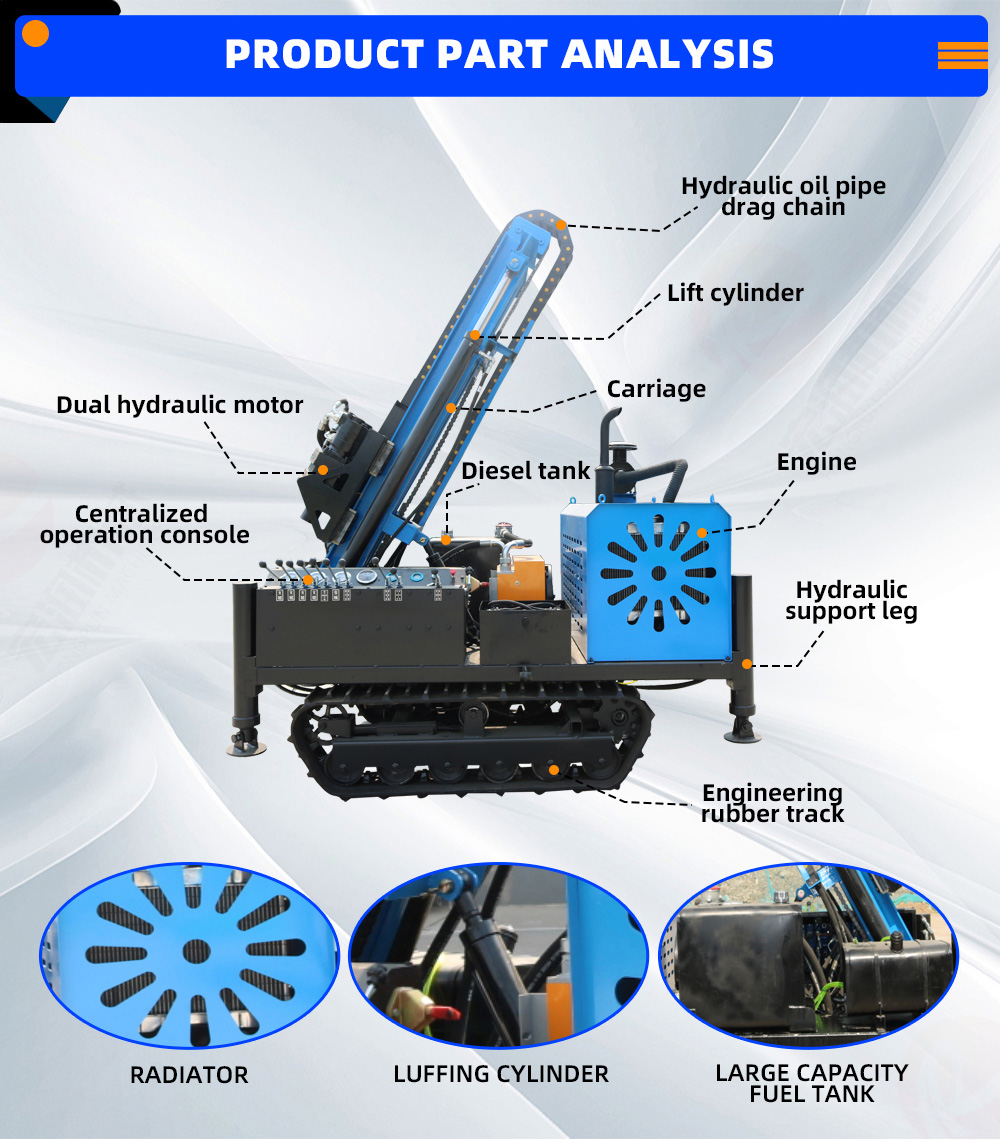

Product Structure Analysis

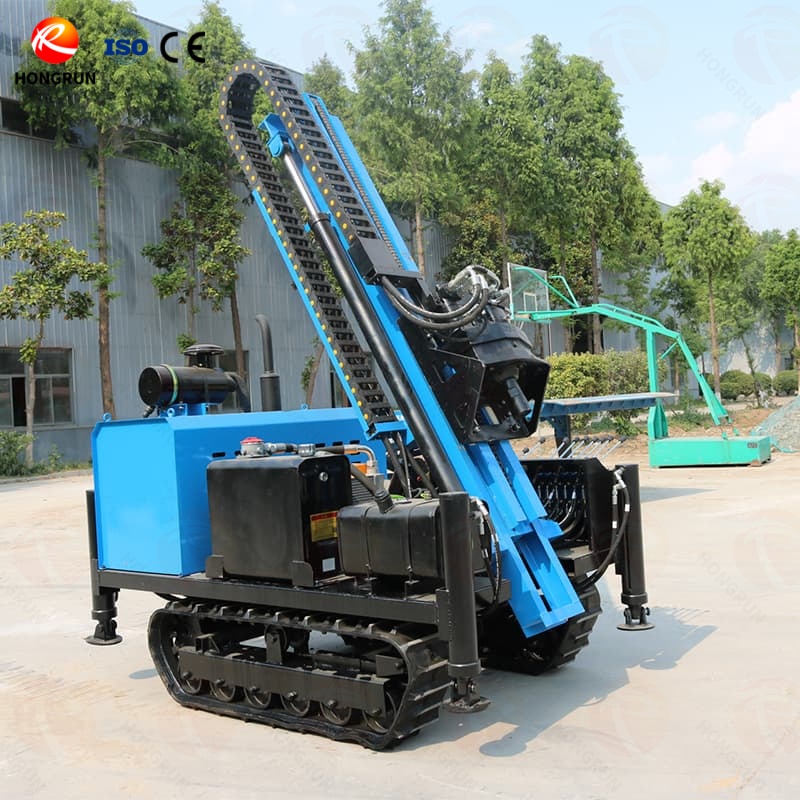

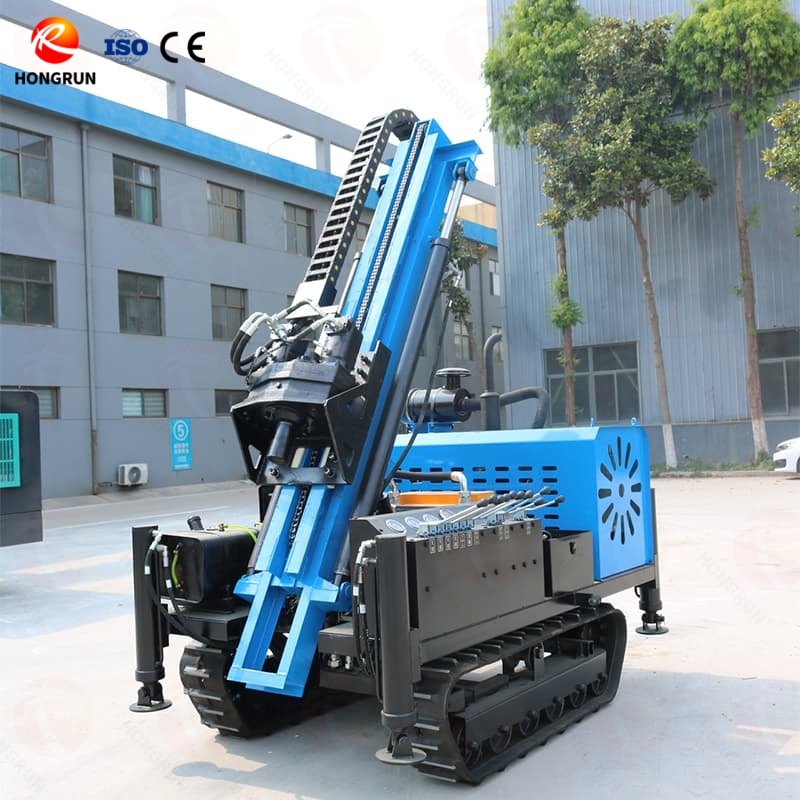

This down the hole drilling machine has a compact structure, powerful performance, high-end core component configuration, and complete system. It mainly includes a branded engine, a large capacity diesel tank, a centralized operation platform, as well as key components such as dual hydraulic motors, lifting cylinders, hydraulic oil pipe drag chains, slides, and hydraulic support legs, which can maintain efficient drilling operations.
This down the hole drilling machine is widely used in construction, water conservancy engineering, bridge construction, geological exploration and other fields due to its excellent performance and reliable adaptability, providing efficient and reliable drilling solutions for various projects.
This down the hole drilling machine has flexible and adjustable drilling angles and strong geological adaptability, which can easily cope with various complex geological conditions such as soil, rock layers, and concrete, achieving efficient and accurate multi angle drilling operations.
Product Details
Our down the hole drilling machine has a high-performance power head with high torque output and a wide range of speed adjustment, which can adapt to various specifications of drill rods and meet different working conditions; By using branded engines, it ensures strong power while reducing fuel consumption, significantly improving operational efficiency.

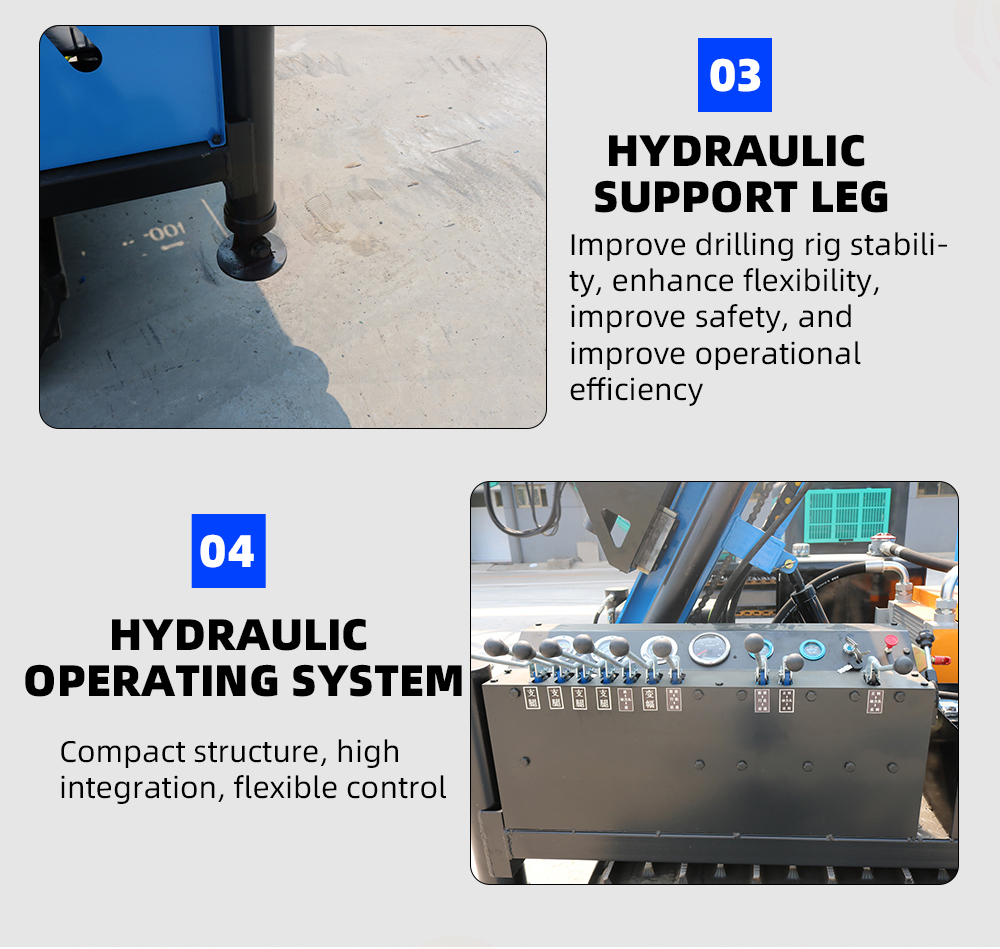

We use four hydraulic support legs for this down the hole drilling machine, which improves the stability of the drilling operation and can maintain smooth drilling even in complex terrains; Equipped with a hydraulic centralized control panel, with multiple gear adjustments and high integration, it can be easily controlled.

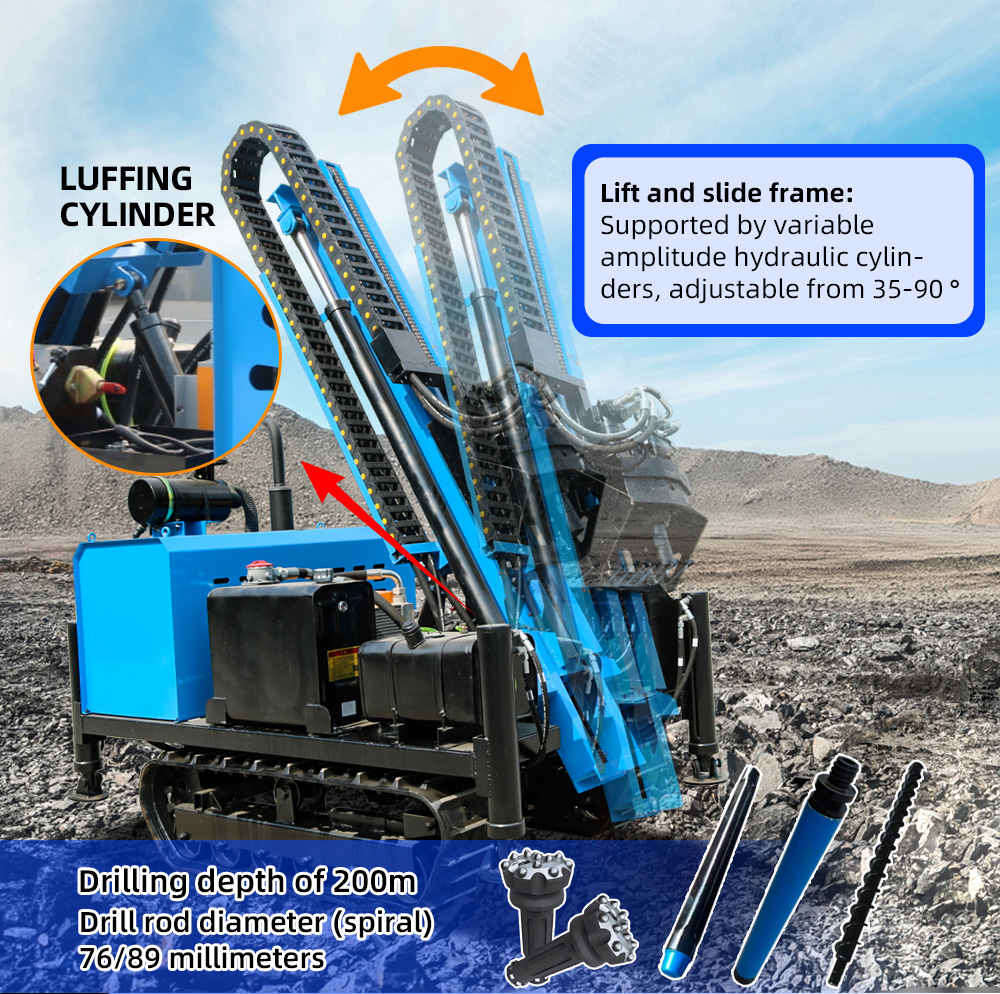

Our four cylinder down the hole drilling machine has a drilling depth of up to 200 meters and two specifications of spiral drill rods, 76/89 millimeters; The slide of the drilling rig is controlled by a variable amplitude oil cylinder, which can be flexibly adjusted within the range of 35 degrees to 90 degrees, ensuring the accuracy of the drilling angle.

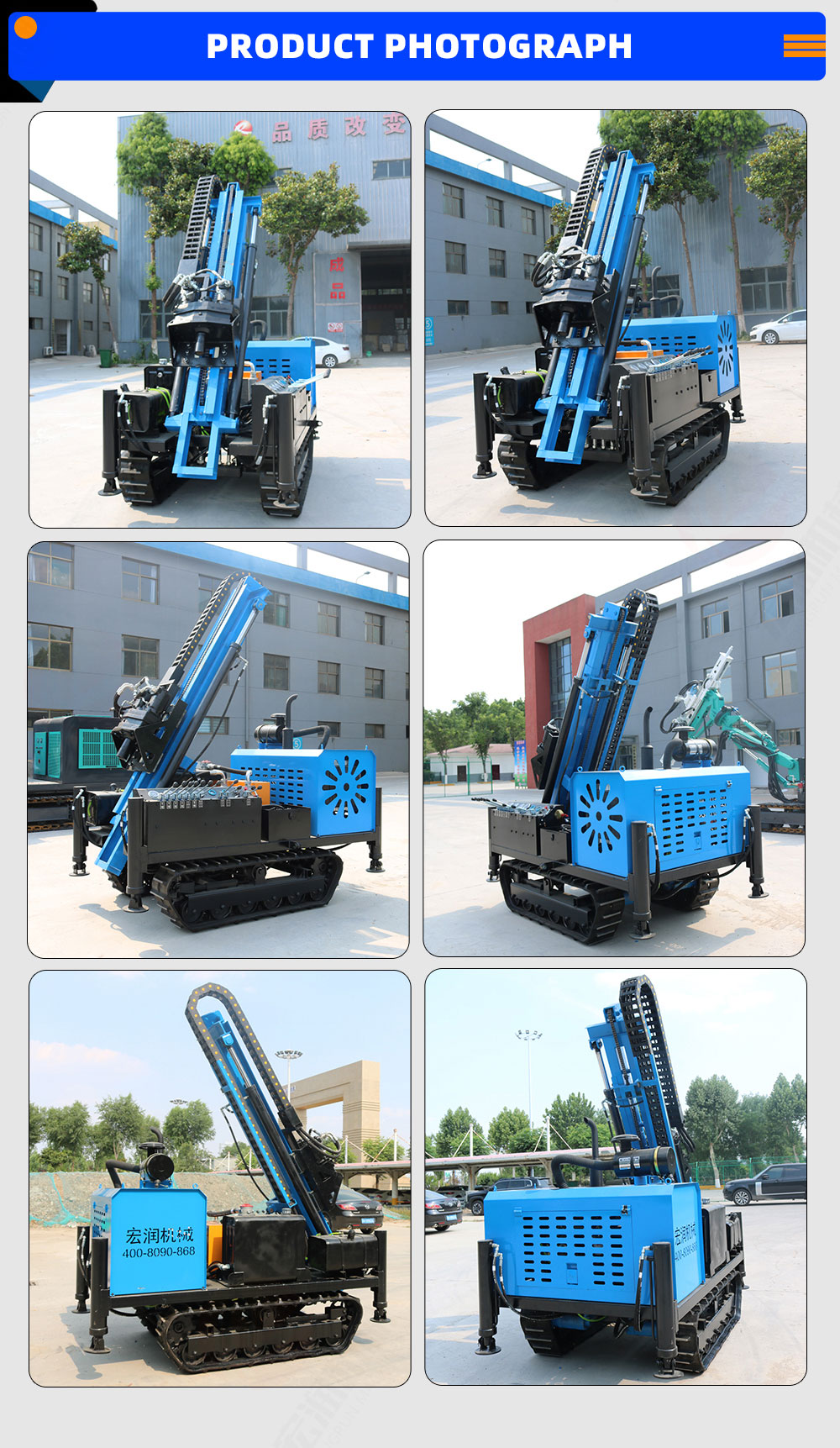

We can provide you with high-definition display pictures of the drilling rig, clearly presenting the details and performance of the rig. Of course, we also welcome you to visit our factory for on-site inspection, to experience the operational performance and advantages of the drilling rig firsthand. We will have a professional team to provide you with technical explanations and operational guidance throughout the process.
Certification
Our Factory
FAQ：
1. Does it support customized configuration (such as drill pipe length, engine model)?
Of course, key parameters can be adjusted according to the construction environment and process requirements. Please contact customer service for specific details.
2.Is the operation of the hydraulic control system complicated?
Adopting an intelligent centralized console, with one click adjustment for multiple gears, the operation is simple and intuitive, and beginners can get started after 2 hours of training.
3.Is it convenient to replace drill rods?
Support quick disassembly and assembly design, no special tools required, single person can complete drill pipe replacement within 3 minutes.
