Solar Pile Ramming Machine
Feature
Hongrun Machinery's Solar Pile Ramming Machine adopts a 360 ° rotating chassis, high leg design, and interchangeable power head. Its design can easily handle flat and complex terrain.
Advantage
This photovoltaic pile driving equipment can easily climb uphill and adapt to rough terrain. It is as stable as a rock during operation, ensuring that each pile position is precise and error free. Short, practical, and efficient!
Revenue
The installation speed of photovoltaic drilling rigs is fast, reducing manual workload, and the foundation of solar energy projects is more solid - saving a lot of time while improving overall efficiency.
Product Details
Hongrun Machinery, as a source manufacturer with over ten years of industry experience, has launched a series of photovoltaic pile driver with strong capabilities. This device has passed ISO and CE certification, undergone strict quality inspection, and has the flexible performance of multi-purpose use. With a 360 ° rotating chassis and high-low leg design, it can adapt to complex construction scenarios in photovoltaic power plants. The drilling machine for solar has complete functions and supports customization of multiple models, making it a reliable choice for photovoltaic engineering pile driving operations.
Standard photovoltaic pile driver | |||
Engine | Yuchai 4105ZY | Drilling depth | 1-70 m |
Power head torque | 13000 N.m | Screw drill pipe drilling depth | 20 m |
Rated power | 85 kw | One propulsion trip | 2.6 m |
Adapt to rock hardness | 6-20 F | Air consumption | 10-26 m°/min |
Sliding frame pitch angle | 120° | Sliding frame left and right adjustment angle | Left and right 40 |
Drilling diameter | 90-400 mm | / | / |
Hydraulic Hammer | |||
Hydraulic hammer model | 75/85/100 optional | Main valve fow | 120 L/min |
Hydraulic hammer lmpact energy | 1350 J | Impact frequency | 350-800 bmp |
Number of blows per minute | 550-1050 n/minute | Duplex gear pump displacement | 42 ml/r |
Effective press pile stroke | 0-4000 mm | / | / |
High Leg style | |||
The height of the single-sided hig houtrigger(customization ) | 1.2 m | Air consumption | 12-26 m°/min |
Torque | 13500 N.m | Walking speed | 0-5 km/h |
Swing speed | 0-110 r/min | / | / |
360° rotation device | |||
Drilling diameter | 80-400 mm | Slider left and right angle | 40° left and right |

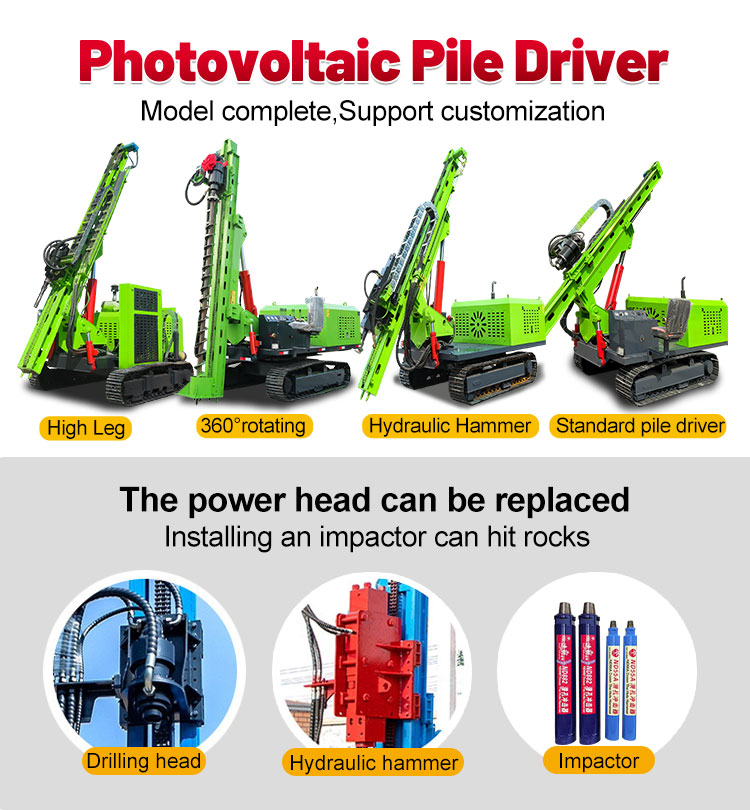

Complete Range Of Models To Choose From
Crawler Solar Spiral Pile Driver has a complete range of models and supports customization, including high leg, 360 ° rotating, hydraulic hammer, standard pile driver, and other types. Its power head can be replaced, equipped with drilling head, hydraulic hammer, impactor and other components. After installing the impactor, it can also hit rocks, which can meet the piling needs of different scenarios in photovoltaic engineering.

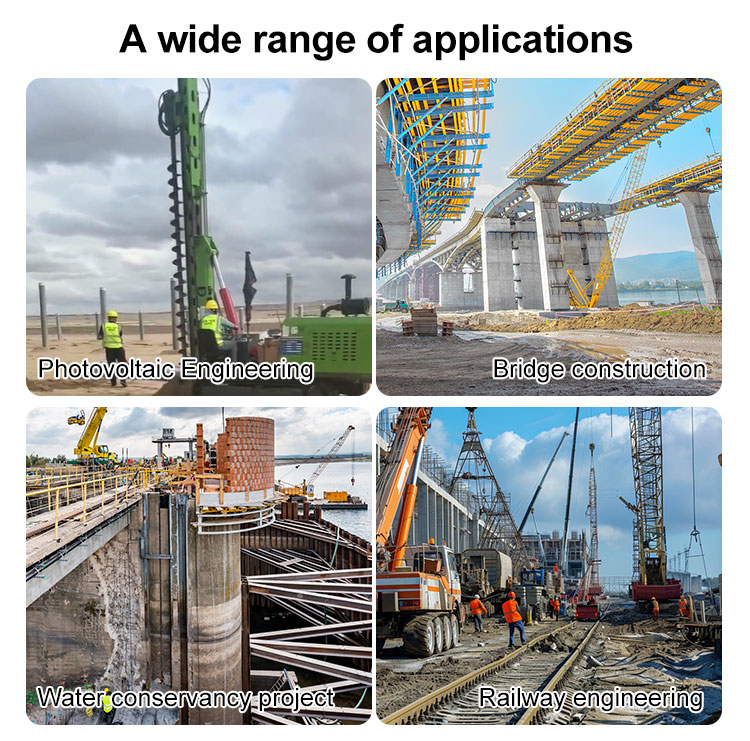

Application Scenarios
Helical Pile Driver for Solar have a wide range of application scenarios and can be used in multiple fields such as photovoltaic engineering, bridge construction, water conservancy engineering, and railway engineering, demonstrating strong multi scenario adaptability.

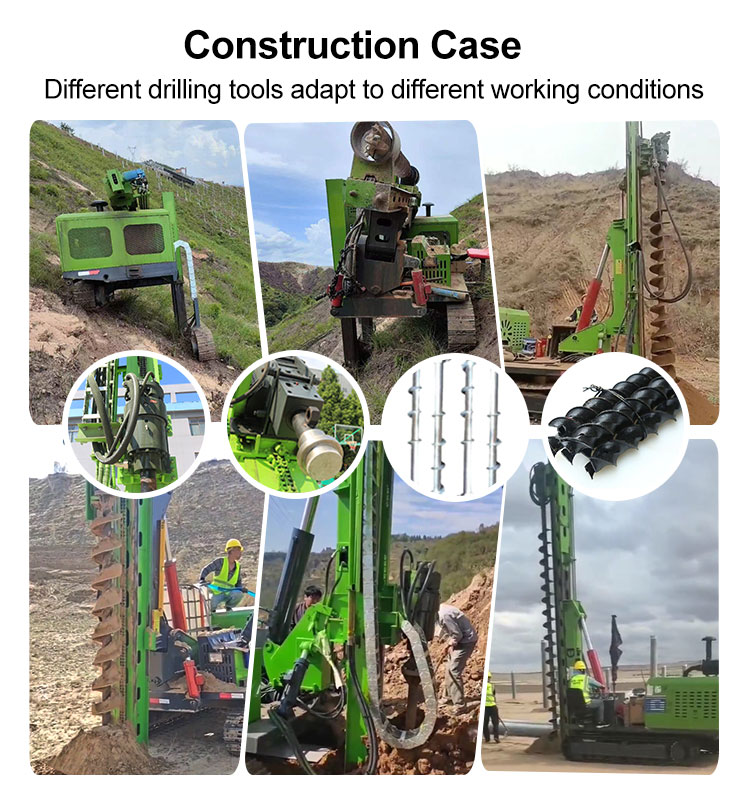

Construction Case
The piling rig machine for solar farms has demonstrated strong adaptability to different working conditions during construction, and can operate in various terrains ranging from steep mountain slopes to loess slopes. Equipped with different drilling tools such as power head, hydraulic hammer, drill rod, and spiral drill bit, it can be flexibly replaced according to actual construction needs. Whether it is drilling into the soil or construction under complex geological conditions, it can be efficiently completed, fully reflecting its excellent performance in different working conditions
Optional Configurations For PV Solar Pile Drivers
1. Winch, equipped with a red hook winch device, can assist in lifting operations.
2. Retainer, blue hydraulic component, used for fixing and positioning equipment.
3. Vacuum cleaner, gray black dust removal equipment, can effectively reduce construction dust.
4. Loading hydraulic support legs to enhance the stability of equipment during loading or operation

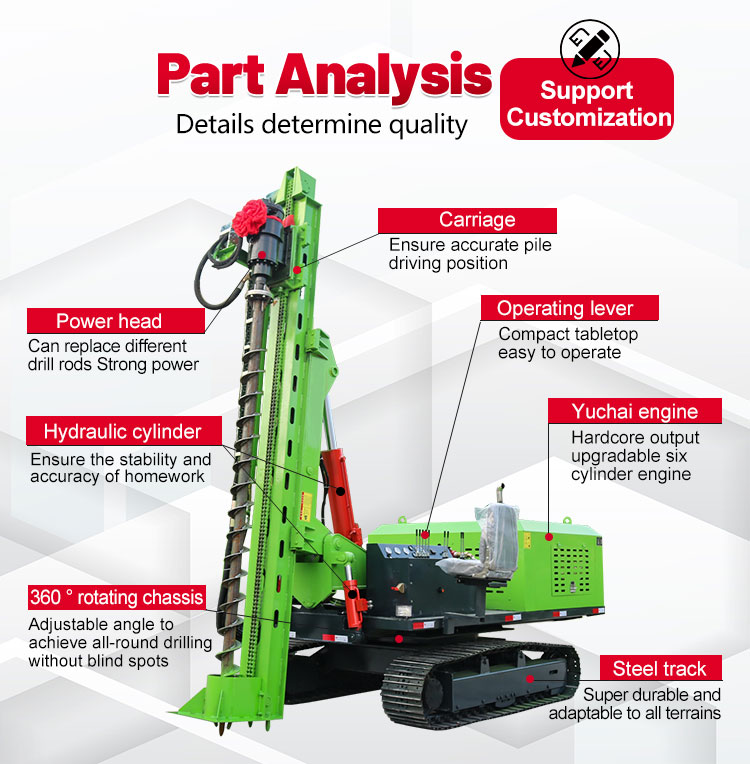

Component analysis: Details forge high-quality solar powered drilling machine
The solar powered drilling machine is meticulously detailed, with a power head that can be replaced with different drill rods and has strong power; Hydraulic cylinder ensures stable and precise operation; 360 ° rotating chassis enables all-round drilling without blind spots; The slide ensures precise pile driving position; The operating lever table is compact and easy to operate; Yuchai engine has a hardcore power and can be upgraded to six cylinders; The steel track is super durable and adaptable to various terrains, while the equipment supports customization, showcasing its quality advantages.

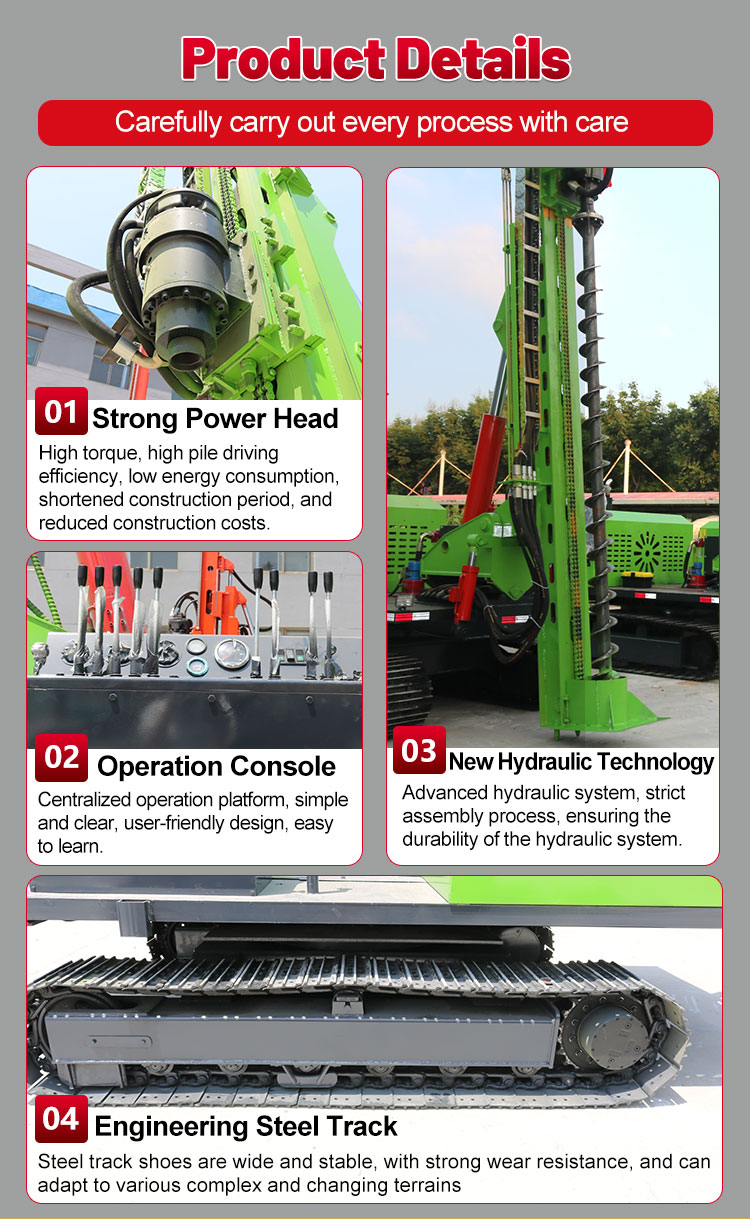

Product Detail Diagram Of Solar Hydraulic Pile Driver
1. Strong power head: high torque, high pile driving efficiency, low energy consumption, can shorten construction period and reduce construction costs.
2. Operation console: A centralized operation platform designed to be simple, clear, user-friendly, and easy to learn and operate.
3. New hydraulic technology: adopting advanced hydraulic systems and strict assembly processes to ensure the durability of the hydraulic system.
4. Engineering steel tracks: Solar pile driver piling machine track plates are wide and stable, with strong wear resistance, and can adapt to various complex and changing terrains.

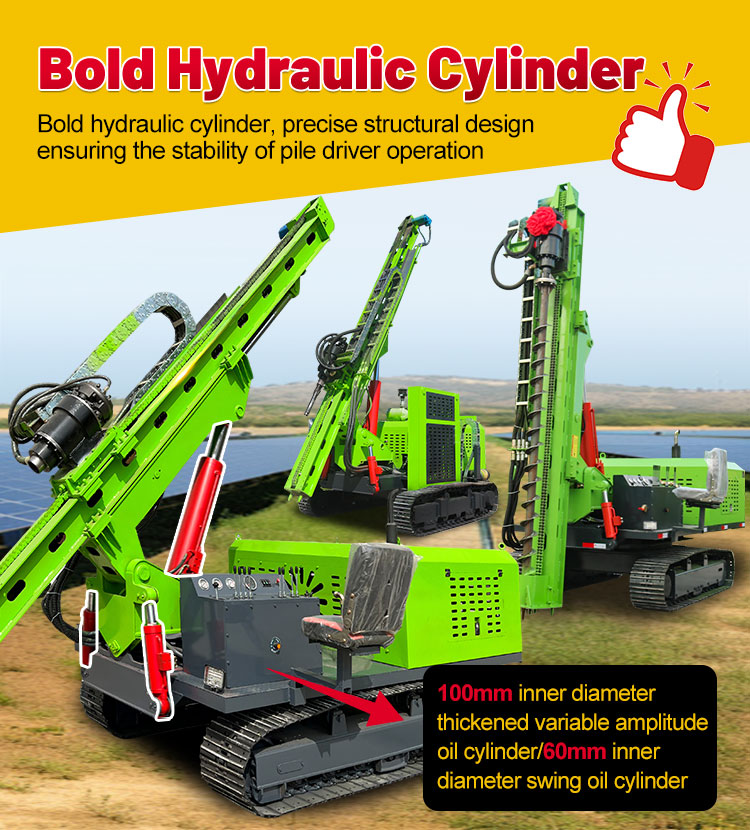

Bold Hydraulic Cylinder: ensuring stable and reliable operation of pile driver
The hydraulic hammer Crawler Solar Pile Driver is equipped with a thickened hydraulic cylinder, which ensures operational stability through precise structural design. Solar Farm Piling Machine uses a thickened variable amplitude oil cylinder with an inner diameter of 100mm and a swinging oil cylinder with an inner diameter of 60mm, combined with steel tracks, to demonstrate excellent power transmission and operational stability in scenarios such as photovoltaic power stations, providing reliable support for pile driving construction.

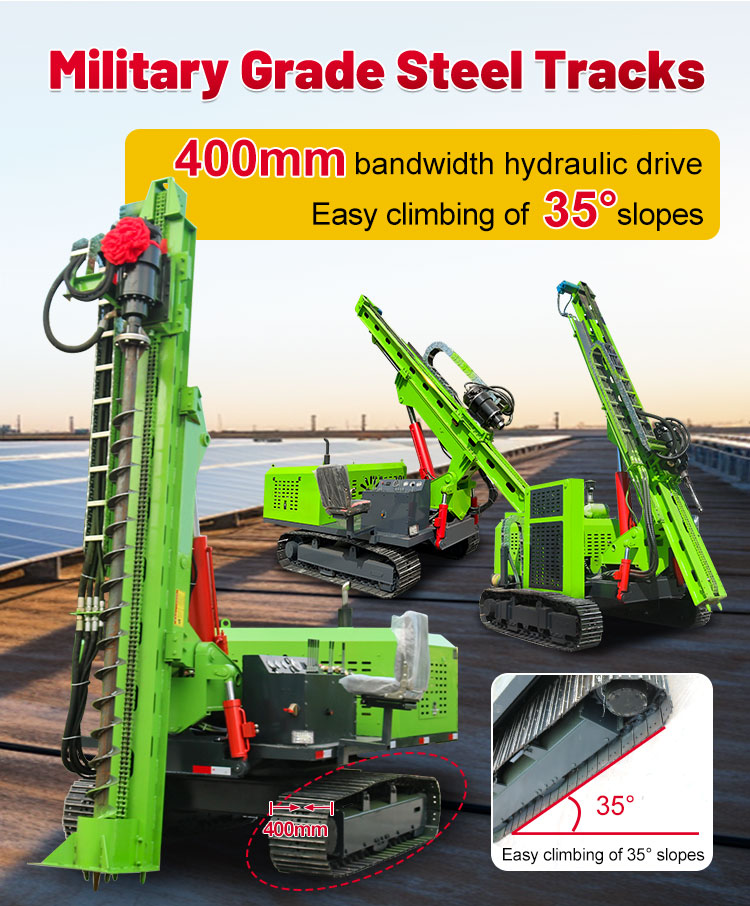

Military Grade Steel Tracks: helping equipment easily conquer complex terrains
The solar powered pile driverr is equipped with military grade steel tracks, with a bandwidth of 400mm, and is driven by hydraulic pressure, making it easy to climb 35 ° slopes. When operating in scenarios such as photovoltaic power plants, crawler mounted hydraulic solar pile drivercan drive stably and efficiently in complex terrains, demonstrating excellent off-road performance and operational reliability.
High Leg Photovoltaic Pile Driver
This newly upgraded high legged multi-function photovoltaic solar pile driver features a flexible and adjustable track design, with a single-sided track lift of up to 1.2 meters, making it easy to adapt to complex mountainous terrain and ensuring a smooth and efficient pile driving process. The leg structure is stable and reliable, making it very suitable for the construction of mountain photovoltaic projects.

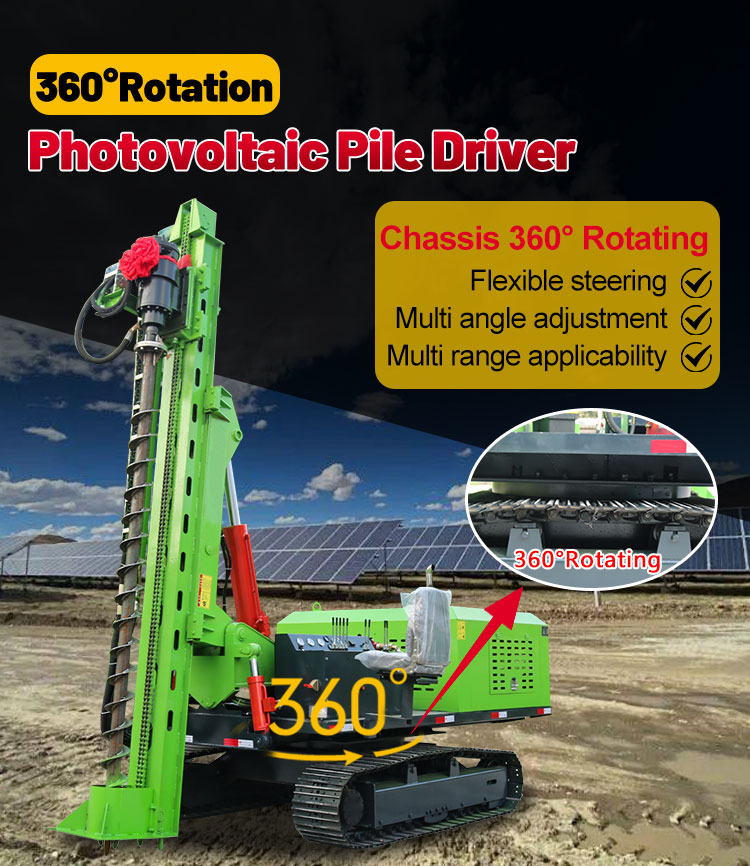

360 ° Rotating Photovoltaic Pile Driver
The chassis of the Hydraulic Rotary Photovoltaic Pile Driver can rotate 360 °, achieving flexible steering and multi angle adjustment, suitable for multi scene operations. During the construction of photovoltaic power plants, the operating angle can be easily adjusted to meet the needs of pile driving in different directions, and the operation is efficient and flexible.
Hydraulic Hammer Photovoltaic Pile Driving
This hydraulic hammer photovoltaic pile driver is easy to operate, with fast pile driving and the ability to drill holes from multiple angles. It can efficiently complete pile driving operations in photovoltaic power plant construction, providing a convenient and efficient solution for photovoltaic engineering infrastructure construction.

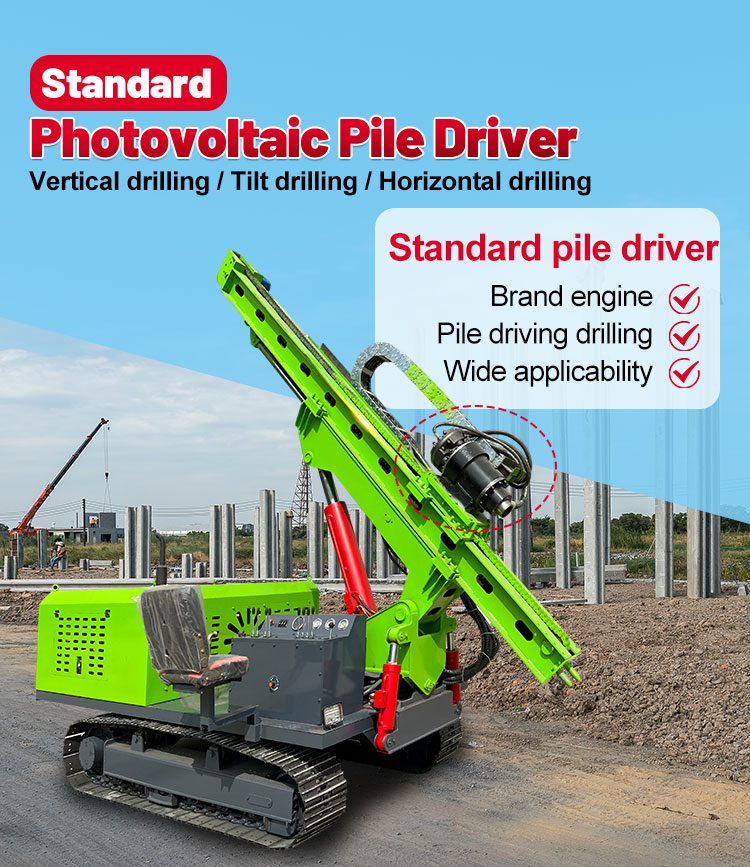

Standard Photovoltaic Pile Driver
This solar pile driving equipment is equipped with a branded engine, which can achieve vertical, inclined, and horizontal multi-mode drilling. The pile driving drilling function is complete and widely applicable, providing reliable support for basic construction in photovoltaic engineering and other scenarios.

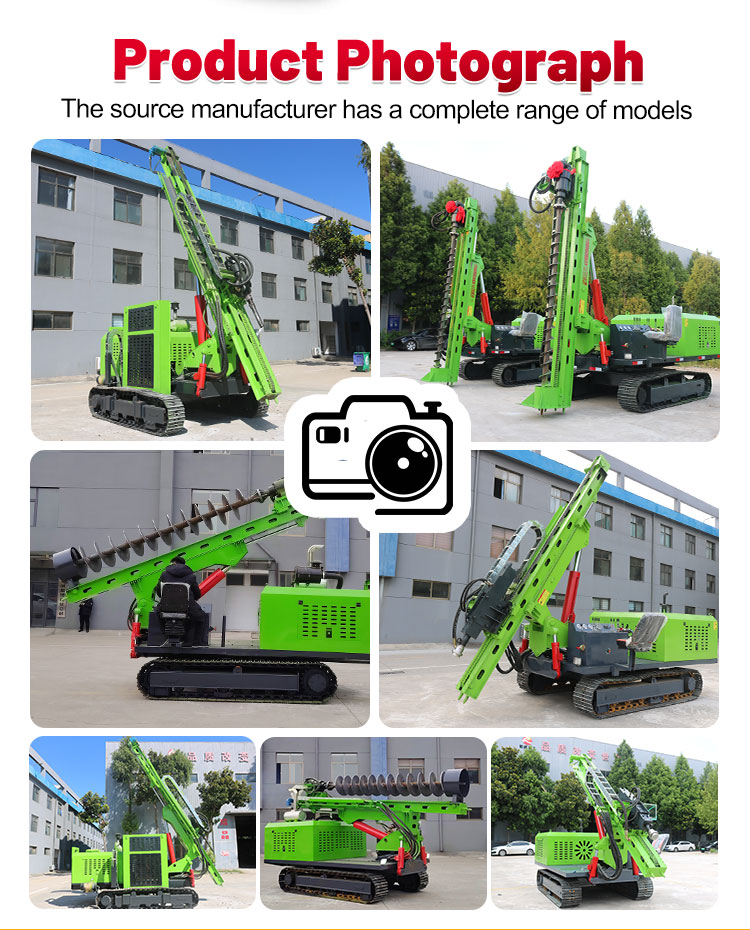

Product Photo Of Photovoltaic Pile Driver
Company Introduction
Hongrun Machinery was established in 2012 and has passed various certifications with multiple qualification certificates. It has over 10 years of experience in producing photovoltaic pile drivers. The company has around 200 employees and its products have been exported to over 100 countries, mainly producing equipment such as photovoltaic pile drivers.
Shipping and Transportation
Machine delivery, full logistics tracking to ensure safe transportation and timely delivery to customers.
