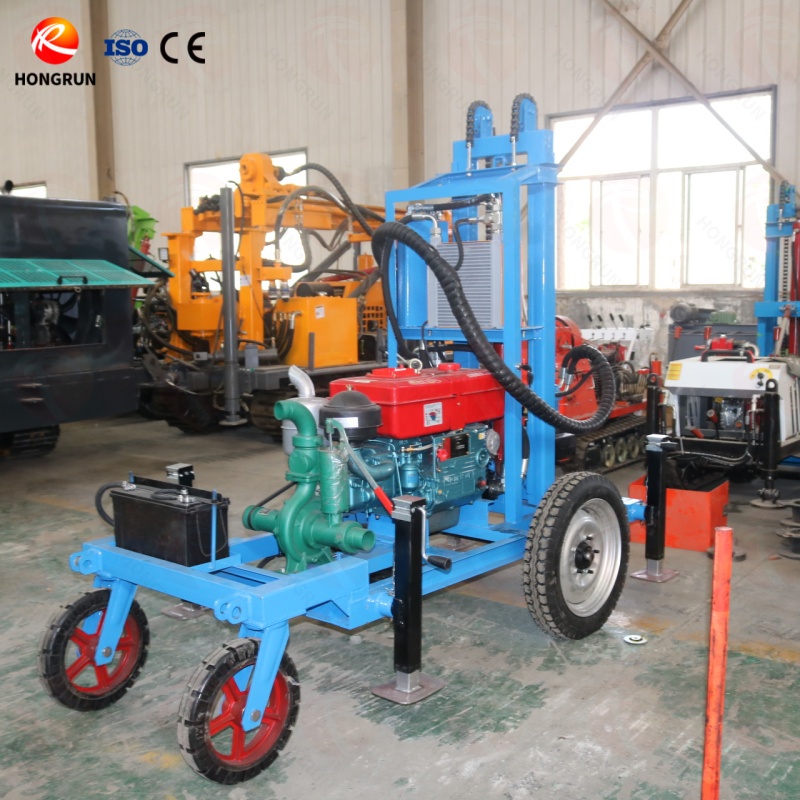

Small Water Drilling Machine

Diesel Hydraulic Drilling Rig Structure

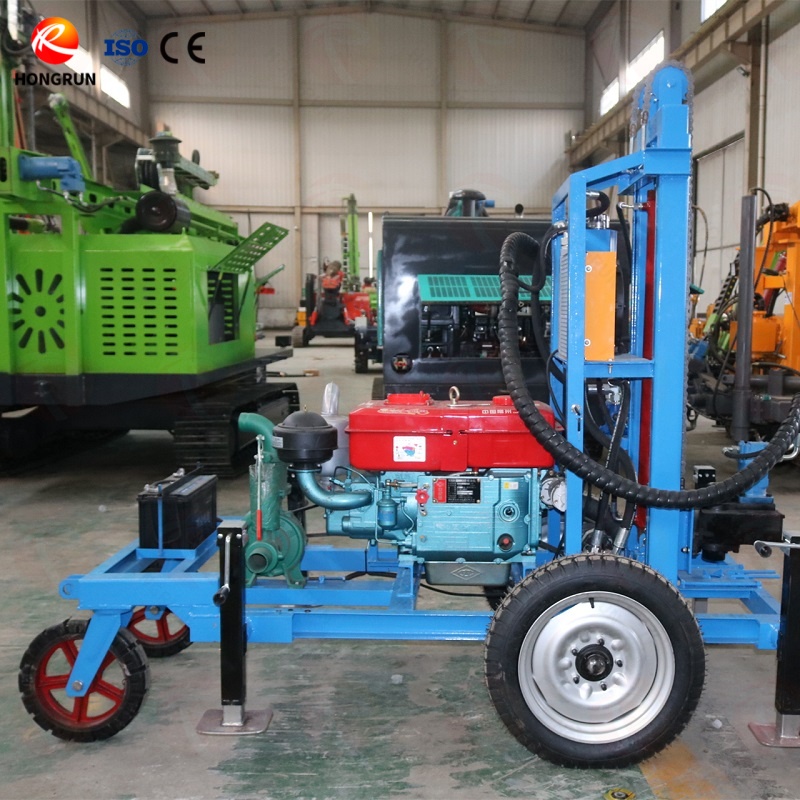

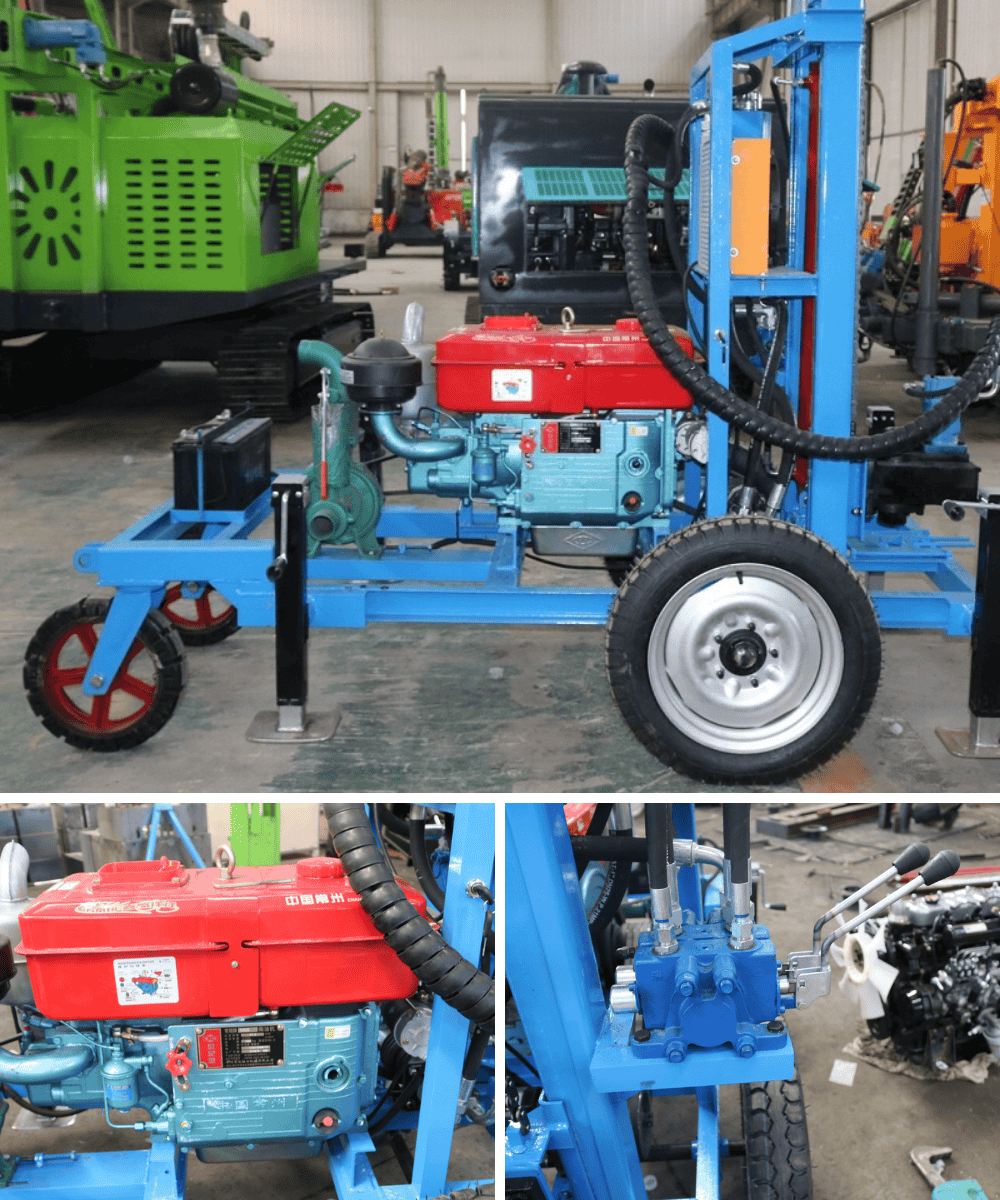

Diesel Engine Power Unit

1. Function: Hydraulic Water Well Rig equipped with diesel engine, Provides the main power source for the whole machine and drives the hydraulic pump group to work;

2. Features: Portable Water Well Drilling Machine often equipped with well-known brand engines (such as Yunnei, Yuchai, Weichai, etc.), with strong power, low fuel consumption, and good starting performance;

3. Auxiliary configuration: Desert Water Well Rig Contains fuel tank, cooling system, exhaust system, etc., suitable for high temperature, plateau and other harsh working conditions.

Small Water Drilling Machine Parameter Table

If needed, you can provide specific parameters and contact me anytime. I will tailor it for your working conditions.

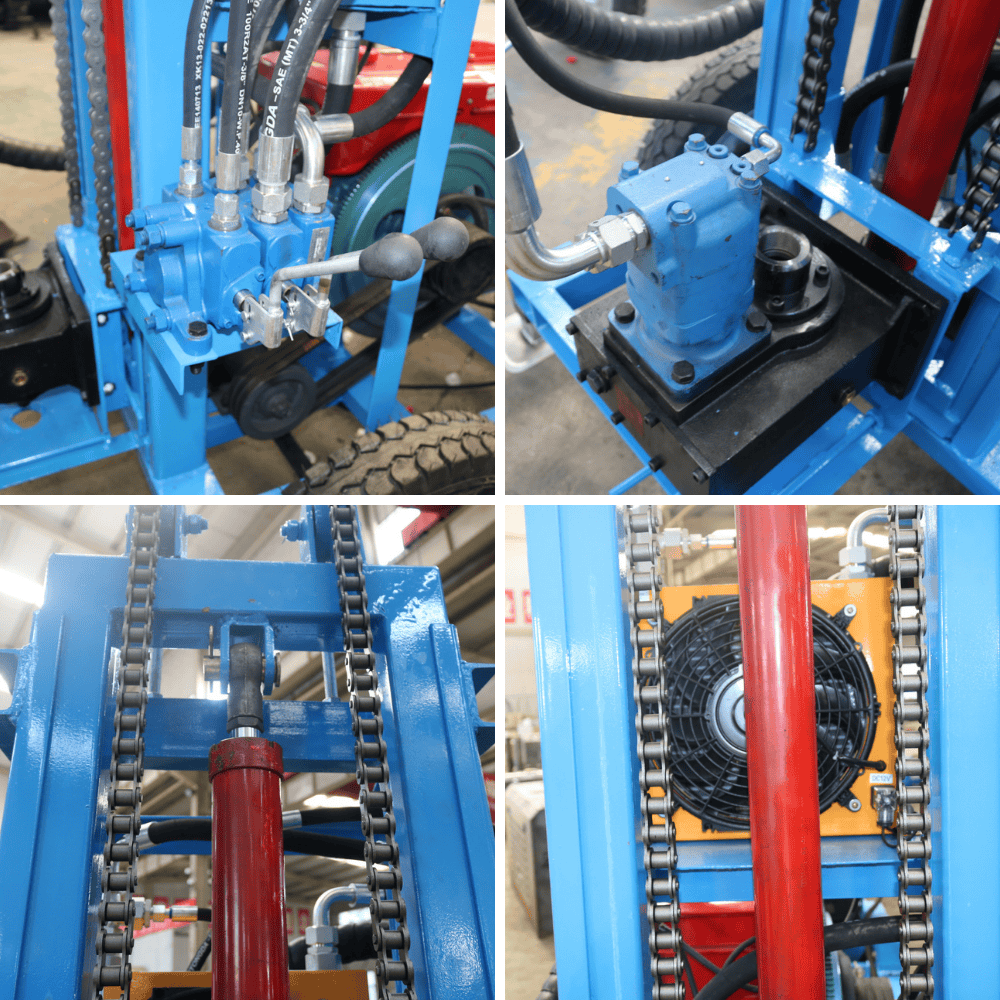

Portable Well Drilling Machine Hydraulic Organization System

1.Equipment composition: Hydraulic Water Well Drilling Rig equipped hydraulic pump, multi-way valve, hydraulic cylinder, pipeline system, cooler.

2.Equipment function: control propulsion, lifting, rotation, walking, leg adjustment and other actions.

3.Product advantages: Rapid Deployment Water Well Rig precise operation, quick response, automatic leveling and constant pressure drilling.

4.Optional configuration: configure hydraulic oil cooler to prevent system overheating.

Diesel Hydraulic Drilling Rig Movement Mode

1.Crawler Type Water Well Drilling Rig: suitable for rugged mountains and muddy roads, strong off-road capability;

2.Vehicle Mounted Water Well Drilling Rig: can be installed on the chassis of light trucks/engineering vehicles, convenient for long-distance transfer;

3.Towed Water Well Drilling Rig: trailer-towing and moving, economical and practical;

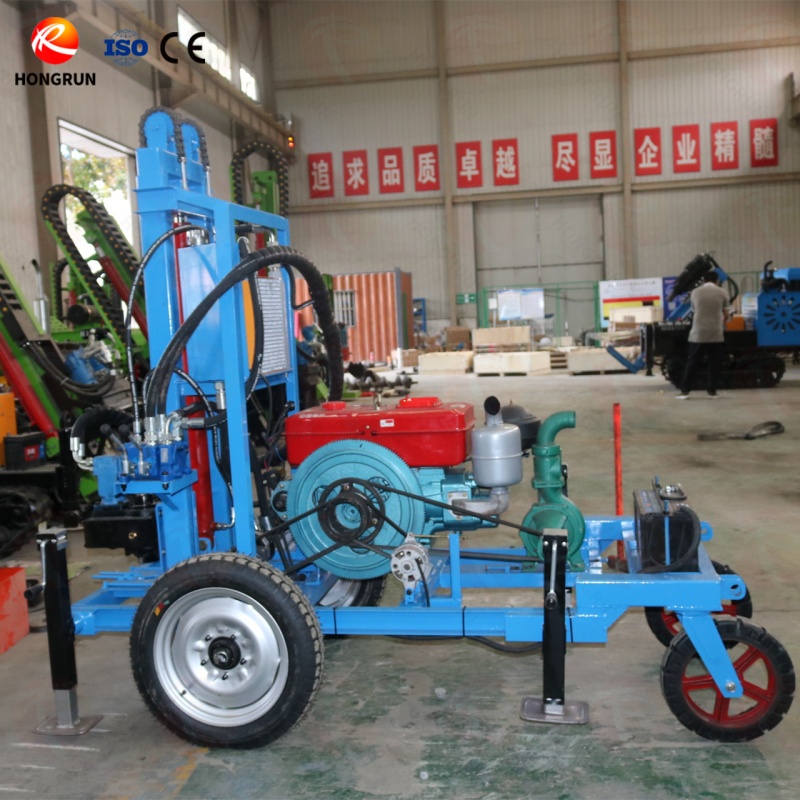

Portable Well Drilling Machine Equipment Structure

1.Main frame: integral steel structure welding, strong bearing capacity, impact resistance.

2.Drilling tower lifting mechanism: hydraulic drive telescopic, easy to transport and quickly put into place.

3.Guide rail system: vertical drilling tools, reduce drilling deviation, improve drilling quality.

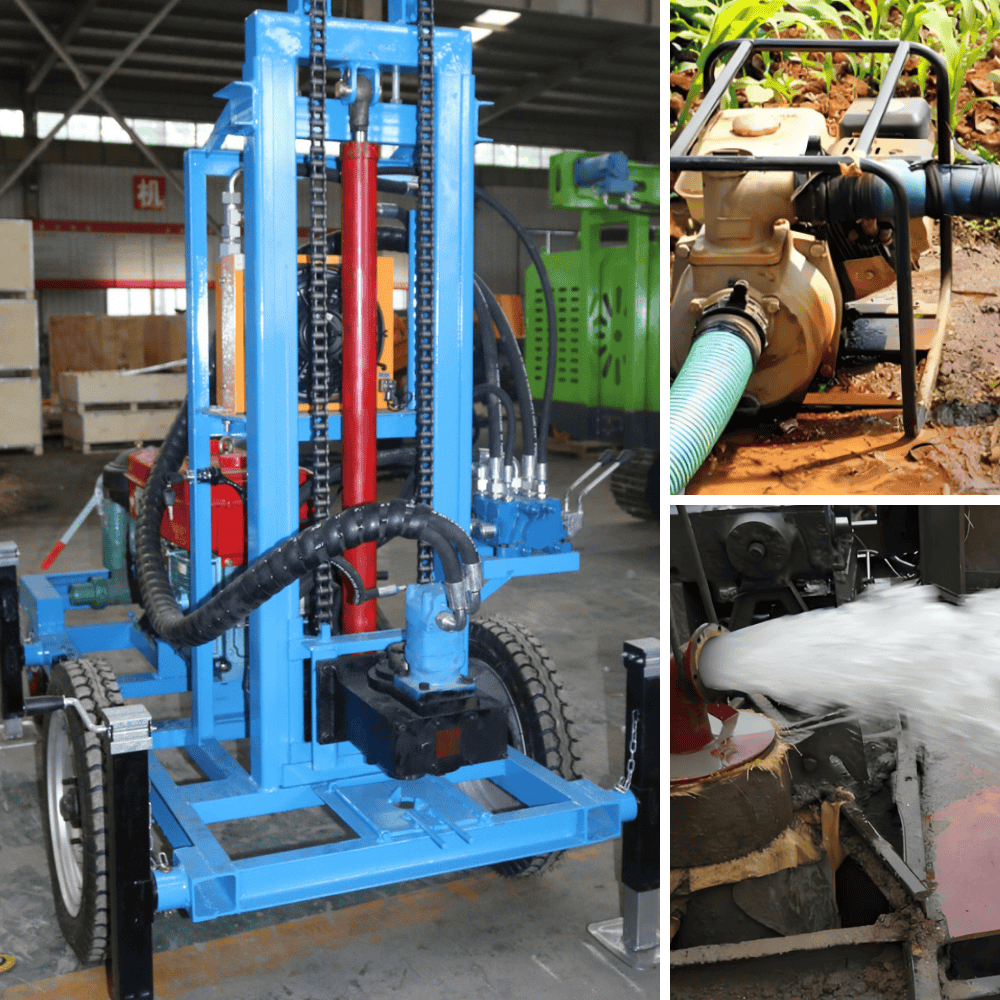

Application Scenarios

1.Farm irrigation well drilling project;Agricultural Irrigation Well Drilling Rig  suitable for the drilling of farm water source wells in arid areas. Diesel hydraulic well drilling machine does not require electricity in rural areas.

2.Construction of engineering water wells; Construction Site Water Well Drilling providing water sources for mixing plants, construction equipment, and maintenance systems at construction sites, and temporary water intake in large infrastructure projects;

3.Construction of drinking water wells in plateau areas; Desert Water Well Drilling Rig suitable for pastoral areas, deserts, Gobi without water supply and power resources, to solve the drinking water problem of residents or livestock.

4.Regionaldistributed well-drilling projects; Crawler Drilling Rig suitable for large-scale engineering projects with complex terrain and inconvenient transportation, such as well-drilling for water supply projects and water conservation projects in mountainous areas;

5.Infrastructure projects; Portable Water Well Drilling Machine provide temporary construction wells for infrastructure such as highways, railway tunnels, bridge water diversion, etc.

CE Certified Small Water Drilling Machine Supplier Export-exclusive Service

1.Export packaging: wooden box/iron box packaging;

2.Support certification: CE, ISO, CO, Form E, SASO, etc.;

3.Accessory packing list and operation manual.

FAQ

Q1; What is a diesel hydraulic well drilling rig?

 A1; A diesel engine is used as the power, and the equipment drives the drill bit through the hydraulic system to perform well drilling operations. It is used for water well drilling, geological exploration, groundwater level measurement and other work, and has the characteristics of high efficiency, stability, and strong adaptability.

Q2; What are the main features of the diesel hydraulic well drilling rig?

 A2; High-efficiency power system: diesel engine, providing strong power, adapting to a variety of geological conditions.

1.Hydraulic drive: The hydraulic system is used for drilling, providing stable and adjustable drilling force, and adapting to strata of different hardness.

2.Easy to operate: Equipped with a hydraulic operating system, the operating interface is clear and intuitive, and the operation process is simplified.

3.Strong flexibility: Suitable for various geological conditions, including soft soil, hard rock, sand and gravel layers, etc.

4.Durability: The equipment is designed to be sturdy, adapt to long-term and harsh working environments, and has strong wear resistance and high temperature resistance.

Q3; What engineering projects are suitable for diesel hydraulic well drilling rigs?

1. A3;Water well drilling: drilling of wells for farmland irrigation, drinking water sources, and industrial water.

2.Geological exploration: mineral resources, groundwater, soil layer exploration and other projects.

3.Underground engineering: underground pipeline installation, foundation reinforcement, etc., operations involving underground engineering.

4.Environmental protection projects: sampling of underground contaminated soil layers, testing of soil and water quality.

5.Infrastructure construction: especially foundation surveys in construction projects such as roads and bridges.

Q4;How deep can this well drilling machine drill?

 A4;The drilling depth of a Diesel Hydraulic Well Drilling Machine is usually between 30 meters and 300 meters, depending on the equipment model, drilling tools, and geological conditions. In soft soil layers, the drilling depth is usually shallow, while in hard rock layers or gravel layers, the drilling depth may be affected.
