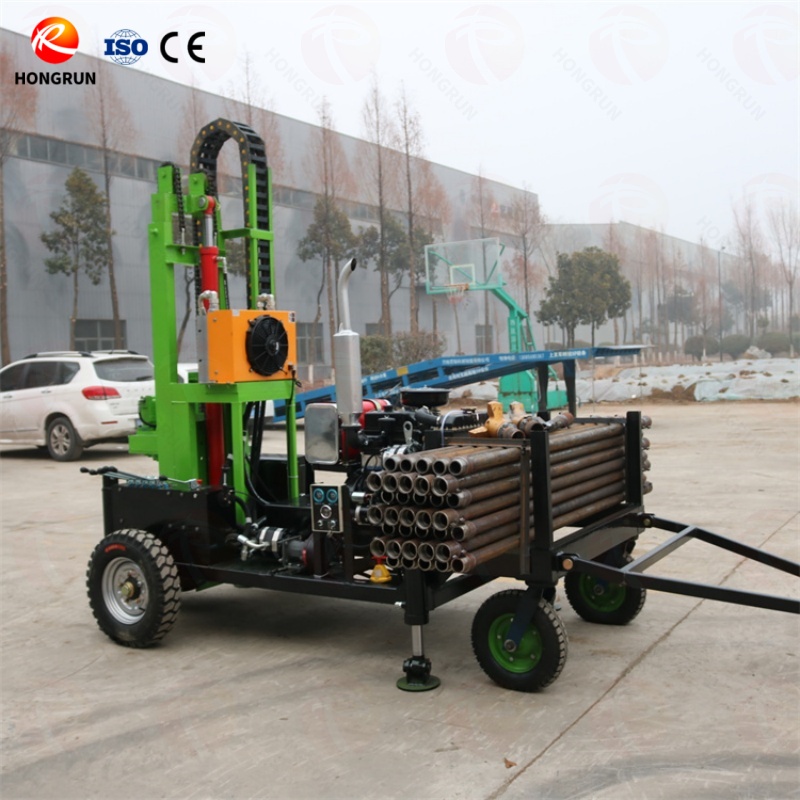

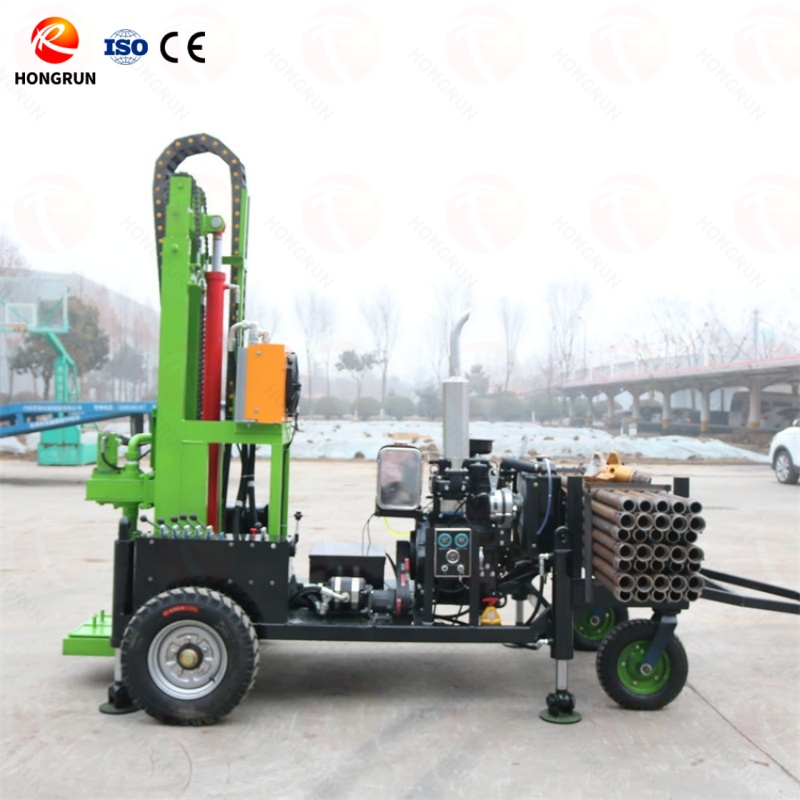

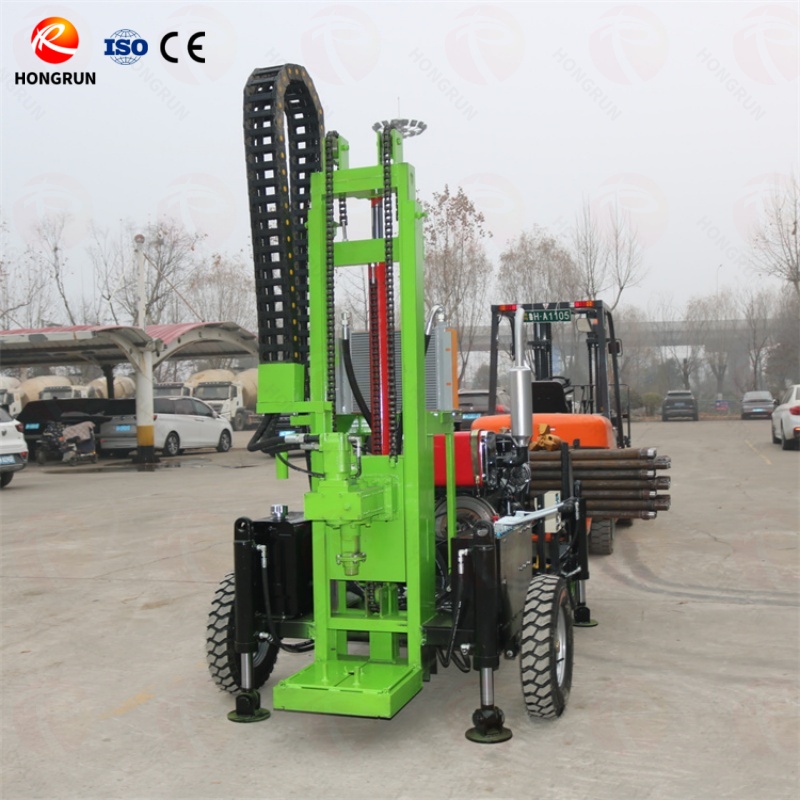

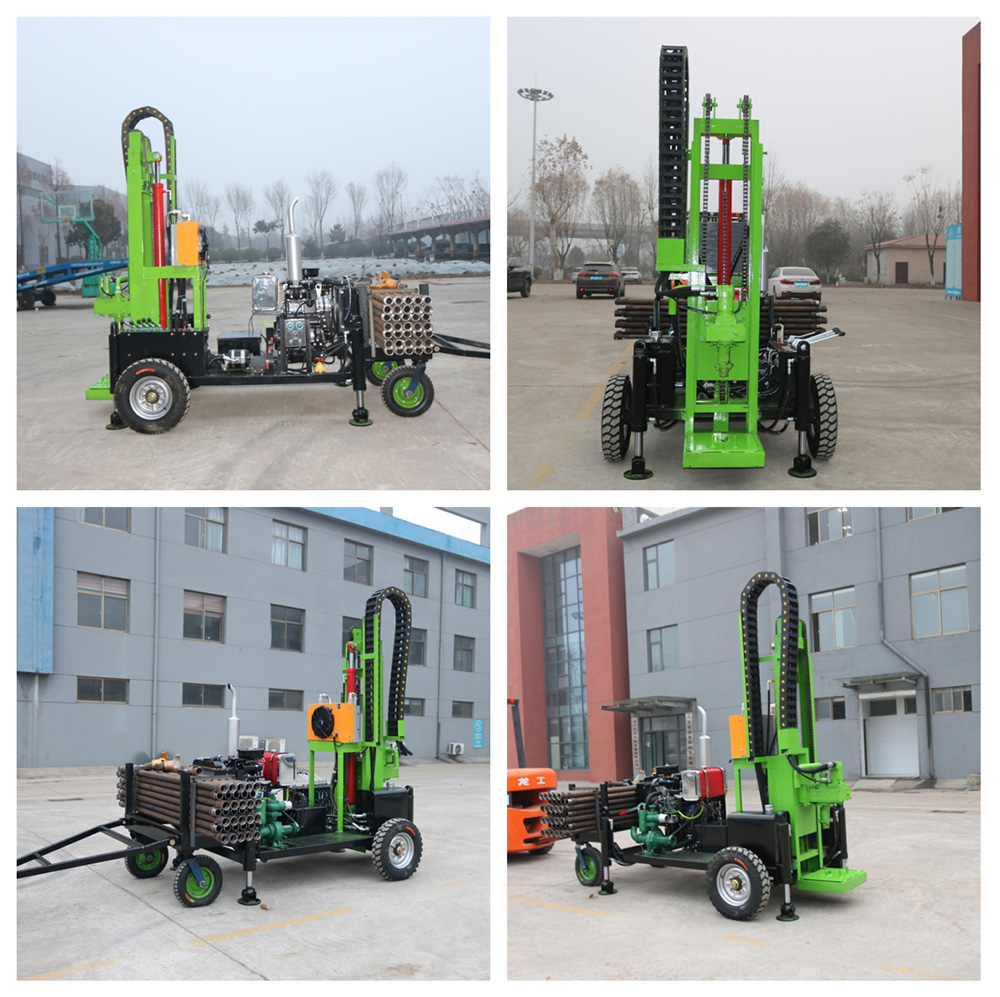

Water Well Drilling Rig
The water well drilling rig is equipped with a high-power diesel engine, which has strong power; it adopts wheeled traction, which is convenient to move and adapt to various road conditions; the structure of the machine body is sturdy, which can withstand high strength and long-term operation.
The traction design of water well drilling rig has strong mobility and short transition time; the anti-skid rubber tires can adapt to mud, slopes and other complex terrain; the hydraulic outrigger system is structurally stable, and the modular design is easy to maintain.
The water well drilling rig has high drilling efficiency and effectively shortens the construction period; it is convenient for transition and reduces the time and labor cost; meanwhile, the high stability and reliability reduces the risk of project delay caused by equipment failure and ensures the construction progress and quality.
Product Details

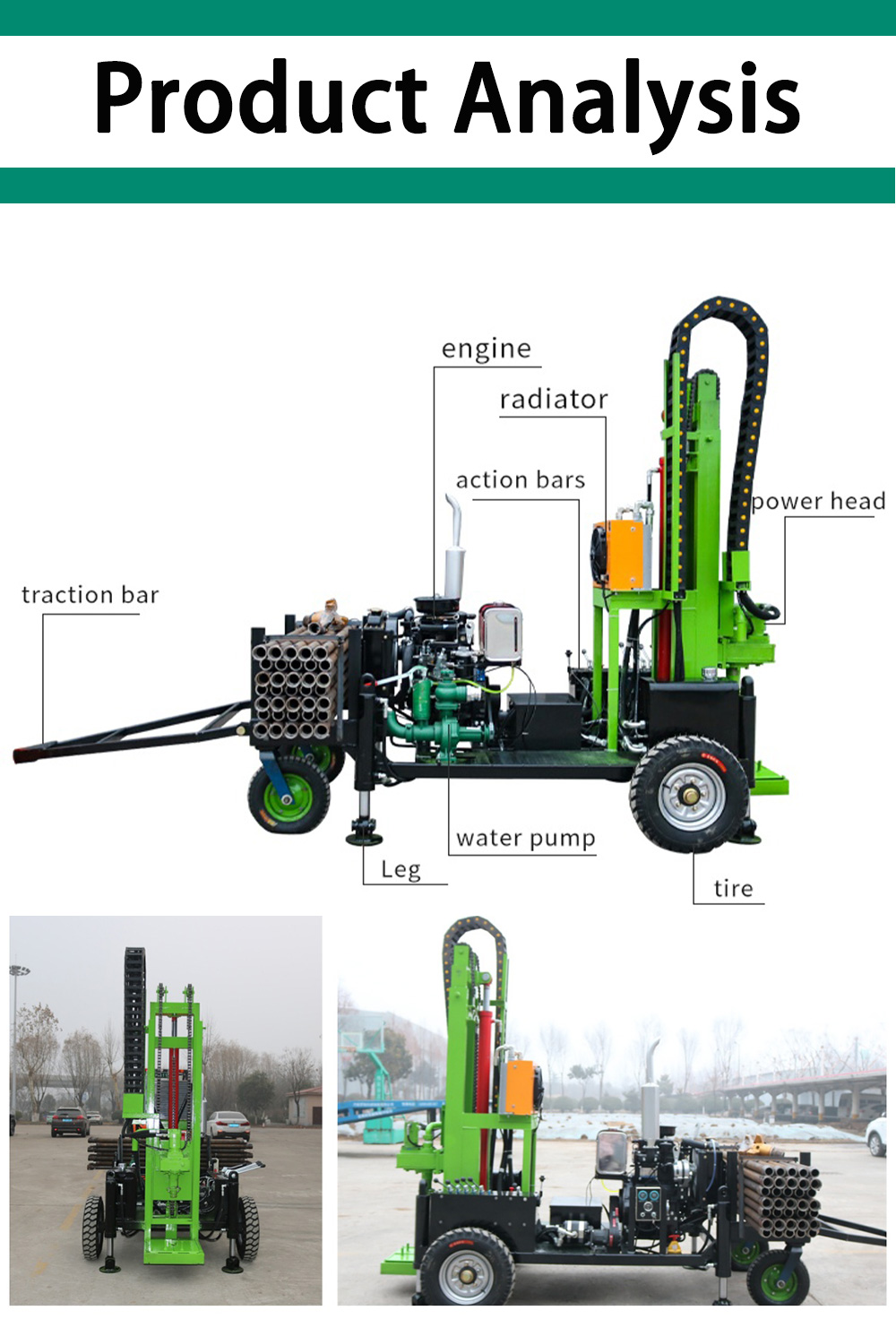

Robust Performance and Flexible Design

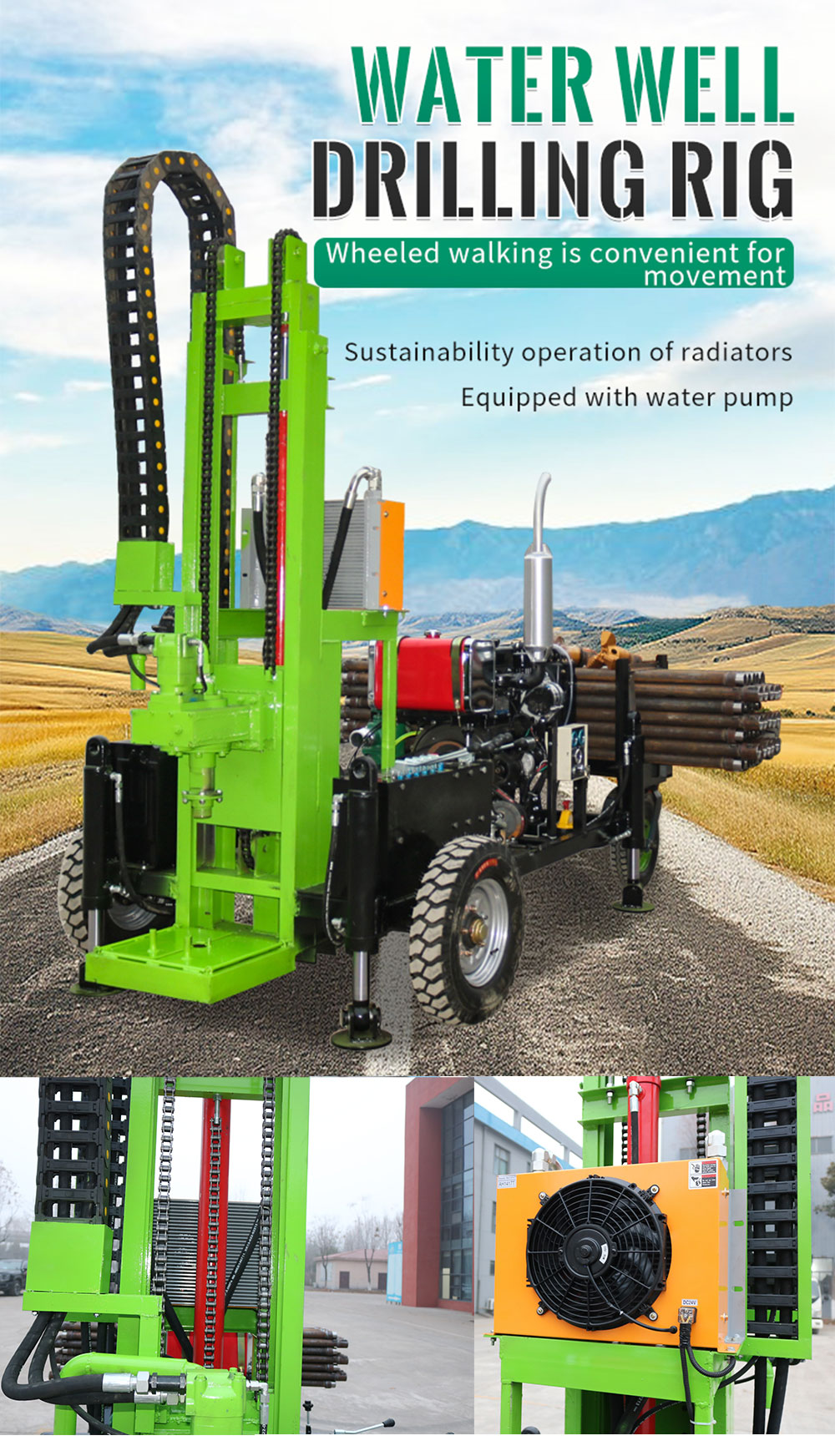

Water well drilling rig adopts wheeled walking design, flexible movement, quick and short distance transfer, greatly improving construction efficiency; Equipped with high-power diesel engine, strong power, stable structure, adapt to complex terrain operation, meet the requirements of various working conditions.

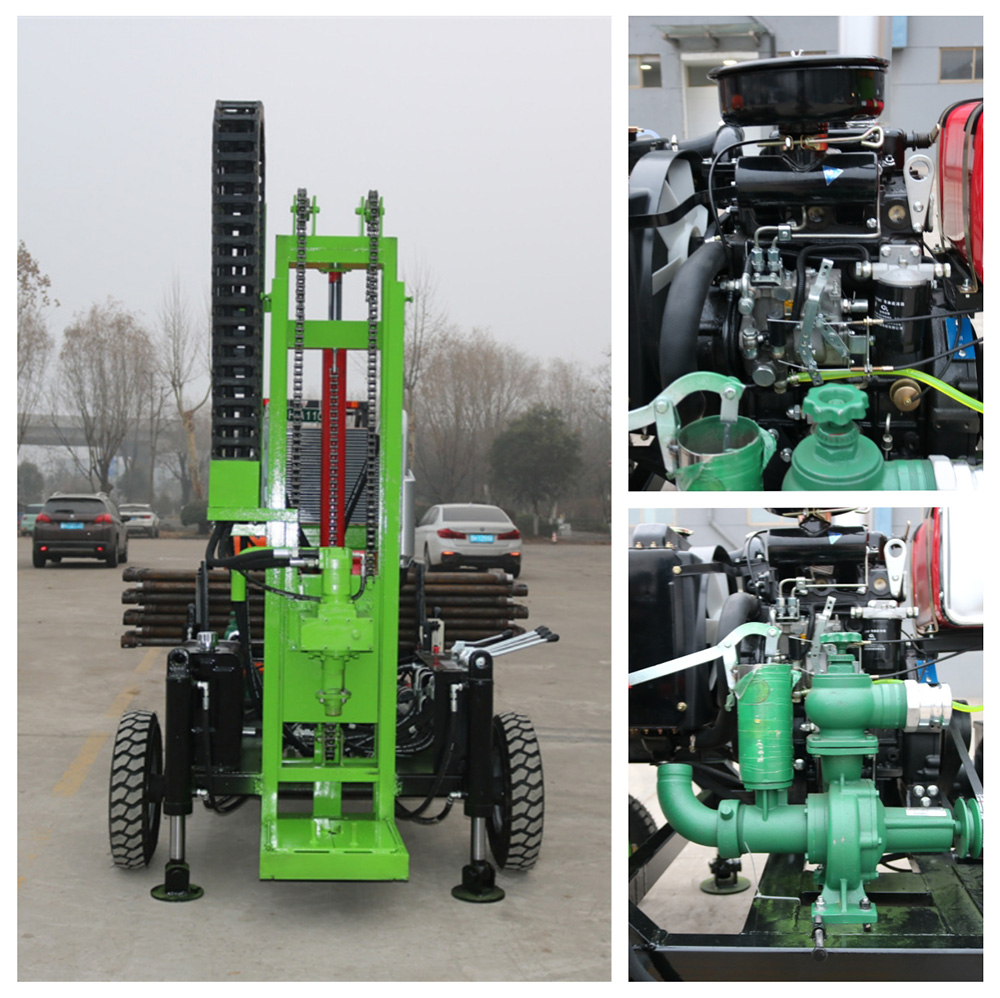

The water well drilling rig adopts an optimized wheeled structure, with a low center of gravity, strong stability, and safe and reliable operation; Equipped with a convenient one click electric start system, the operation is simple, and a simple button can quickly start efficient work.
Water well drilling rig equipped with high-performance hydraulic cylinder system, smooth and accurate operation, safe and reliable construction; We also specially equipped with adjustable drawbar, making the transfer of equipment more convenient and flexible, easy to adapt to various working environment requirements.

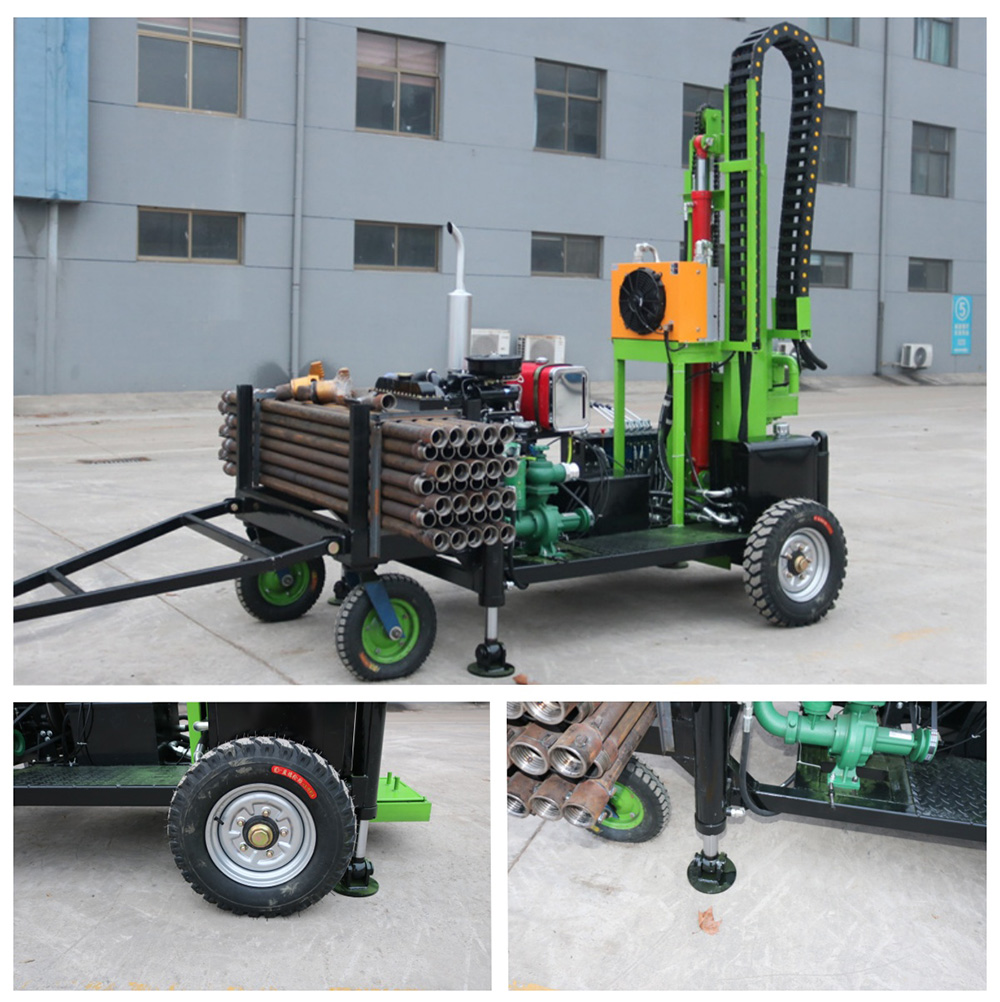

Water well drilling rig adopts anti-slip and wear-resistant rubber tires with strong grip, effectively improving the stability of drilling operations; Equipped with 4 hydraulic legs, the height can be adjusted independently, to ensure the stability of the rig in various terrain conditions, to provide a double guarantee for construction safety.
Parameter Table
Engine | Diesel engine | Power | 35HP | Hydraulic system | Two lifting cylinder |
Dril pipe diameter | 50/76/89/102 mm | Drilling diameter | 50-300mm | Drill pipe length | 1/1.5/2 m |
Drilling depth | 130-200m | Slewing speed | 120-150 rpm | Starting method | One click electric start |
Drilling angle | 45°-90° | Crawler walking speed | 2.5 km/h | Rotation torque | 5500-6500 N.M |
Effective stroke | 2m | Water pump | 120L/min | Hydraulic Oil pump | 40/40 dual pump |
Hydraulic support leg | Four high-strength | Size | 2.38*1.2*2.6m | Weight | 1.3 T |
Can provide customized services！ | |||||

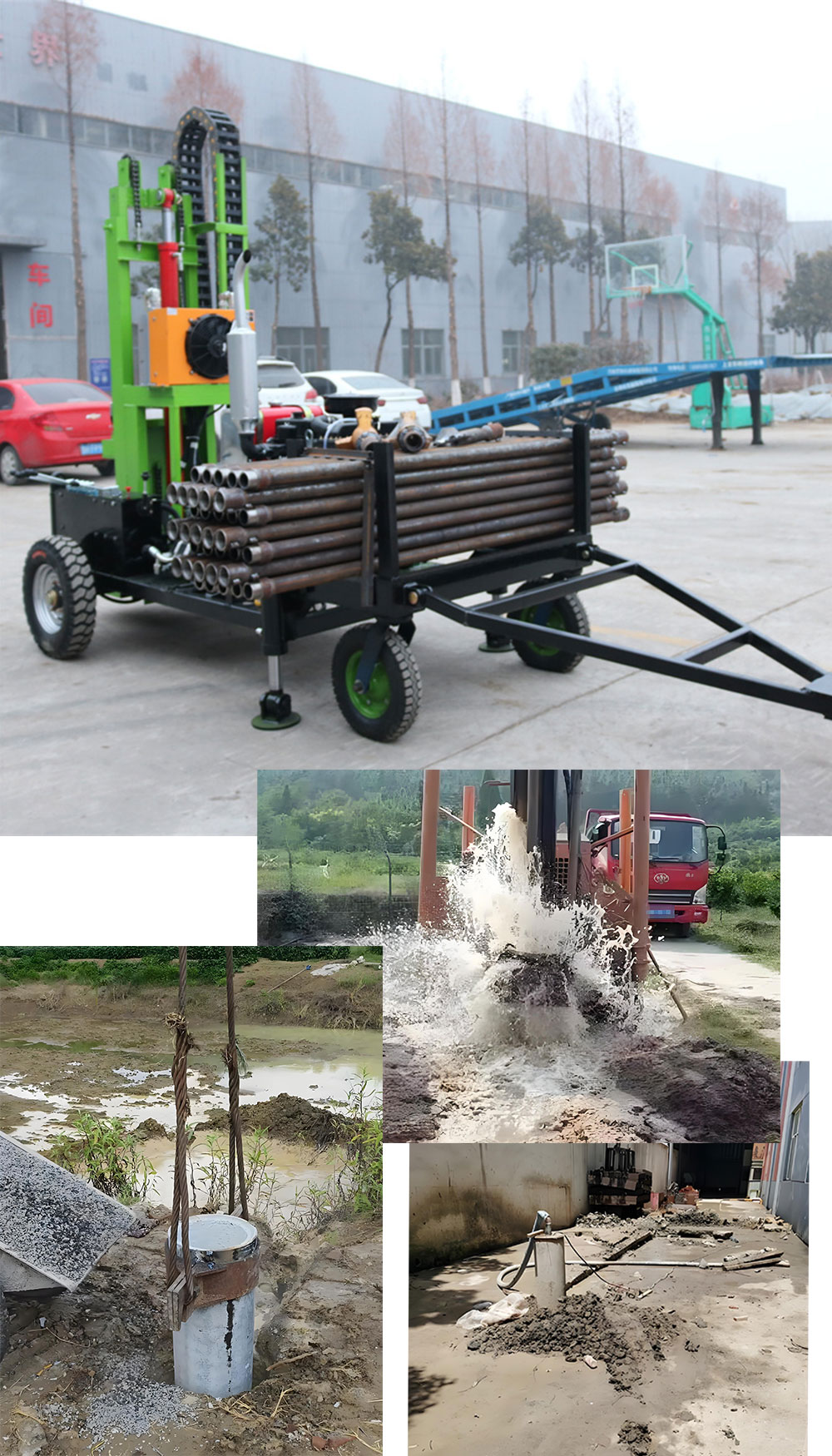

Wide Applications and Efficient Output
The water well drilling rig is suitable for drilling water wells in civil water supply, agricultural irrigation, industrial water use and other fields, and can provide efficient and convenient water well construction services.
This water well drilling rig has a drilling diameter adjustment range of 50 ~ 300 mm and a maximum drilling depth of 250 meters to meet the needs of different working conditions. The rig is equipped with two lifting cylinders, and the power output is continuous and stable, which can realize rapid drilling, reduce construction costs and significantly shorten the construction period.
The water well drilling rig is equipped with a two-cylinder turbocharged engine, which continuously outputs powerful power to ensure efficient operation of the drilling rig. At the same time, the drilling rig is equipped with mud pump system, which has high mud circulation efficiency, effectively reduces the energy consumption of the equipment, and realizes the green operation mode.
Professional Manufacturing and Global Recognition
Hongrun Machinery has been deep drilling rig research and development for more than ten years, established a professional technical team, and built a mature R & D production system. Strictly control every link from raw material procurement to finished product testing; The rig has excellent performance and stable quality, which not only sells well in China, but also exported to many countries and regions overseas, and has won wide recognition and trust from customers around the world.
Always customer-centric, we can customize our water well drilling rig to your individual requirements in terms of functionality, configuration and more, ensuring that the rig is precisely adapted to your construction scenario.
We can provide you with an online viewing service, a 360-degree display of the construction and technology of a drilling machine for water. Of course, if you want to experience the performance of the equipment for yourself, please come to our factory for field testing. With professional technical support and enthusiastic service, we ensure that you have a comprehensive understanding of the equipment.
